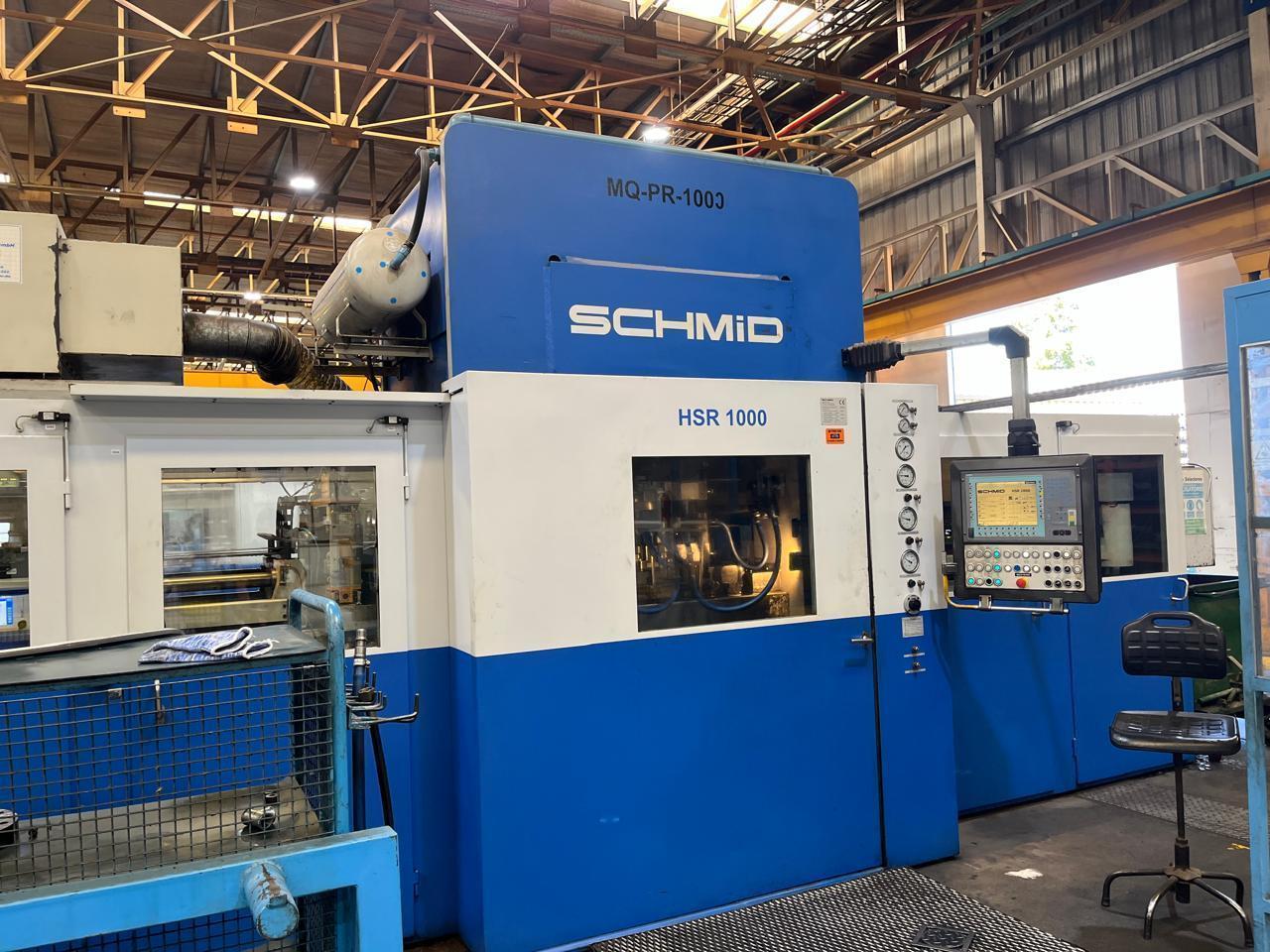

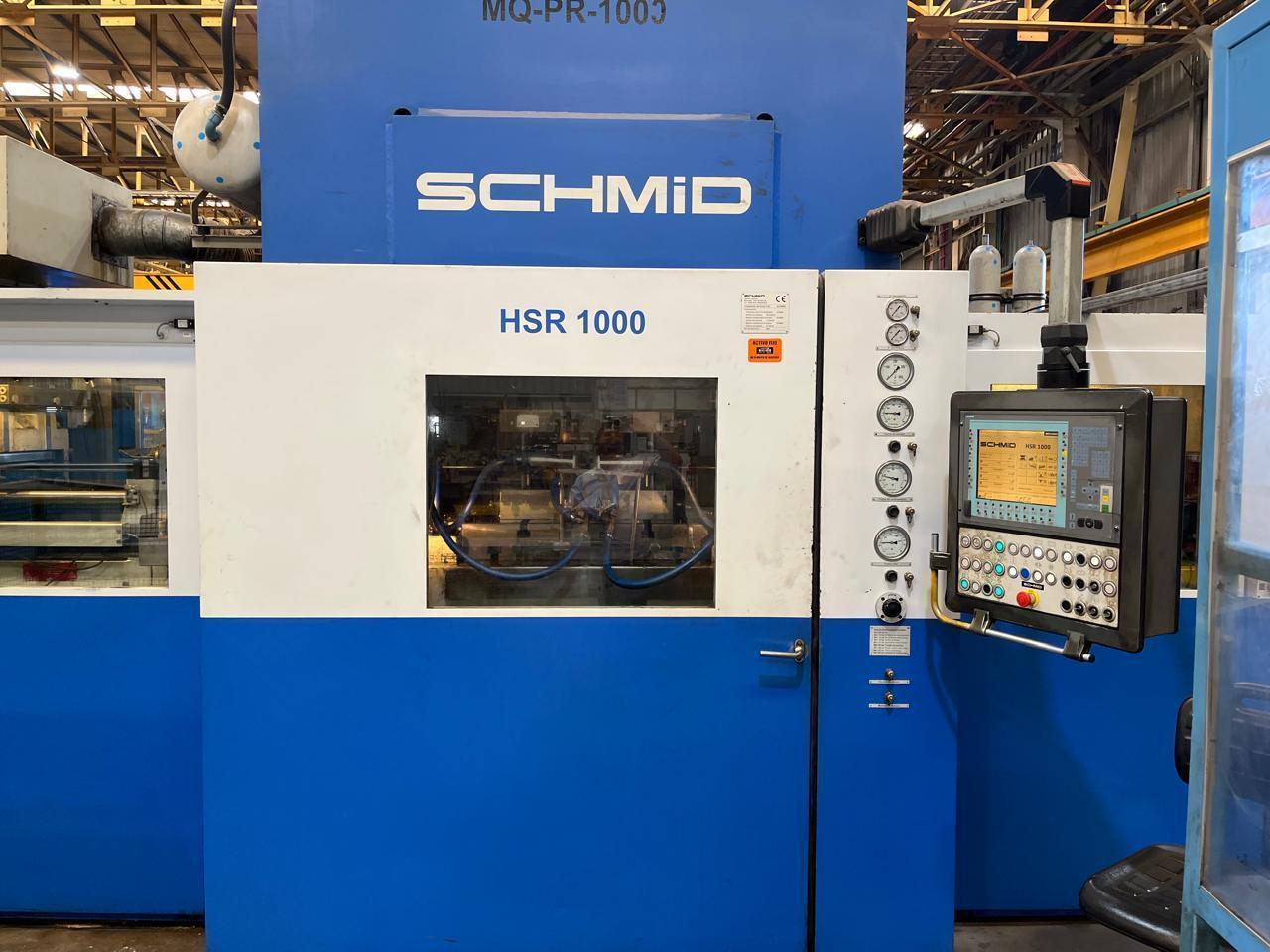

2007 Schmid 1000 Ton Fine Blanking Press Line For Sale

Manufacturer

SCHMID

Category

Presses

Type

PRESSES, FINE BLANKING

Stock

MD1000E

Model

HSR 1000 Ecoline

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Tonnage - 1000 tons
CNC Control - yes
Type of CNC Control - Siemens
Table Dimensions - 35.43 in x 35.43 in
Maximum Tool Height - 16.54 in
Minimum Tool Height - 12.60 in
Total Force - 100-10000KN
Stamping Force - 50-4000KN
Counter Force - 50-1600KN
Cut Speed - 0.3937–1.5748 in/sec
Pieces a Minute - 8-18 Pieces
Cut Stroke - 0–1.18 in
Total Stroke - 0.079–8.071 in
Thickness Range - 0.079–0.472 in
Width Range: - 3.15–20.47 in
Coil OD Range - 31.50–68.90 in
Coil ID - 19.69 in
Max Coil Weight - 13,228 lbs


Equipped With:
  • Piston Stop: CNC Type Automatic Hydraulic Positioning
  • Automatic Hydraulic Tool Clamping
  • V-Ring: Hydraulic Regulation
  • Tool Verification Protection (By Pressure Editable in Operator Panel)
  • Tool Protection Inside the Cut
  • External Tool Protection

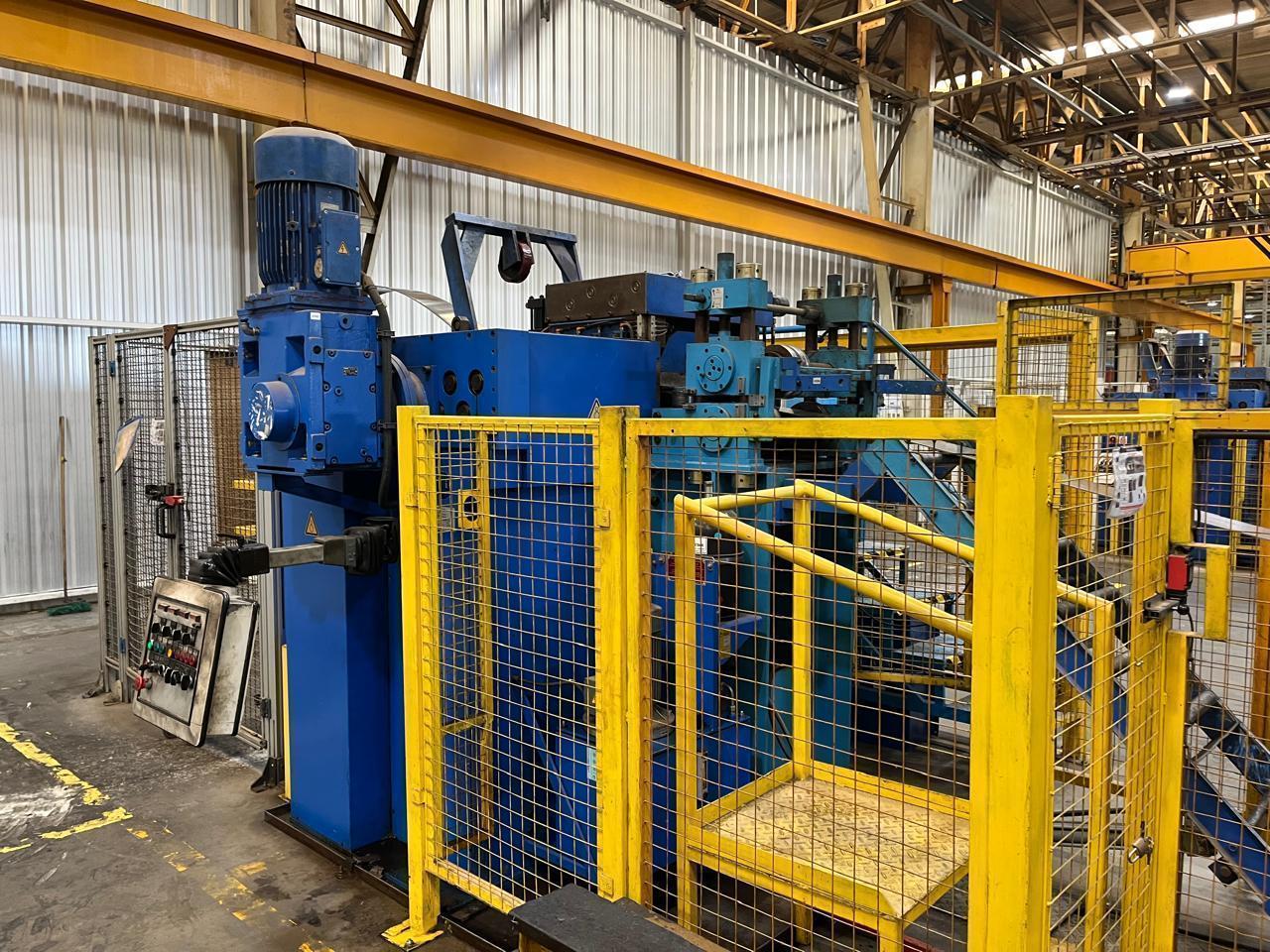

  • Automatic Loop with Ultrasonic Sensor
  • Siemens PLC and Controls
