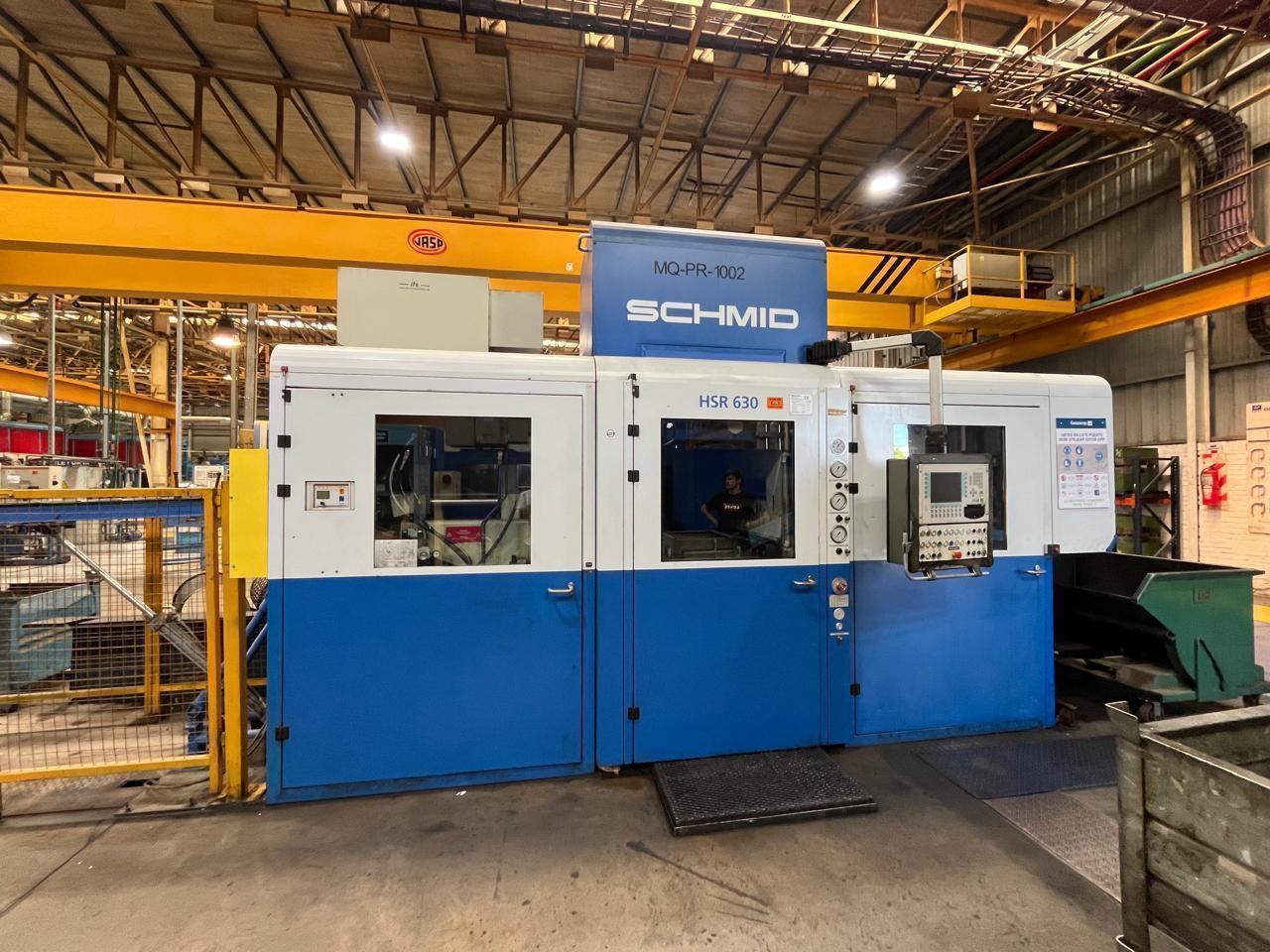

2003 630 Ton Schmid Fine Blanking Press Line

Manufacturer

SCHMID

Category

Presses

Type

PRESSES, BLANKING

Stock

MD630E

Model

HSR 630 Ecoline

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Tonnage - 630 tons
CNC Control - yes
Type of CNC Control - Siemens
Maximum Tool Height - 420 millimeters
Minimum Tool Height - 320 millimeters
Machine Table Dimensions - 650 millimeters
Total Force - 50-6300KN
Stamping Force - 50-3200KN
Counter Force - 40-1600KN
Cut Speed - 11-44mm/sec
Pieces a Minute - 12-27 Pieces
Cut Stroke - 0-30mm
Total Stroke - 2mm-205mm


Coil Feed Line:
Thickness Range: 1mm-10mm
Width Range: 15mm-300mm
Coil OD Range: 800mm-1600mm
Coil ID: 500mm
Max Coil Weight: 4000kg

Equipped With:
Piston Stop: CNC Type Automatic Hydraulic Positioning
Automatic Hydraulic Tool Clamping
V-Ring: Hydraulic Regulation
Tool Verification Protection (By Pressure from Operator's Panel)
External Tool Protection
Automatic Loop with Ultrasonic Sensor
Siemens PLC and Controls
