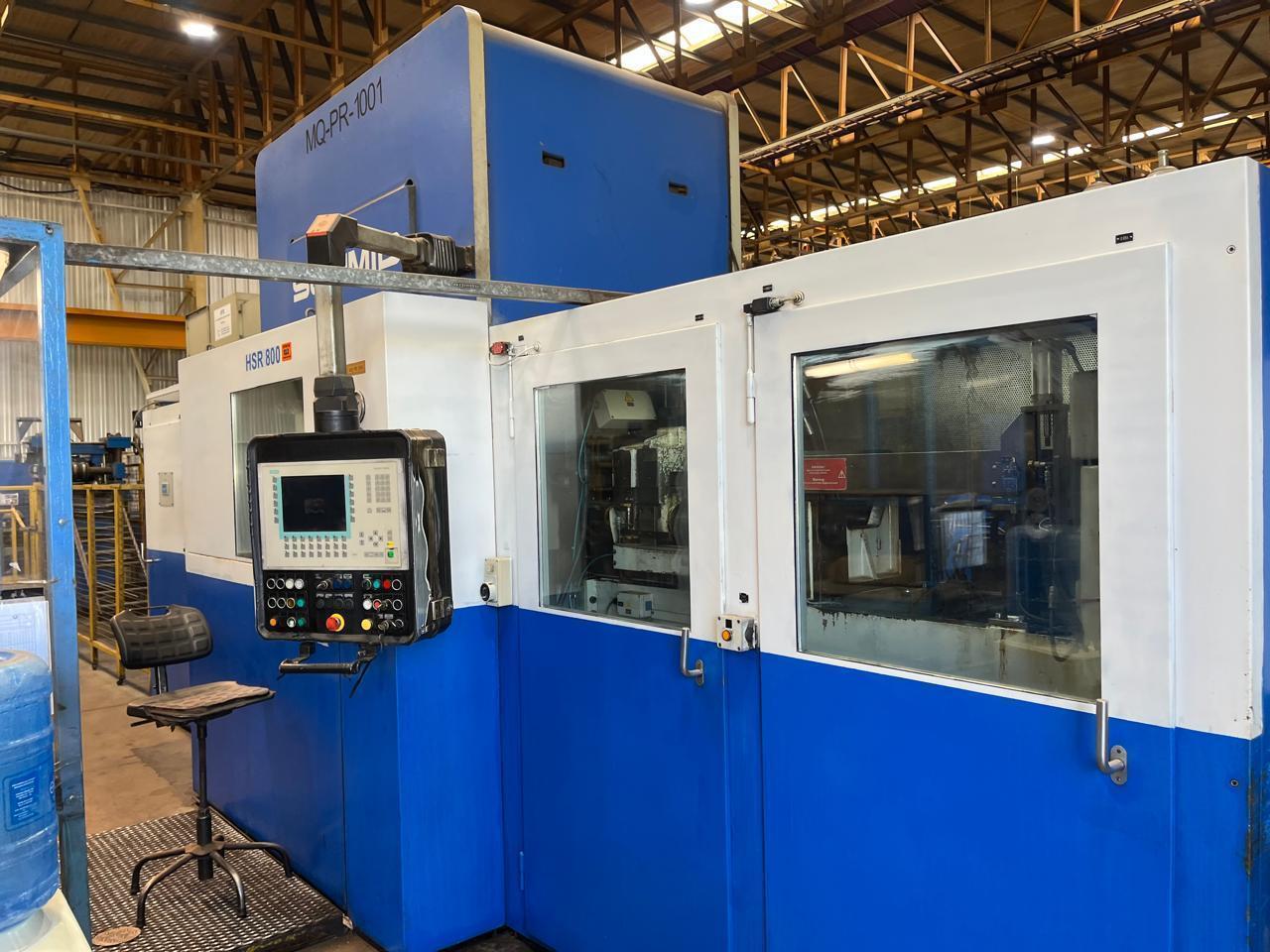

2002 800 Ton Schmid Fine Blanking Press Line

Manufacturer

SCHMID

Category

Presses

Stock

MD800E

Model

HSR 800 Ecoline

Dealer Location

Michigan

Spec Sheet

Tonnage - 800 tons
CNC Control - yes
Type of CNC Control - Siemens
Maximum Tool Height - 420 millimeters
Minimum Tool Height - 320 millimeters
Machine Table Dimensions - 900 millimeters
Total Force - 100-8000KN
Stamping Force - 50-4000KN
Counter Force - 50-1600KN
Cut Speed - 10-40mm/sec
Pieces a Minute - 8-18 Pieces
Cut Stroke - 0-30mm
Total Stroke - 2mm-205mm

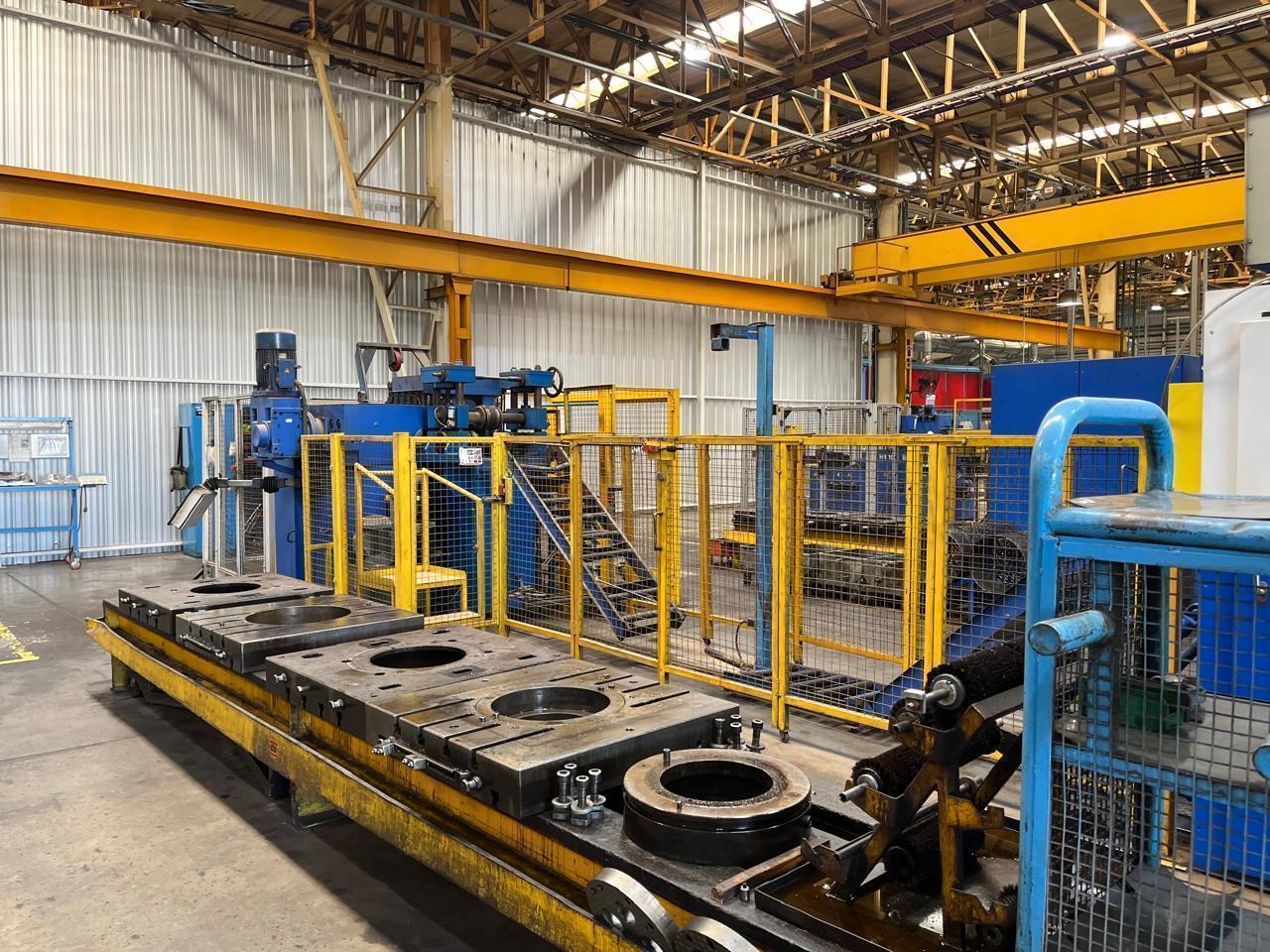

Coil Feed Line:
Thickness Range: 2mm-12mm
Width Range: 80mm-520mm
Coil OD Range: 800mm-1750mm
Coil ID: 500mm
Max Coil Weight: 6000kg

Equipped With:
Piston Stop: CNC Type Automatic Hydraulic Positioning
Automatic Hydraulic Tool Clamping
V-Ring: Hydraulic Regulation
Tool Verification Protection
Tool Protection Inside the Cut (Dependent on Stroke and Pressure from Operator Panel)
External Tool Protection (With Sensor in Tool Discharge Channel)
Automatic Loop with Ultrasonic Sensor
Siemens PLC and Controls
