Bliss SC2-500 500 Ton Straight Side Punch Press, Double Crank, 12" Stroke, with Rowe Press Feed, Controls and Coil Reel- Auction Item

Manufacturer

Bliss

Category

Presses

Type

PRESSES, STRAIGHT SIDE, DOUBLE CRANK, (Single Action)

Stock

Lot No.: 560

Model

SC2-500

Dealer Location

Minnesota

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

View Auction Item:https://www.machinesused.com/lots/49063

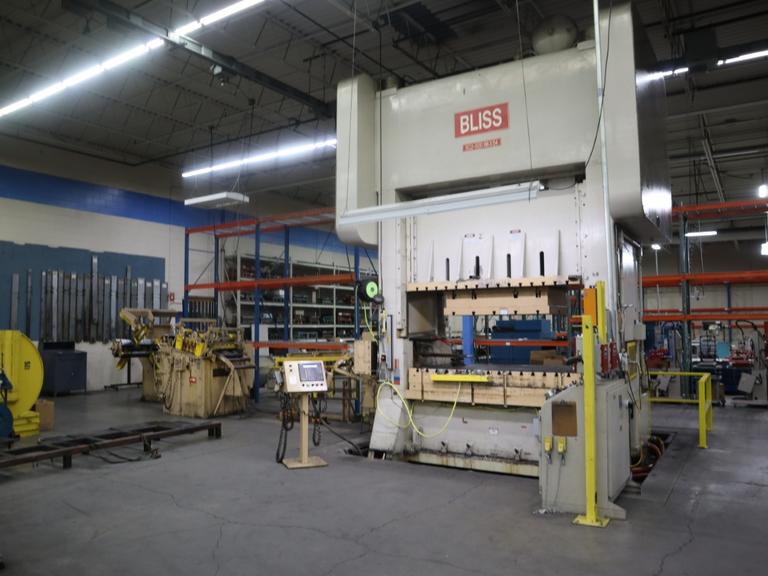

Lot 560: Bliss SC2-500 500 Ton Straight Side Punch Press, Double Crank, 12" Stroke, with Rowe Press Feed, Controls and Coil Reel
Equipped With:

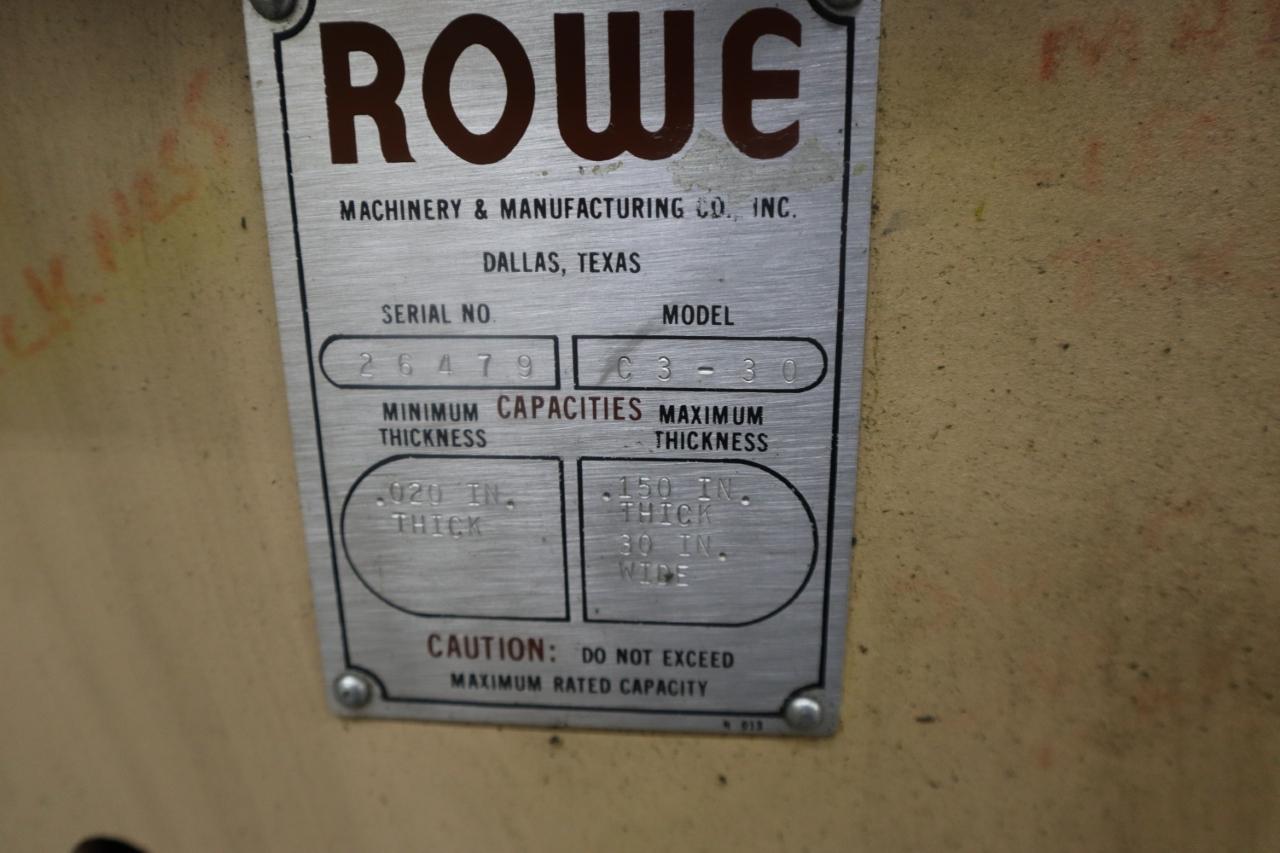

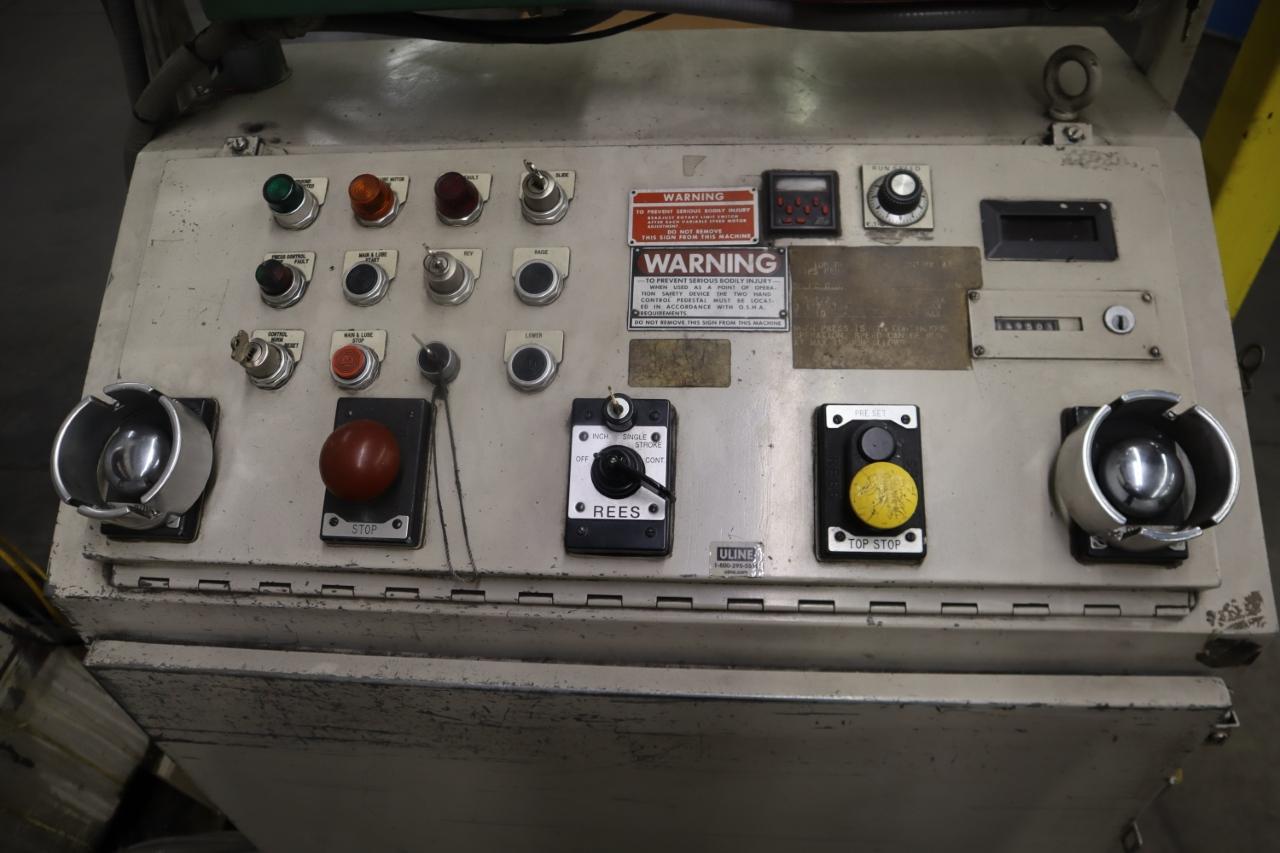

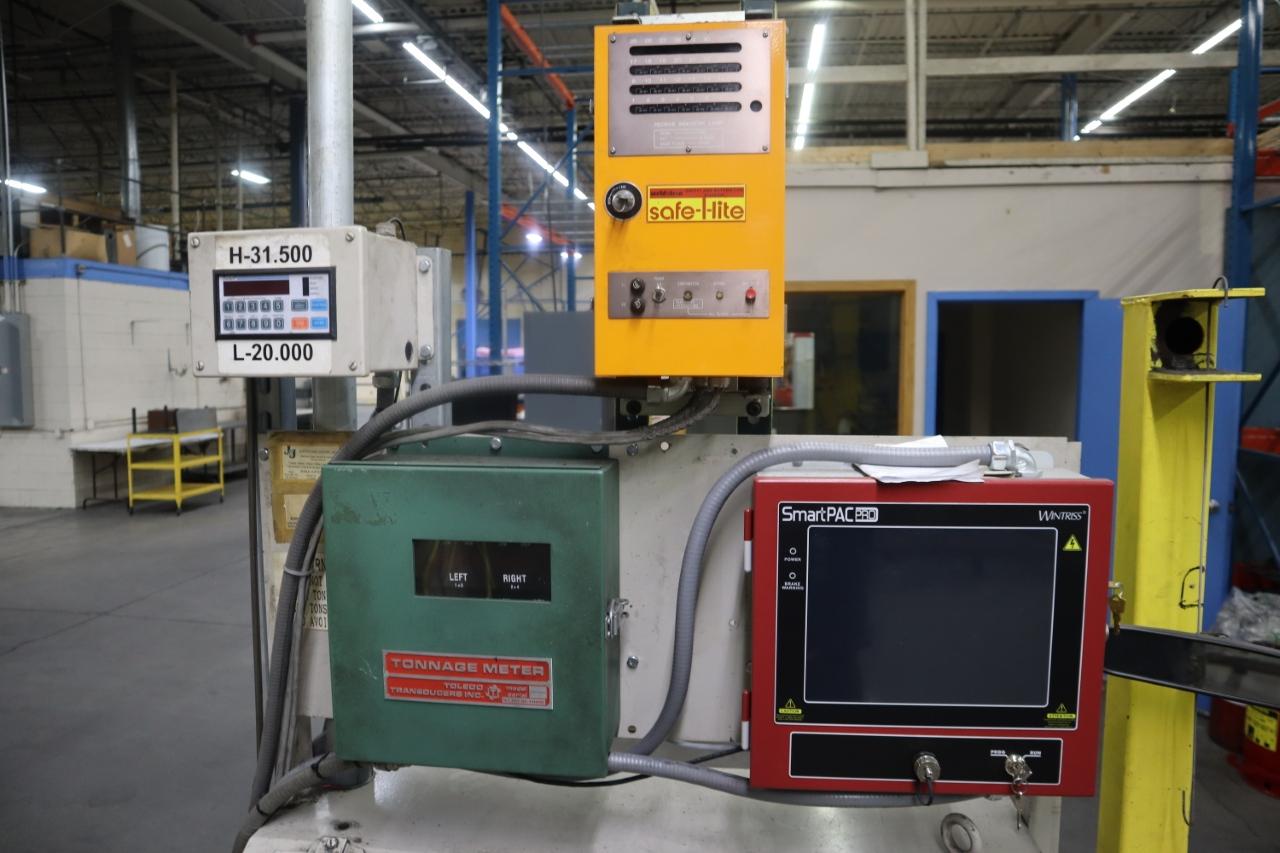

12" Stroke, 44" Shut Height, 12" Ram Adjustment, Variable Speed 20-40 SPM, 37" Windows, 96" x 54" Bed Bolster and Ram, 26" x 60" Ram Bolster, Die Cushion (2) UCC-24-22-6, SafeLite Curtains, Toledo Sequencer Tonnage Meter, Napco Mark VII Controls, Press Control Station, WITH: Rowe Press Feed System, Including: Rowe FDC-053-230 Press Feed (Serial: 26481) .020 - .074" Thickness Capacity x 30" Wide Capacity, Rowe PLC II Controls, Rowe PM-FDC-053-230 Control Panel, Rowe TTS-30, Rowe C3-30 30" Straightener (Serial 26479), Rowe 4030-DSJ Motorised Coil Reel (Serial: 26478) 4,000 Lb Capacity, 30" Max Coil Width, 60" Max Coil OD, Overarm, Peeler, Control and Operation Manuals,  NOTE: Upper Porton of Press Rebuilt by Bliss and Pressline Industries in 2024

Description:

The used Bliss SC2-500 Straight Side Press is a 500-ton mechanical stamping press engineered for high-tonnage, precision metal forming applications. Built with a rigid straight-side frame, the SC2-500 delivers excellent accuracy, durability, and consistent performance for demanding operations such as stamping, blanking, forming, and punching. Bliss SC2 series presses are known for their heavy-duty construction, long service life, and ability to handle progressive dies and large tooling in automotive, appliance, and industrial manufacturing environments. Although Bliss no longer produces new presses, the SC2-500 remains highly sought after on the used market due to its proven reliability and ongoing parts and service support. Machinesused.com specializes in the buying and selling of used Bliss straight side presses, including the SC2-500, helping manufacturers acquire dependable high-tonnage stamping equipment while maximizing value.

Electrics:

208v 3 Phase, Main Motor 3 Hp

Manufacturer: Bliss Model: SC2-500 Year: 1987 Serial Number: HP 53775
Main Unit Approx Weight: 158000.00 lbs
Main Unit Dimensions (in inches): Length: 160.00"  Width: 128.00"  Height: 243.00"
Components:
Rowe Control Panel: Length: 28.00"  Width: 19.00"  Height: 51.00"
Rowe 30" Press Feed: Length: 57.00"  Width: 48.00"  Height: 65.00"

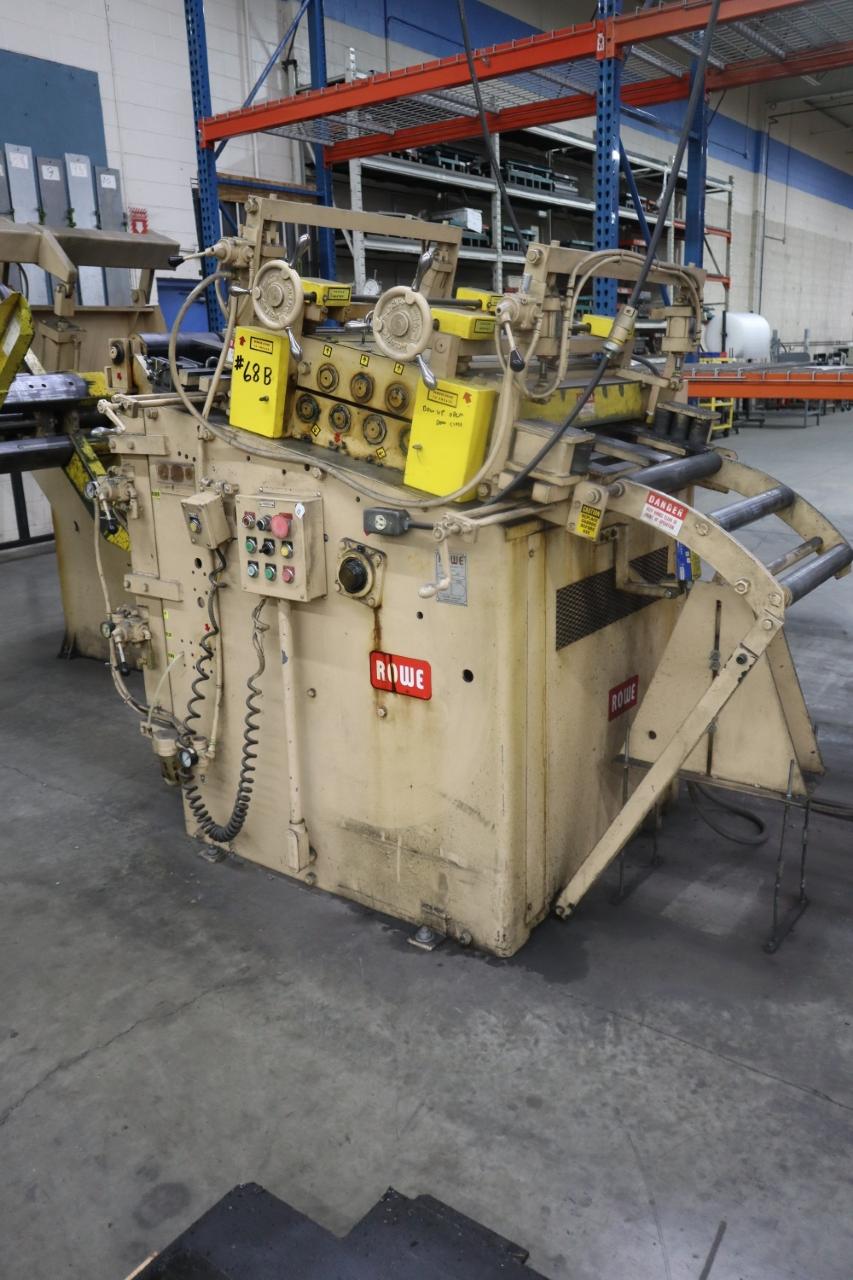

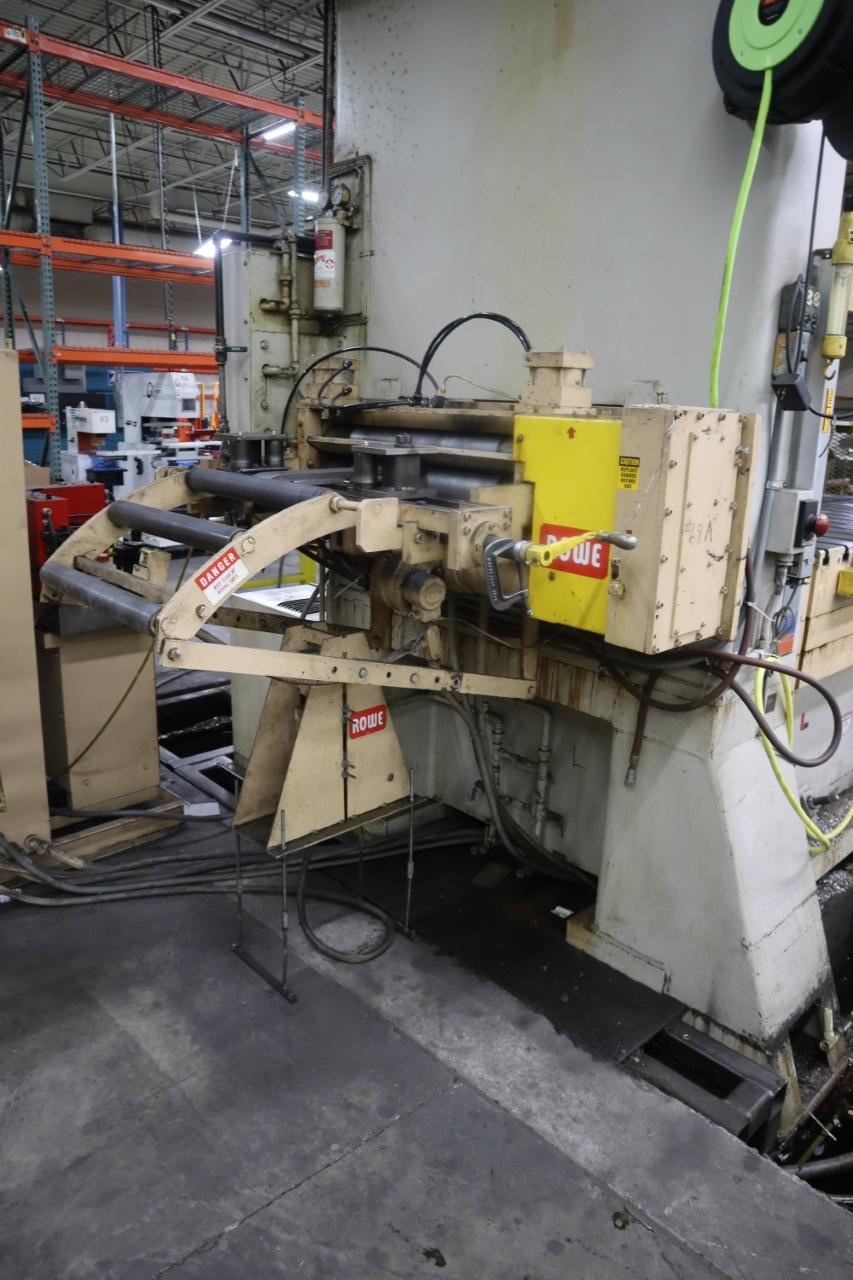

Rowe Straightener C3-30: Length: 83.00"  Width: 77.00"  Height: 74.00"
Rowe Electrical Panel: Length: 32.00"  Width: 48.00"  Height: 65.00"

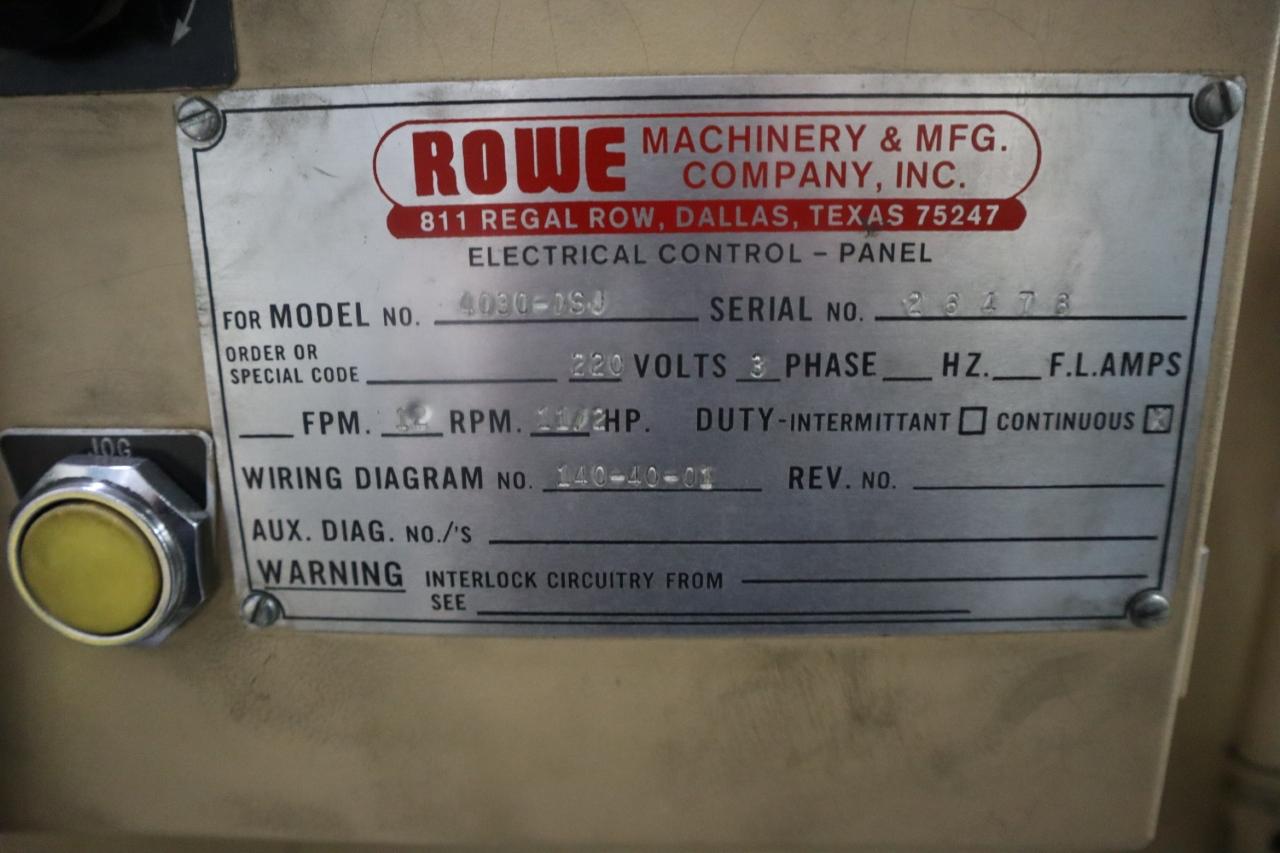

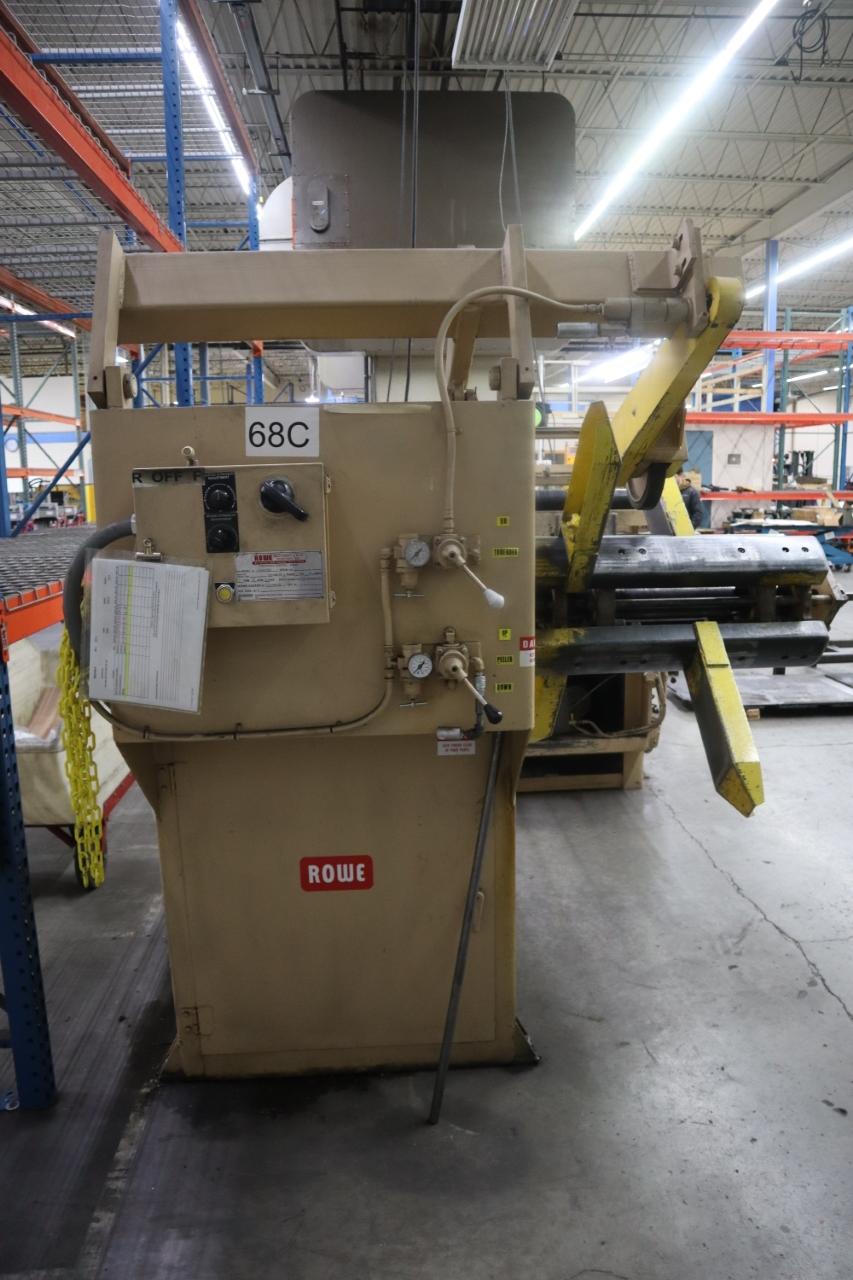

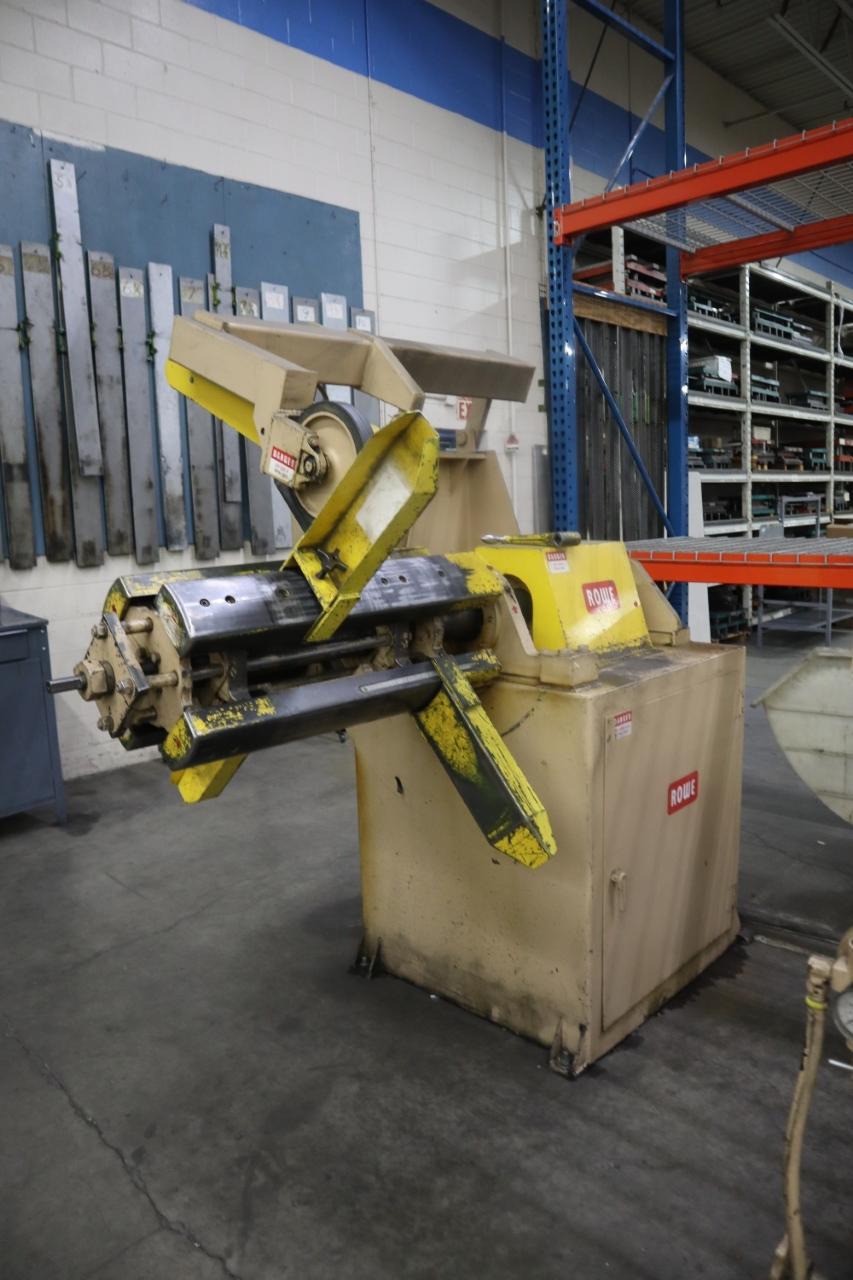

Rowe 4030-DSJ Coil Reel: Length: 84.00"  Width: 60.00"  Height: 86.00"

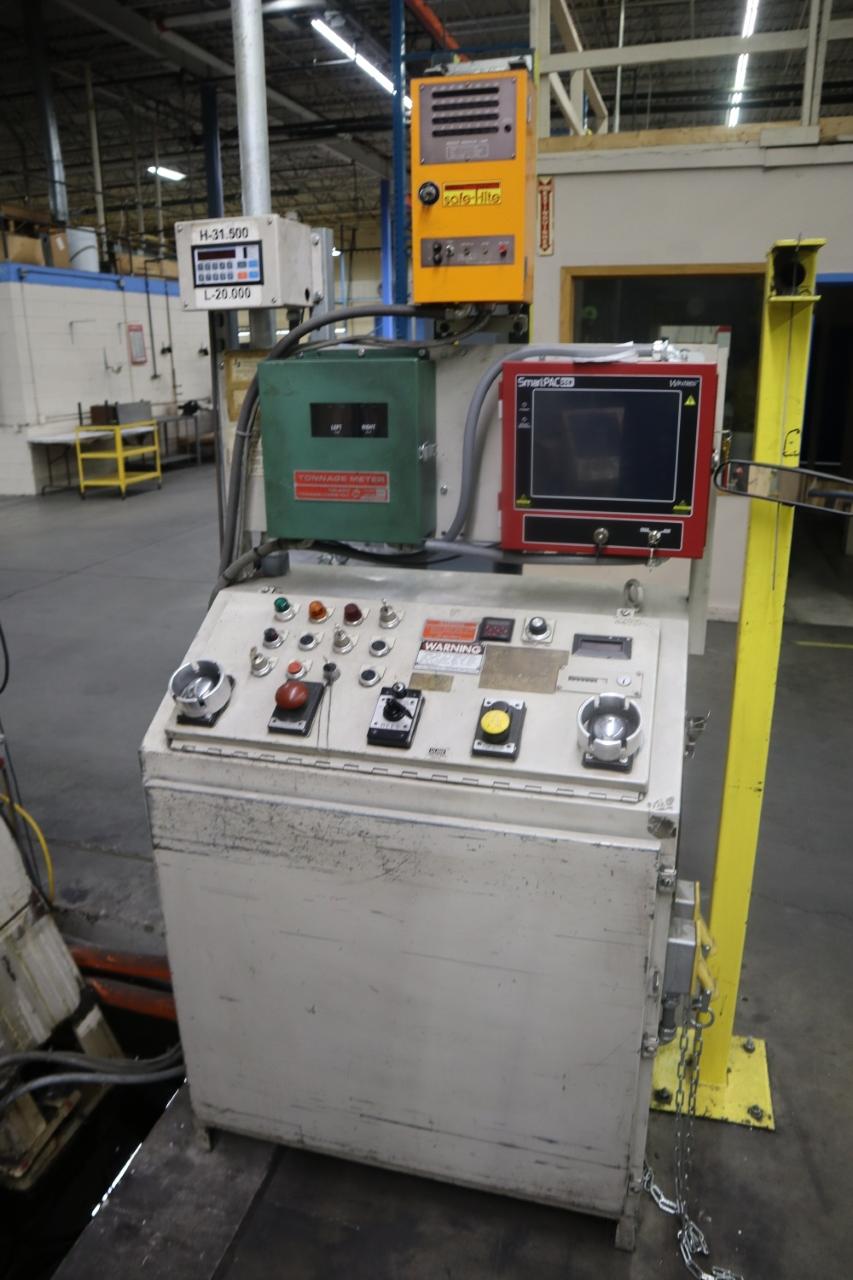

Press Control Cabinet: Length: 40.00"  Width: 30.00"  Height: 87.00"
Specs:
Maximum Tonnage: 500 Tons
Stroke: 12" Stroke
Shut Height (SDAU): 44" Shut height
Ram Adjustment: 12" Ram Adjustment

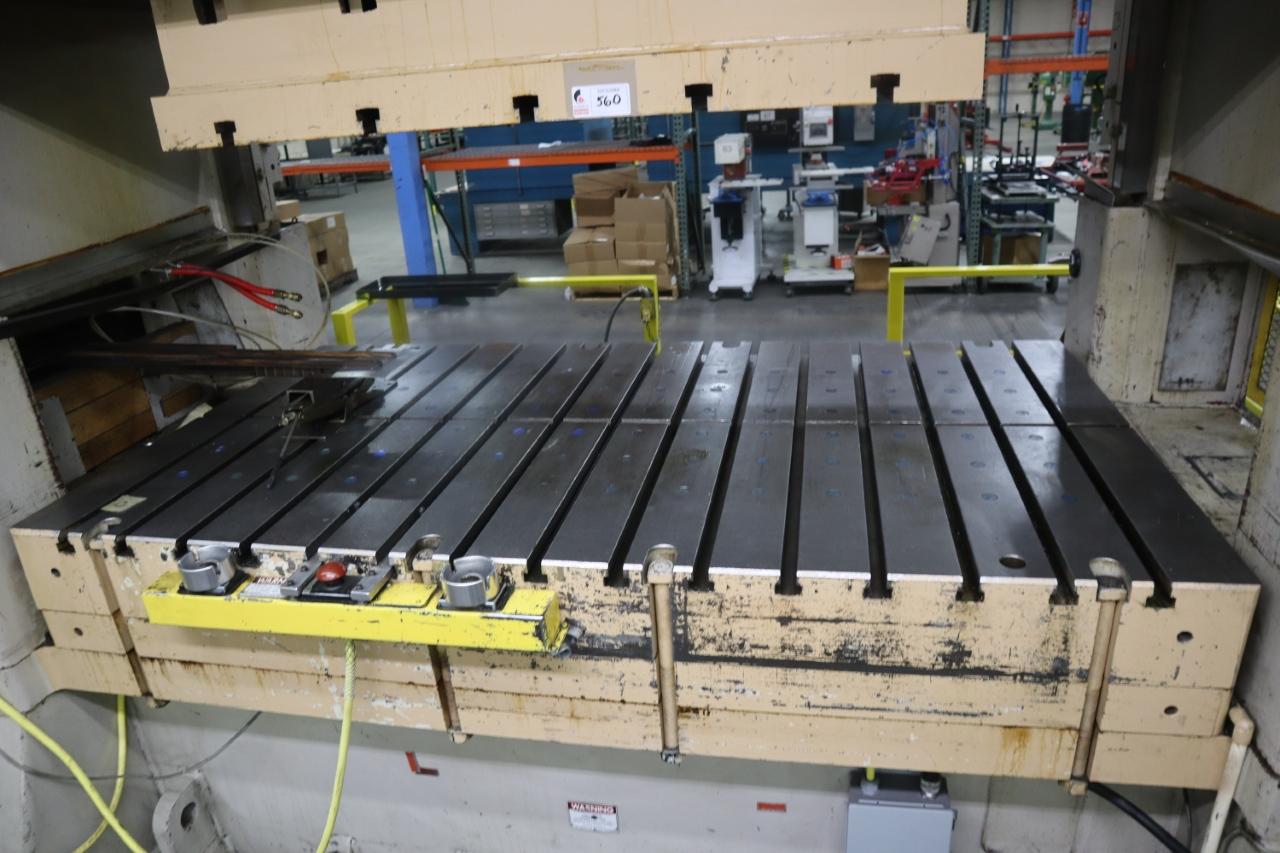

Bed Size: 96" x 54"
Bed Bolster Size: 96" x 54"
Ram Size: 96" x 54" with 26" x 60" Ram Bolster
Windows Size: 36" Wide 20" Height
Strokes Per Minute: Variable Speed 20-40 SPM
Seller Company: Aljon Tool, Inc.
Seller Contact: Machinesused.com Aljon Phone: (763) 745-1166
Item Location: Aljon Tool, Inc., 15700 28th. Ave. No., Plymouth, MN 55447
Location Contact: Machinesused.com Aljon Phone: (763) 745-1166
Inspection Date & Time: Thursday-Friday, February 19-20, 2026 9AM-4PM
Dock Door: 12' x 14' H Door Ground Level Doors
Loading Dock: Ground Level and Truck Cock Level Doors
Removal Dates and Times: This item must be removed between Monday, March 2, 2026 and Friday, March 6, 2026
