HESS-MAE - Presse

Manufacturer

HESS-MAE

Category

Presses

Type

PRESSES, STRAIGHTENING

Stock

17729

Model

None listed

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Quartech Digital Control

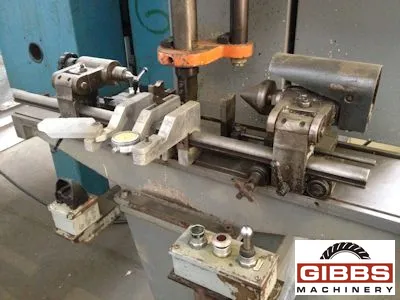

  • Headstock w/Center
  • Tailstock w/Center
  • Adjustable Straightening Stroke w/Joystick
  • Rolling Work Supports w/Roller Type Work Rests
  • Anvil
  • V-Block
  • Guard
  • Worklight
  • 480V/3 PH/60Hz
  • Manual
,

Machine Specifications :

  • Year 1995
  • Manufacturer HESS-MAE
  • Tonnage 10.0
,

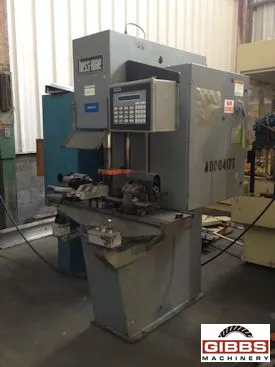

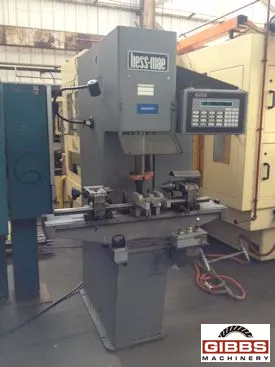

MODEL HY-S010-RH HESS-MAE STRAIGHTENING PRESS, 1995

    SPECIFICATIONS:

  • Straightening Force: 10 Tons
  • Ram Speed Down: 1.85" Max.
  • Ram Speed Up: 5.18" Max.
  • Straightening Stroke: 6"
  • Daylight/Opening (w/o Table): 27.65"
  • Depth of Throat: 7.48"
  • Depth of Table: 11"
  • Width of Table: 48"
  • Height of Table: 29.53"
  • Cylinder Bore: 4"
  • Cylinder Rod: 3"
  • Motor: 3hp, 1750 rpm
  • Estimated Weight, Bar Straightener: 1850 lbs
  • Total Height: 81.5"
  • Depth (Frame): 42.25"
