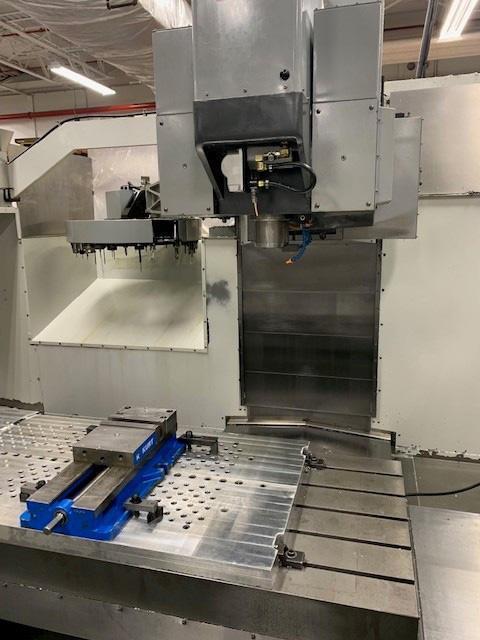

2006 Haas VR-11B Vertical Machining Center (#4766)

Manufacturer

Category

Miscellaneous Machines

Type

MISCELLANEOUS

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet



120” X 40” X 30” 5 - Axis Vertical Machining Center with 30 HP, 10,000 RPM Spindle, 32 Tool Magazine for CT 40 Tooling and Automatic Chip Auger.

GENERAL SPECIFICATIONS
X - Axis Travel:                120”
Y - Axis Travel:                40”
Z - Axis Travel:                30”
Max Rating X:                 7.5 HP
Max Rating Y:                5 HP
Max Rating Z:                5 HP
A - Axis Tilt:                    ±32°
Max Thrust X/Y/Z:                3,400 Lbs
T - Slot Width:                ⅝”
Max Cutting A/B:                600° / Min
Max Tooling Weight:                12 Lbs
Coolant Capacity:                95 Gal
Max Tool Diameter:                3.5”
Bearing Lubrication:            Air / Oil Injection
T - Slots Center Distance:             4.92”
Positioning A/B Axes:            ±45 Arc - Sec
Drive System:                Vector Drive
Taper:                        CT40
Table Size:                    120” X 28”
Tool Changer:                32 ATC
Max Speed:                    10,000 Rpm
Max Rating:                    30 HP
Max Cutting:                    360 In / Min
Rapids on A/B:                1,900° / Min
Rapids on X:                    360 In / Min
Rapids on Y & Z:                600 In / Min
Air Required:                    9 SCFM, 100 PSI
B - Axis Rotation:                ±32°
Spindle Nose to Table:            4” - 34”

INCLUDES: 30 HP, 10,000 RPM Spindle, 32 Tool Magazine for CT 40 Tooling and Automatic Chip Auger.


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
