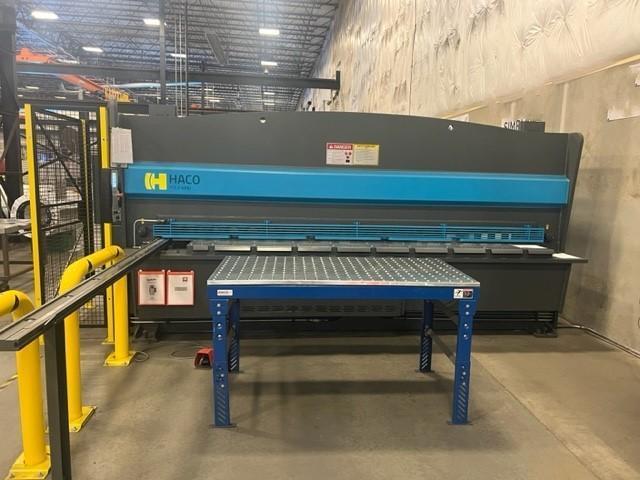

2022 Haco HSLX 13' X 3/8" Hydraulic Shear (#4862)

Manufacturer

Stock

None

Model

None listed

Dealer Location

Florida

Spec Sheet

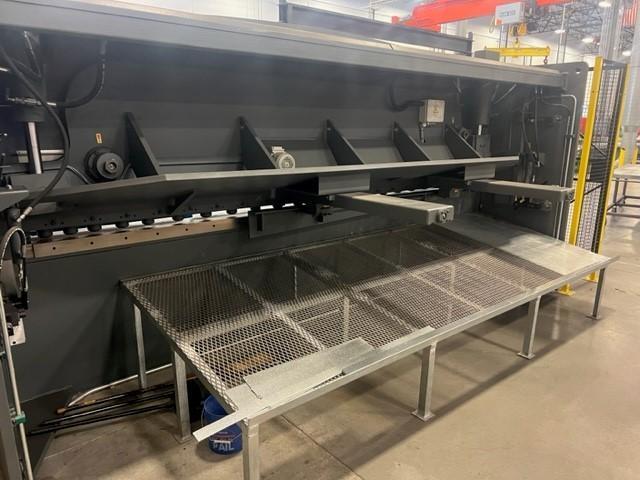

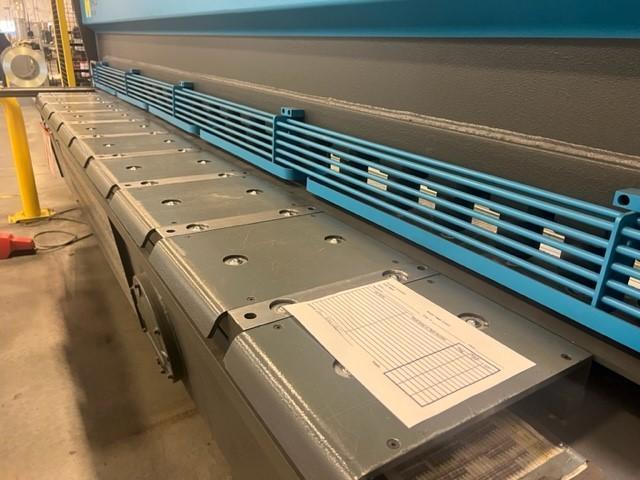

13’ X ⅜” Hydraulic Shear with SC100T Shear Control with Touch Screen, Pendant Control, Safety Equipment, Standard Hold Downs, Finger Protection Type w/ Hand Gaps, Motorized Back Gauge, Standard Plate Support, Squaring Arm, Cutting Line Illumination with Wire and Set of Blades for Stainless Steel

GENERAL SPECIFICATIONS
Capacity:                    ⅜” X 13’
Motorized Back Gauge:            Stroke 40” 2.1”/Sec Ball Screw Spindles
Standard Plate Support:            20” and 2 Ball Transfer Units
Squaring Arm:                40” & 3 Ball Transfer Units
Min Cutting Angle:                0.5°
Max Cuttig Angle:                3°
Number of Hold Downs:            23
Working height:                41”
Total Length:                    207”
Total Height:                    94”
Approx. Weight:                28,600

INCLUDES: Touch Screen, Pendant Control, Safety Equipment, Standard Hold Downs, Finger Protection Type w/ Hand Gaps, Motorized Back Gauge, Standard Plate Support, Squaring Arm, Cutting Line Illumination with Wire and Set of Blades for Stainless Steel


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
