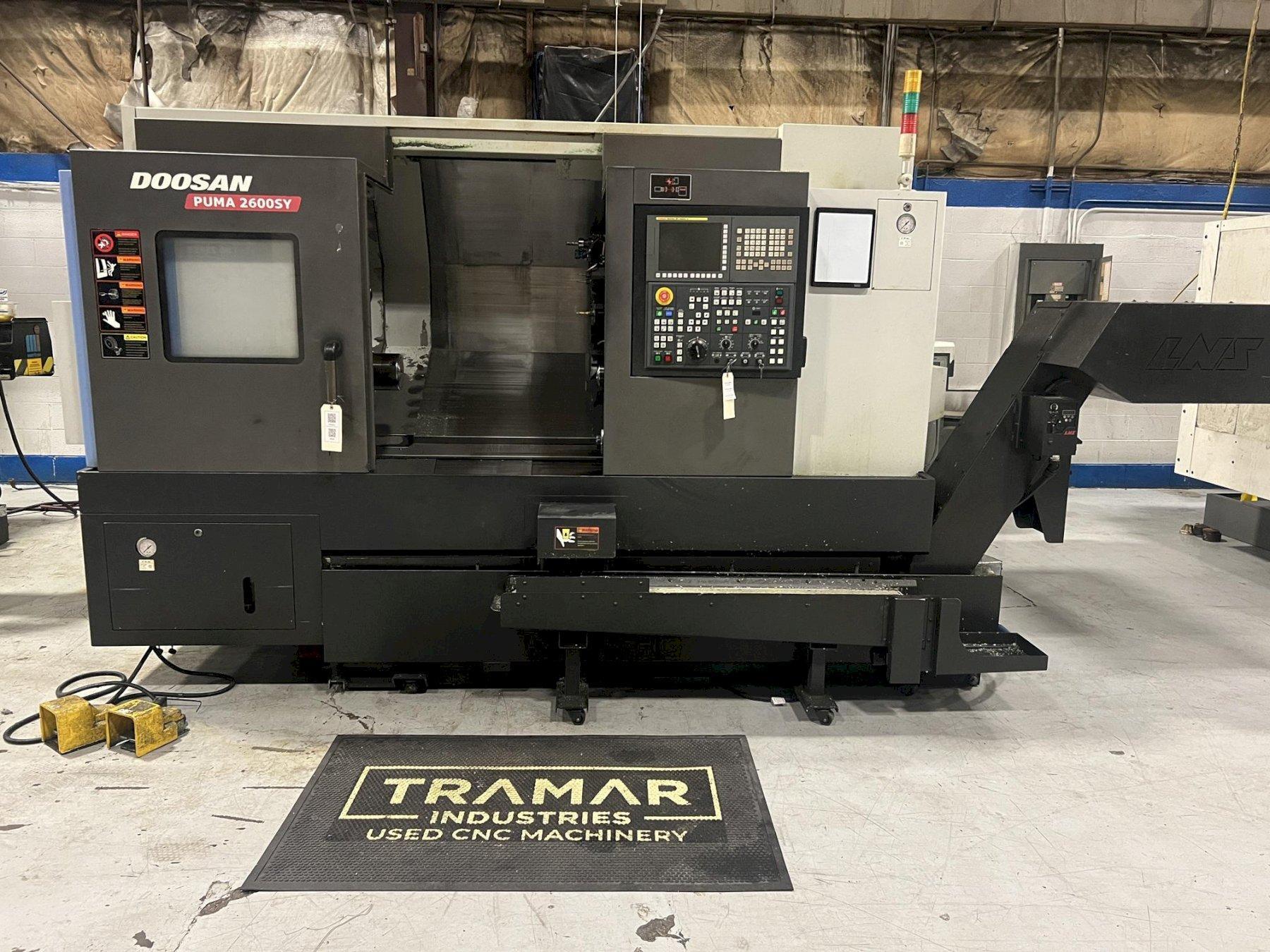

2011 Doosan Puma 2600SY CNC Lathe For Sale

Manufacturer

DOOSAN

Stock

15065

Model

Puma 2600SY

Dealer Location

Michigan

Spec Sheet

CNC Control - yes

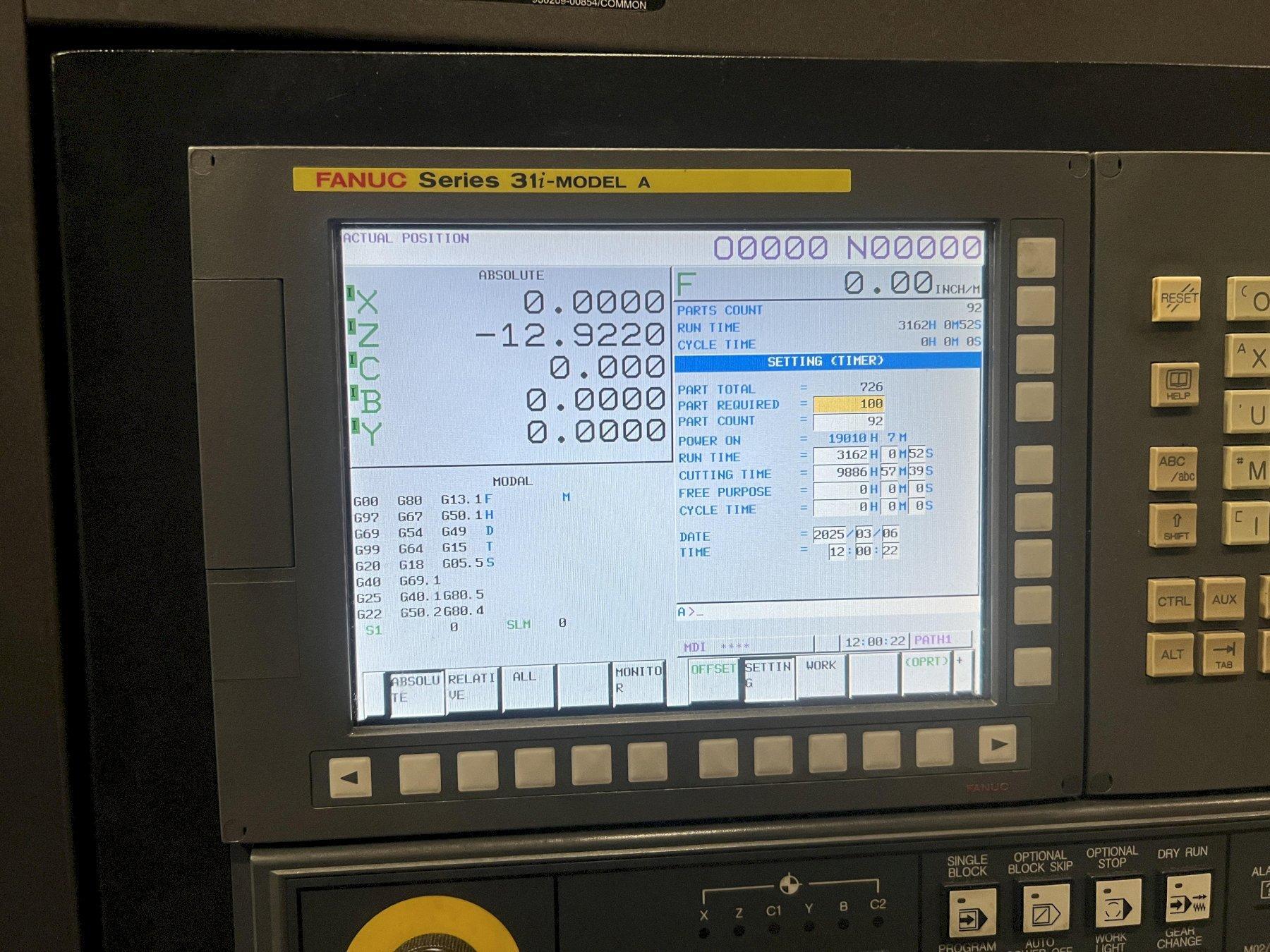

Type of CNC Control - Fanuc 31i-Model A
Swing - 30.7 inches
Turning Diameter - 14.8 inches
Center Distance - 28.5 inches
Chuck Size - Collet
Bar Capacity - 3 inches
X Axis Travel - 10.2 inches
Z-Axis Travel - 32.7 inches
C Axis Index - 0.001°
Rapid Traverse Rate (X/Y/Z) - 1181/394/1181 ipm
Spindle Nose - A2-8
Spindle Speed - 4,000 rpm
Main Motor - 30 hp
Live Tooling - yes
Live Tooling Speed - 5,000 rpm
Live Tooling Motor - 7 hp
Tailstock - no
Y Axis - yes

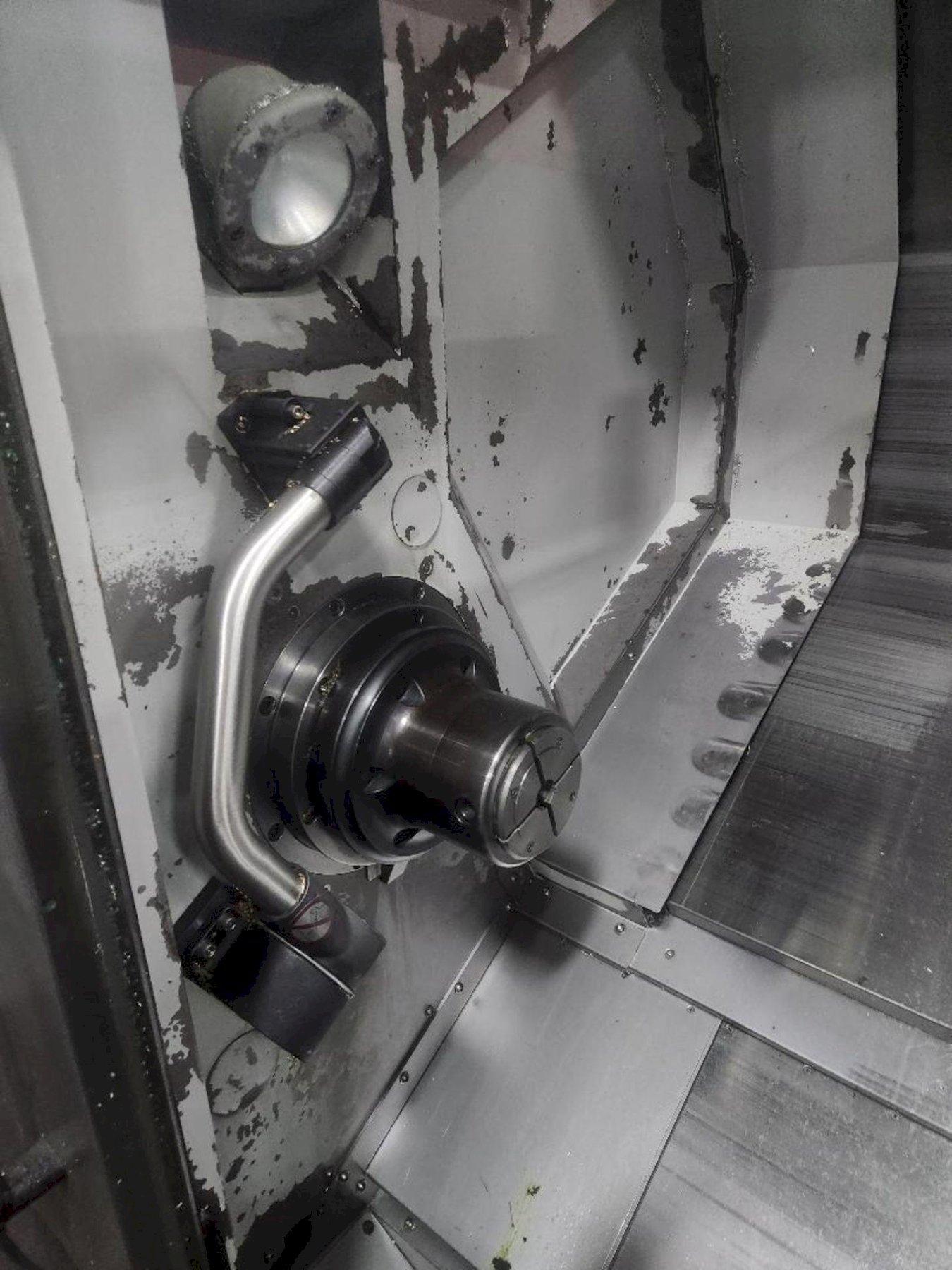

Sub Spindle - yes
Sub Spindle Nose - A2-5
Sub Spindle Chuck - Collet
Sub Spindle Speed - 4,500 rpm
Sub Spindle Motor (HP) - 10 hp

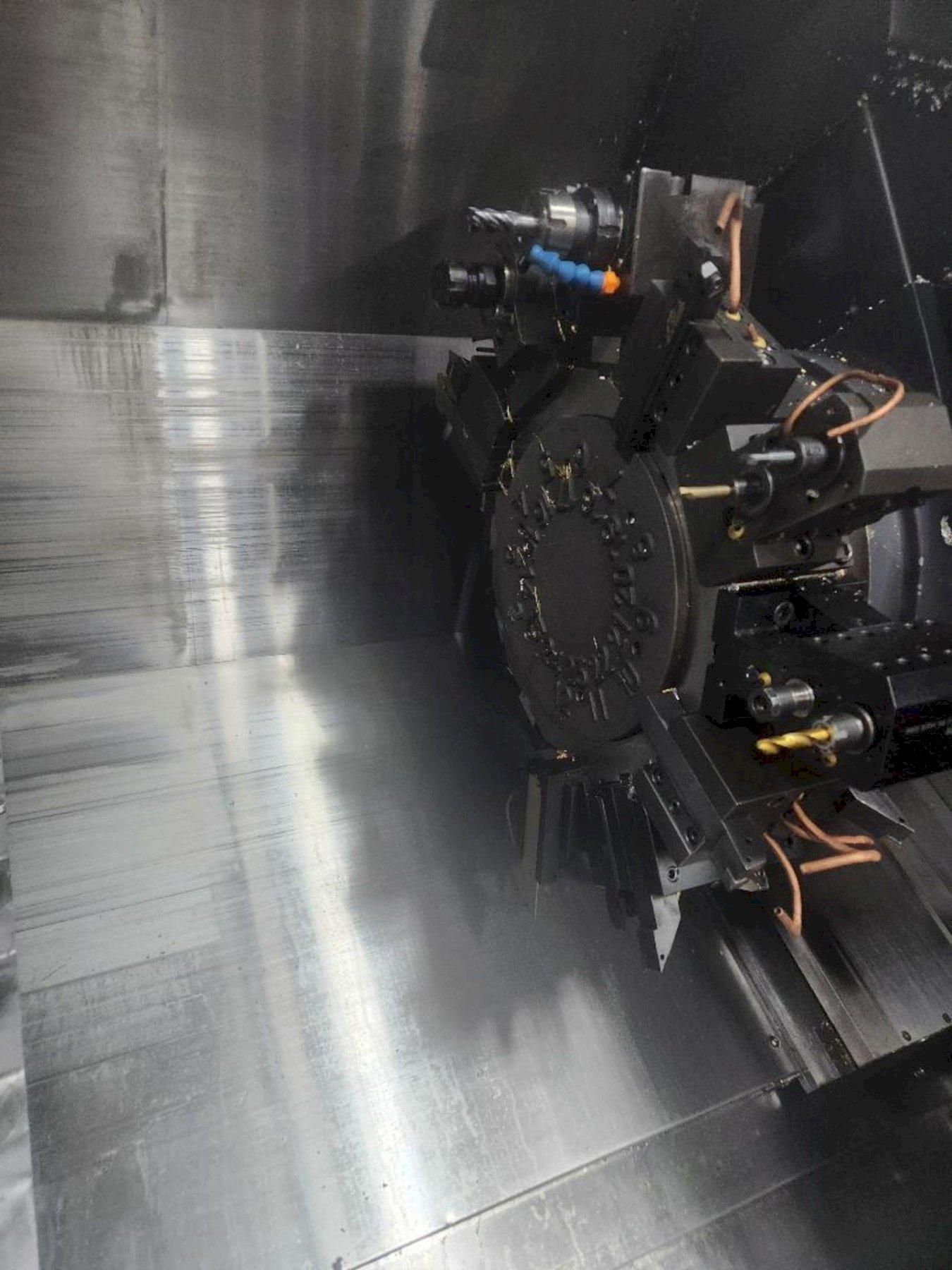

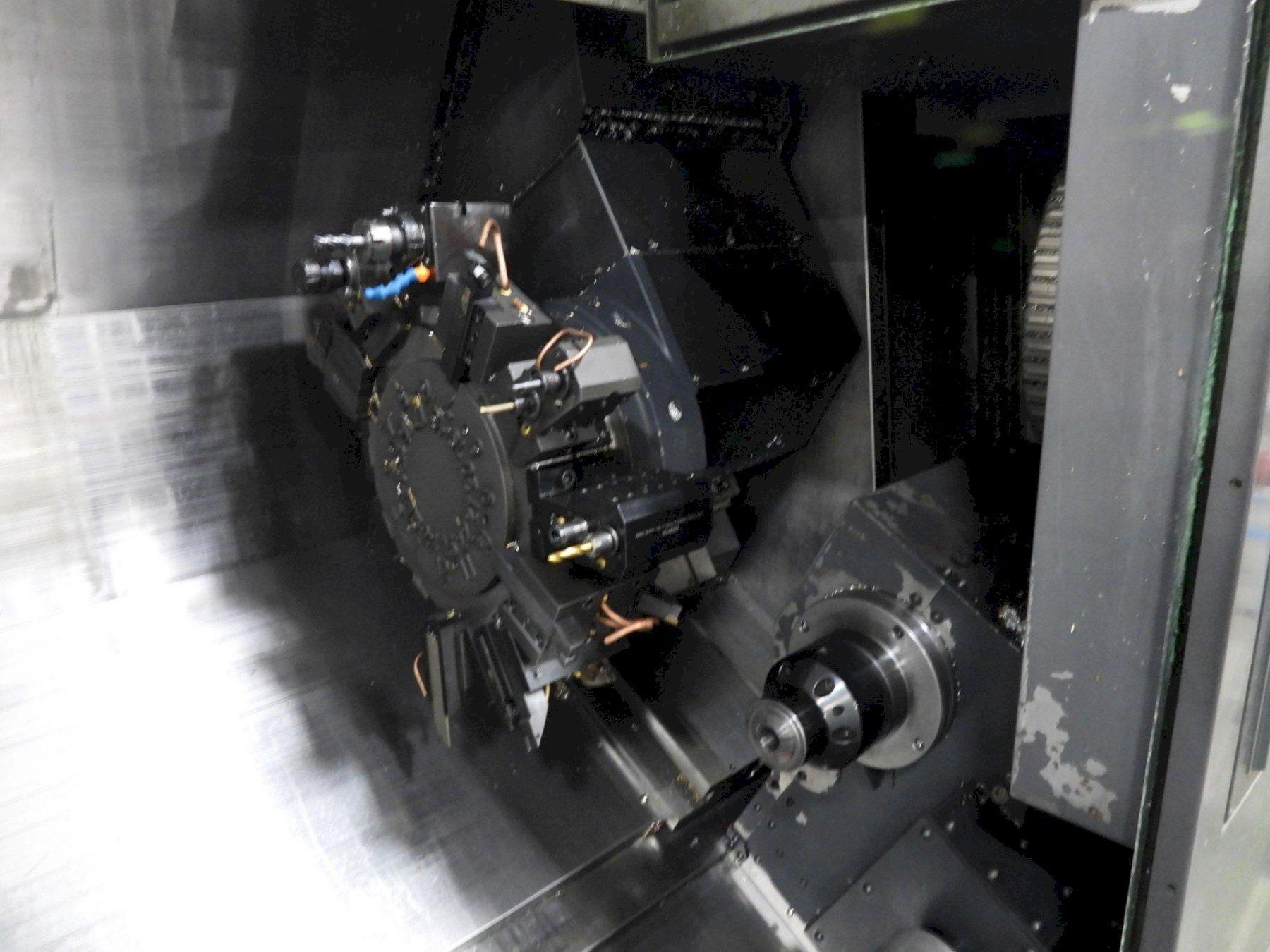

Turret Capacity - 24 Stations
Machine Dimensions - 145" x 74" x 86"
Machine Weight - 14190 pounds

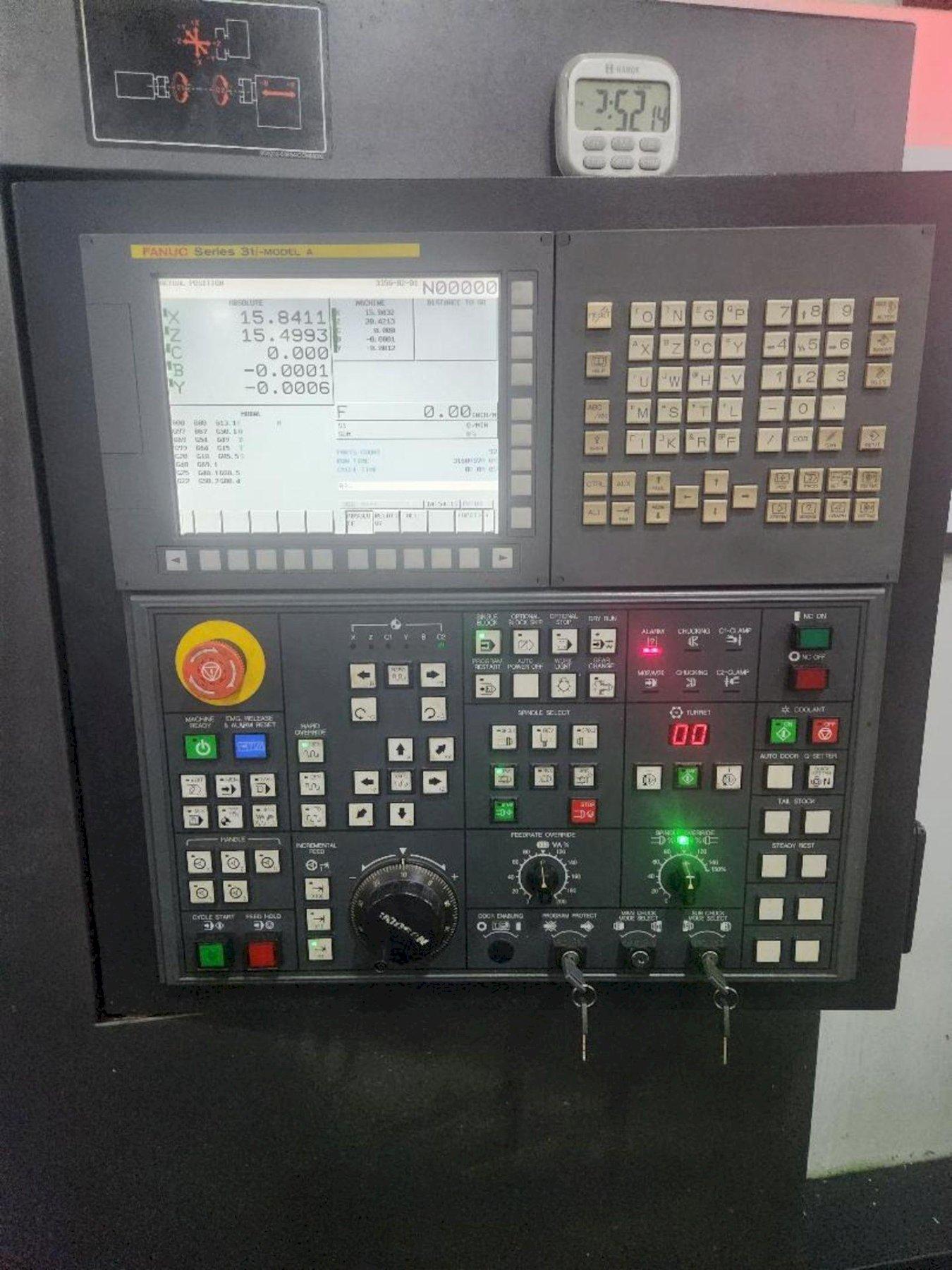

- Fanuc 31i-Model A CNC Control
- Chip Conveyor
- Coolant Tank & Pump
- Parts Catcher
- Parts Conveyor
- Tool Presetter
- Auto Tool Length Measurement
- Live Tooling (4 live holders)
- Sub Spindle
- Y Axis
- Embedded Ethernet
- Rigid Tapping

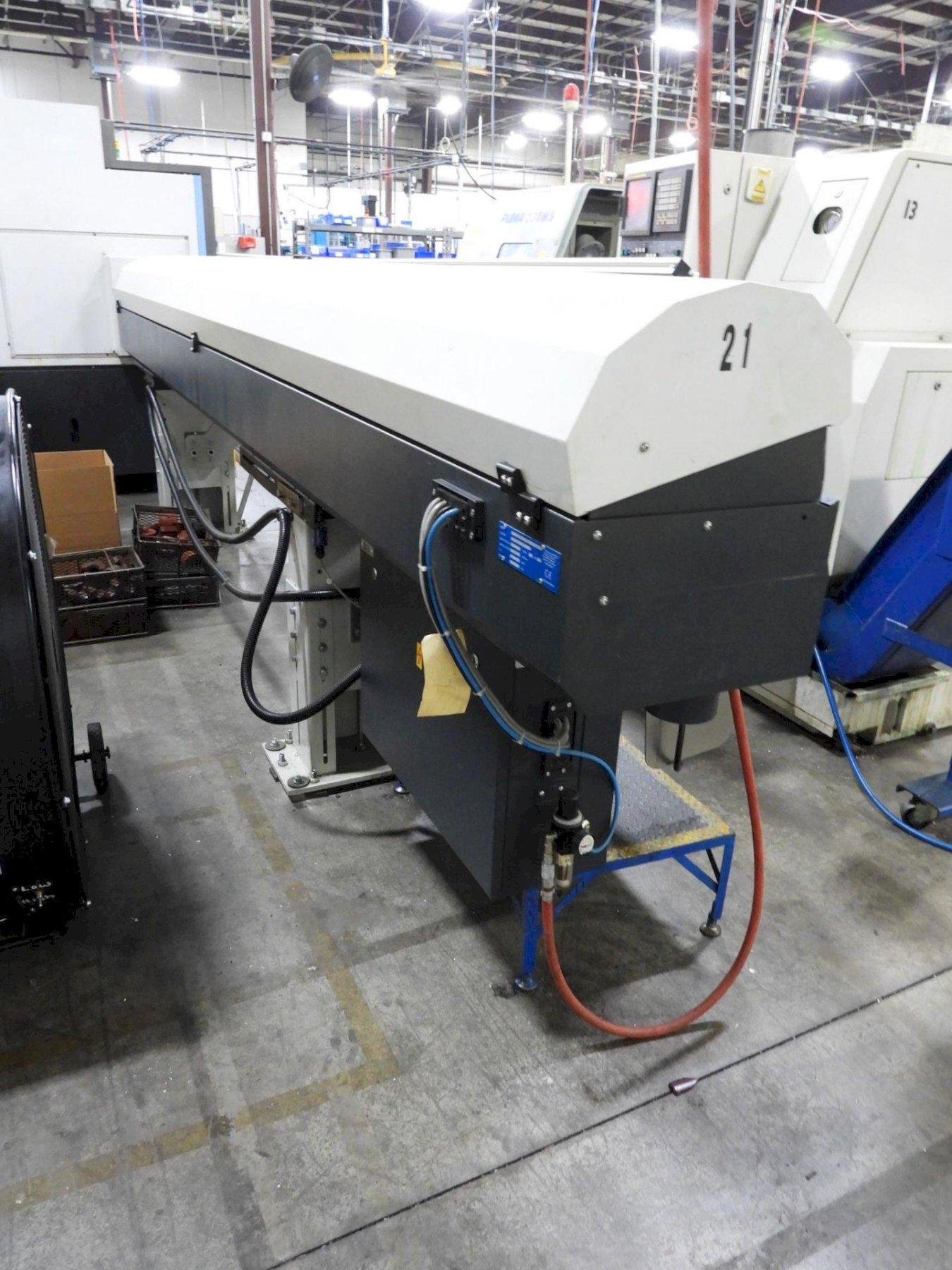

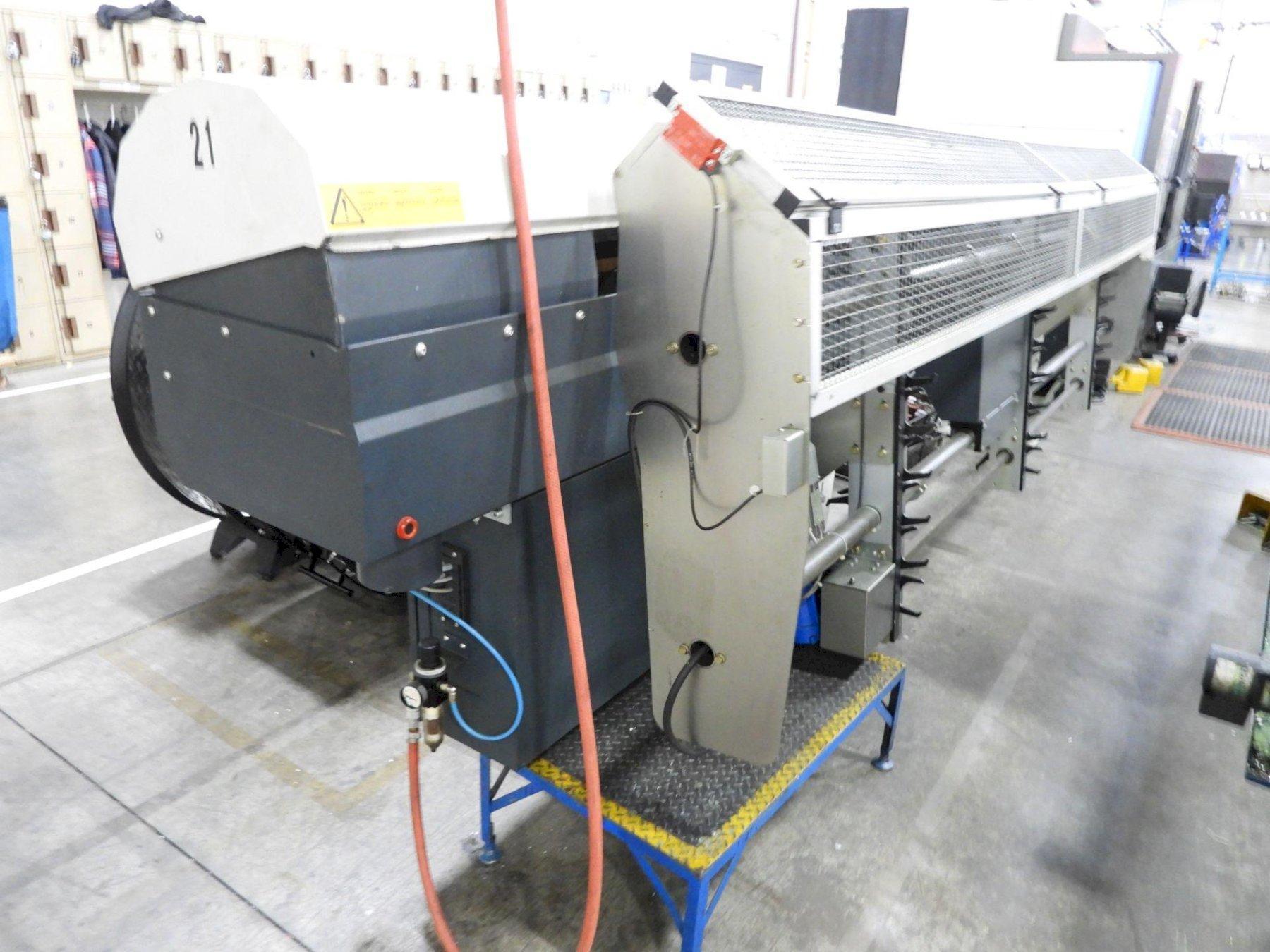

- 12' LNS Sprint 565 Bar Feeder
