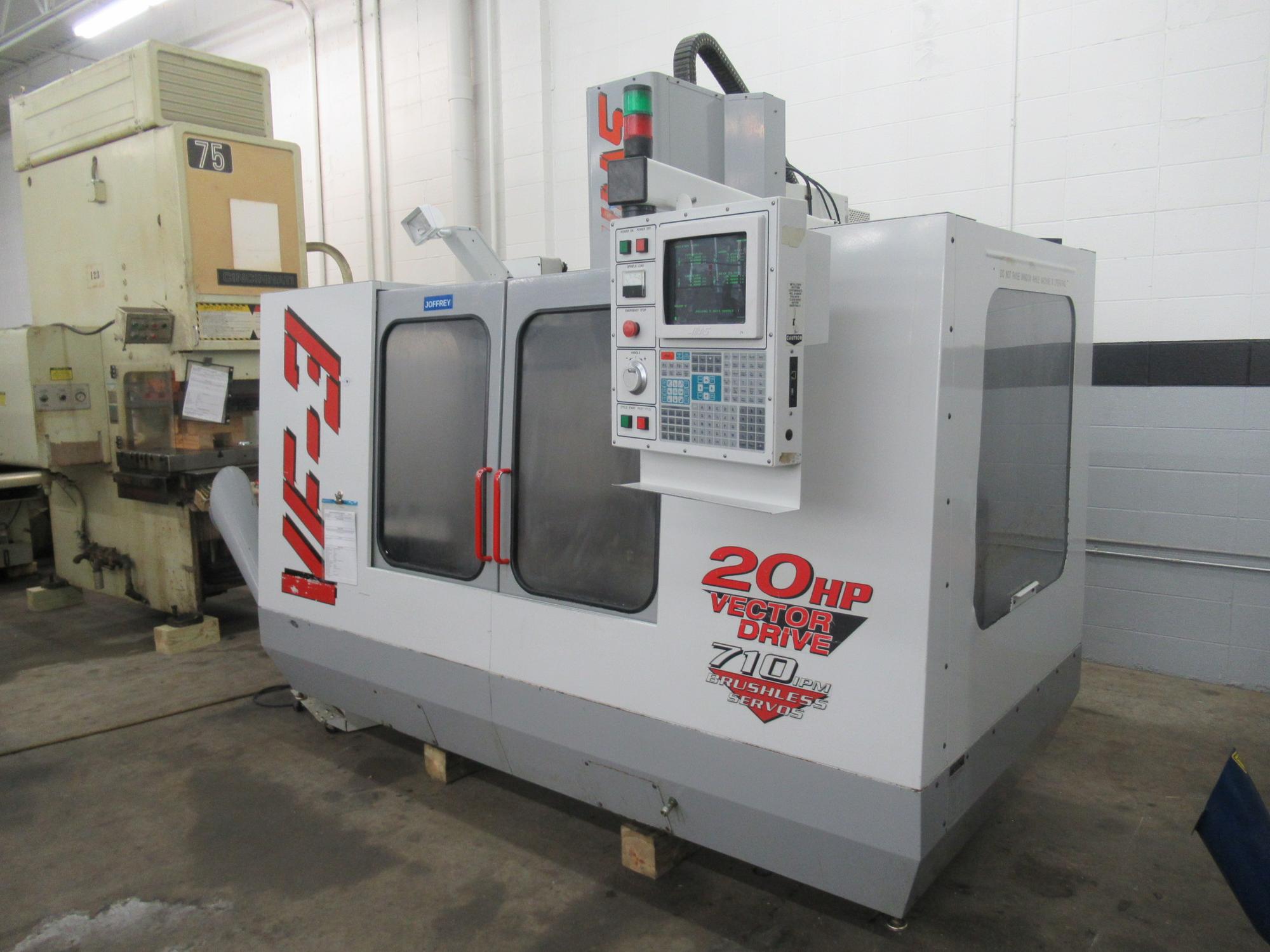

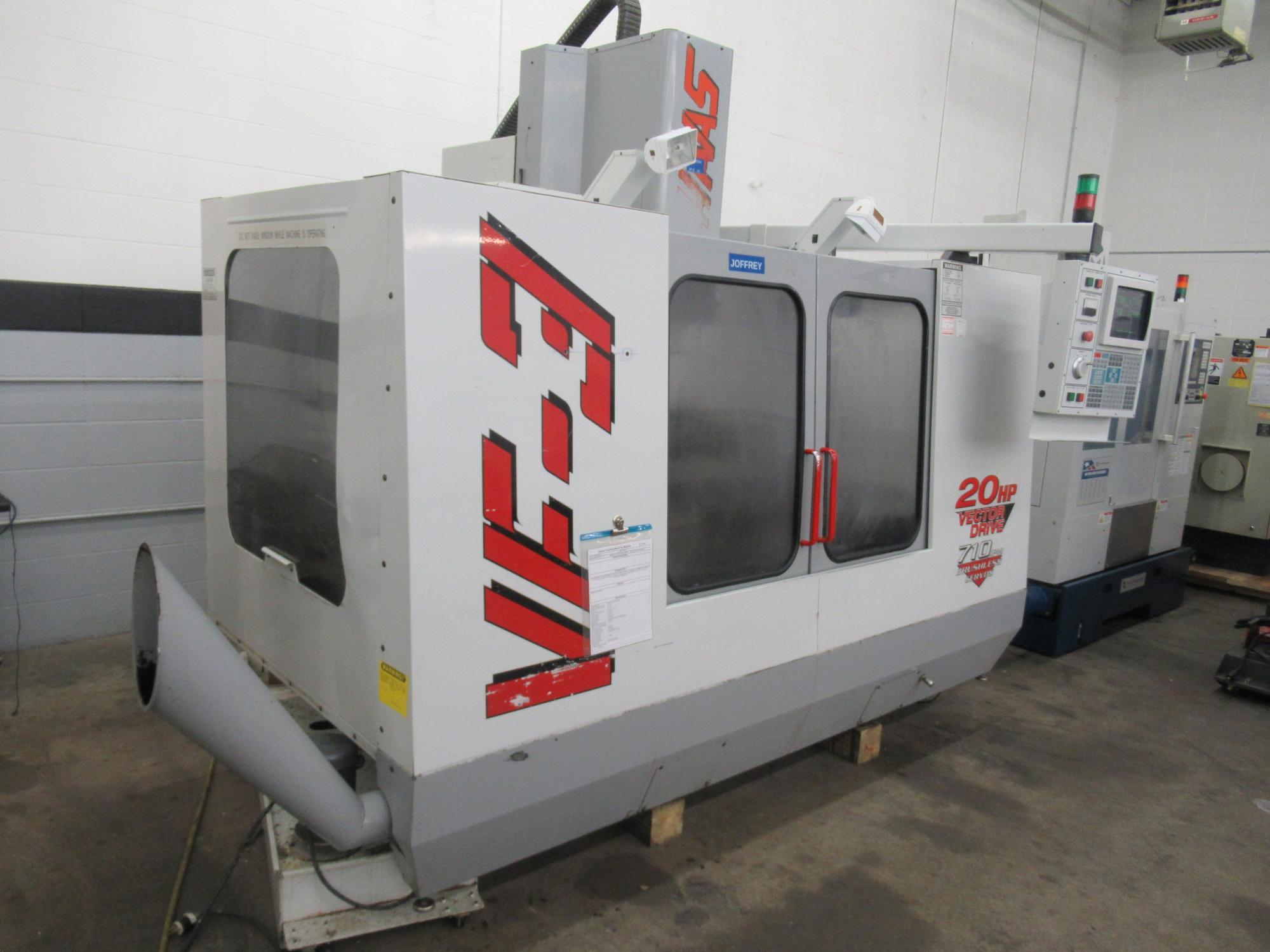

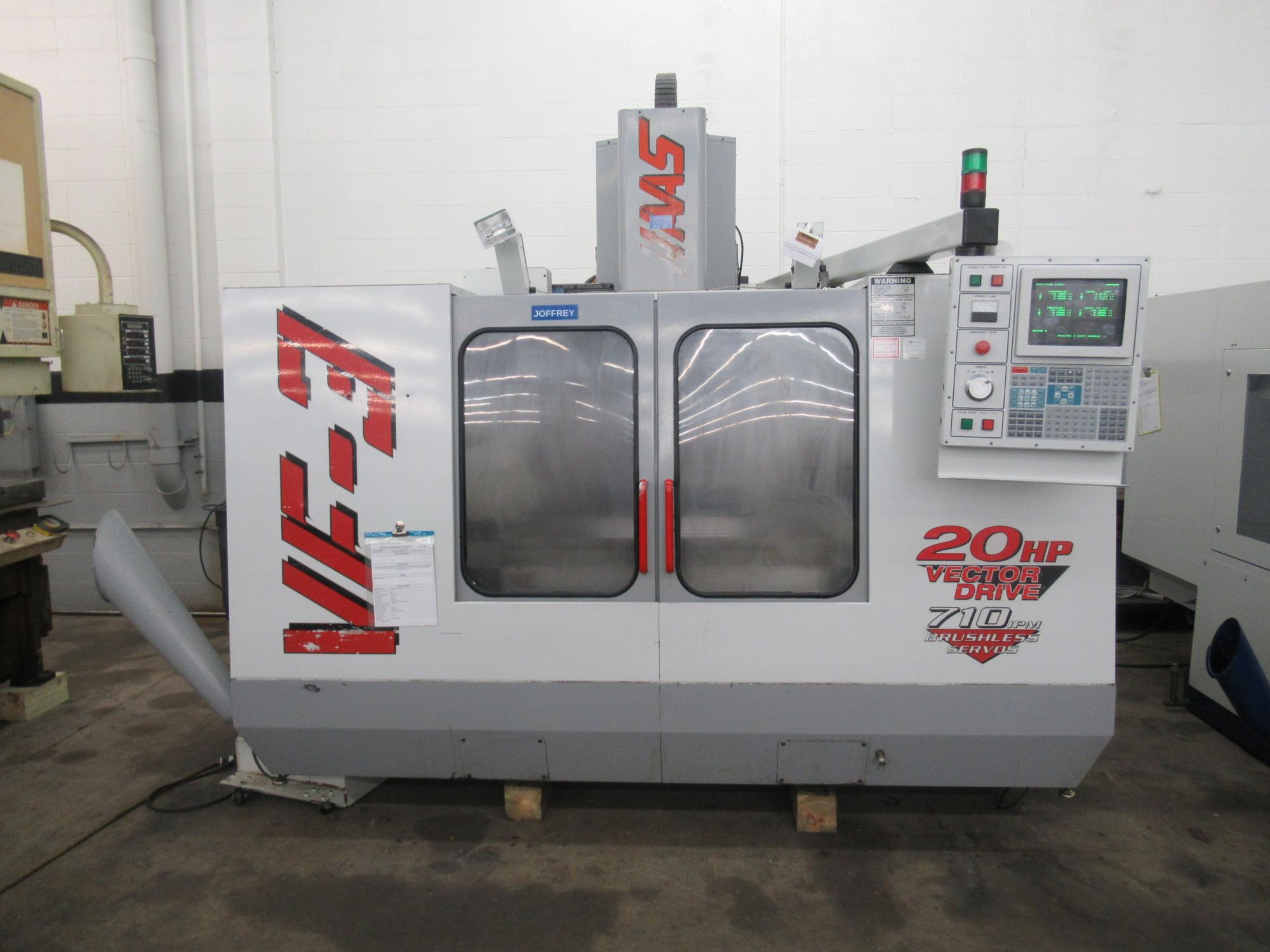

Haas VF-3 Vertical Machining Center, 20 Station Carousel Tool Changer, 7500 RPM CAT-40 Taper Spindle, Coolant System, USB Port

Manufacturer

Haas

Category

Machining Centers

Type

MACHINING CENTERS, CNC, 5-AXIS or MORE

Stock

6867

Model

VF-3

Dealer Location

Minnesota

Request a Quote
View Contact Information

Spec Sheet

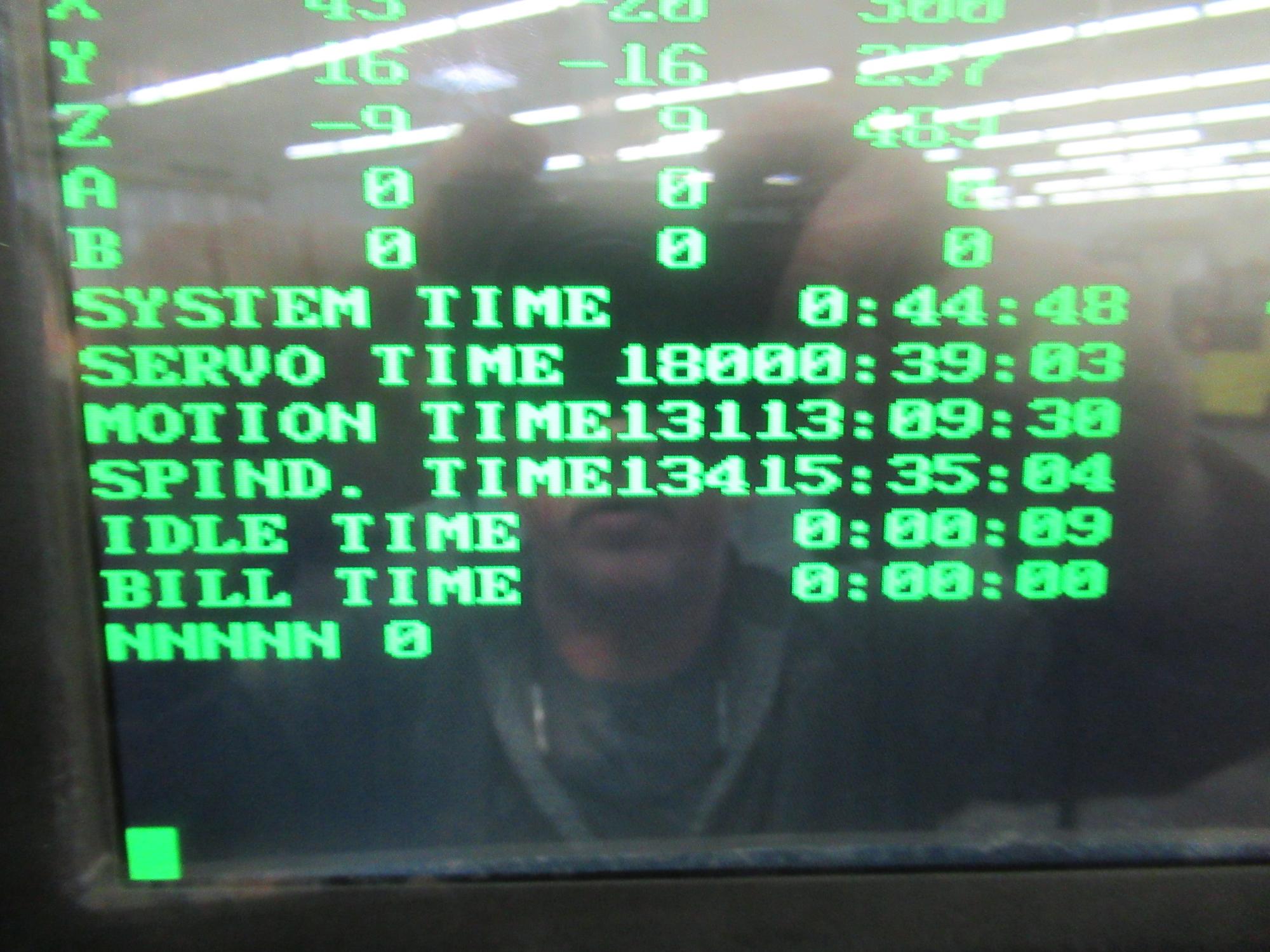

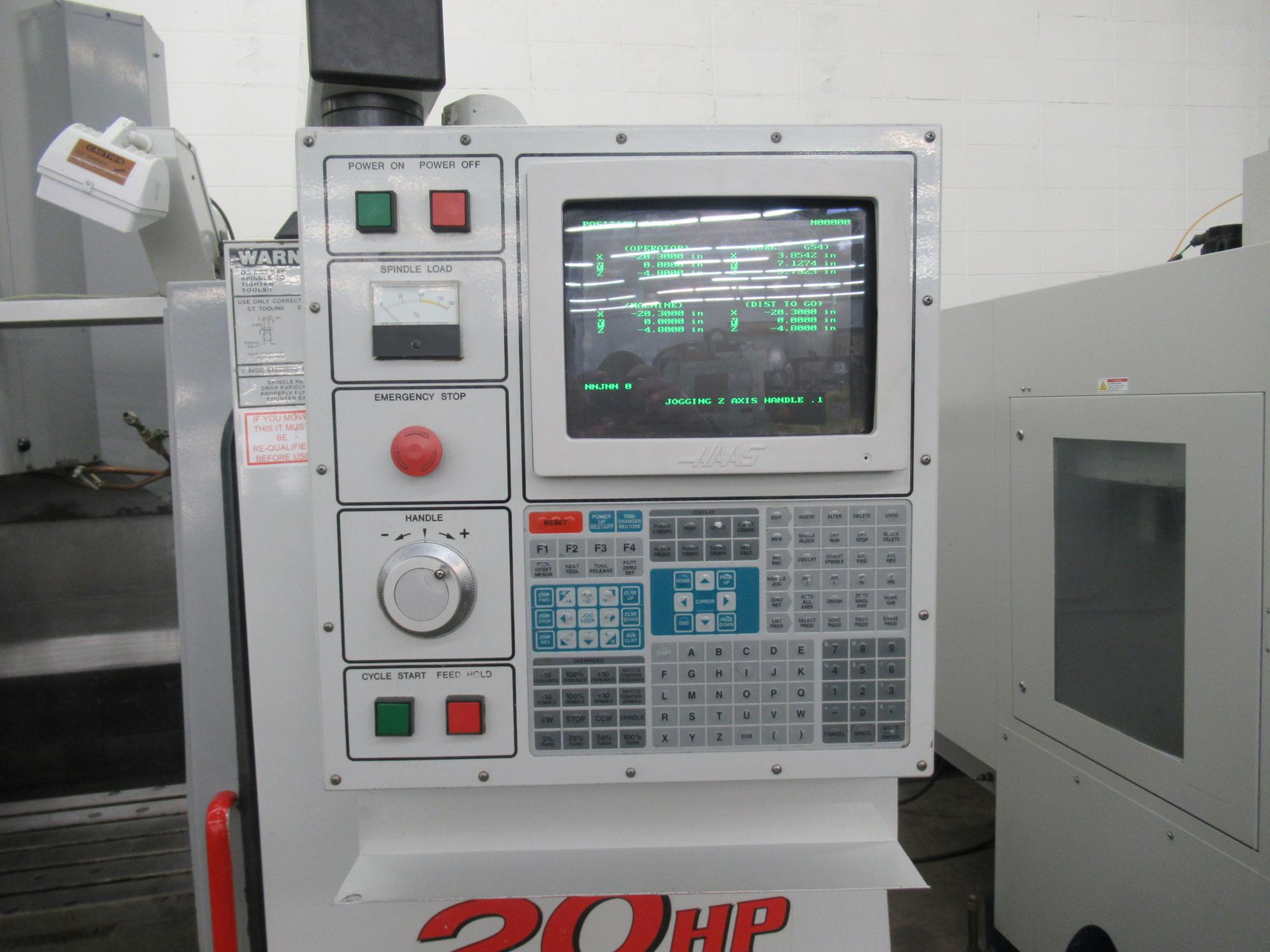

Machine Control: Haas 32 Bit CNC Control

Spindle To Table Distance: 4" - 29"

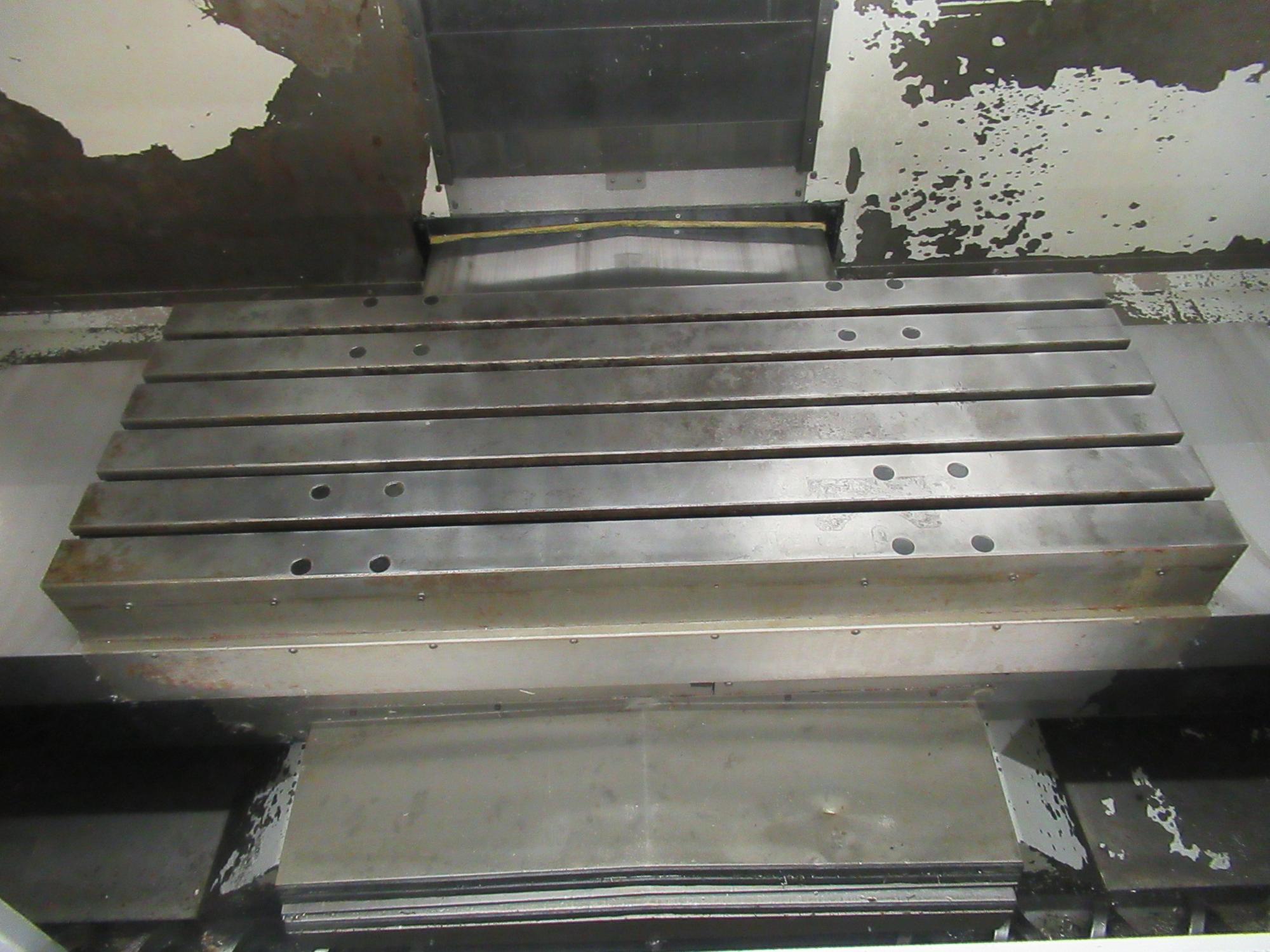

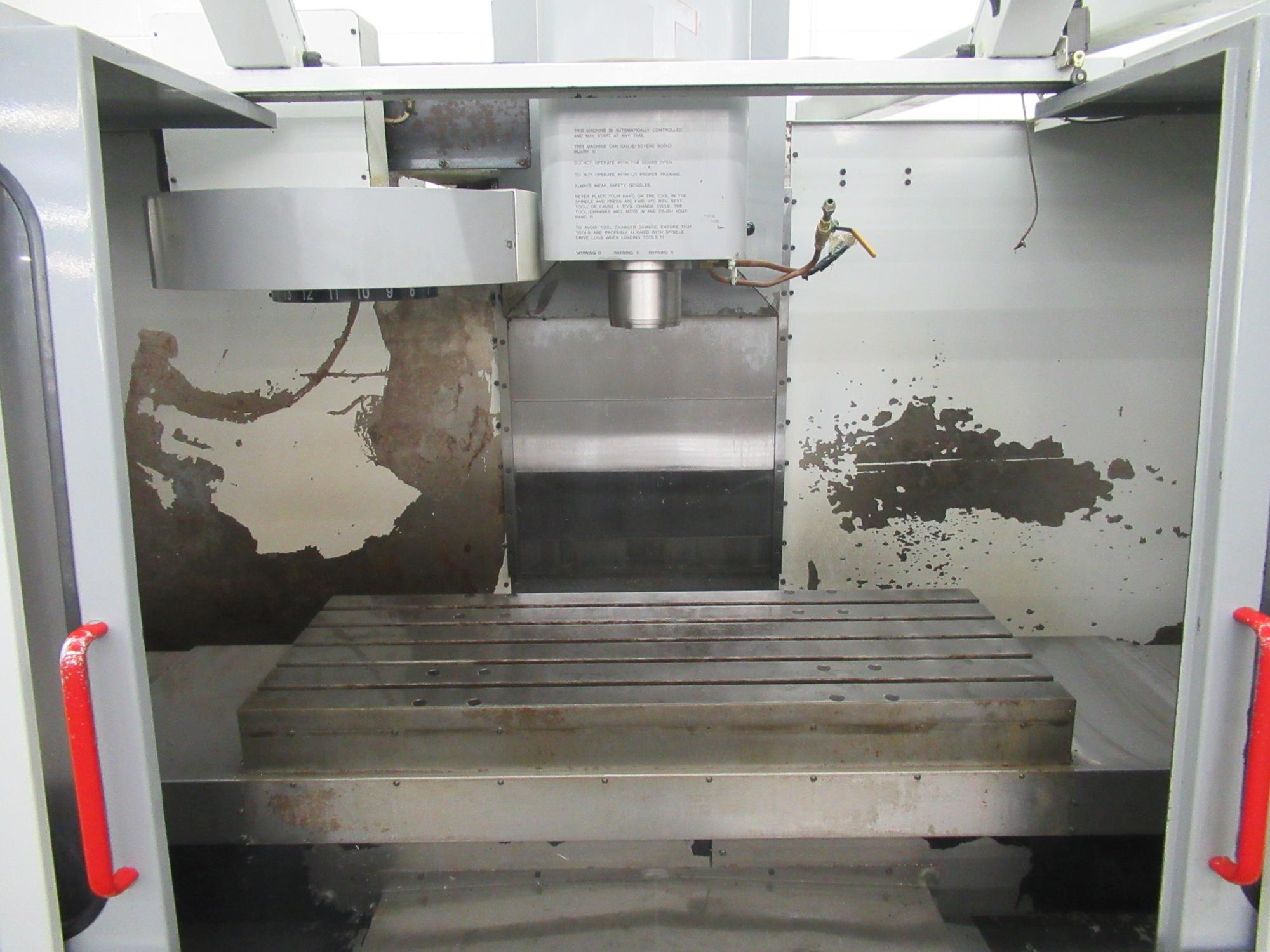

Table Size: 48" x 18"

Machine Travels (X/Y/Z): 40" x 20" x 25"

Table Capacity: 3,500 Lbs.

Spindle Taper: CAT 40

Spindle Speeds: 7,500 RPM

Transmission: 2-Speed Gearbox

Rapid Traverse Rate (X/Y/Z): 710 IPM

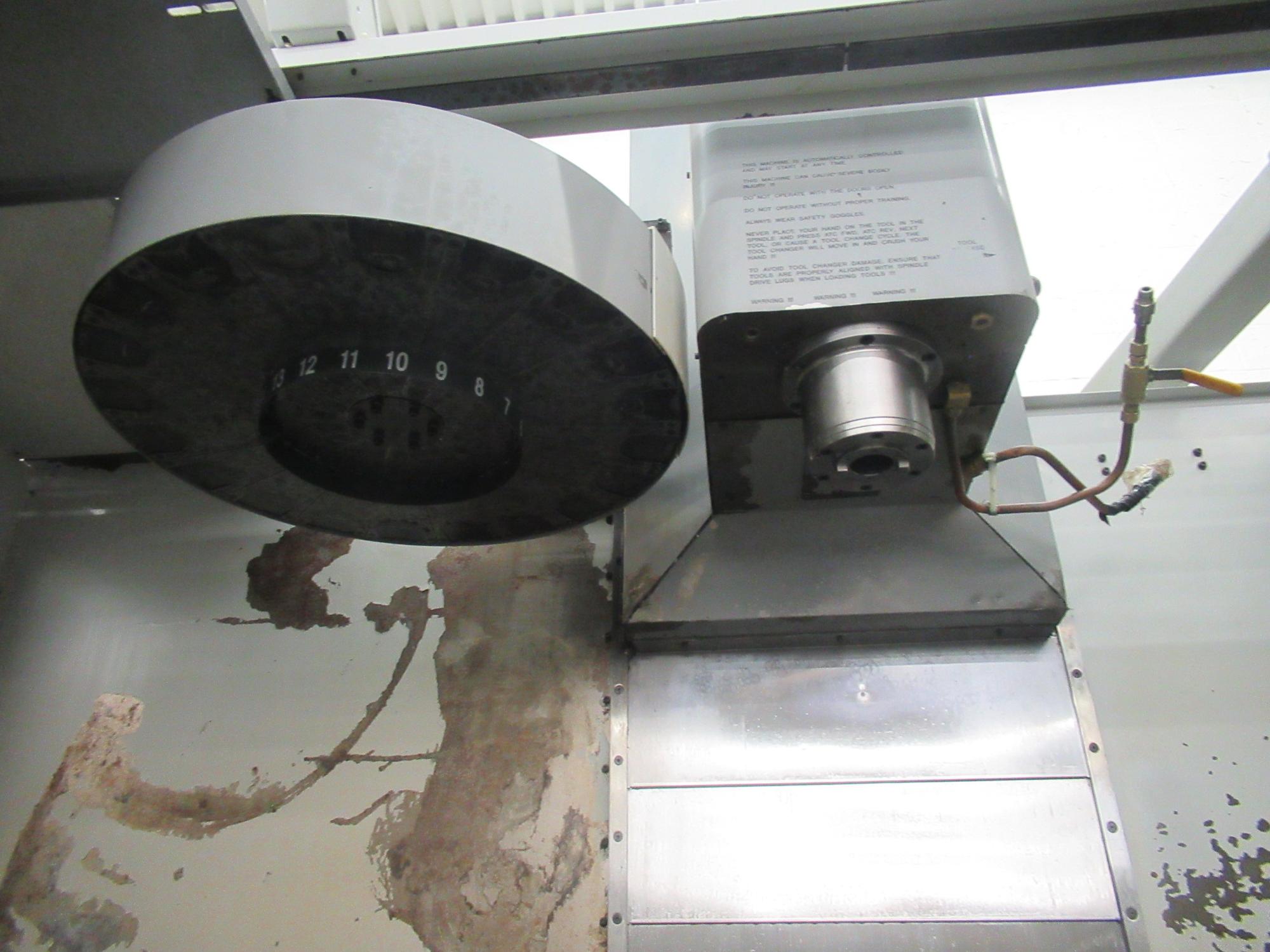

Tool Changer Style: Carousel

Tool Changer Capacity: 20 Stations

Tool Change Time: 4.2 Seconds Tool to Tool

Max Tool weight: 12 Lbs.

Spindle Drive: 20HP Vector Drive

Description:

Haas 32-Bit CNC Control, Brushless 4th Axis Drive, 20 Station Carousel Tool Changer, 2-Speed Gearbox 7500 RPM CAT-40 RPM 20 HP Vector Drive Spindle, Chip Auger, High Intensity Lighting, Coolant System with Tank and Pump, USB Port, RS232 Port

Equipped With:

Haas 32-Bit CNC Control, Brushless 4th Axis Drive, 20 Station Carousel Tool Changer, 2-Speed Gearbox 7500 RPM CAT-40 RPM 20 HP Vector Drive Spindle, Chip Auger, High Intensity Lighting, Coolant System with Tank and Pump, USB Port, RS232 Port

Electrics:

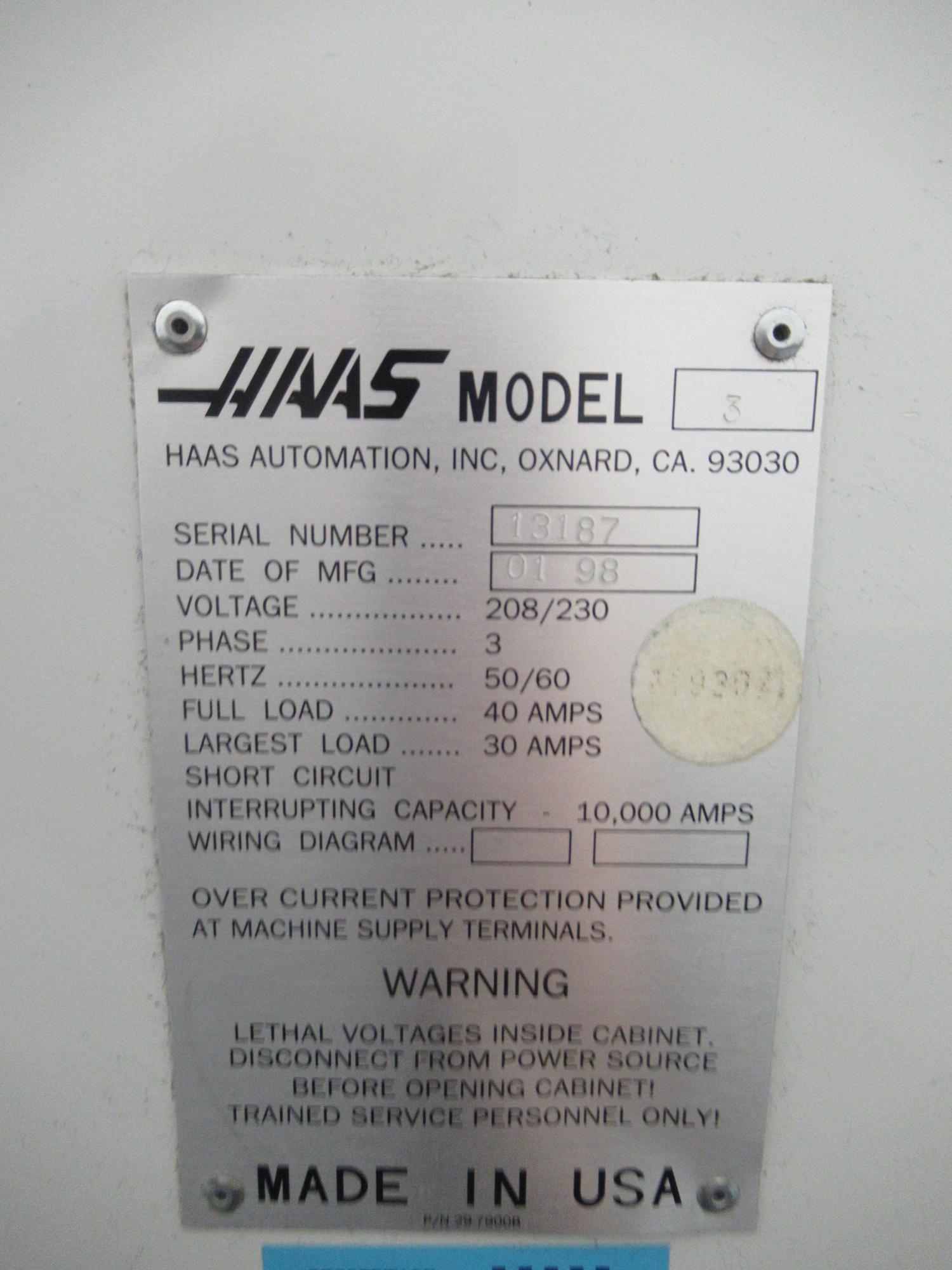

208/230 Volt 3 Phase
