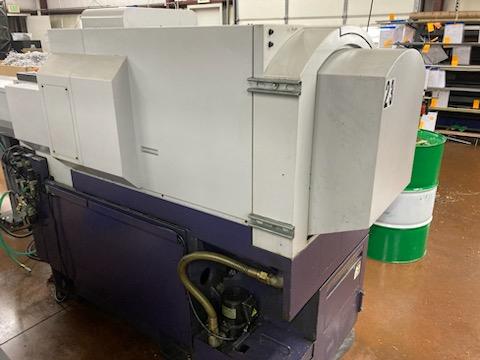

Citizen C16 Type VII CNC Swiss Screw Machine w Live End Working Option, Coolant Tank and Pump

Manufacturer

Citizen CNC

Category

Fabricating Machines

Type

FABRICATORS, CNC

Stock

C1011

Model

C16 VII

Dealer Location

Minnesota

Request a Quote
View Contact Information

Spec Sheet

Control: Cincom System M6B Control

Maximum Machining Diameter: 5/8"

Maximum Machining Length: 7.87" Per Chucking

Main Spindle Speeds: 200 - 10,000 RPM

Back Spindle Speeds: 200 - 10,000 RPM

Rotary Tool Speeds: 200 - 8,000 RPM

Back Spindle Max Chucking Diameter: 5/8"

Turning Tools: 6 Static on Main

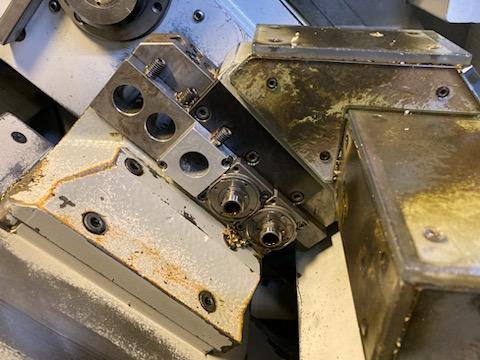

Rotary (Live) Tools: 4 Live on Main

Back Endworking Tools: (3) static and (2) Live

Front Endworking Tools: (3) Static and (2) Live

Rapid Feed Rate: 20 m/min on all Axes

Main Spindle Drive: 3 HP

Cutting Tool Shank/Sleeve Size: 3/8" Square

Description:

Citizen C Series Swiss Screw Machines are the best machines for a customer's "flexible" needs. The machine block elements, attachments, and tooling systems are all in the modular designs.

Equipped With:

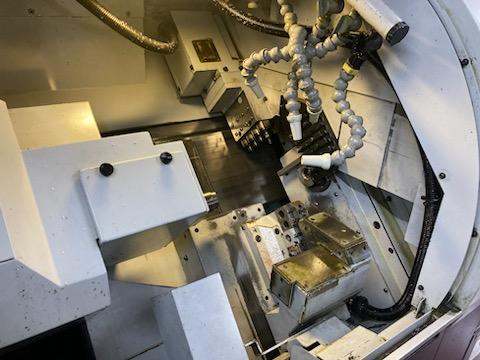

Citizen Cincom CNC Control, 4- Live Milling station on Main Slide with Live Tool Holders, Added Live End Working Option, Standard Live Tools, Synchronous Guide Bushings, Coolant Tank and Pump

Back/Main Spindle 1 Degree Indexing Function, Tool Spindle and Back Spindle Synchronized Tapping, Main Spindle C Axis, Back Spindle Constant Surface Speed Control, Main Spindle Synchronized Tapping, Back Spindle Chasing Function, Spindle Synchronization Control Function, User Macro, Canned Drilling Cycle, Missing Interpolation Function, Inclined Helical Interpolation.

Electrics:

220 Volt
