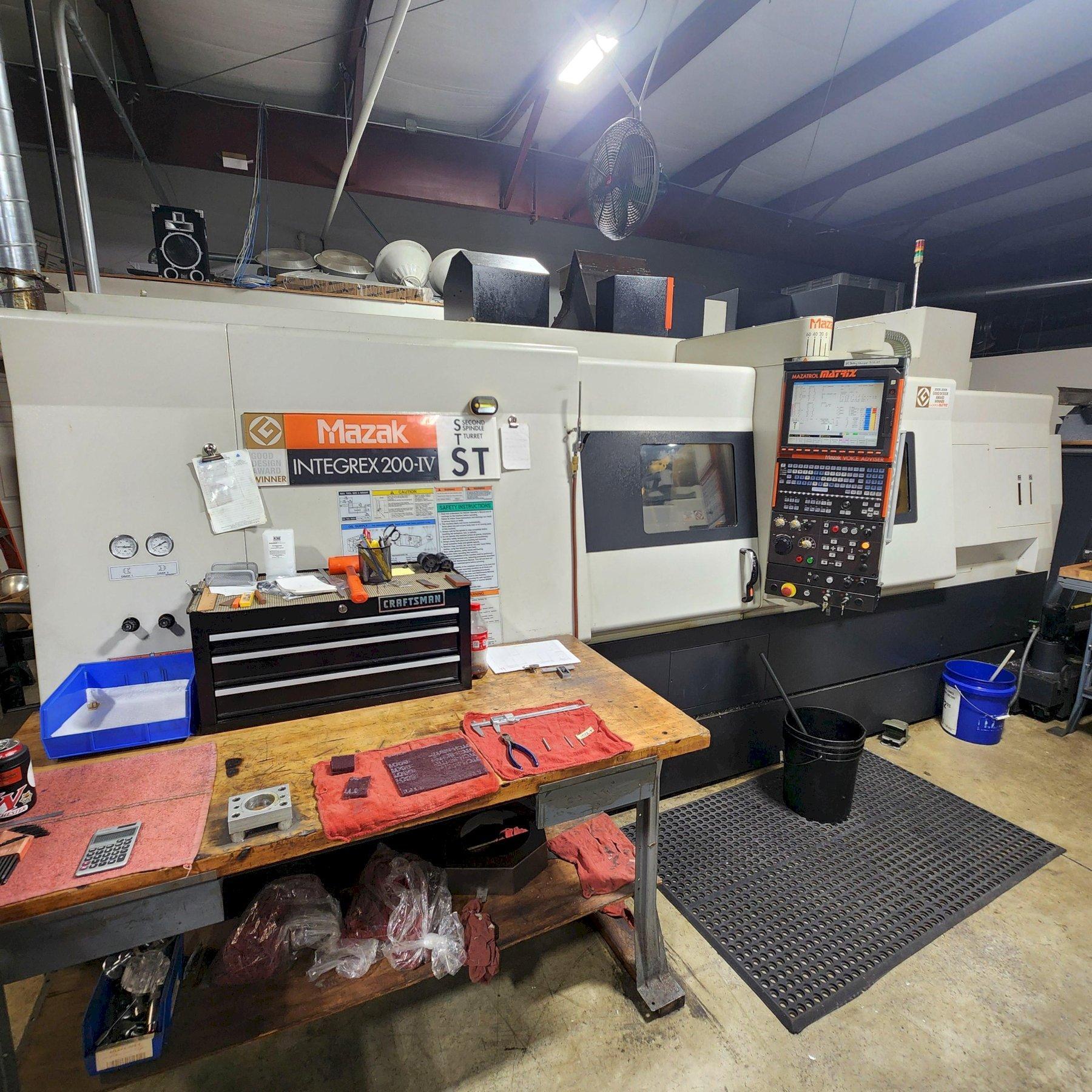

2007 Mazak Integrex 200IV-ST Multi-Axis CNC Turning and Milling Center For Sale

Manufacturer

MAZAK

Stock

MC0527

Model

Integrex 200-IV-ST

Dealer Location

Michigan

Spec Sheet

CNC Control - yes
Type of CNC Control - Mazatrol Matrix
# Axis - 6
Swing - 26 inches
Turning Diameter - 26 inches
Center Distance - 60 inches
Chuck Size - 8 inches
Bar Capacity - 2.5 inches
Y Axis Travel - 5.91 inches
B Axis Travel (Sub Spindle) - 225 inches
Spindle Nose - A2-6
Spindle Speed - 5000 RPM
Main Motor - 30 HP
Tailstock - no
Y Axis - yes
Live Tooling - yes
Sub Spindle - yes
Sub Spindle Chuck - 8 inches
Sub Spindle Bar Capacity - 2.5 inches
Sub Spindle Nose - A2-6
Sub Spindle Speed - 4500 RPM
Sub Spindle Motor (HP) - 25
Milling Spindle Speed - 12,000 RPM
Turret Capacity - 9


- Mazatrol Matrix CNC Control
- Main Spindle & Second Spindle
- KM63 Spindle
- B-Axis Milling Spindle
- Y Axis

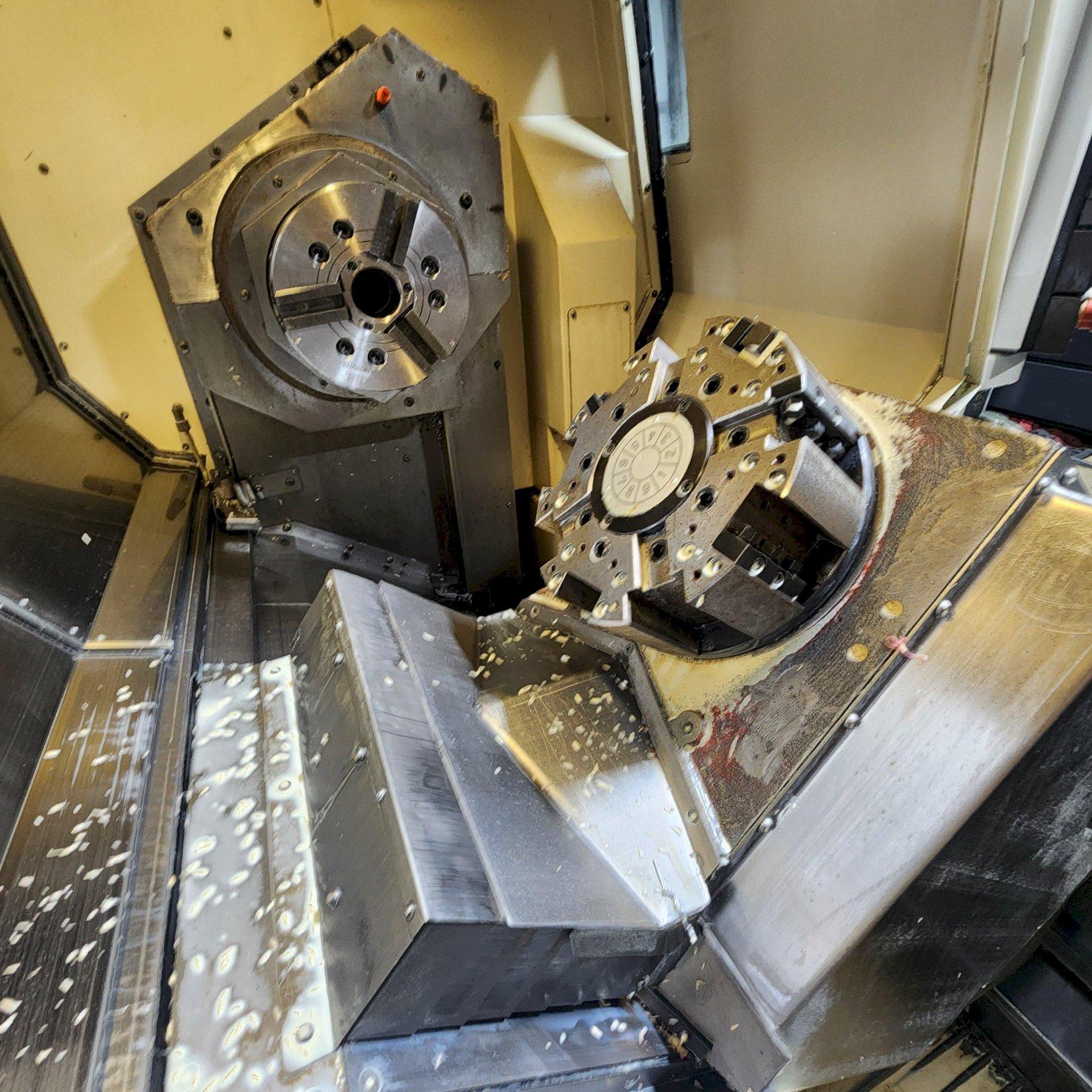

- 9-Station Lower Turret
- 40-Position Automatic Tool Changer
- Probing (no probe)
- Collet Chuck on Main Spindle

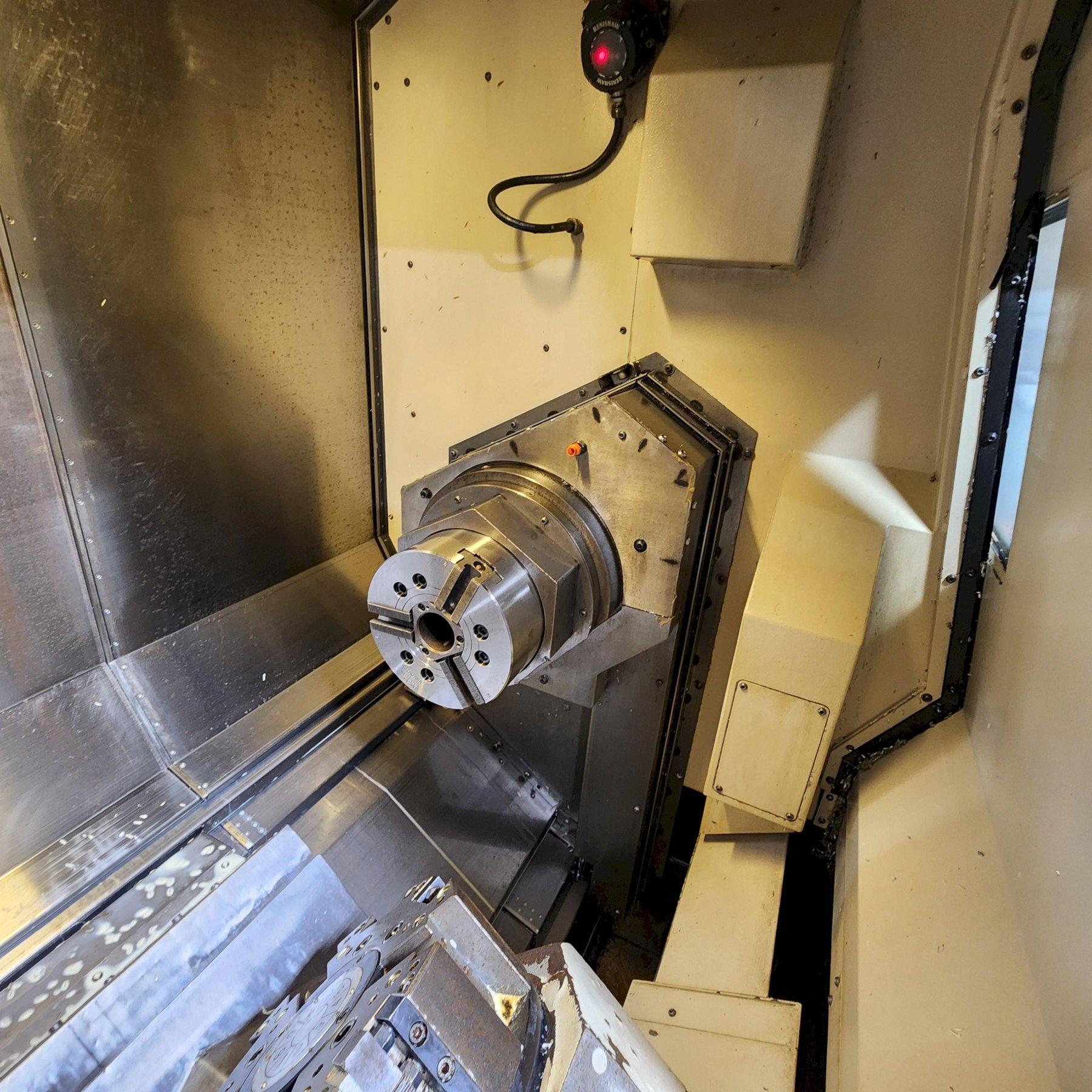

- 8" 3 Jaw Chuck on Second Spindle
- Tool Eye

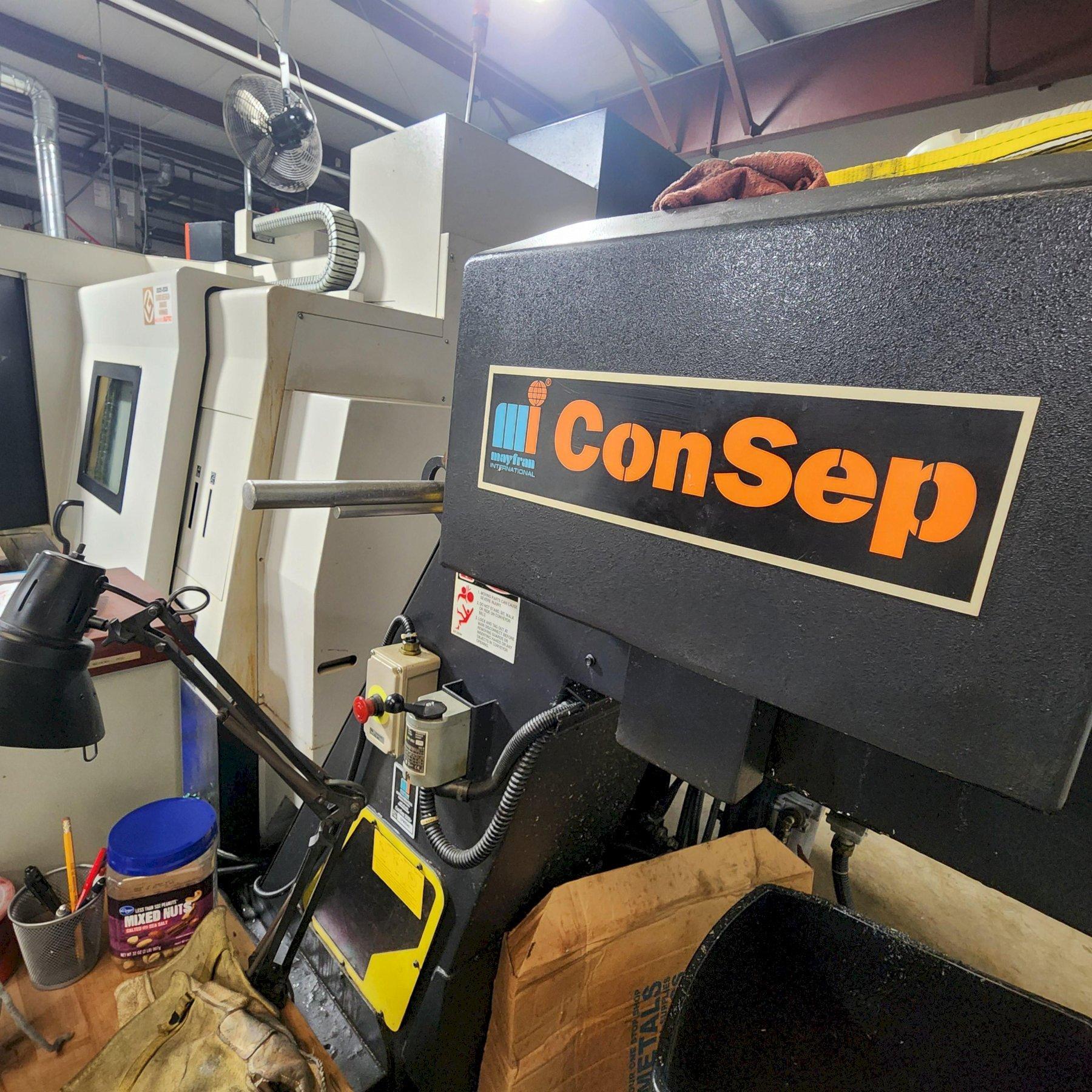

- Consep Chip Conveyor
- Coolant System

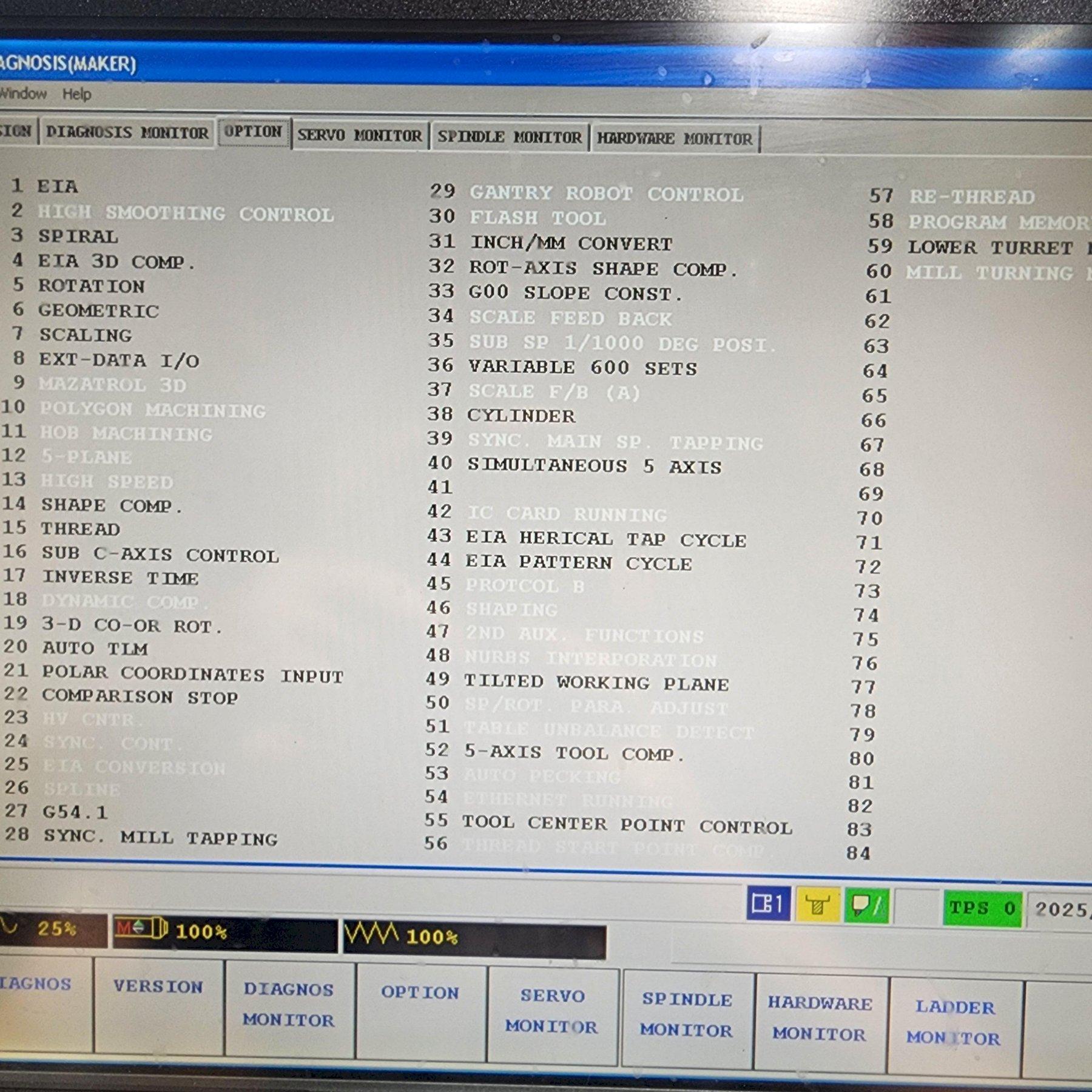

- See Option Page Photo for complete list of Control Options
