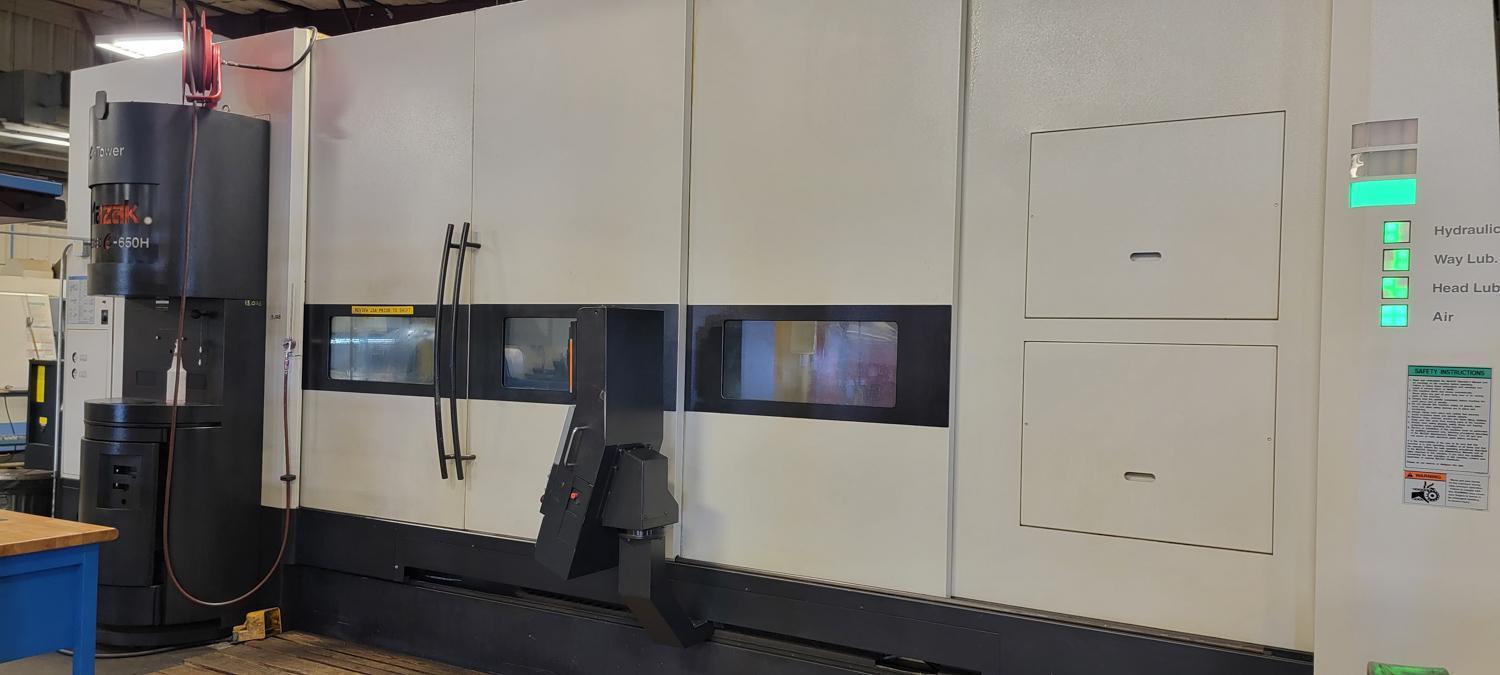

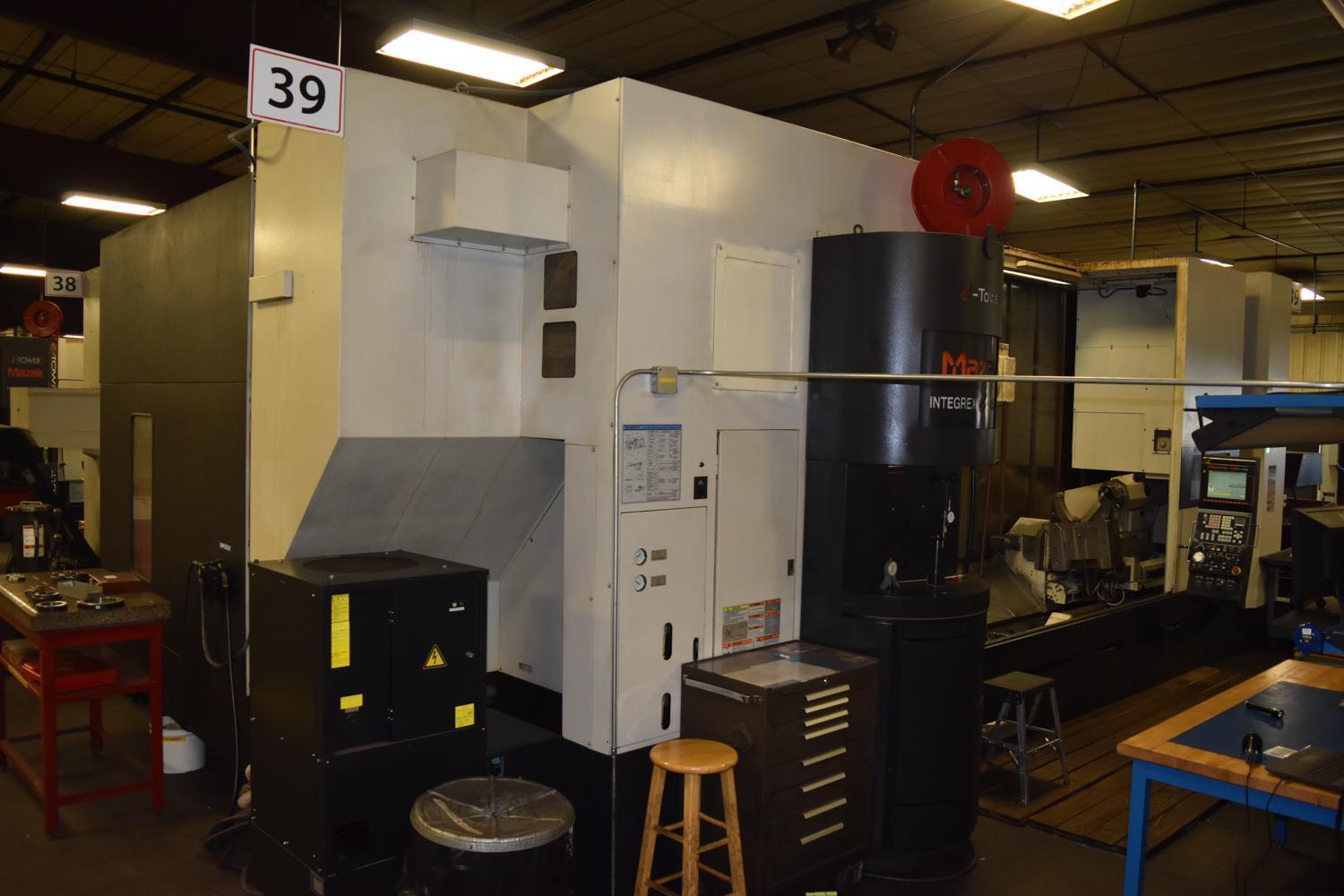

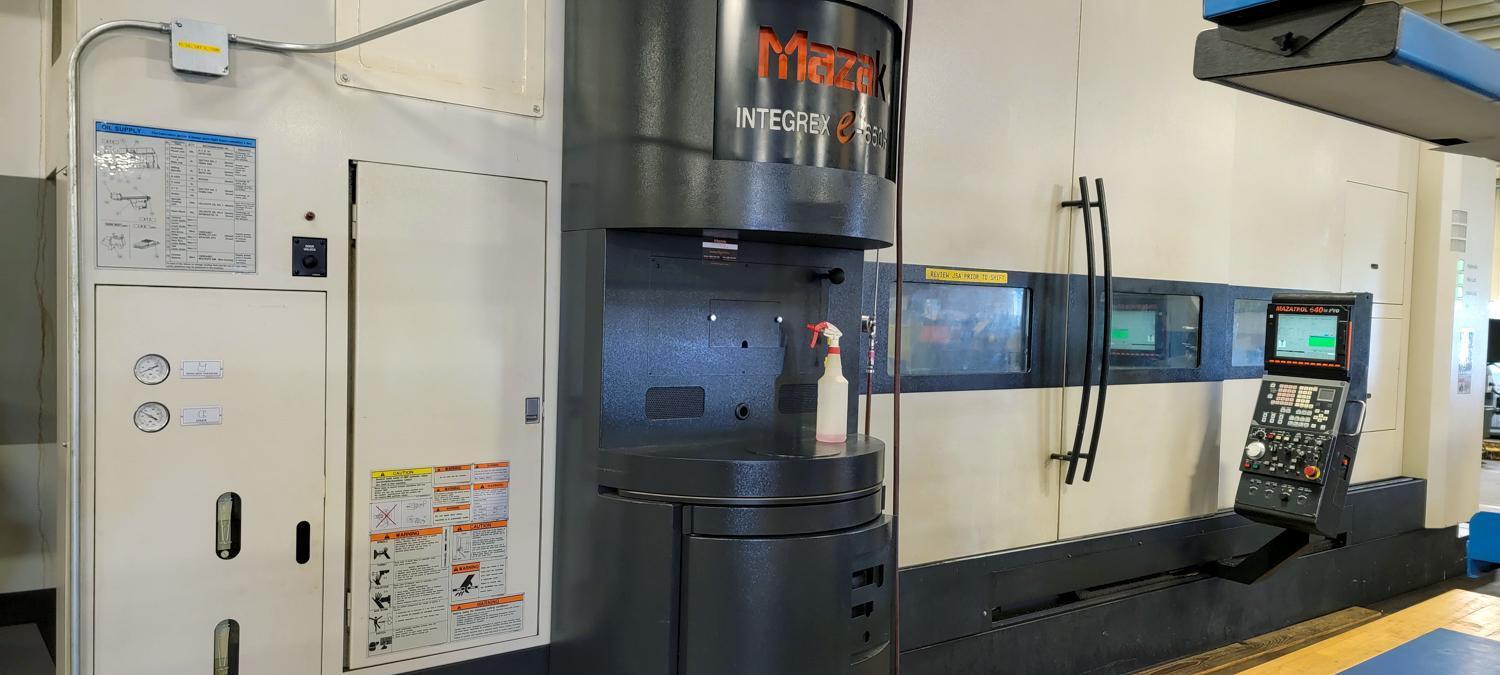

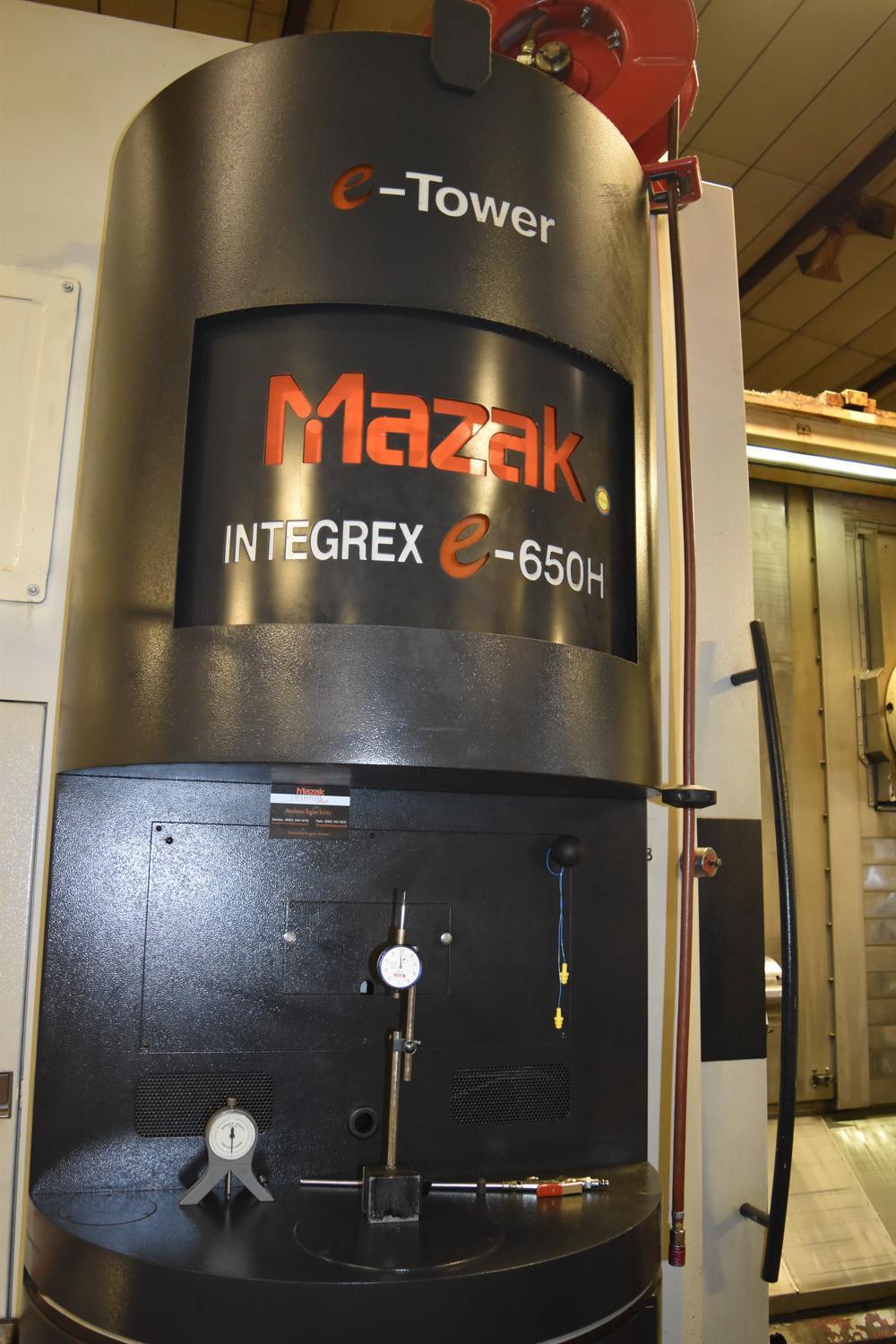

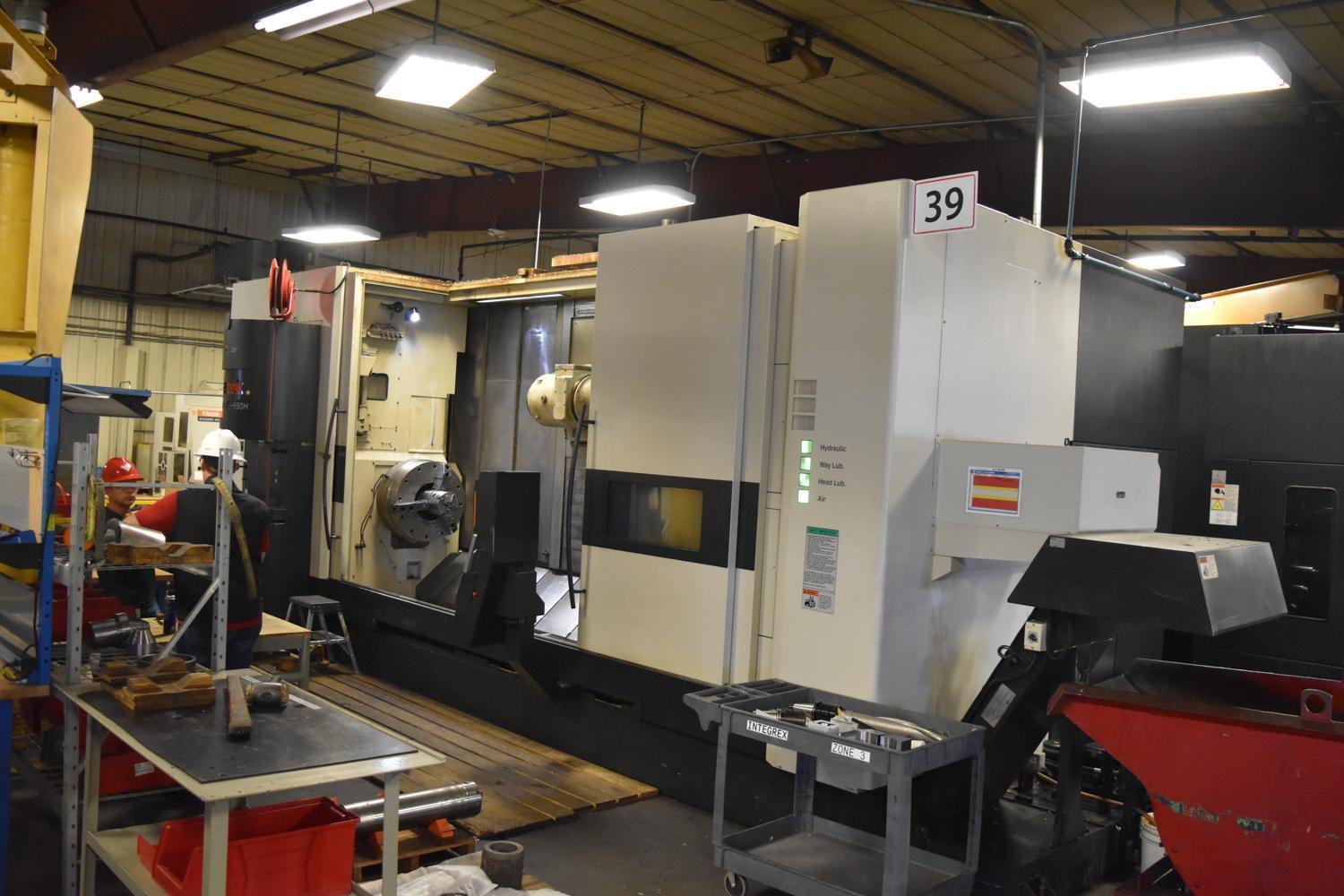

USED, MAZAK INTEGREX E-650 / 3000MM 5 AXIS TURNING AND MILLING CENTER

Manufacturer

MAZAK

Stock

20748

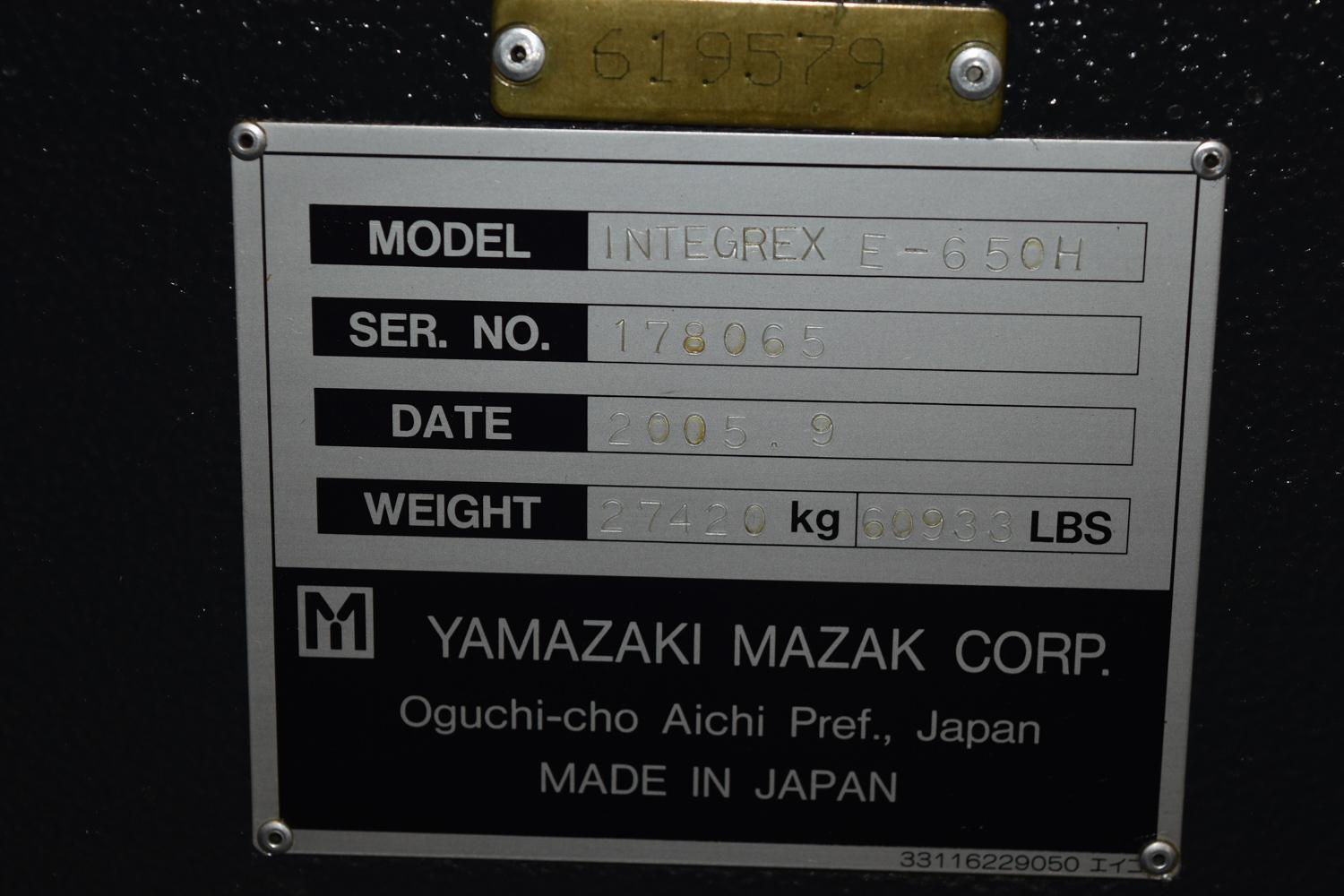

Model

INTEGREX E650H

Dealer Location

Texas

Spec Sheet

CNC Control - yes
Type of CNC Control - MAZATROL
# Axis - 5
Chuck Size - 24 inches
Swing - 36 inches
Turning Diameter - 36 inches
Center Distance - 120 inches
Bar Capacity - 10.2 inches
Spindle Bore - 10.2 inches
X Axis Travel - 40 inches
Z Axis Travel - 122 inches
Y Axis (Yes / No) - yes
Spindle Speed (RPM) - 1000
Main Motor - 50 HP
Live Milling (Yes / No) - yes

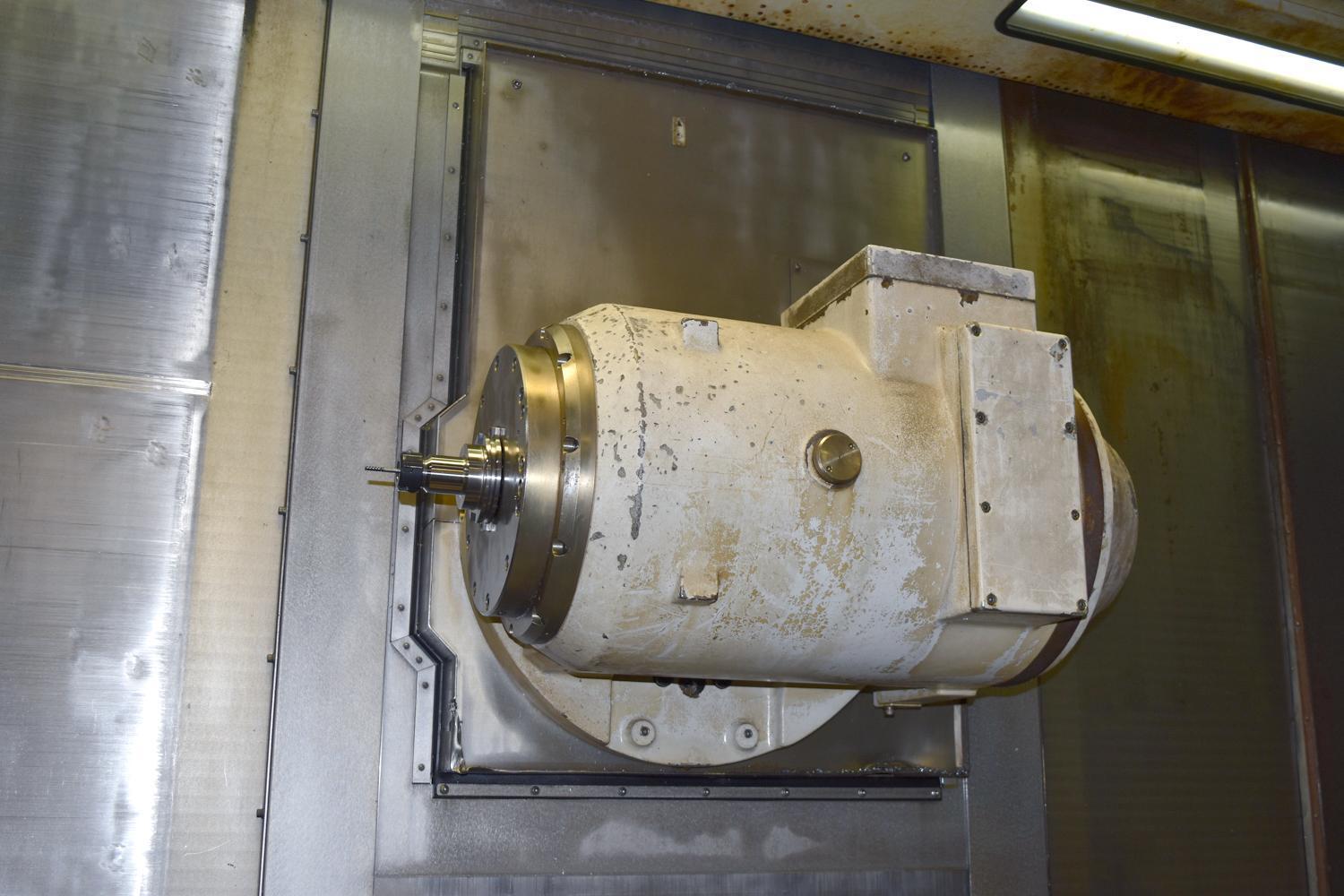

Live Milling Speed (RPM) - 10000
Live Milling Motor - 50

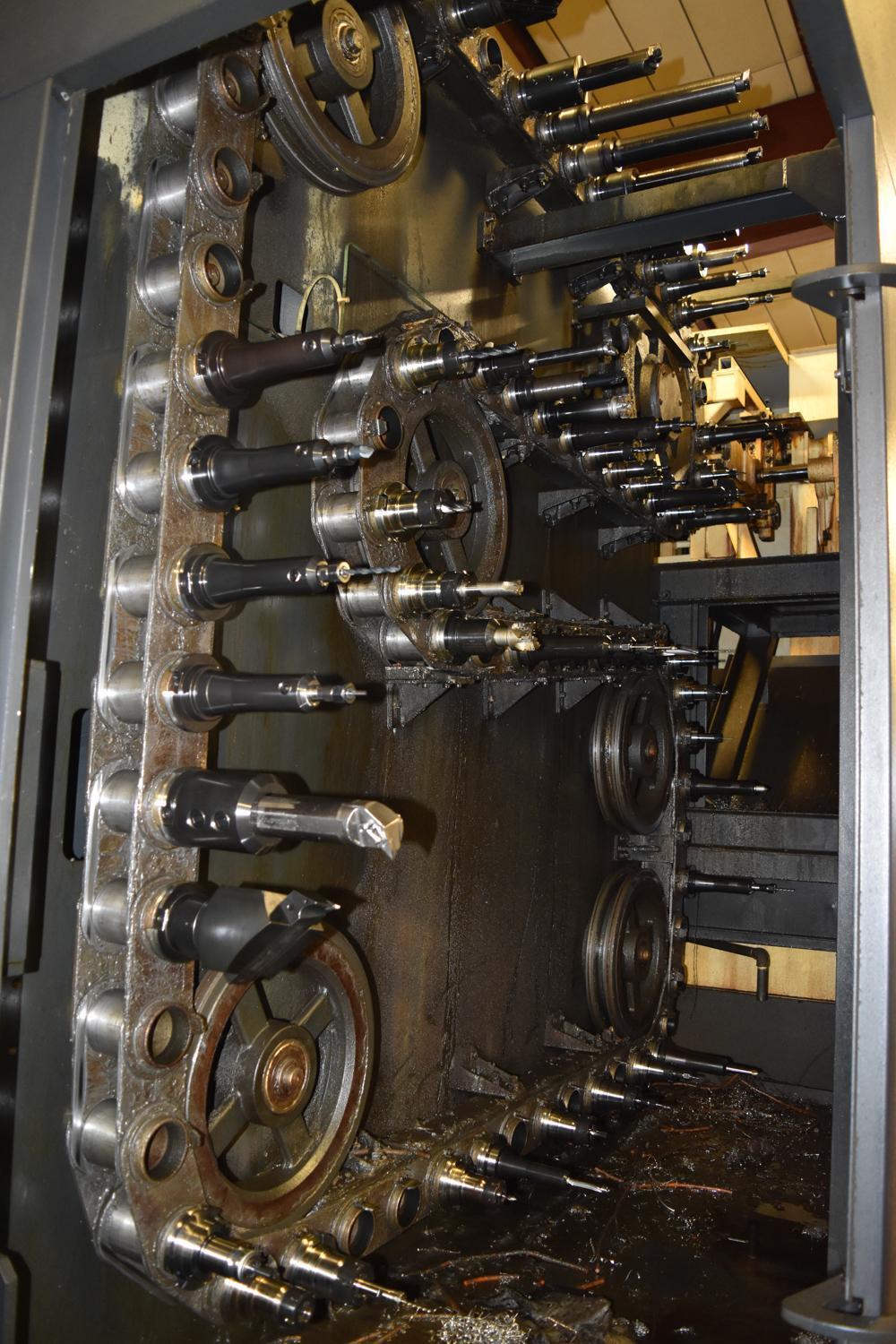

Turret Capacity - 80

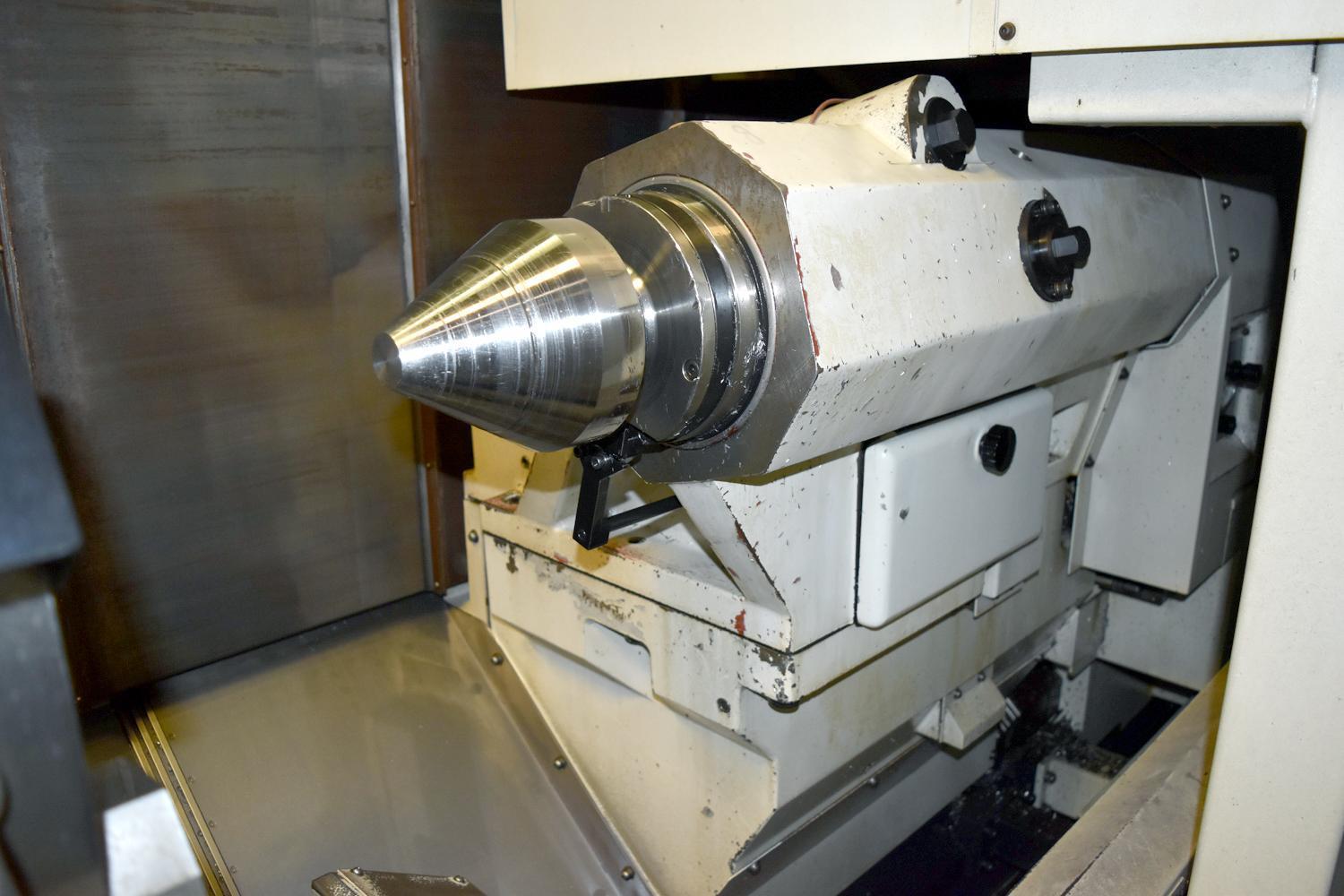

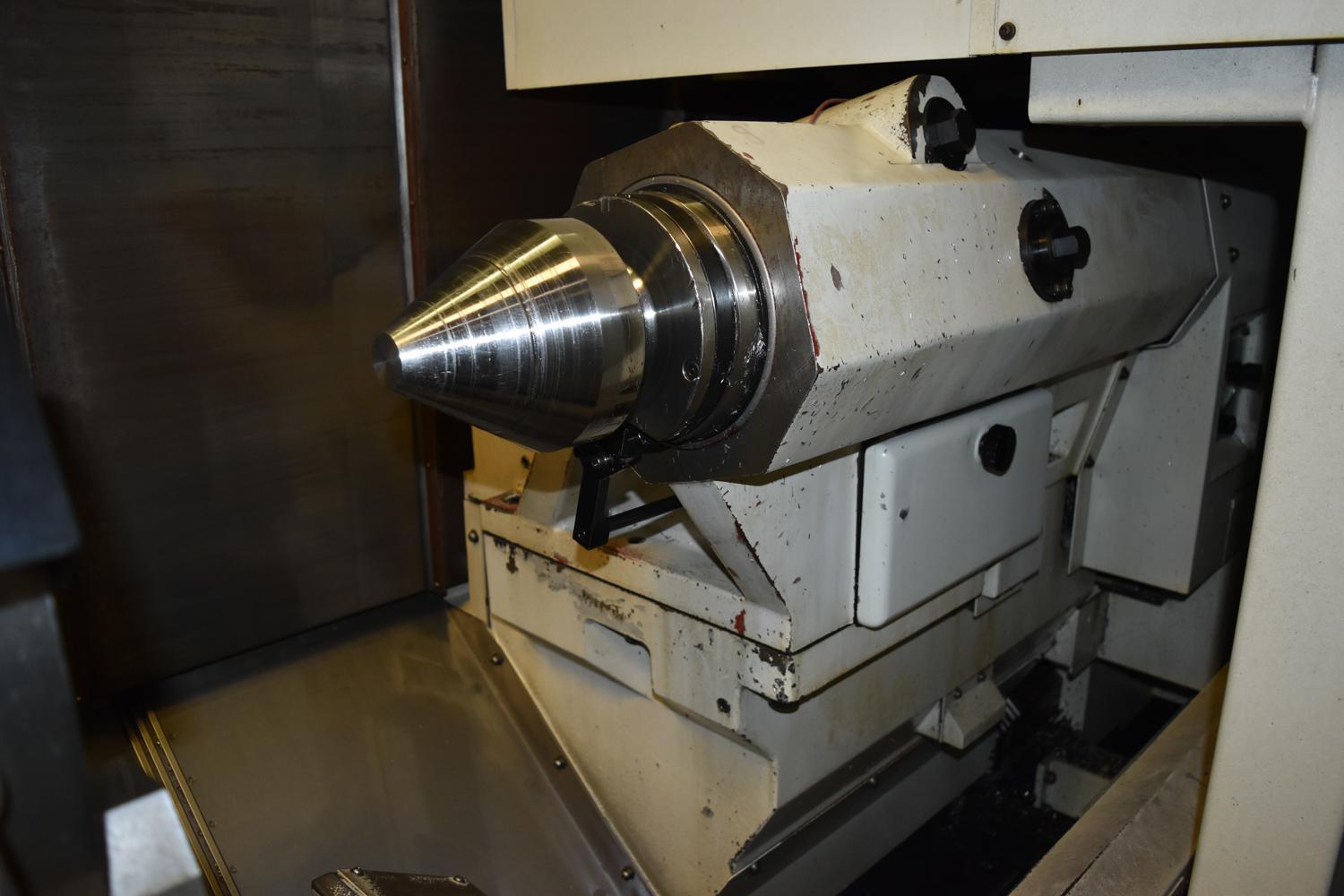

Tailstock (Yes/No) - yes
Power - 50 horsepower
Live Tooling Max Spindle Speed (RPM) - 10000


Travels:
- Y-Axis: 25.6"
- B-Axis: 0.0001° Contouring
- C-Axis: 1000 RPM


EQUIPPEED WITH:

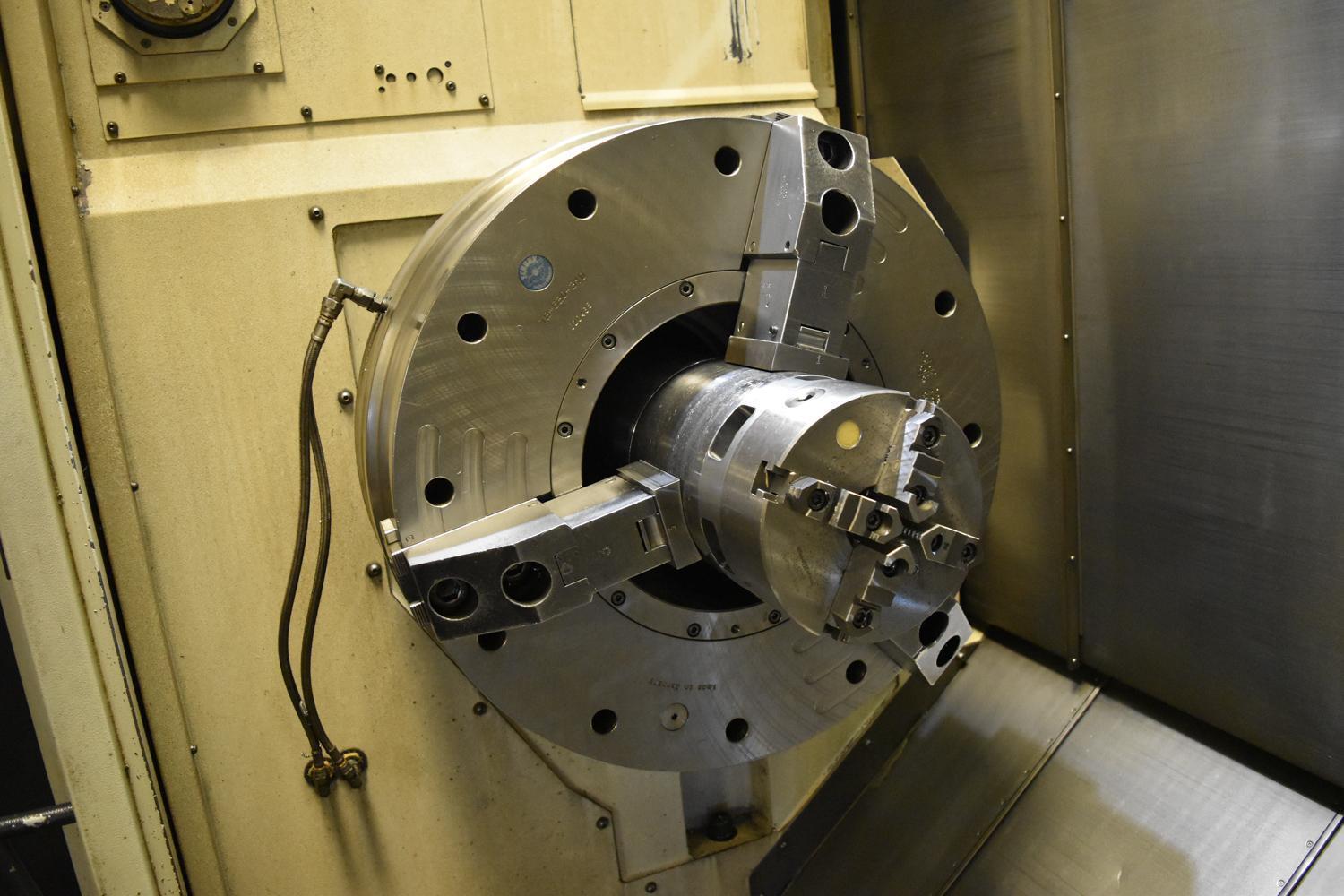

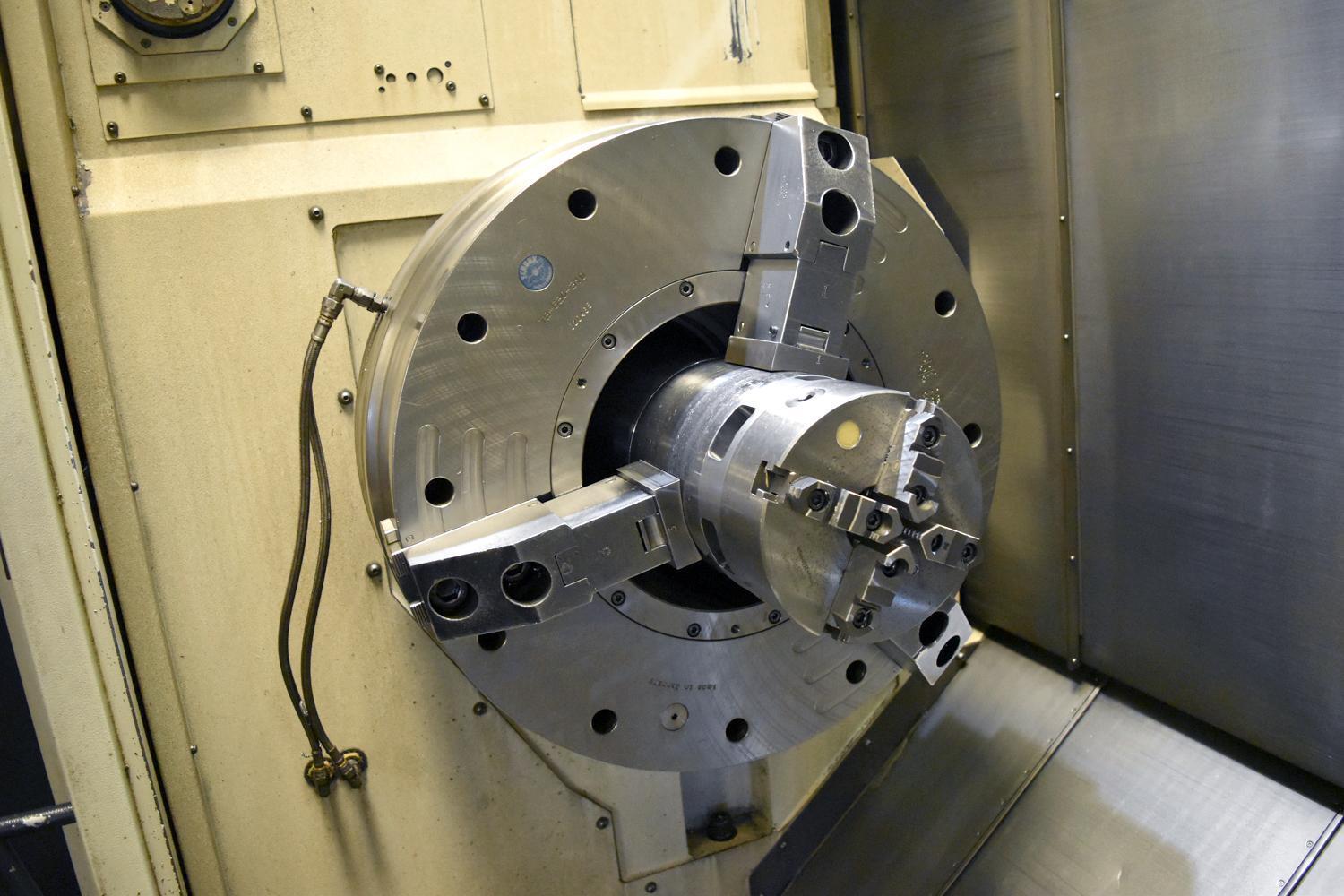

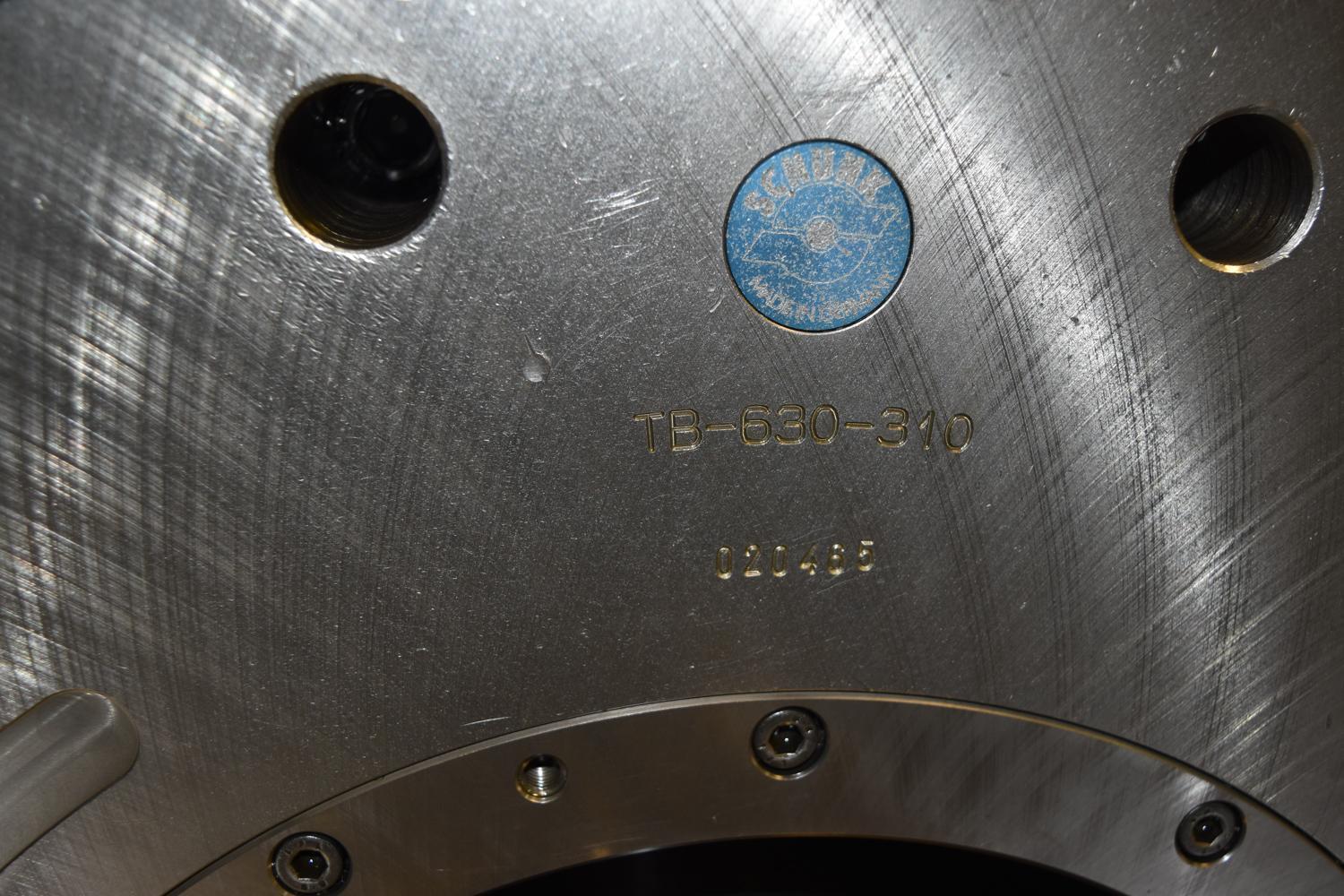

24" SCHUNK 3 JAW FRONT MOUNT AIR CHUCK

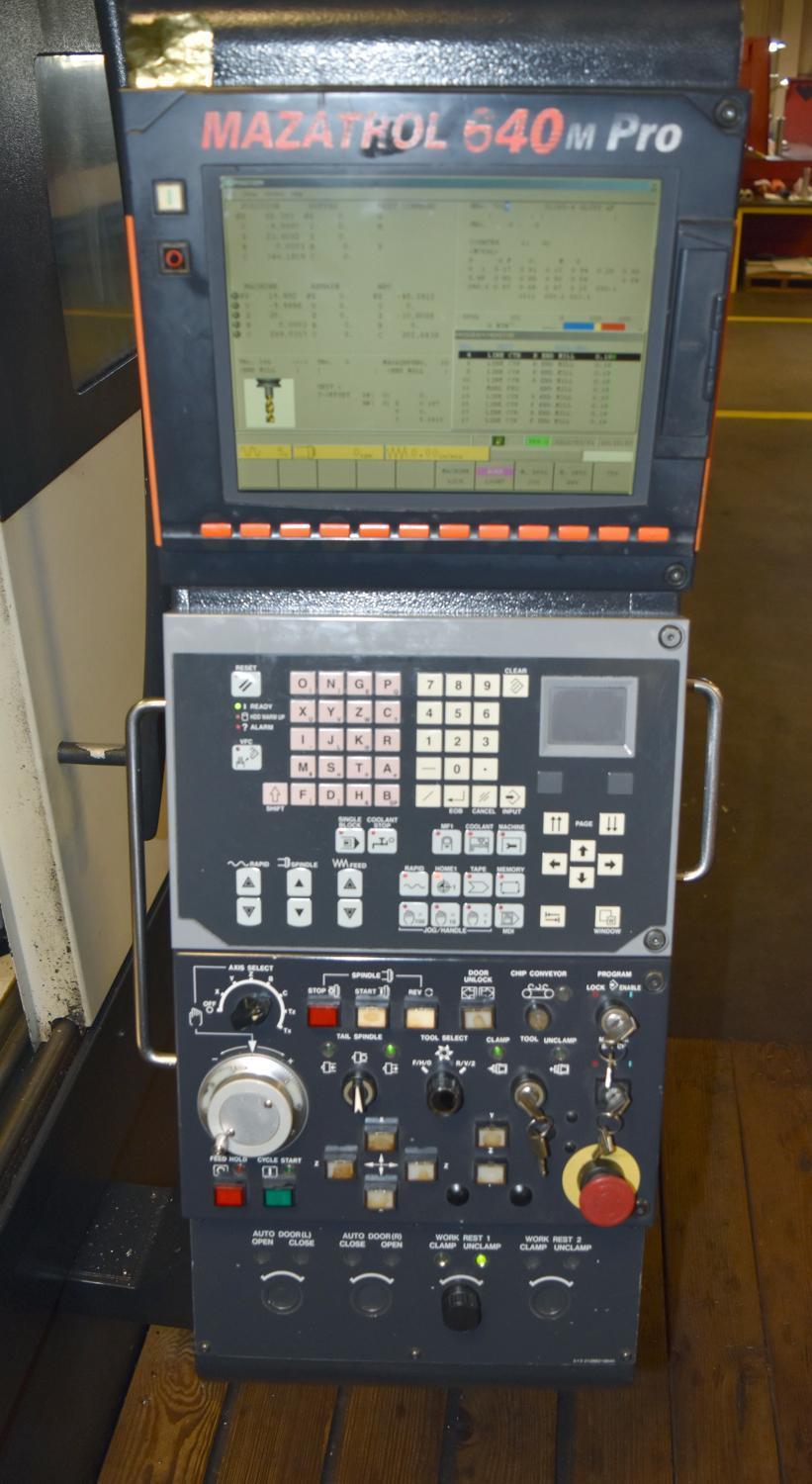

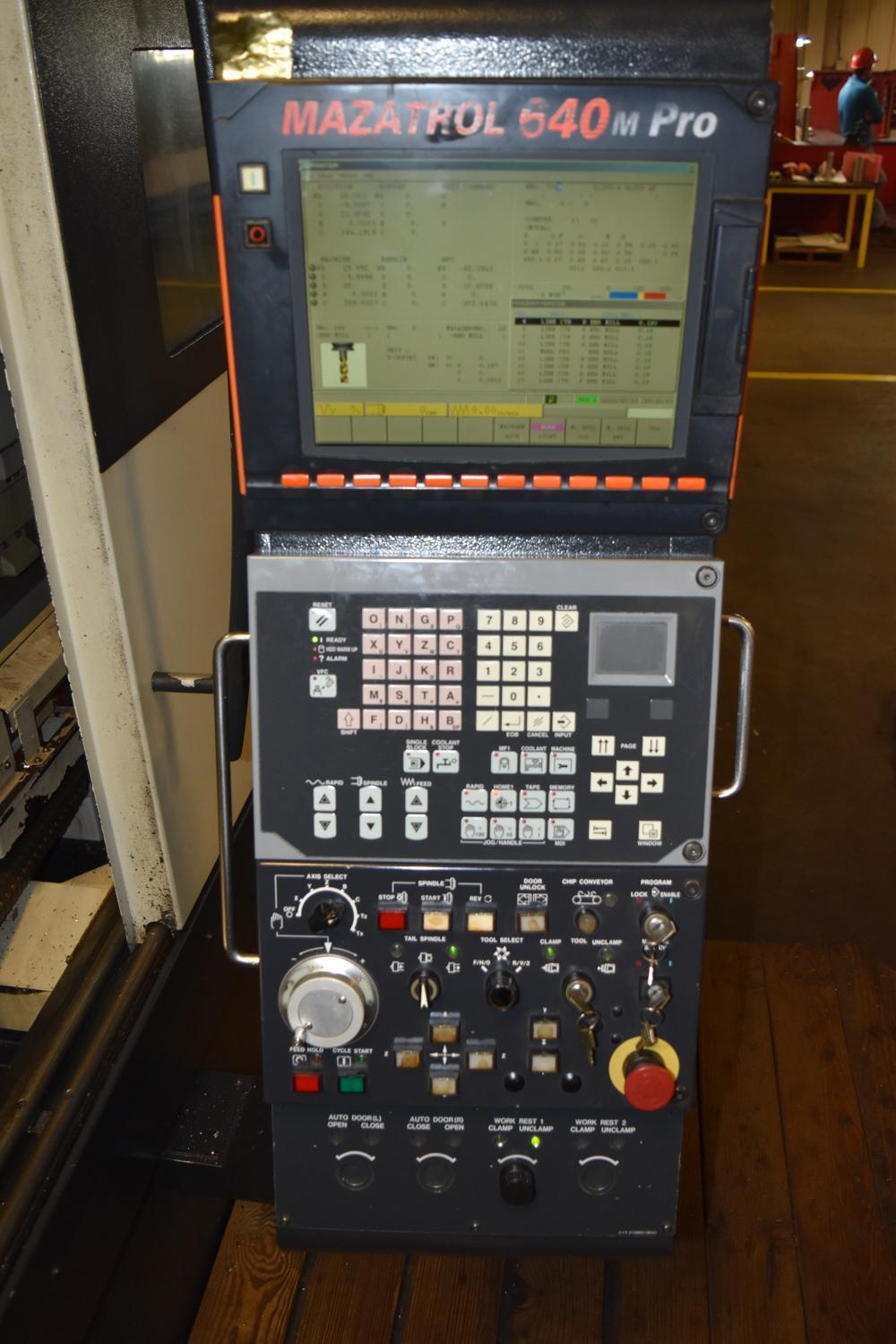

MAZATROL 640M PRO CNC CONTROL

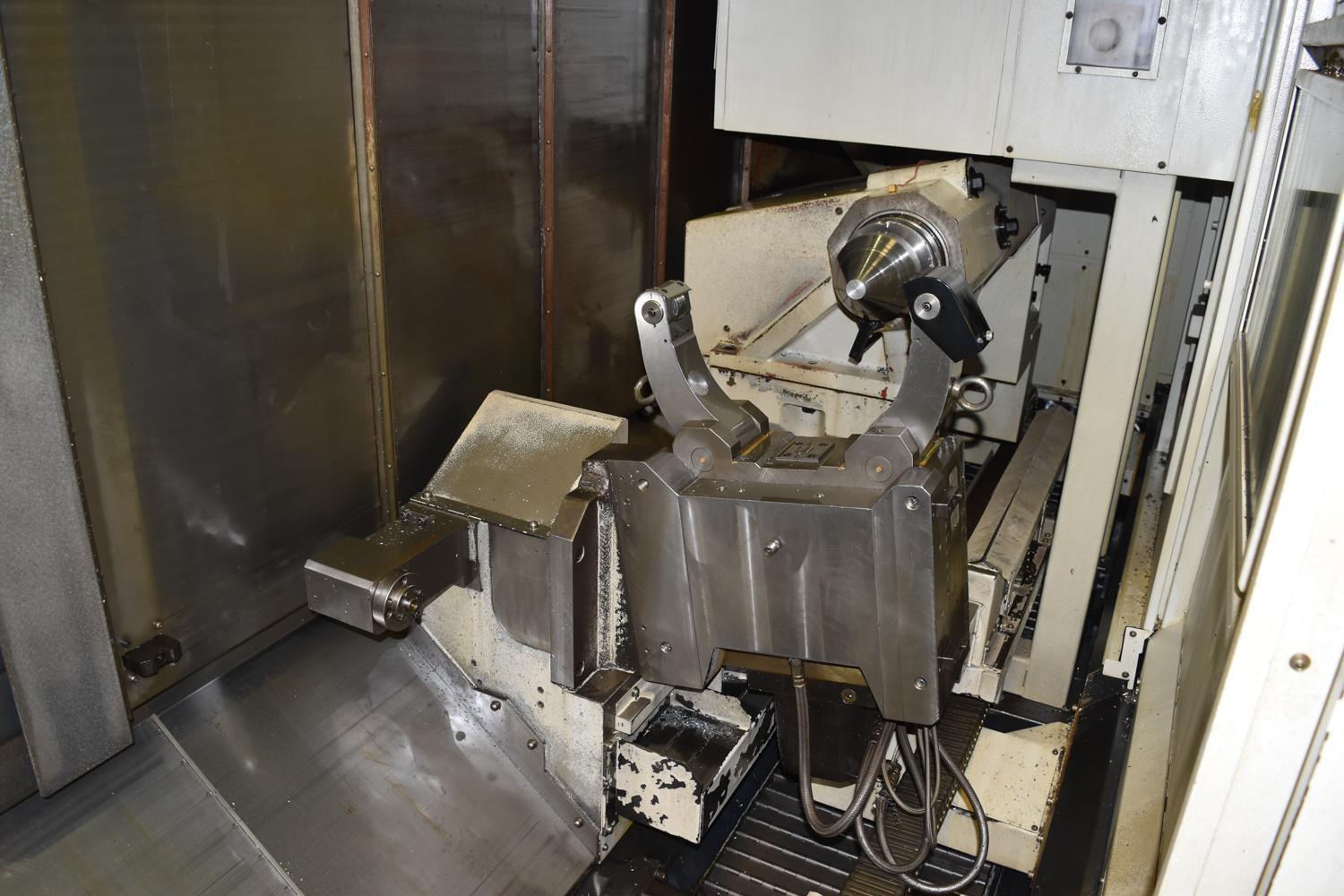

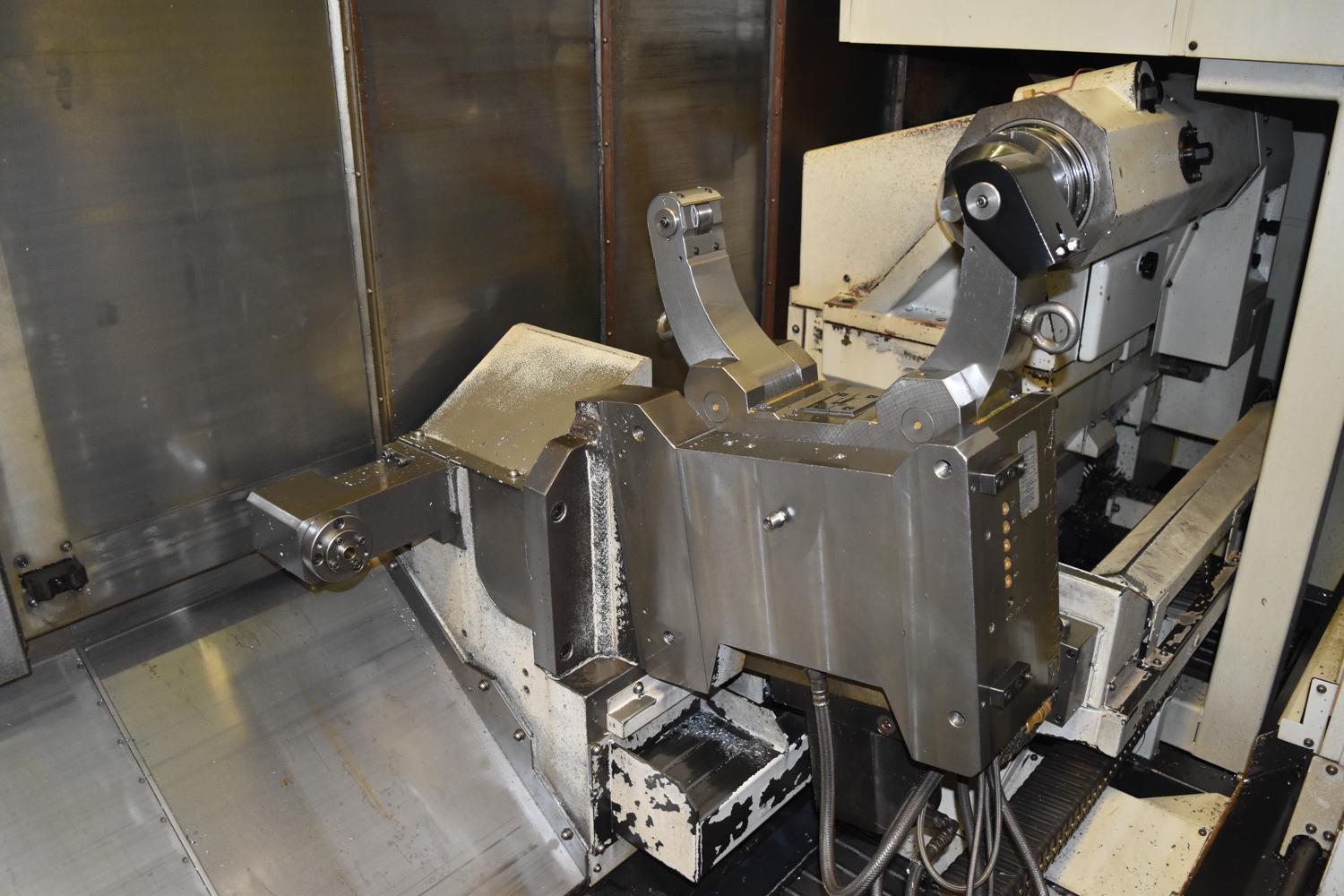

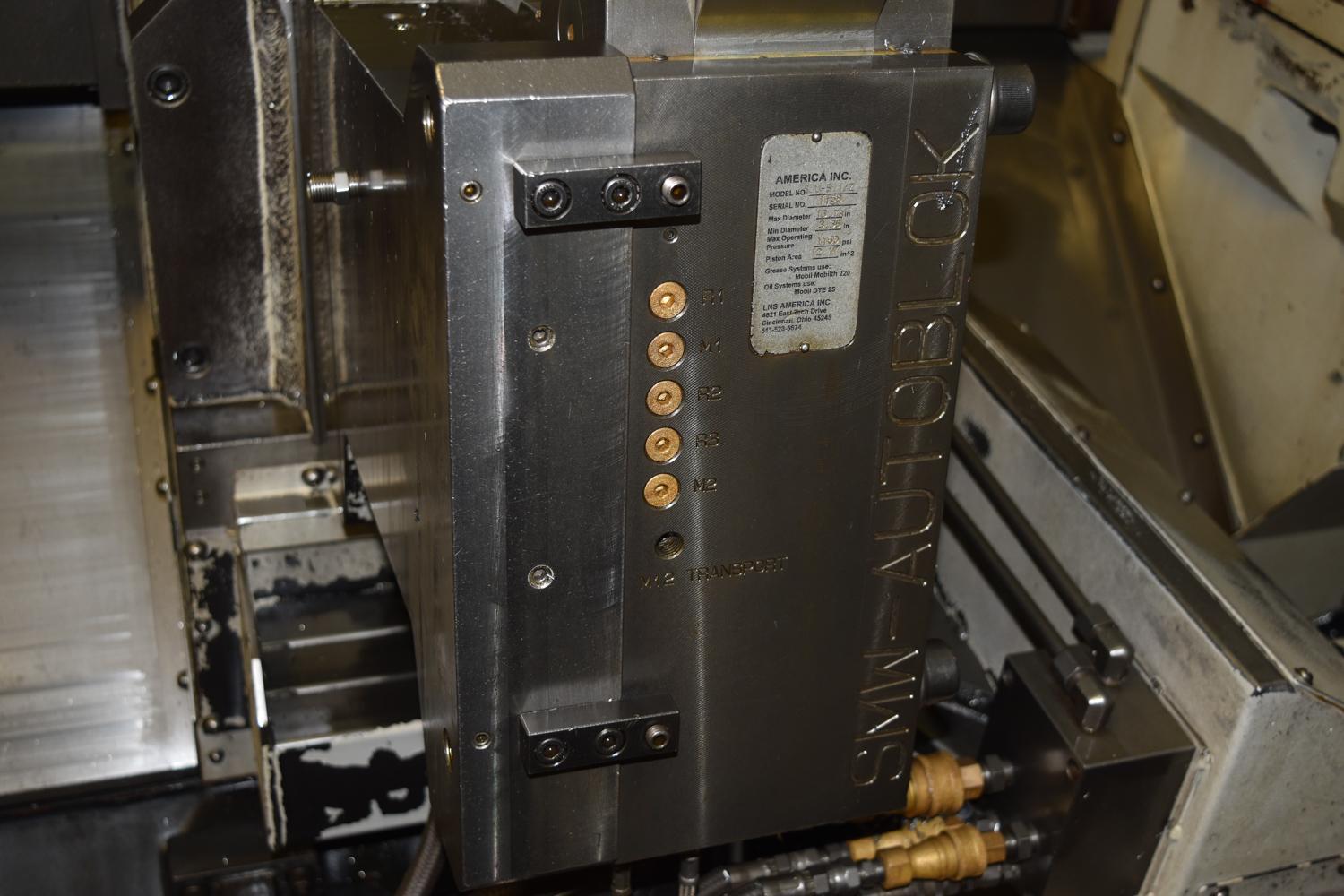

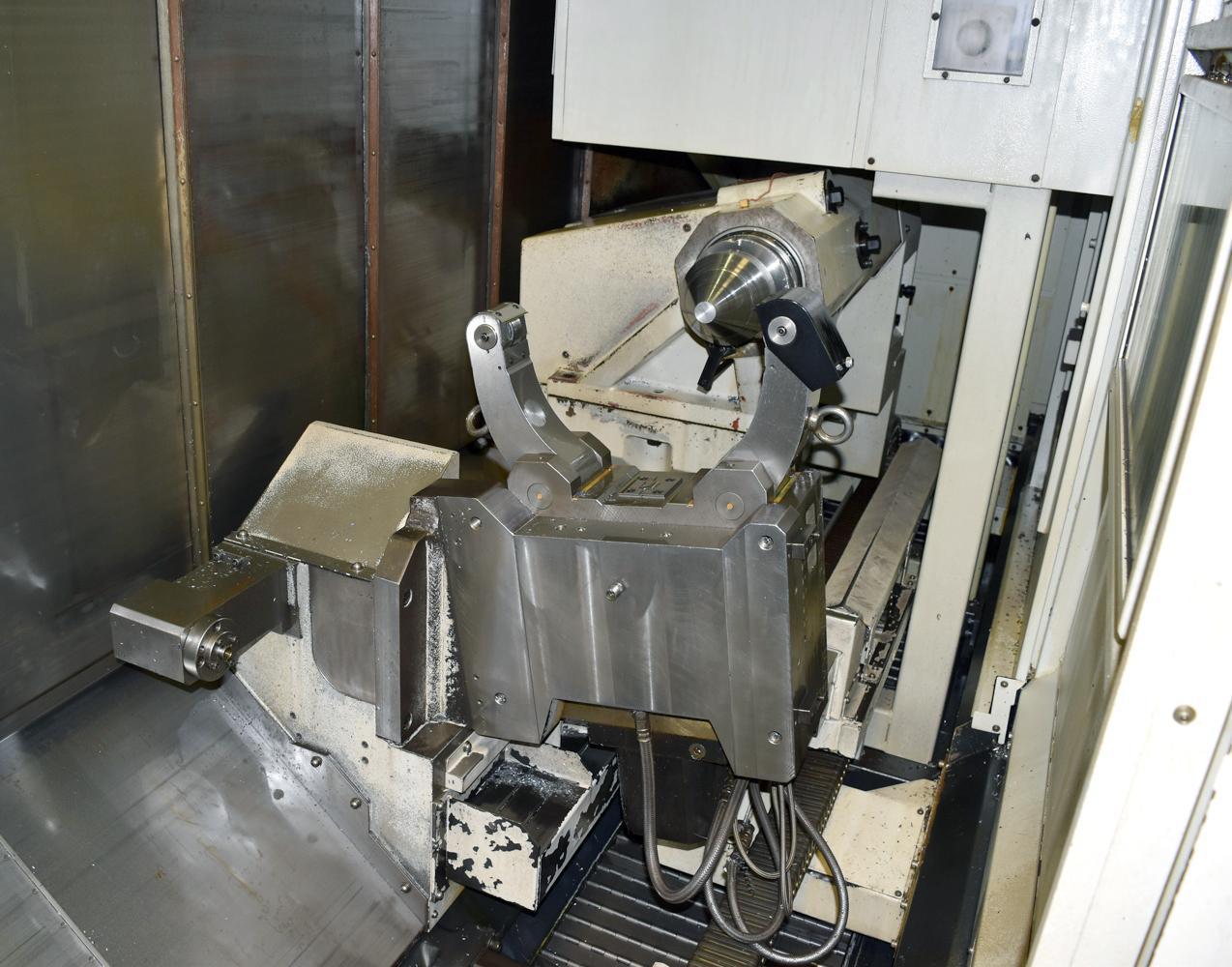

SMW HYDRAULIC STEADY REST (1.7 - 12.2" CAPACITY)

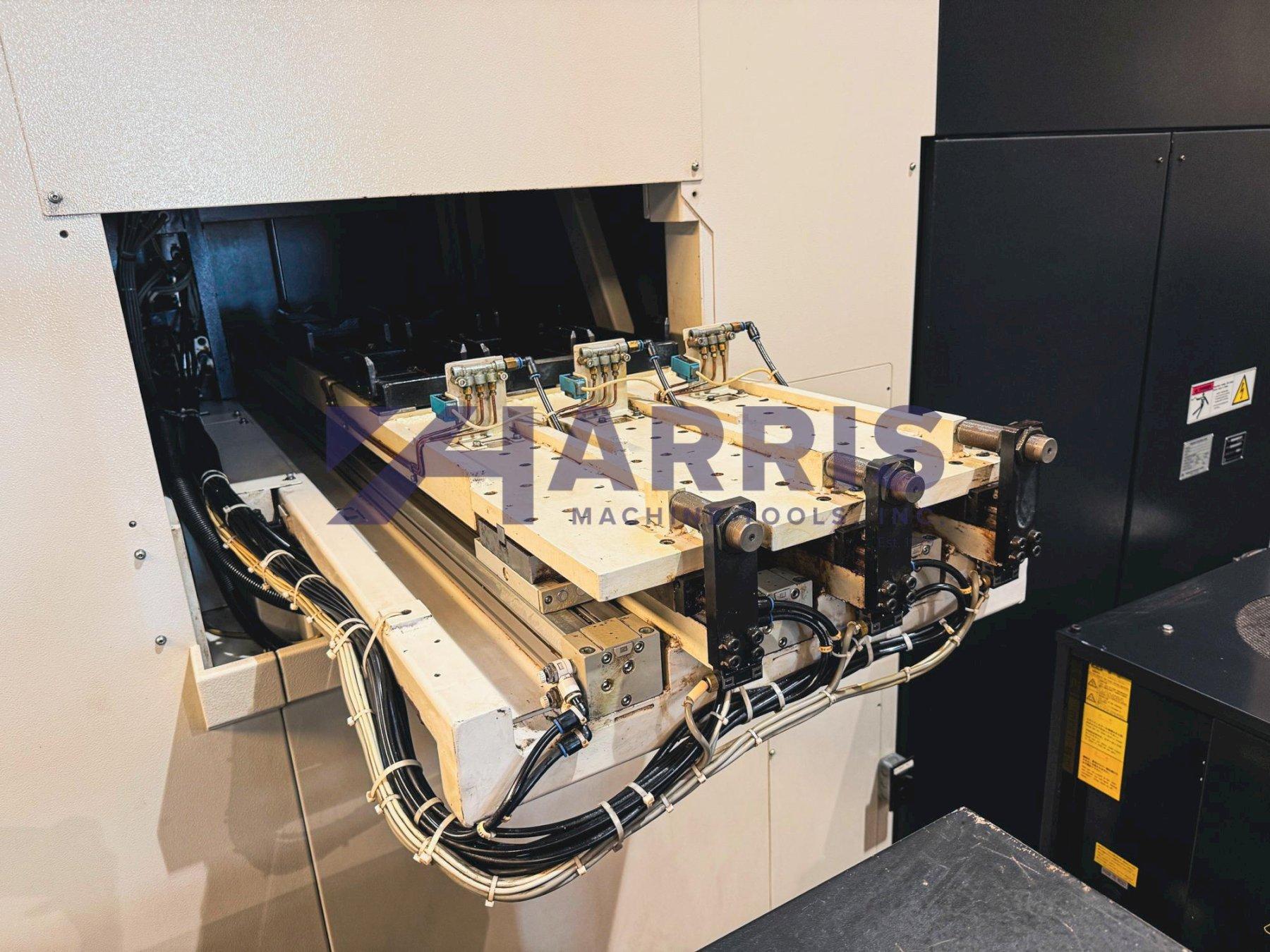

BORING BAR STOCKER FOR 100 AND 80MM BARS
MIST COLLECTOR
AUTOMATIC TOOL LENGHT MEASUREMENT SYSTM
TOOL EYE

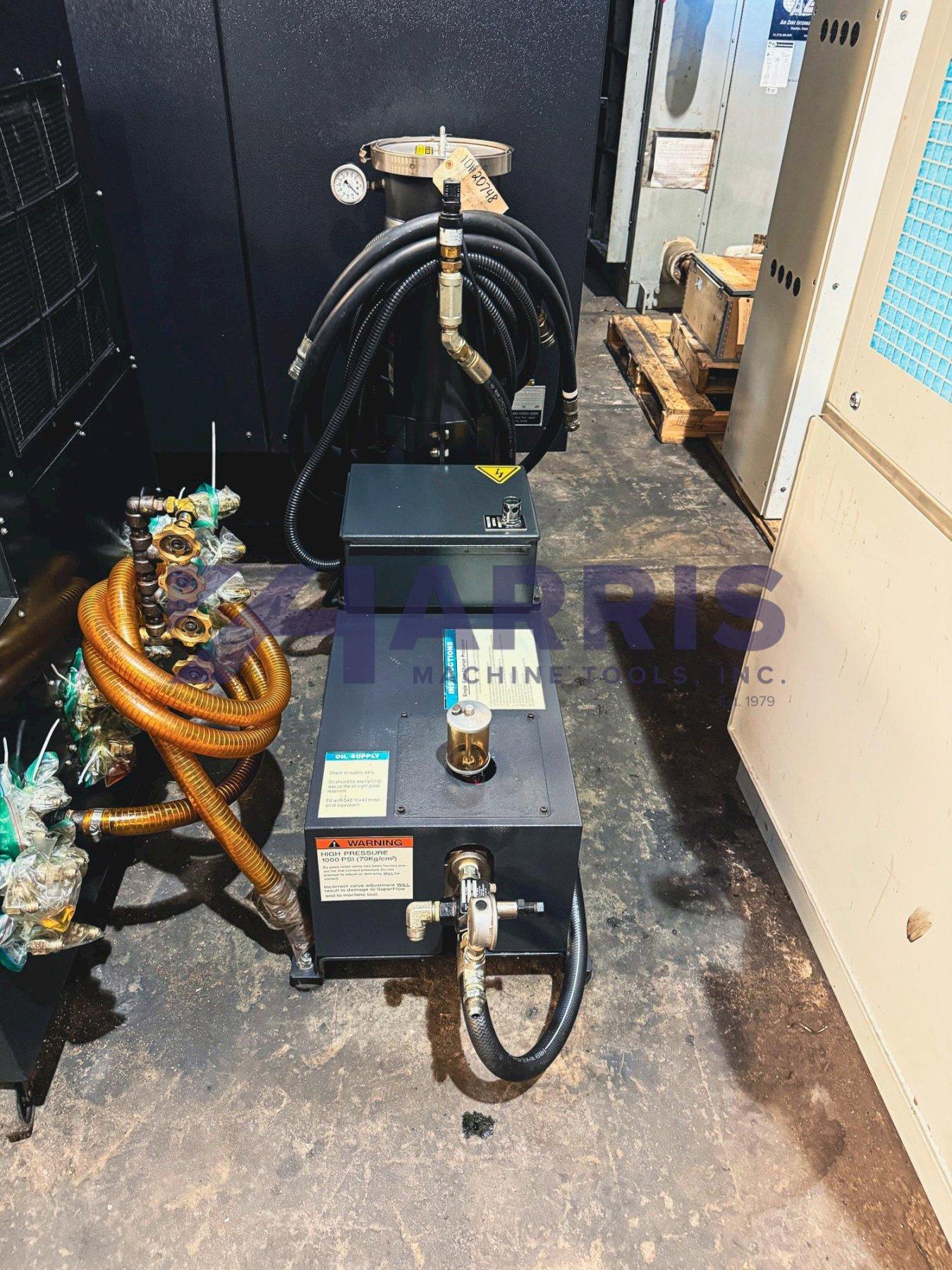

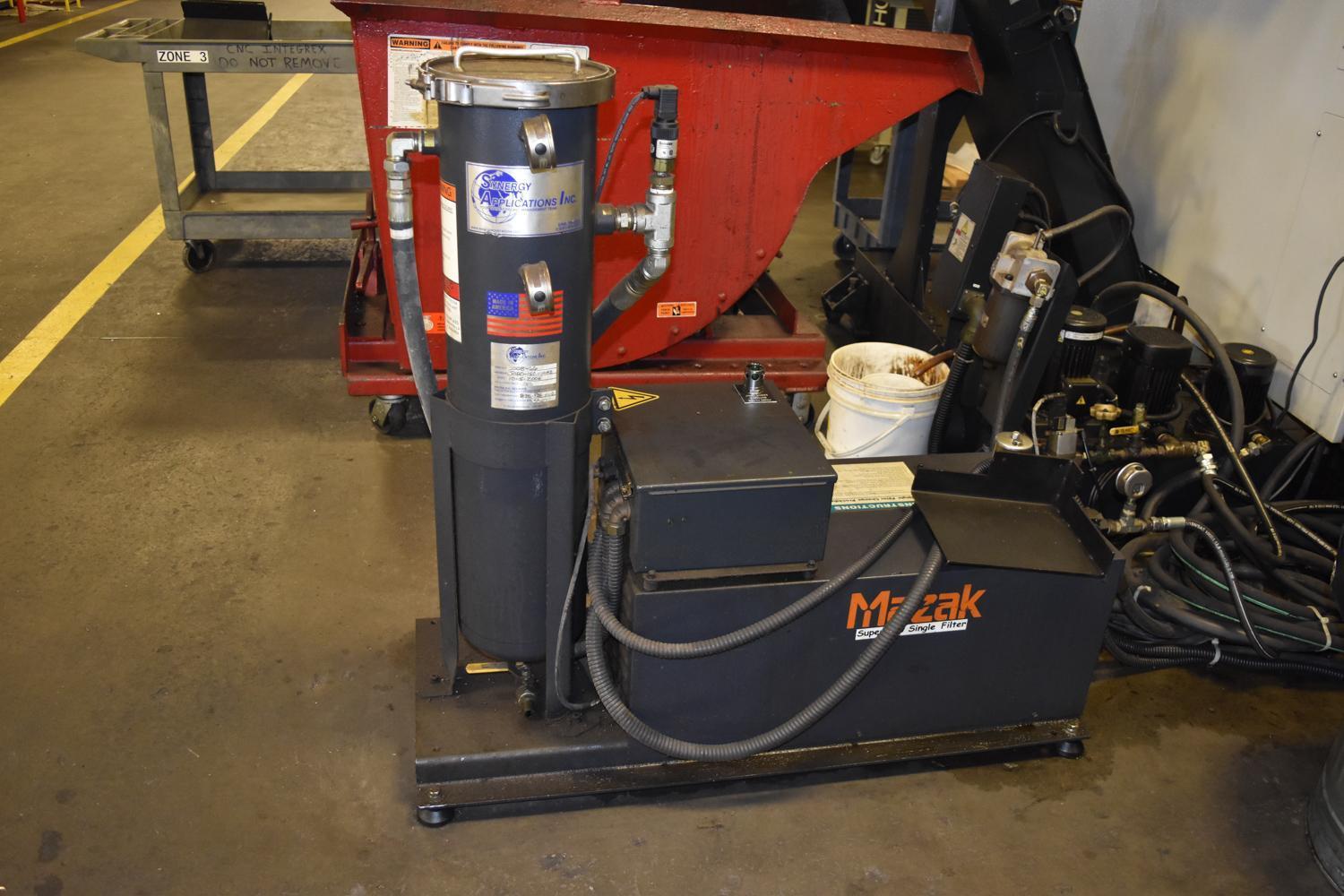

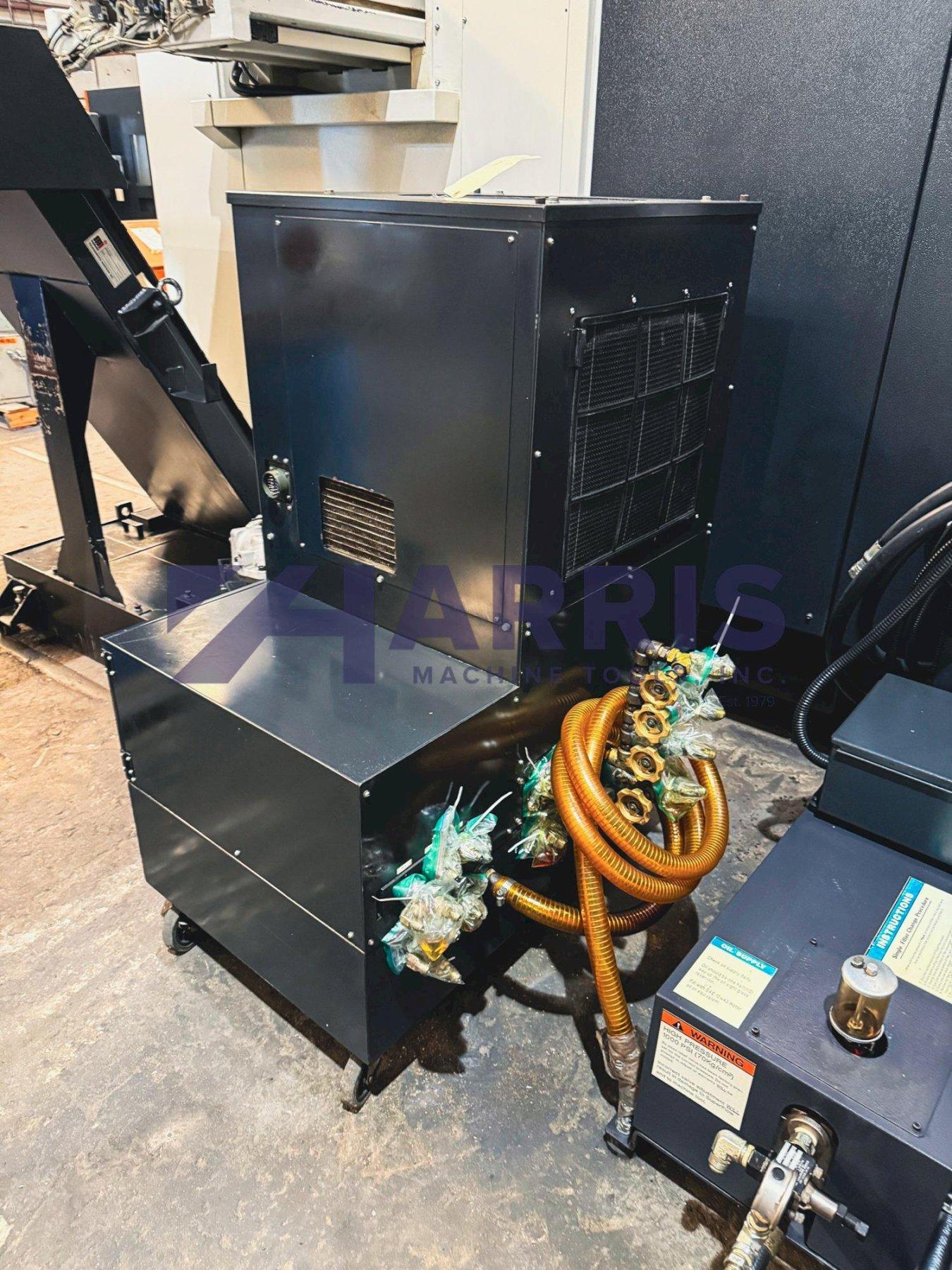

HIGH PRESSURE COOLANT
REAR CHUCK MOUNT
RENISHAW PROBE

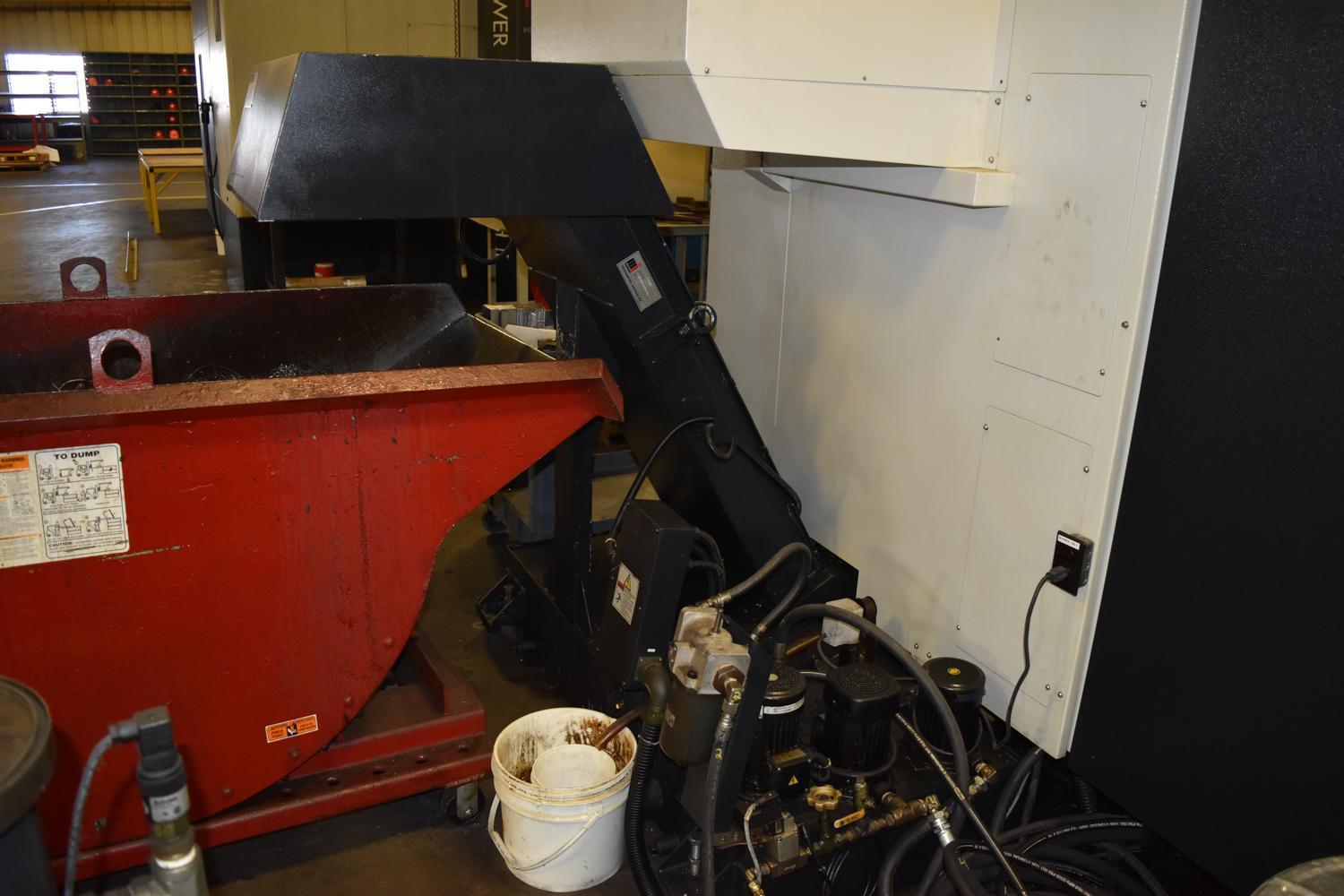

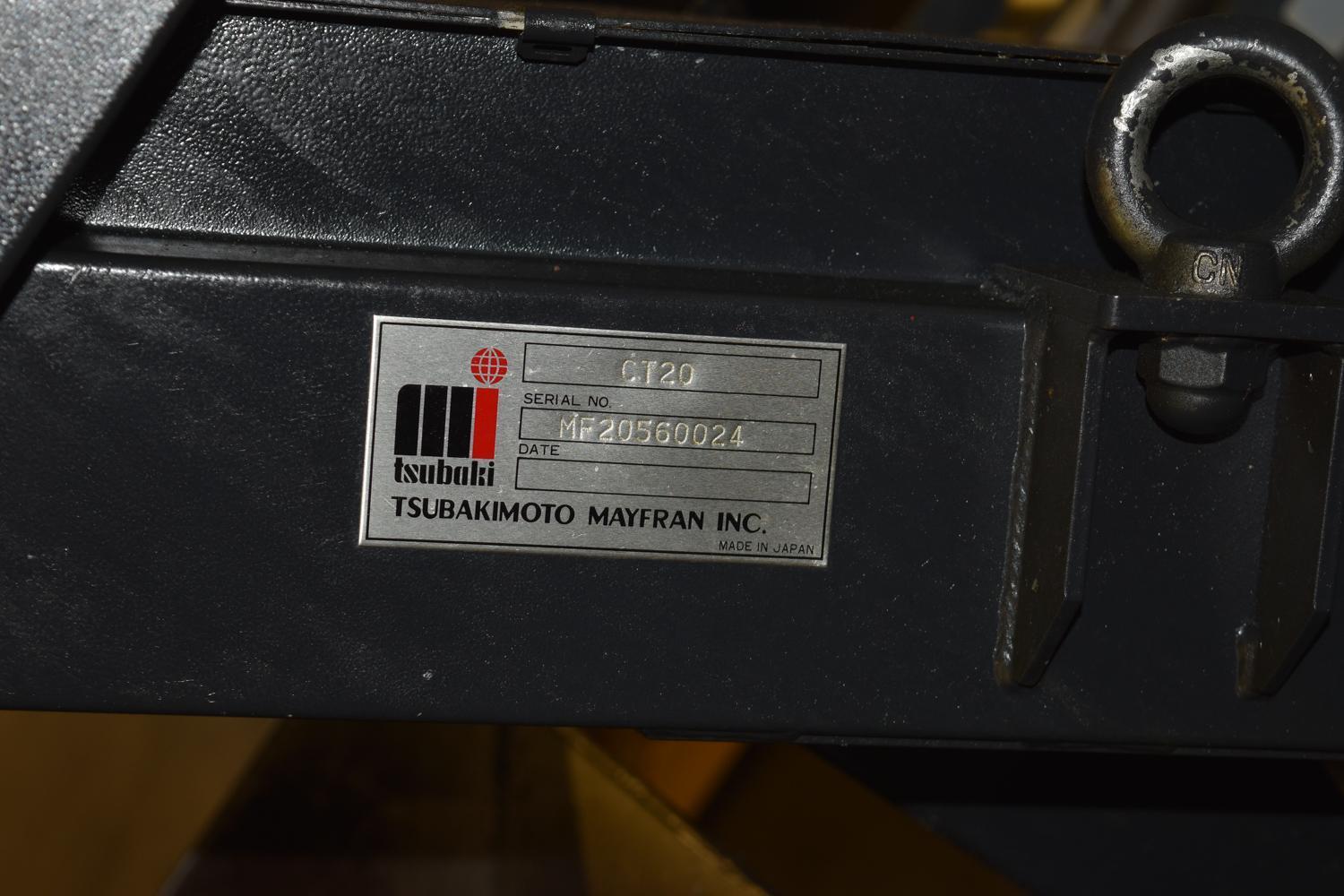

CHIP CONVEYOR

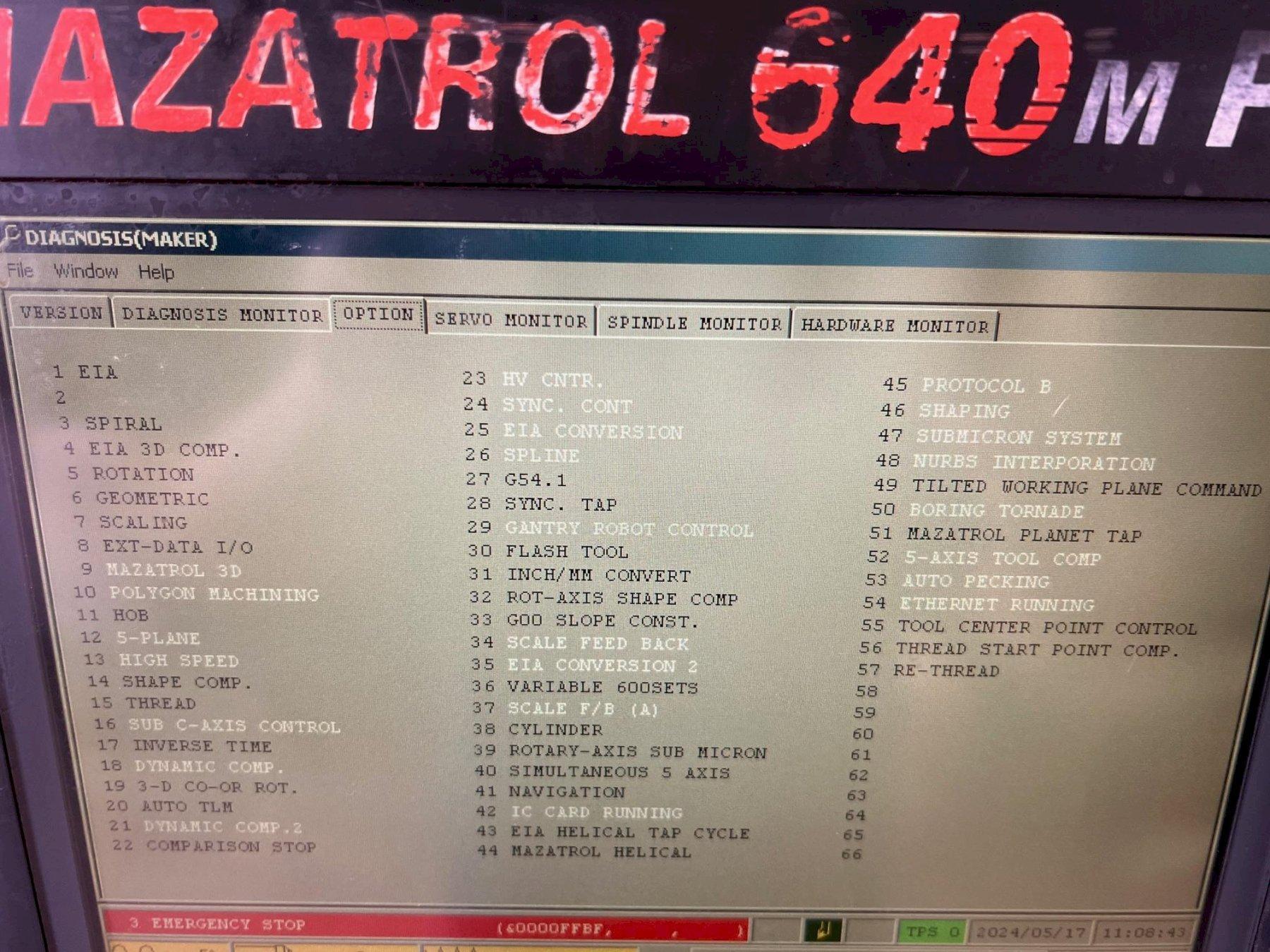

CONTROL OPTIONS:

Coordinate Rotation and Scaling;Helical Interpolation;Synchronized Tapping;Inch/Metric Conversion;Rotation and Scaling;EIA/ISO Code Input Function


Spiral Interpolation
3D Cutter Compensation
Geometric Command
Hobbing
Shape Compensation
Thread Cutting
Re-Threading
Thread Start Point Compensation
Inverse Time Feed
3D Coordinate Rotation
Comparison Stop
G54.1
Flash Tool
Rotation Axis Shape Compensation
G00 Slope Constant
600 Sets Variable
Cylinder
Rotary-Axis Sub Micron
Simultaneous 5-Axis
Helical Tap Cycle
Tilted Working Plane Command
Mazatrol Planet Tap
Tool Center Point Control


NOTE:  TOOLING AND BORING BAR IN PHOTOS NOT INCLUDED **
