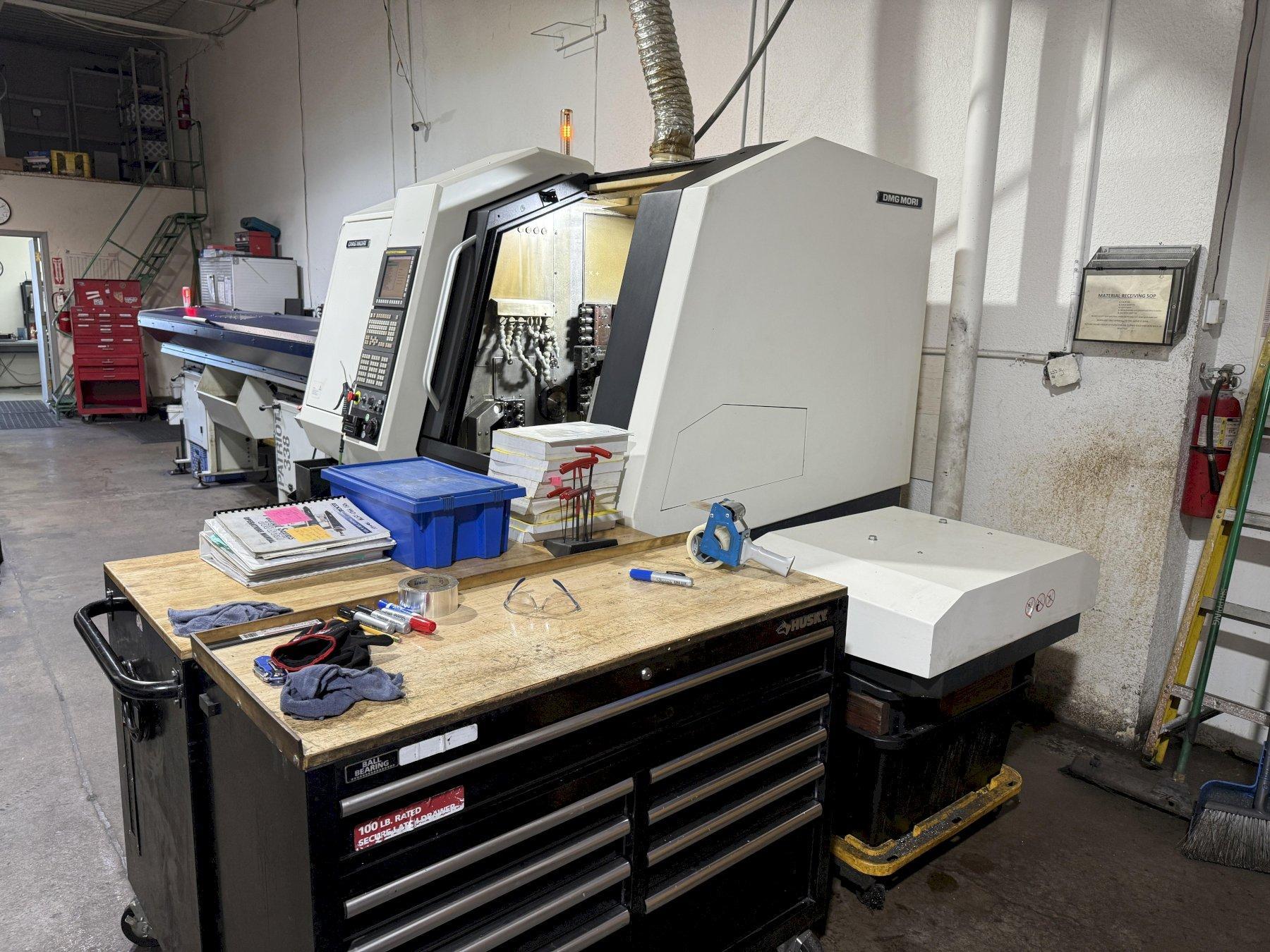

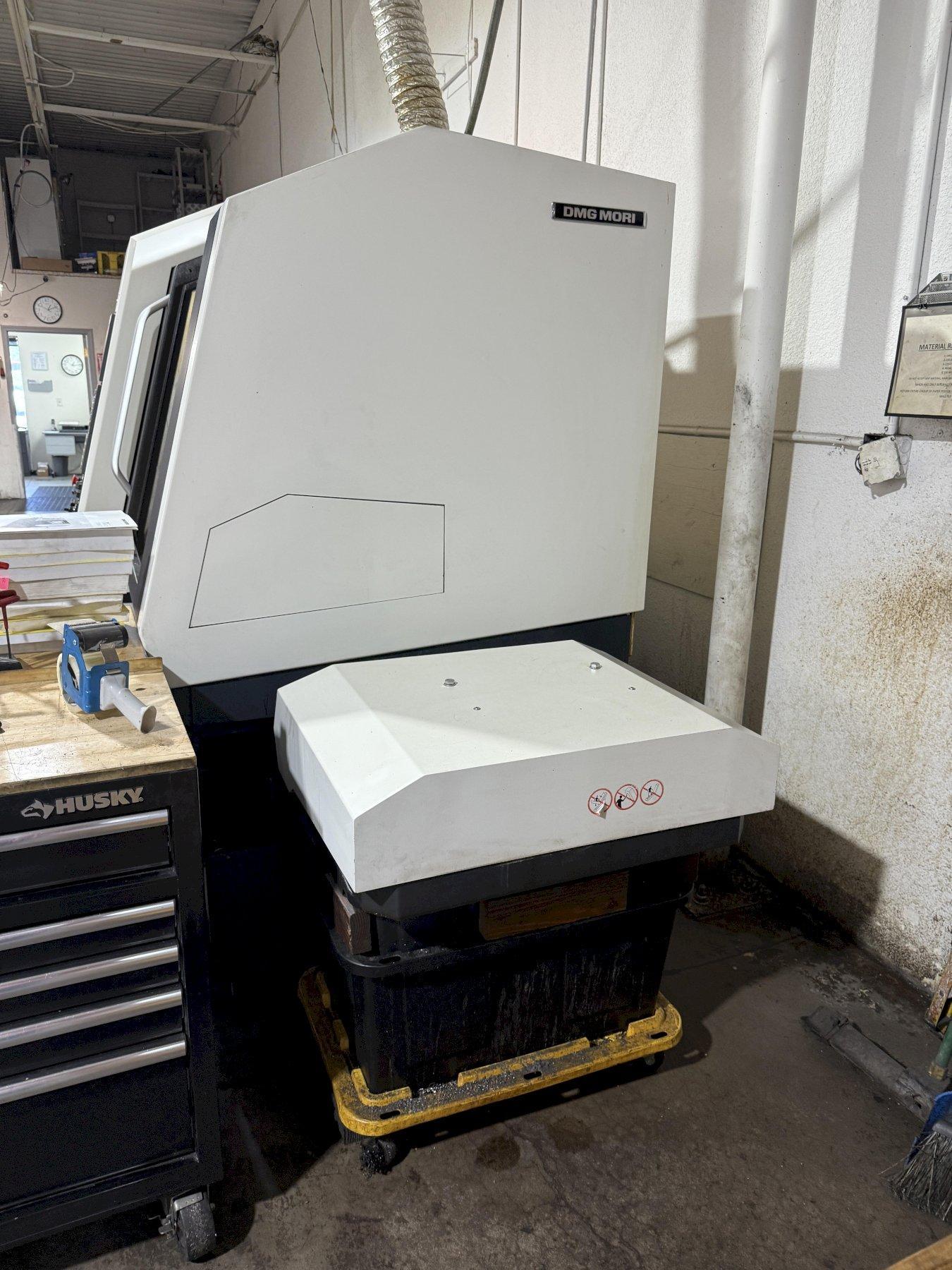

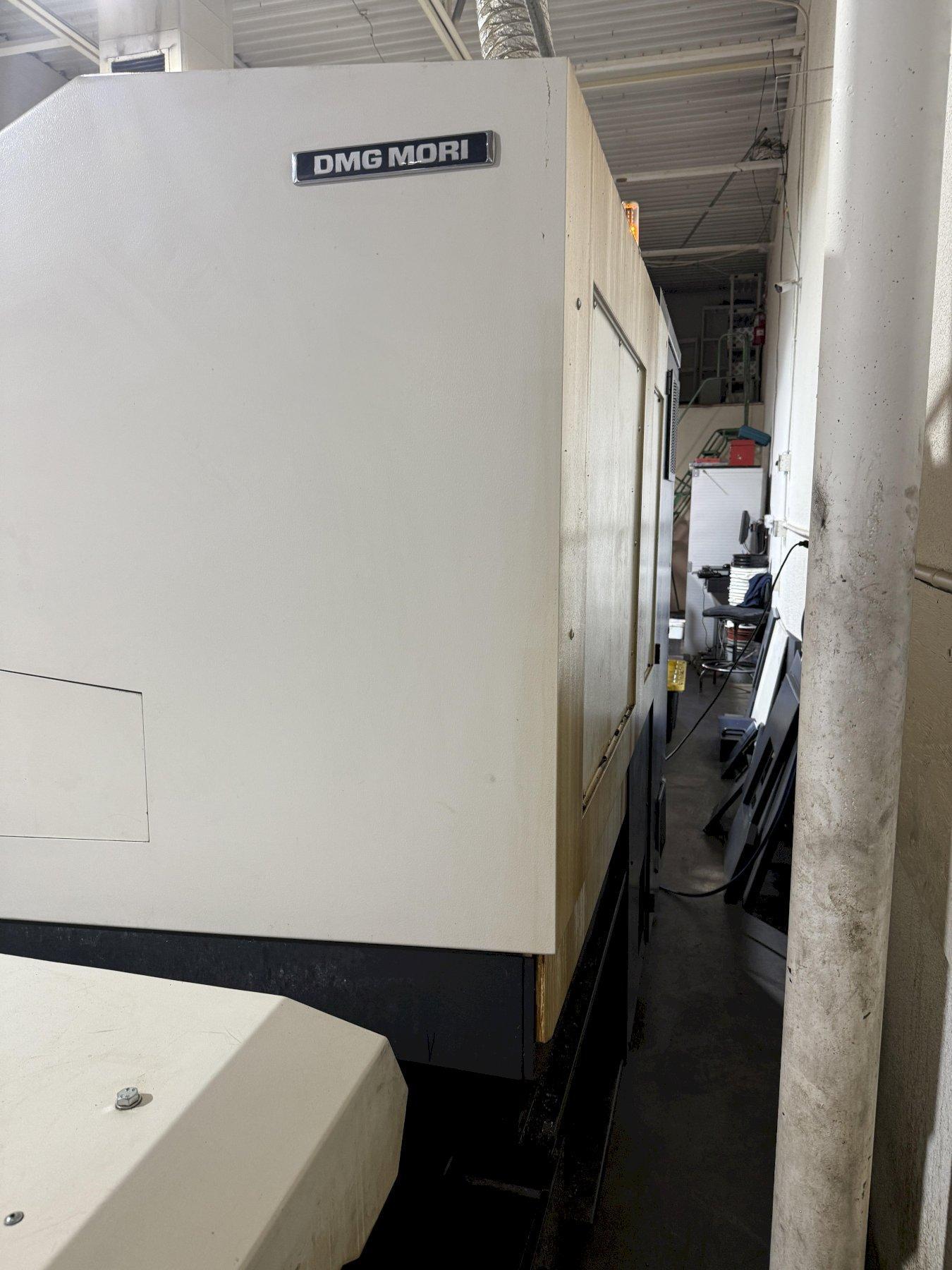

DMG Mori Sprint 32/8 CNC Screw Machine, Swiss Type

Manufacturer

DMG MORI

Category

Miscellaneous Machines

Type

MISCELLANEOUS

Stock

20750

Model

32/8

Dealer Location

Texas

Request a Quote
View Contact Information

Spec Sheet

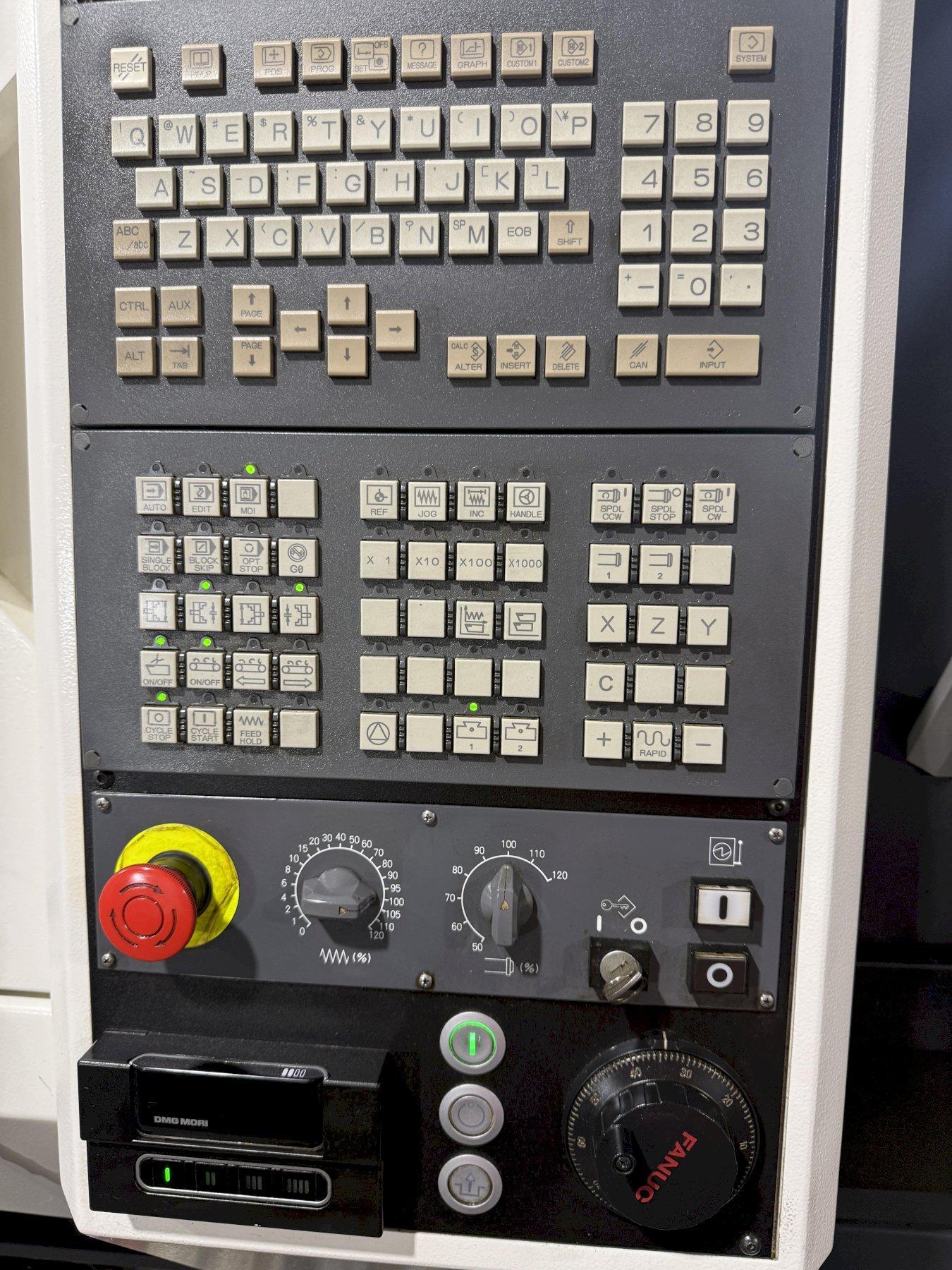

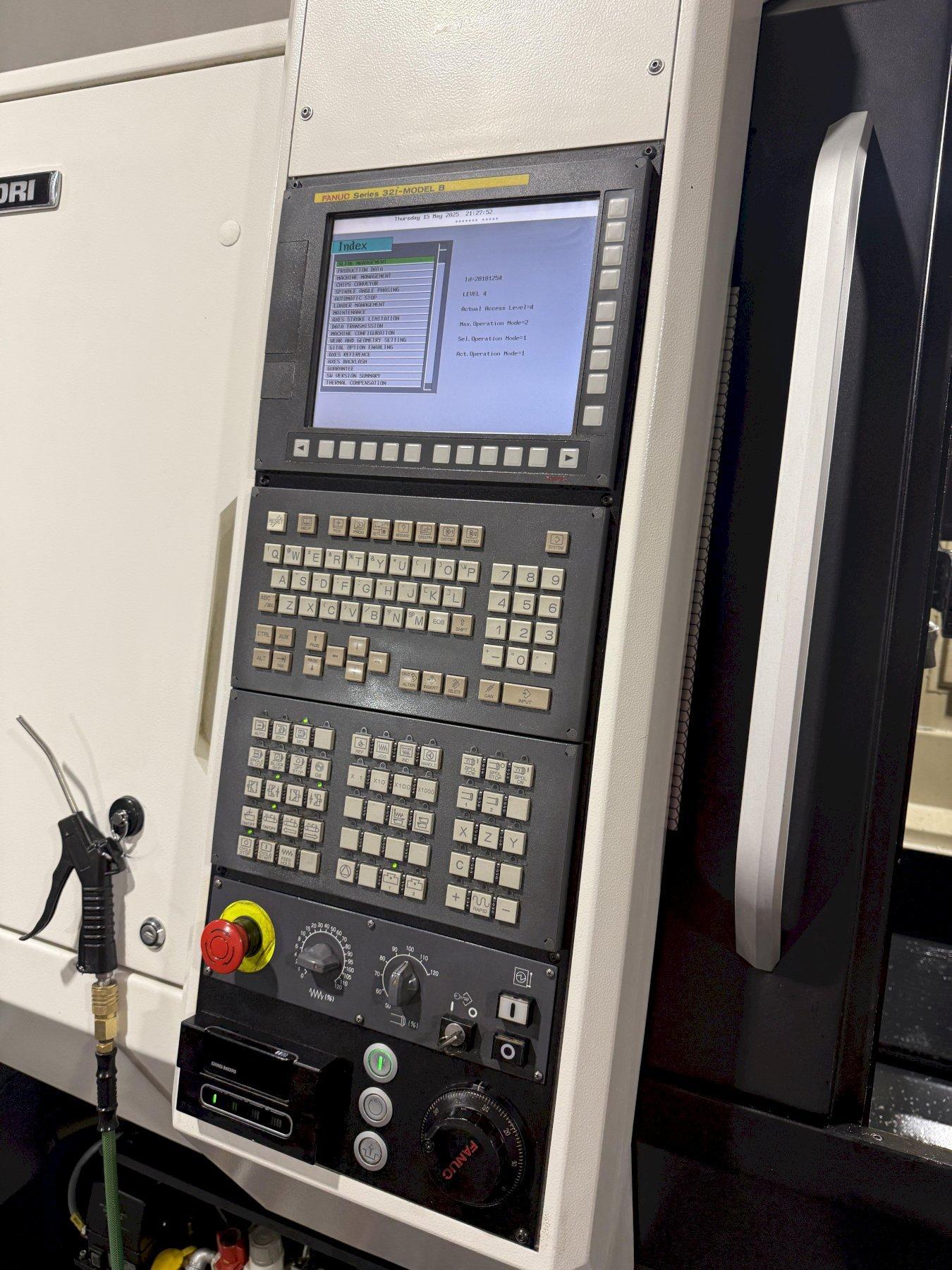

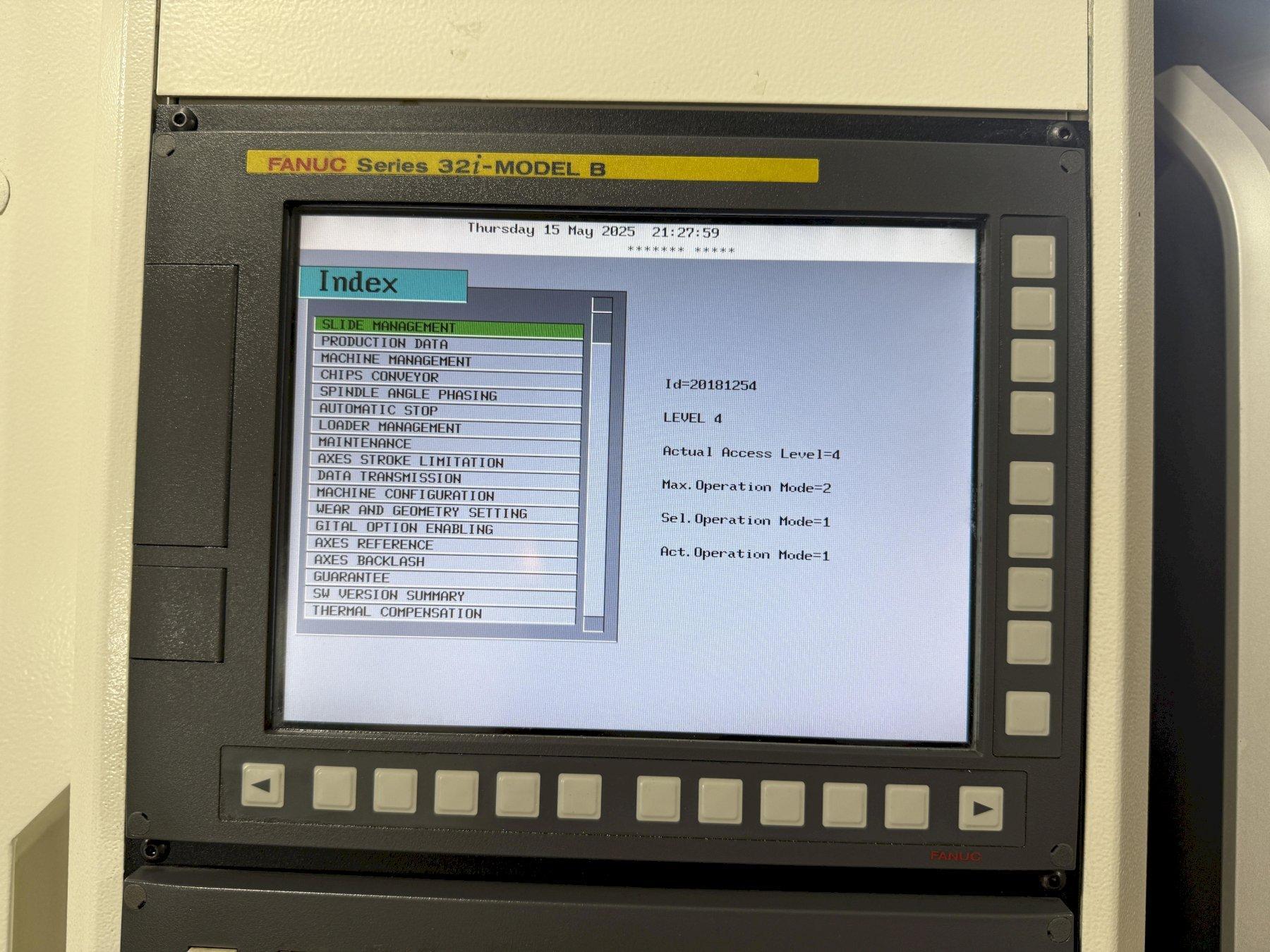

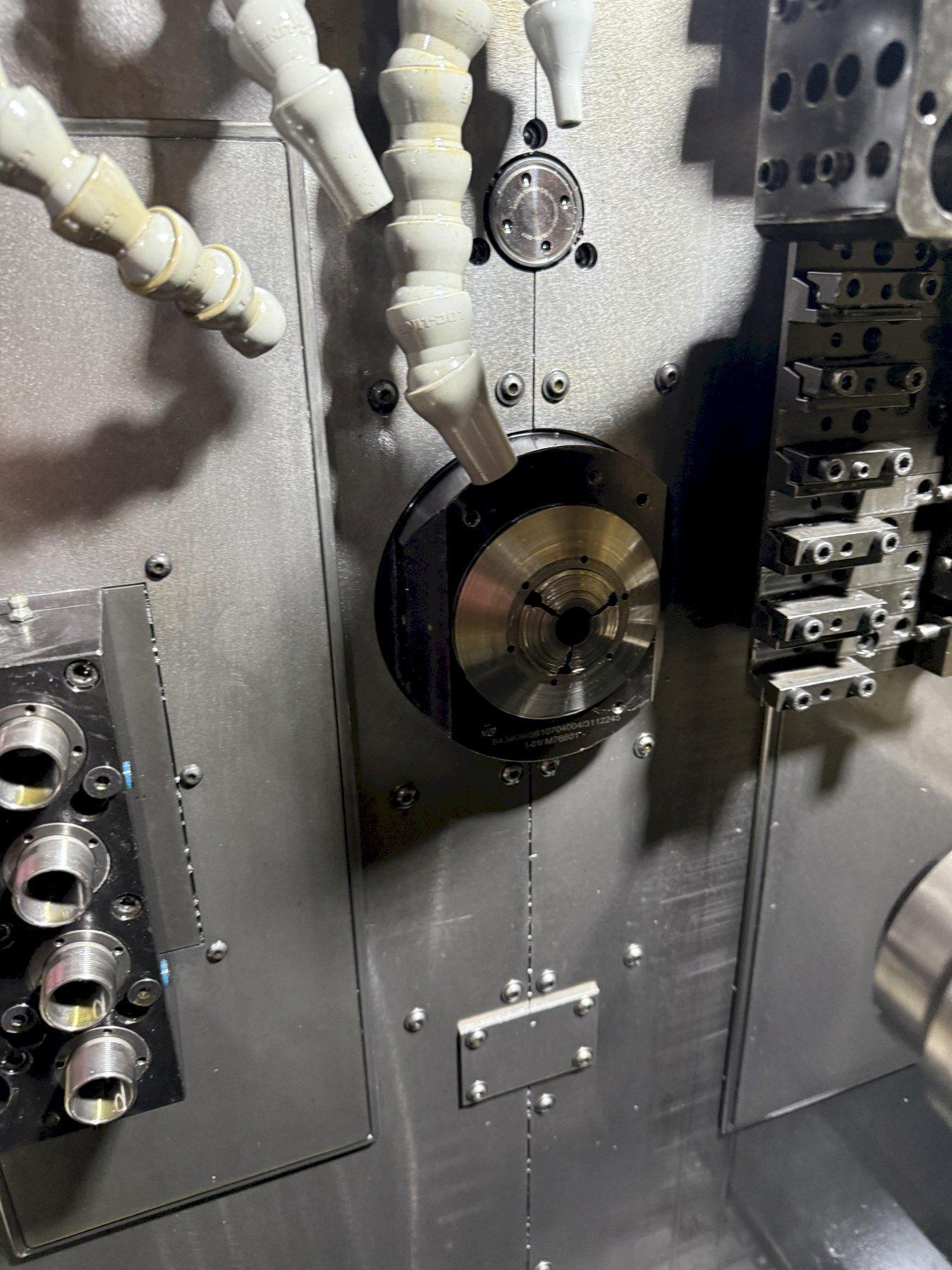

The 2018 DMG Mori Sprint 32/8 is a high-performance CNC screw machine built for precision, speed, and versatility in complex small-part production. Featuring an 8-axis configuration with 6 linear axes and 2 C-axes, the machine is powered by the FANUC 32i-B Plus control system with a 10.4” color display. The Sprint 32/8 is designed with dual spindles capable of 8,500 RPM, with the main spindle delivering 7.4 hp and 29.8 ft-lbs of torque, and the counter spindle generating 3 hp and 10.3 ft-lbs. Both spindles handle bar stock up to 32mm (1.26"), making it ideal for precise machining in medical, aerospace, and automotive industries.

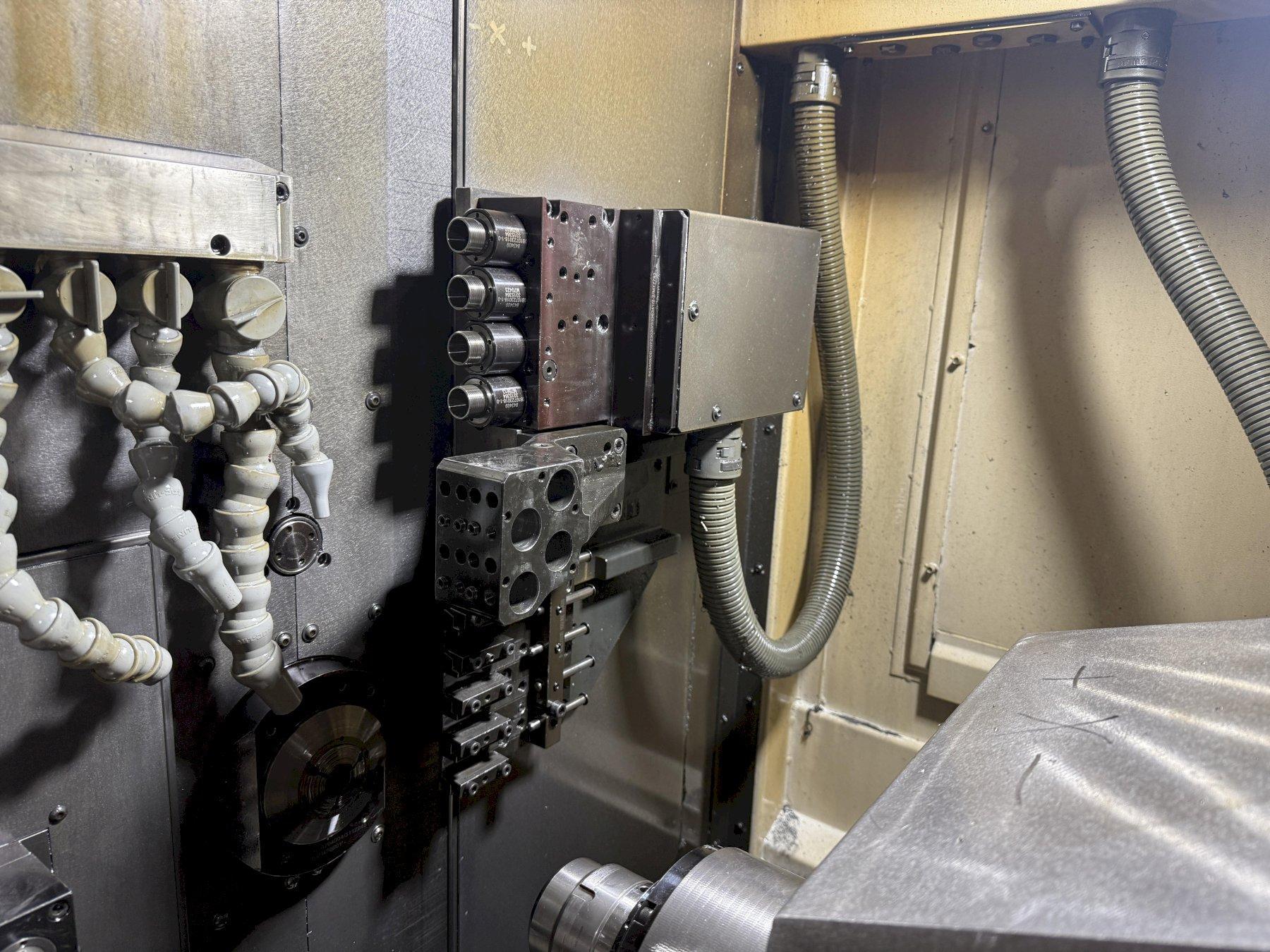

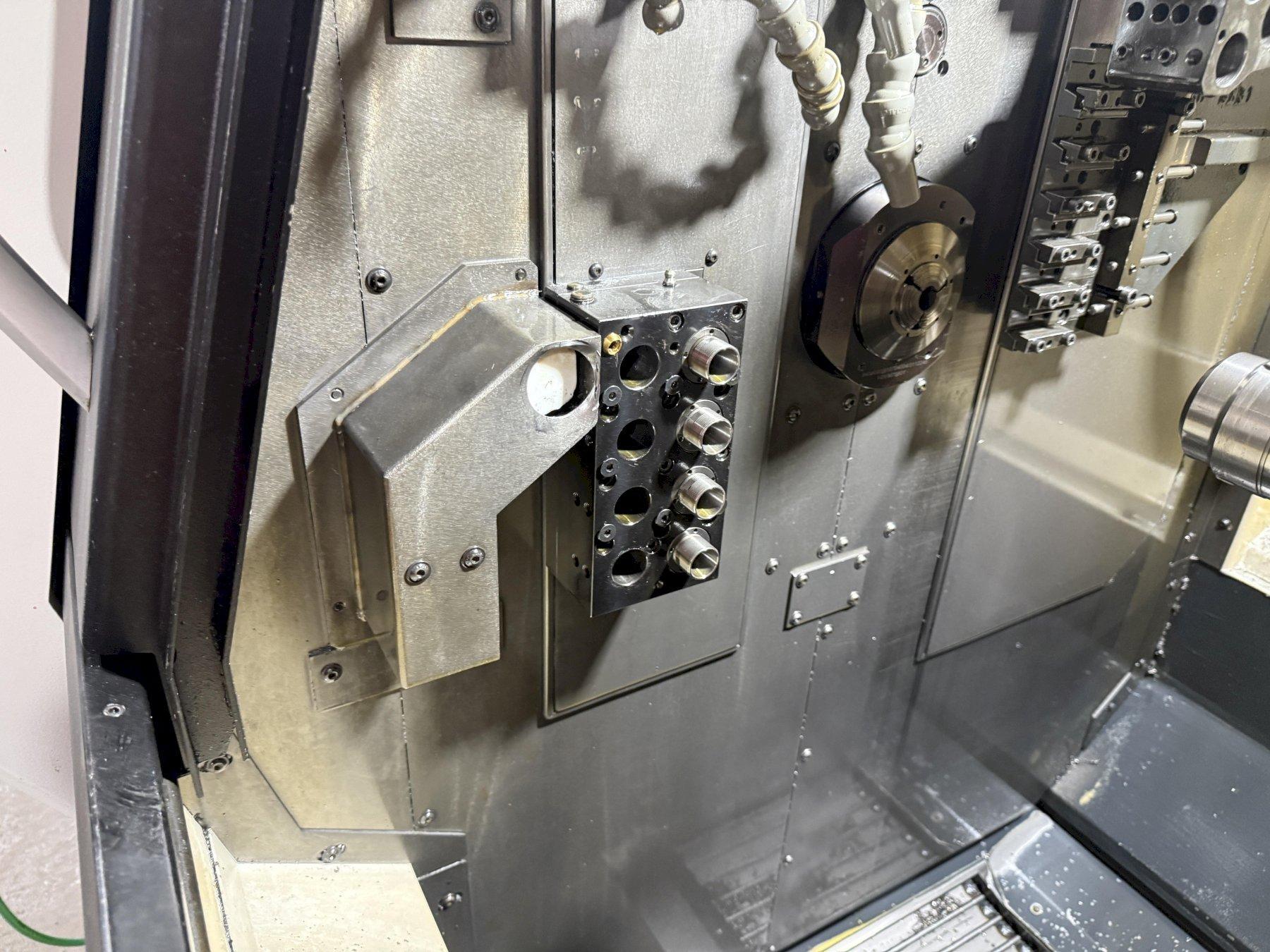

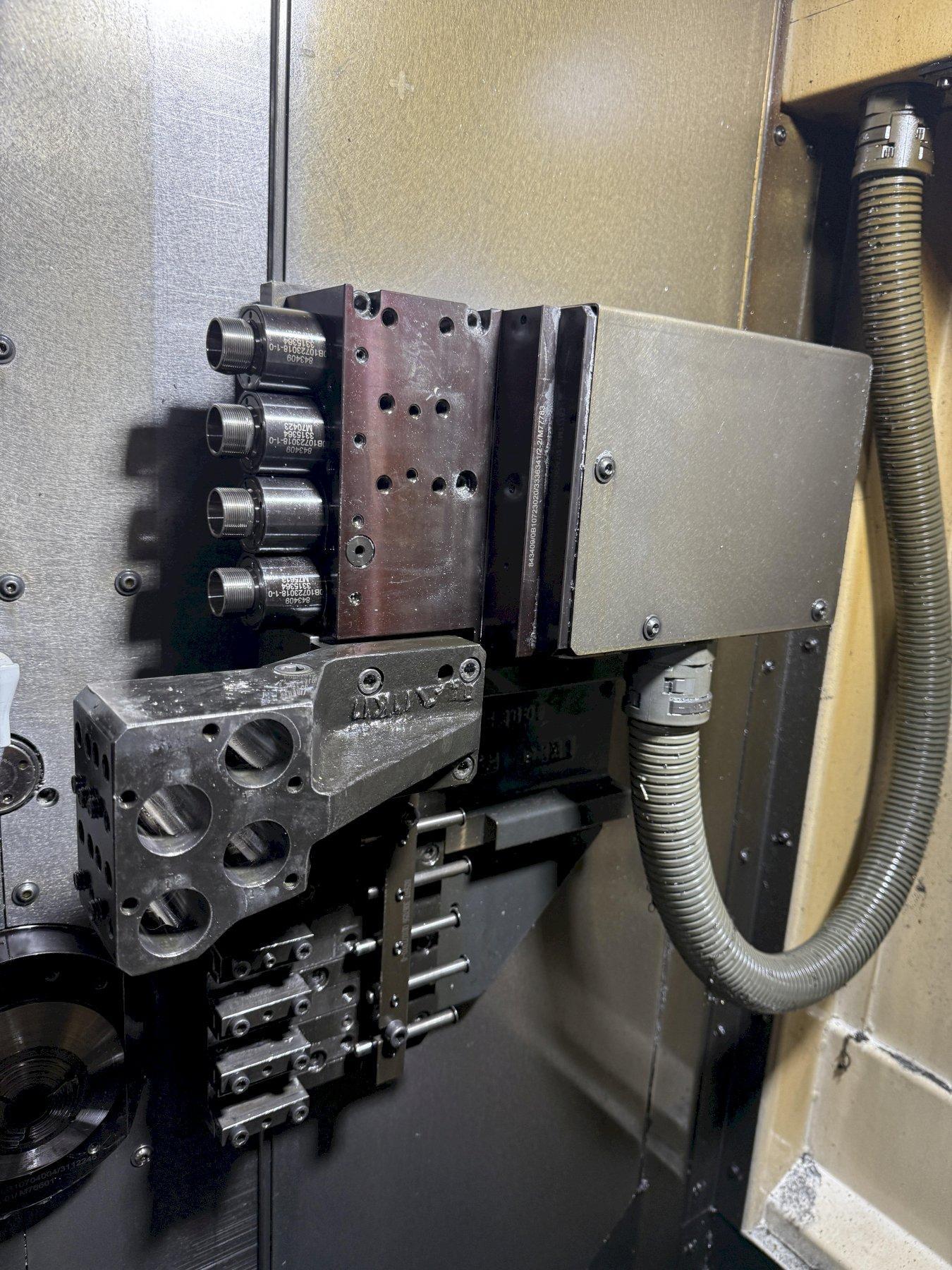

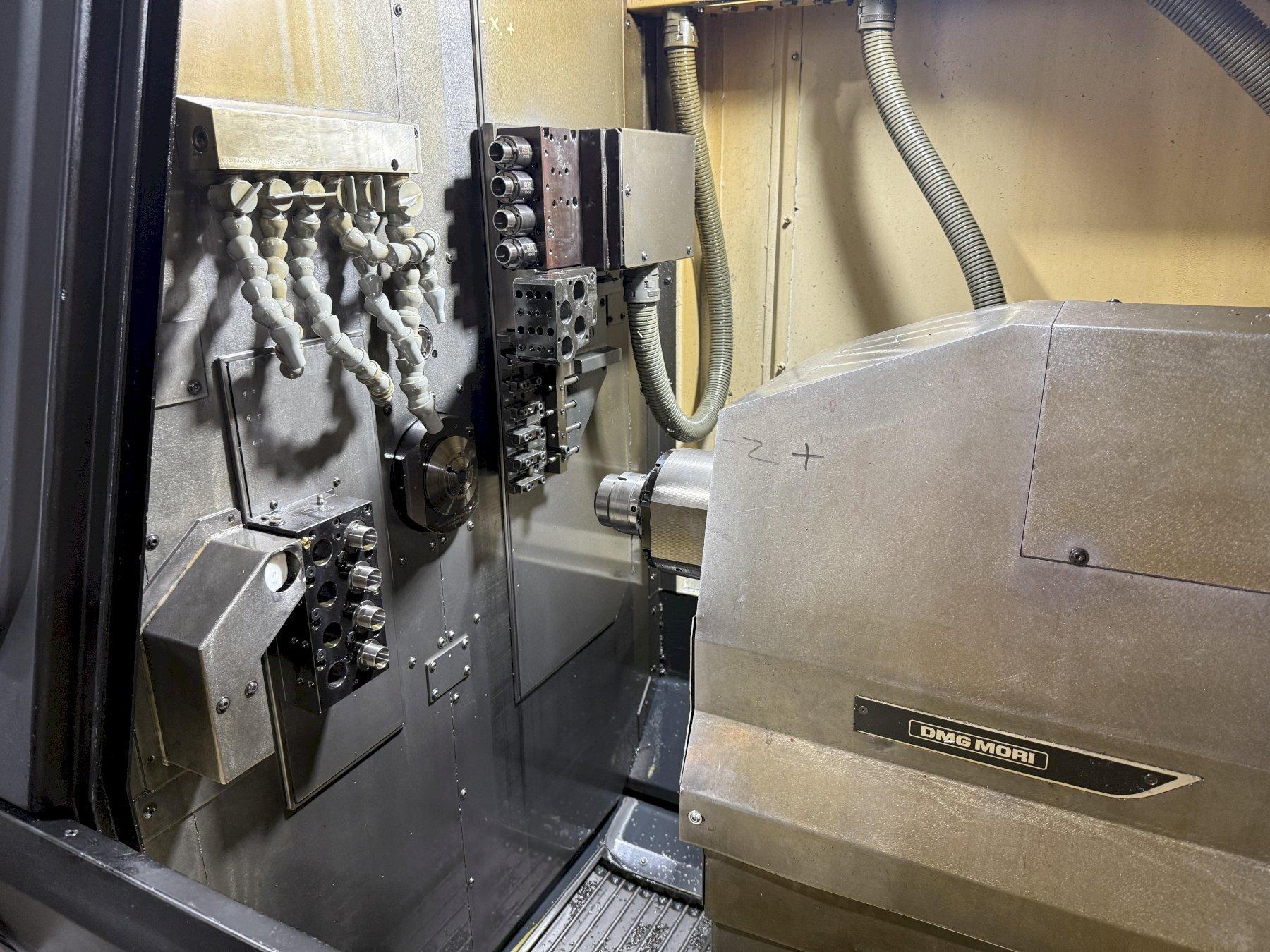

The machine supports simultaneous machining with up to 2 tools and offers advanced back-working capabilities. The working area includes Z1, X1/Y1, and X2/Z2/Y2 travels, allowing for intricate multi-sided operations. Tooling includes 8 driven tool stations and multiple configurations for both front and back machining, with speeds up to 6,000 RPM and torque of 2.2 ft-lbs. The Tool Monitoring System offers graphical tool load display, aiding in predictive maintenance and minimizing downtime.

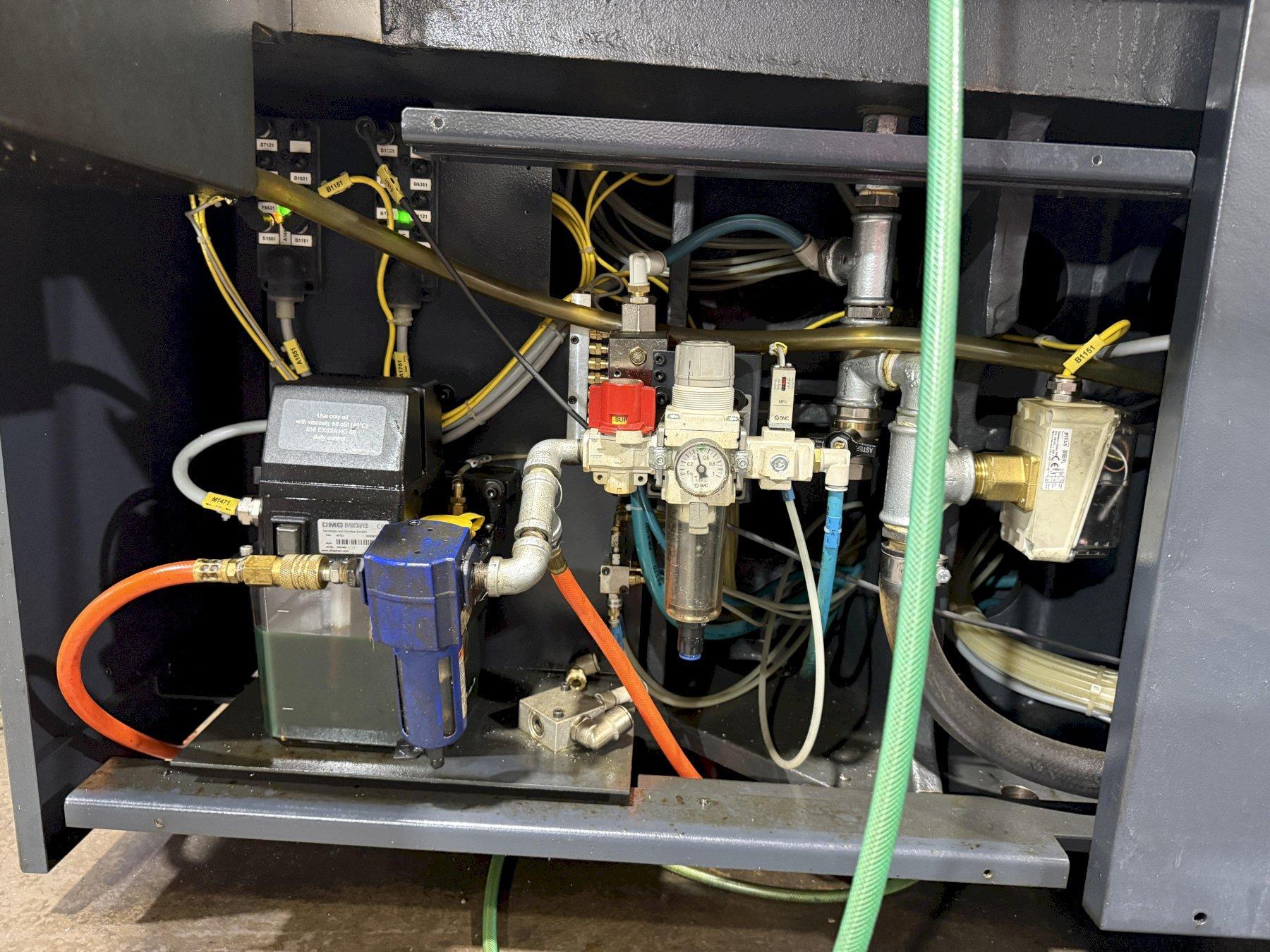

Additional features include high-pressure coolant and an integrated air handler, contributing to stable thermal conditions and chip evacuation. Its compact footprint of 30.1 ft² and total weight of 7,826 lbs make the Sprint 32/8 a space-efficient and powerful addition to any high-volume CNC shop. This machine is engineered to streamline part production while ensuring repeatable accuracy, robust power, and operational efficiency.


SPINDLE HOLE DIA 1.3"
POWER 7.5 hp
RPM 8,500 RPM
# AXIS 8
CONTROL CNC (FANUC 32i-B Plus)

Machine concept
Number of linear axes + C-axes 6 + 2
Number of spindles 2
Number of channels 2
Main spindle
Maximum bar capacity mm | in 32 | 1.26
Speed rpm 8,500
Power (S2 30 min/S1) kW | hp 7.5/5.5 | 10.1/7.4 S2 15 min/S1
Torque (S2 30 min/S1) Nm | ft lbs 51.9/40.4 | 38.3/29.8 S2 15 min/S1

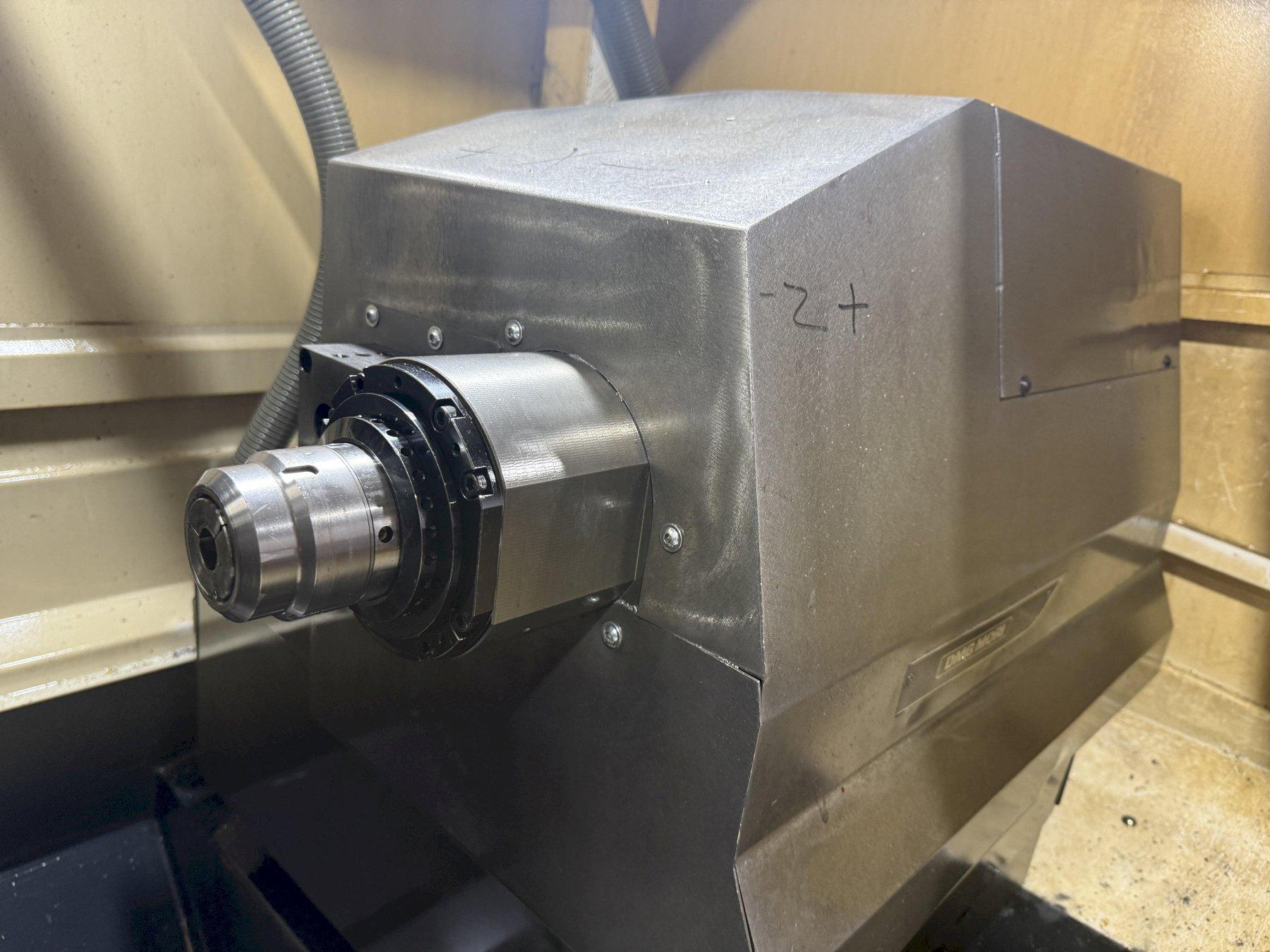

Counter spindle
Maximum bar capacity mm | in 32 | 1.26
C-axis (0.001°)
Speed rpm 8,500
Power (S2 30 min/S1) kW | hp 3.7/2.2 | 5.0/3.0
Torque (S2 30 min/S1) Nm | ft lbs 23.6/14 | 17.4/10.3
Working area/ travels
Z1 travel (spindle travel) mm | in 100 | 3.94
Rapid traverse speed on linear axes
X1, Z1, X2, Z2/Y1, Y2 m / min | in/ min 40/30 | 131/98
Acceleration in linear axes m /s² | ft 5 | 0.02
Tool holder on slide 1
Fixed turning tools 6
Tools for front machining/back-working 4/4
Driven tools 2 + 2
Maximum speed rpm 6,000
Power (S3 40 % /S1) kW | hp 1.9/1 | 2.5/1.3
Maximum torque (S3 40 % /S1) Nm | ft lbs 3.
