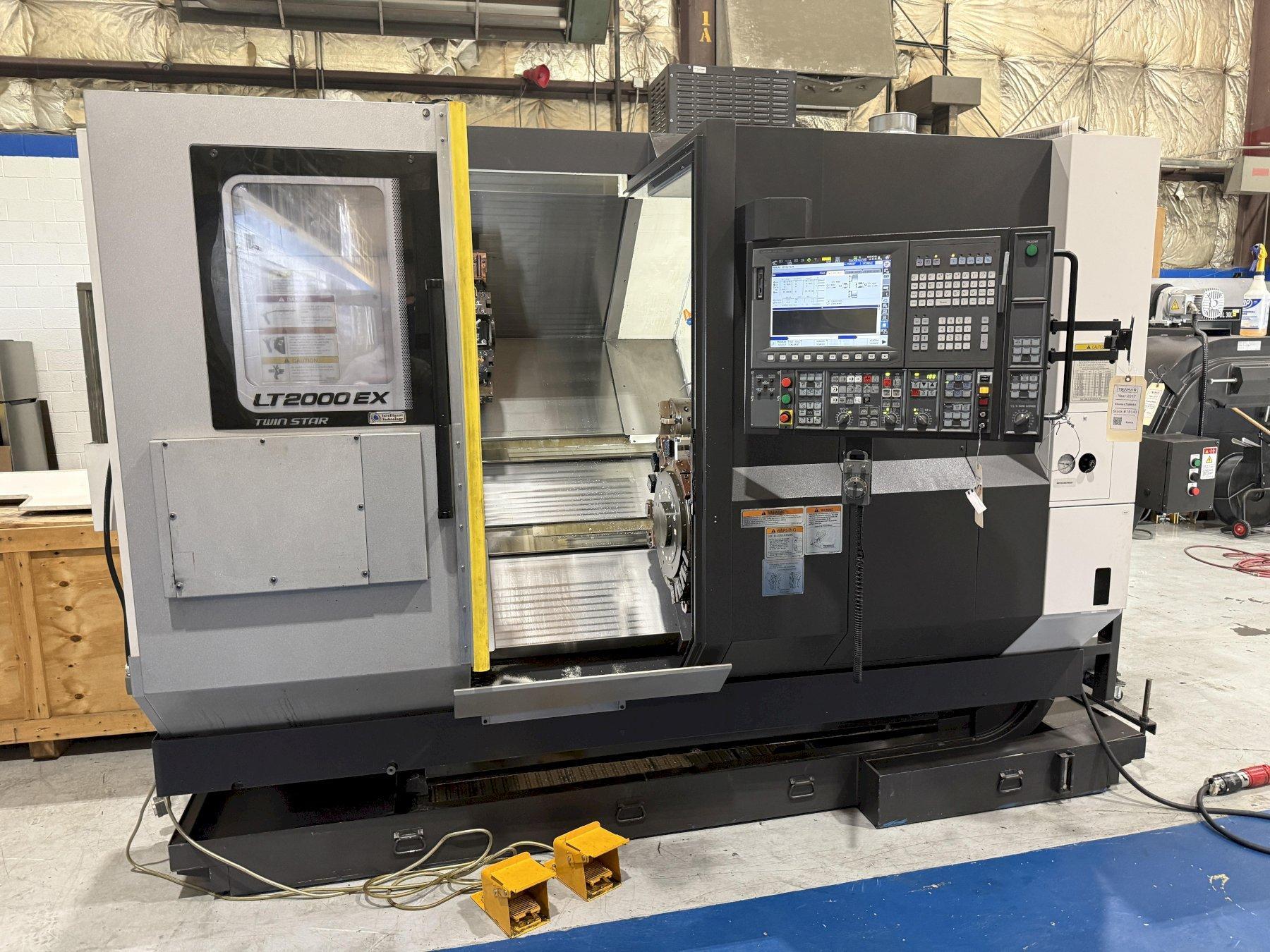

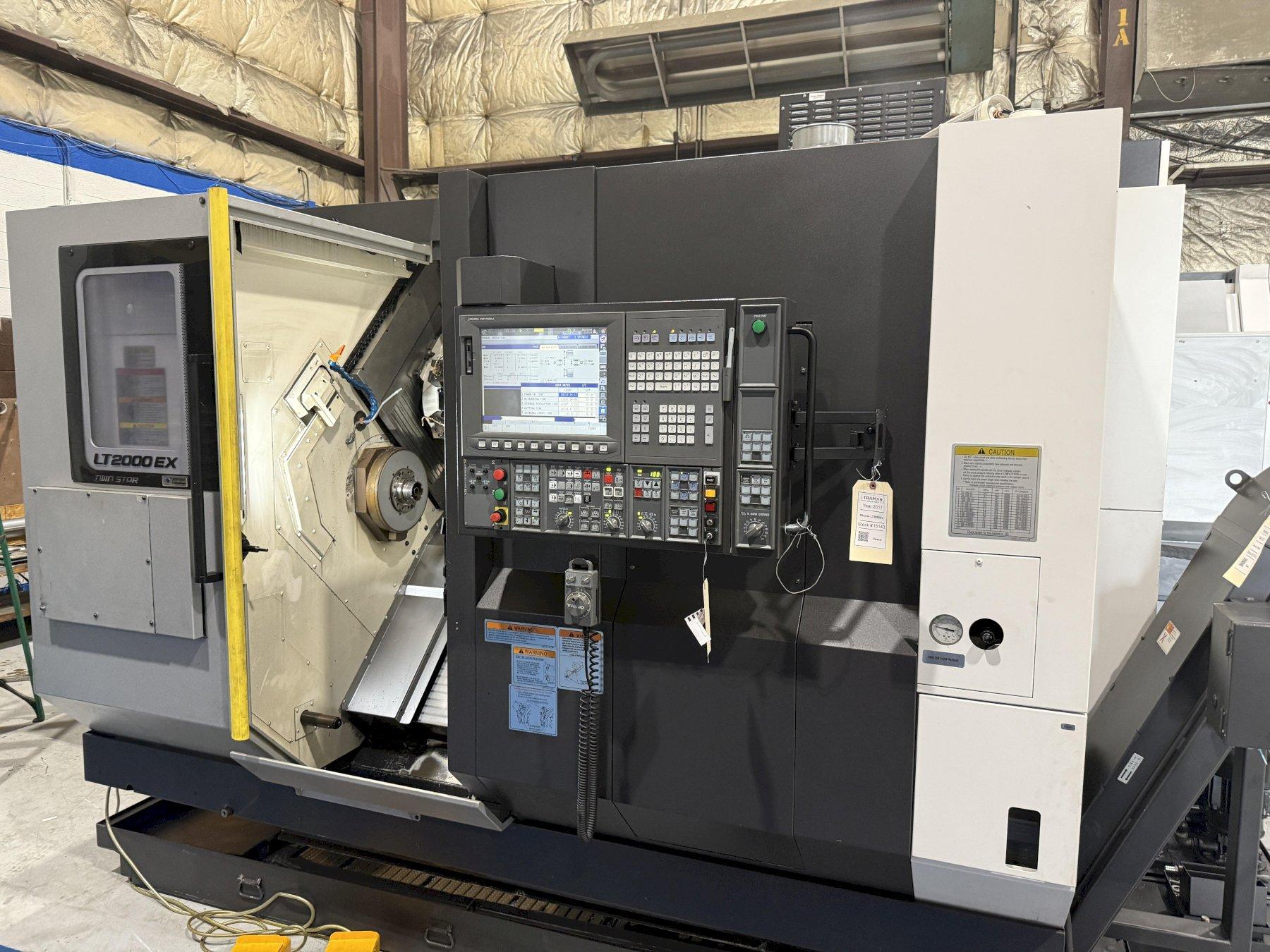

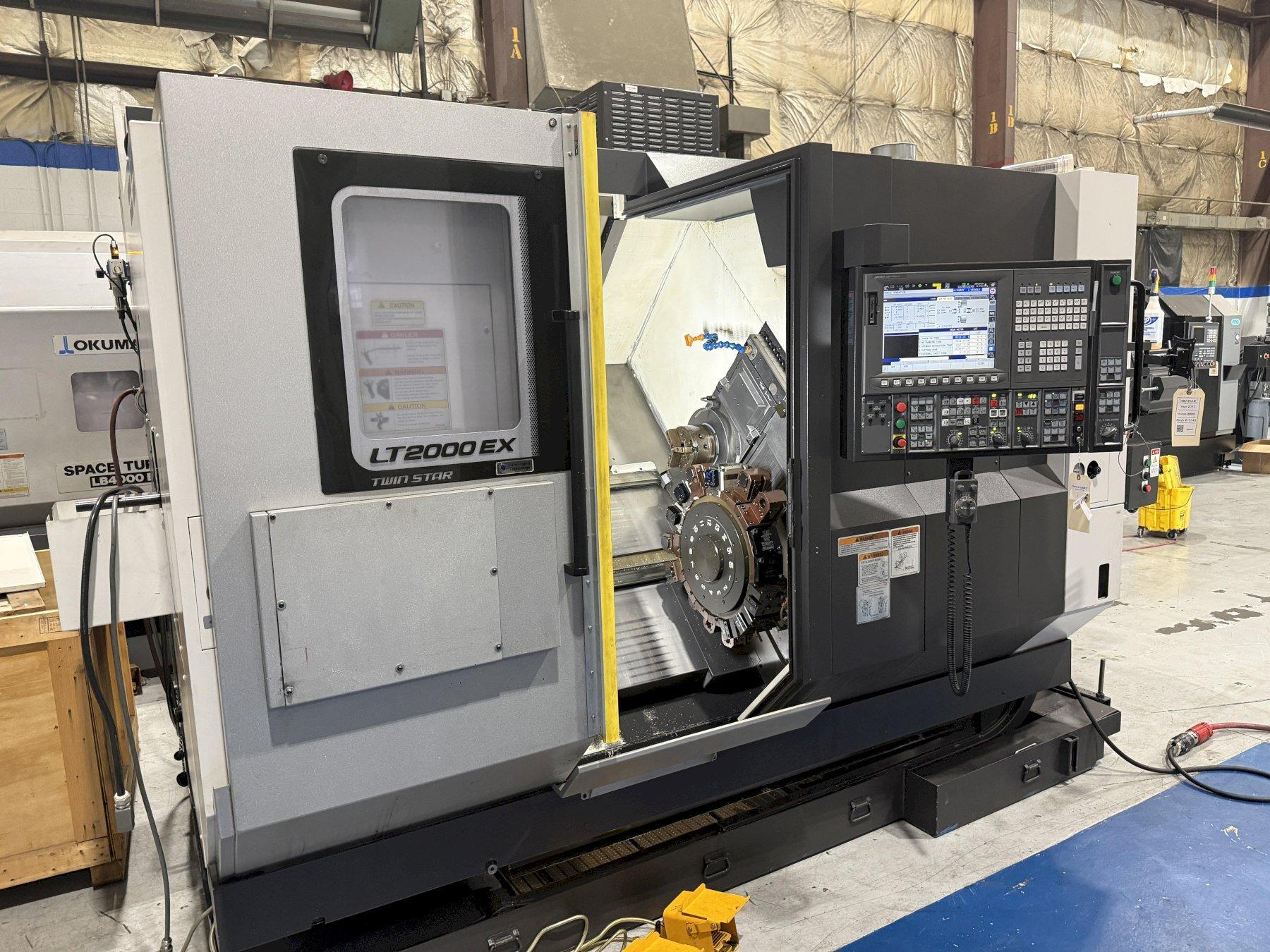

Okuma LT2000EX-MY CNC Lathe For Sale - 2017

Manufacturer

OKUMA

Stock

15143

Model

LT2000EX-MY

Dealer Location

Michigan

Spec Sheet

CNC Control - yes

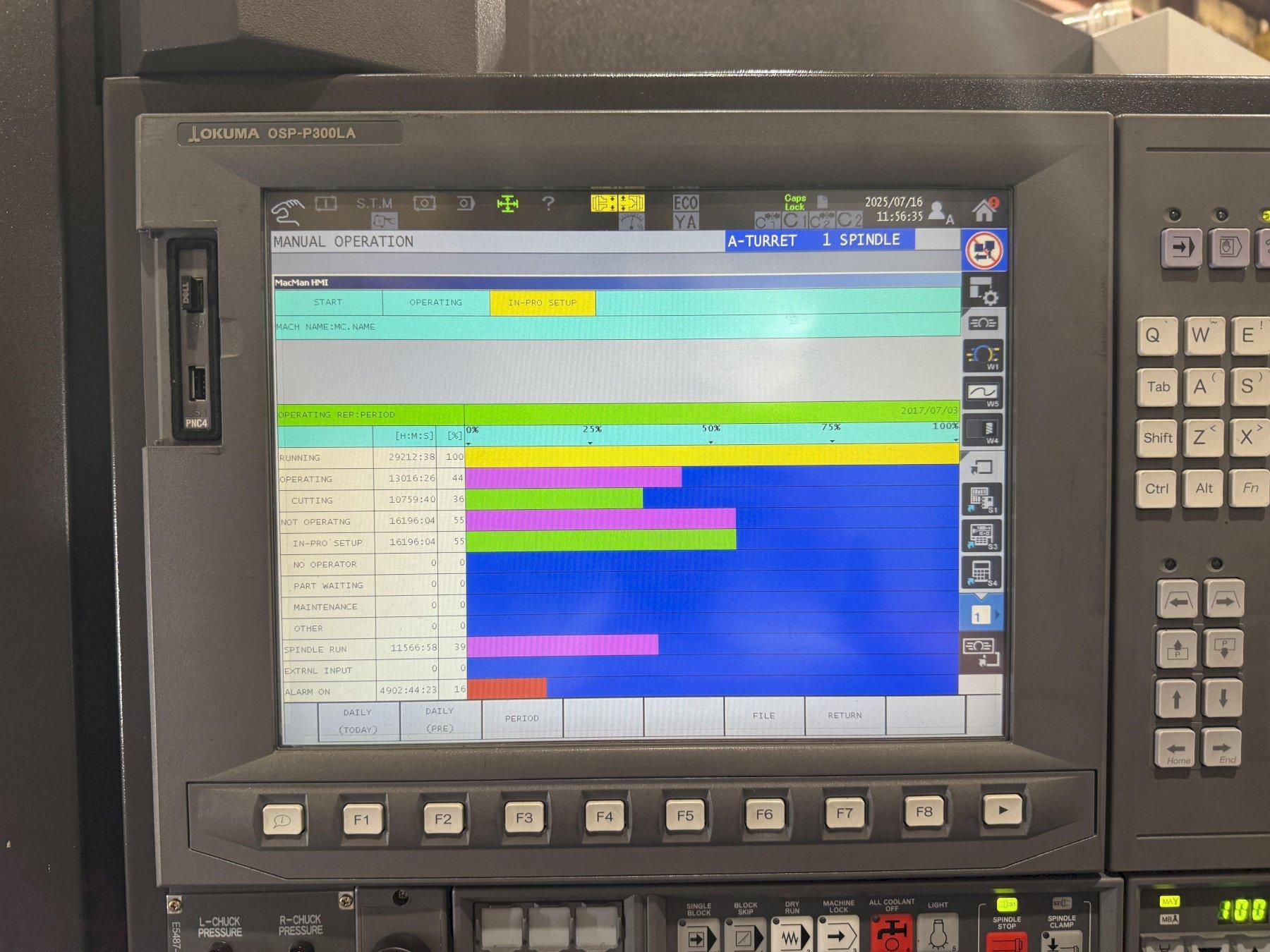

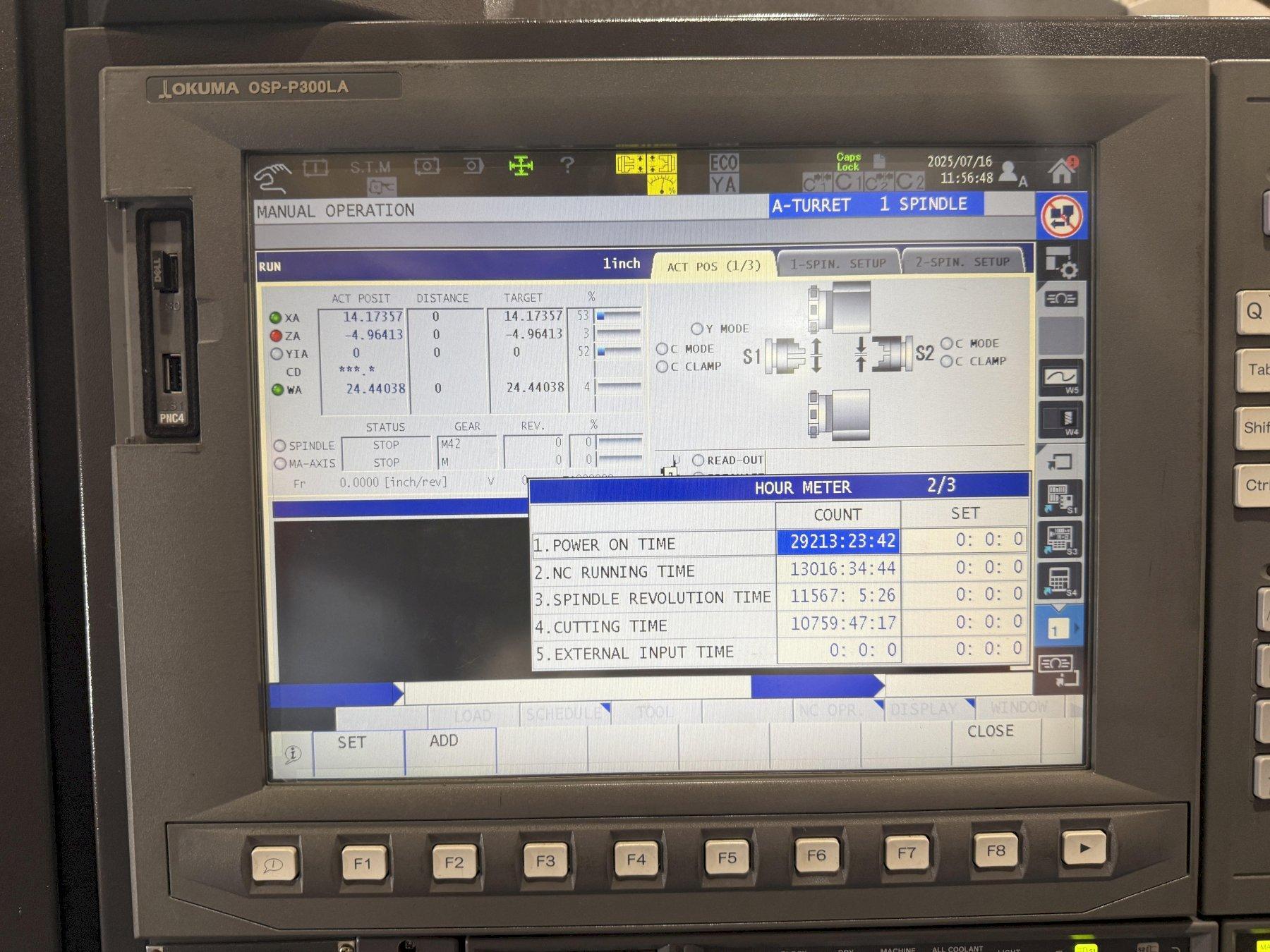

Type of CNC Control - OSP-P300LA
# Axis - 8
Swing - 15.75 inches
Turning Diameter - 8.28 inches
Center Distance - 38.58 inches
Chuck Size - 8 inches
Bar Capacity - 2.04 inches
X Axis Travel - 8.07 inches
X2 Axis Travel - 8.07 inches
Y Axis Travel - 3.74 inches
Z Axis Travel - 27.56 inches
B Axis Travel (Sub Spindle) - 28.74 inches
C Axis Index - 0.001°
Rapid Traverse (X/Y/Z) - 1181/591/1575 ipm
Spindle Nose - A2-6
Spindle Speed - 6,000 rpm
Main Motor - 15 hp
Tailstock - yes
Y Axis - yes
Live Tooling - yes
Live Tooling Speed - 6,000 rpm
Live Tooling Motor - 7.5 hp

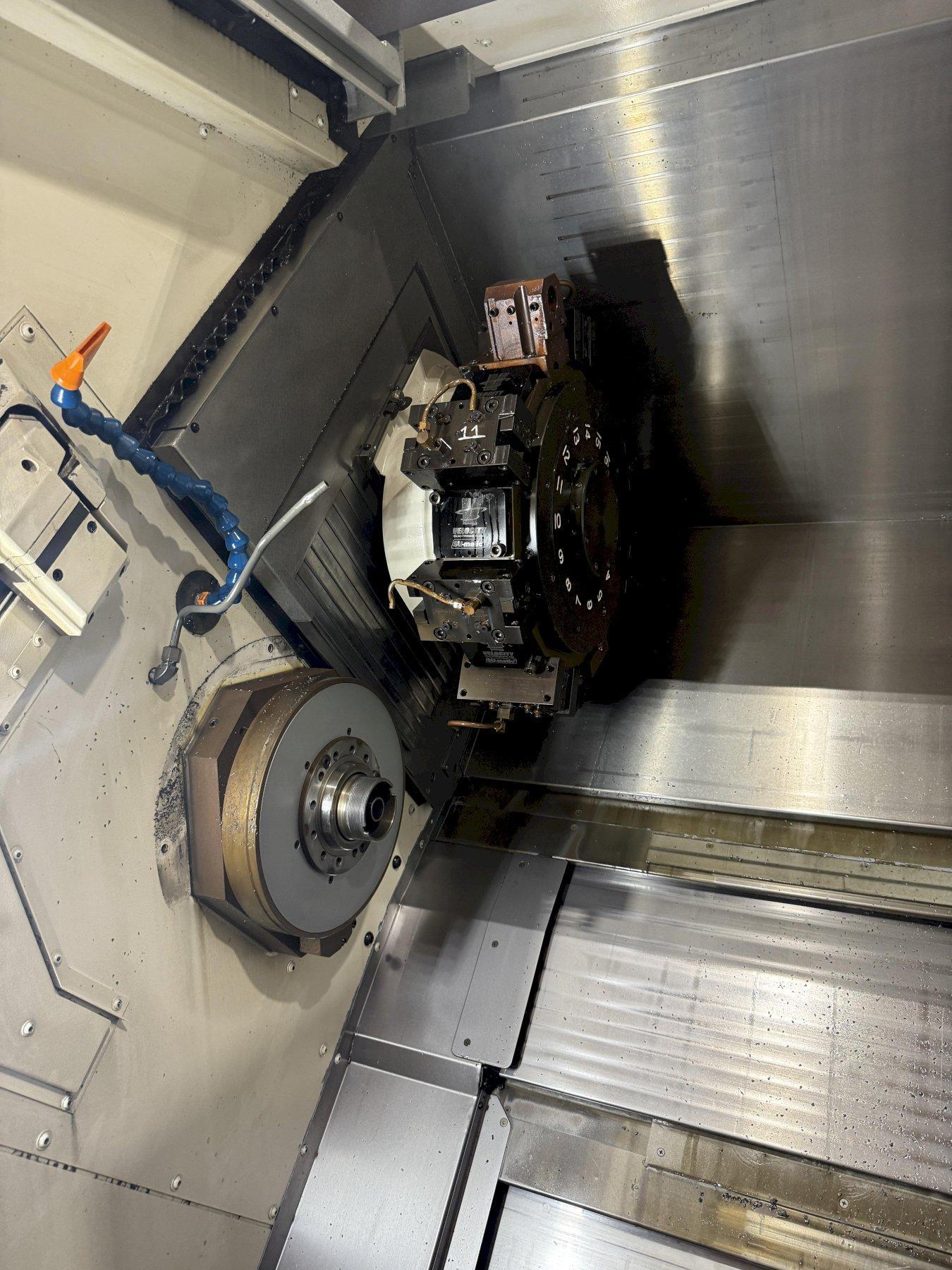

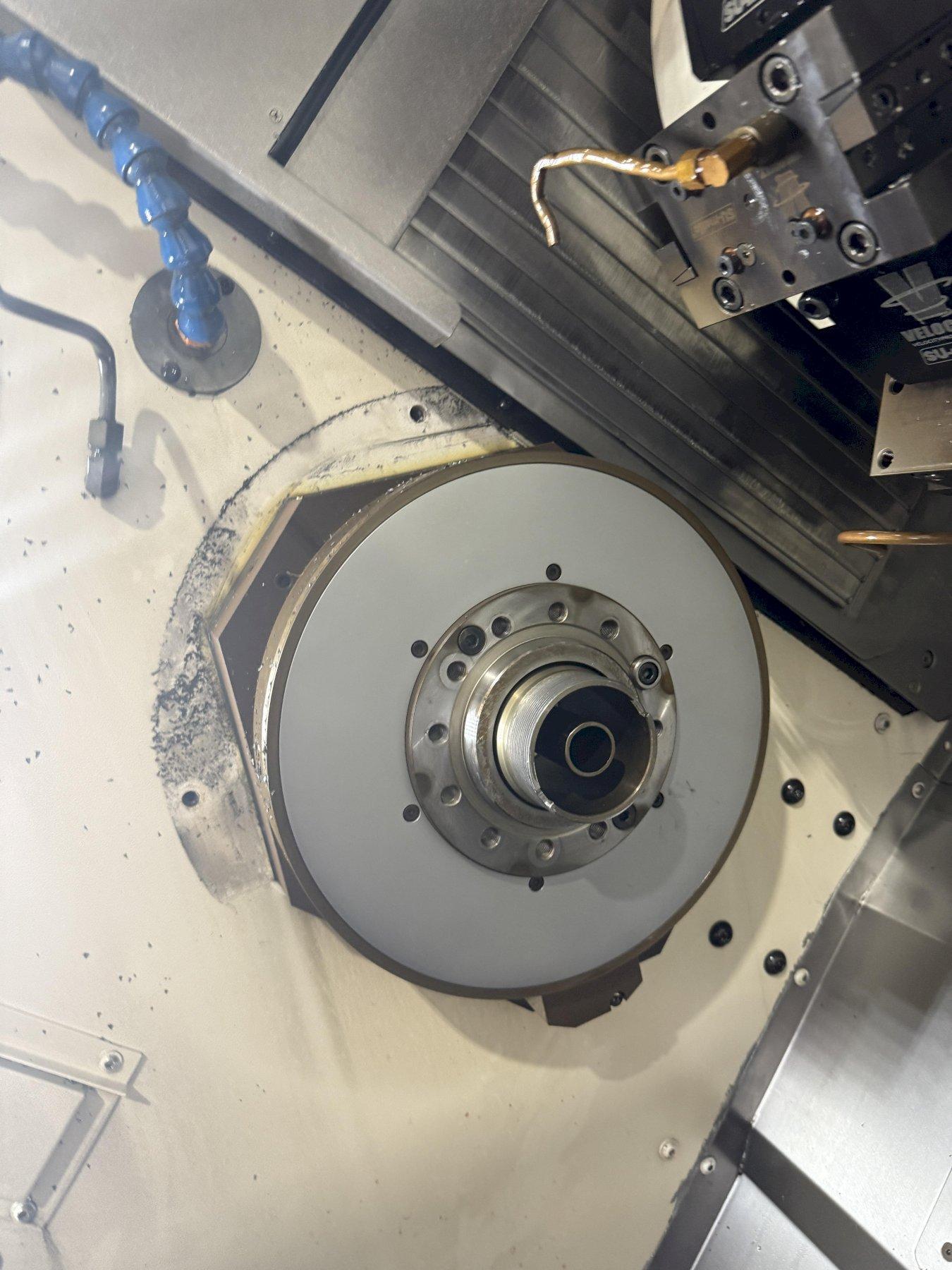

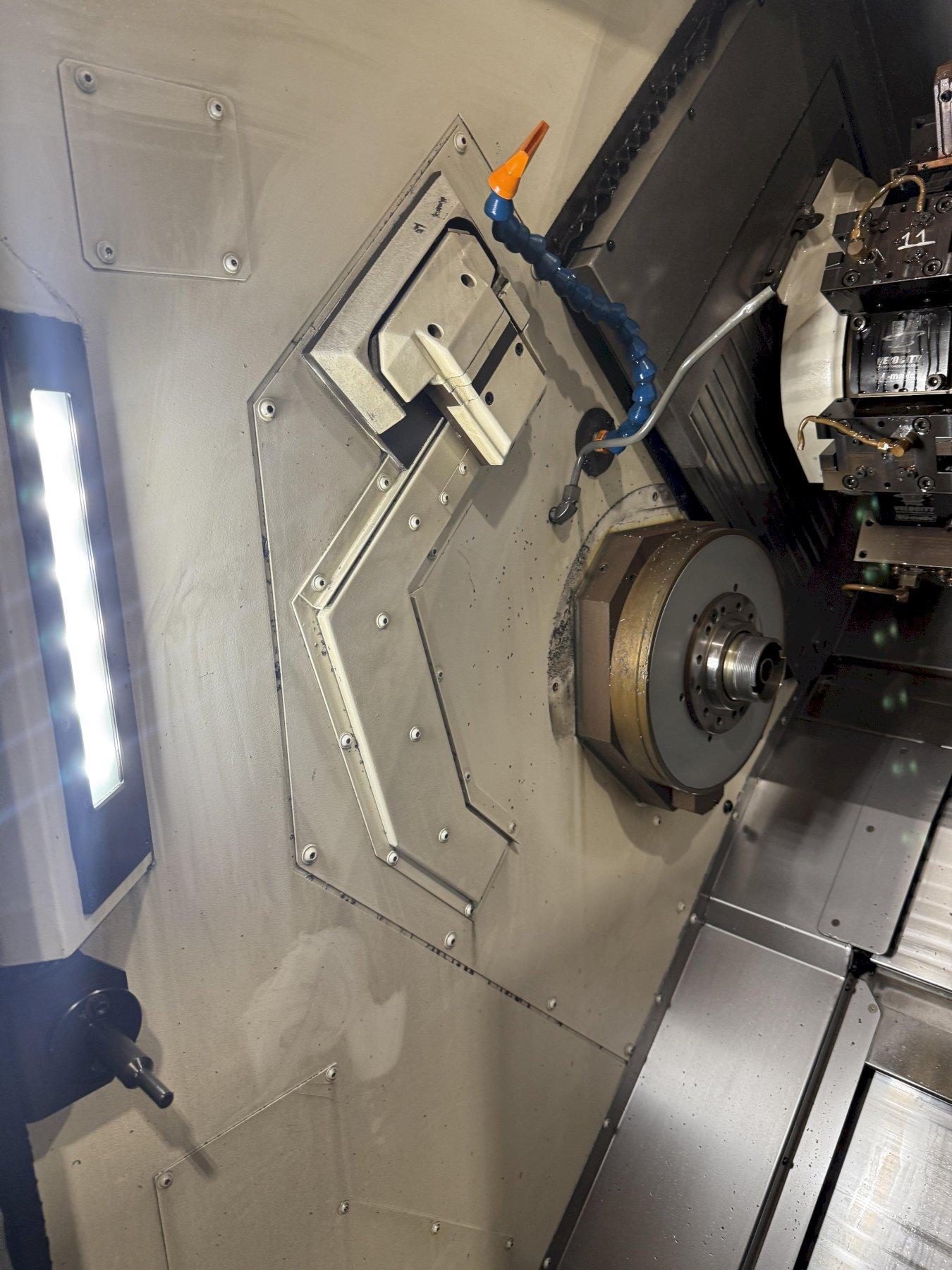

Sub Spindle - yes
Sub Spindle Chuck - 6 inches
Sub Spindle Nose - A2-6
Sub Spindle Speed - 6,000 rpm
Sub Spindle Motor (HP) - 15 hp

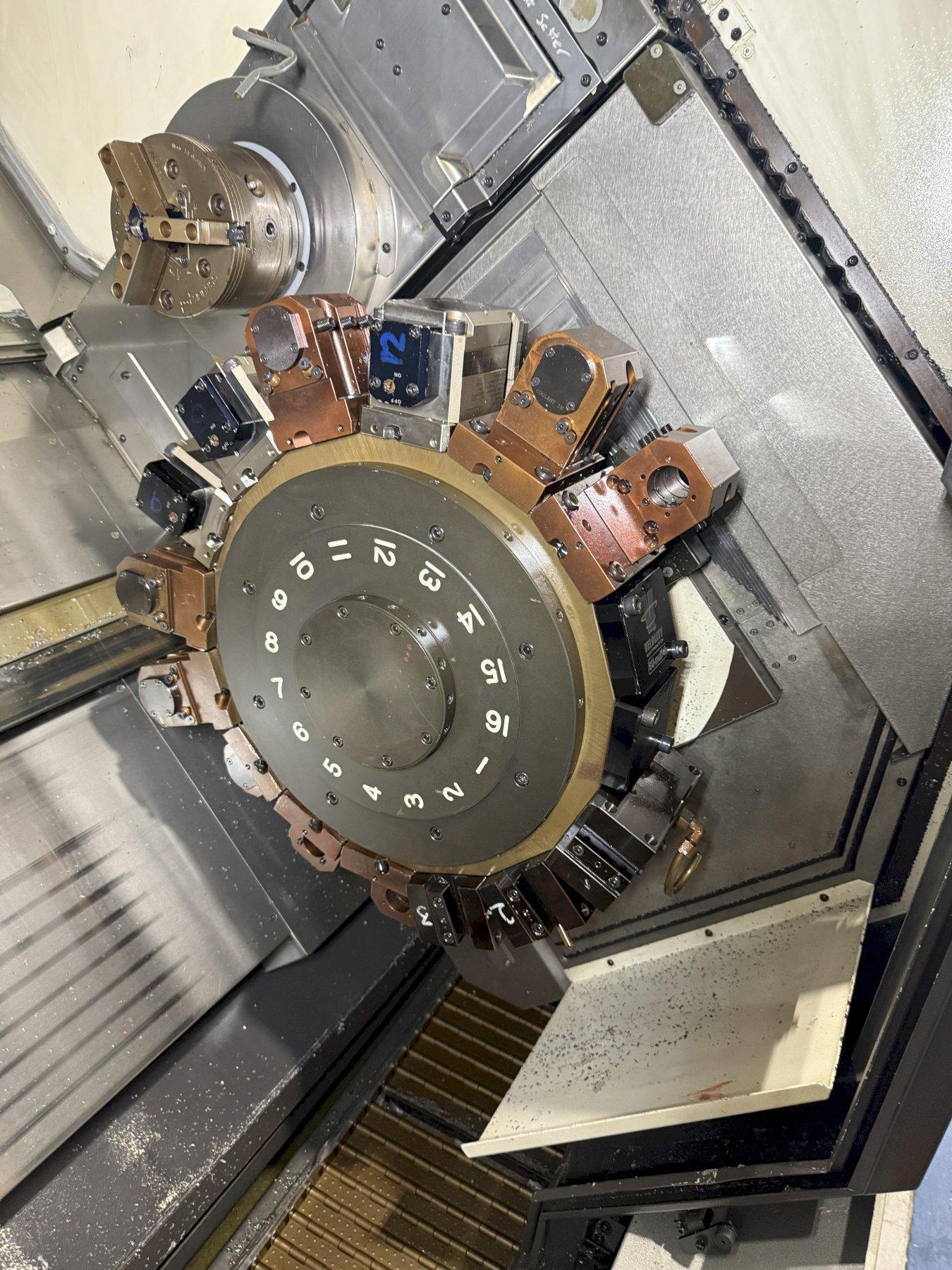

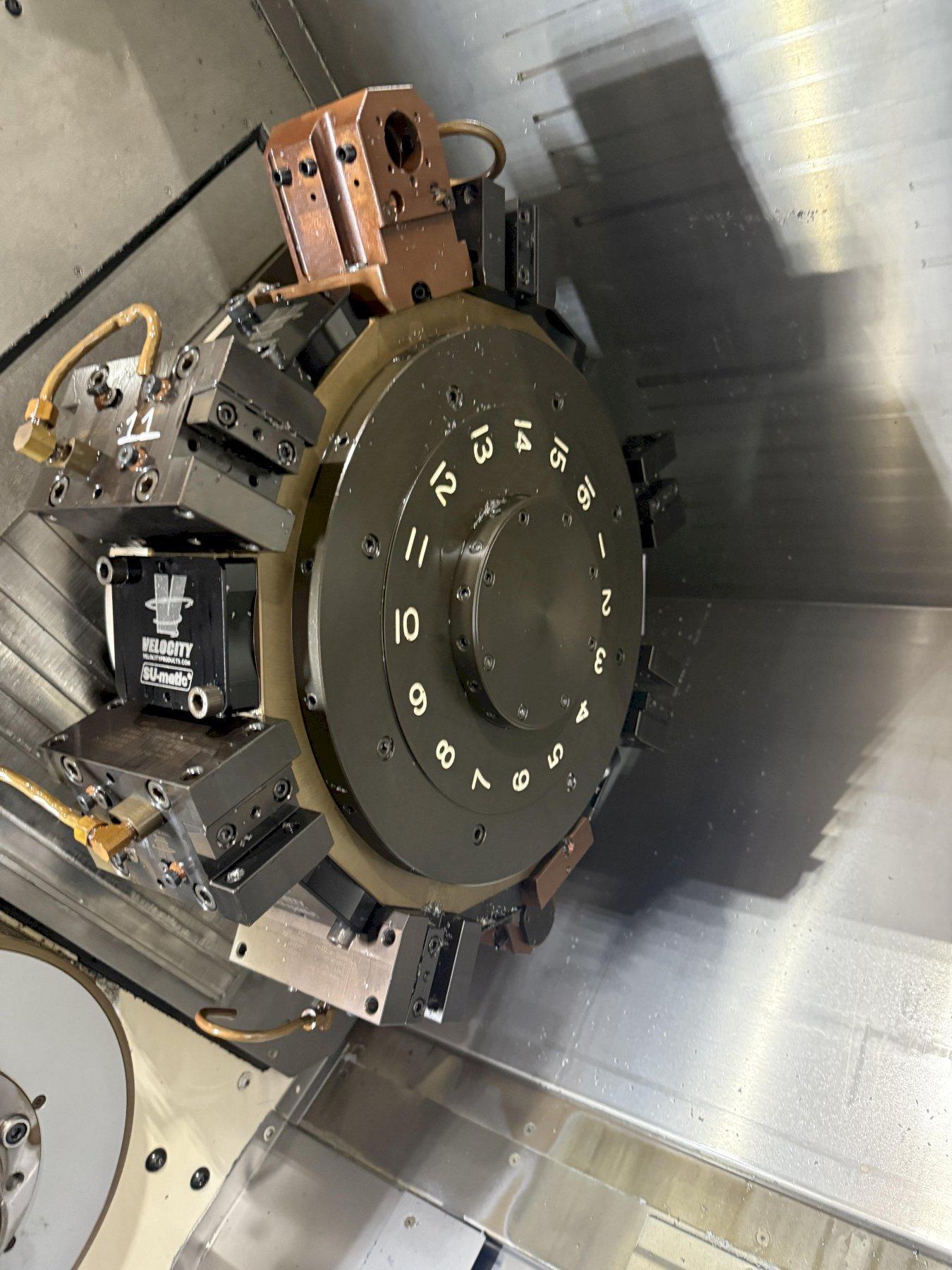

Turret Capacity (Upper/Lower) - 16 Stations / 16 Stations
Machine Dimensions - 135" x 98" x 94"
Machine Weight - 19800 pounds

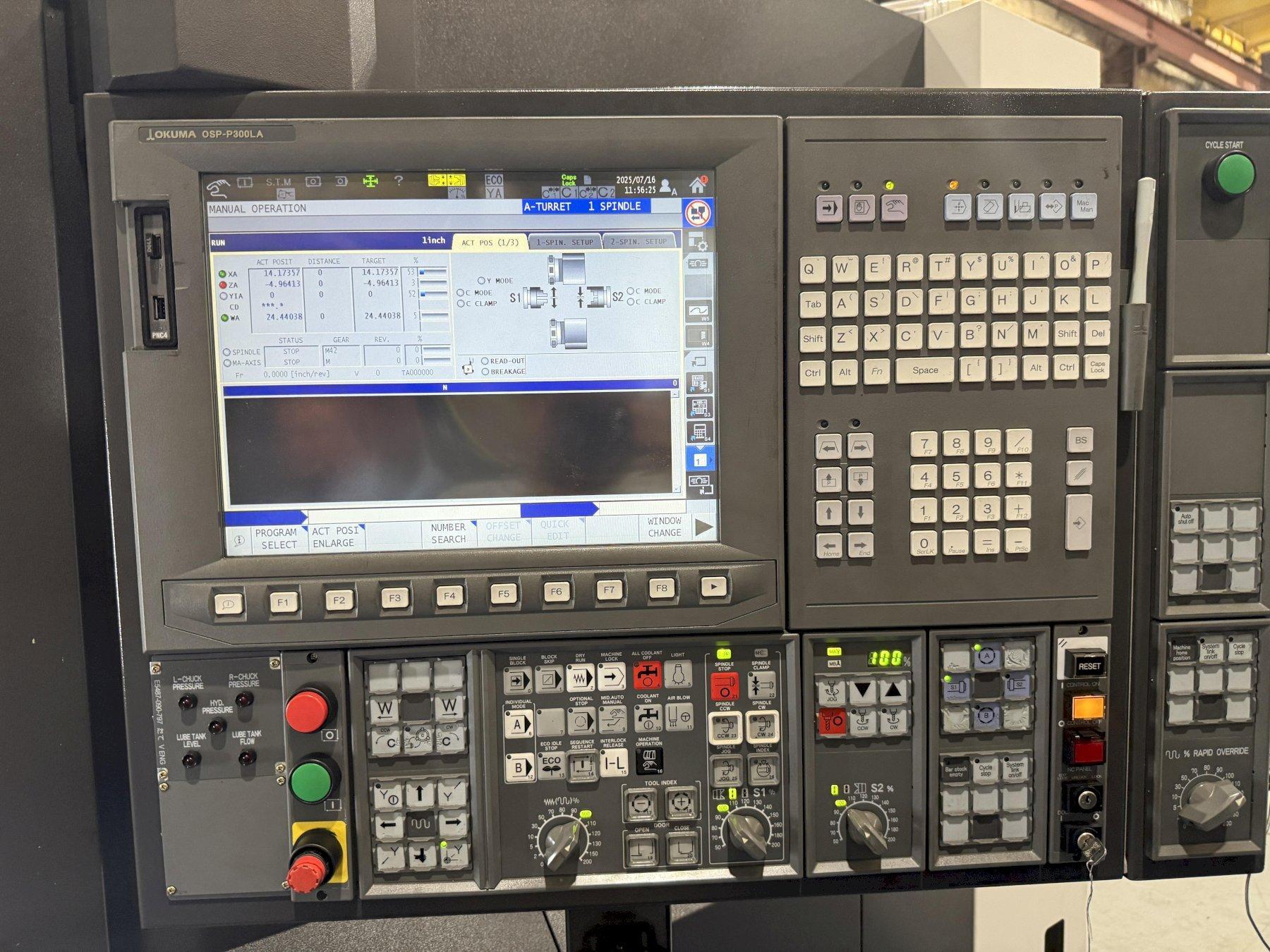

- Okuma OSP-P300LA CNC Control

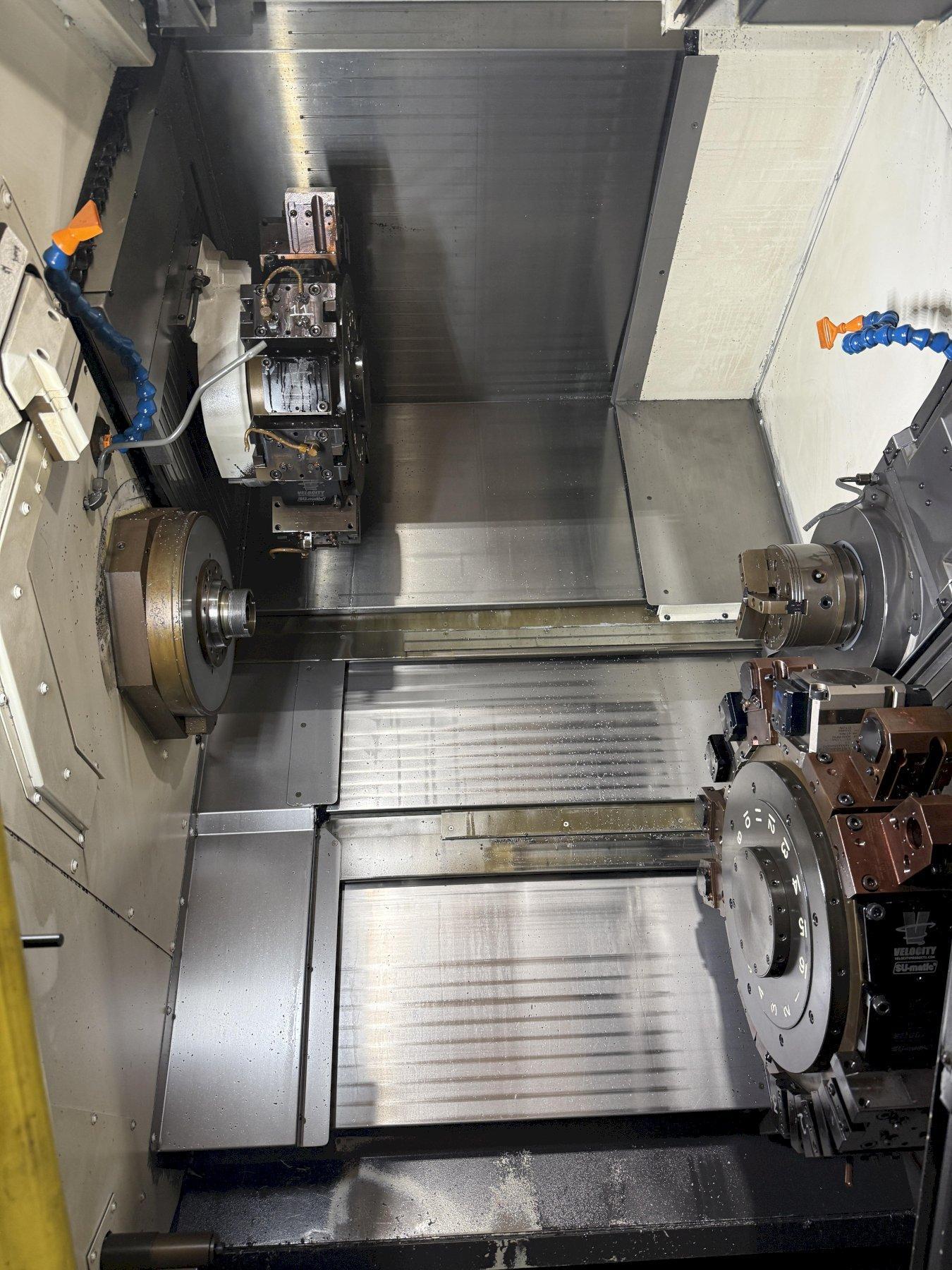

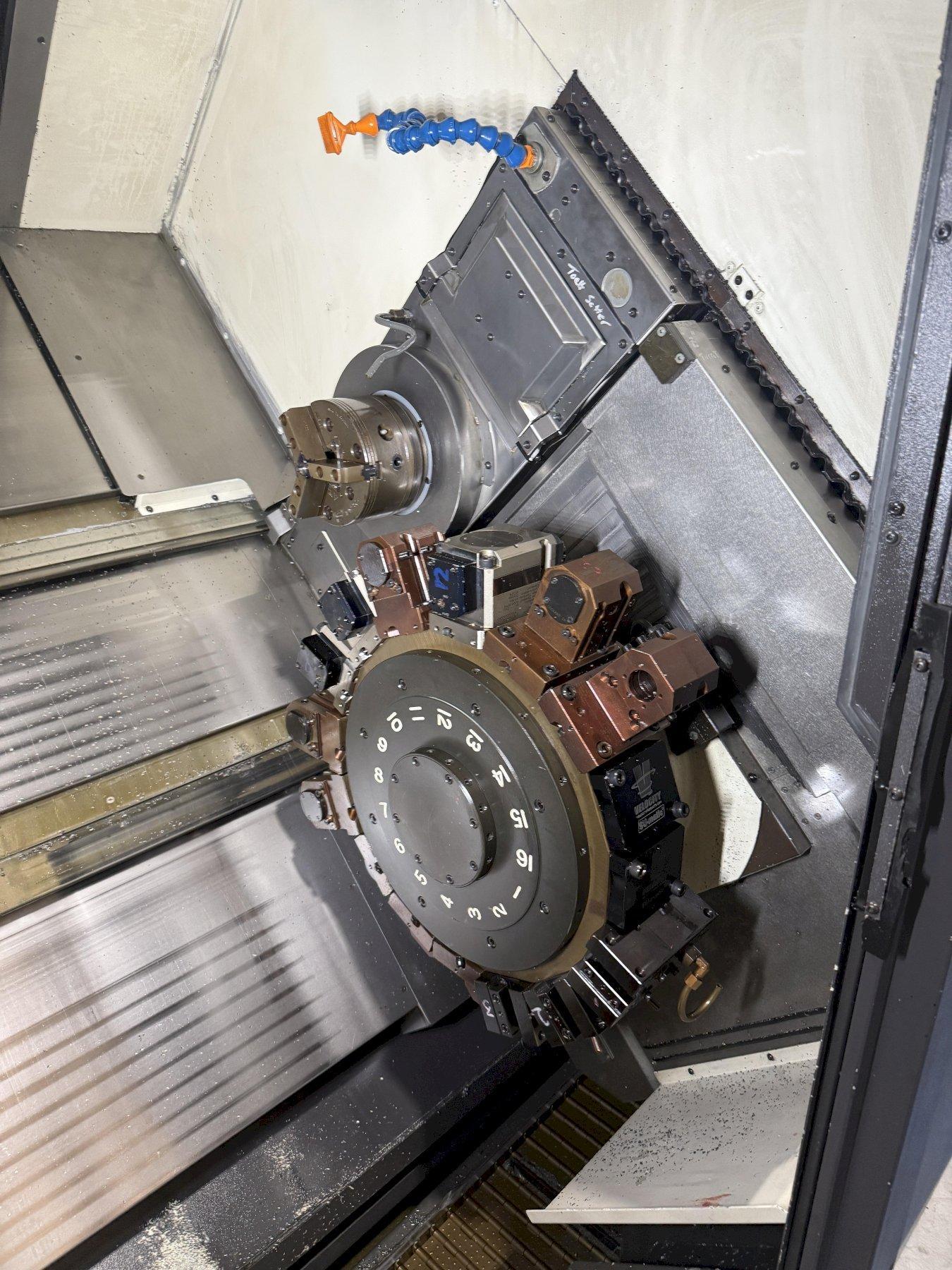

- Twin Spindles/Twin Turrets
- Tool Presetter
- Sub Spindle Touch Setter
- Y Axis on Upper Turret
- Synchronized Tapping

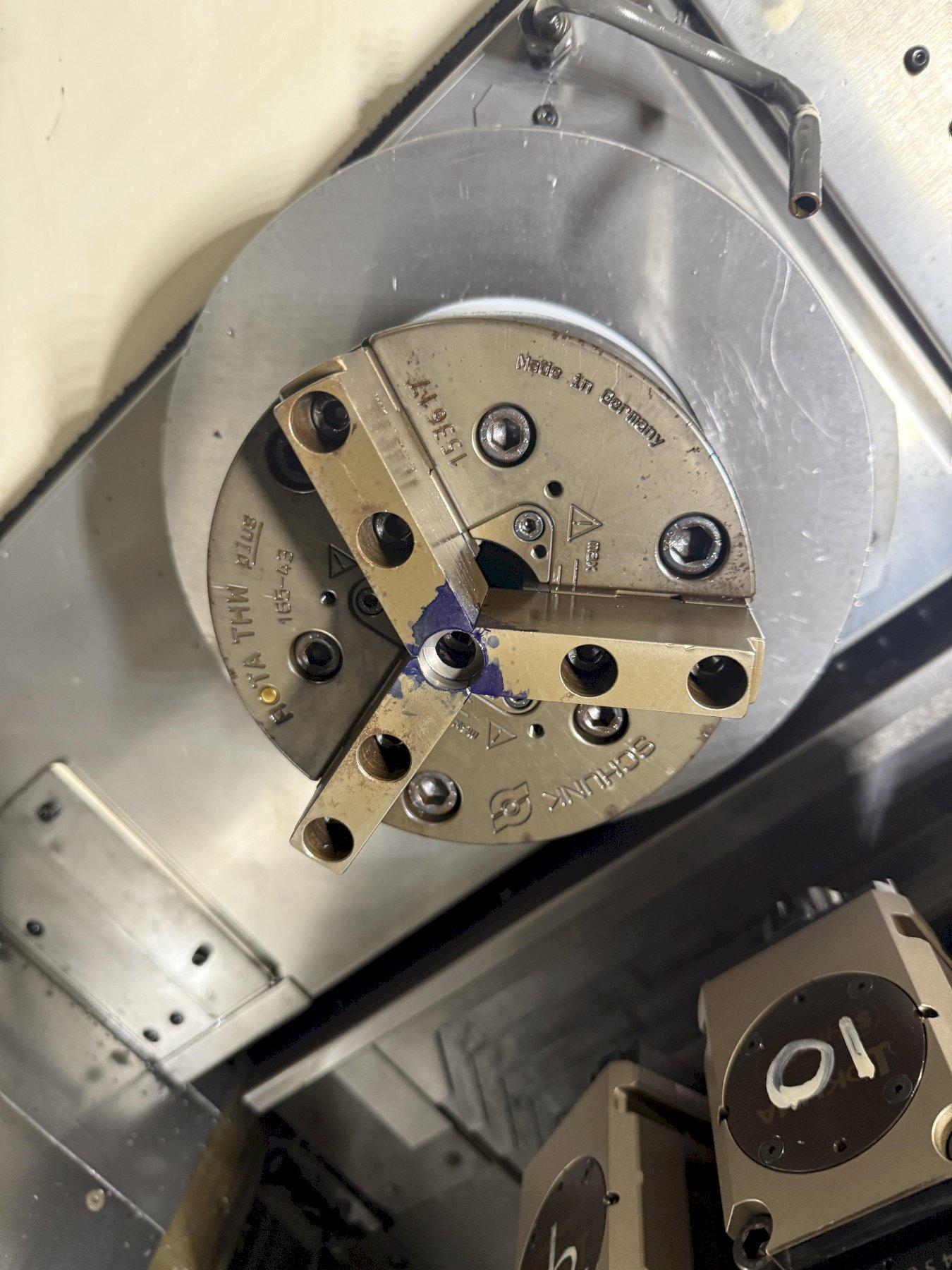

- 8" Chuck (Main) | 6" Chuck (Sub)
- Live Tooling (Both Turrets)

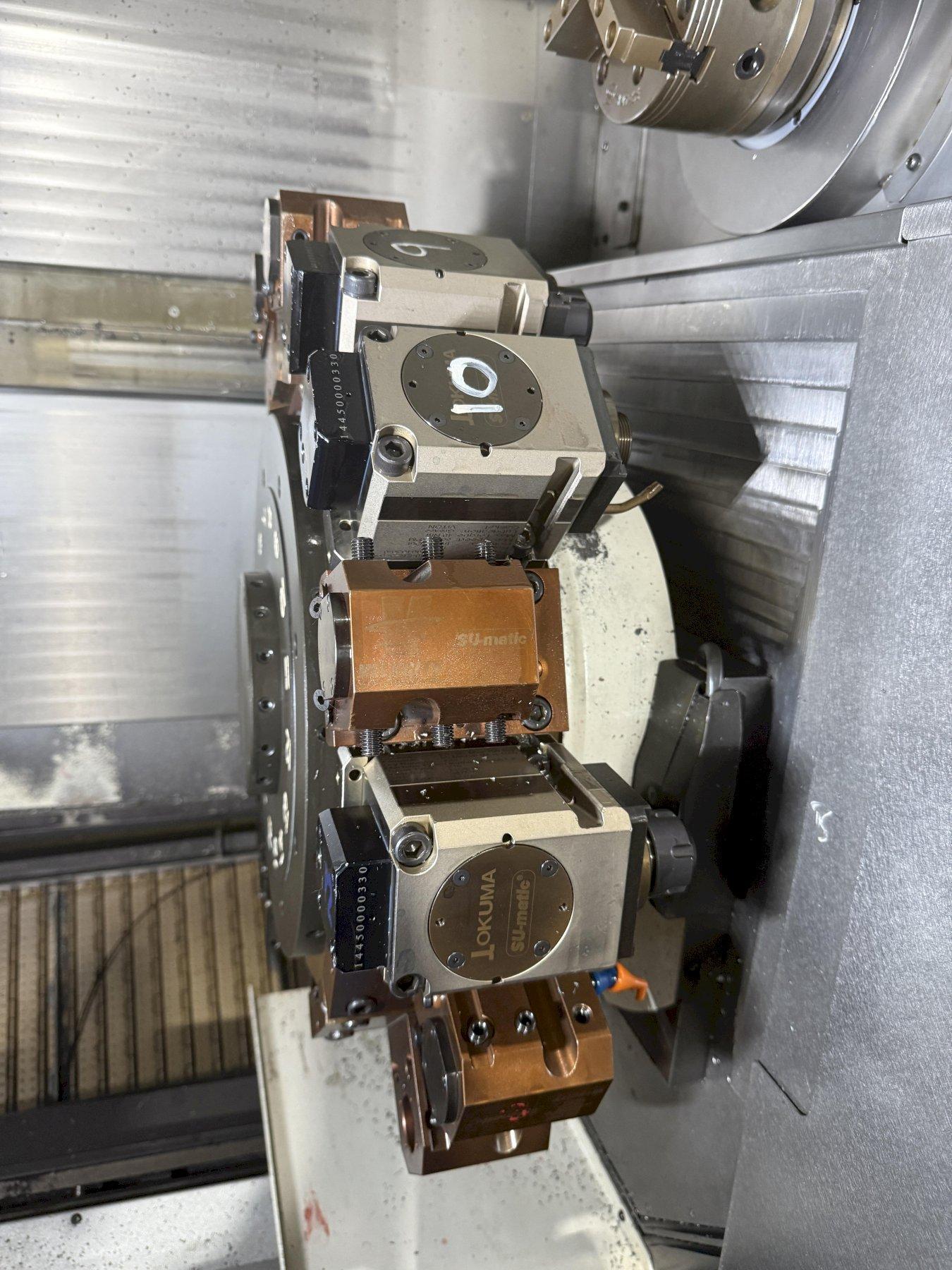

- (3) Live Right Angled Holders (Lower Turret)
- Misc Static Holders
- Parts Catcher
- Bar Feeder Interface
- Transformer
- High Pressure Coolant

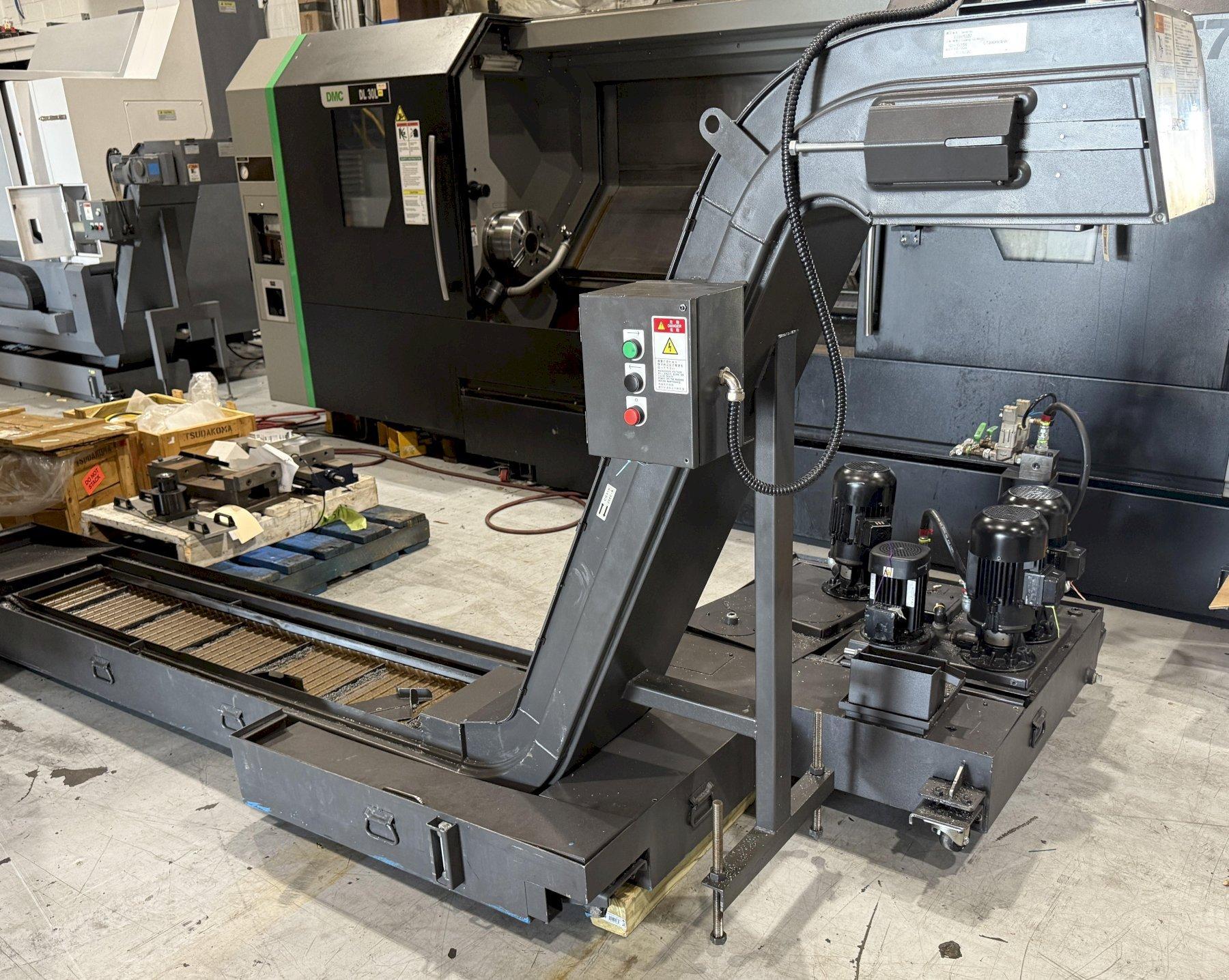

- Chip Conveyor
- Coolant Tank & Pumps
