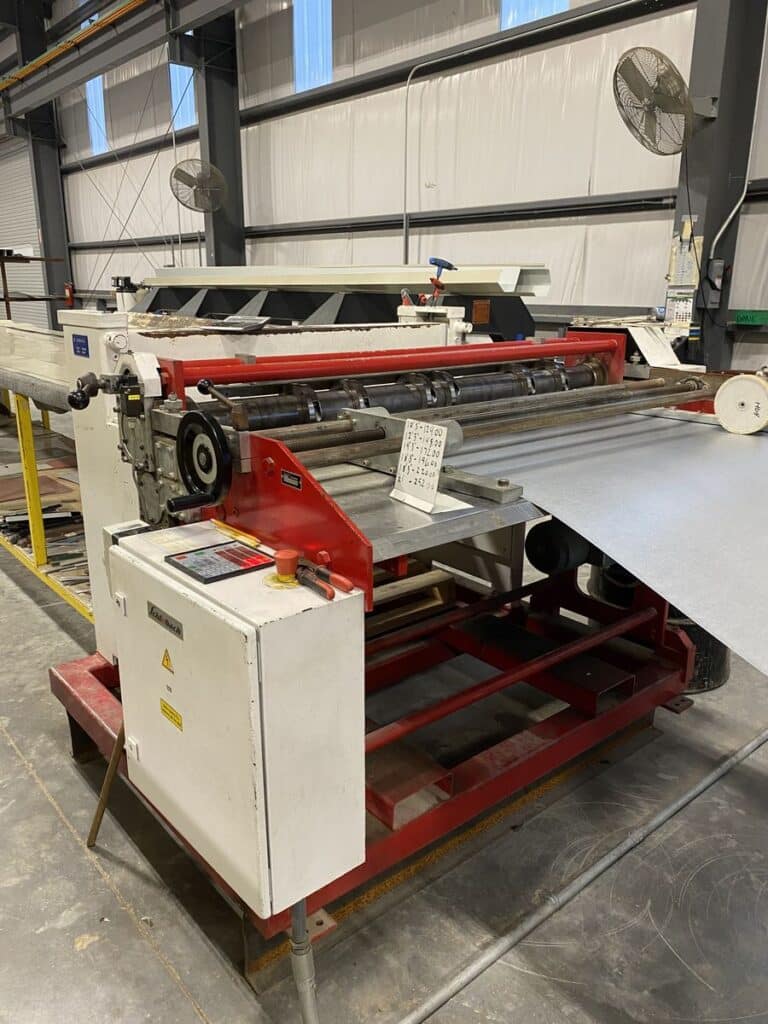

Schlebach MSS 1250 Automatic Slitting & Cut To Length Line w/ Guillotine Shear & Bradbury Uncoiler, 48″ x 16 Ga

Stock

171250031

Model

MSS 1250

Dealer Location

Georgia

Spec Sheet

  • Stock #: 171250031
  • Location: TX
  • Brand: Schlebach
  • Model: MSS 1250

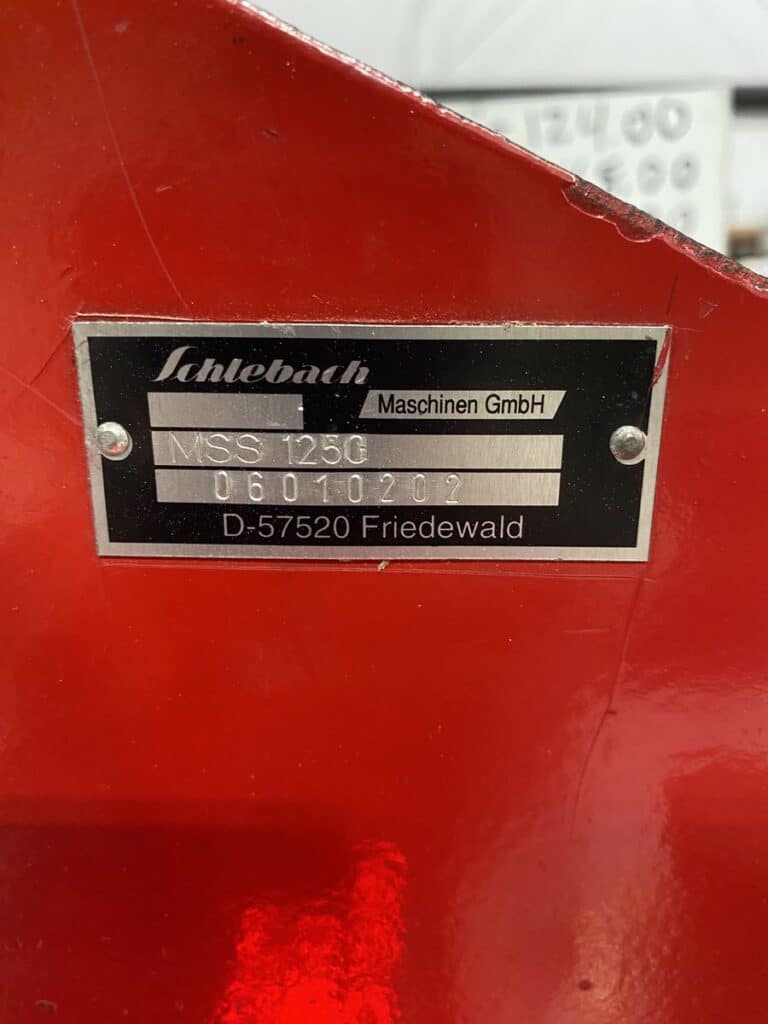

  • Serial #: 06010202
  • Approx. Shipping Weight: Schlebach (2,300 LBS) / Bradbury Uncoiler (3,500 LBS)
  • Approx. Shipping Dimensions: Schlebach (84″ L x 54″ W x 50″ H) / Bradbury Uncoiler (108″ L x 48″ W x 60″ H)
  • Loading Fee: Loading Included

Specifications

  • Infeed Width: Adjustable from 200 – 1,250 mm (7.87″ – 49.21″)
  • Cutting Capacity (Sheet Steel 400N/mm²): Up to 1.25 mm (0.049″)
  • Cutting Capacity (Stainless Steel): Up to 1.25 mm (0.049″)
  • Cutting Capacity (Copper/Zinc): Up to 1.25 mm (0.049″)
  • Cutting Capacity (Aluminium): Up to 1.50 mm (0.059″)
  • Feeder Speed: Up to 22m/min
  • Feeder Accuracy: +/- 0.5 mm/3000 mm length
  • Max Shear Capacity: 2.00 mm for 400N/mm²
  • MSS 1250 Power Required: 240V / 3 Phase

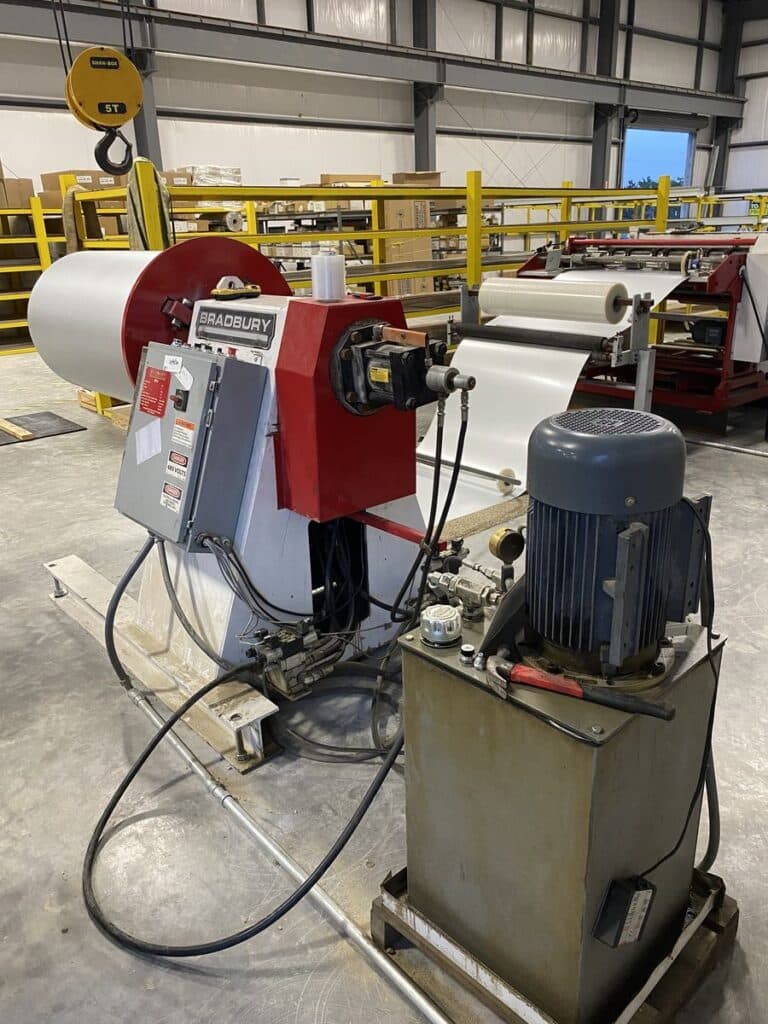

  • Bradbury Uncoiler: Model TS12
  • Bradbury Uncoiler Capacity: 12,000 LBS x 48.50″ Max Material Width

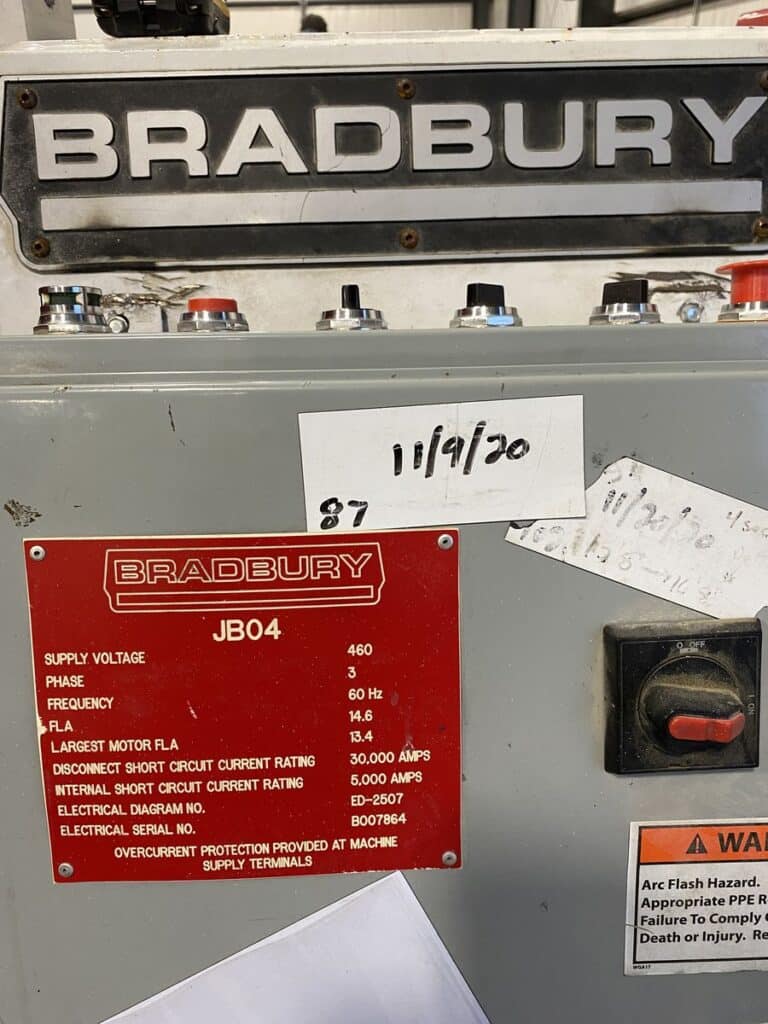

  • Bradbury Uncoiler Power Required: 460V / 3 Phase

Equipped With

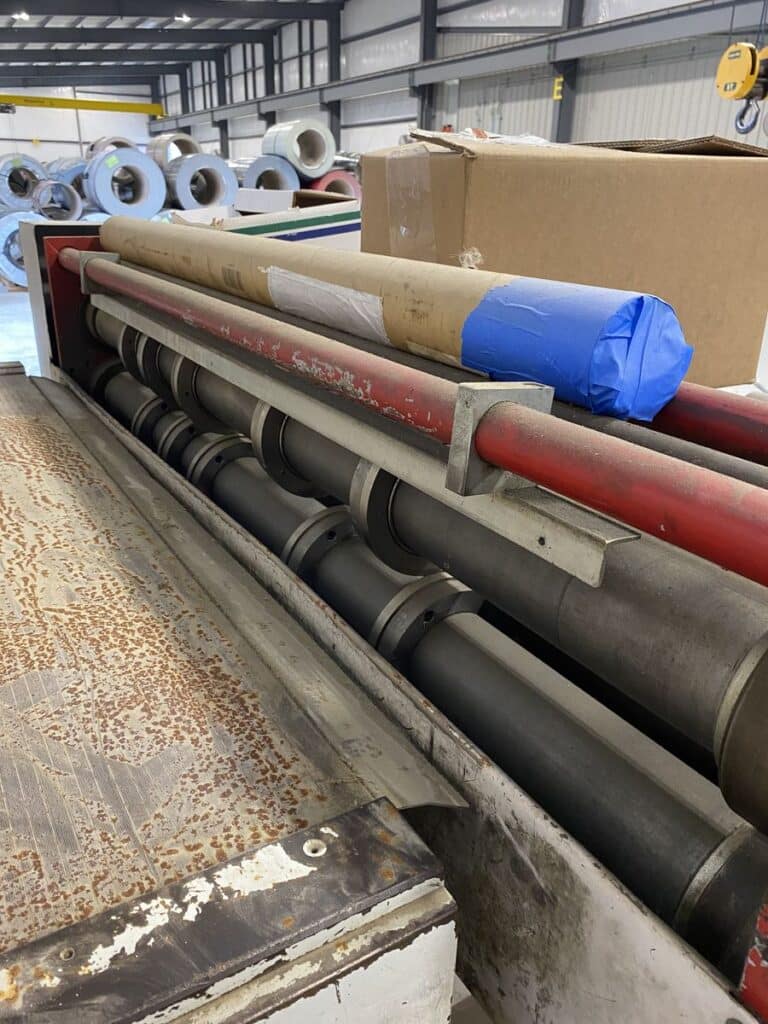

Double Guide Roller To Feed The Material Gently, Protective Foil Unwinder, Bradbury Uncoiler (Model TS12), Spare Bradbury Uncoiler Motor, Spare Schlebach MSS 1250 Parts Machine

Additional Info

Available to put to power for demo.
