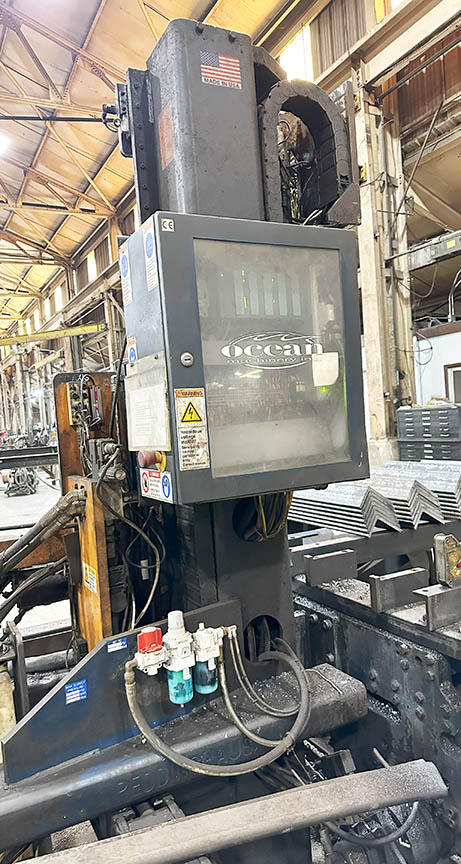

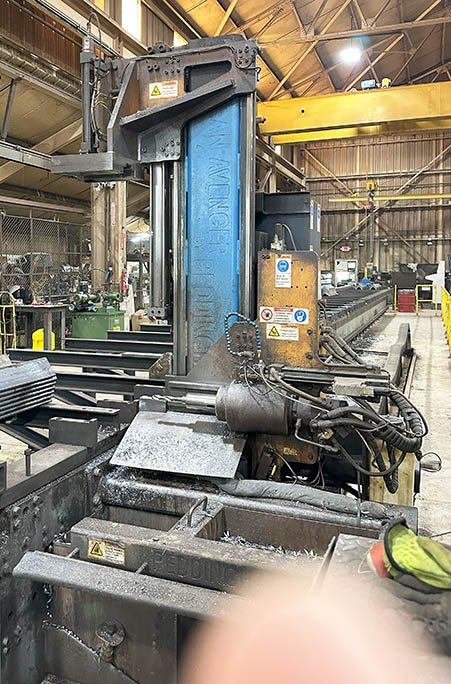

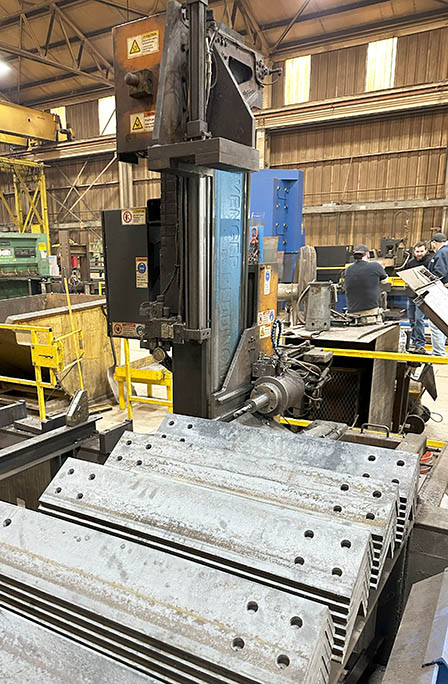

Ocean/Peddinghaus Avenger II 1000/1B CNC Drill Line, Travelling Head, 39" Capacity, 60' Max Work Length, Thru Spindle Coolant, Siemens CNC Control, 2007

Manufacturer

Ocean

Category

Miscellaneous Machines

Type

BEAM/DRILL LINES, CNC

Stock

None

Model

Avenger II

Dealer Location

Missouri

Request a Quote
View Contact Information

Spec Sheet

Ocean/Peddinghaus Avenger II 1000/1B Drill Line
Manufacturered 2007

Maximum Beam Capacity – 39” x 39”
Maximum Thickness Capacity – 6”
Minimum Thickness Capacity – 1/8”
Maximum Length of Work Piece – 60’
Max Speed X axis (Horizontal) - 120 ft per min
Max Speed Y axis (Vertical) - 120 ft per min
Spindle Motor – 13.5 HP
Spindle Stroke – 13”

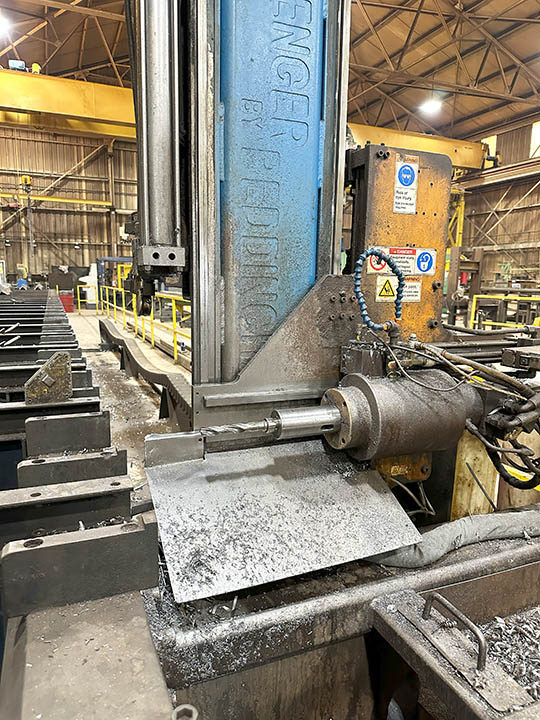

Drill Spindle – 4MT with Thru Spindle Coolant
Drilling speeds: Variable 200-850 RPM
Drilling feed rate – 2-10 IPM
Drill Capacity – 5/16” to 1 9/16”
Vise Clamping Pressure – Variable to 5 Tons

• Material stays stationary has head travels in X/Y Position
• Average output: 200 to 400 holes per hour depending on the profile drilled
• It is capable of drilling most steel profiles including: Beams up to 40" high (rolled or fabricated) Angles, channels, and T sections, Flat bars, plates up to 40" wide Girders Tapered beams or other unequal sections Tubes Rails Truck frames, rail car frames, etc.
• Eliminates manual layout and drilling. Provides exceptional accuracy of hole placement, eliminating costly field modifications.
• Easy installation in one-half the floor space required by regular beam lines
• Fully automatic drilling cycle

Equipped with:
-Thru Spindle Coolant

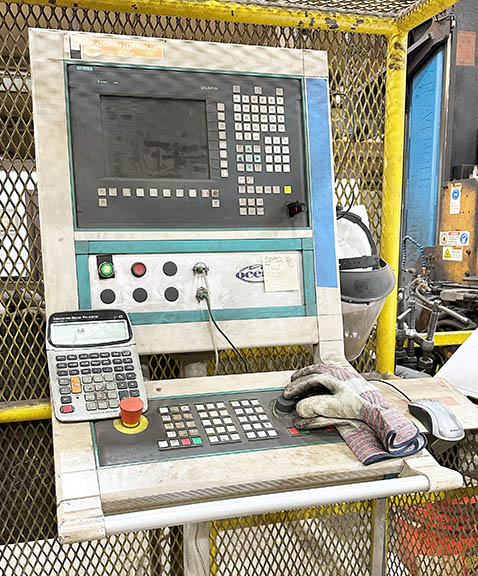

-Siemens CNC Control

Location: St. Louis, MO
