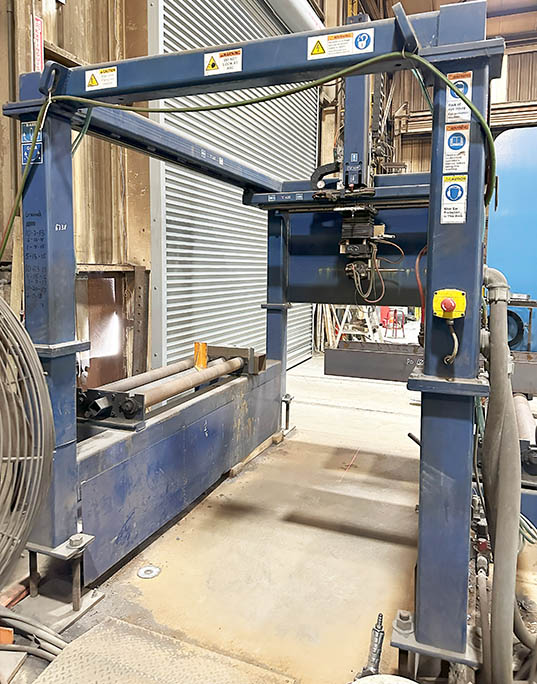

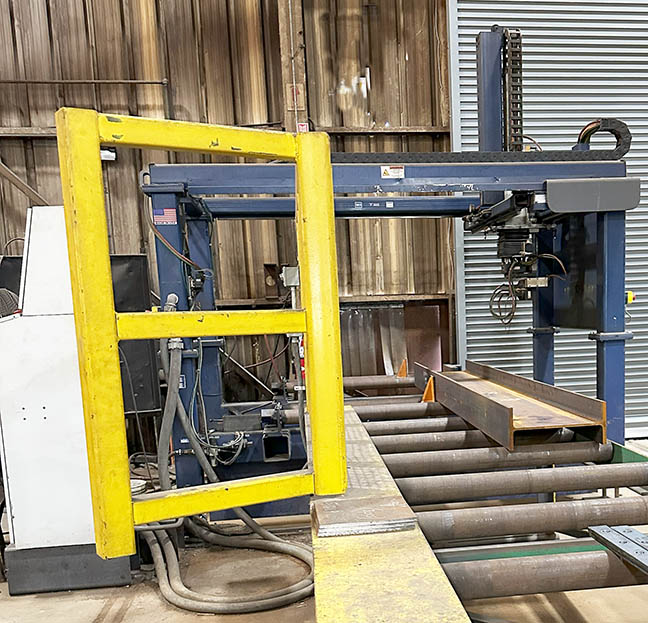

Ocean Liberator CNC Beam Coping Machine, 44" x 28" Max Profile, 48" Plate Width, 45 Degrees, Roller Infeed/Outfeed, Siemens CNC Control 2012

Stock

None

Model

Liberator

Dealer Location

Missouri

Spec Sheet

Ocean Liberator CNC Beam Coping Machine
Manufacturered 2012

Profile size – maximum - 44″ x 28″
Plate width – maximum - 48″
Flange bevels - +/- 45 Deg.
Web bevels – external only +/- 45 Deg.
Material thickness – maximum - 6″
Traverse speed - 100 – 400 In./Min.
Cutting speed - 7 – 30 In./Min.
X-axis travel (direction of flow) - 46″
Y-axis travel (cross) - 76″
Z-axis travel (vertical) - 30″
B-axis travel (bevel angle) - 270 Deg.
C-axis travel (torch rotation) - 270 Deg.
Clamping capacity - 0 – 48″
Clamping force - 1,100 Lbs.
Material pass line - 24″ – 30″
Approximate Weight – 5,200 lbs

Cope, or create notches and cutouts, in beams,
allowing for proper fit and connection in structural assemblies

Equipped with:
-Roller Infeed/outfeed
-Siemens CNC Control

Location: St. Louis, MO
