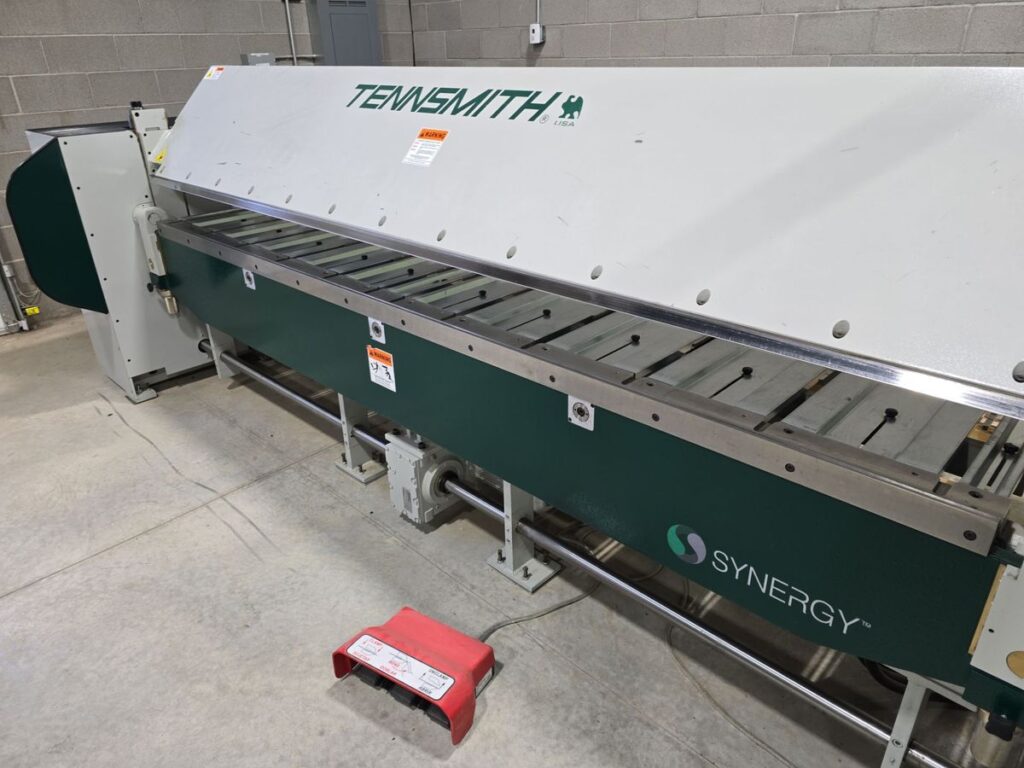

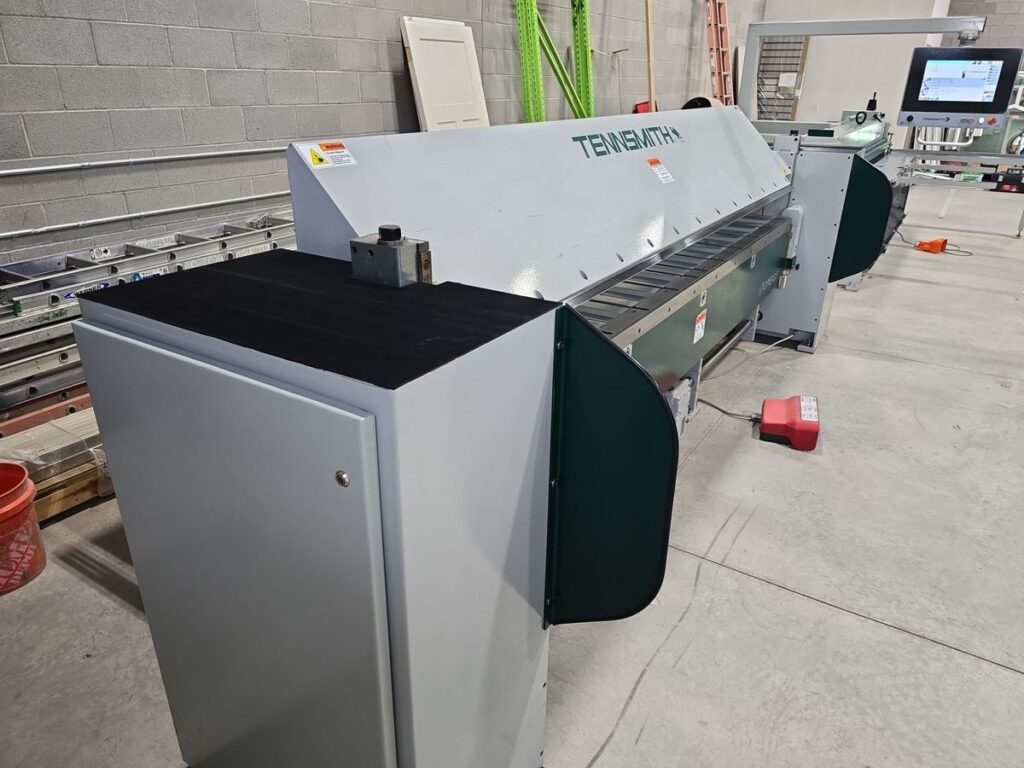

Tennsmith SBS126-14 126″ x 14 Gauge CNC Folding Machine (2020)

Stock

171250033

Model

SBS126-14

Dealer Location

Georgia

Spec Sheet

  • Stock #: 171250033
  • Location: CO
  • Brand: Tennsmith

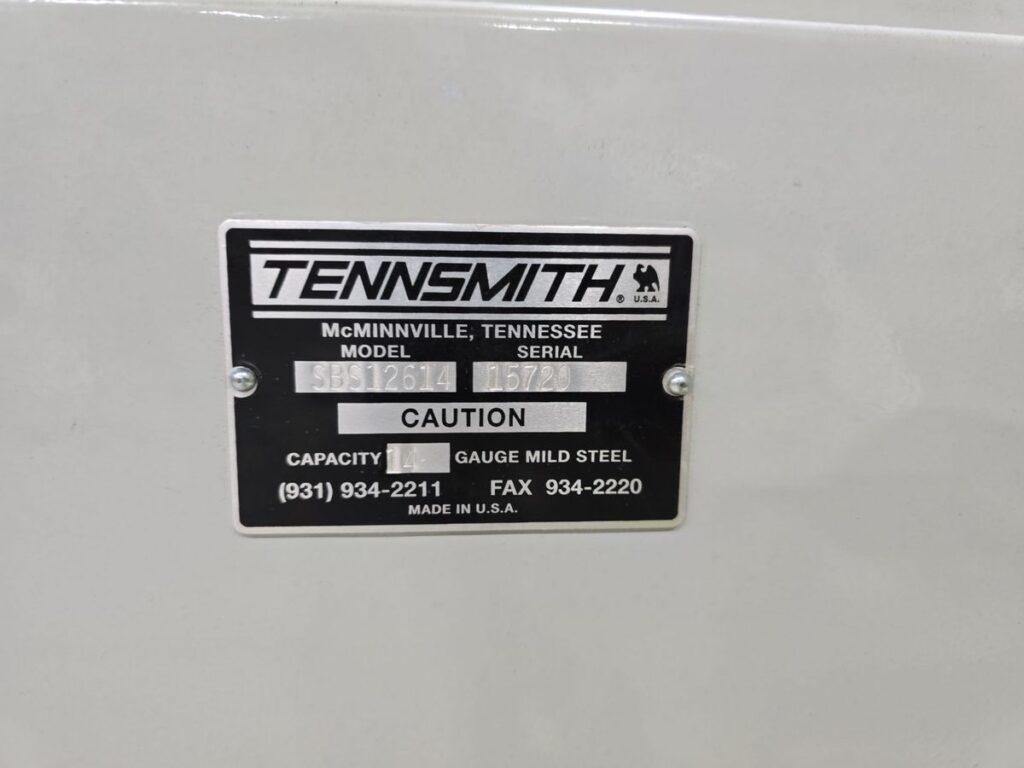

  • Model: SBS126-14
  • Year: 2020
  • Approx. Shipping Weight: 9,020 LBS
  • Approx. Shipping Dimensions: 180″ L x 96″ W x 72″ H
  • Loading Fee: Rigging Required

Specifications

  • Bending Capacity (Mild Steel): 14 Gauge (2.0 mm)
  • Bending Capacity (Stainless): 16 Gauge (1.5 mm)
  • Bending Length: 126″ (3200 mm)
  • Bending Bars: 1″ (25 mm)

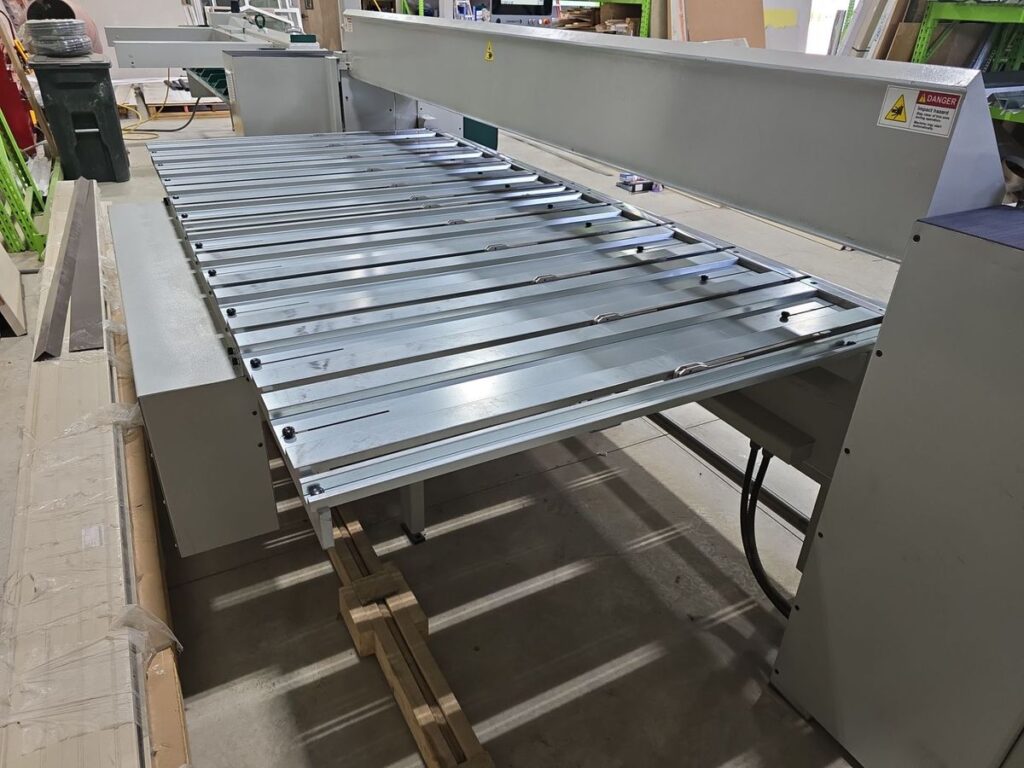

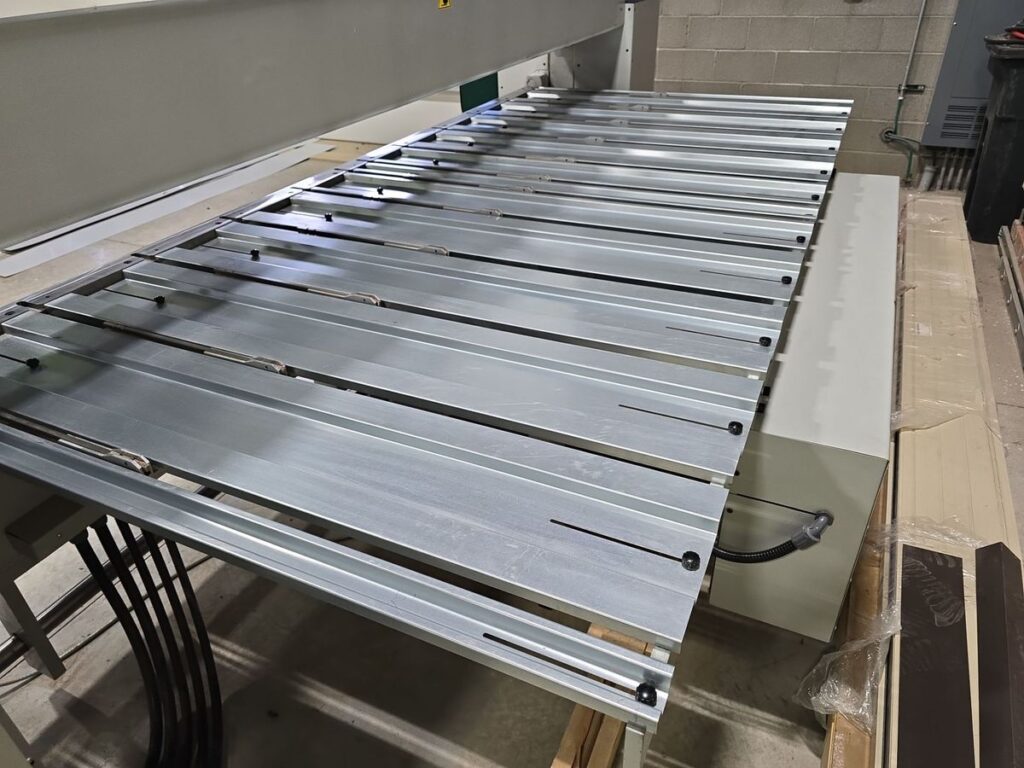

  • Backgauge Depth: 41″ (1016 mm)
  • Clamping Beam Opening Height: 7″
  • Camping Beam Tooling: 30°
  • Folding Beam Adjustment: 1″ (25 mm)
  • Crowning of the Folding Beam: 5-Point 0″ – 0.030″ Adjustment
  • Working Height: 34″ (864 mm)
  • Clamping Beam Speed: 2.5″ Per Second
  • Folding Beam Speed: 90° Per Second
  • Backgauge Speed: (.375″ to 41″): 4 Seconds

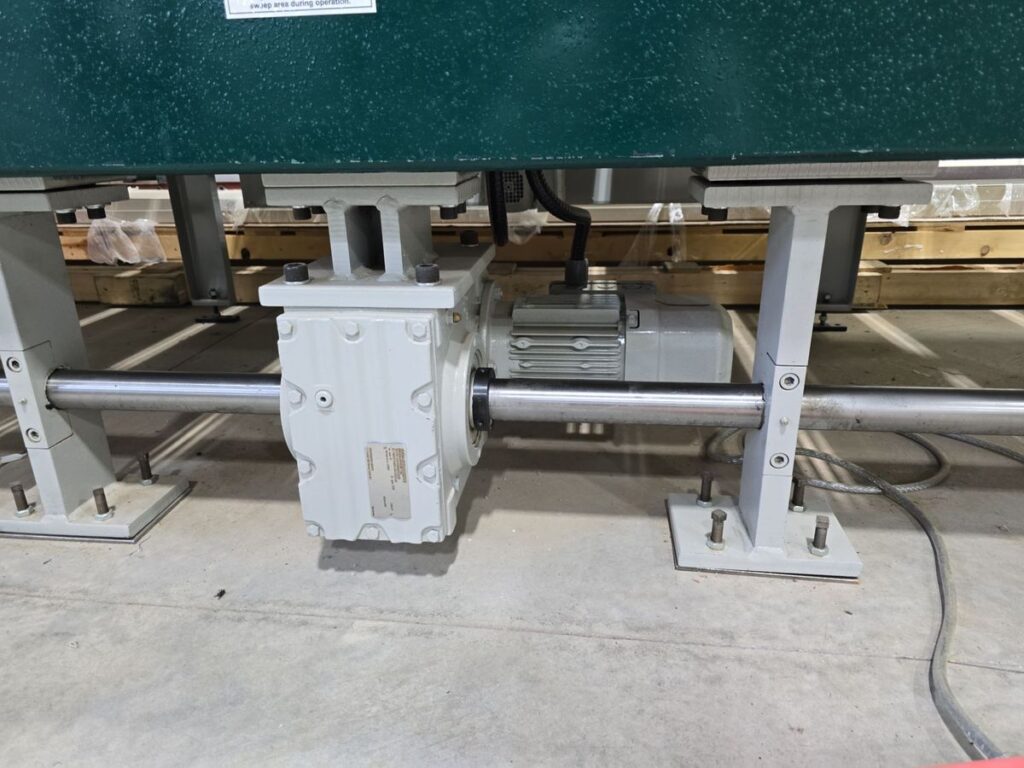

  • Motor: Backgauge Motor: 3/4 HP Clamping Beam Motor: 2 HP Bending Beam Motor: 2+2 HP

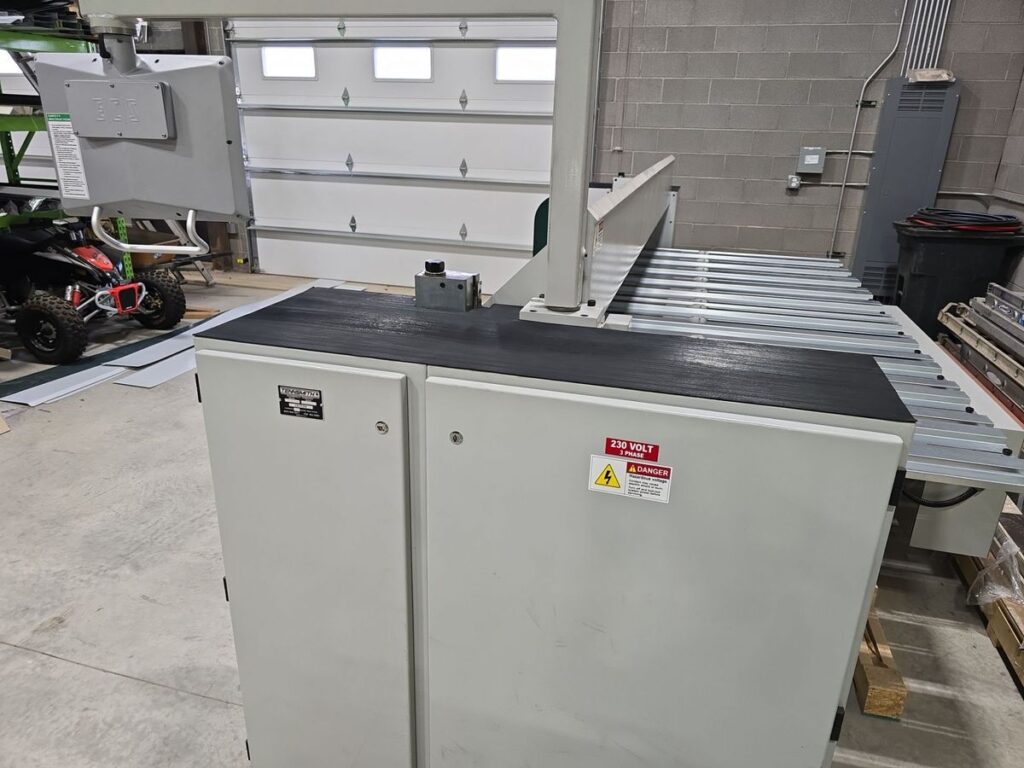

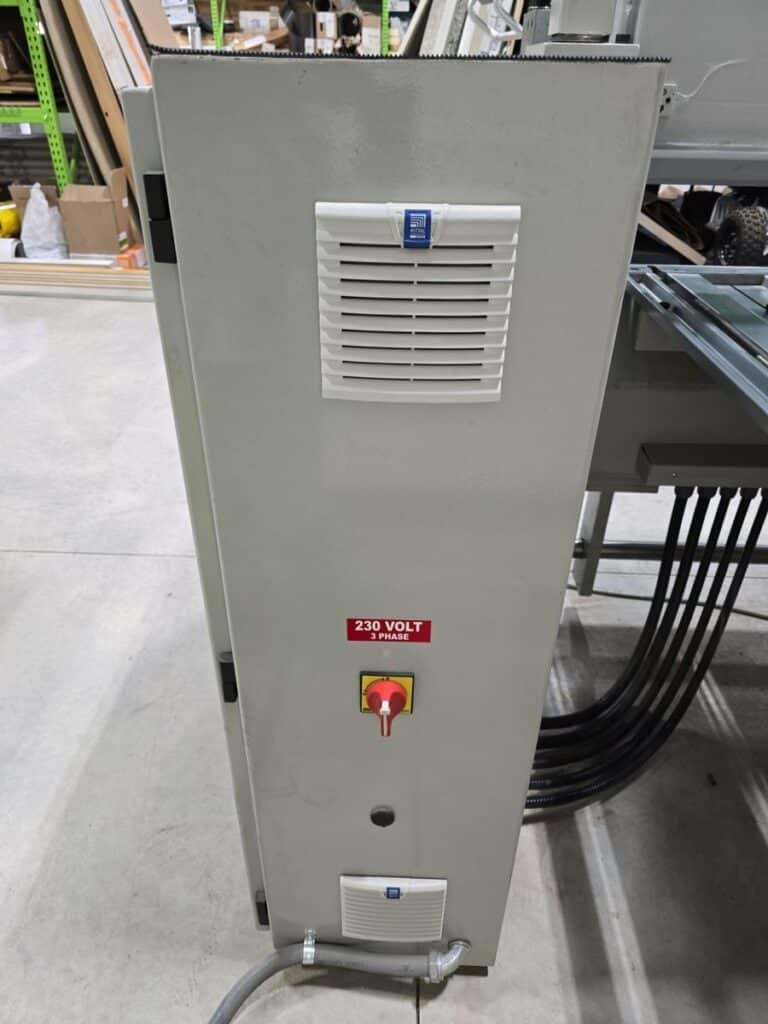

  • Power Required: 230V / 3 Phase

Equipped With

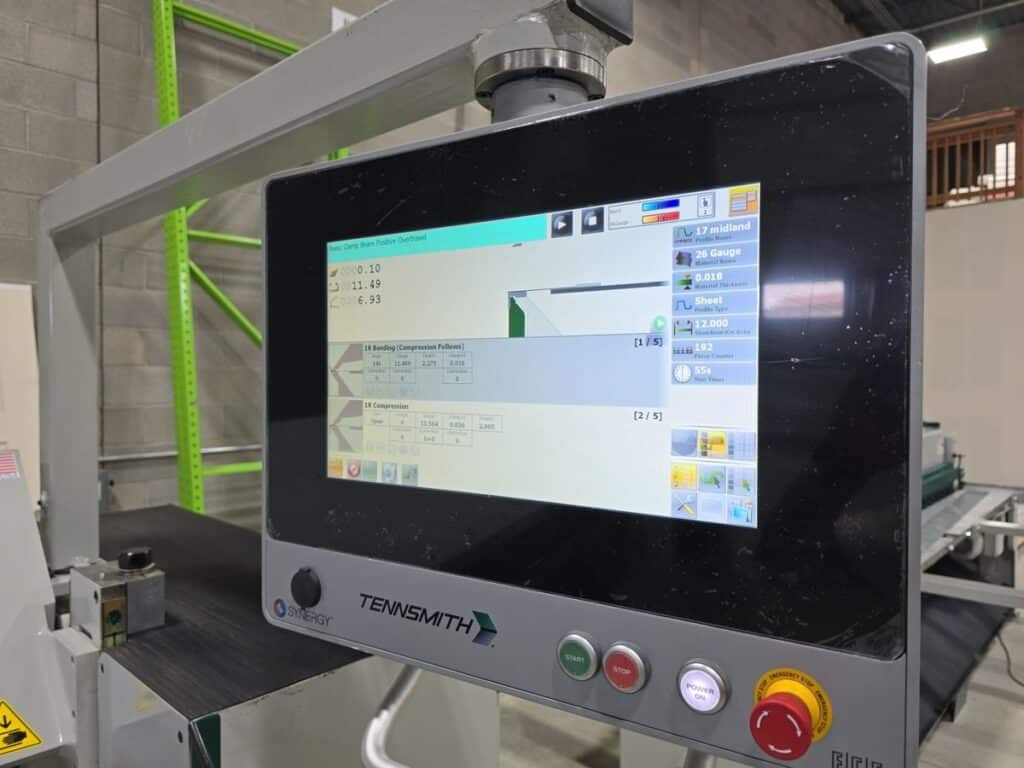

17″ Touch Screen Monitor, Tennsmith Synergy Control, 3D Part Display, Graphical Programming of Profiles, Parts Counter, Inch/Metric Conversions, Material Spring Back Compensation Tables, USB Memory Drive for both PLC & PC, Capable of importing DXF files

Additional Info

Machine is under power and available to demo.
