GMC EFM-1014CNC 10′ x 14 Ga. CNC Sheet Metal Folder (2023)

Manufacturer

GMC

Category

Fabricating Machines

Type

SHEET METAL MACHINERY

Stock

173250008

Model

EFM-1014CNC

Dealer Location

Georgia

Request a Quote
View Contact Information

Spec Sheet

  • Stock #: 173250008
  • Location: CA
  • Brand: GMC
  • Model: EFM-1014CNC
  • Year: 2023
  • Approx. Shipping Weight: 8,850 LBS
  • Approx. Shipping Dimensions: 158″ L x 79″ W x 64″ H
  • Loading Fee: Loading Included

Specifications

  • Bending Length Capacity: 10’1″
  • Bend Angle Degree, Programmable: 0 – 135°
  • Capacity Mild Steel: 14 Ga
  • Capacity Stainless Steel: 18 Ga
  • Close Hemming: 22 Ga
  • Open Hemming: 22 Ga
  • Hemming Capacity, Mild Steel: 20 Ga
  • Hemming Capacity, Stainless Steel: 24 Ga
  • Large Beam Opening/ Clamping Opening: 4-7/8″
  • Min. Reverse Bend: 1/2″
  • Max, Table Back Gauge Distance: 48-3/8″
  • Min. Table Back Gauge Distance: 1/2″
  • Back Gauge Repeatability: 0.0039″
  • Power Required: 220V / 3 Phase

Equipped With

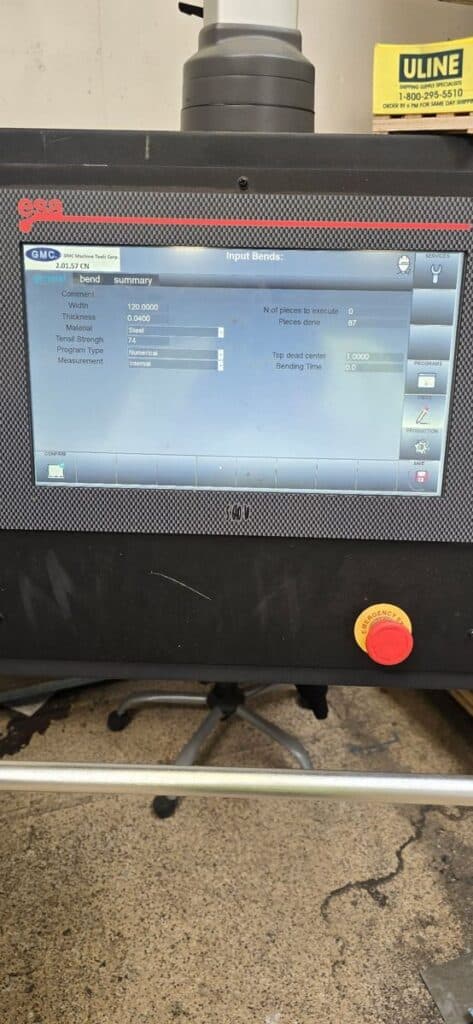

ESA CNC Control, 16″ Large Digital Glass Touch Screen, Max. 99 Bends Per Program, Up to 2,000 Programs Stored, Profiles Library with Graphics, Programmable Radius Bend, Programmable Angle/ Angle Correct

Additional Info

Machine is available to demo under power.
