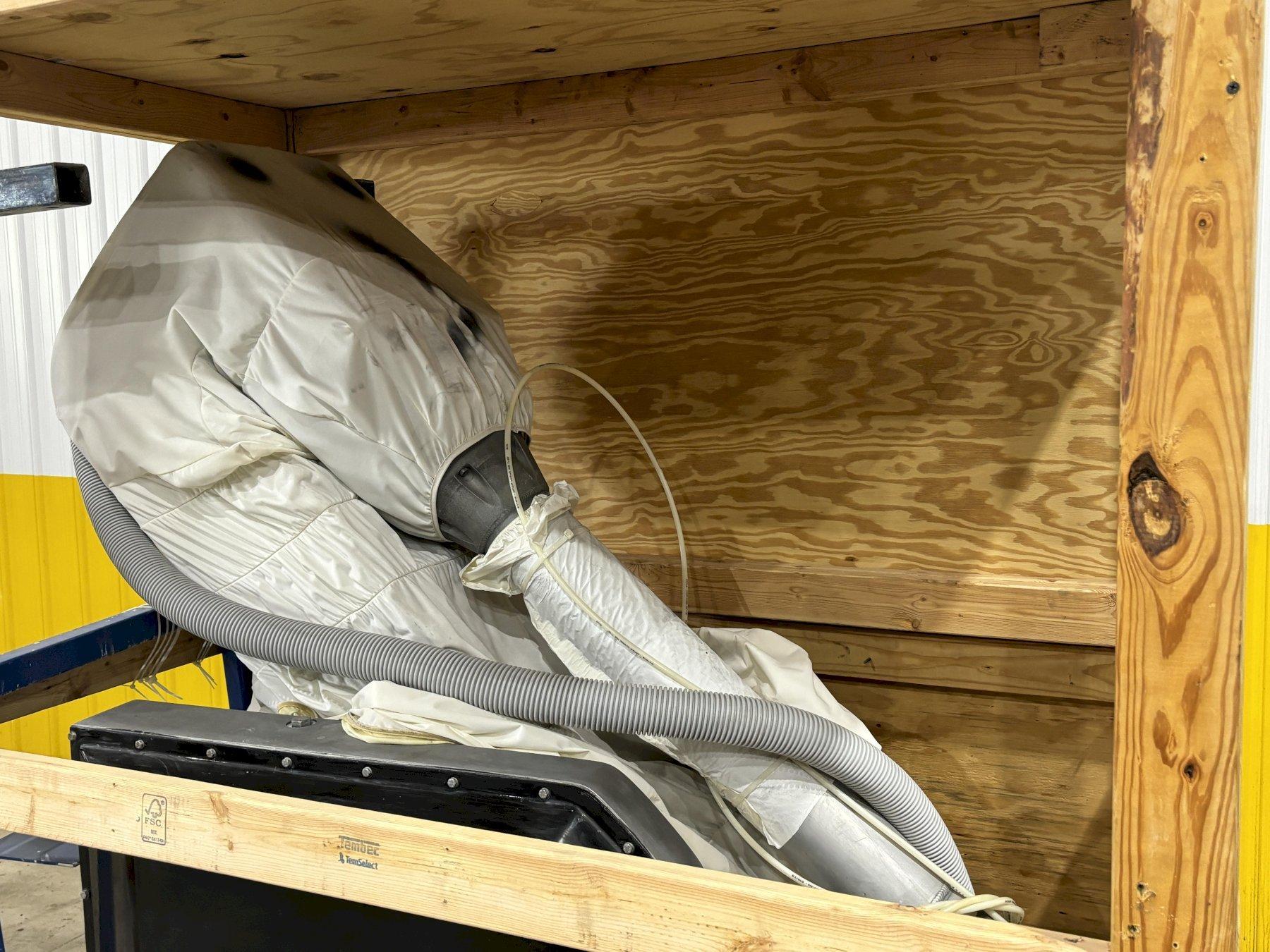

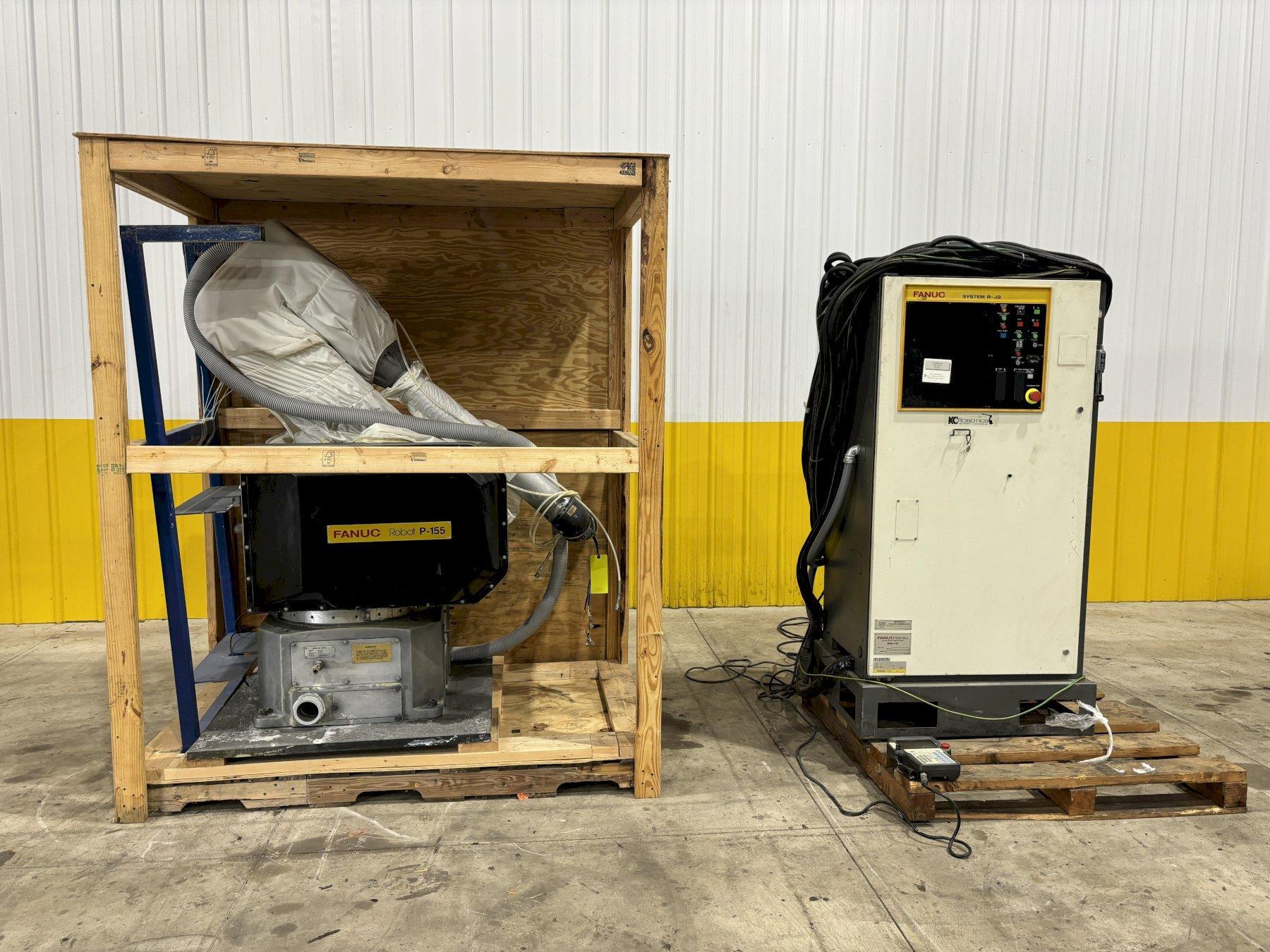

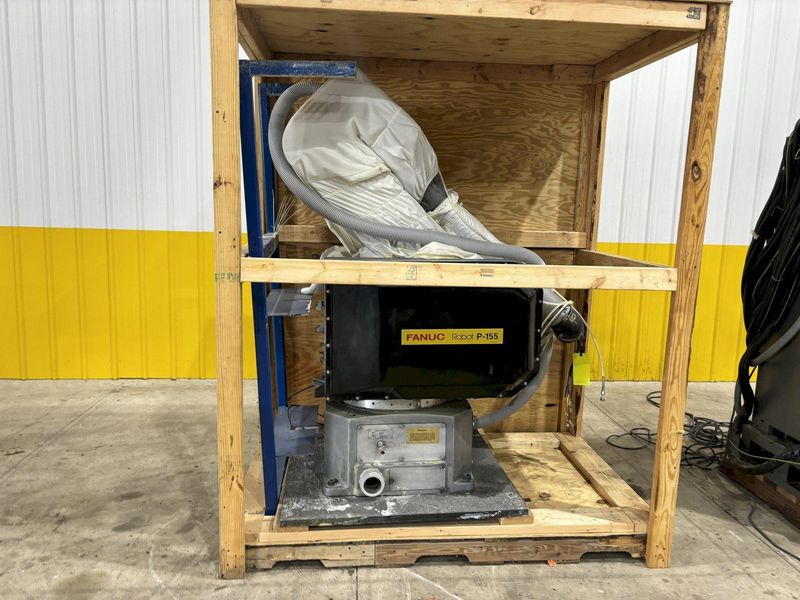

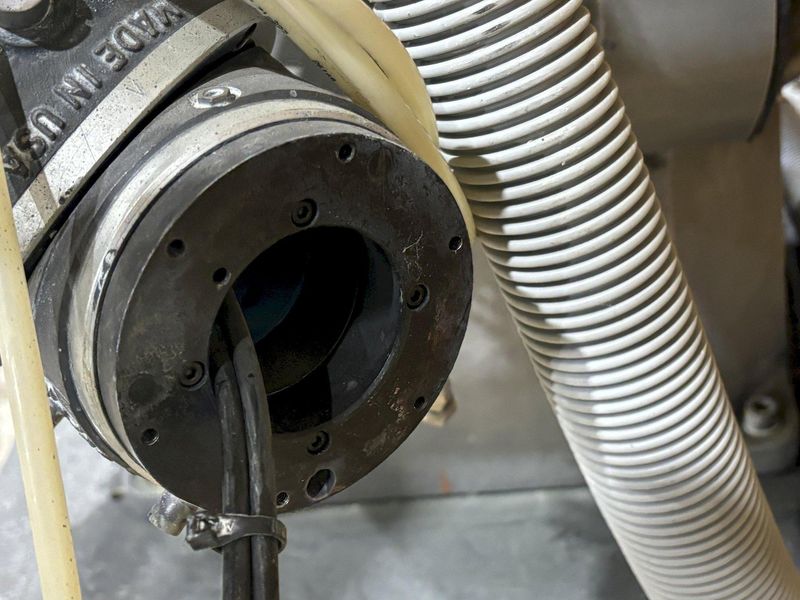

FANUC ROBOTICS MODEL #P-155-6-J2 PAINT ROBOT: STOCK #21070

FANUC ROBOTICS MODEL #P-155-6-J2 PAINT ROBOT: STOCK #21070

Manufacturer

FANUC ROBOTICS

Spec Sheet

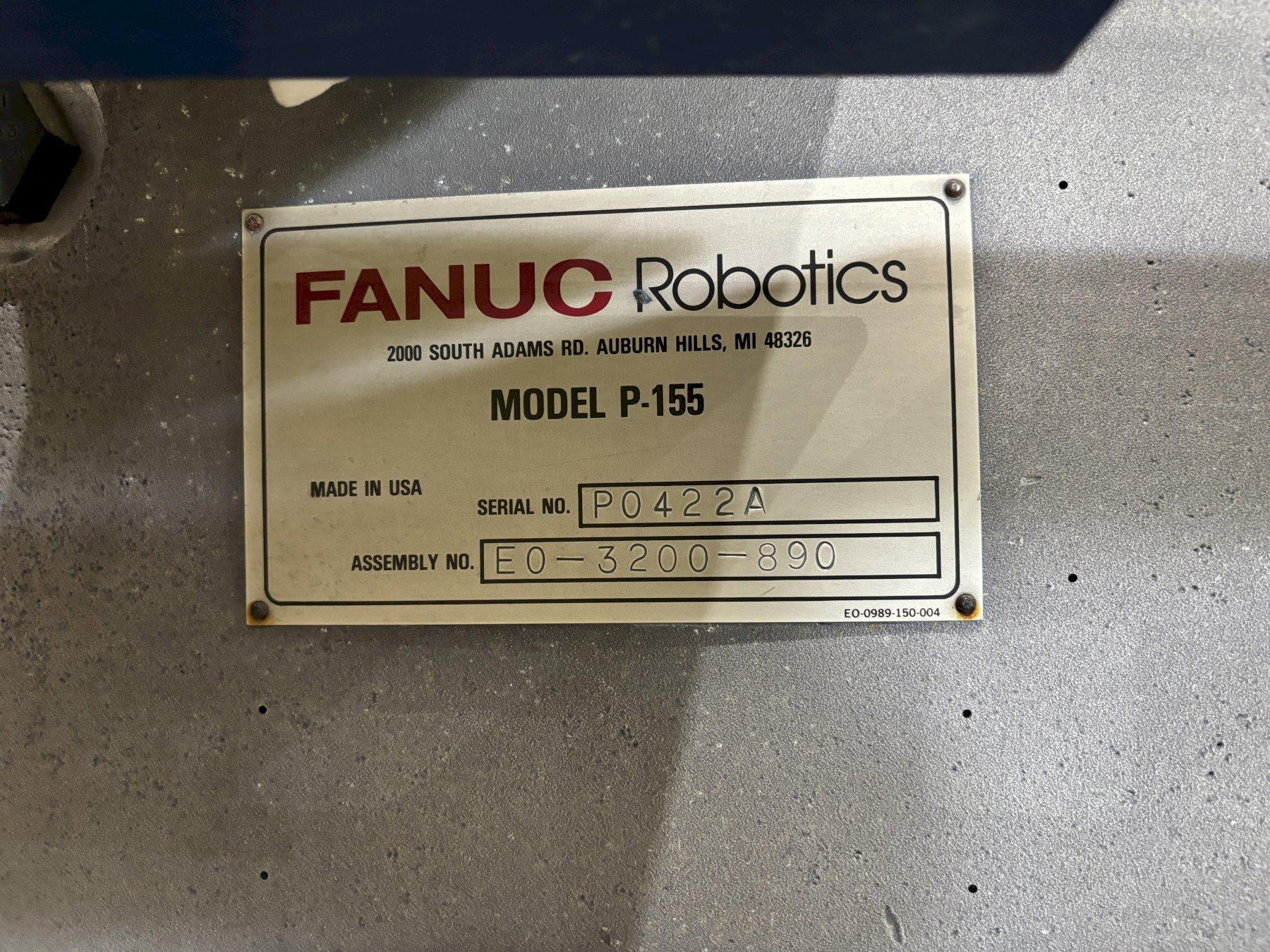

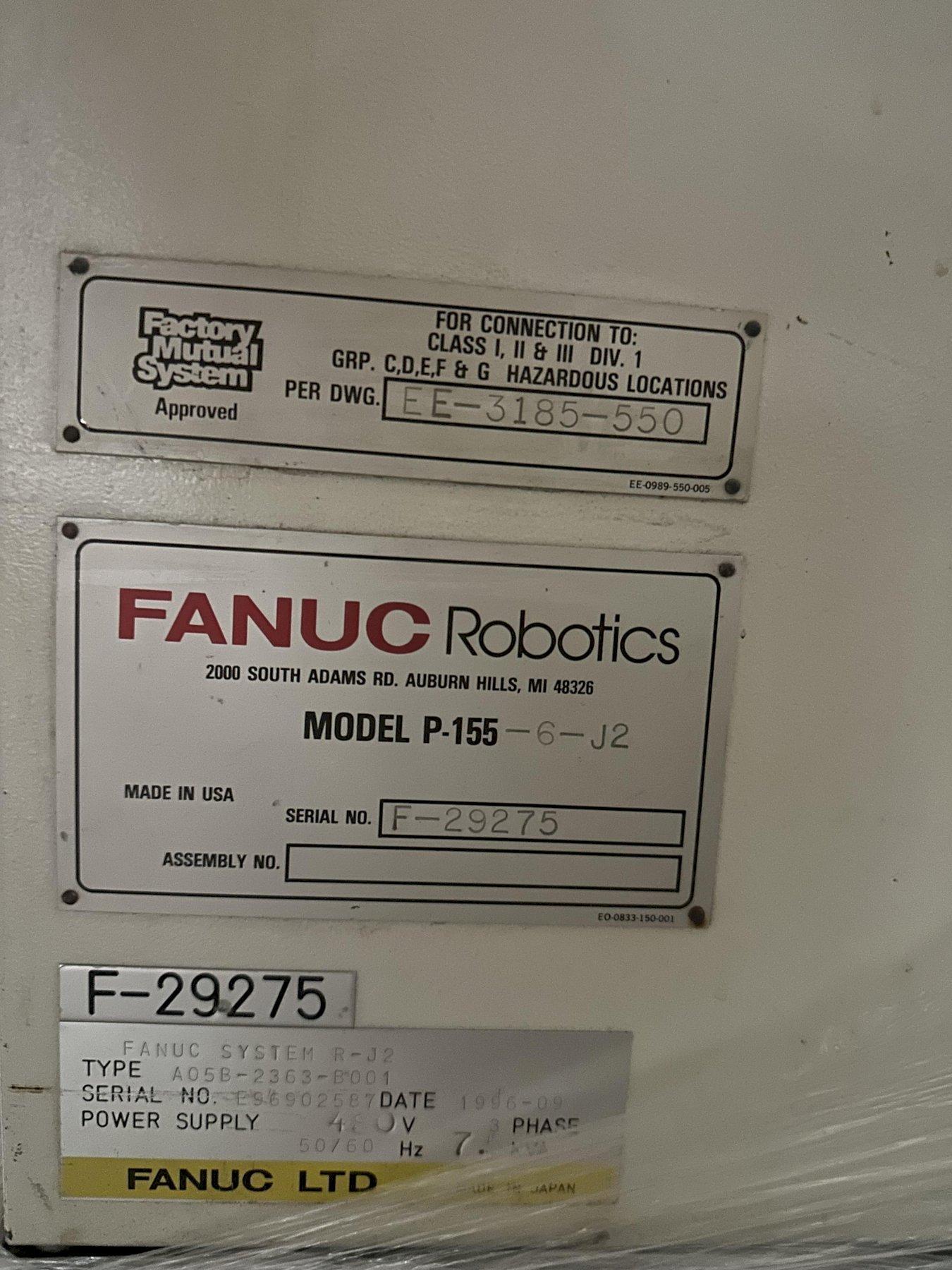

SERIAL ...... PO422A F29275

MODEL ....... P-155-6-J2

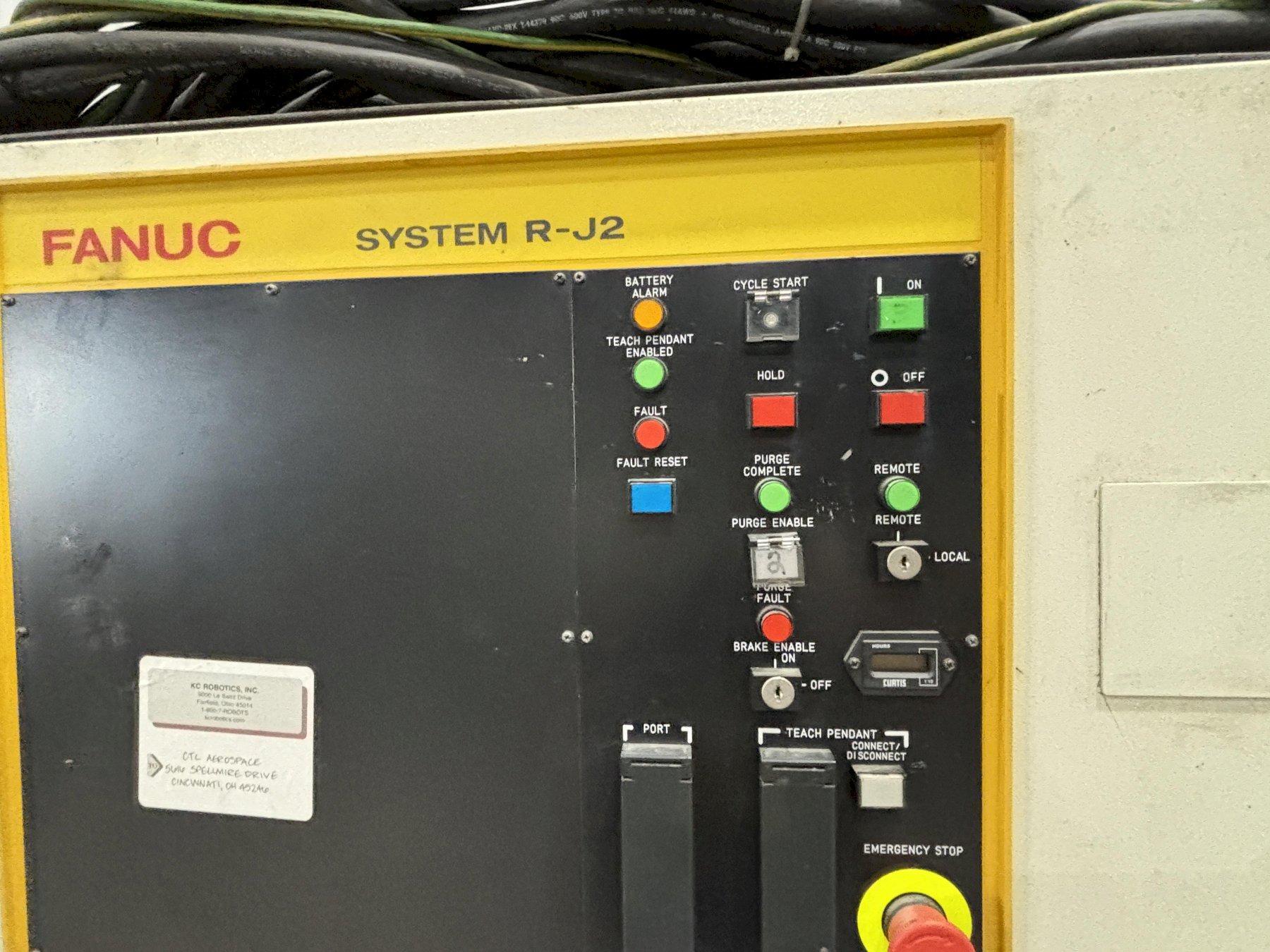

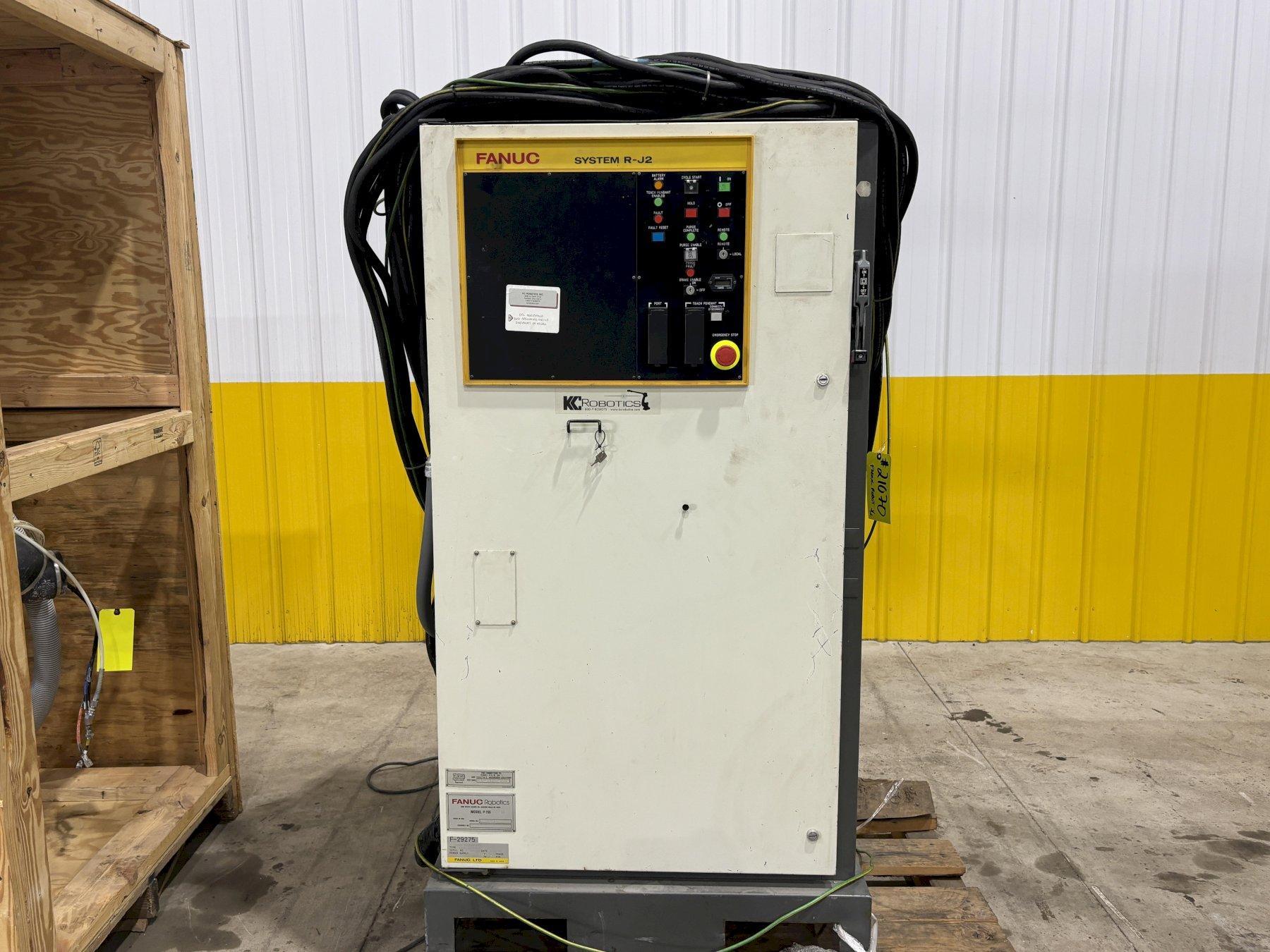

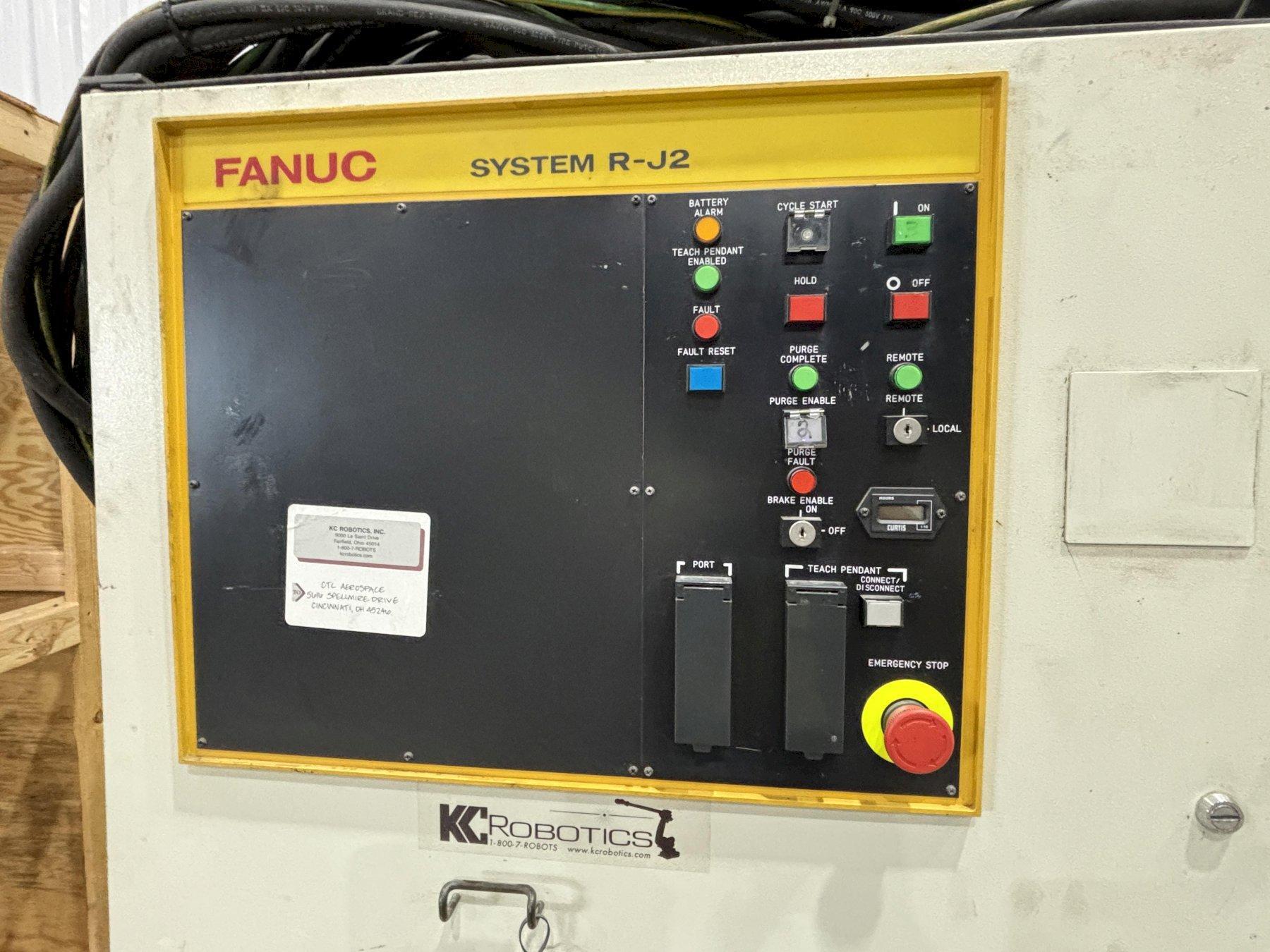

CONTROL ..... R-J2

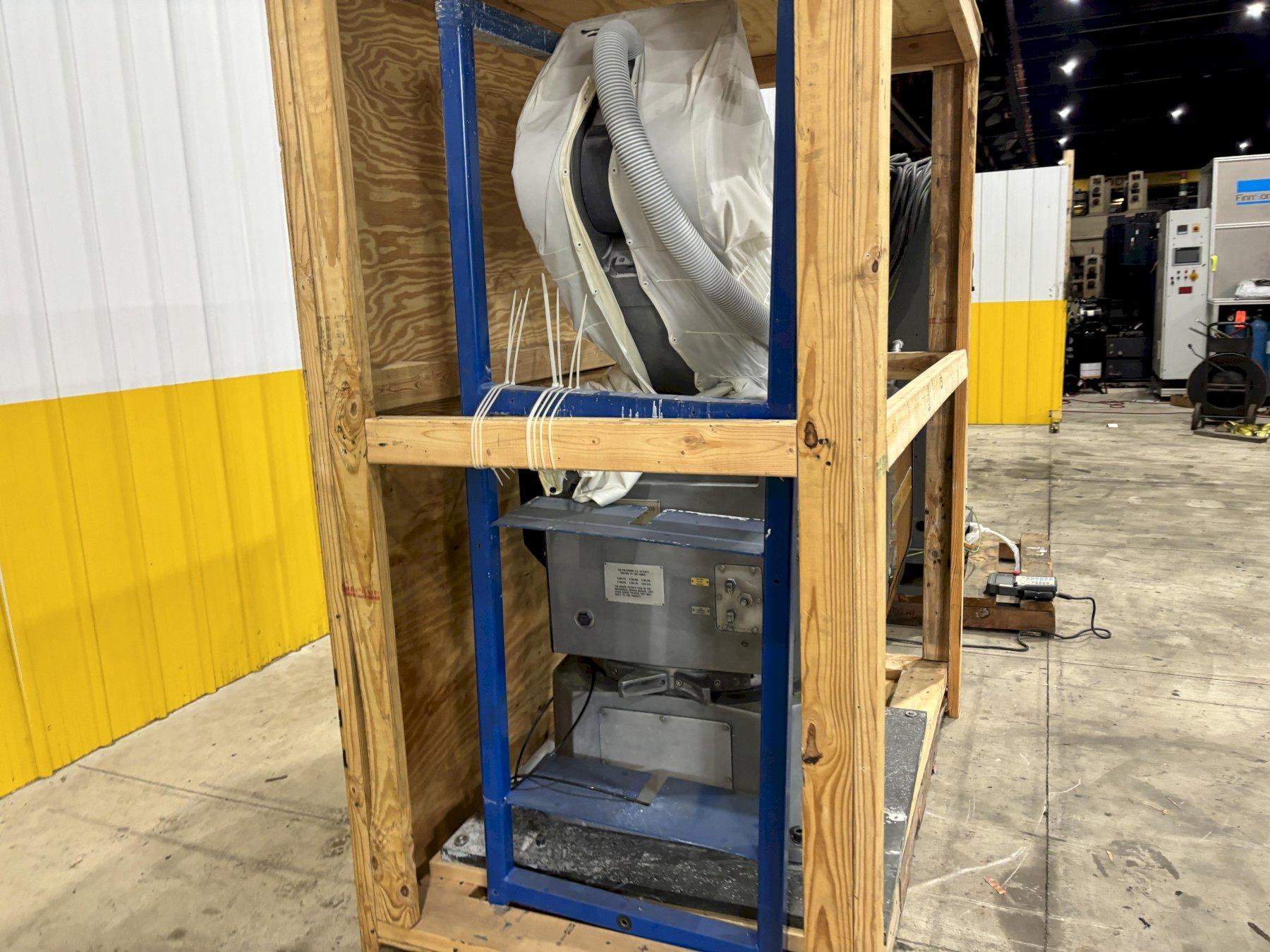

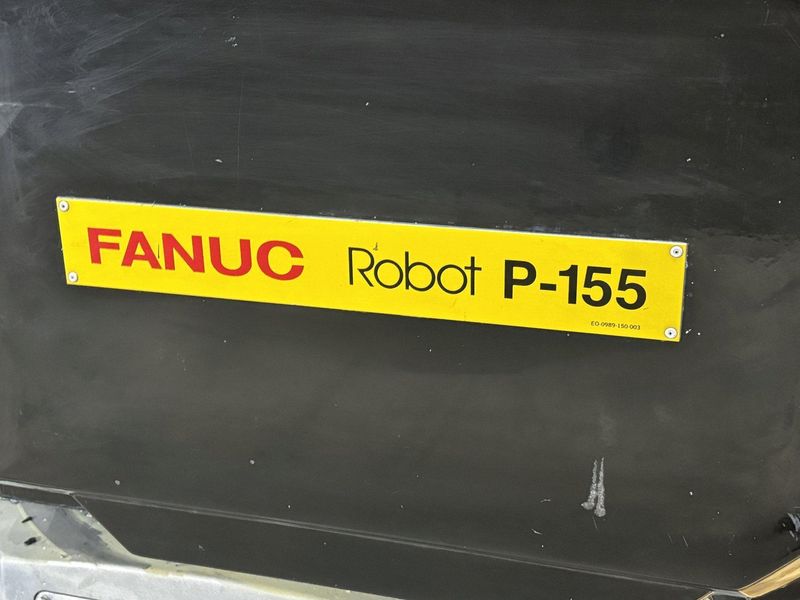

FANUC P-155 Painting Robot Details
P-155 painting is a robot for painting jobs and it’s made with RJ2 controller. It is created to help people paint in dangerous zones. This robot comes with an easy to use set up and a fast wrist, which is essential in painting and coating for industrial applications. It is efficient in motor vehicle painting, dangerous spray and sealing applications. This robot has a big work envelope and flexible load choices that allow accurate positioning and high speed. It is suitable for harsh environment such as groups C, D, E, and F and Class 1 & 2.

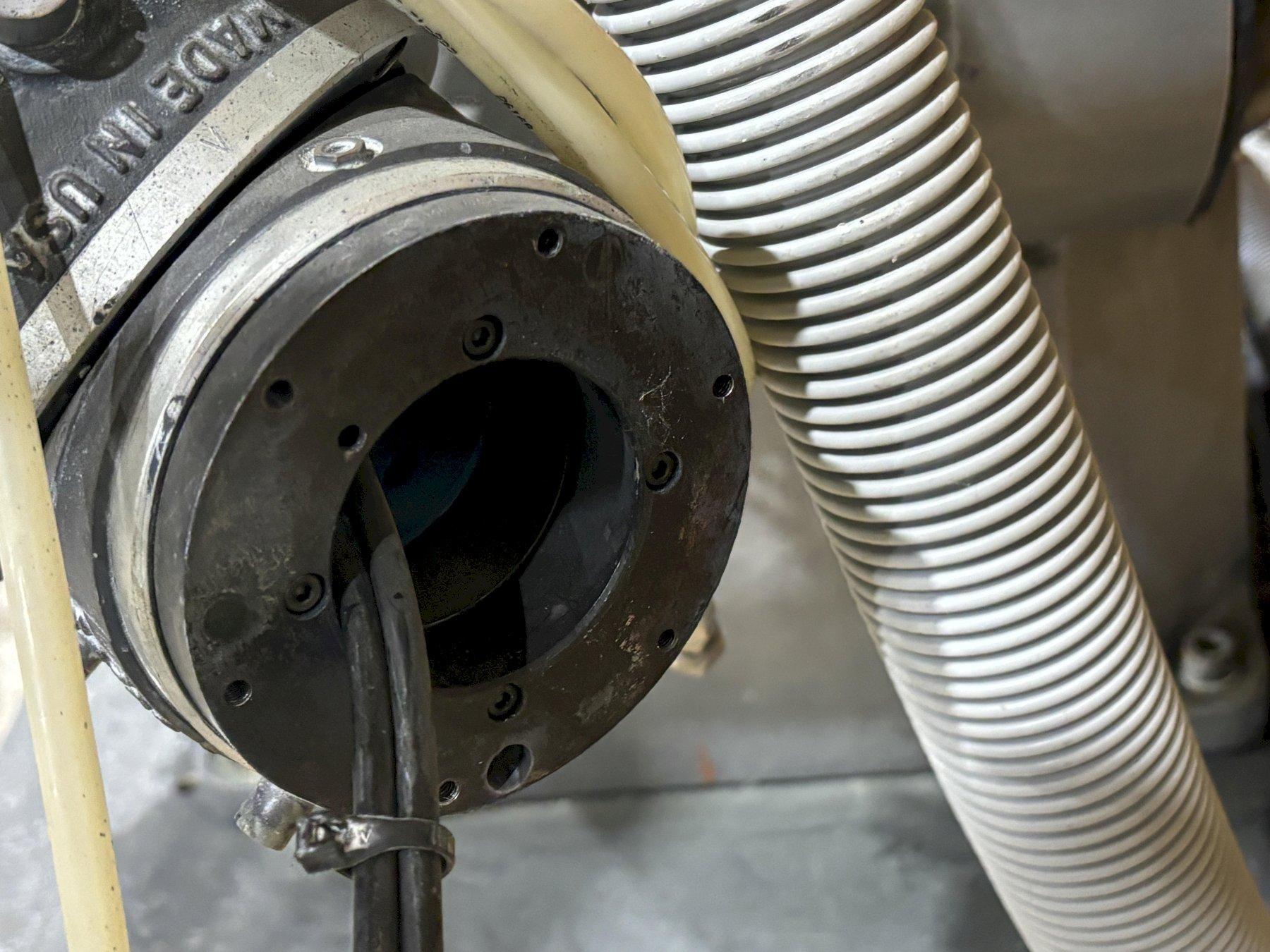

P-155 painting is a robot is brushless powered by AC servo motors. It also has hollow joints that cover all the cable routing, which ensures that there is no snagging and at the same time improve cleanliness. It is a high speed robot and can paint 1200mm per second.

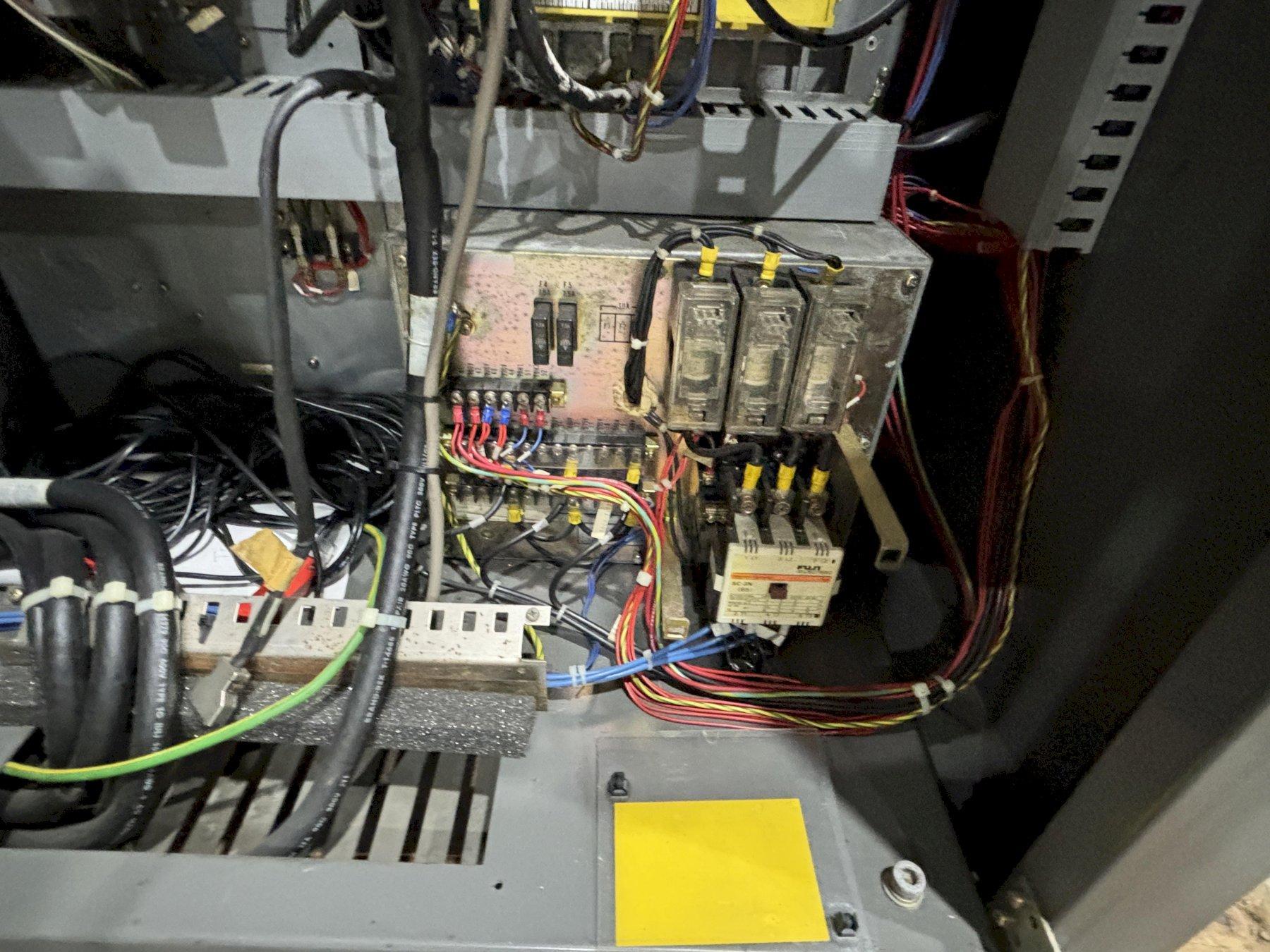

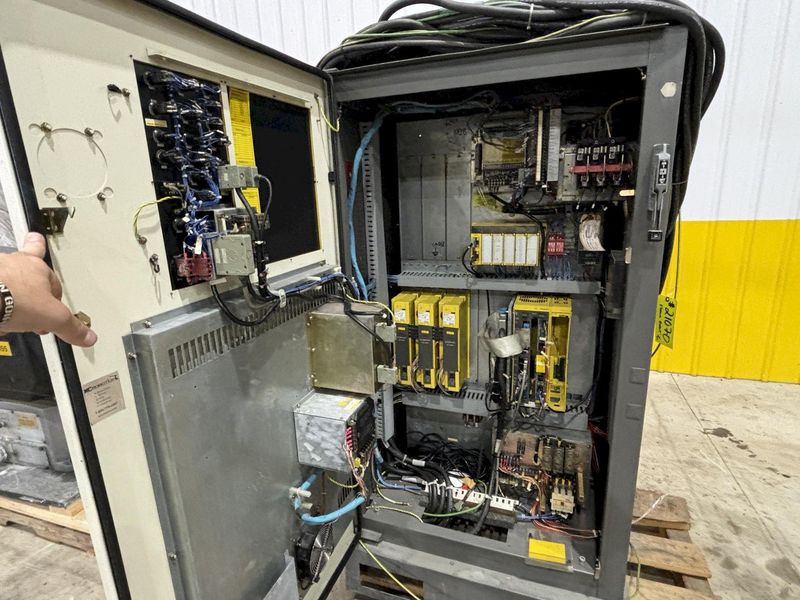

This robot has R-J2 controller incorporated with advanced technology to make it perform highly without complicating system level requirement. It can be used with every level system for different requirements.

Robot applications
- Painting

Robot Info

Maximum Load of Robot ..... 7 Kg.

Number of axis ............ 6

Maximum Reach ............. 2613 mm.

Repeatability ............. 0.5 mm.

Controller ................ RJ2 Paint

Robot motion speed

Axis 1: 90º/s

Axis 2: 125º/s

Axis 3: 140º/s

Axis 4: 250º/s

Axis 5: 340º/s

Axis 6: 570º/s

Axis motion ranges

Axis 1: +-210º

Axis 2: +-135º

Axis 3: +-167º

Axis 4: +-576º

Axis 5: +-576º

Axis 6: +-576º
