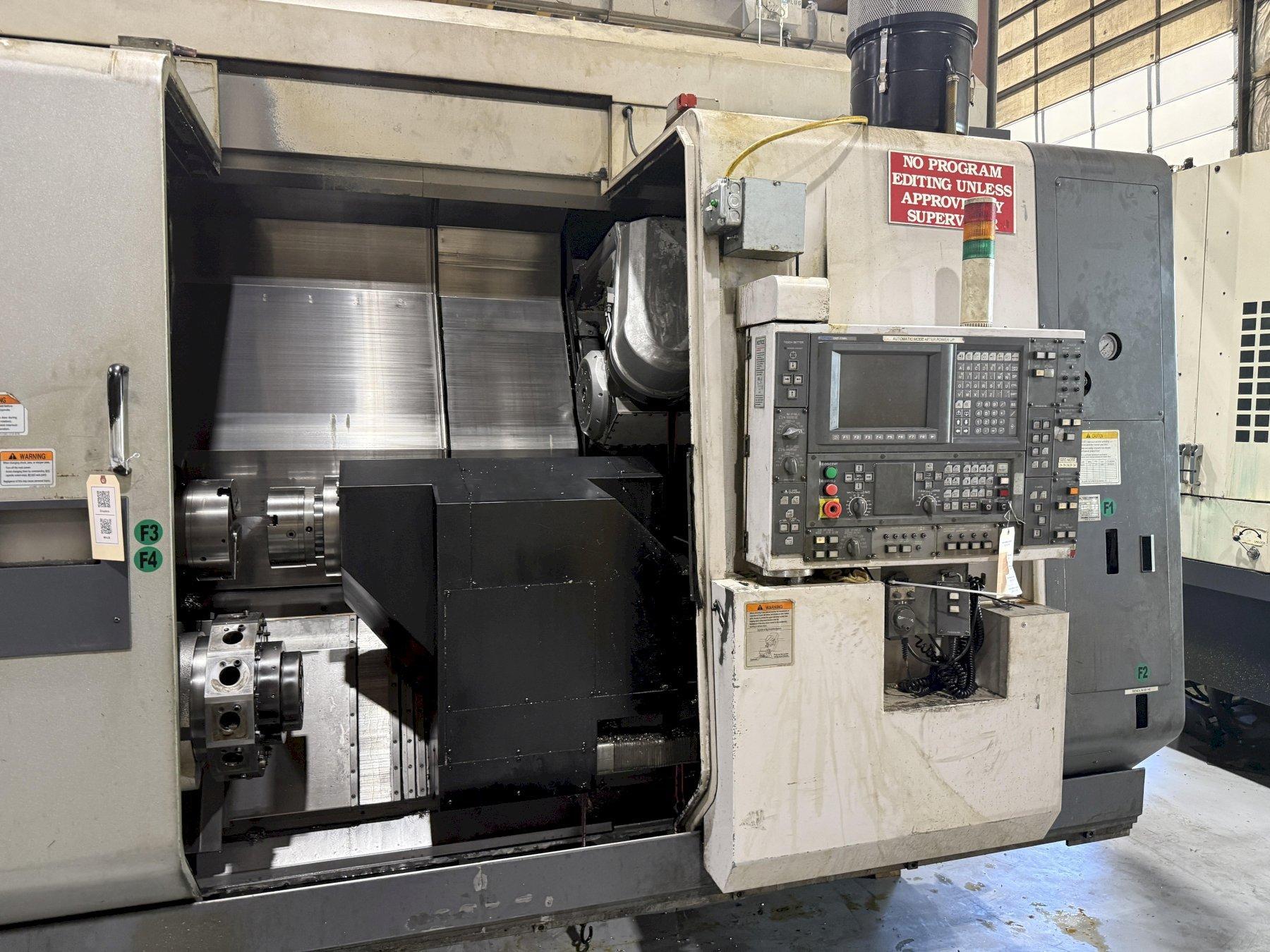

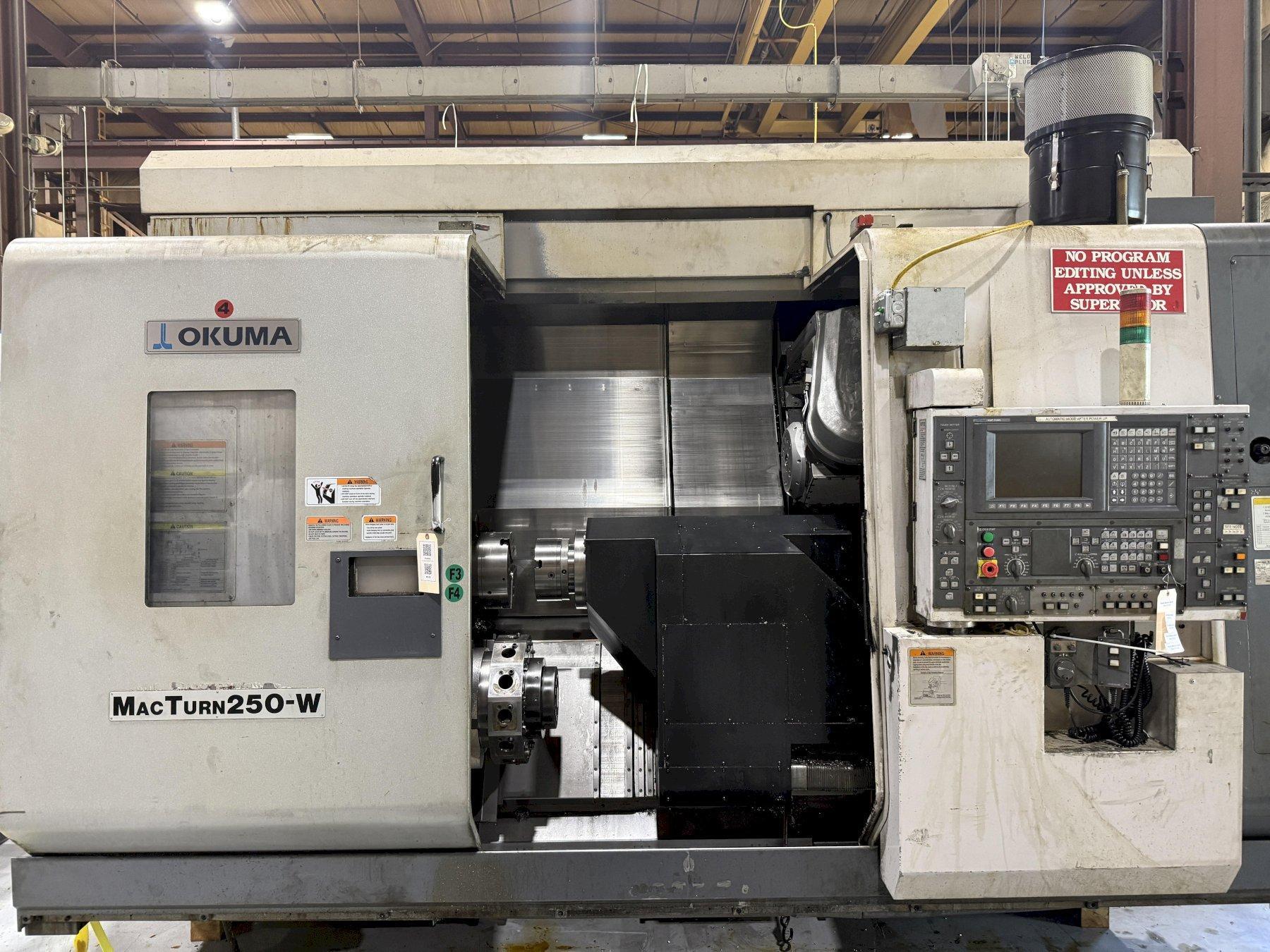

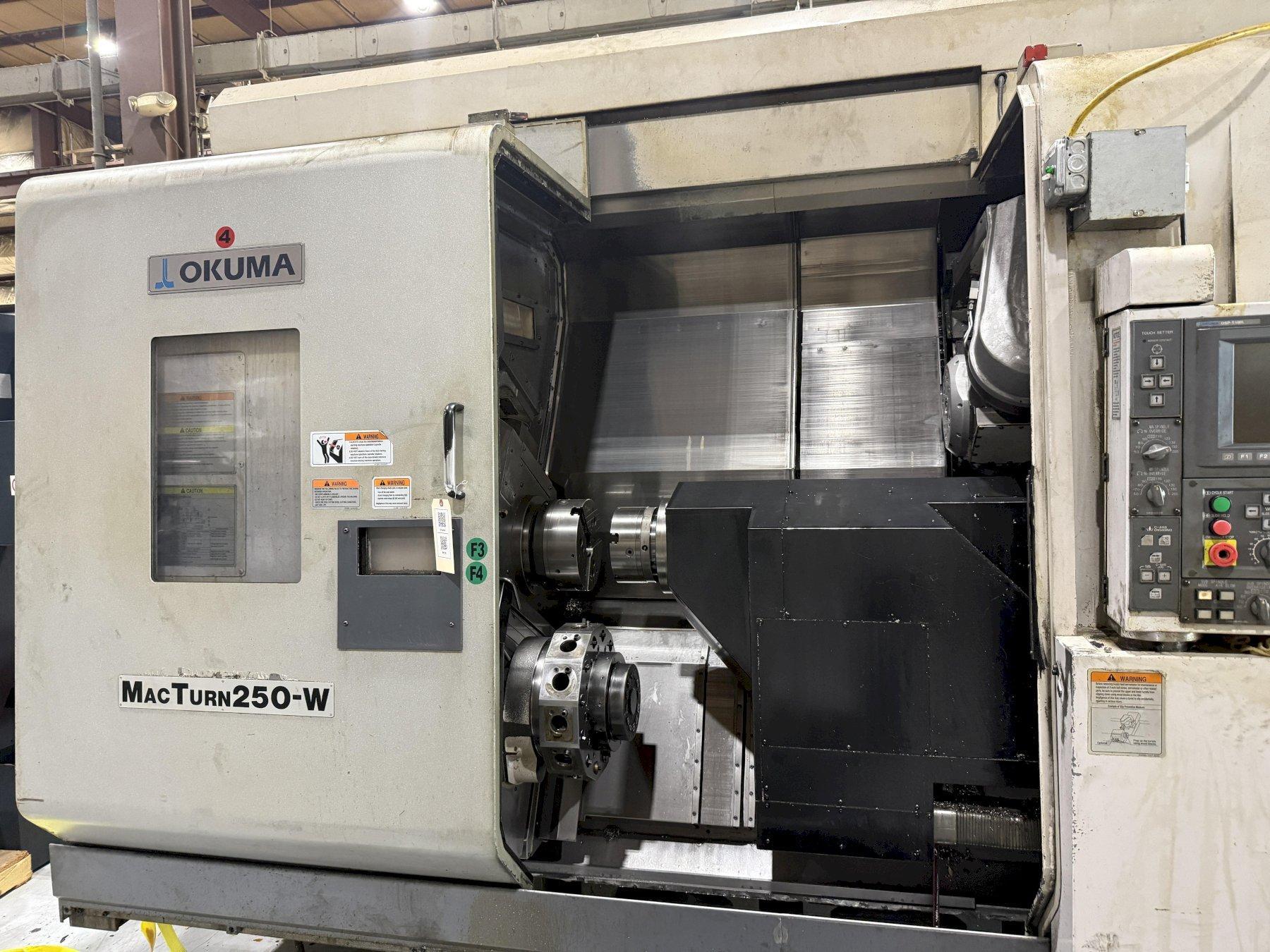

2004 Okuma MacTurn 250W CNC Mill/Turn CNC Lathe For Sale

Manufacturer

OKUMA

Stock

15196

Model

Macturn 250-W

Dealer Location

Michigan

Spec Sheet

CNC Control - yes
Type of CNC Control - OSP-E100L
# Axis - 8
Swing - 20.87 inches
Turning Diameter - 21.65 inches
Turning Diameter Lower Turret - 9.05 inches
Center Distance - 39.37 inches
Chuck Size - 8 inches
Bar Capacity - 2.04 inches
X Axis Travel - 18.58 inches
X2 Travel - 6.29 inches
Y Axis Travel - 6.3 inches
Z Axis Travel - 46.06 inches
Z2 Travel - 45.47 inches
W-Axis Travel (Sub Spindle) - 46.45 inches
B Axis Indexing - +105° to -105° = 210° Total Degrees (1° Step)
C1/C2 Axis Index - 0.001° Degrees
Rapid Traverse (X/Y/Z) - 1181/1023/1575 ipm
Spindle Nose - A2-6
Spindle Speed - 5,000 rpm
Main Motor - 20 hp
Tailstock - no
Y Axis - yes
Live Tooling - yes

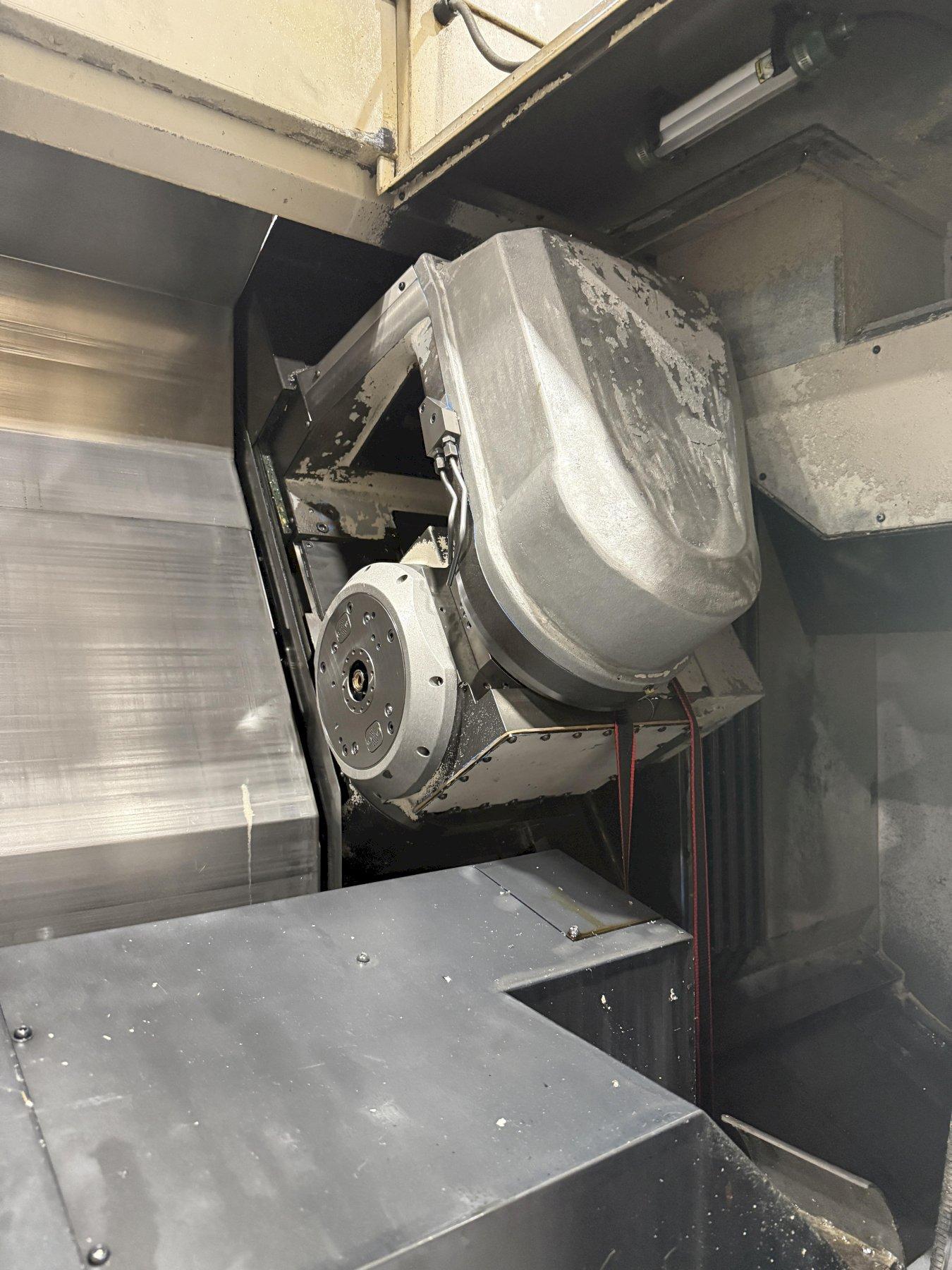

Milling Spindle Taper - HSK-63
Live Tooling Speed - 12,000 rpm - Milling Spindle
Live Tooling Motor - 10 hp
Sub Spindle - yes
Sub Spindle Bar Capacity - 1.69 inches
Sub Spindle Nose - 140 Flat
Sub Spindle Speed - 6,000 rpm
Sub Spindle Motor (HP) - 15 hp
Turret Capacity - 12
ATC Capacity - 44 Stations
Machine Dimensions - 151" x 100" x 115"
Machine Weight - 28000 pounds

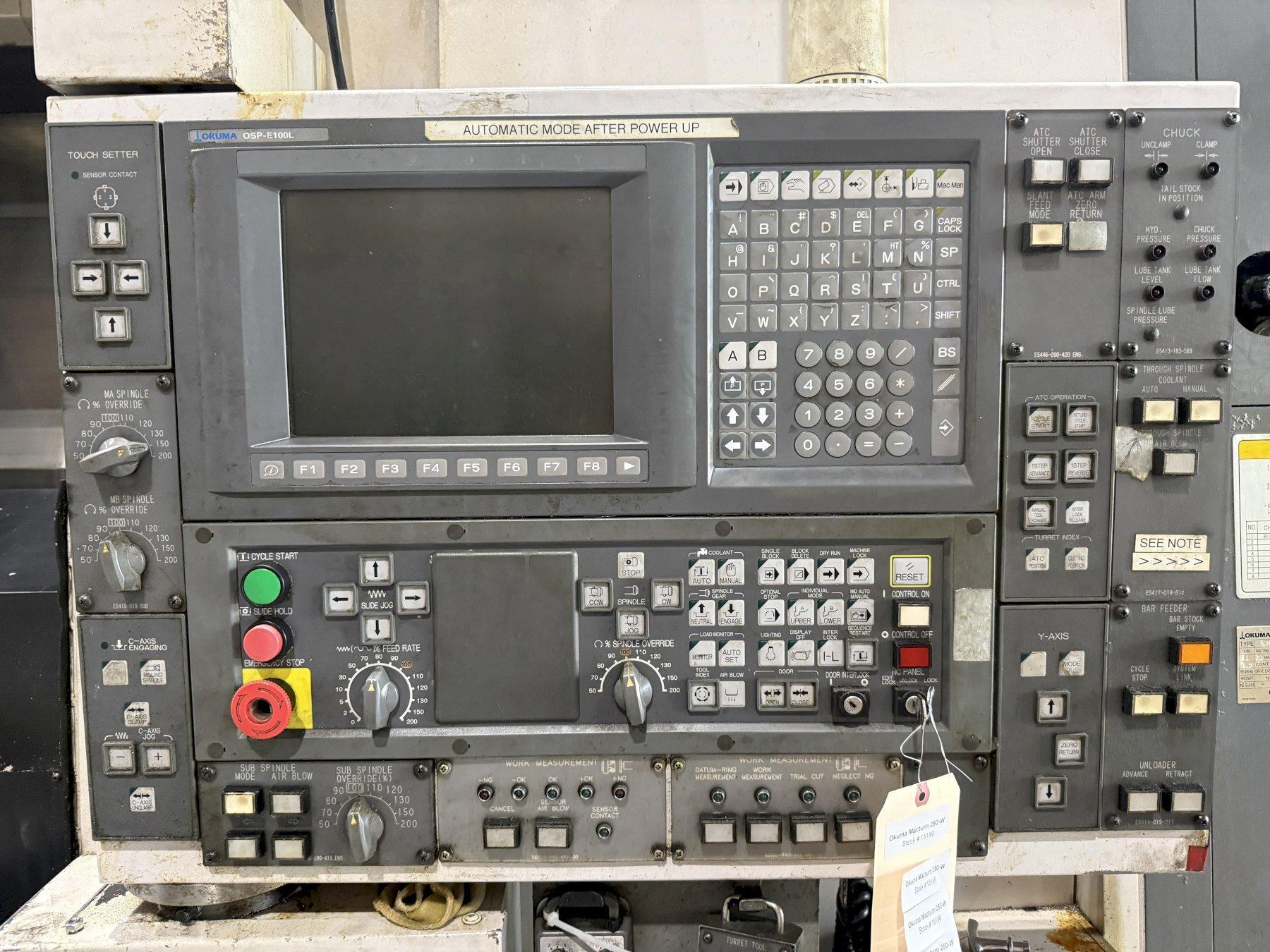

- OSP-E100L CNC Control
- Chip Conveyor
- Coolant Tank

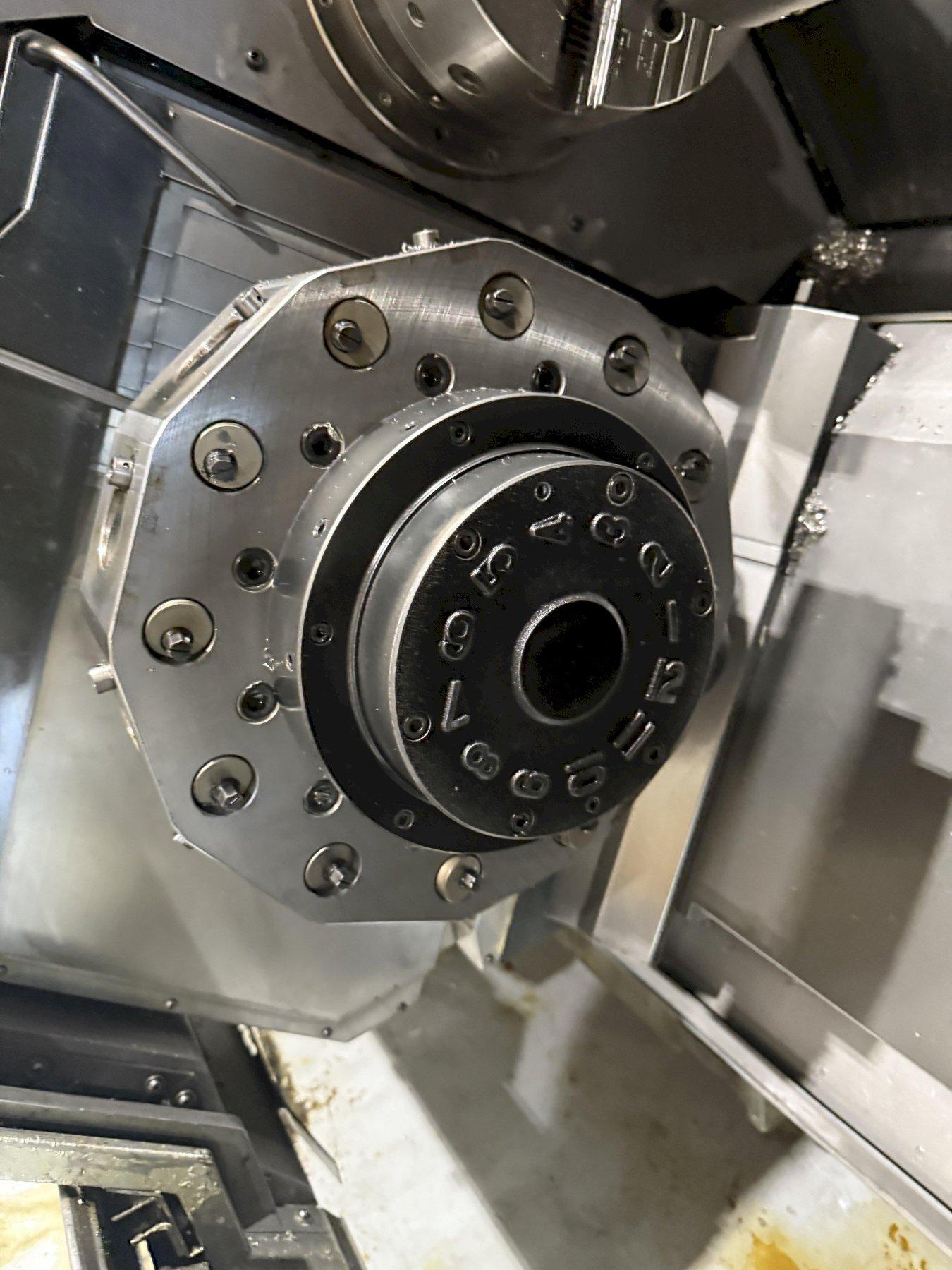

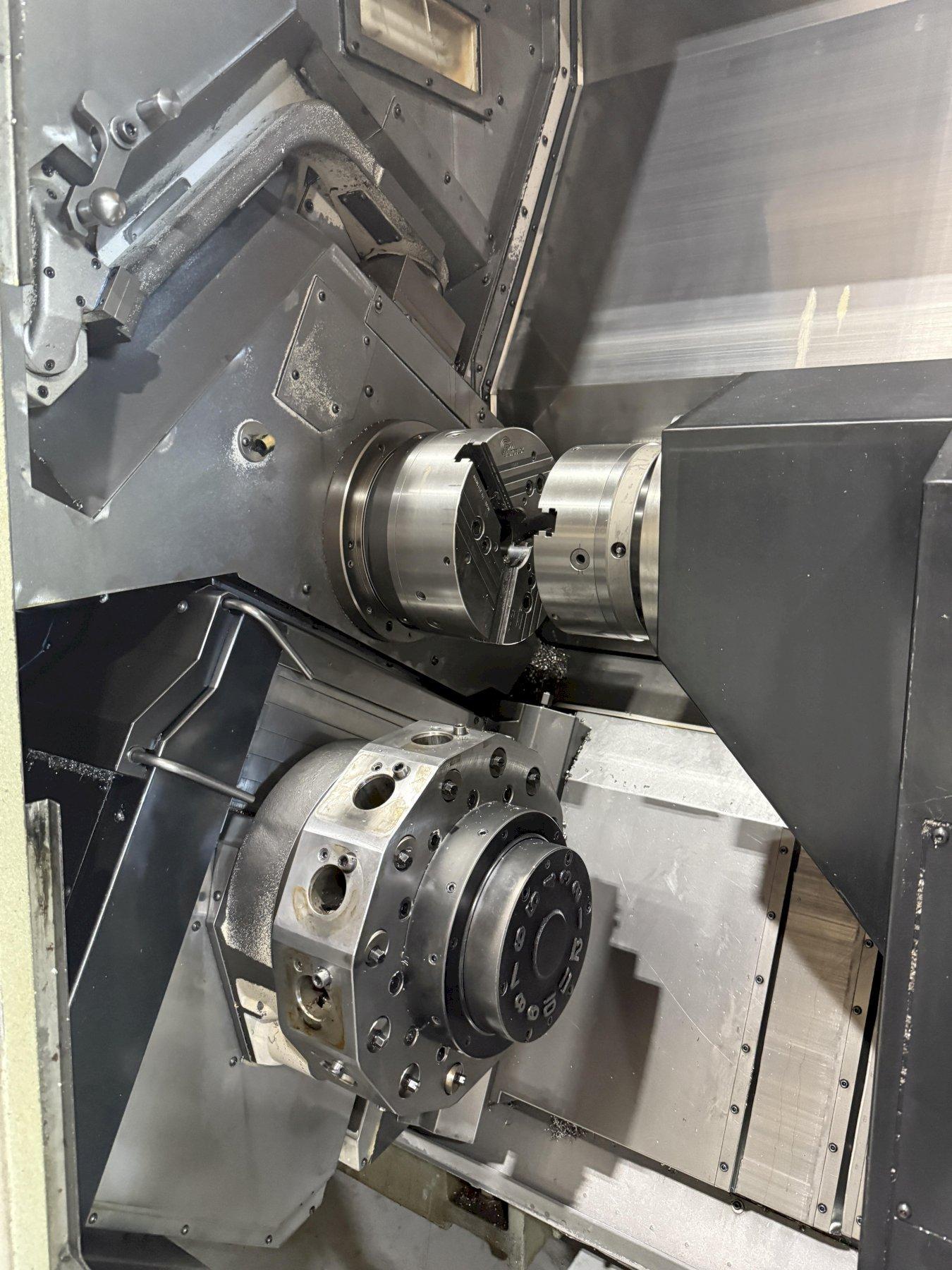

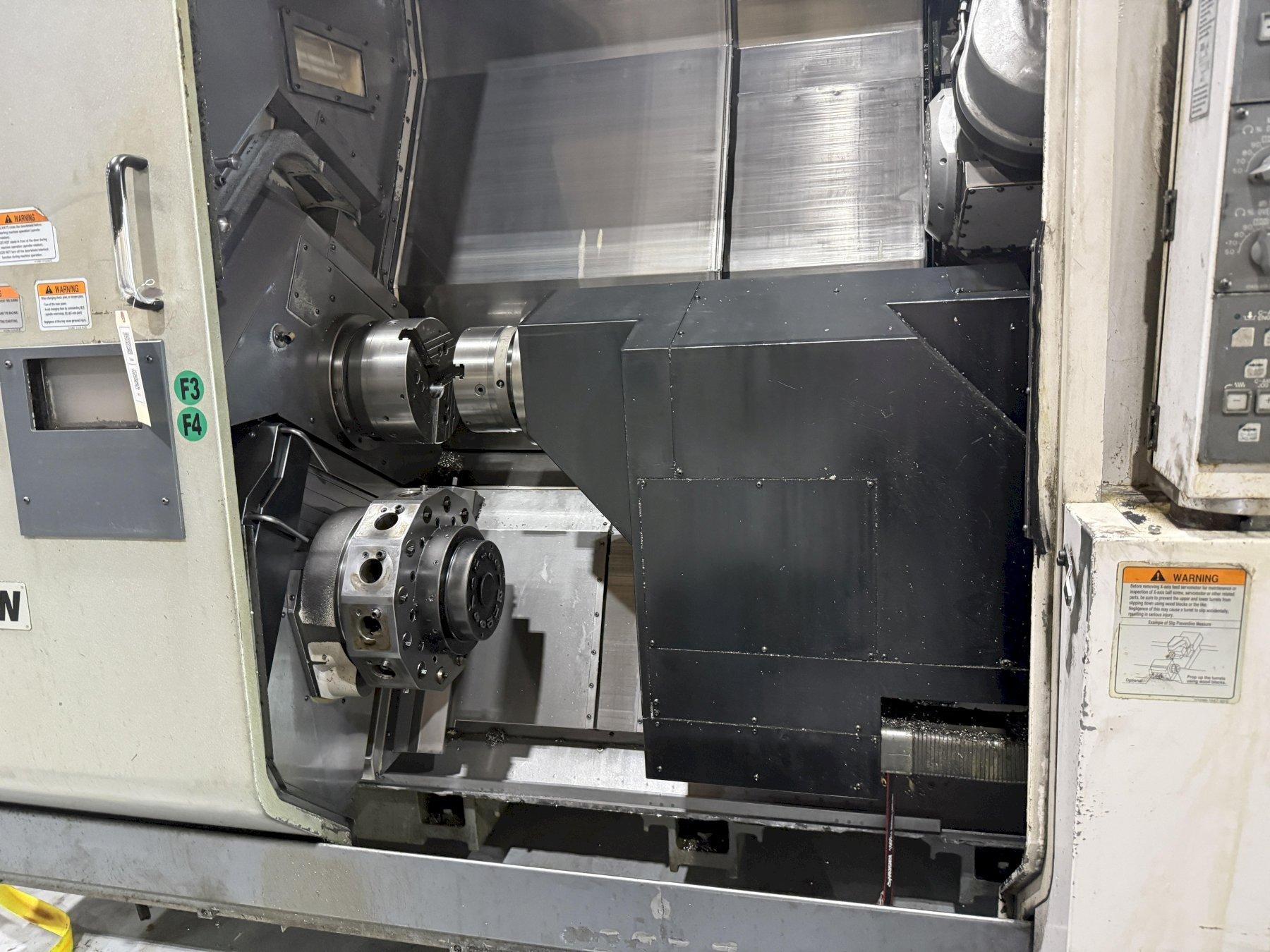

- Lower Turret

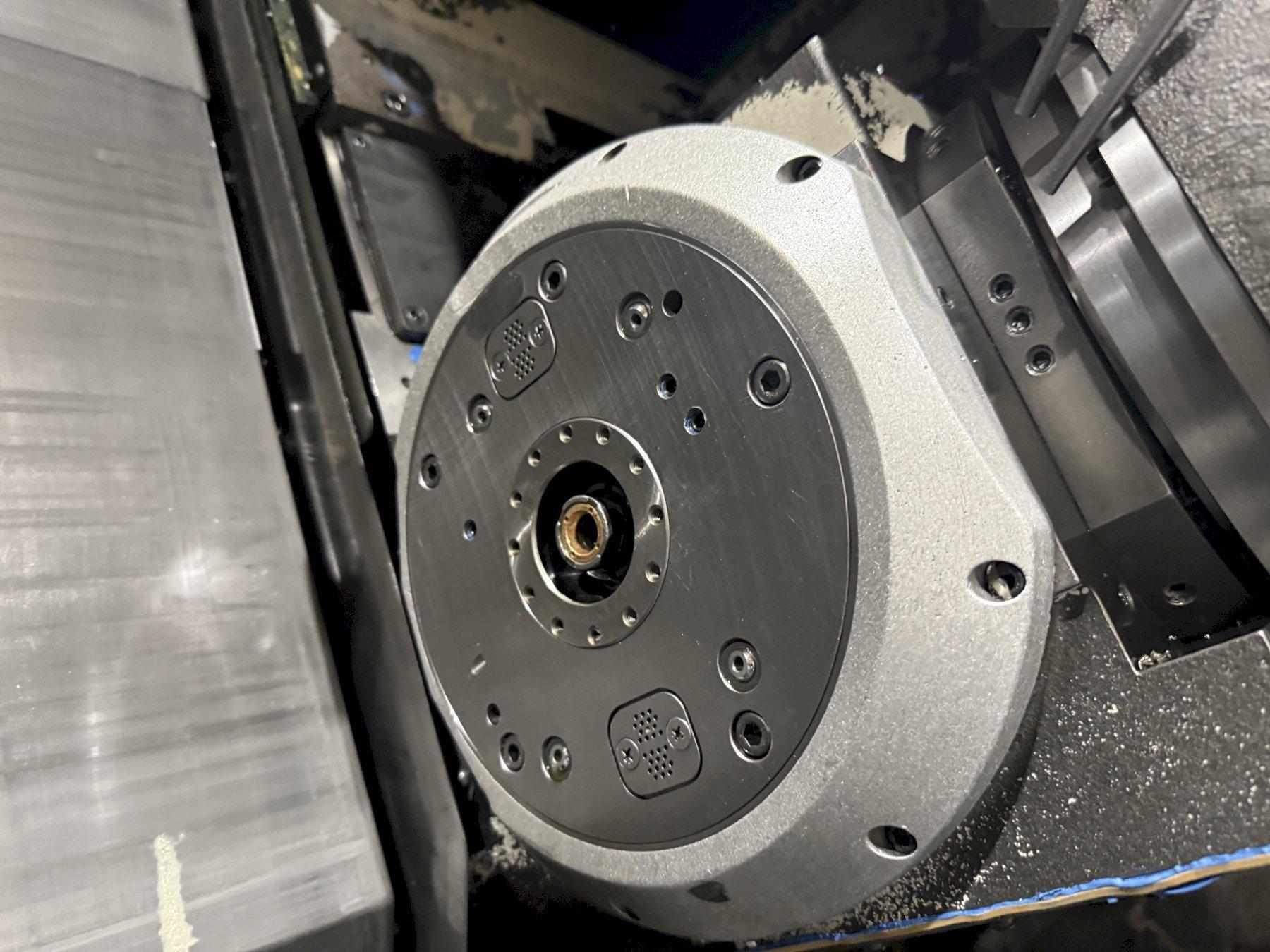

- Milling Spindle - HSK-63

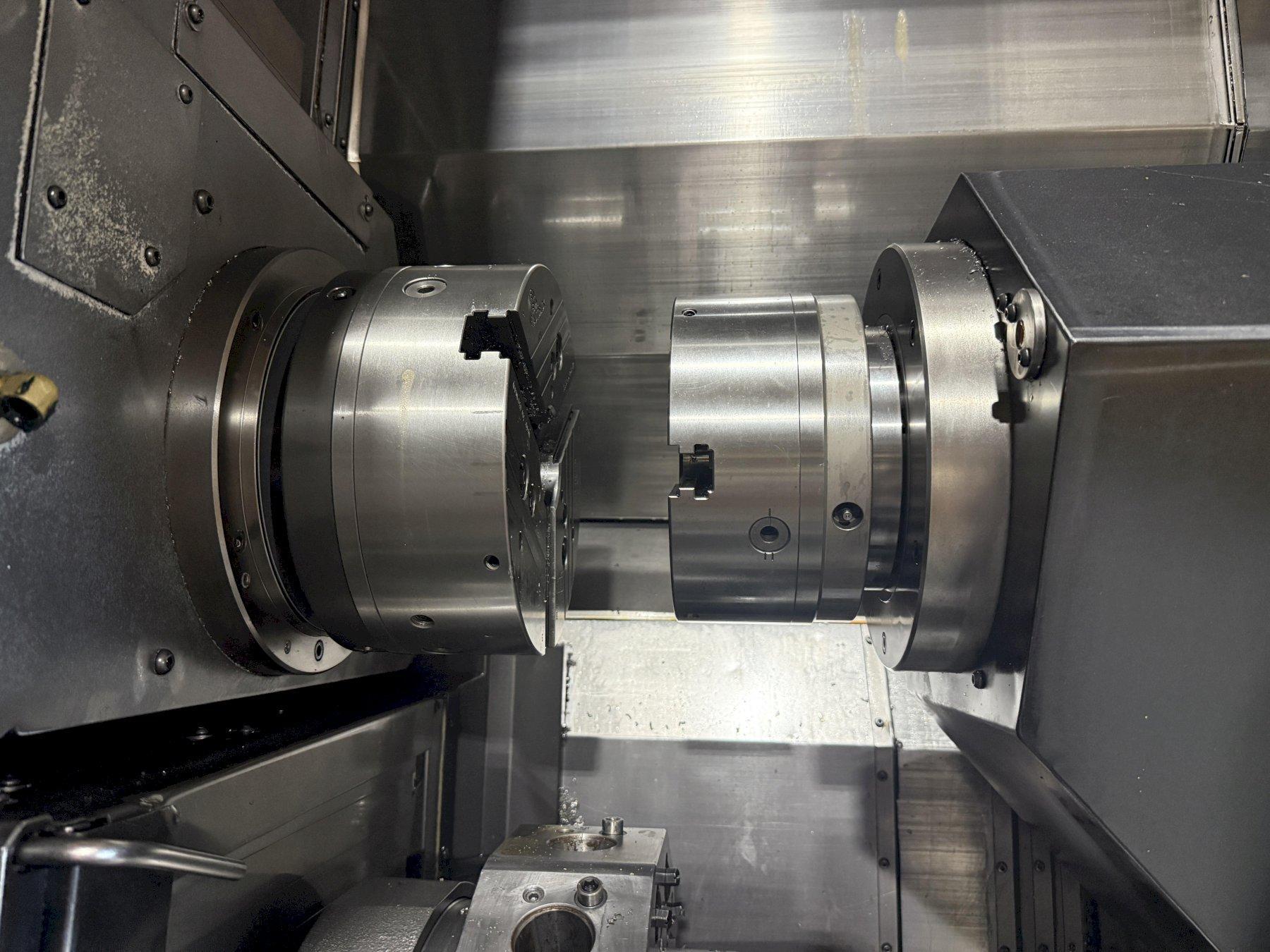

- Sub Spindle
- Y Axis
- Mist Collector
- Tool Presetter
- Transformer on Machine
