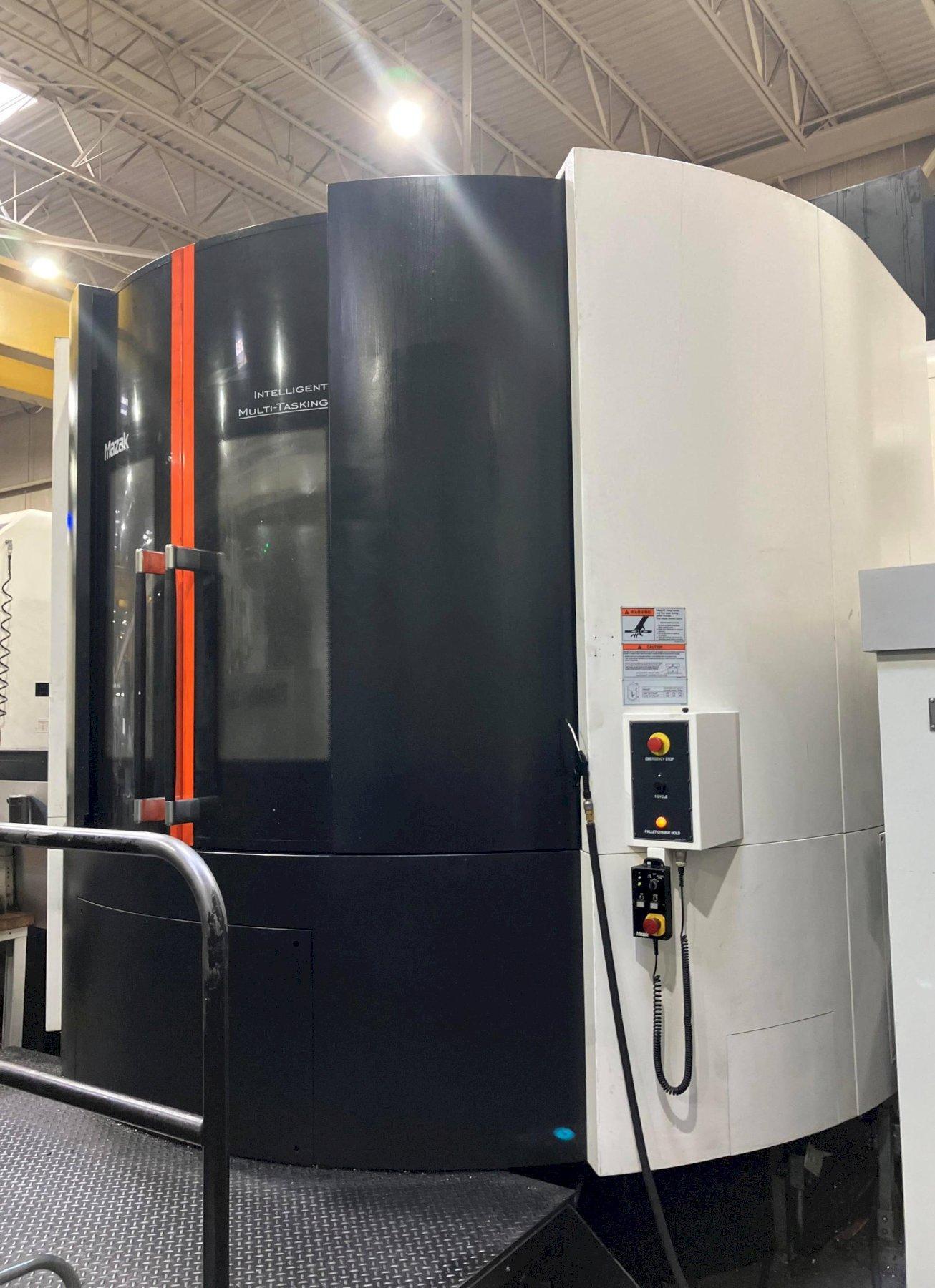

2014 Mazak Vortex e-1060V/8 5-Axis CNC Vertical Machining Center For Sale

Manufacturer

MAZAK

Stock

MC09301

Model

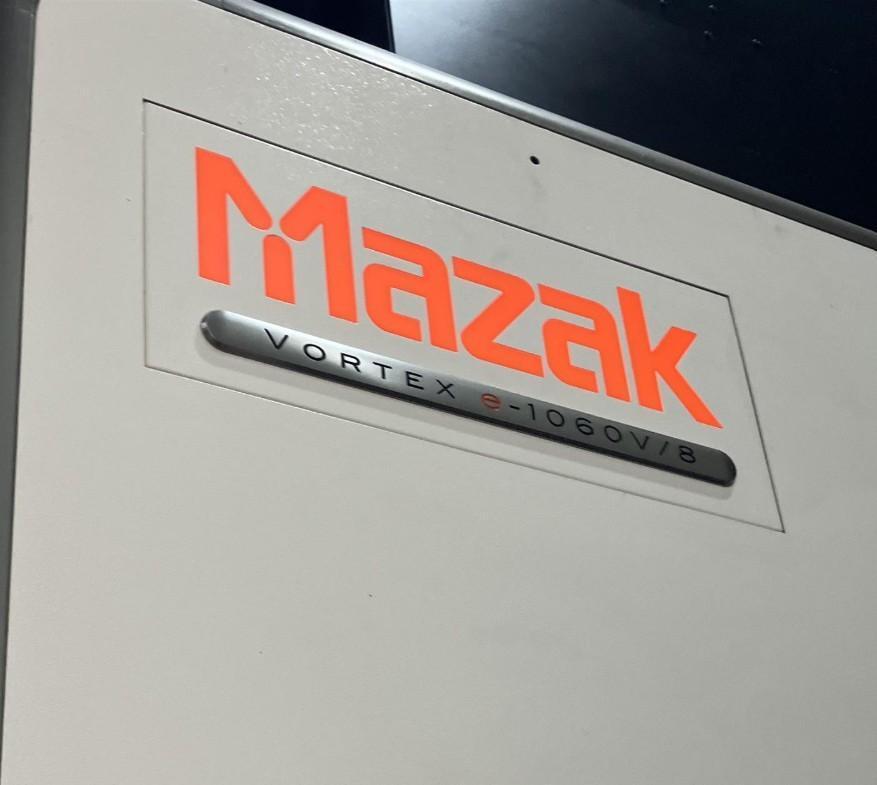

Vortex e-1060V/8

Dealer Location

Michigan

Spec Sheet

CNC Control - yes
Type of CNC Control - Mazatrol Matrix 2
# Axis - 5

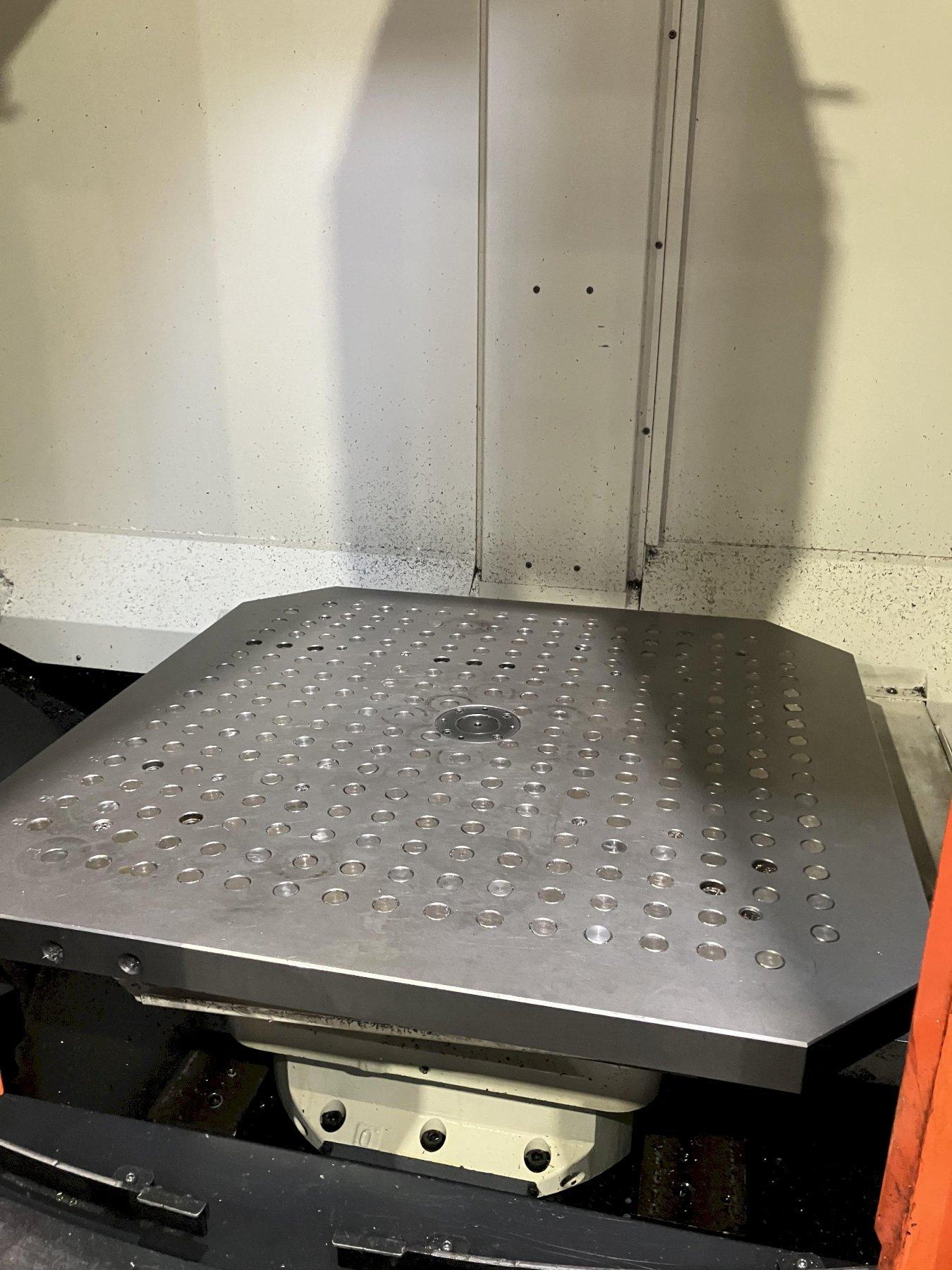

Pallet-W - 39.4 inches
Pallet-L - 39.4 inches
Max Workpiece Weight - 4784 pounds
X Axis Travel - 78.32 inches
Y Axis Travel - 41.73 inches
Z Axis Travel - 52.95 inches

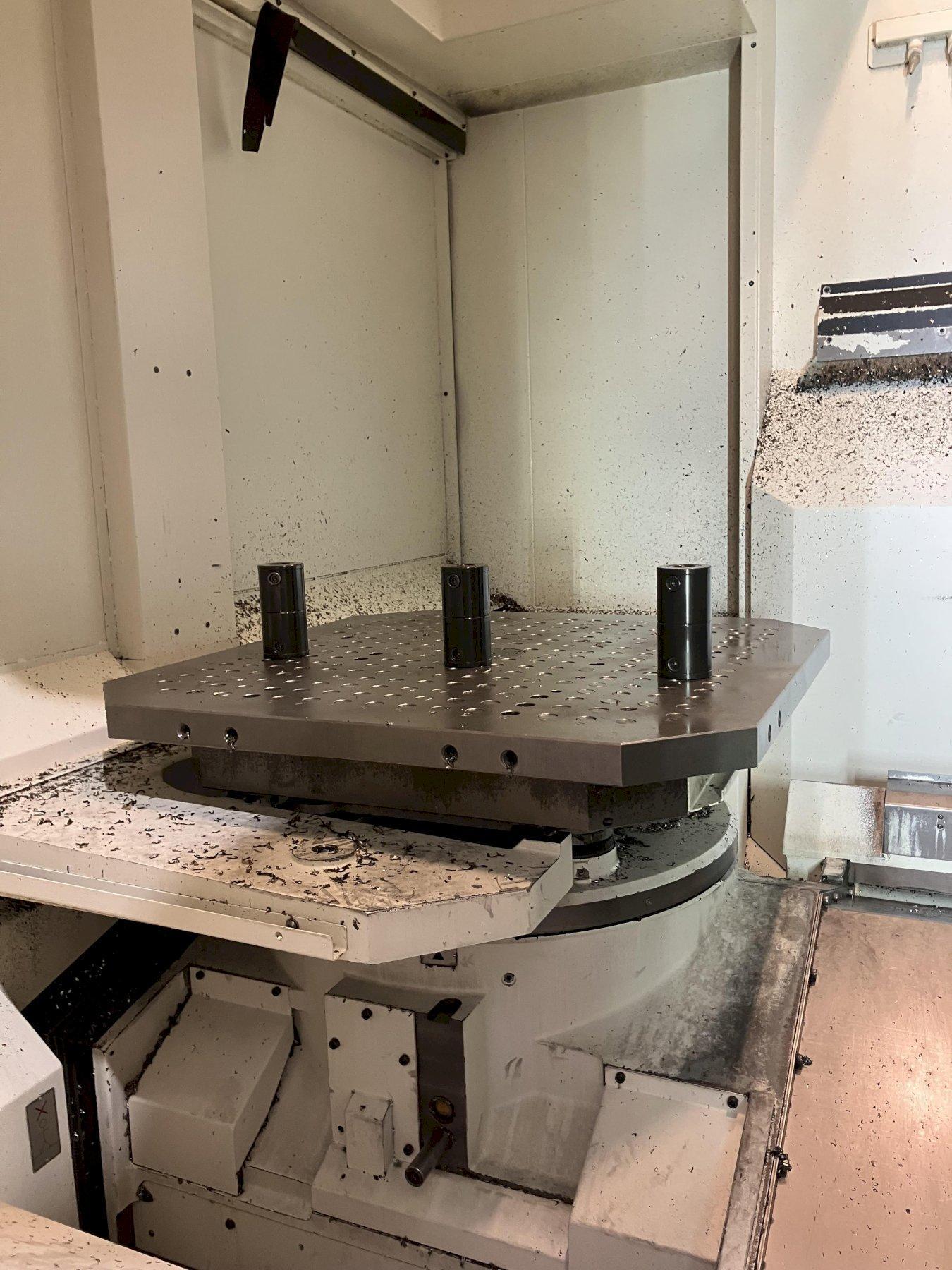

B Axis Indexing Range - -30° to +120°
C Axis Index - 360 Degrees (0.0001 Deg Increments)
Spindle Taper - CAT 50

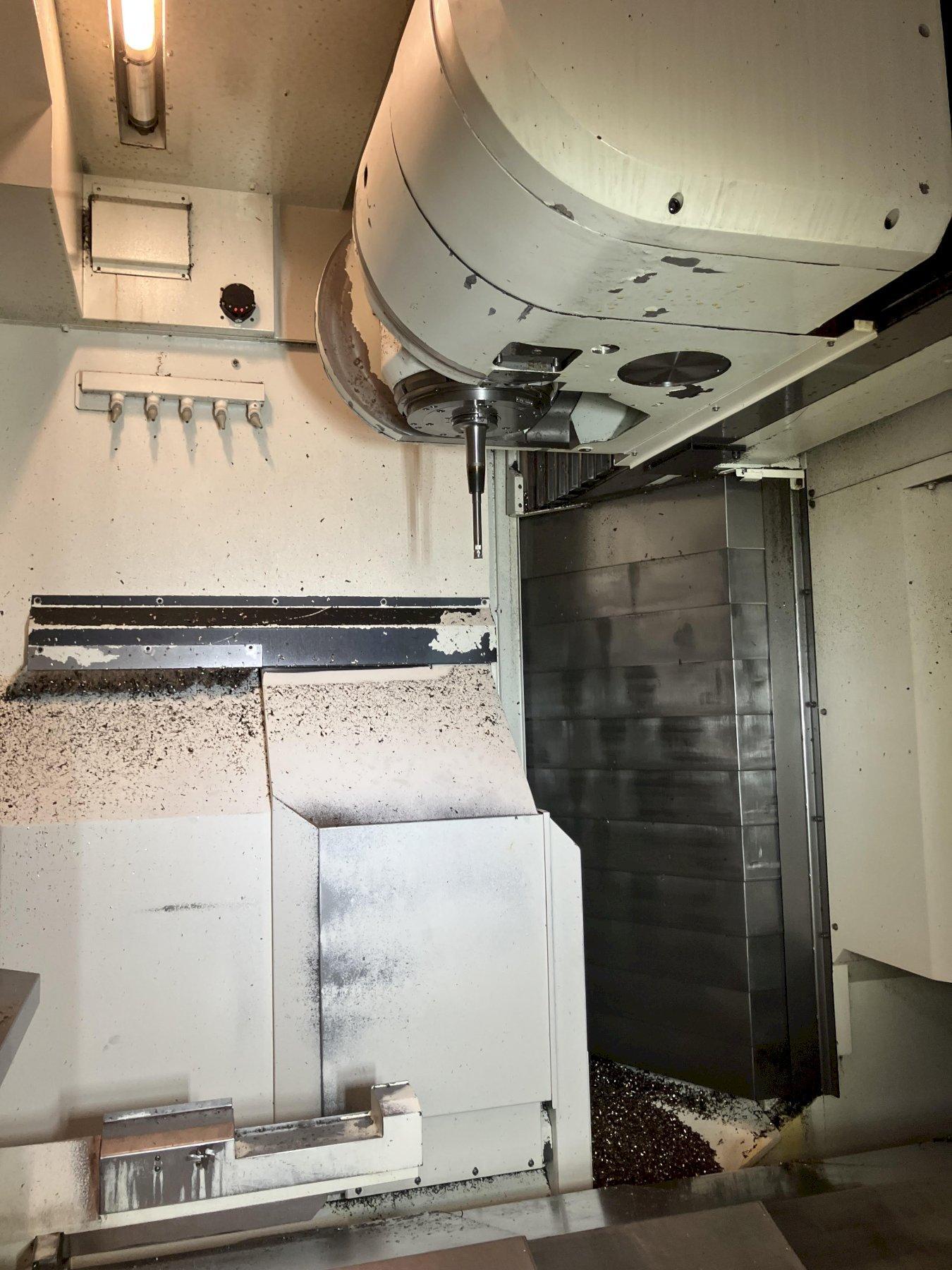

Spindle Speed - 10,000 rpm - Milling Spindle
Spindle Motor (HP) - 50 horsepower

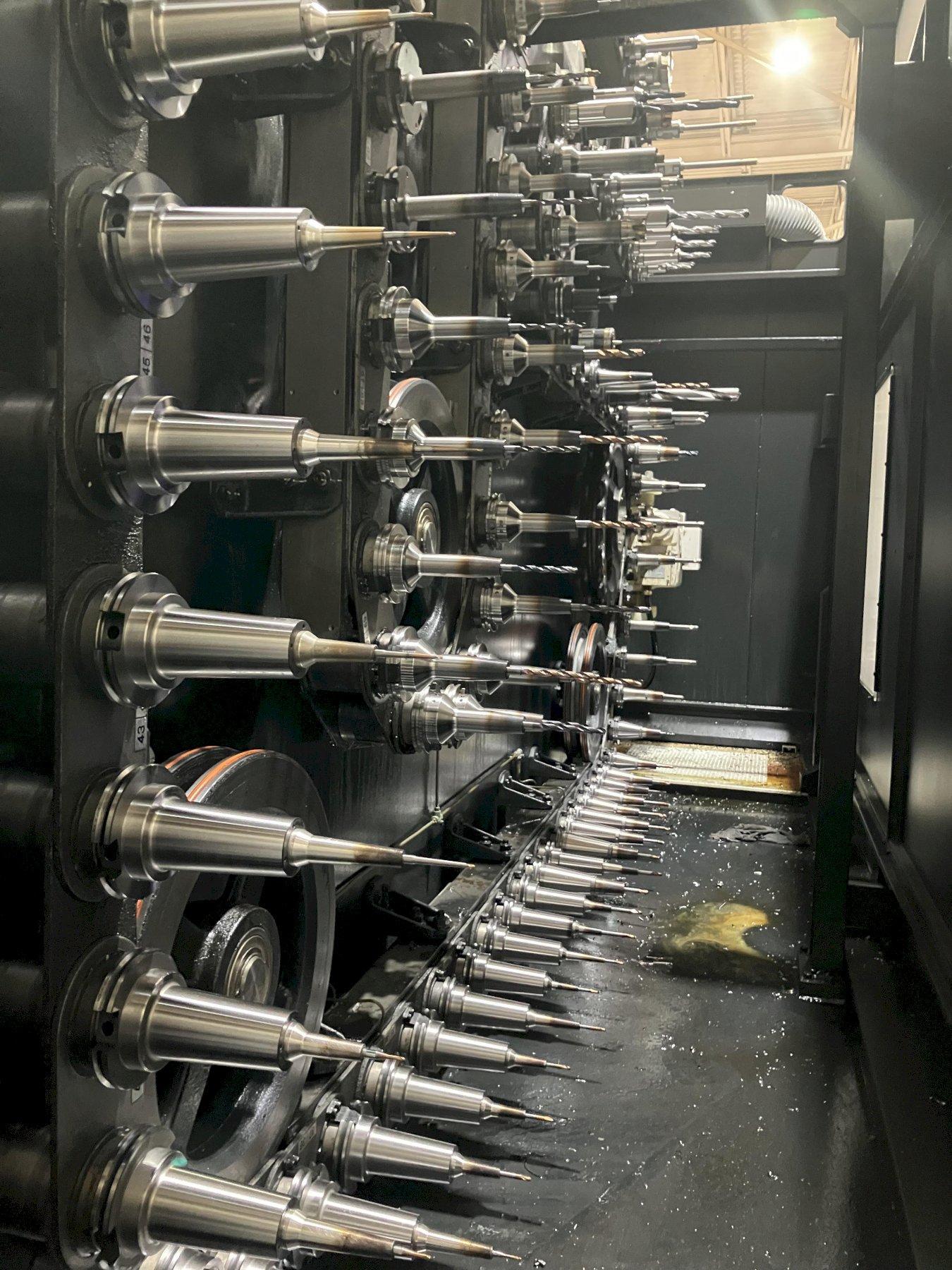

ATC Stations - 120
Weight - 85000 pounds

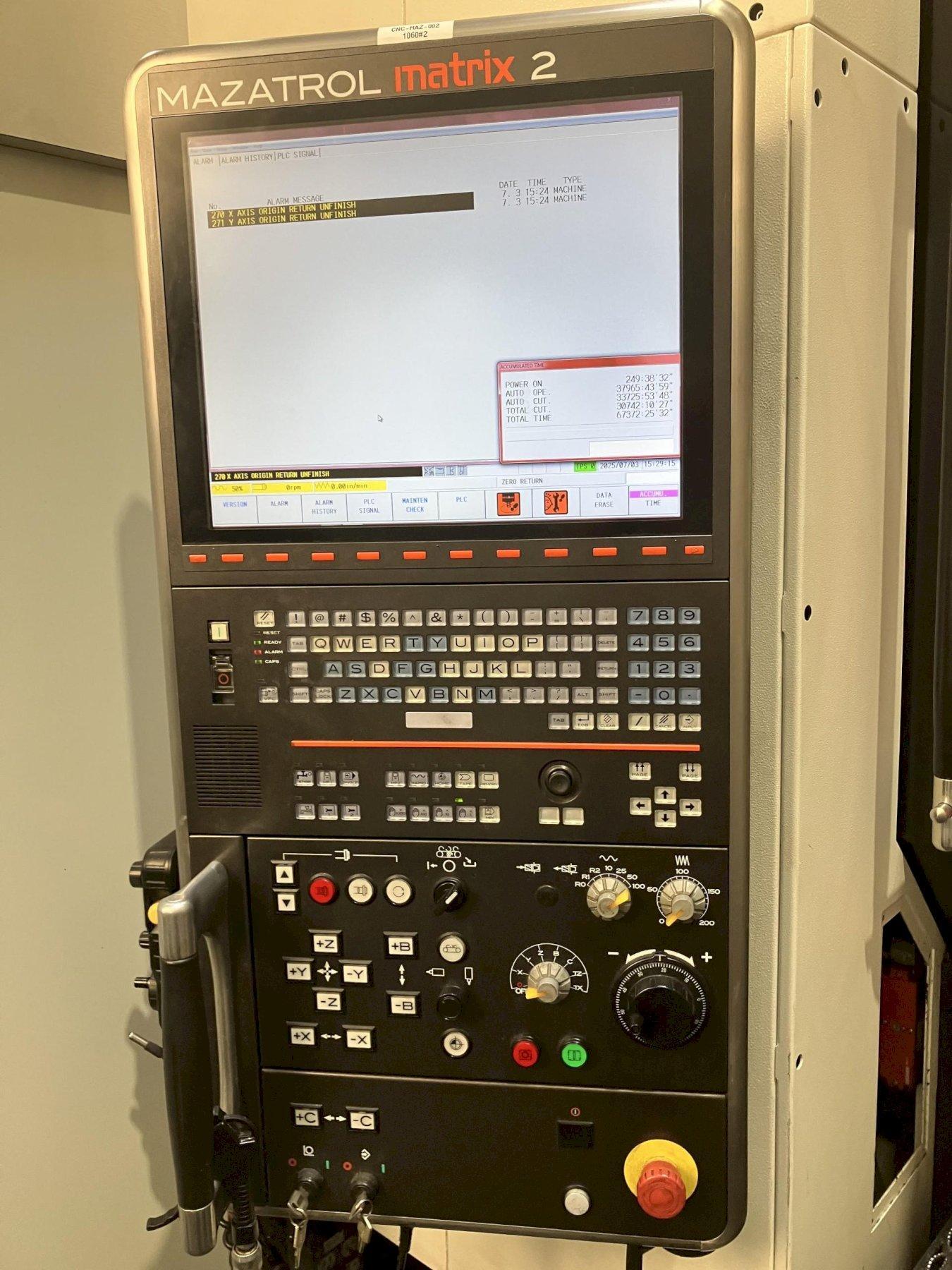

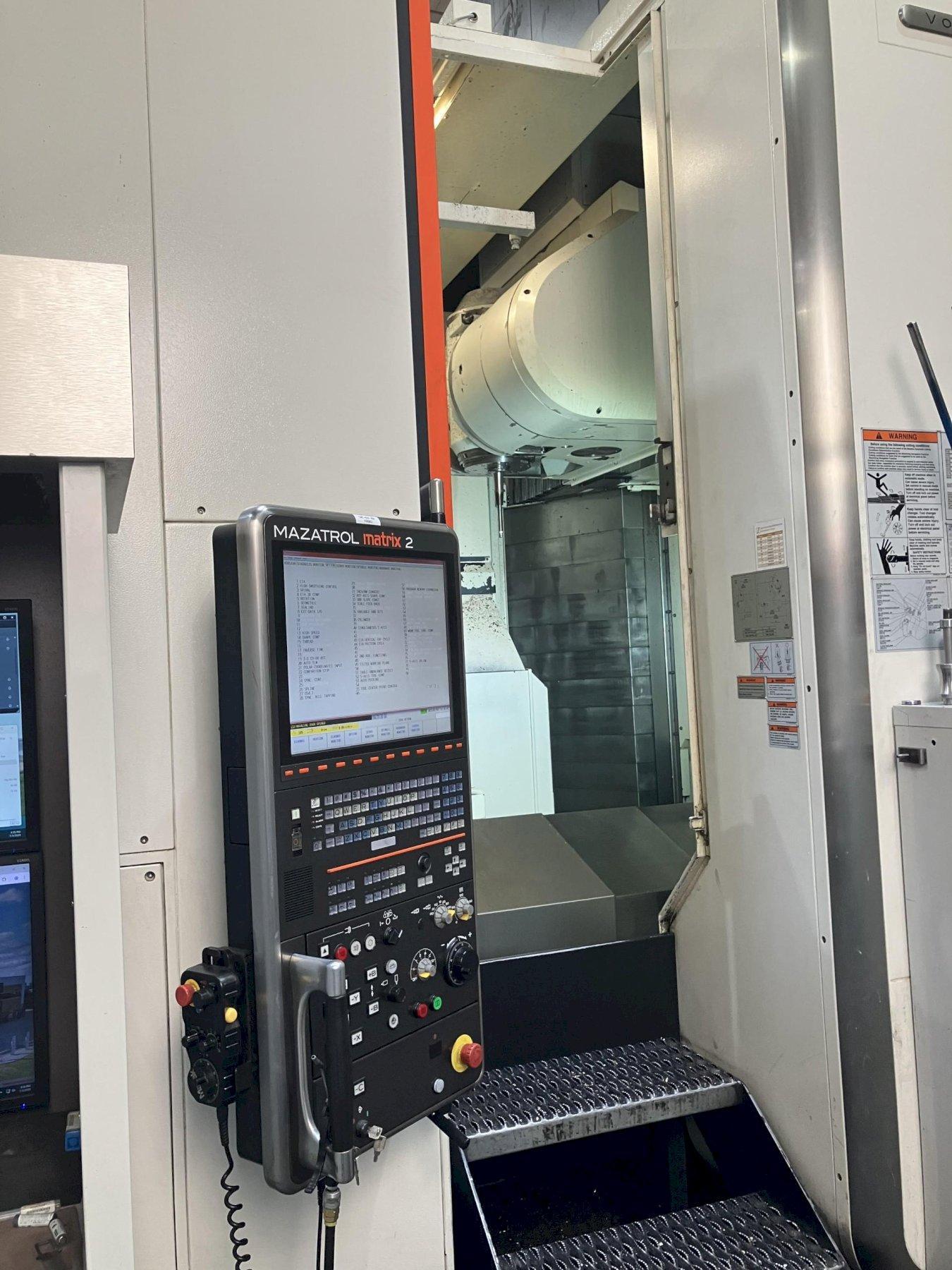

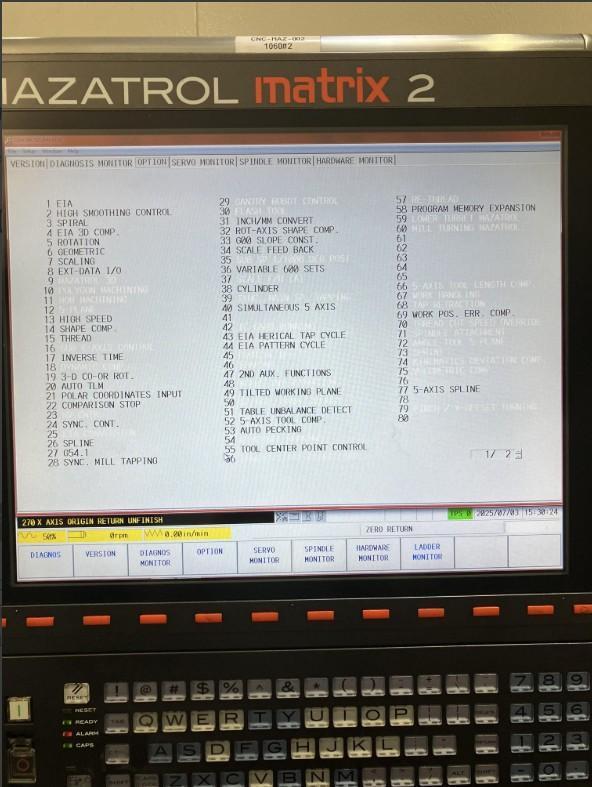

- Mazatrol Matrix 2 CNC Conversational Control w/15" Display

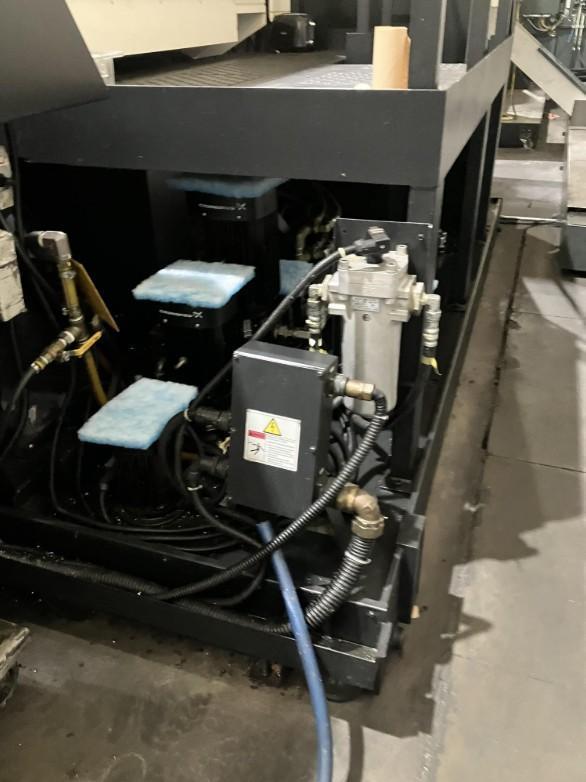

- 1000 psi High Pressure Coolant Thru Spindle

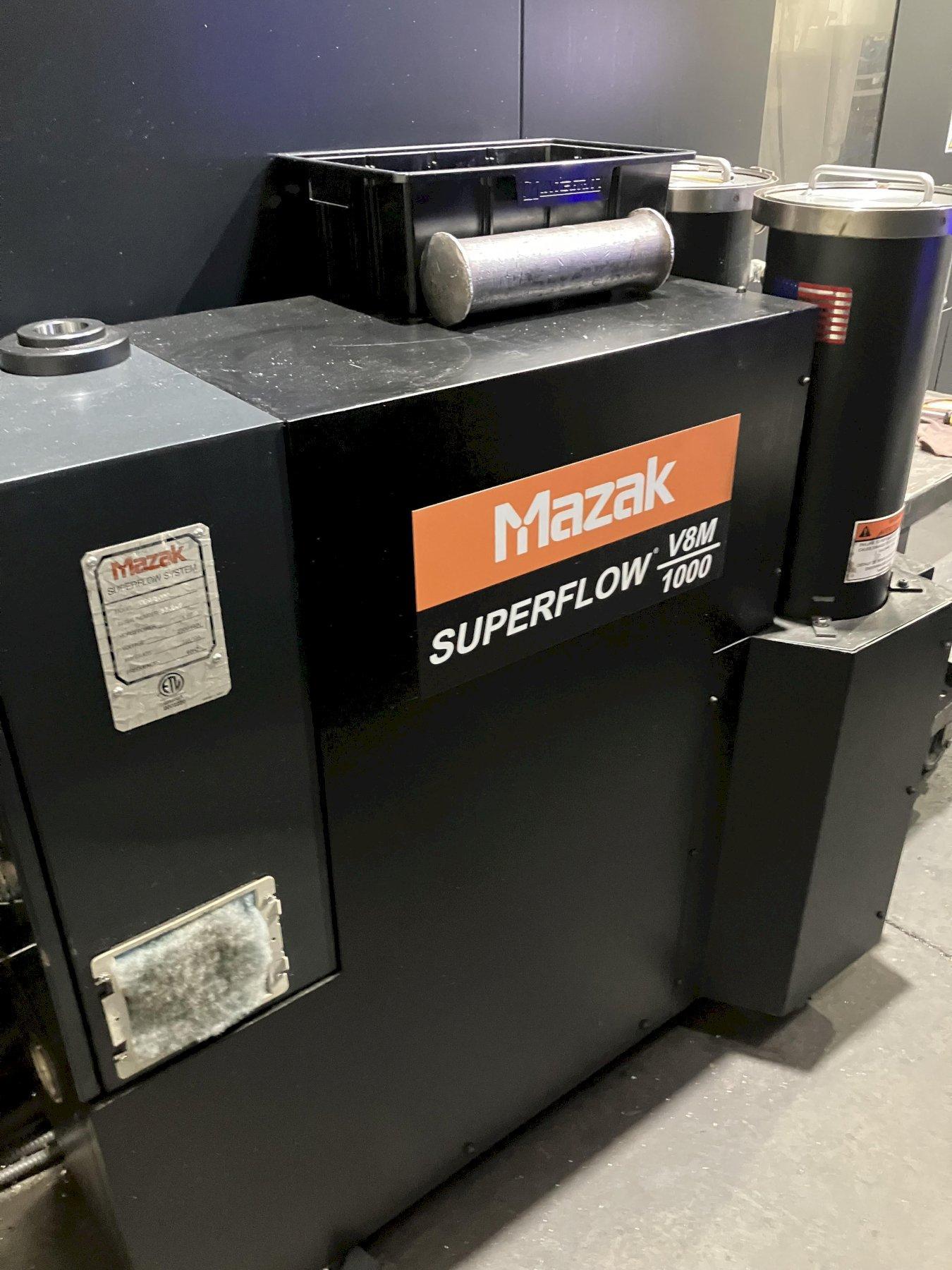

- Mazak Superflow V8M Unit
- Manual pulse generator (Detachable)
- Two pallet changer
- Automatic Tool Presetter
- ConSep Chip Conveyor
- Coolant washdown at operator and pallet load stations
- Heidenhein linear scales X, Y, Z
- Spindle Air Blow
- Power indexing at work load station
- Renishaw NC4 laser tool measurement
- Renishaw H/V OMP60 probe
- Hydraulic pressure interlock
- Auto power on/off/warm-up
- 8MB program storage
- Prep for LAN and Modem
- Mill spindle synchronous tapping
- Background tool path check
- Tool breakage detection
- Adaptive feedrate control
- Tool life monitoring
- Renishaw advanced probe macros / Inspection plus
- 3D coordinate rotation G68.2
- EIA simultaneous 5-axis
- Tool tip point control 5-axis
- Simultaneous 5-axis tool radius comp.
- G00 slope constant
- 2D software shape continuous
- Shape continuous rotary axis
- Inch / Metric conversion
- Cylindrical G07
- Polar coordinate G12
- Mazacc-3D high speed software package
- High smoothing control
- Additional EIA / ISO function
- All available manuals
- CAT50 Tooling Package
