2006 Mazak Cybertech Turn 4500M CNC Lathe

Manufacturer

MAZAK

Stock

20852

Model

CYBERTECH TURN 4500M

Dealer Location

Texas

Spec Sheet

CNC Control - yes

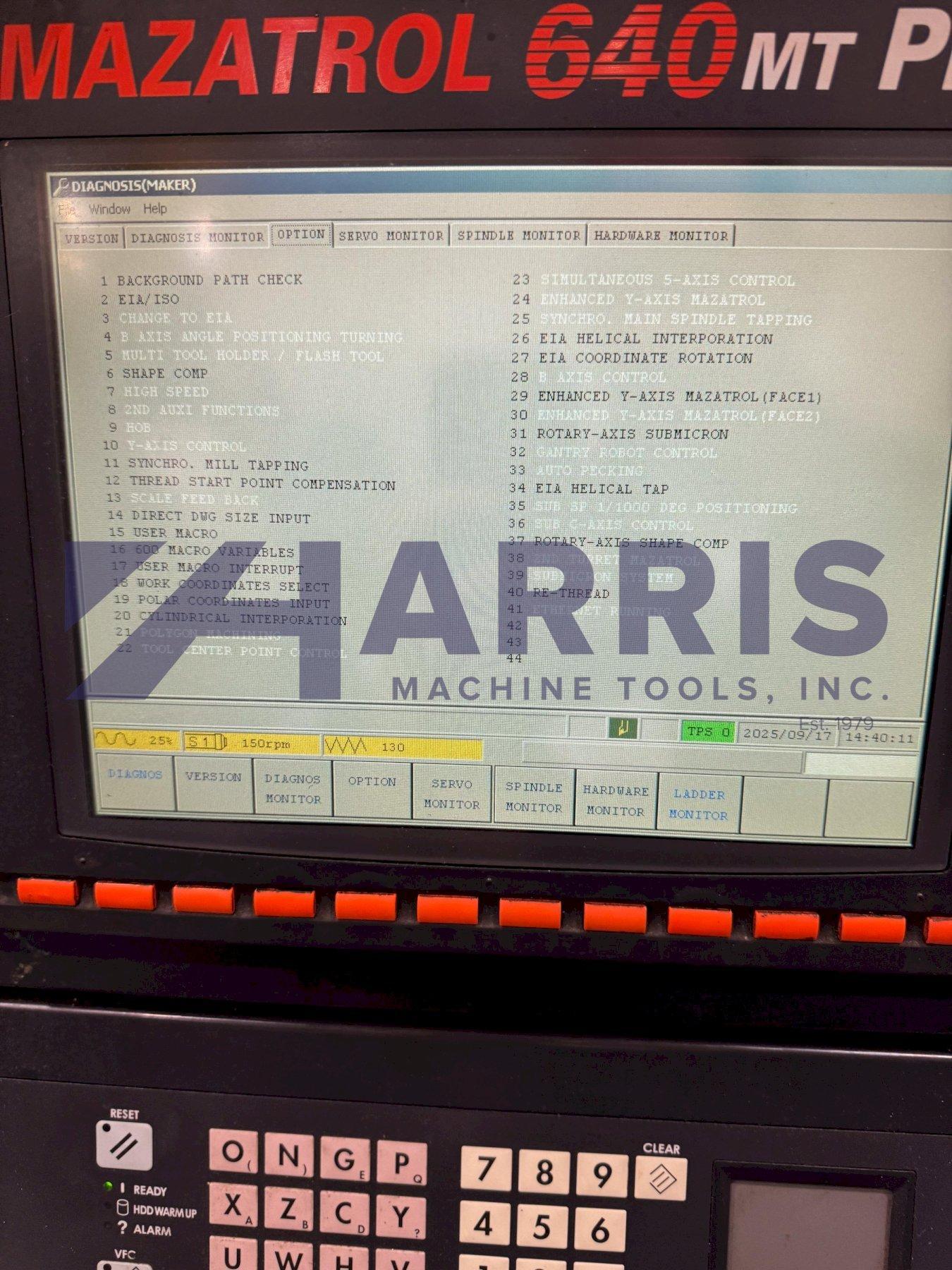

Type of CNC Control - Mazatrol 640T Pro CNC Control
Chuck Size - 21 inches
Swing - 33.8 inches
Turning Diameter - 31.9 inches
Center Distance - 120 inches
Bar Capacity - 6.5 inches
Spindle Bore - 7 inches
X Axis Travel - 21.5 inches
Z Axis Travel - 132.2 inches
Rapid Traverse (X/Z) - 945/1181 IPM
Spindle Speed (RPM) - 1600
Main Motor - 50 HP
Live Milling (Yes / No) - yes
Tailstock (Yes/No) - yes
Steady Rest Capacity - 12 inches


Shape Comp
Synchro. Mill Tapping
Thread Start Point Compensation
Direct DWG Size Input
600 Macro Variables
User Macro Interrupt
Work Coordinates Select
Polar Coordinates Input
Cylindrical Interporation
EIA Coordinate Rotation
Enhanced Y-Axis Mazatrol (Face1)
Rotary-Axis Submicron
EIA Helical Tap
Rotary-Axis Shape Comp
Re-Thread

Additional Spec:

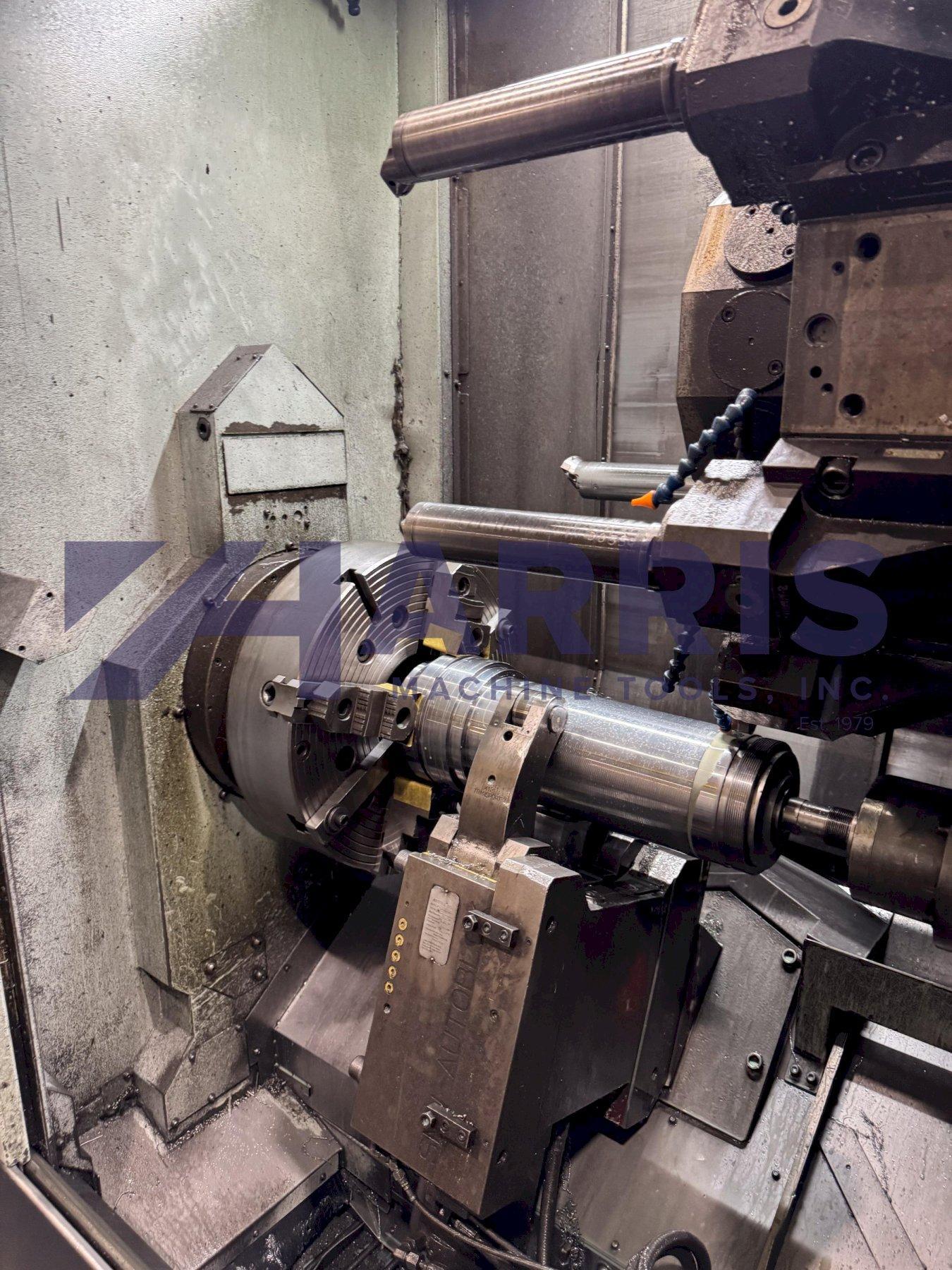

4 Jaw Chuck Front and Rear
Spindle Torque: 4273 Ft-Lbs.
C-axis: 0.001 Degrees

Includes:

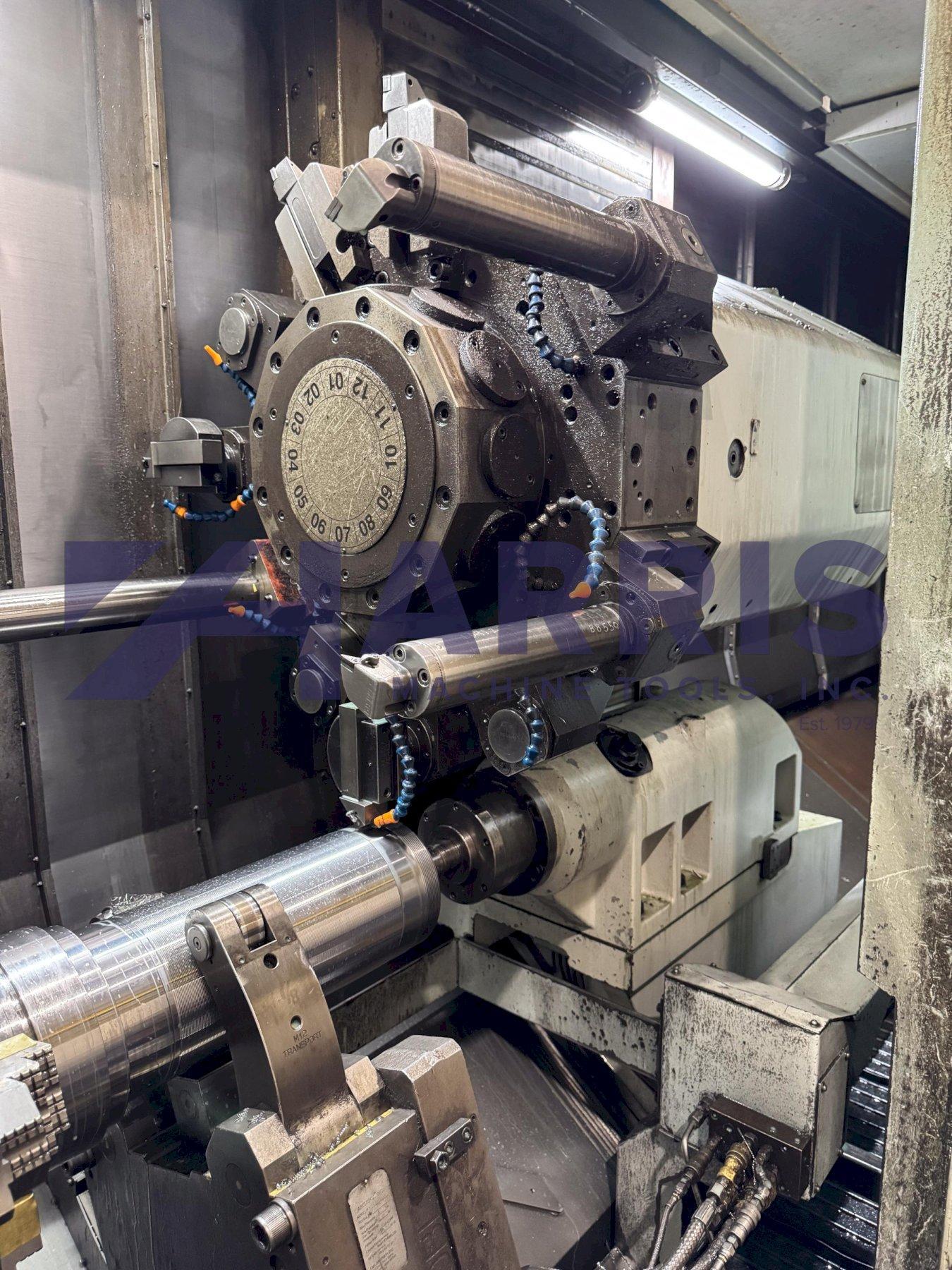

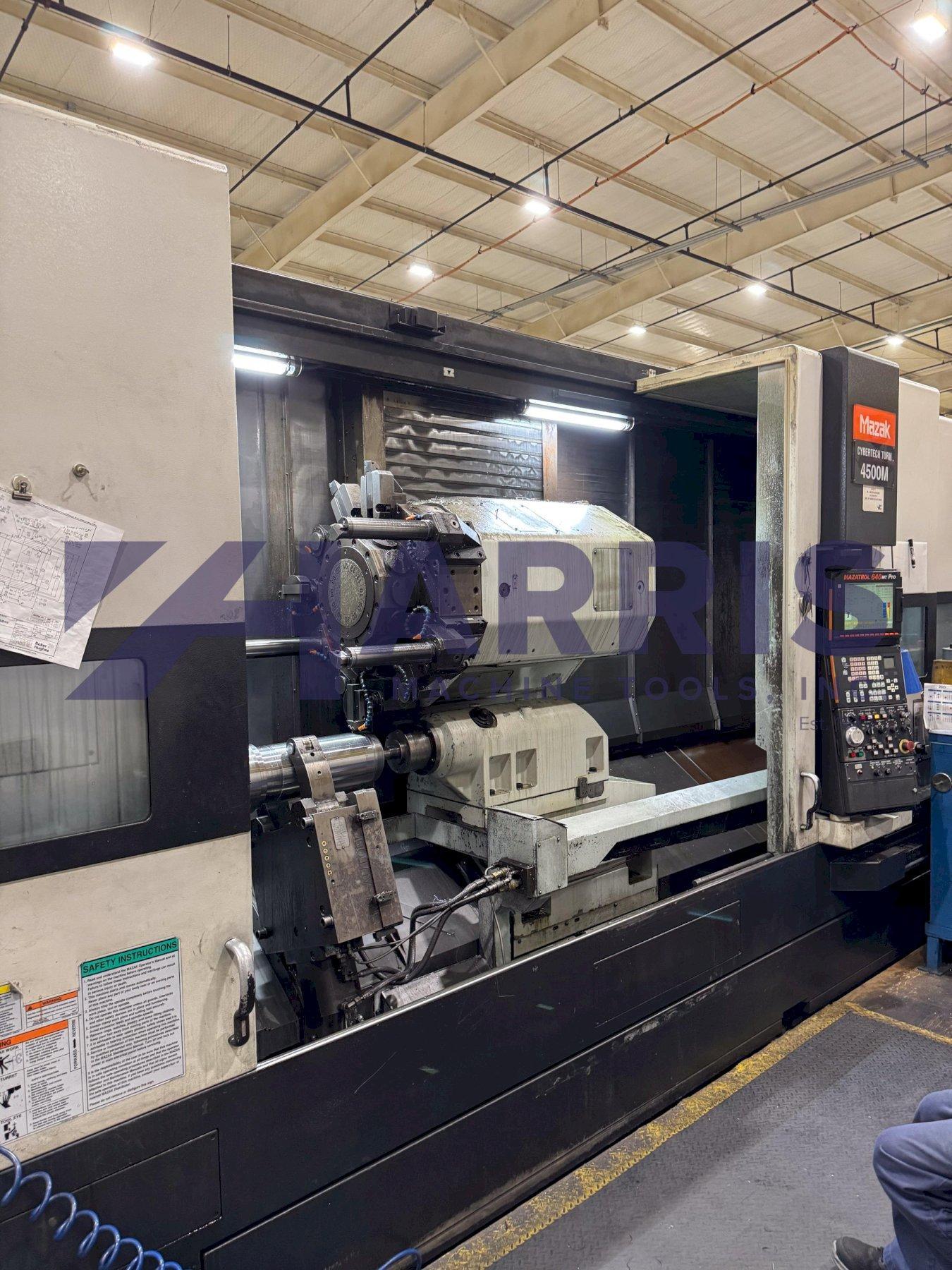

Live Turret
Long Boring Bar Stocker

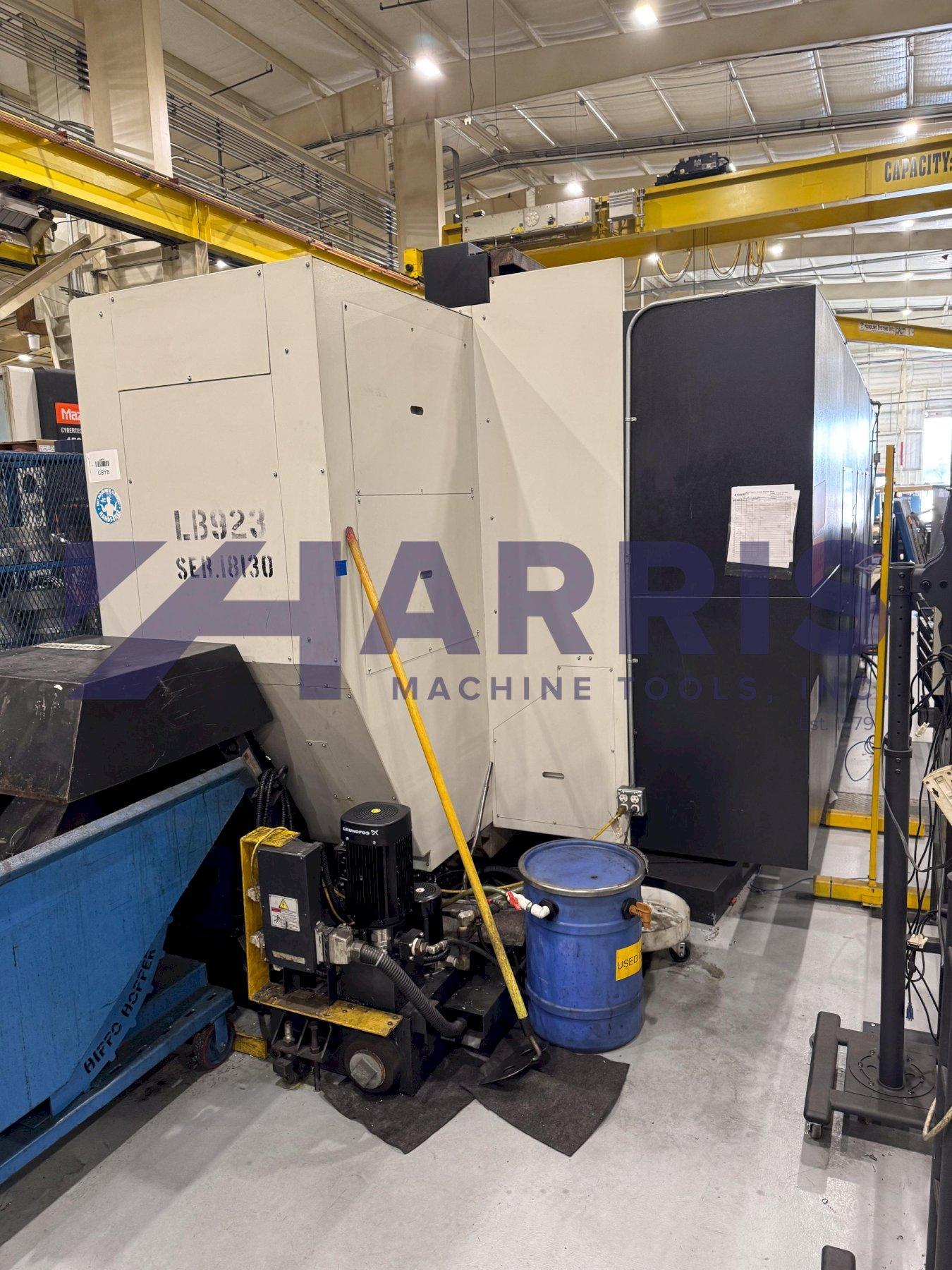

Chip Conveyor
Coolant

*All specs are subject to buyer review
