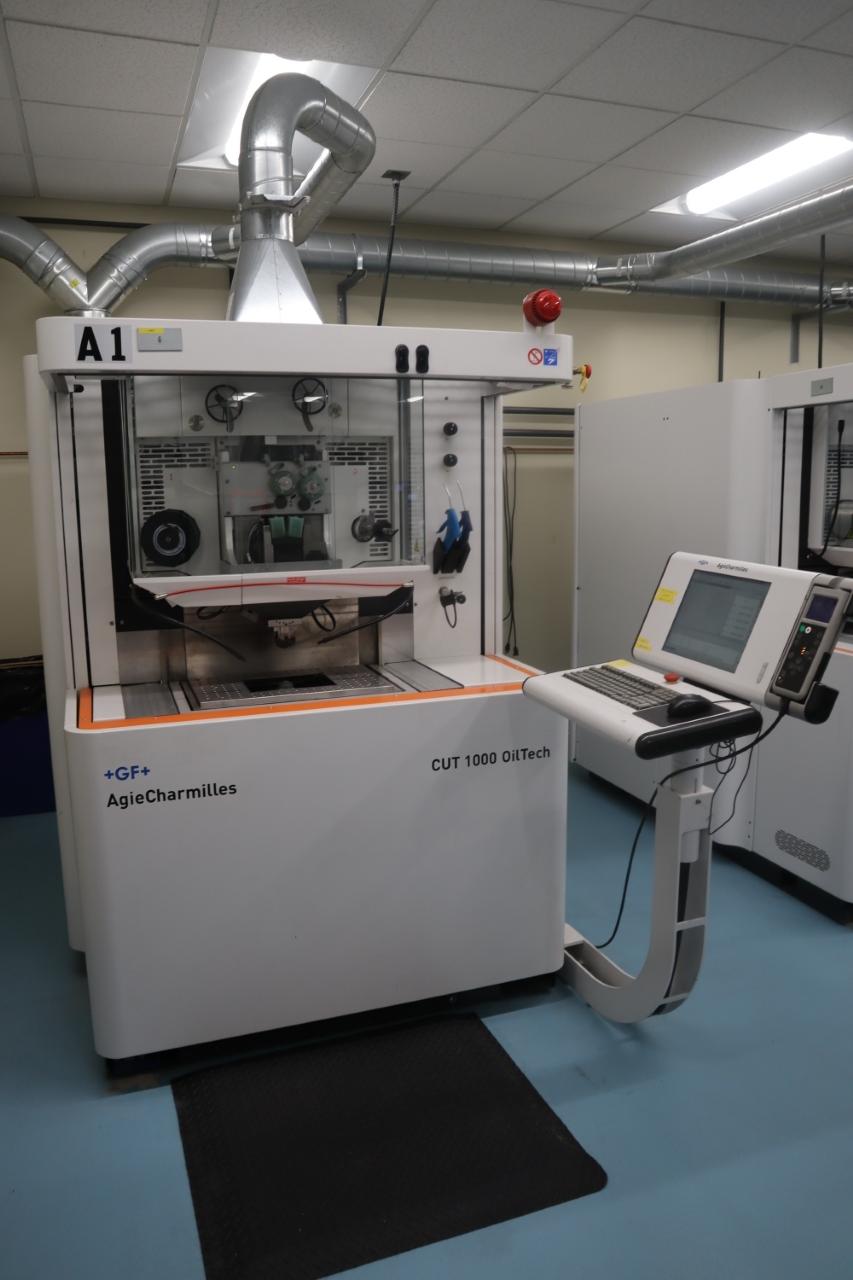

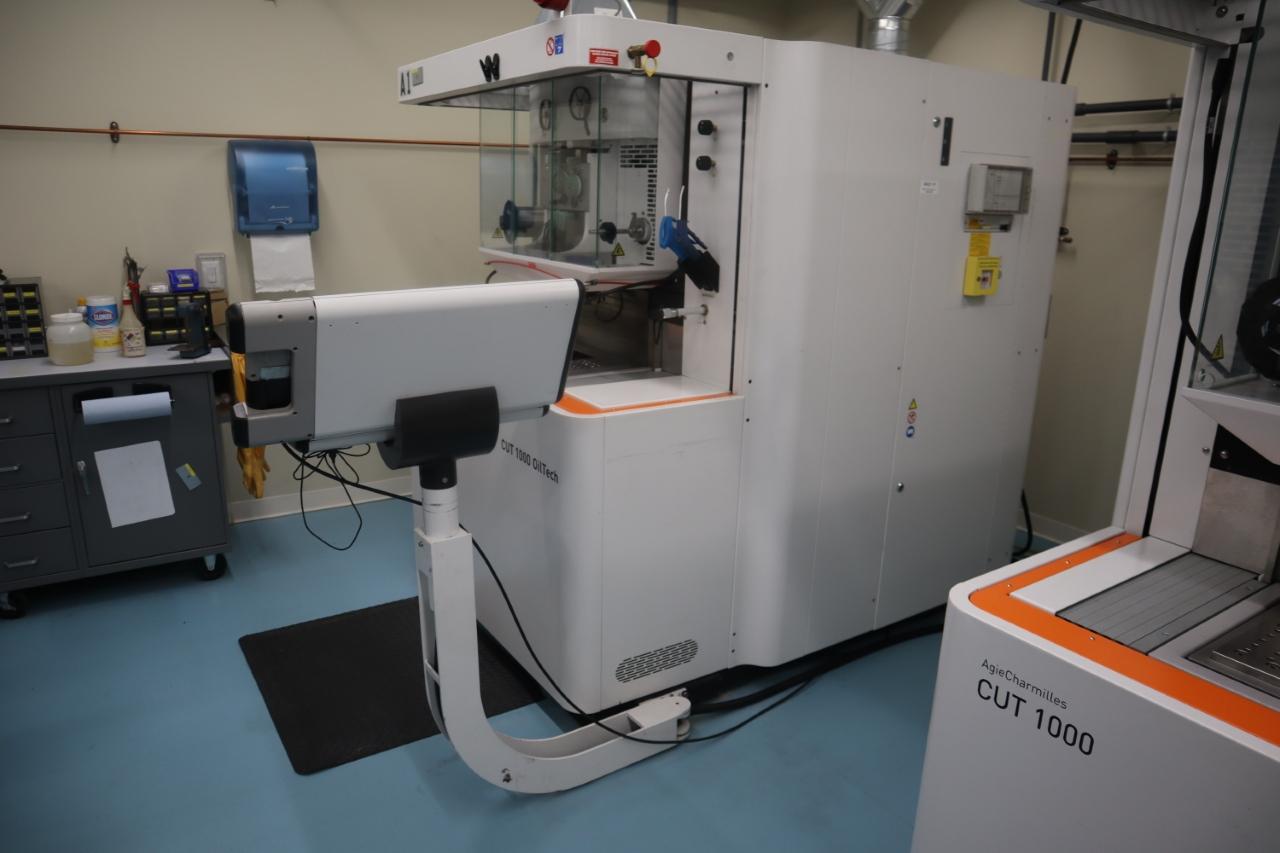

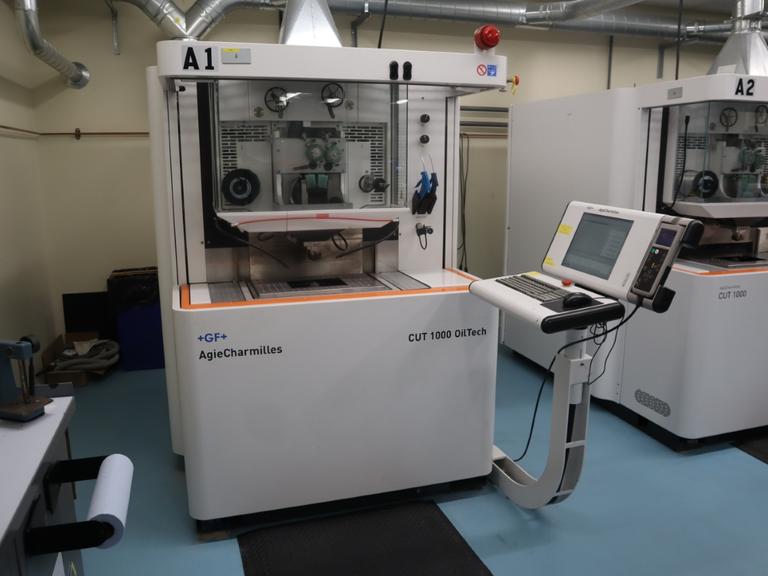

AgieCharmilles Cut 1000 Oiltech CNC Wire EDM Electrical Discharge Machine, Fire Suppression, IPG-VO Generator, Dual Wire Spool Auto Threading

Stock

C1006

Model

Cut 1000

Dealer Location

Minnesota

Spec Sheet

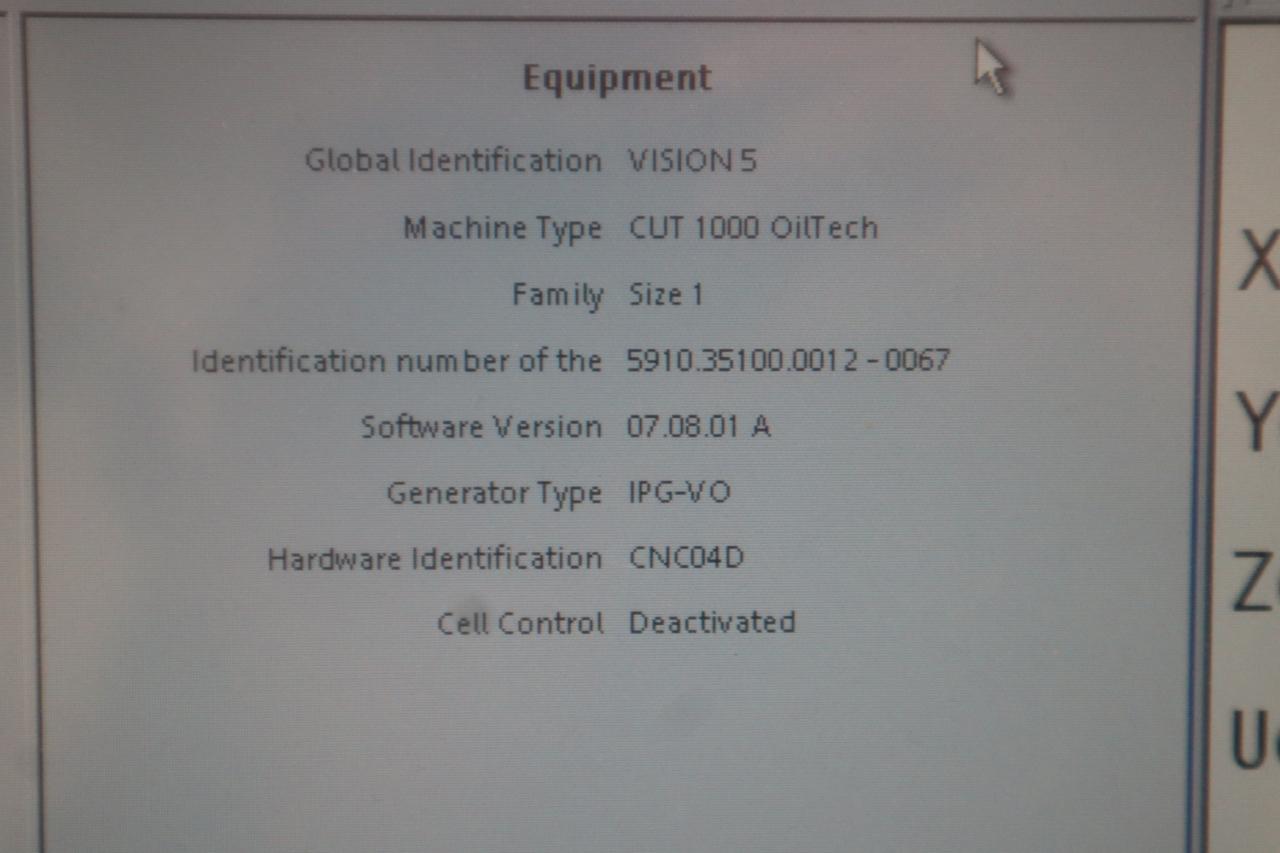

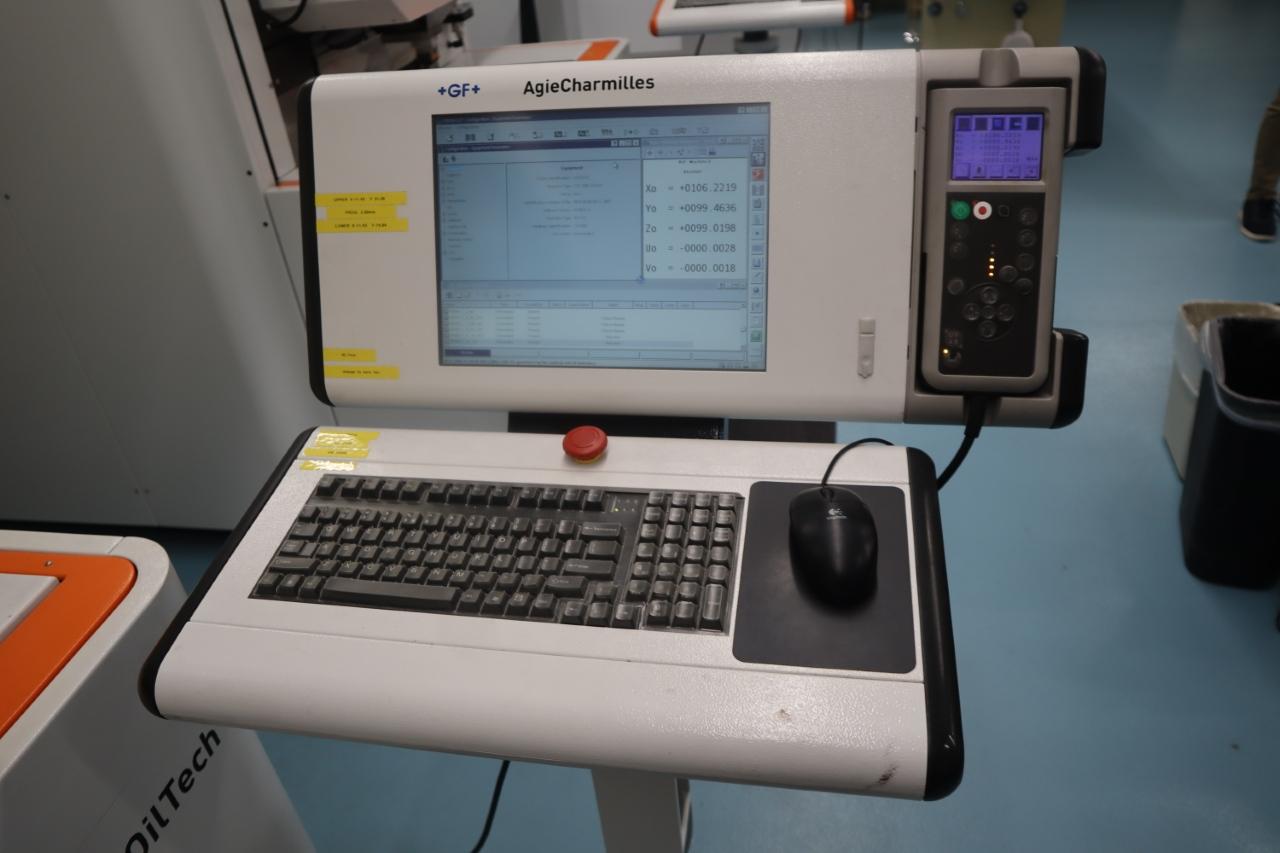

Control: Agie Charmilles CNC Control

Max Workpiece Size: 11.81" x 7.87" x 3.14"

Travels (X,Y,Z): 8.66" x 6.3" x 3.93"

UV Travels: +/- 1.57"

Taper Angle: +/- 3 Degrees for 3.14"

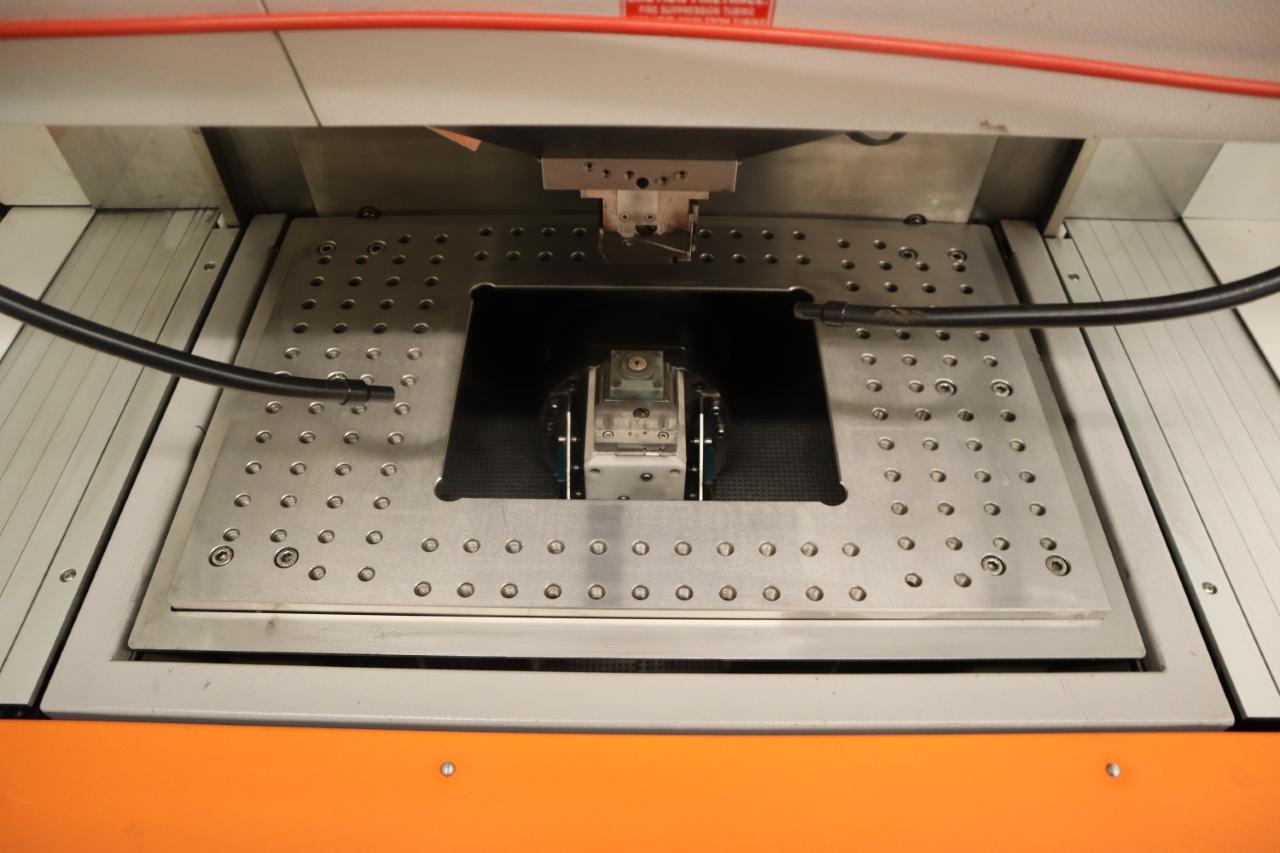

Dimensions of Table: 21.65" x 13.39"

Max Workpiece Weight: 77 Lbs.

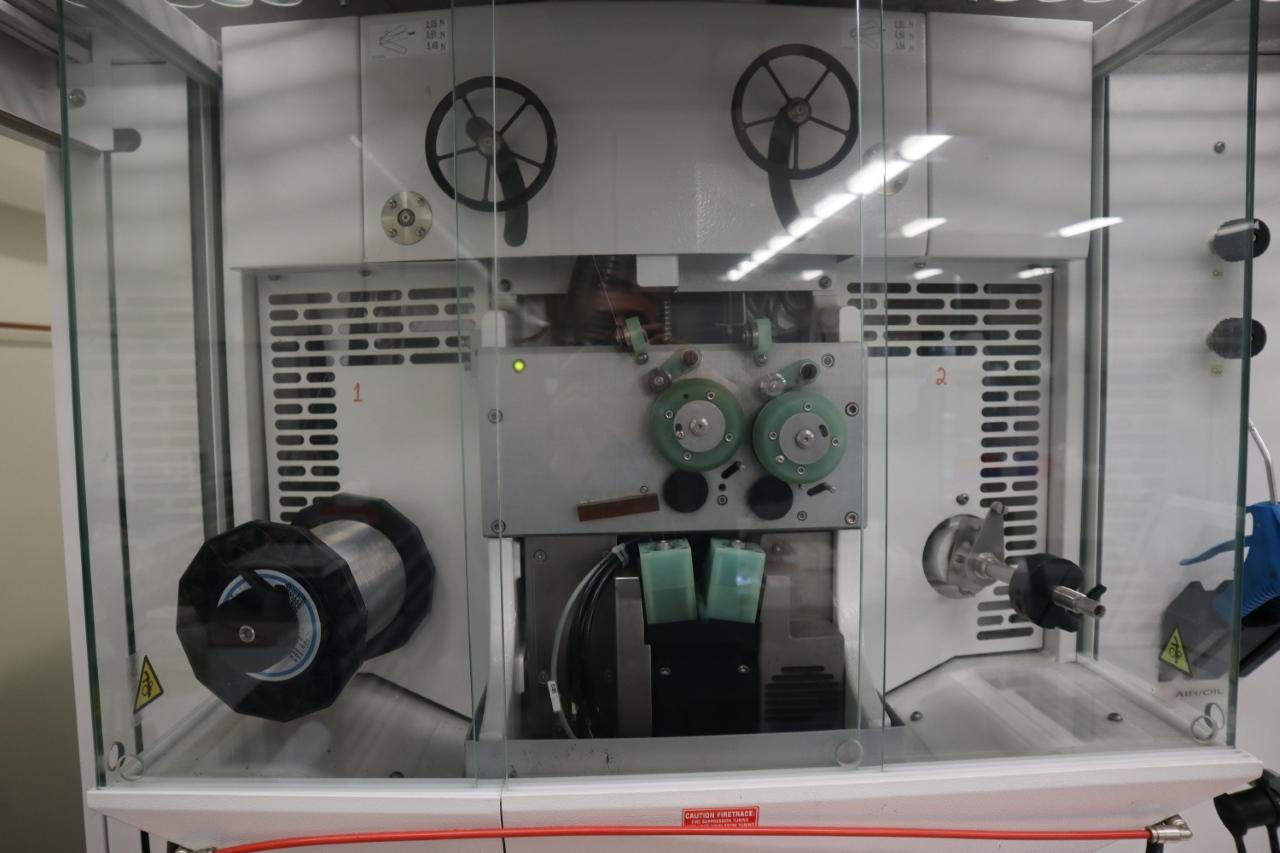

Wire Diameter: Dual Spool Auto Wire Thread: .003 - .008" Wire Diameter

Wire Speed: 2.36 - 11.81 Inches Per Second

Rapid Traverse Rate : .04 - 111 IPM

Dielectric Fluid Capacity: 110 Gallons

Description:

The AgieCharmilles Cut 1000 CNC Wire EDM is an ultra-precision machining solution engineered for industries that demand exceptional accuracy, including medical, aerospace, electronics, and high-end moldmaking. Built with Swiss precision, the Cut 1000 delivers extremely tight tolerances, superior surface finishes, and outstanding repeatability using advanced EDM technology and intuitive AC Cut control. Its high-stability machine structure, optimized wire threading system, and smart automation options make it ideal for micro-machining, fine-detail work, and complex geometry. For manufacturers seeking top-tier EDM performance, the AgieCharmilles Cut 1000 provides reliable operation, fast processing, and exceptional part quality.

Equipped With:

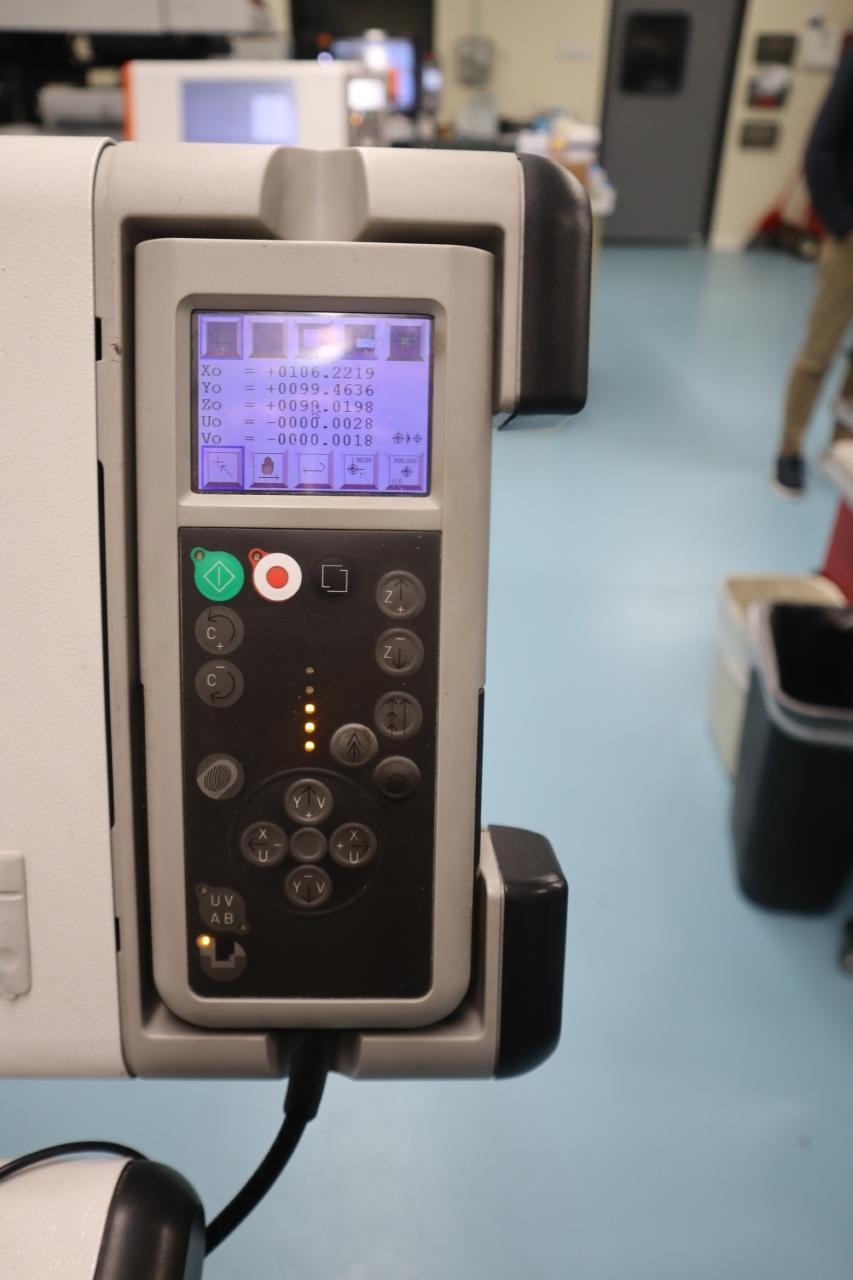

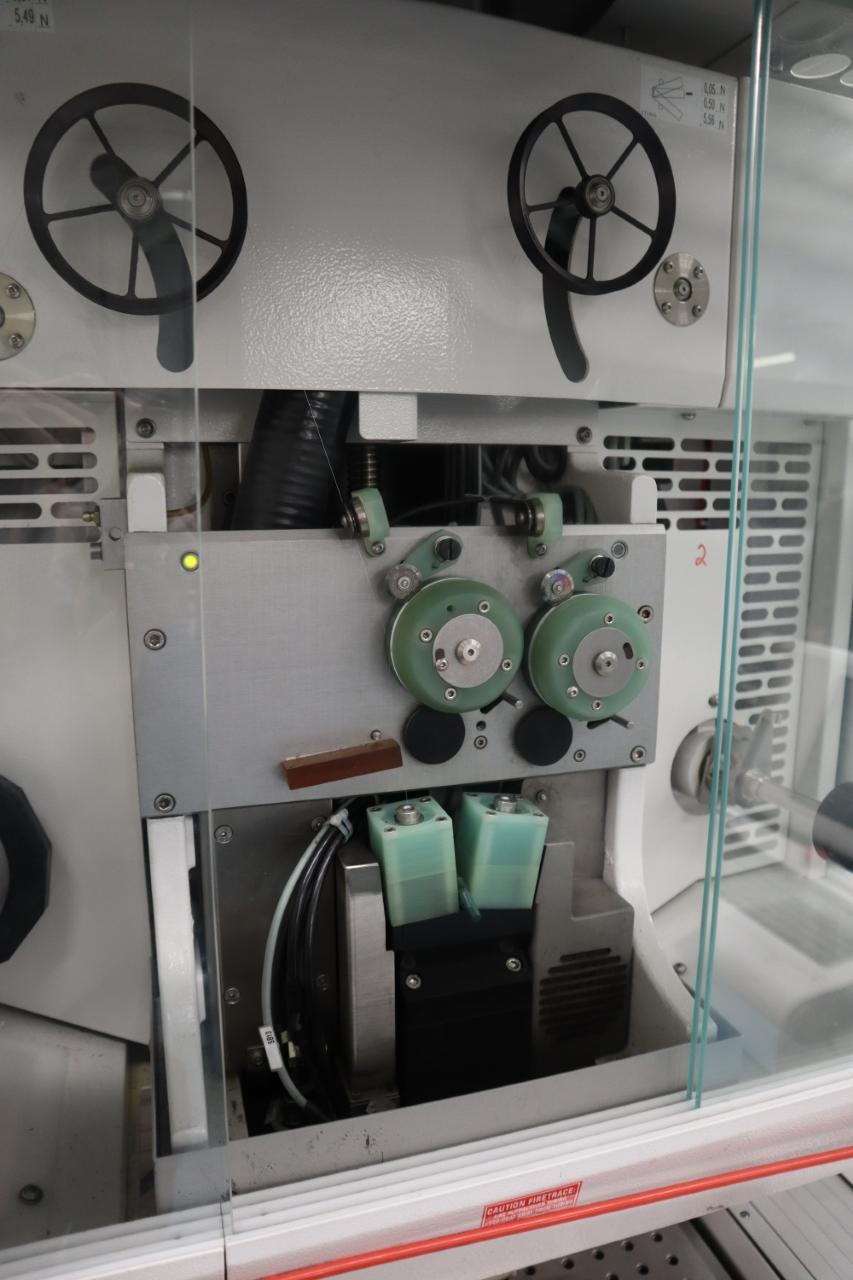

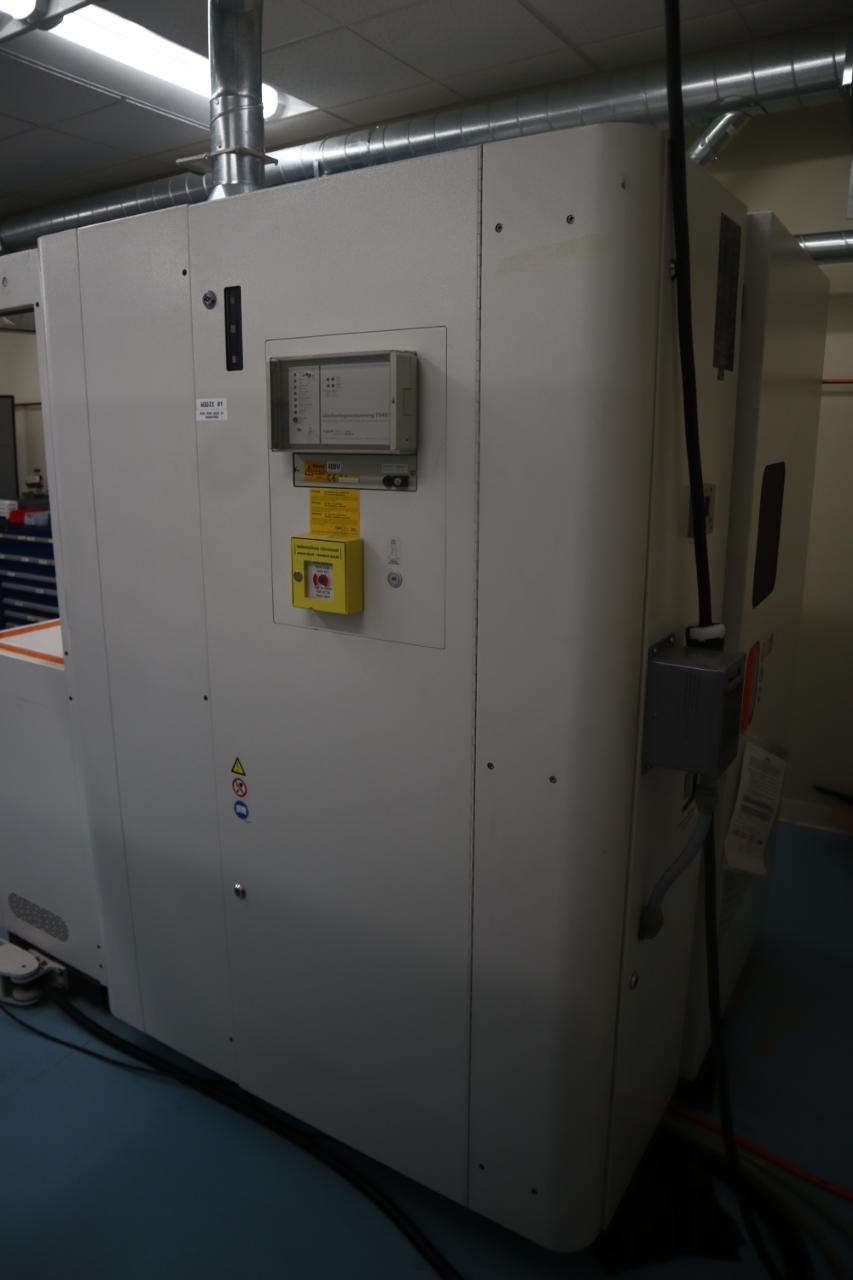

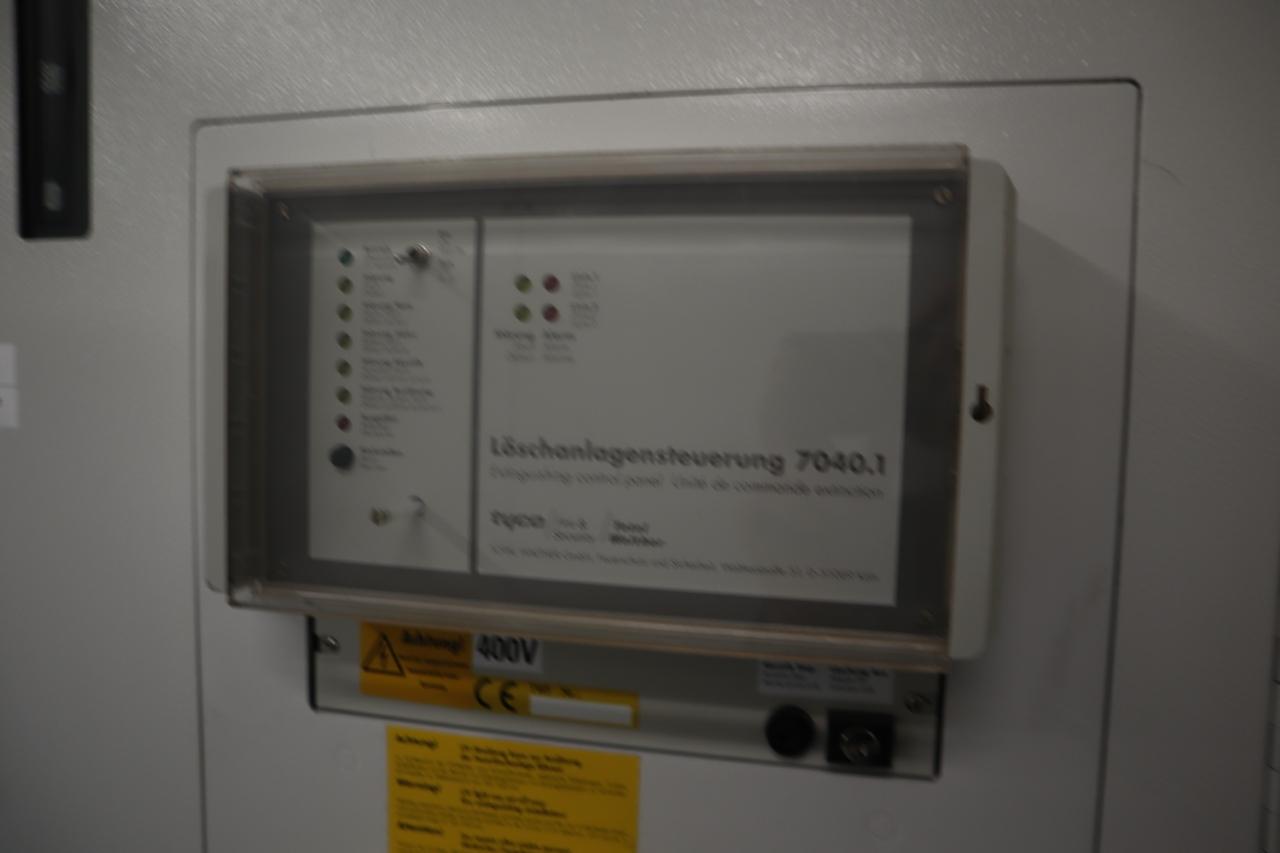

IPG-VO Generator for Inert Oil Dielectric Fluid Machining, Fire Suppression System,AWC Dual Spool Automatic Wire Threader, Drop Tank, Fully Digitized Pulse Control, Advanced Wire Offset, Wire Bending Control, Integrated Vision Unit, Auto-Scanning of the Form, Remote Control Pendant, Filter System, Chiller, Transformer

Electrics:

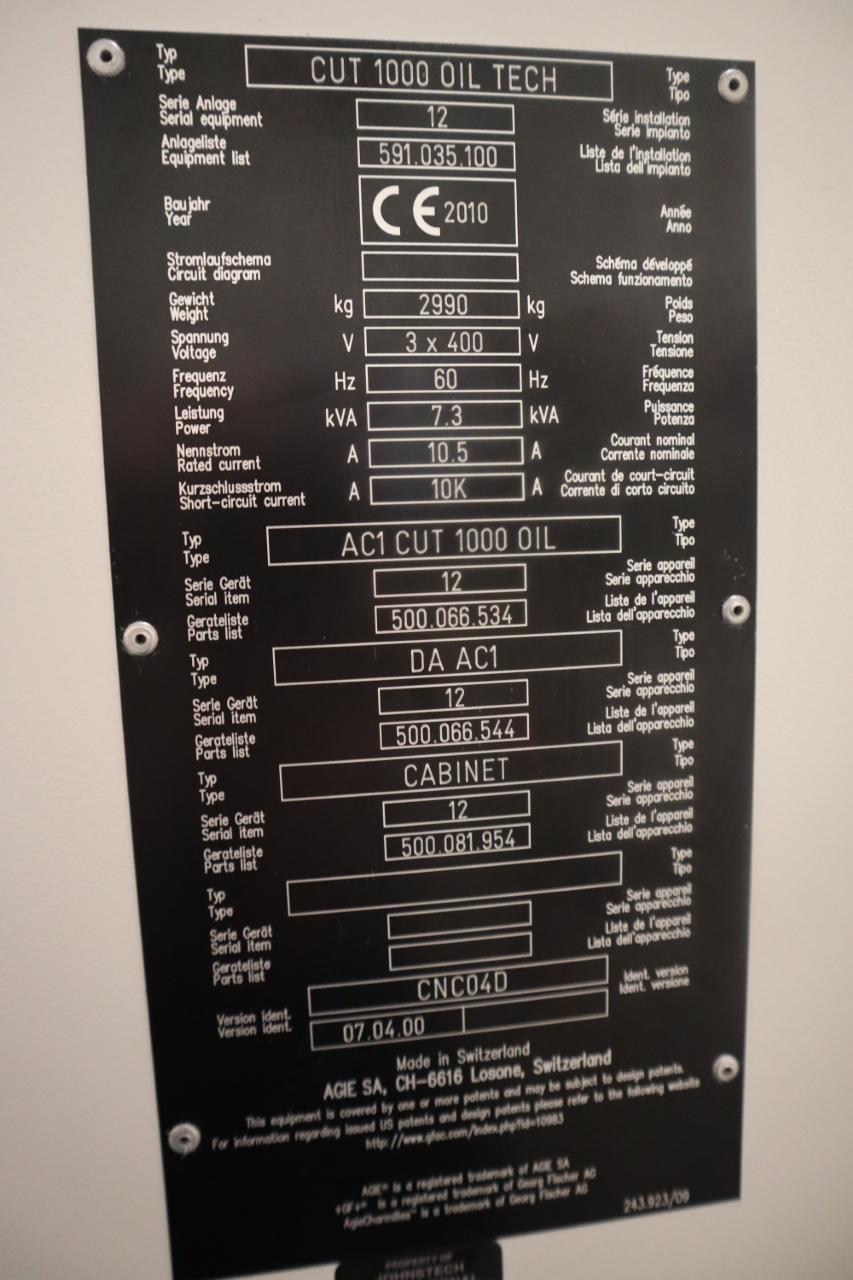

400 Volt, 3 Phase - Compes with Multi-Tap Transformer for 208-240/ 440 VOlt
