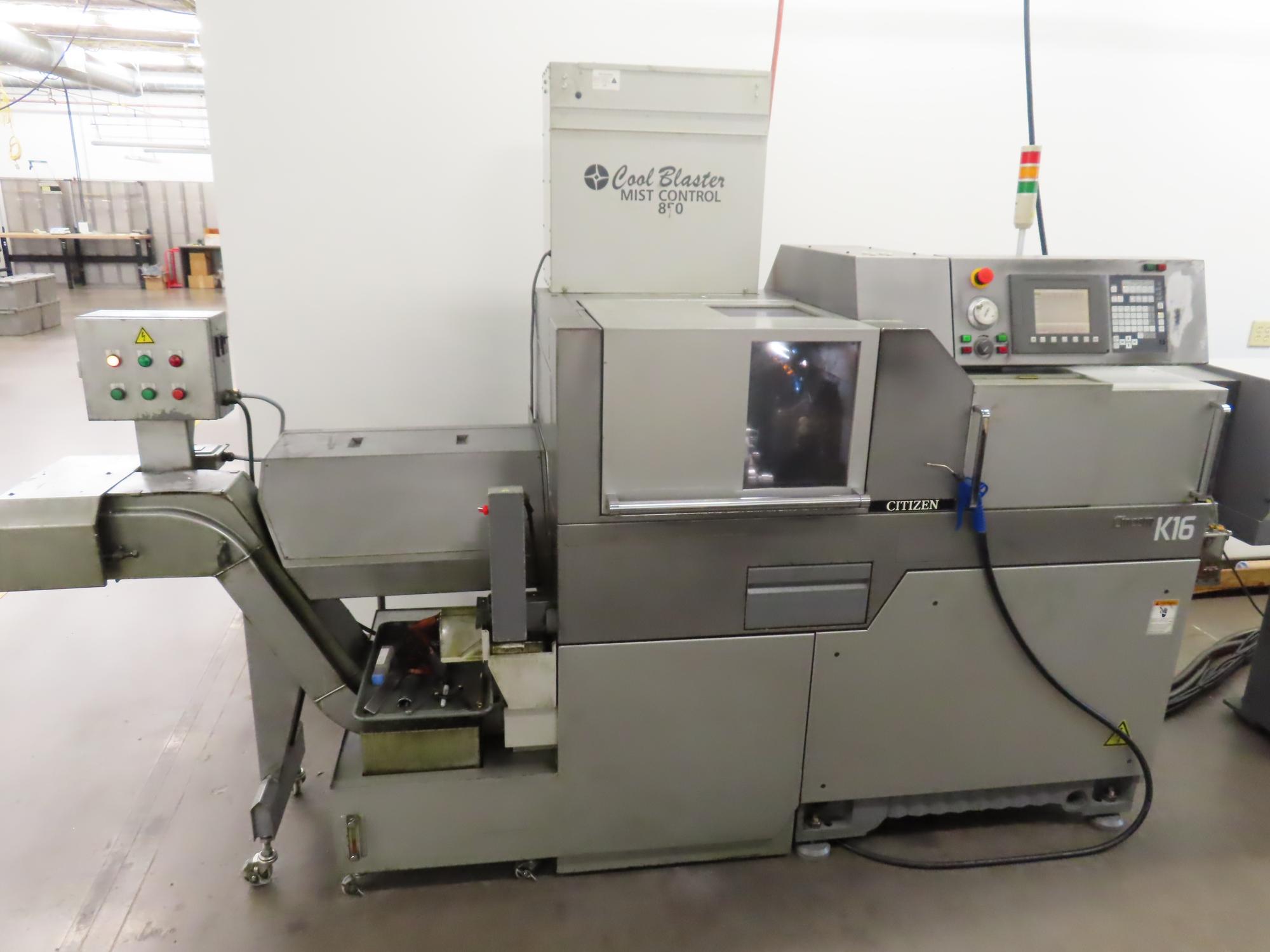

Citizen K16 VIIP CNC Swiss Type Automatic Screw Machine with CAV16K-1S Magazine Barfeed

Stock

None

Model

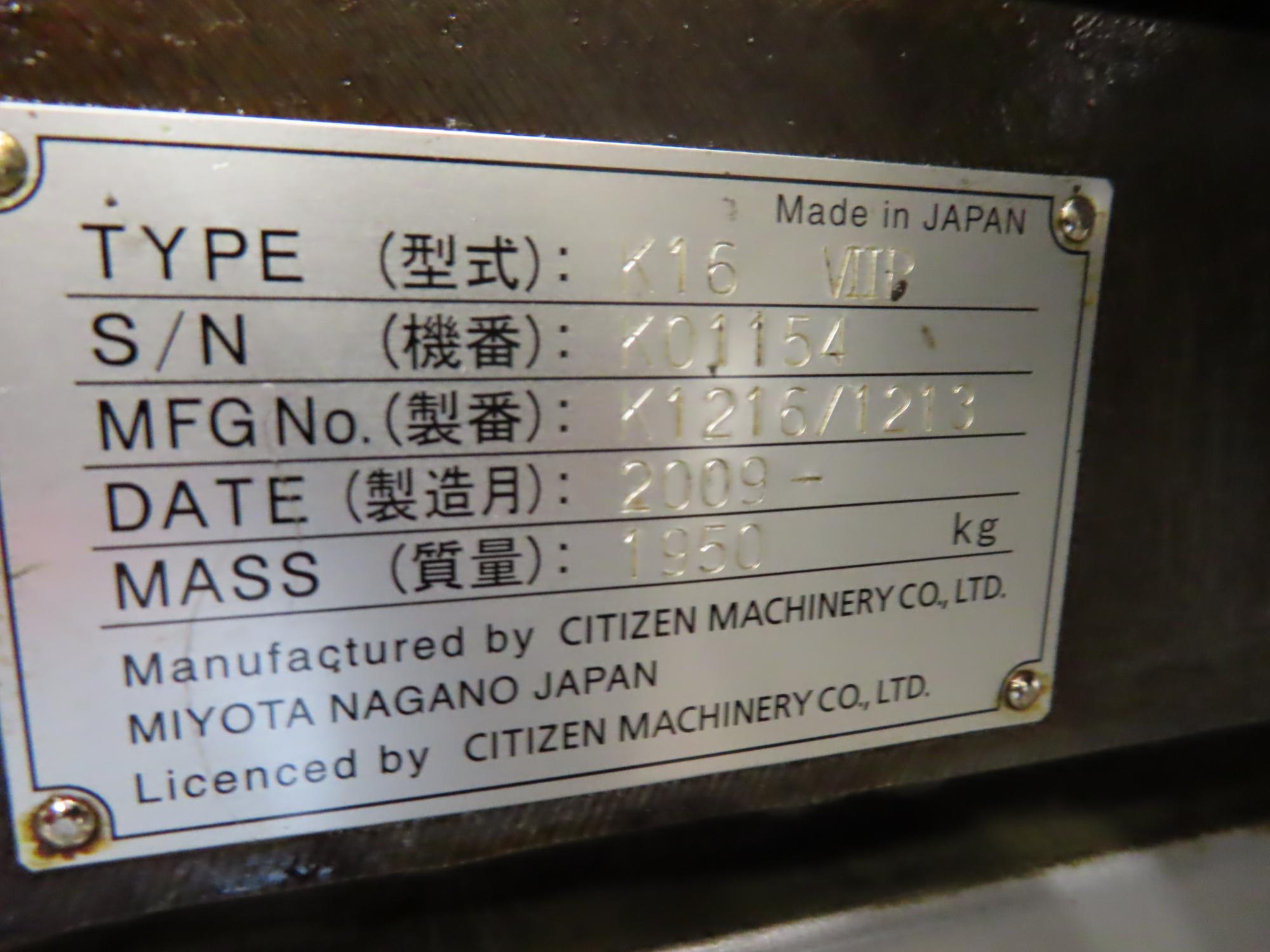

K16 Type VIIP

Dealer Location

Minnesota

Spec Sheet

Maximum Machining Diameter: 16mm

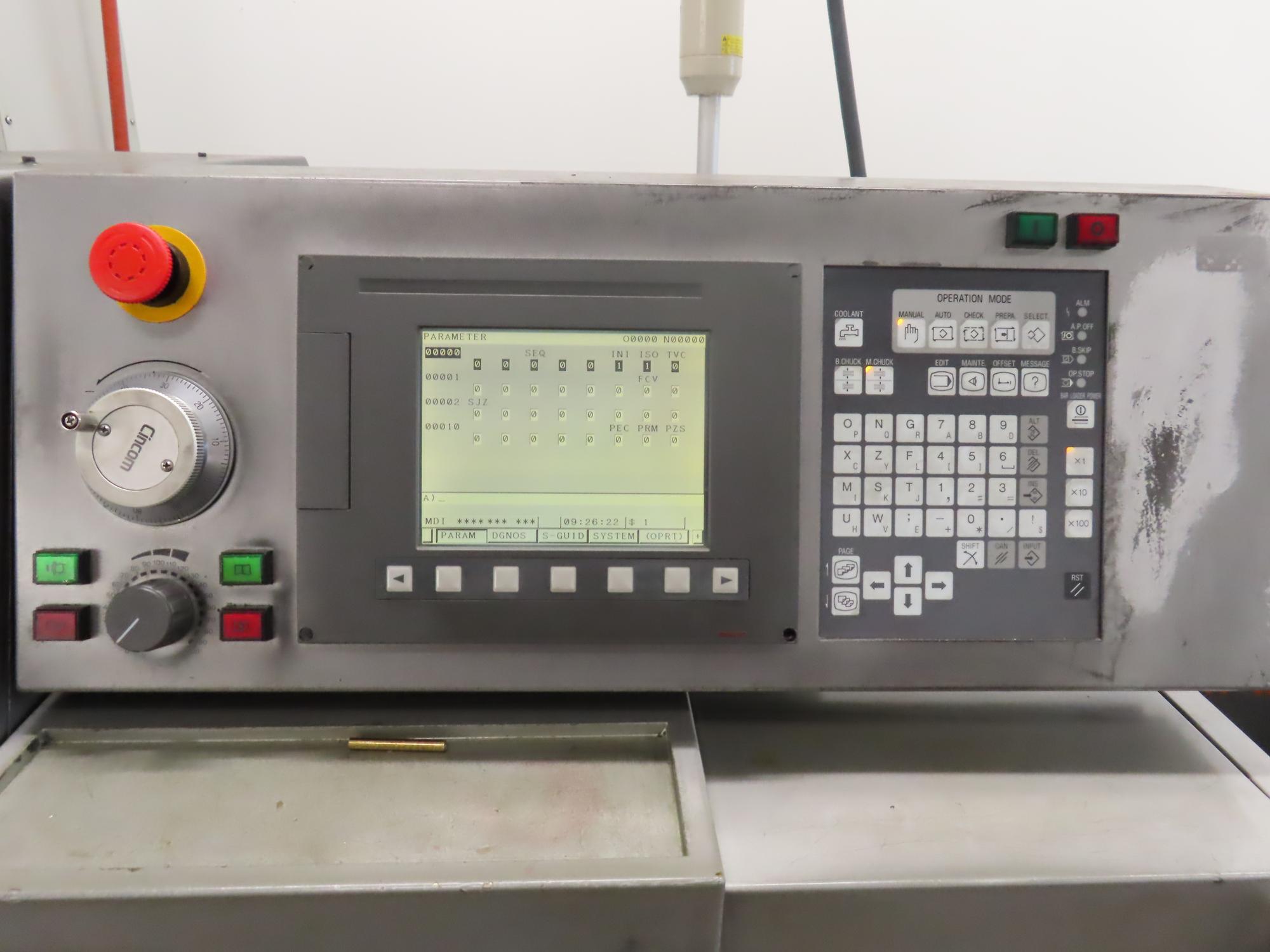

Control: Citizen CNC Control (Fanuc)

Maximum Machining Length: 200mm

Main Spindle Speeds: 15000 RPM

Back Spindle Speeds: 10000 RPM

Rotary Tool Speeds: 6000 RPM

Back Spindle Max Chucking Diameter: 16mm

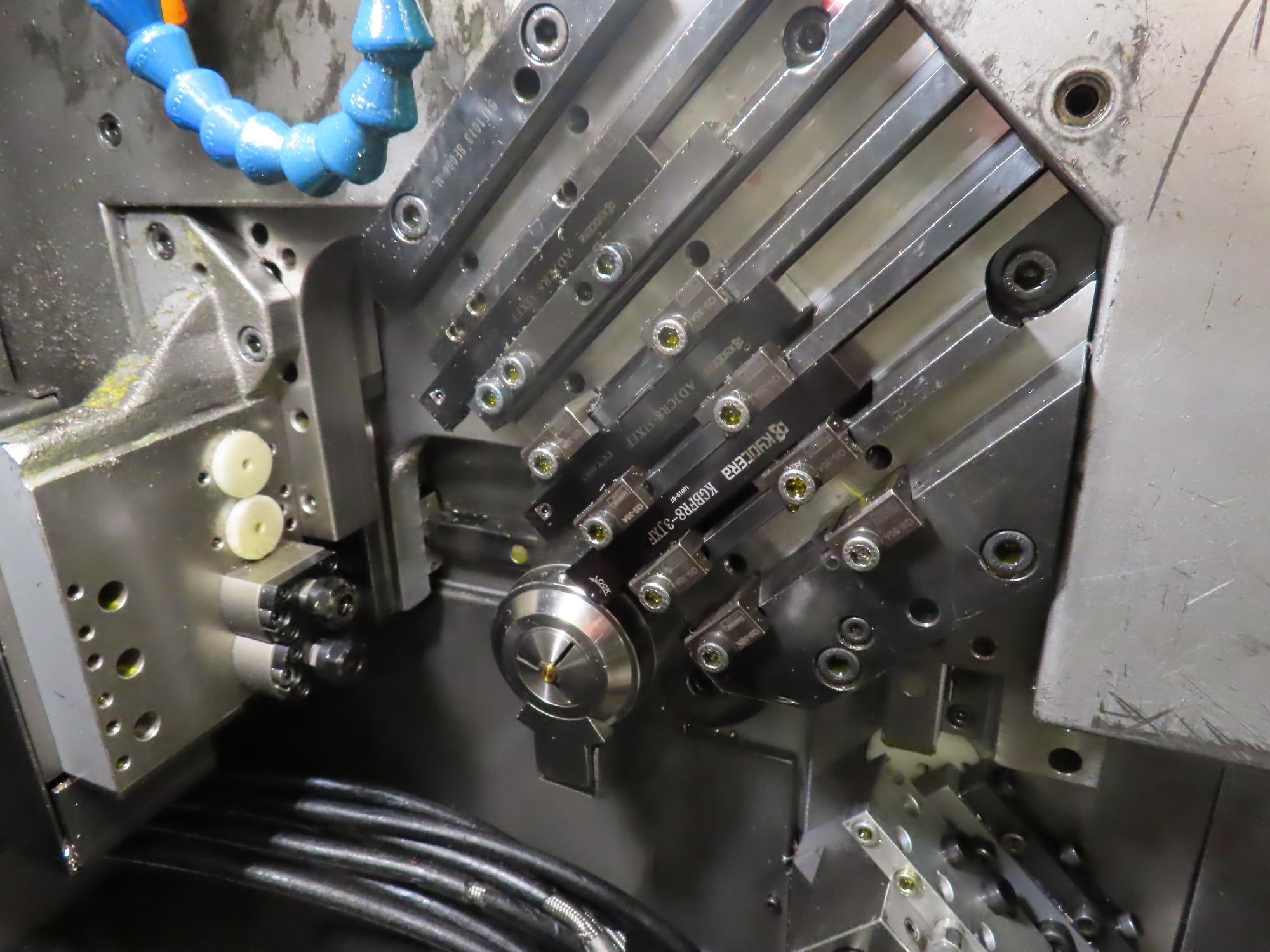

Turning Tools: 6

Front Endworking Tools: 4

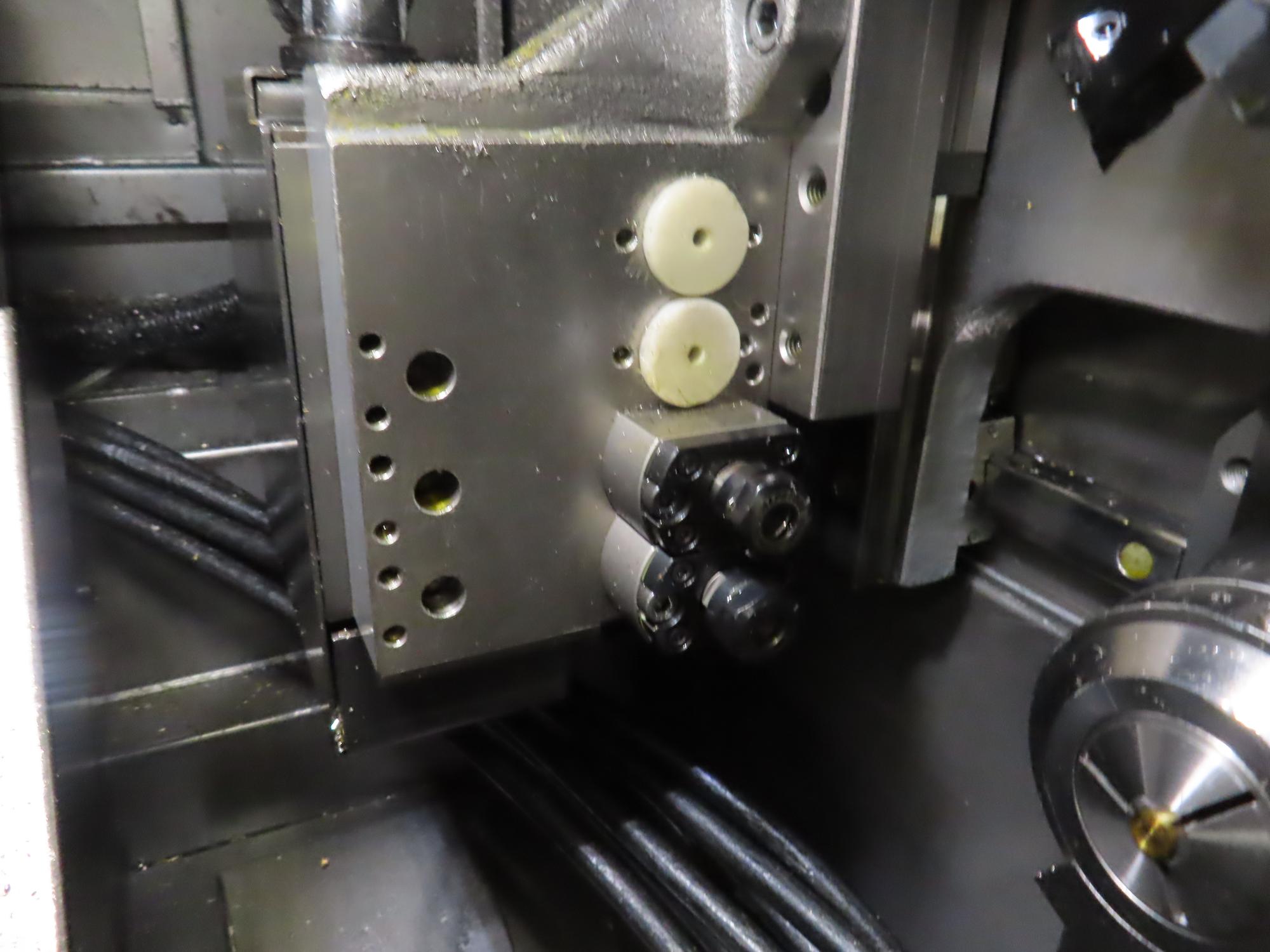

Rotary (Live) Tools: 4

Rapid Traverse (X/Y/Z): (34 m/min X1, Y1) (32 m/min Z1, X2, Z2)

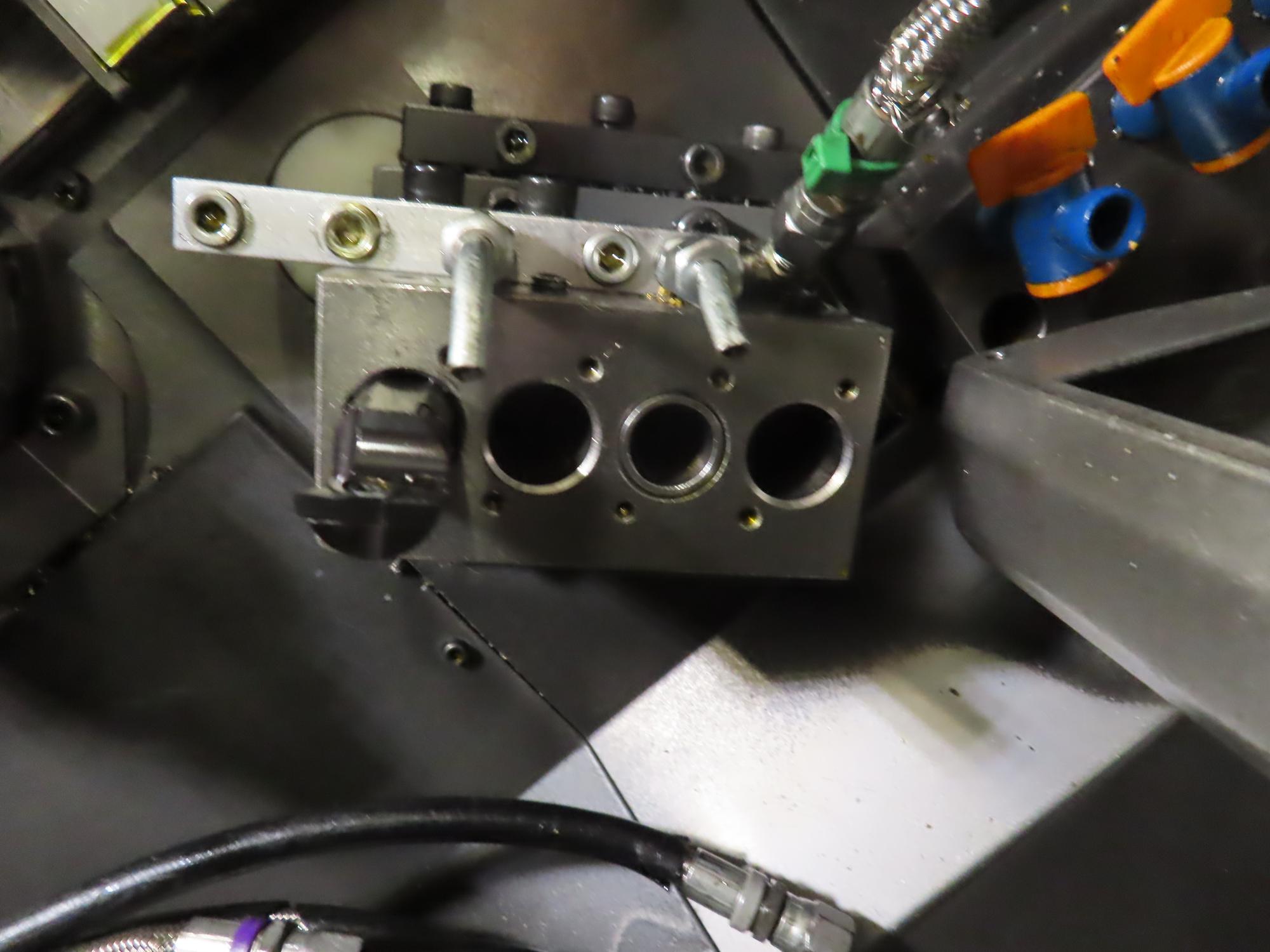

Back Endworking Tools: 4

Main Spindle Drive: 3.7KW

Back Spindle Drive: 1.1KW

Rotary Tool Drive: .25KW

Main Spindle Indexing: C-Axis

Sub-Spindle Indexing: C-Axis

Equipped With:

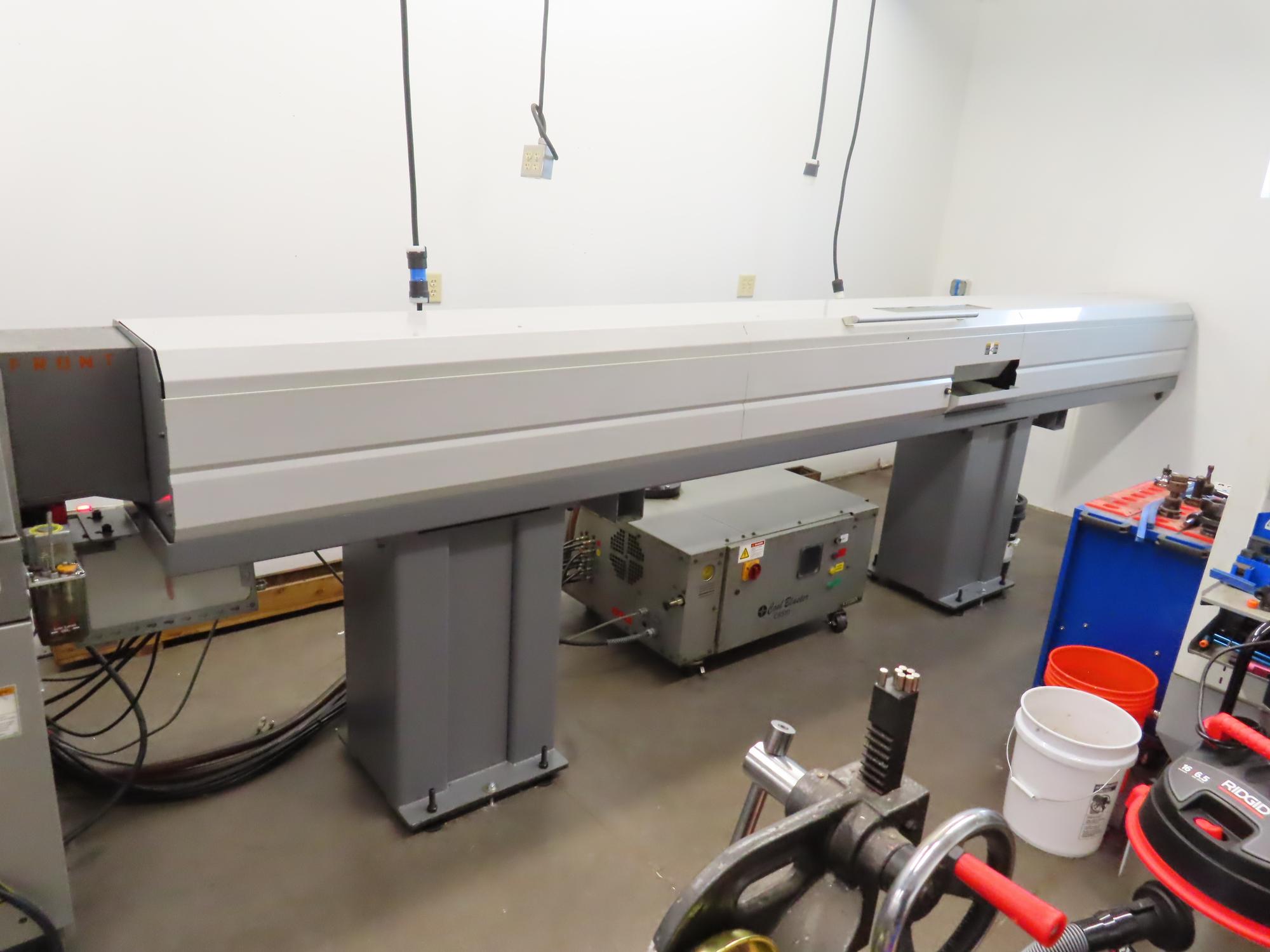

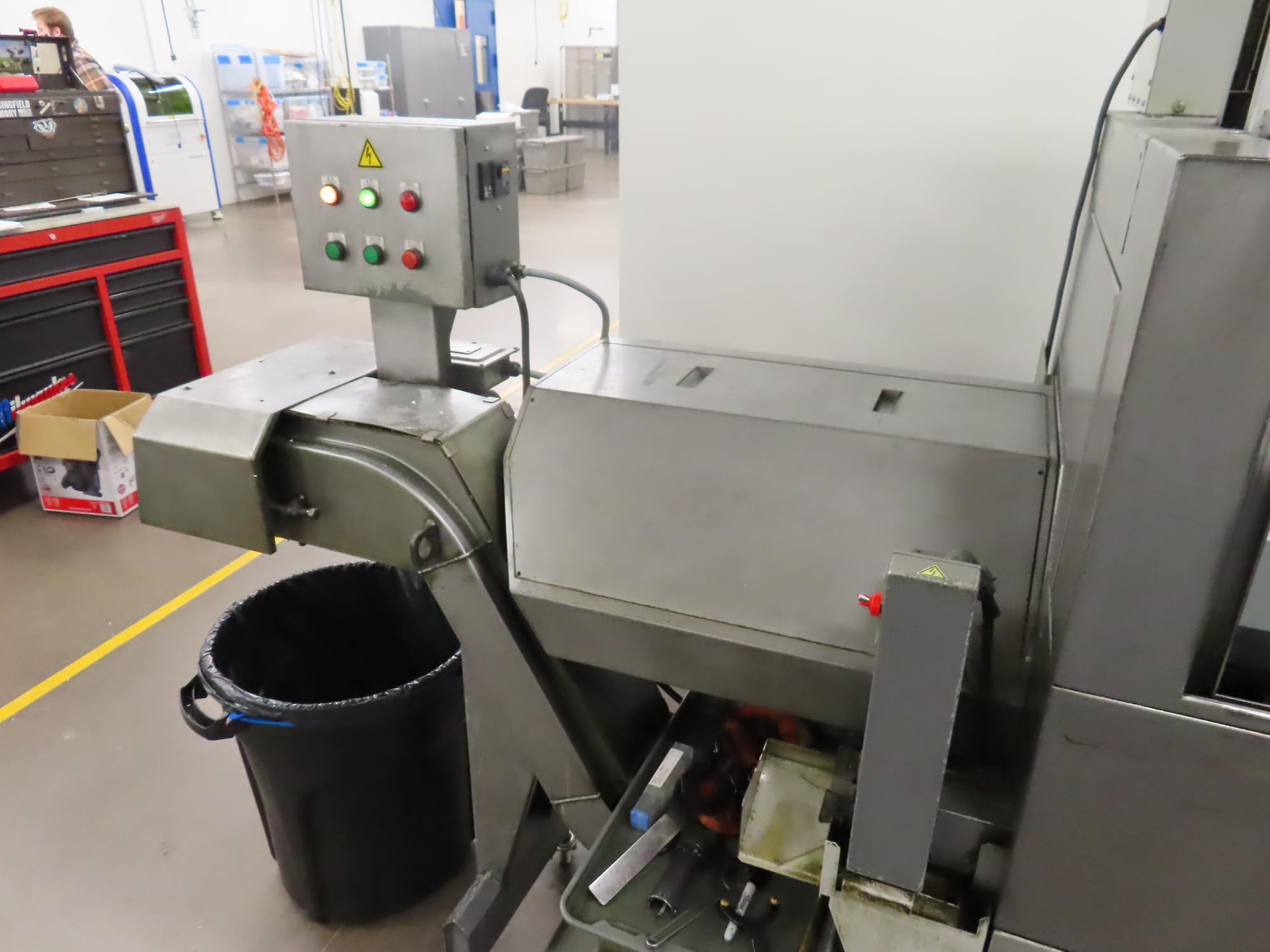

Citizen (Fanuc) CNC Control, CAV16K-1S Magazine Barfeed, CoolBlaster CB-510 10 Line High Pressure Coolant System, CoolBlaster 850 Mist Collector, Nakanishi iSpeed 3 Control Unit, Chip Conveyor, Full C-Axis on Main & Sub Spindles, Synchronous Rotary Guide Bushing, (6) Static Tool Stations and (4) Live Tool Stations on Main Slide, (4) Station Endworking Block on Sub Spindle, (4) Station Back Working Block, Parts Catcher/Conveyor, Long Parts Attachment???, Keys, Manuals and Documentation
