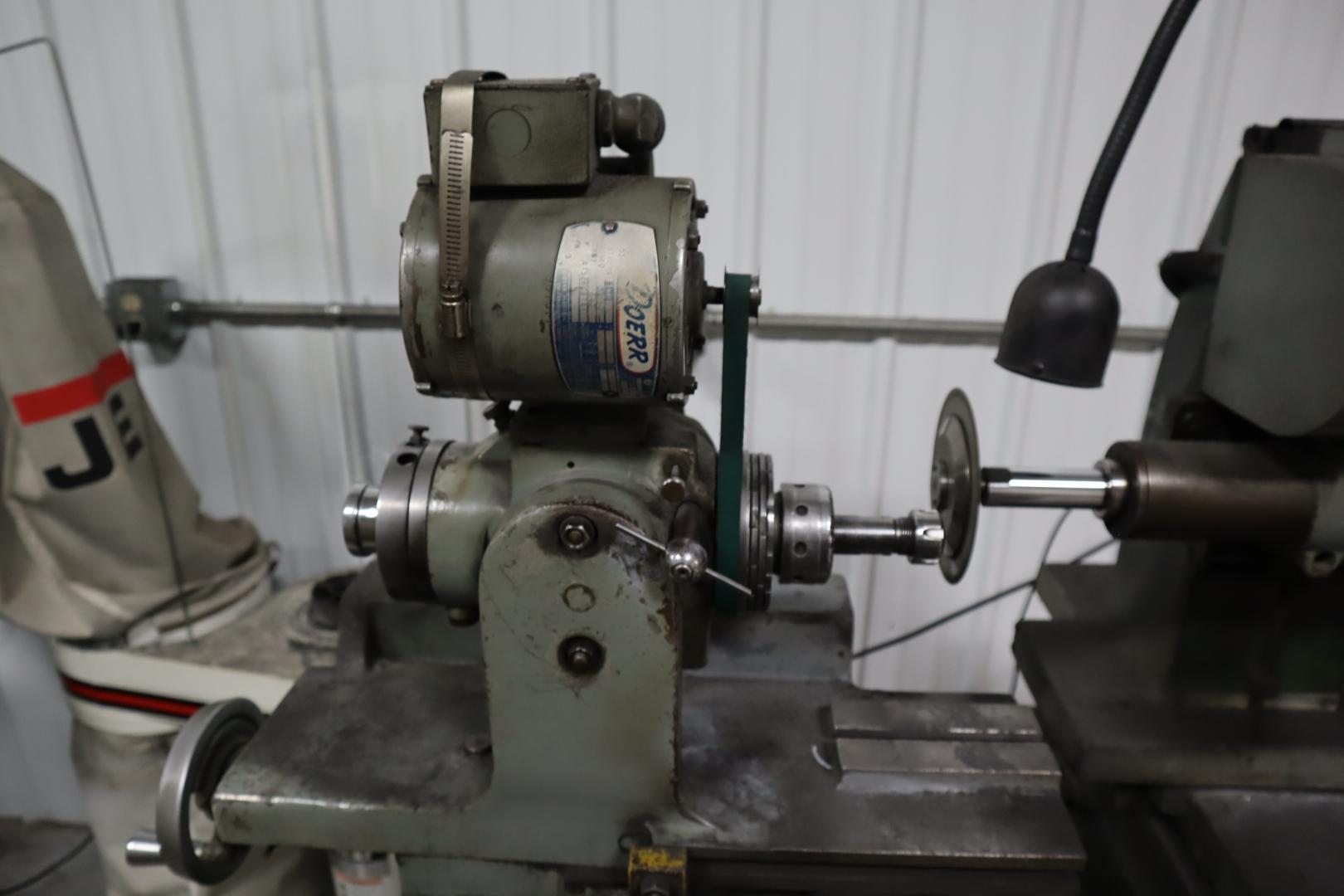

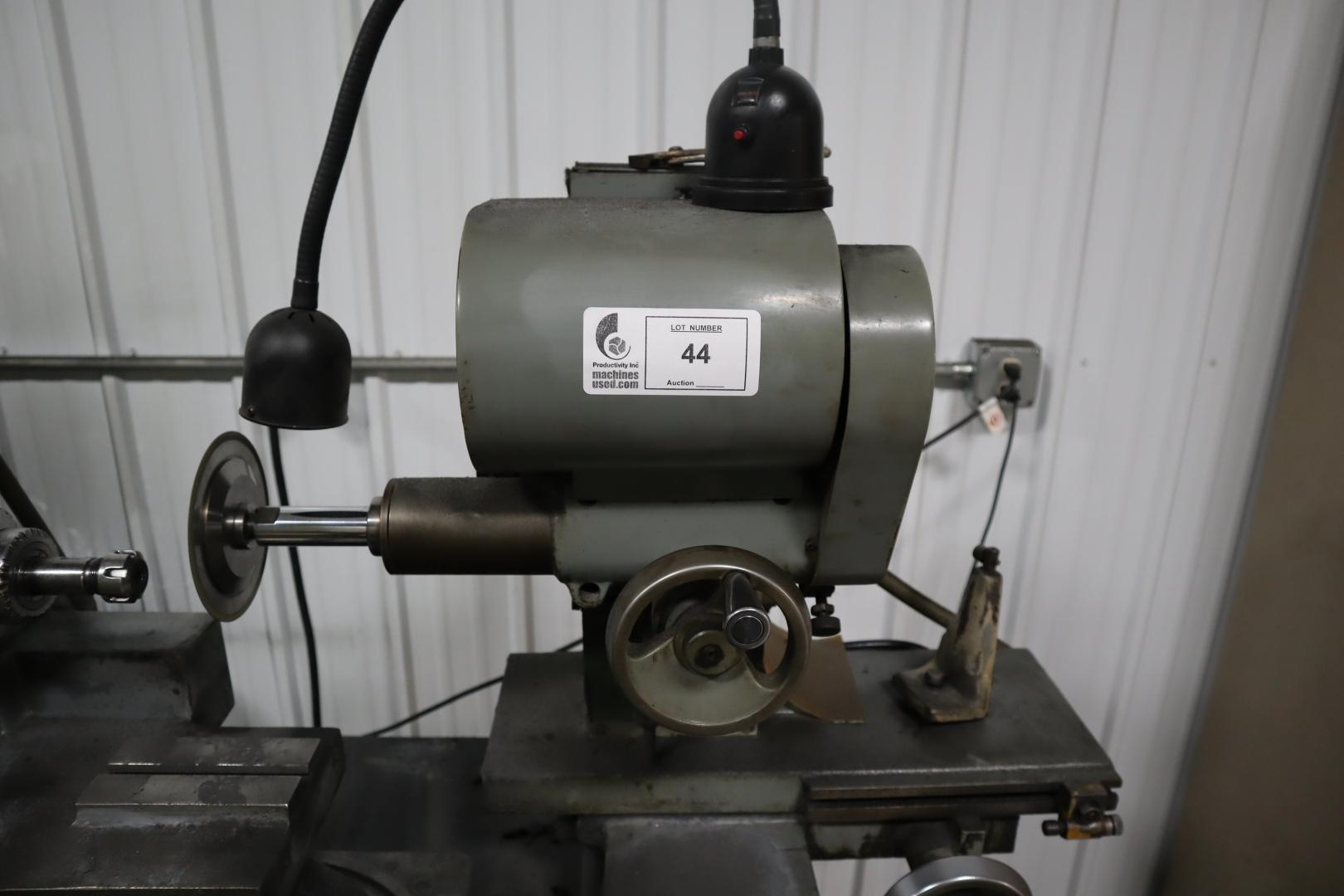

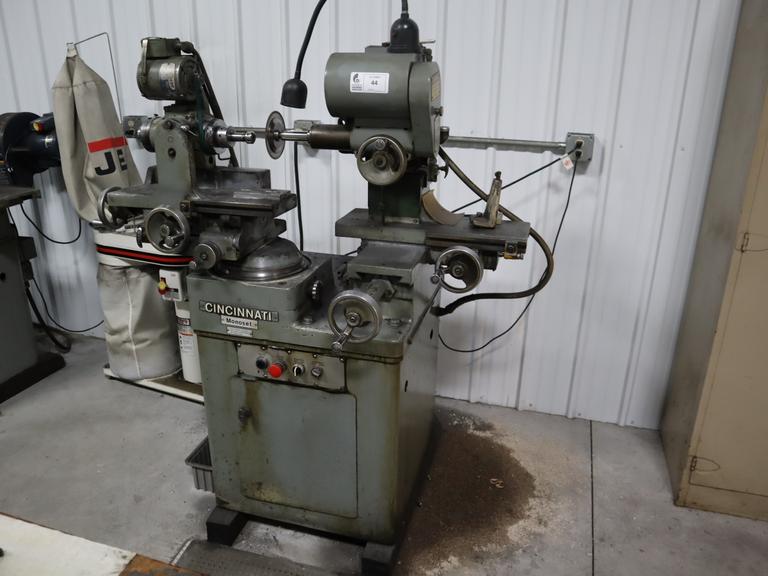

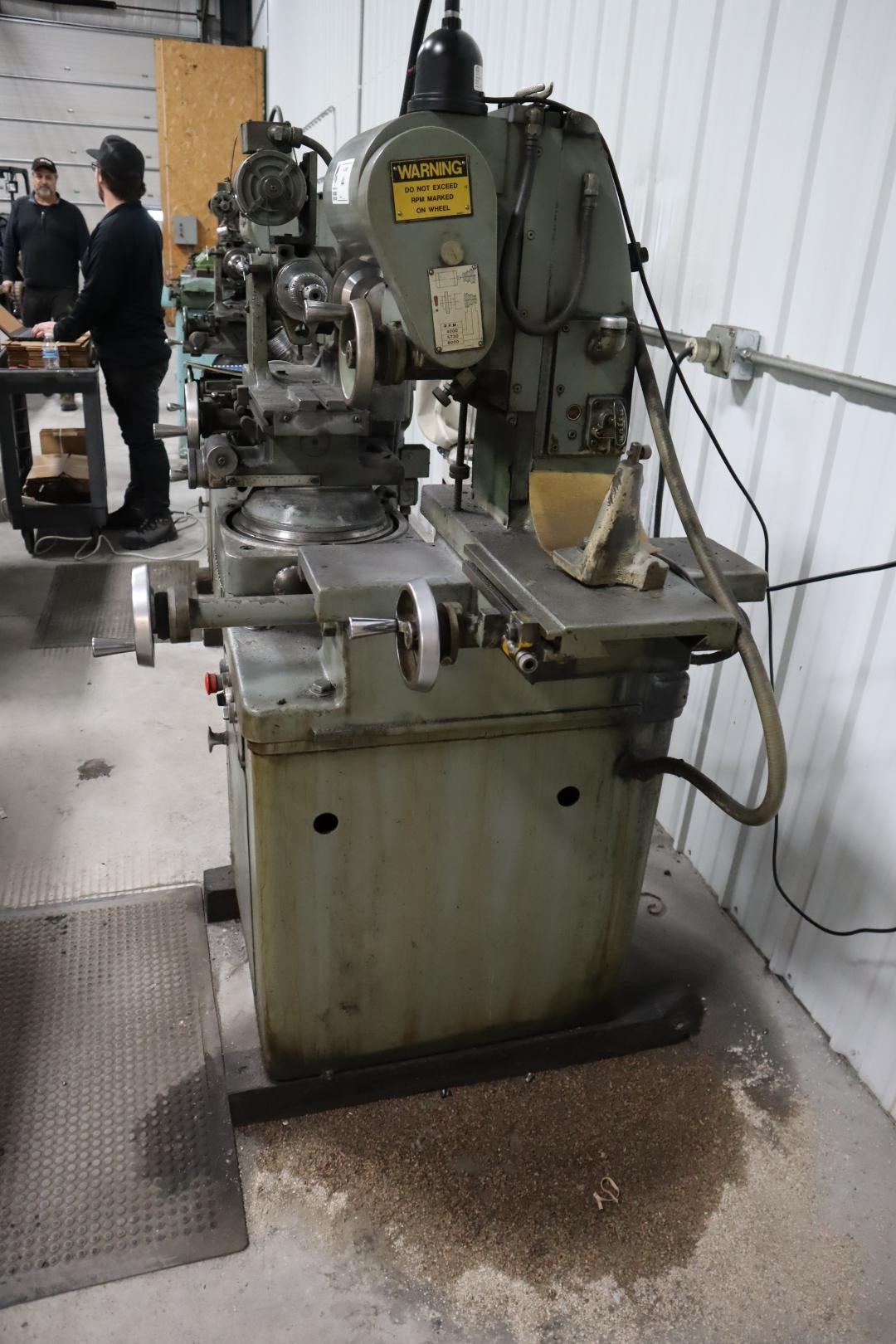

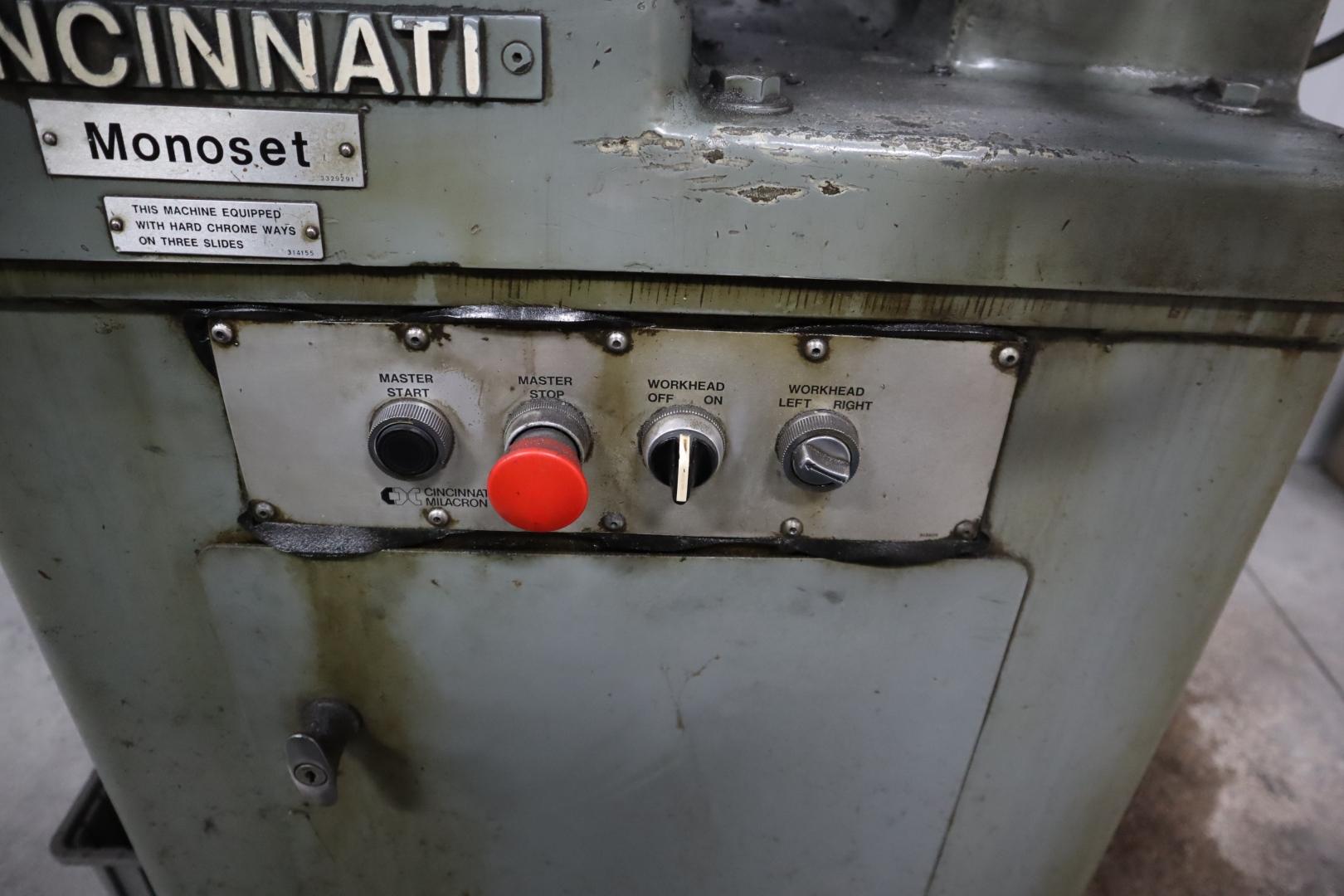

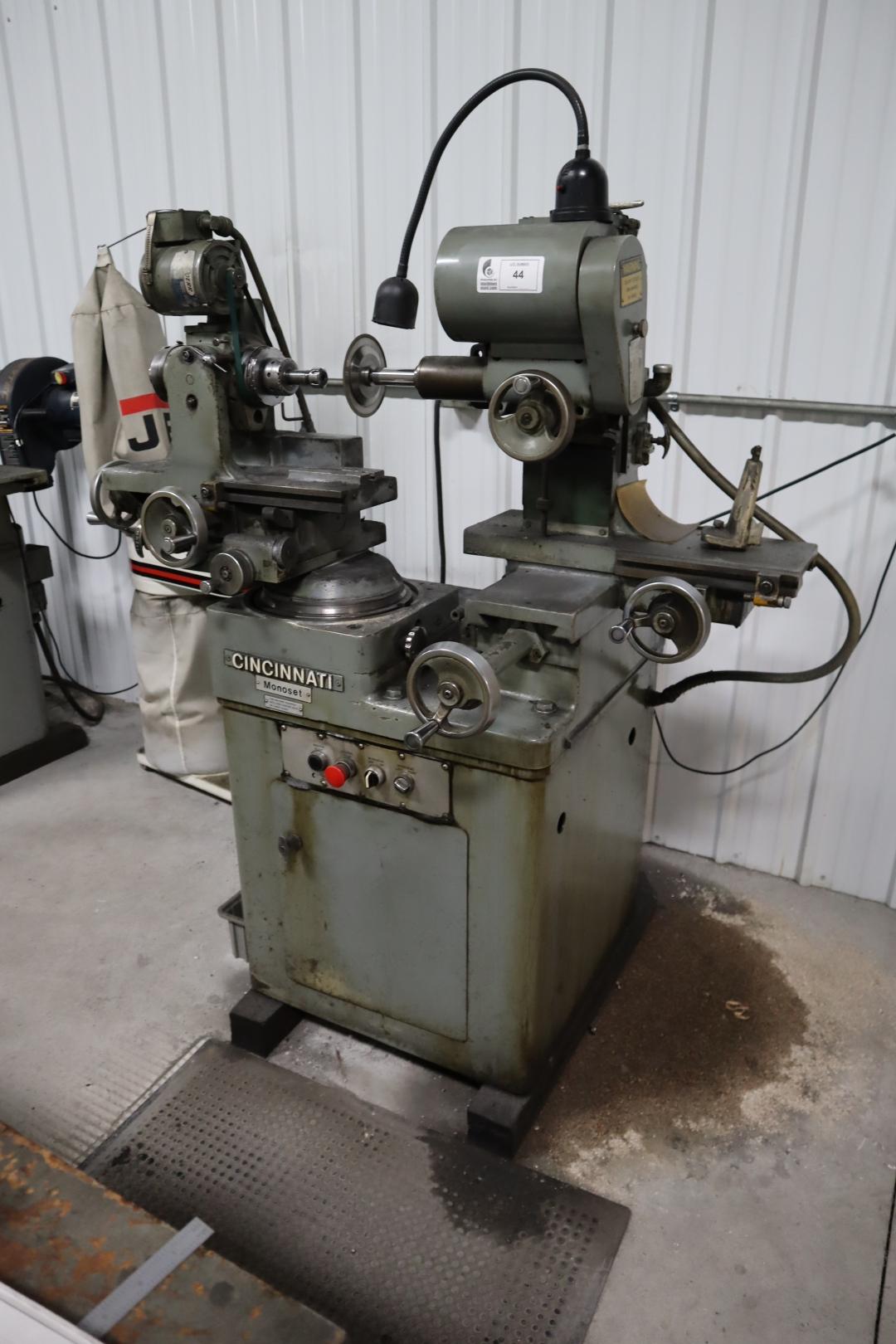

Lot 44: Cincinnati Monoset Tool and Cutter Grinder W/ Work Bench & Accessories

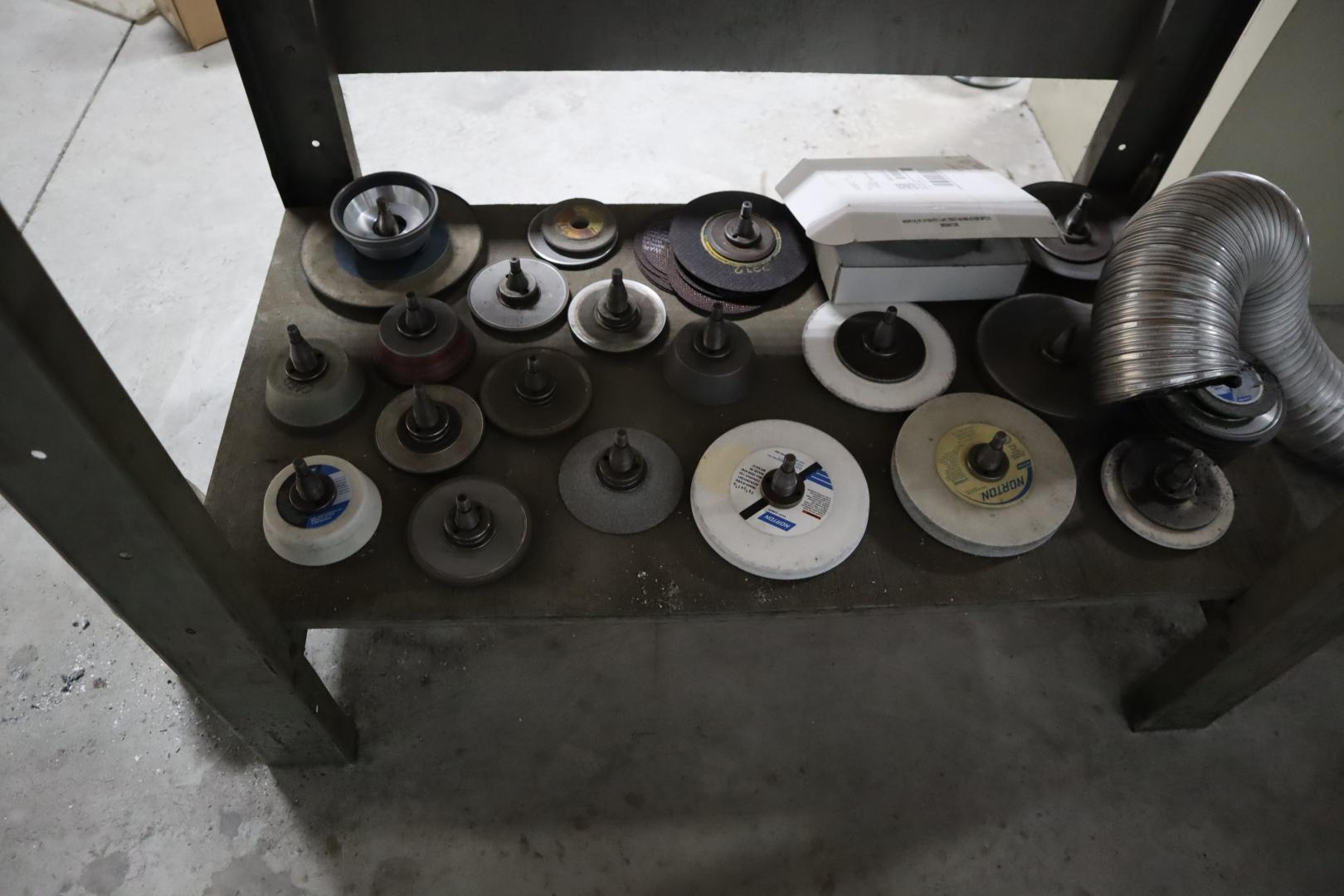

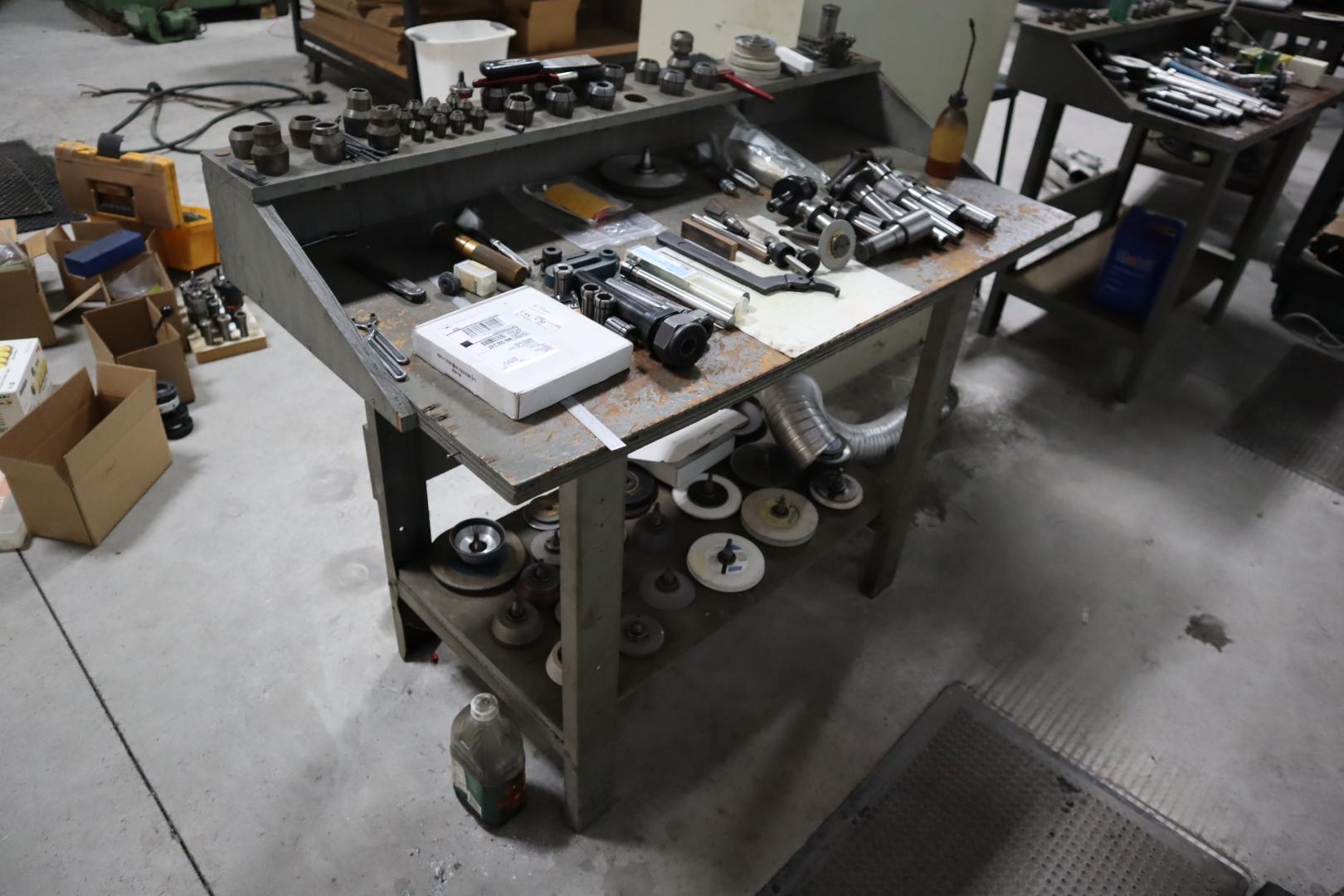

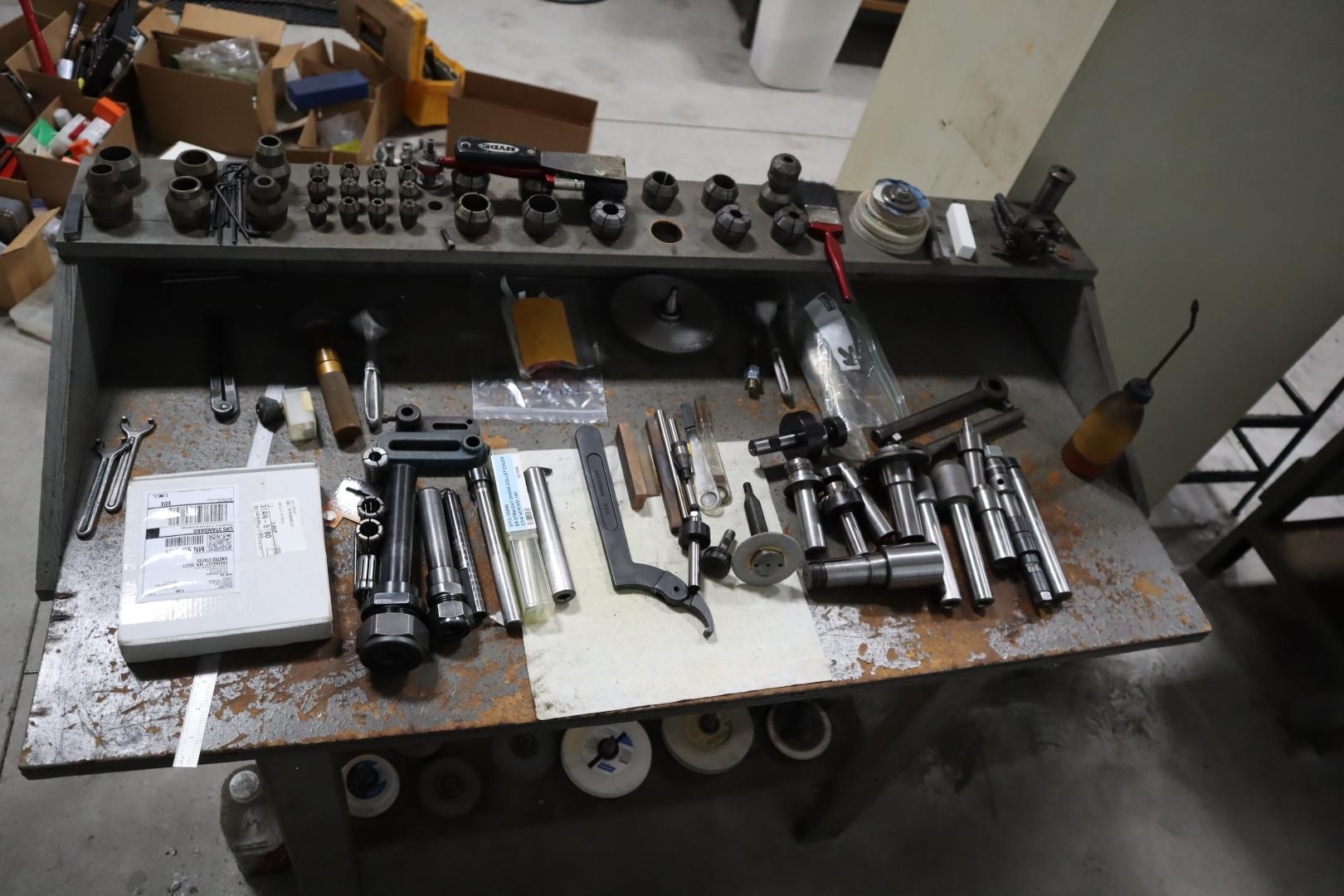

Description: Highly sought-after Cincinnati Monoset grinder, capable of sharpening complex profiles, form tools, end mills, drills, and specialty cutters. Includes tooling and bench.
MachinesUsed.com is a trusted source for used tool & cutter grinders, supporting toolrooms and manufacturing operations nationwide.
Electrics:

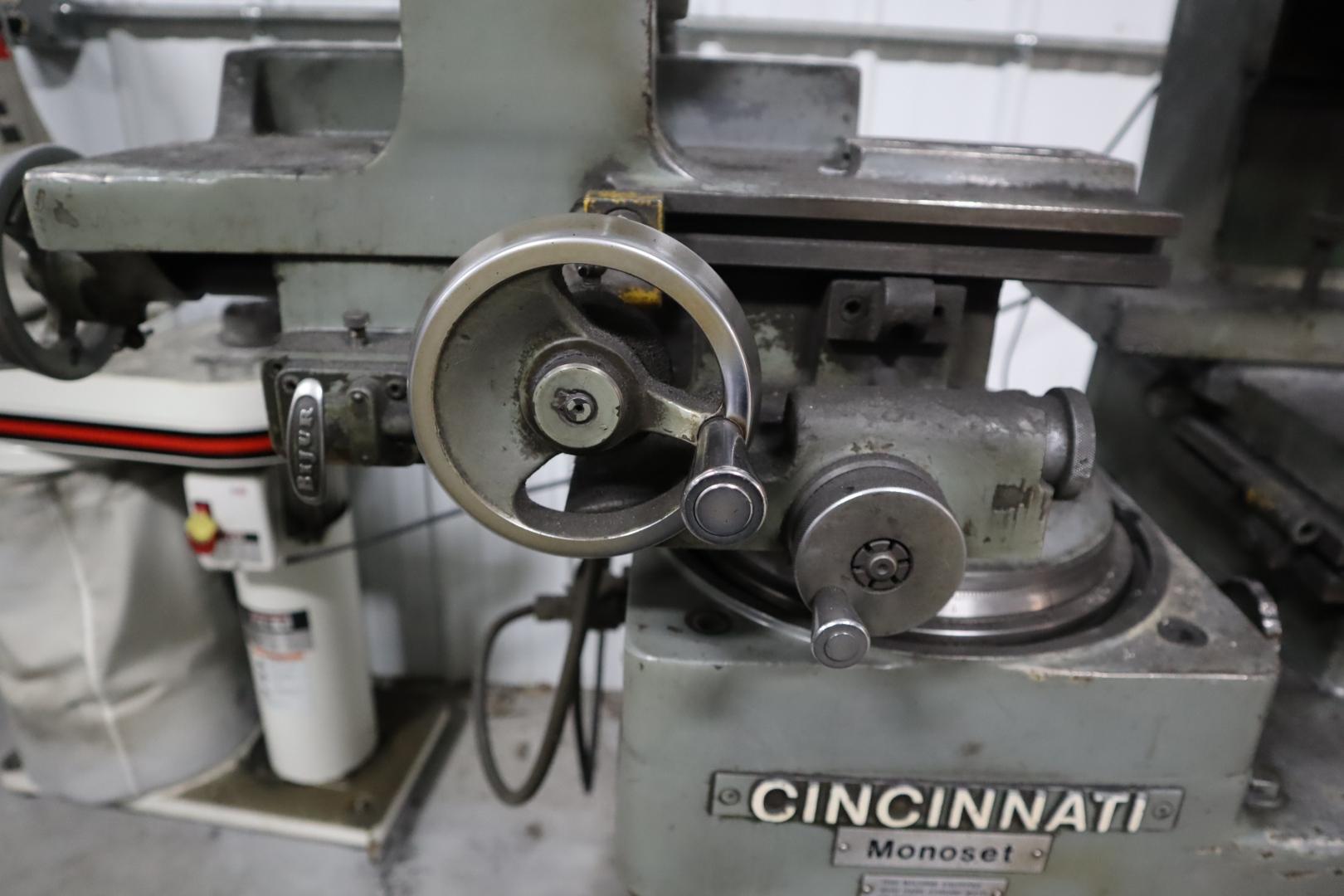

Manufacturer: Cincinnati Model: MT Monoset Year: 1973 Serial Number: 3152A0173-0098
Main Unit Approx Weight: 1800.00 lbs
Main Unit Dimensions (in inches): Length: 55.00" Width: 40.00" Height: 62.00"
Specs:Swing Over Main Slide: 12"
Collet Work Diameter Range: 1/8" to 1-1/4"
Max Wheel Diameter: 4"
Max Between Spindle Nose and Tail Center: 6"
Longitudinal Movement of Main Slide: 5-3/4"
Offset Slide Movement (Either Side of Center: 5-1/4" (2-1/4" Rear of Center & 3" Front of Center)
Vertical Slid Travel of Wheelhead Above / Below Center: 4-1/4" / 4-1/2"
Transverse Slide Travel of Wheelhead: 7-1/2"
Longitudinal Slide Travel of Wheelhead: 6"
Angular Range of Workhead in Horizontal / Vertical Plane: 235 Degrees / 80 Degrees
Grinding Wheel Spindle Speeds: 4000, 5729 & 8000 RPM
Workhead Spindle Speed: 436 RPM
Vertical Head Movement: 9.5" (4.5" Above Center & 5" Below Center)
Seller Company: Exxact Tooling
Seller Contact: Machinesused.com ExxactToolAuction Phone: (763) 745-1166
Item Location: Exxact Tooling, 3101 Industrial Dr #600, Faribault, MN 55021
Location Contact: Machinesused.com ExxactToolAuction Phone: (763) 745-1166
Inspection Date & Time: Friday, January 16, 2026 9AM-4PM
Loading Dock: Ground Level Door, Paved Lot
Removal Dates and Times: This item must be removed between Monday, January 26, 2026 and Tuesday, January 27, 2026
