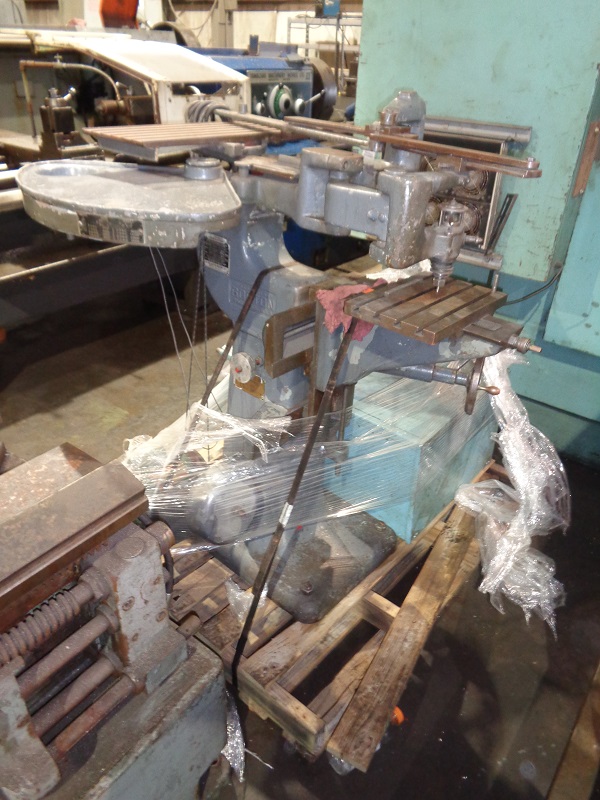

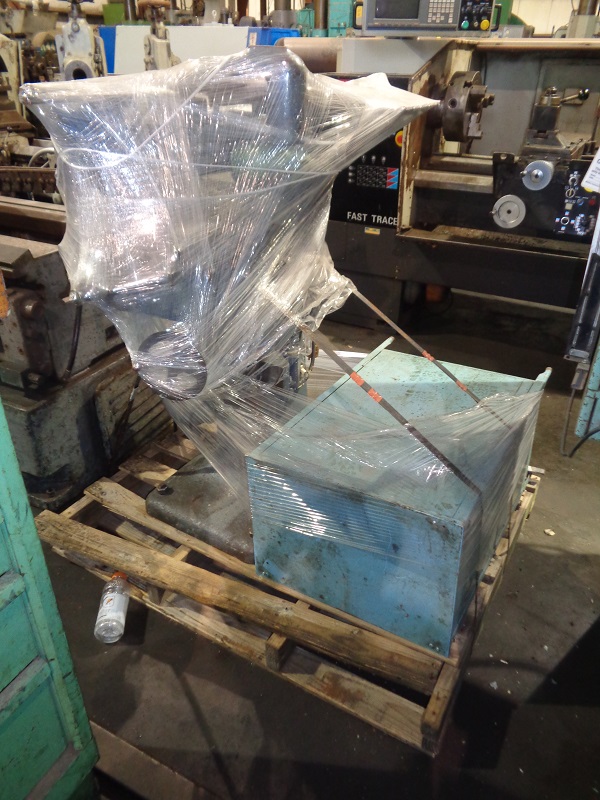

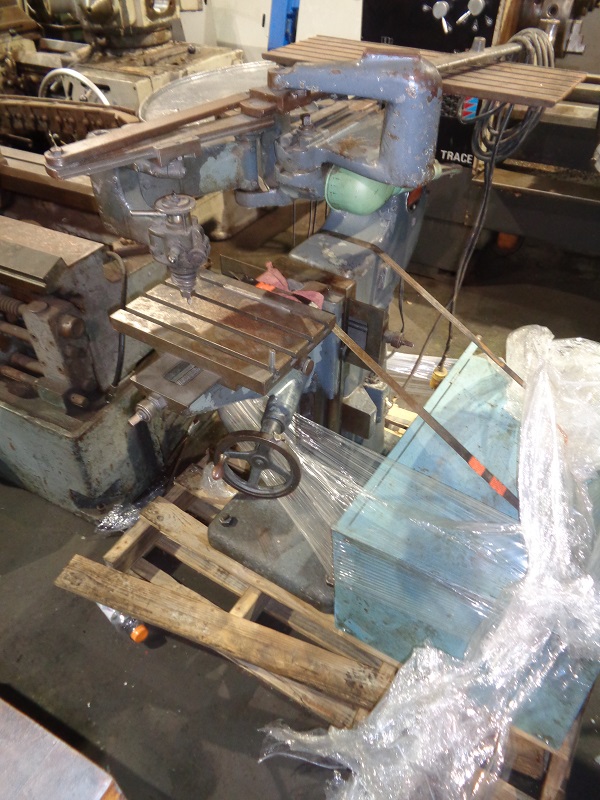

Gorton Pantograph Engraver

Manufacturer

GORTON

Stock

0810312

Model

None listed

Dealer Location

Texas

Spec Sheet



Gorton Pantograph Engraver

Specifications:

2-Dimensional
Work Table: 8" x 12"
X Travel: 10"
Y Travel: 11"
Z Travel: 9.75"
Max Distance, Spindle to Table: 9.75"
Swing and Engrave to: 36" Diameter x 3"
Area Reproducing at Full Size: 6.5" x 9"
Ratios: 1:1 to 1:40
Circle Diameter: 7.75"
Rectangle: 6.25" x 10.5"
Long Strip: 2" x 17"
Cutter Capacity: 5/16"

Equipped With:

Flat Plate Copy Holder
Capable of Engraving Characters to 0.002" High
