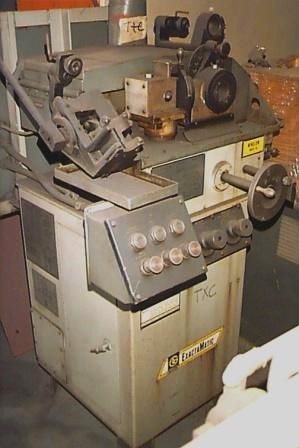

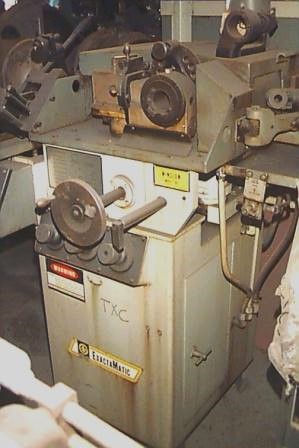

G&L EXACTAMATIC DRILL-POINT GRINDER

Stock

018351

Model

Winslow HC

Dealer Location

Texas

Spec Sheet



G & L Exactamatic Drill-Point Grinder
Model Winslow HC

Specifications:

Drill Capacity:
Conventional Point: 1/16" to 1/5" Diameter
Helical Point: 1/16" to 1.0" Diameter
Racon Point: 1/16" to 1.0" Diameter
Split Point: 1/16" to 0.5" Diameter
Four-Facet Point: 1/16" to 1.0" Diameter
Grinding Wheel: 2" X 3/4" X 5" Horizontal Mount

Motors:
Spindle:  1 HP; 1800 RPM; 230/460 V; 60 Hz; 3 PHASE
Workhead: 1/4 HP; 1800 RPM; 60 Hz; 3 PHASE
Coolant: 1/8 HP; 3450 RPM; 110 VOLTS; SINGLE PHASE

Equipped With:

handles all types of 2 flute, right-hand or left-hand drills
drill point included angles from 90 to 140 degrees
lip clearance angle adjusted by control on console
built in cam for precision wheel dressing

Weight 1100 lbs
Floor Space 50" x 39"
