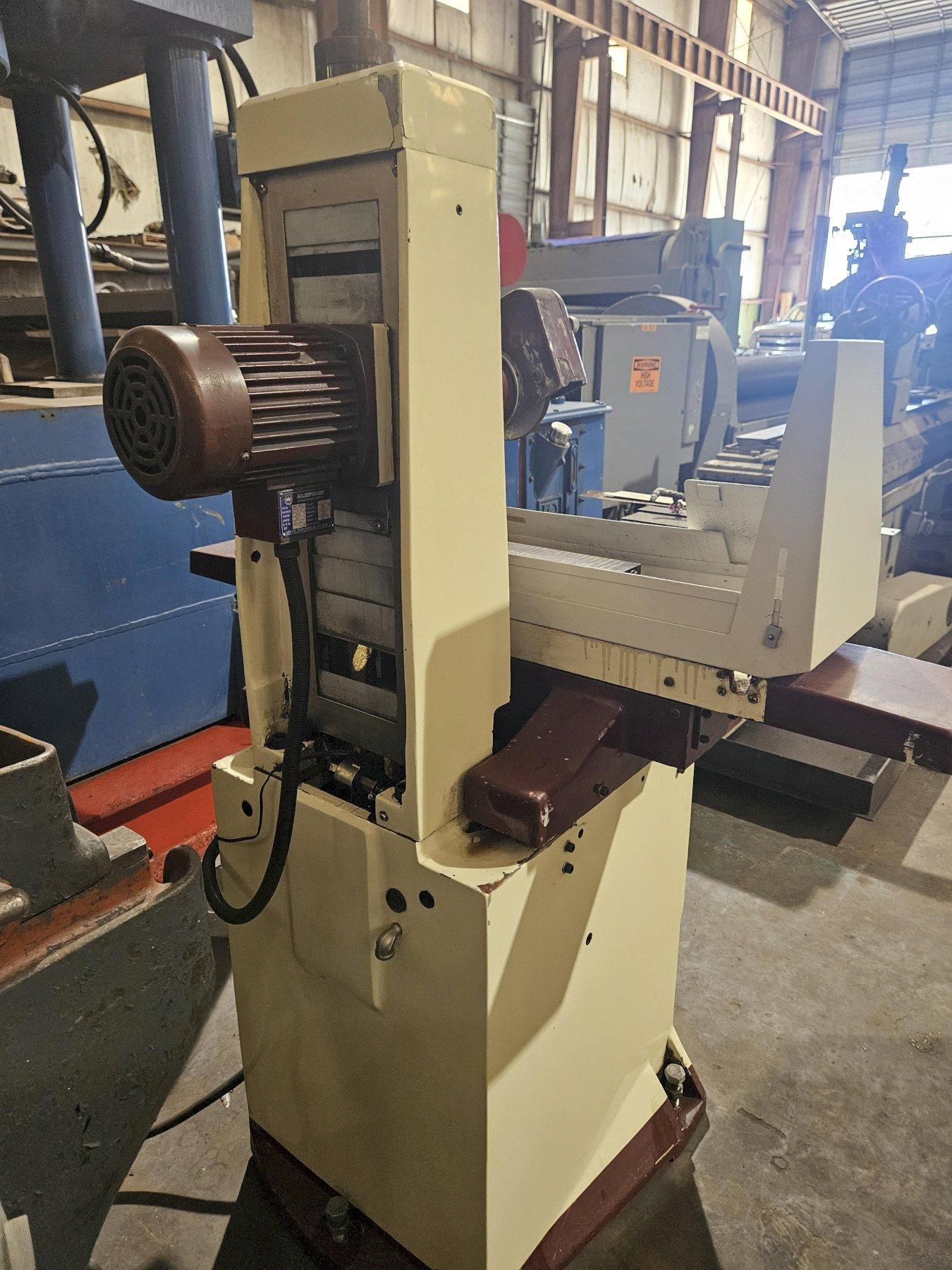

6" x 18" Chevalier Model FSG-618M Precision Handfeed Surface Grinder

Manufacturer

CHEVALIER

Stock

0110546

Model

FSG-618M

Dealer Location

Texas

Spec Sheet



6 x 18 Chevalier Model FSG-618M Precision Handfeed Surface Grinder
S/N: A38842012

Specifications:

Table Size:  6" x 18"
Grinding Capacity Longitudinal: 18"
Grinding Capacity Crosswise: 6"
Table Surface to Spindle Centerline Distance: 17-3/4"
Standard magnetic Chuck Size: 5-7/8" x 17-3/4"
Longitudinal Movement of Table - Manual: 19"
Cross Movement of Table - manual: 7"
Crossfeed Handwheel per Revolution: 0.1181"
Crossed Handwheel per Graduation: 0.0005"
Wheelhead Vertical Downfeed Handwheel per Revolution: 0.08"
Wheelhead Vertical Downfeed Handwheel per Graduation: 0.0005"
Standard Grinding Wheel Size: 8" x 1/2" x 1-1/4"
Grinding Spindle Drive Speed: 3450 RPM
Grinding Spindle Drive Motor: 2 HP

Weight: 1500 lbs.
OAD: 41" x 47" x 76"
