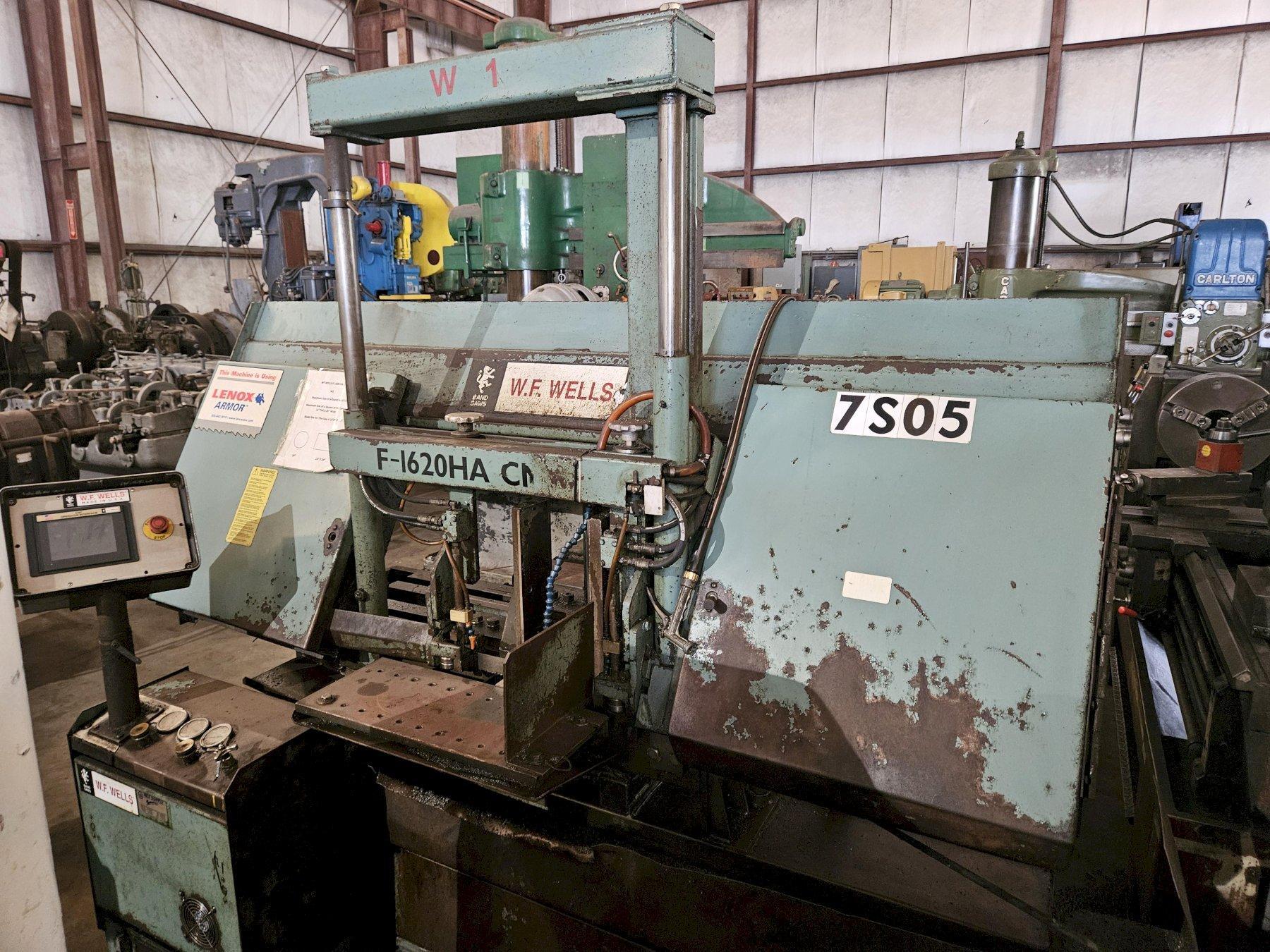

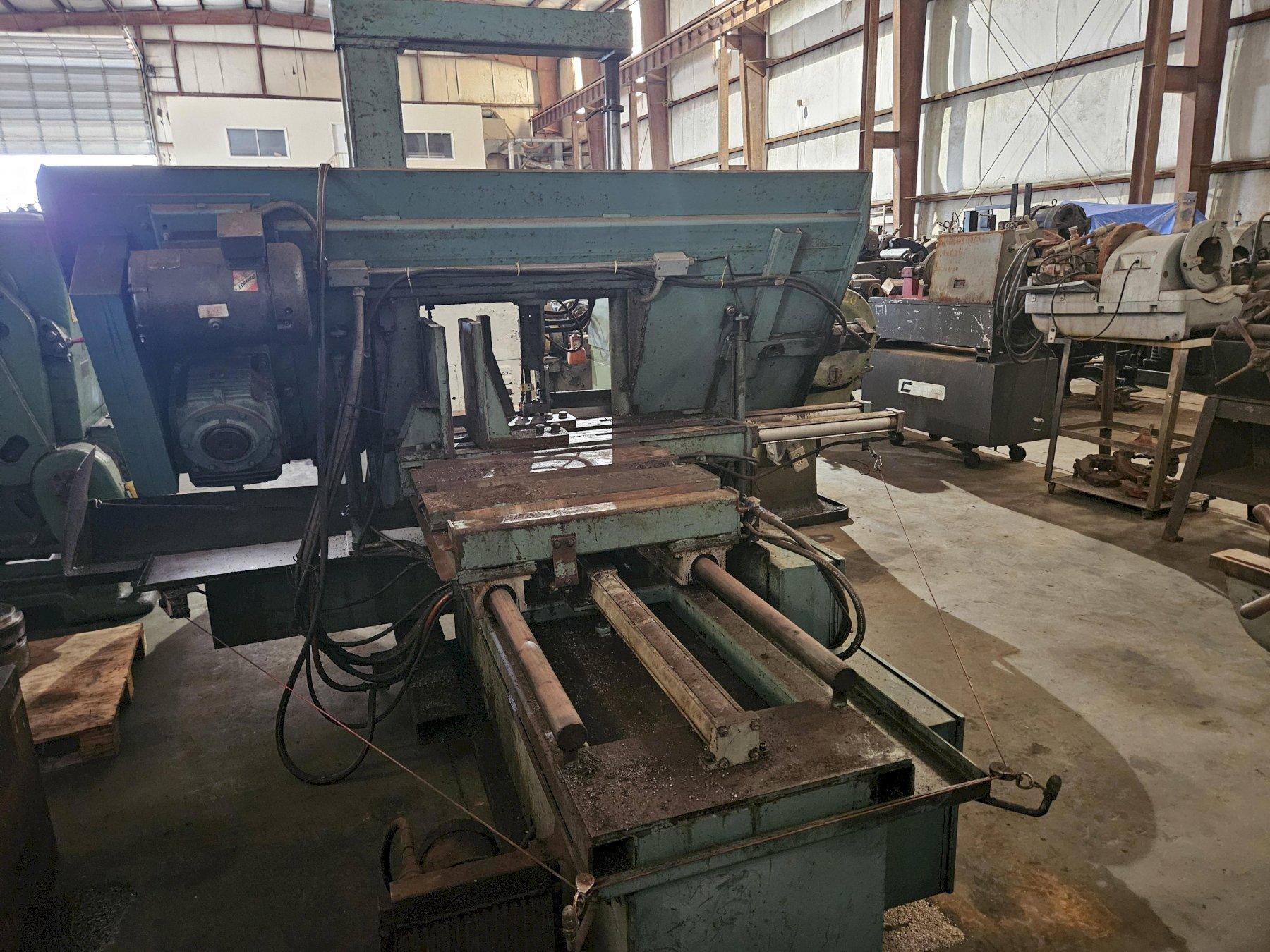

17 x 20 W.F. Wells Model F-1620-HA CNC Fully Automatic Horizontal Saw

Manufacturer

WF WELLS

Stock

0110542

Model

F-1620-HA

Dealer Location

Texas

Spec Sheet



17 x 20 W.F. Wells CNC Fully Automatic Horizontal Saw
Model F-1620-HA

Specifications:

Capacity Rectangular at 90 Degrees: 17" High x 20" Roung
Capacity Round: 17" Diameter
Weight Capacity: 5000 lbs.
Blade Speed: 60 to 500 SFPM
Blade Size: 1-1/2" x 0.050" x 16'8"
Blade Guide: Roller Guides with Carbide Inserts
Vise: Hydraulic, Full Stroke, 15" High
Bandwheel Size: 22"
Blade Tension: Hydraulic
Blade Drive: 10 HP, AC Vector Drive
Sawing Force: 0 to 750 lbs.
Coolant Capacity: 15 Gallons
Hydraulic Capacity: 20 Gallons
Hydraulic Drive: 2 HP Motor
Work Height: 35"

Shipping Weight: 4500 lbs.
Dimensions (LWH): 104" x 101" x 88"

No Video Available
