Direct-Fired Thermal Oxidizer (DFTO) with Hot Gas Quench & Venturi Scrubber

Manufacturer

Griffith Consulting, LLC

Category

Drilling Machines

Type

DRILL UNITS

Stock

181260002

Model

None listed

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 181260002
  • Location: Warren, Ohio
  • Brand: Griffith Consulting, LLC
  • Year: 2023
  • Approx. Shipping Weight: Thermal Oxidizer: 7,000 lbs Quench/Scrubber System: 5,000 lbs
  • Approx. Shipping Dimensions: Thermal Oxidizer Unit: 7 ft. W × 15 ft. L Quench/Scrubber System: 6 ft. W × 15 ft. L
  • Loading Fee: Rigging Required

Specifications

  • Process Air Flow Rate: 1500 SCFM
  • Inlet Temperature Range: Minimum 70°F | Maximum (combined) 800°F, 750 SCFM at 500-600°F (cold auger furnace), 750 SCFM at 900-1000°F (hot auger furnace)
  • Combustibles Loading: Approximately 1.4 kg/hr

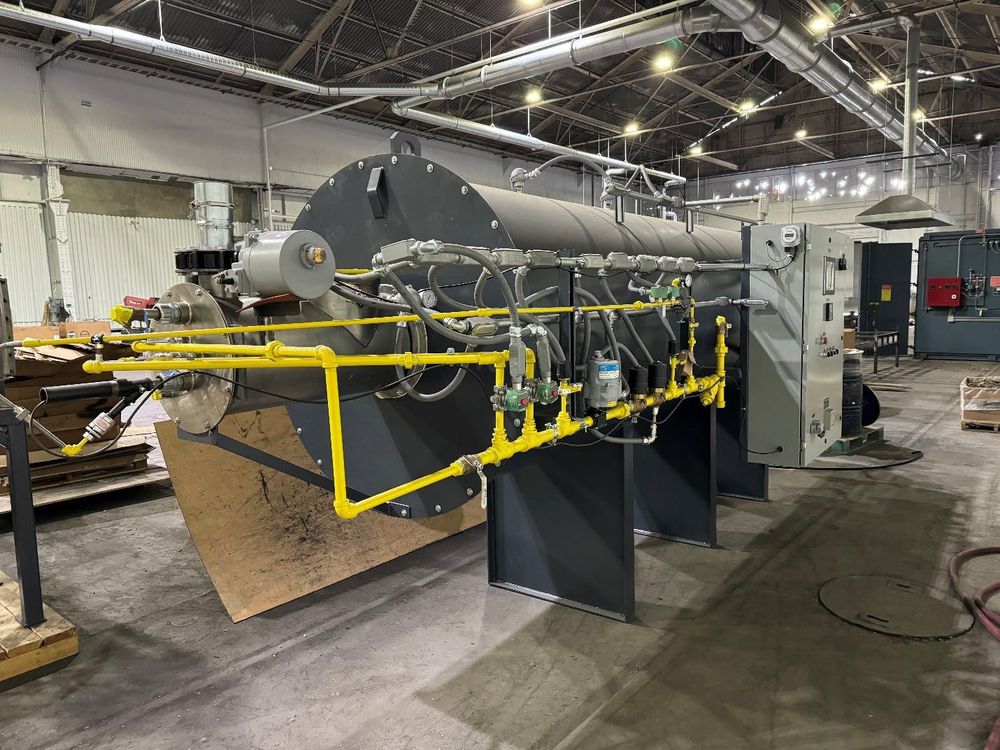

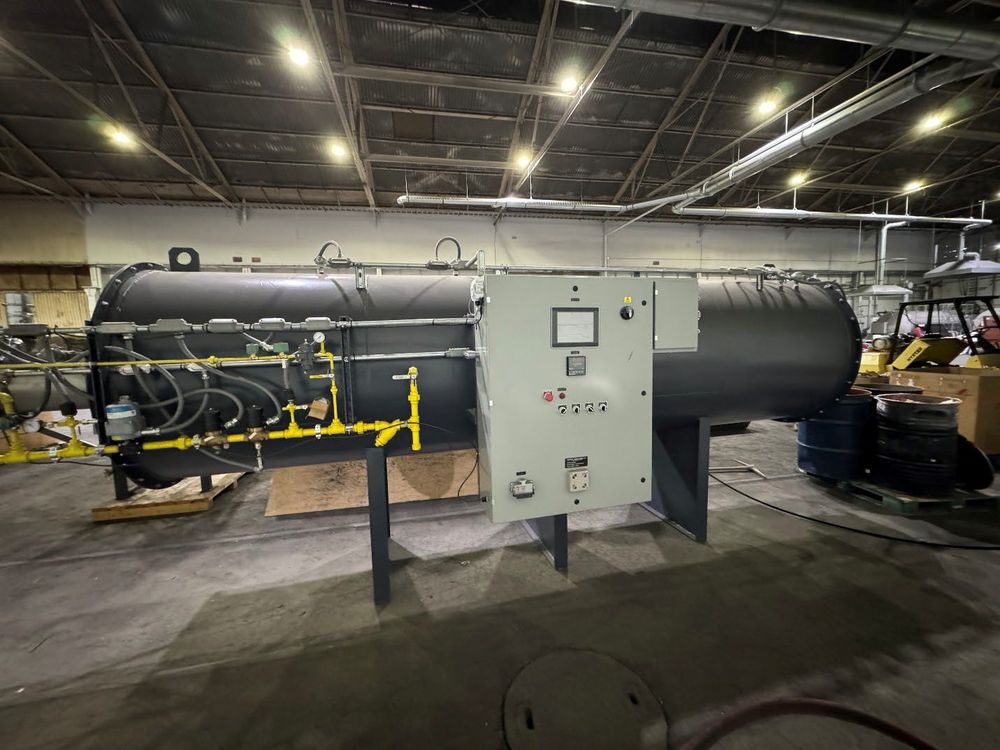

  • Oxidizer Type: Horizontal oxidation chamber, horizontally-fired burner

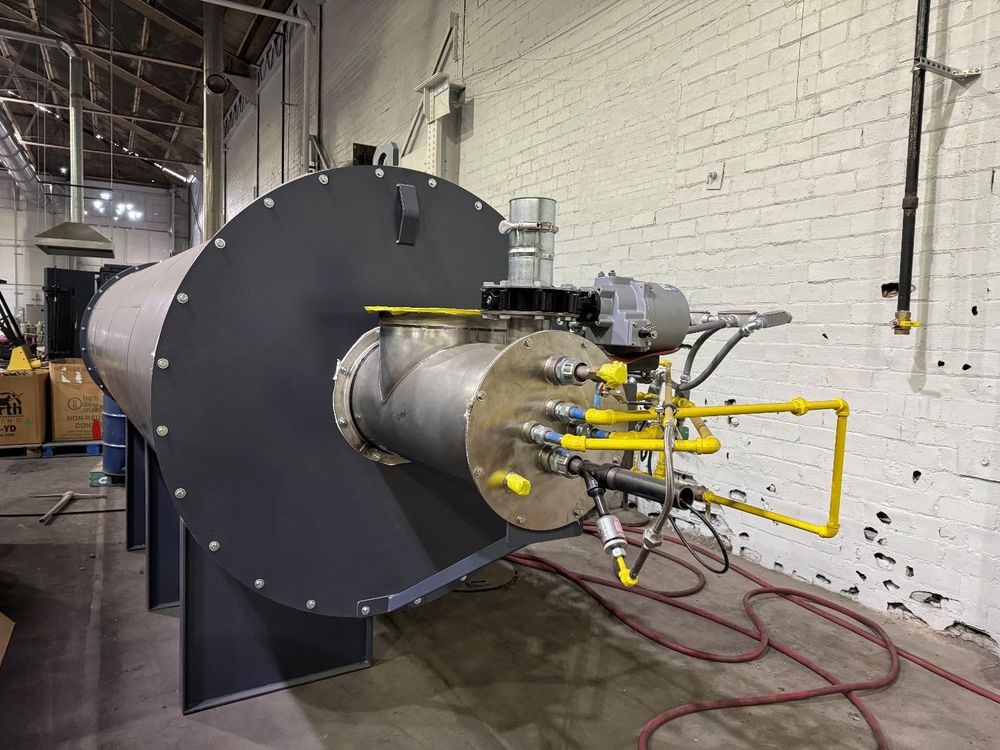

  • Burner Capacity: 2.5 MM Btu/hr maximum
  • Operating Temperature: 1450°F
  • Guaranteed VOC Destruction Efficiency: 98%
  • Oxidation Chamber Lining: High-temperature ceramic fiber modules (soft refractory)
  • Natural Gas Supply Required: 10 psig | Design usage: 3000 SCFH
  • Draft: Induced draft fan (post-scrubber), -6″ WC available at furnace exhaust

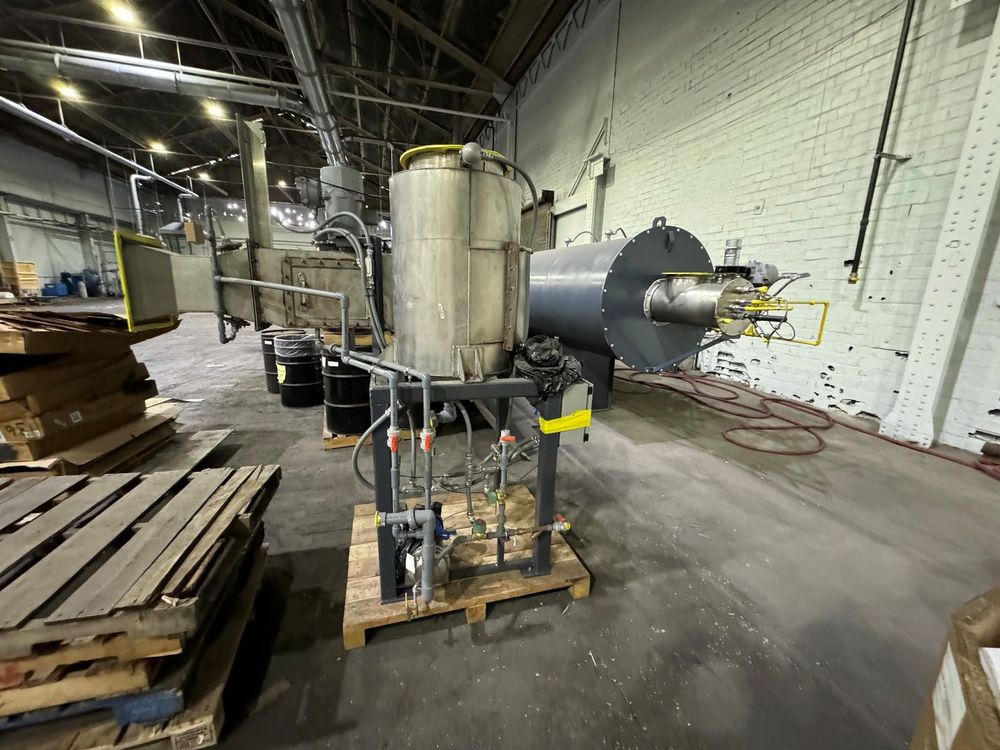

  • Quench Type: Vertical downflow co-current hot gas quench, SS construction, fine spray atomization nozzles

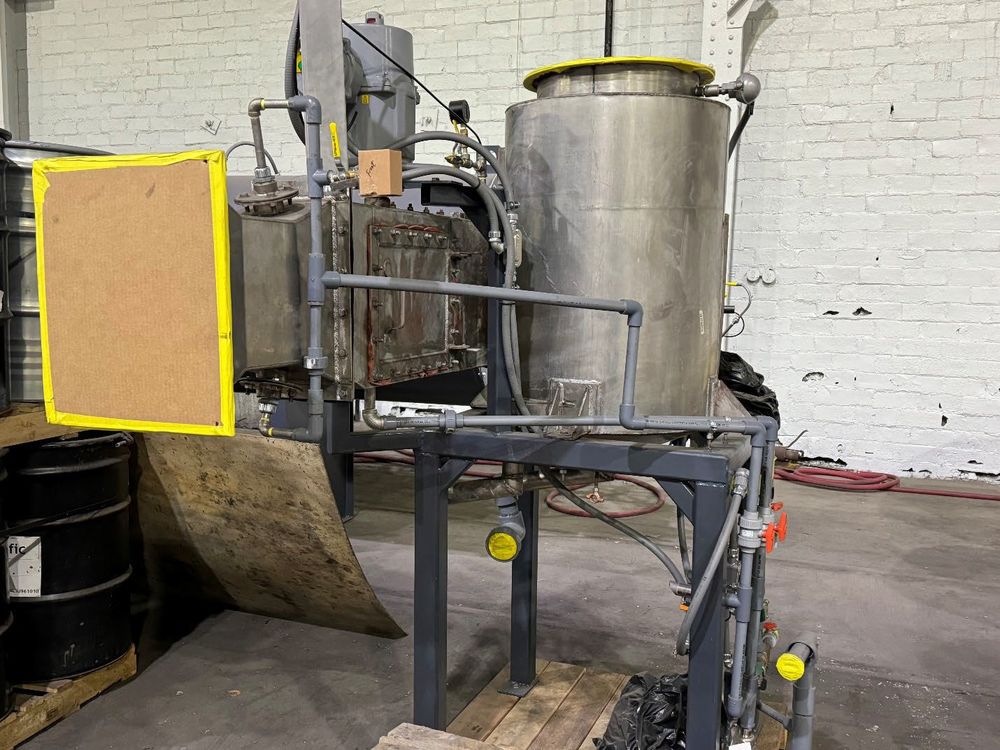

  • Scrubber Type: Venturi scrubber with adjustable throat, SS construction, coarse spray nozzle

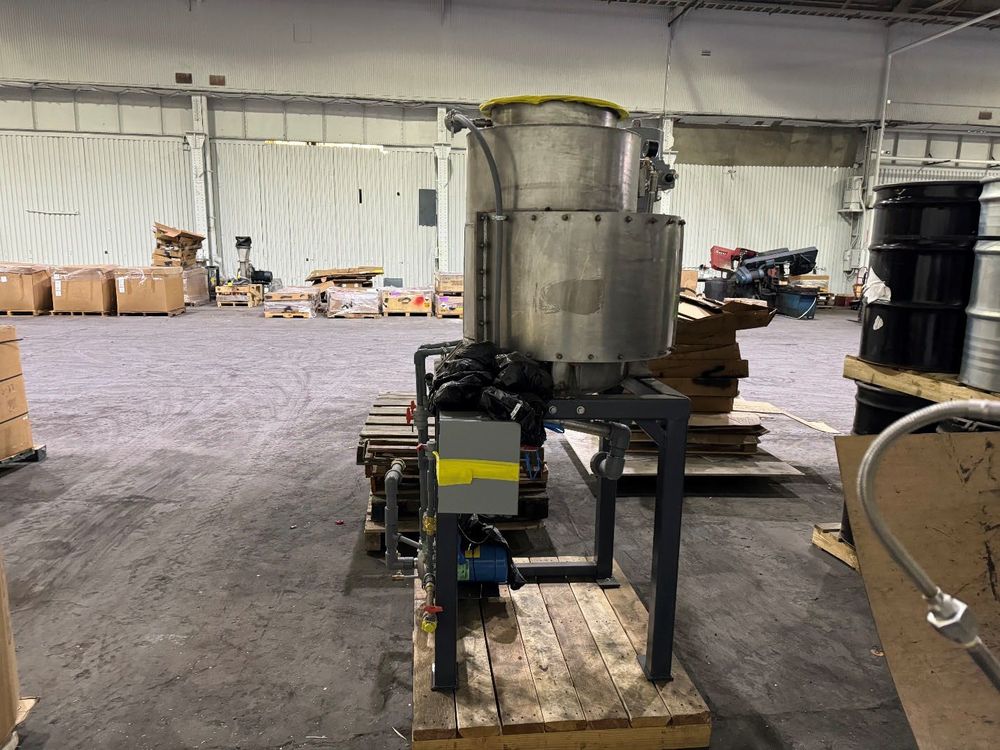

  • Separator: Cyclone with mist eliminator (structured mesh pad)

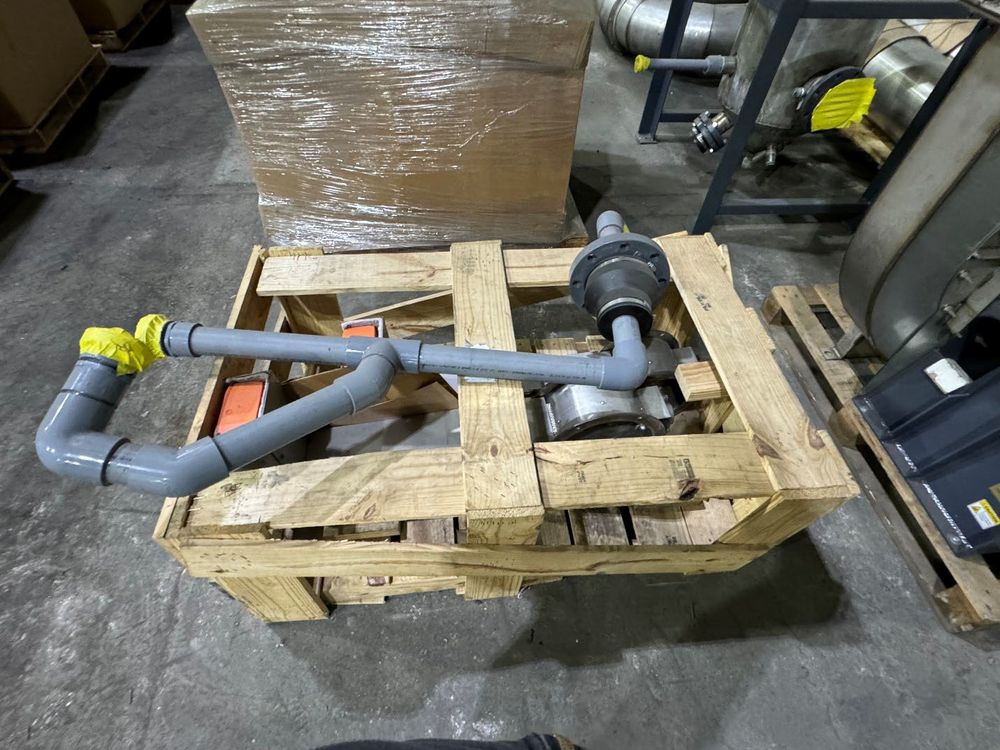

  • Recirculation Pump: 2 HP
  • Fresh Water Make-up: ~6 GPM

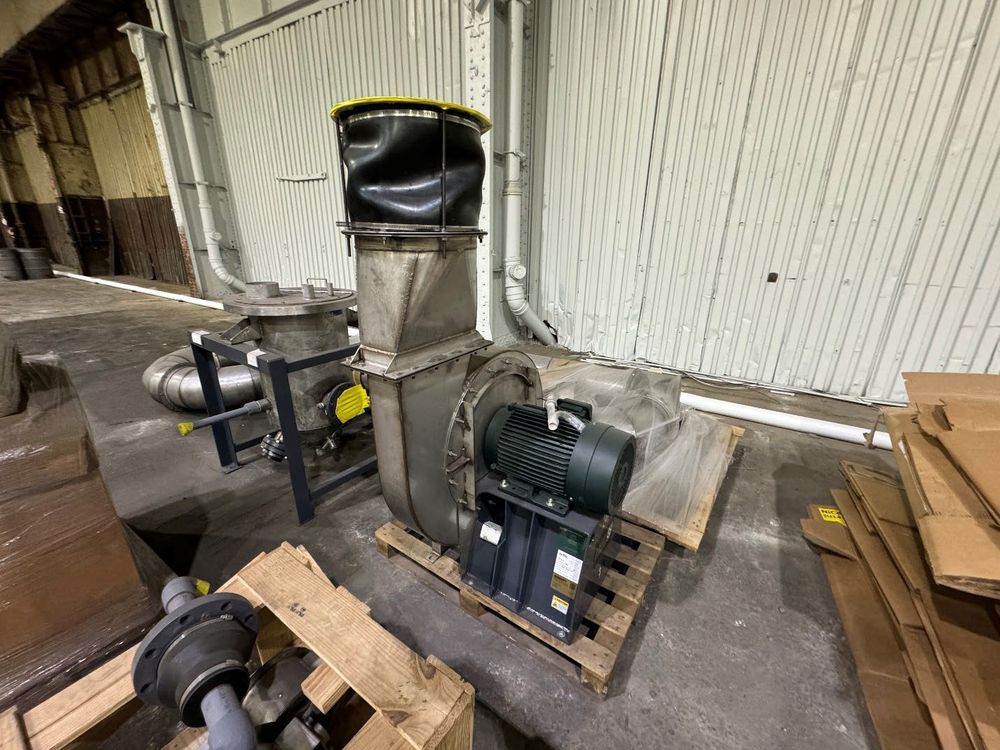

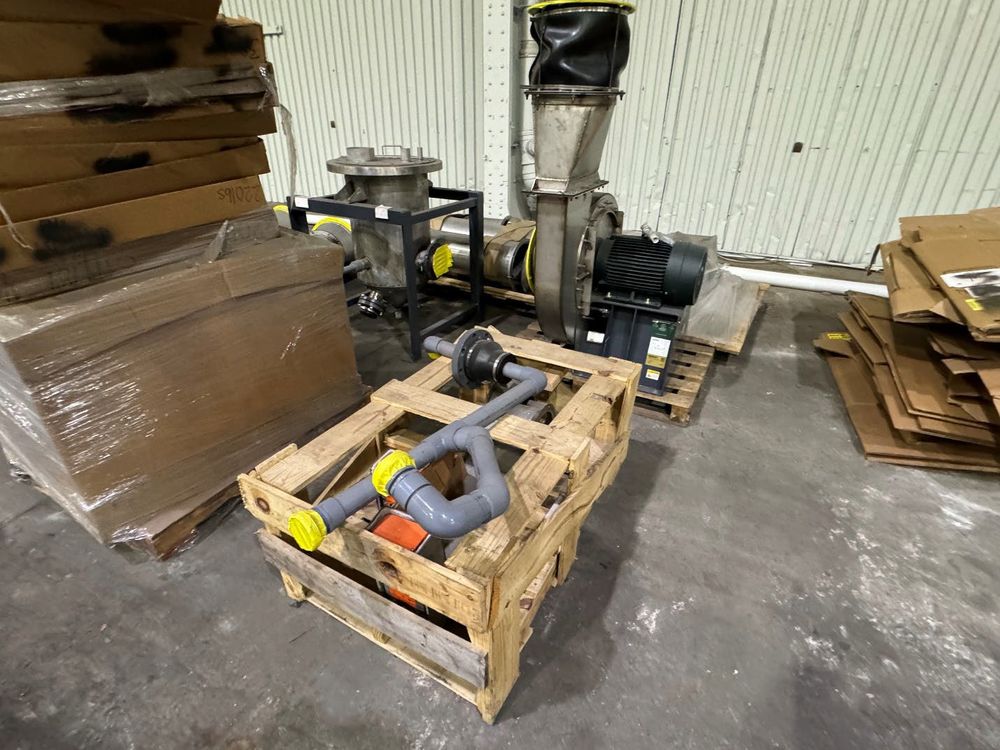

  • ID Fan: Stainless steel, 20 HP TEFC inverter-duty motor, VFD control, Arrangement 4, rated 300°F
  • Instrumentation: Flow meters (quench & venturi rotameters), flow switches, differential pressure transmitter, level switches, thermocouples, draft transmitter, freshwater solenoid
  • Electrical Requirements: 120 VDC (burner controls & recirculation pump) 480V/3/60 (ID fan VFD) 20 amp circuit for controls

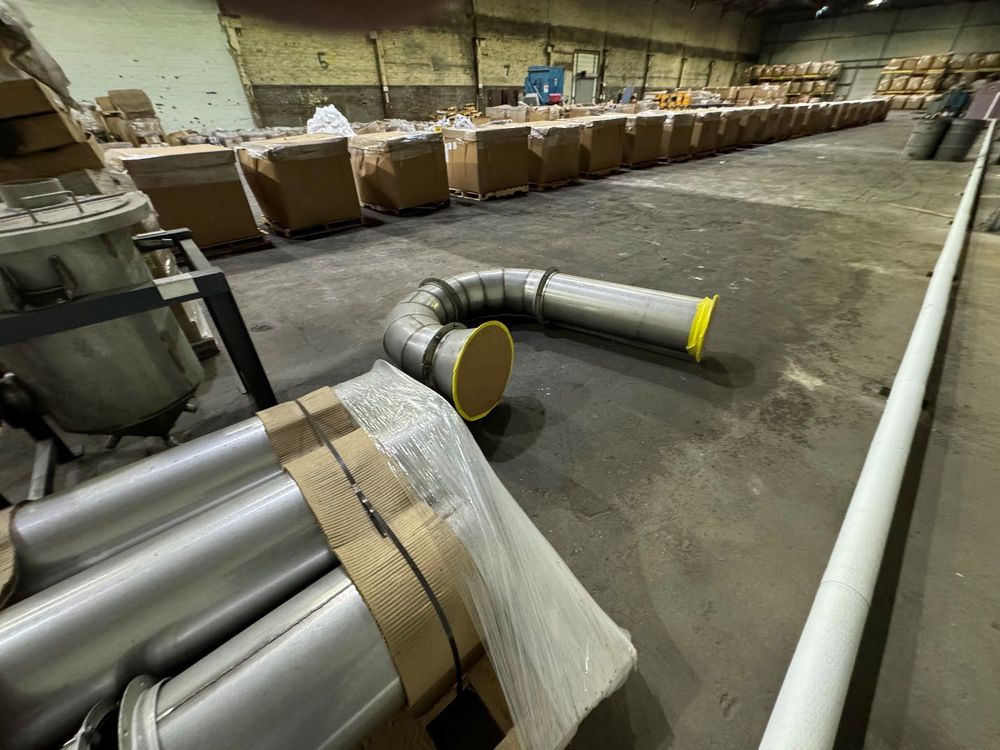

  • Extras: Three (3) pre-piped/pre-wired water flow meters SS304 ductwork & fittings (ID fan to dust collector) Process data collection system

Equipped With

Built 2023 Never Used: Direct-fired thermal oxidizer (DFTO) system with integrated hot gas quench and venturi scrubber is ideally suited for air pollution control in processes generating VOC-laden exhaust streams with moderate combustible loading and particulate matter, particularly those involving high-temperature furnace off-gases up to 800°F and flows around 1500 SCFM. It excels in the battery recycling industry for destroying VOCs and capturing particulates from lead-acid battery processing furnaces, secondary lead smelting and metal recycling operations handling similar sulfur-rich or particulate-heavy emissions, chemical manufacturing plants treating solvent vapors or reactor exhausts with acid gases, pharmaceutical production facilities abating odors and aerosols from solvent-based processes, paint and coating operations controlling solvent VOCs from spray booths and drying ovens, printing and flexographic industries managing ink-related emissions, food processing plants addressing odors and oil aerosols from frying or rendering, wastewater treatment and sludge incineration for H2S and odor control, petroleum refining or waste oil processing requiring SO2 and particulate removal, and foundry or metal heat-treating facilities treating fume-laden exhaust streams. New Price with accessories=$ 413,022 Never Used!
