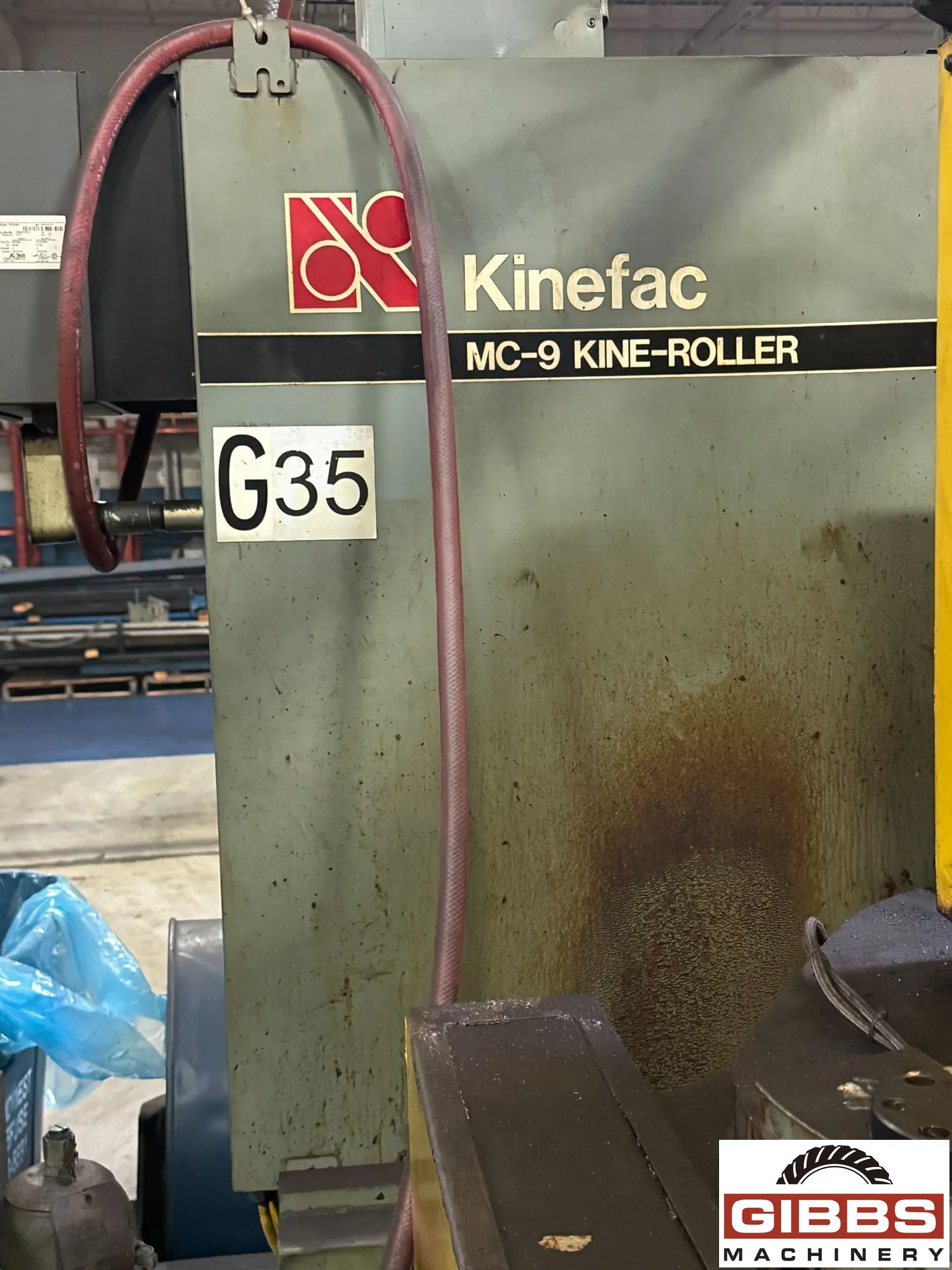

KINEFAC MC-9 - Miscellaneous Equipment

Manufacturer

KINEFAC

Stock

25637

Model

MC-9

Dealer Location

Michigan

Spec Sheet

  • Year
  • Manufacturer KINEFAC
  • Max Dia. of Workpiece 2.5"
  • Max Length of Thread 3.3"
,

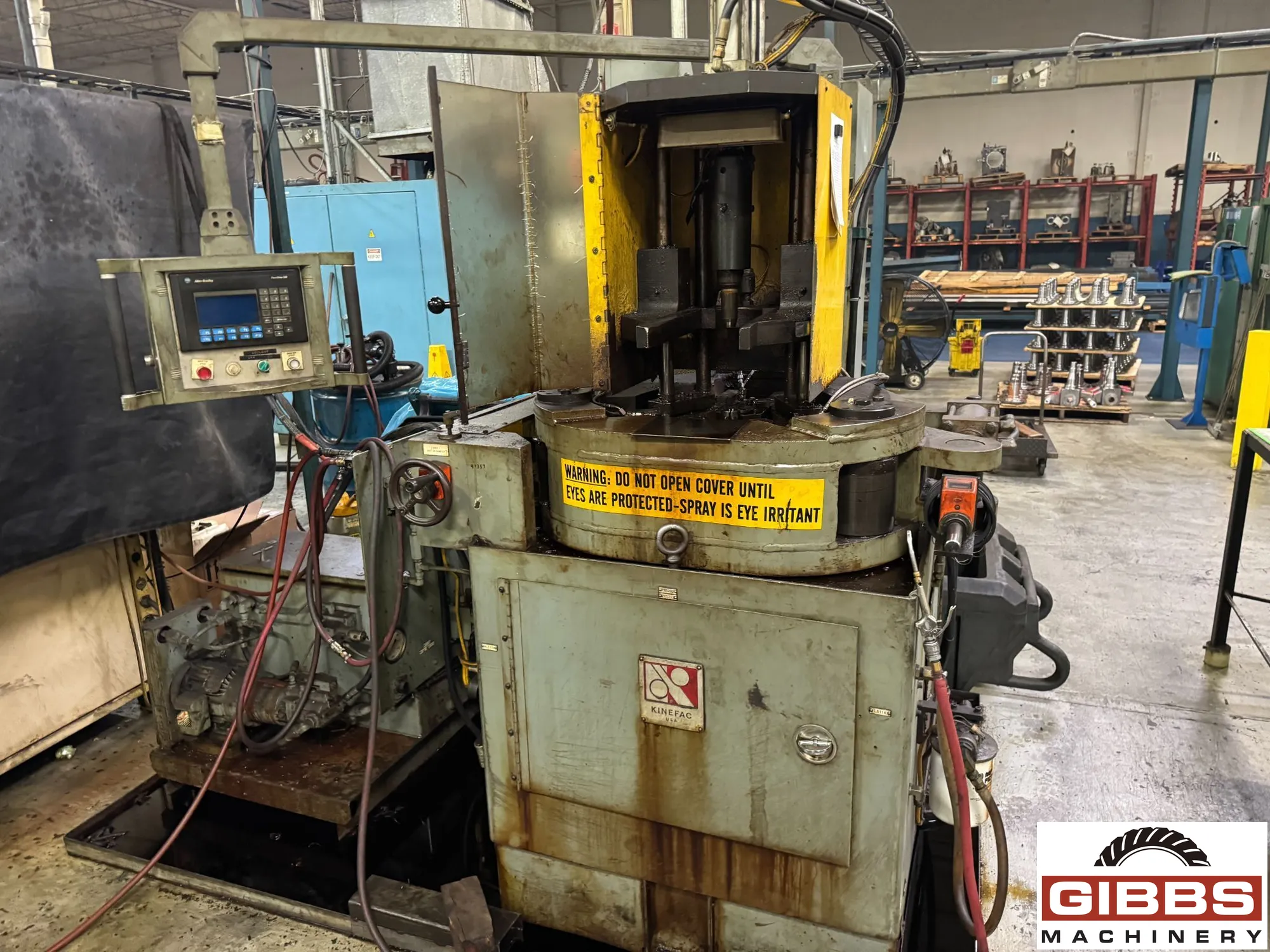

The KINEFAC MV-9 thread roller is a high-performance, three-cylindrical die rolling machine designed for rolling precision threads, splines, and other forms. It excels at processing solid and hollow components, including fasteners, pipe fittings, and drive shafts, offering superior three-die rolling capabilities for solid and hollow components.

    Specifications:

  • Maximum Radial Die Load: 445 kN
  • Standard Spindle Diameter: 63.5 mm
  • Standard Die Gap: 102 mm
  • Die Diameter Range: 108 - 152 mm
  • Center Distance Range: 70 - 114 mm
  • Thrufeed Spindle Skew Range: 5 Degrees
  • Standard Die Drive: 15 kW
  • Maximum Rolled OD: 100 mm
