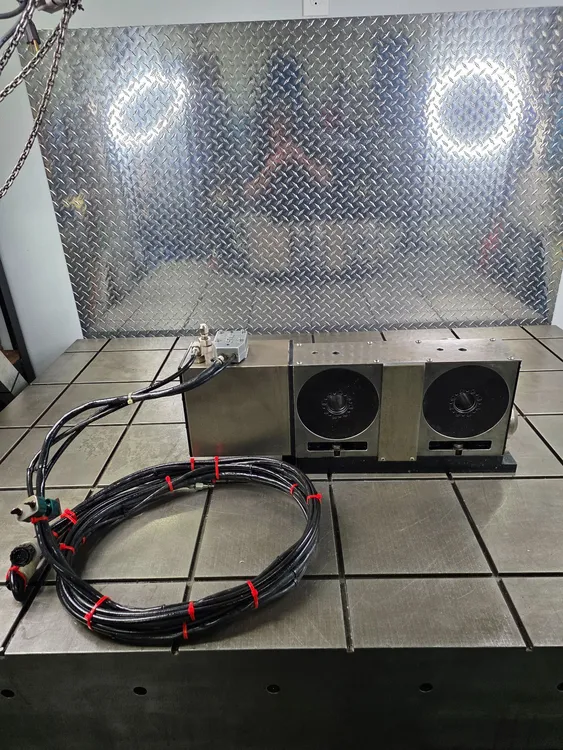

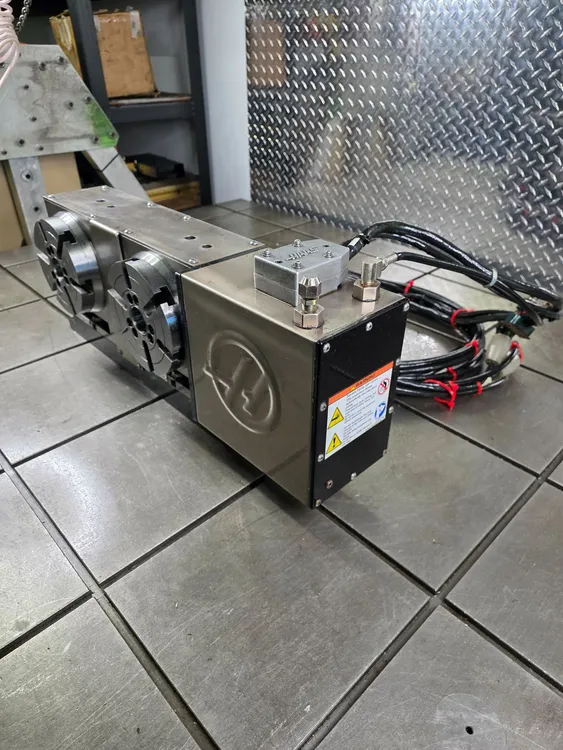

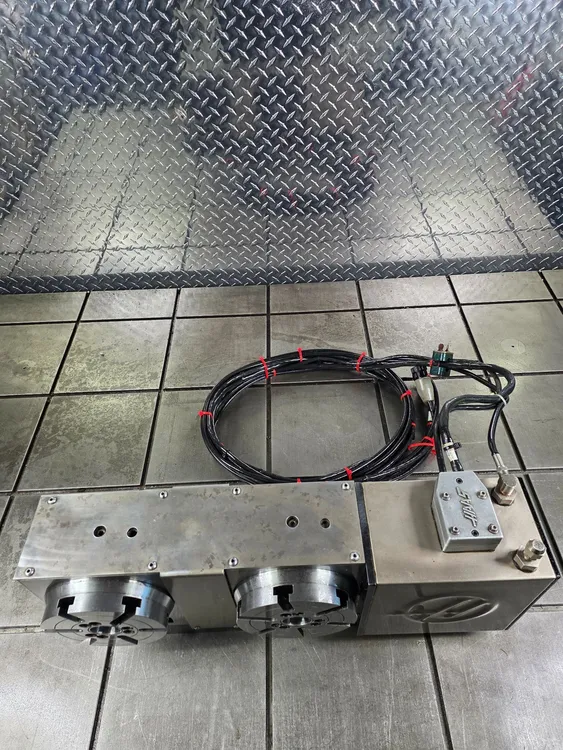

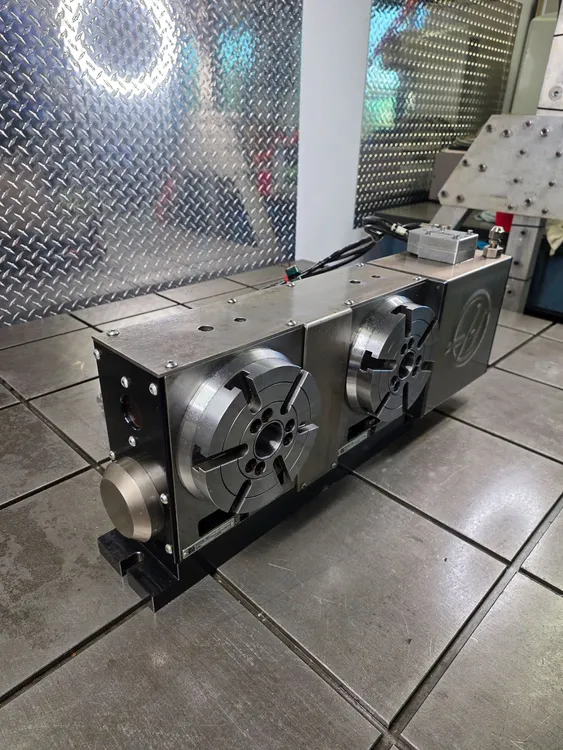

HAAS HRT160-2 6.3" Dual CNC Rotary Table Brushless USA #8138

Stock

8138

Model

HRT160-2

Dealer Location

Florida

Spec Sheet

Overview

Type:
Rotary Tables
Manufacturer:
HAAS
Model:
HRT160-2
Stock #:
8138
Status:
For Sale

Description

HAAS HRT160-2 6.3" Dual CNC Rotary Table Brushless USA #8138

Table Size-X6.3"160.02 mm
Table Size-Y6.3"160.02 mm
Dimensions27.5" x 6" x 12.5"27.5" x 6" x 12.5"
Weight285lbs285lbs

HAAS HRT160-2 6.3" Dual CNC Rotary Table Brushless USA #8138
Reference #8138
Model # HRT160-2

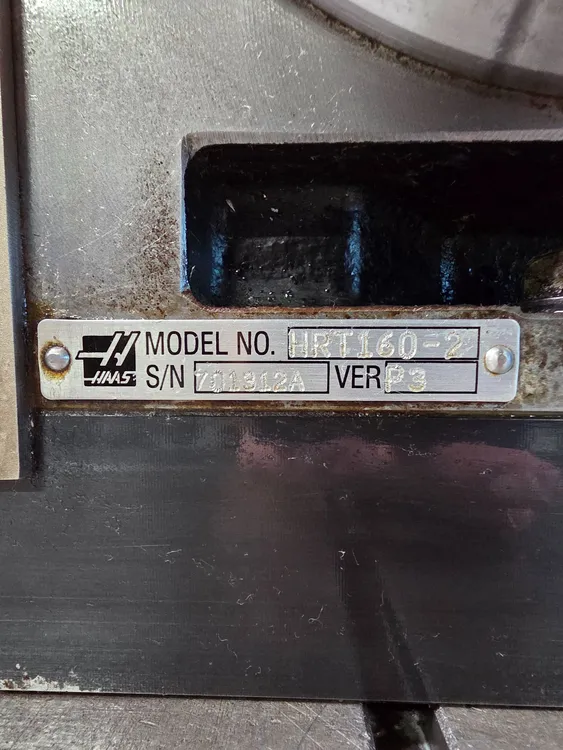

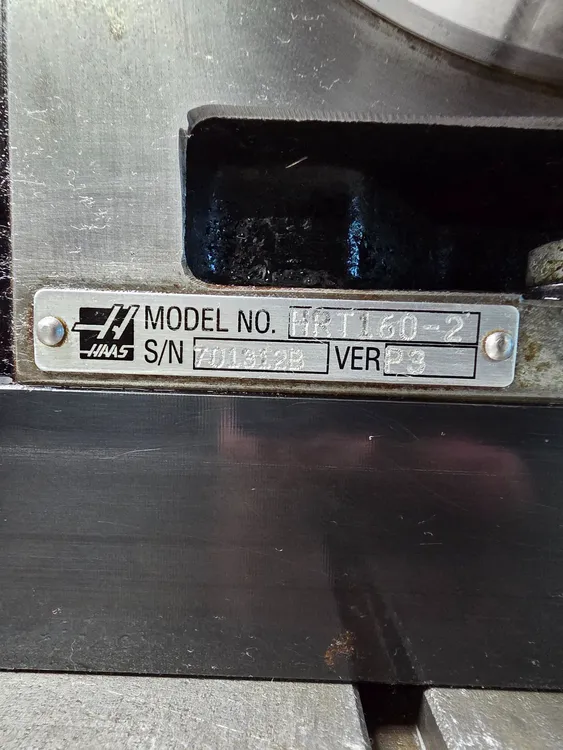

Serial # 701312A & 701312B
Table diameter- 6.3”
Max weight on platter supported- 70 Lbs.
Max weight on platter unsupported- 35 Lbs.
Max spindle speed- 80° sec
Torque- 110 Ft-Lbf
Runout max- 0.0005"
Center height- 6.750"
Backlash- 30 arc/sec
Brake torque @ 100 P.S.I.- 100Ft-Lbf
Gear ratio- 63:1
Timing- 2:1
Accuracy- +/- 15 arc-sec
Repeatability- 10 arc-sec
Resolution- 0.001°
Worm gear diameter-4.7”
Max rotation / step- 999.999°

Pneumatic brake
Machine weight- 285 Lbs.
Machine dimensions- 27.5” x 6” x 12.5” H
Machine location- F.O.B. Sarasota, Florida
