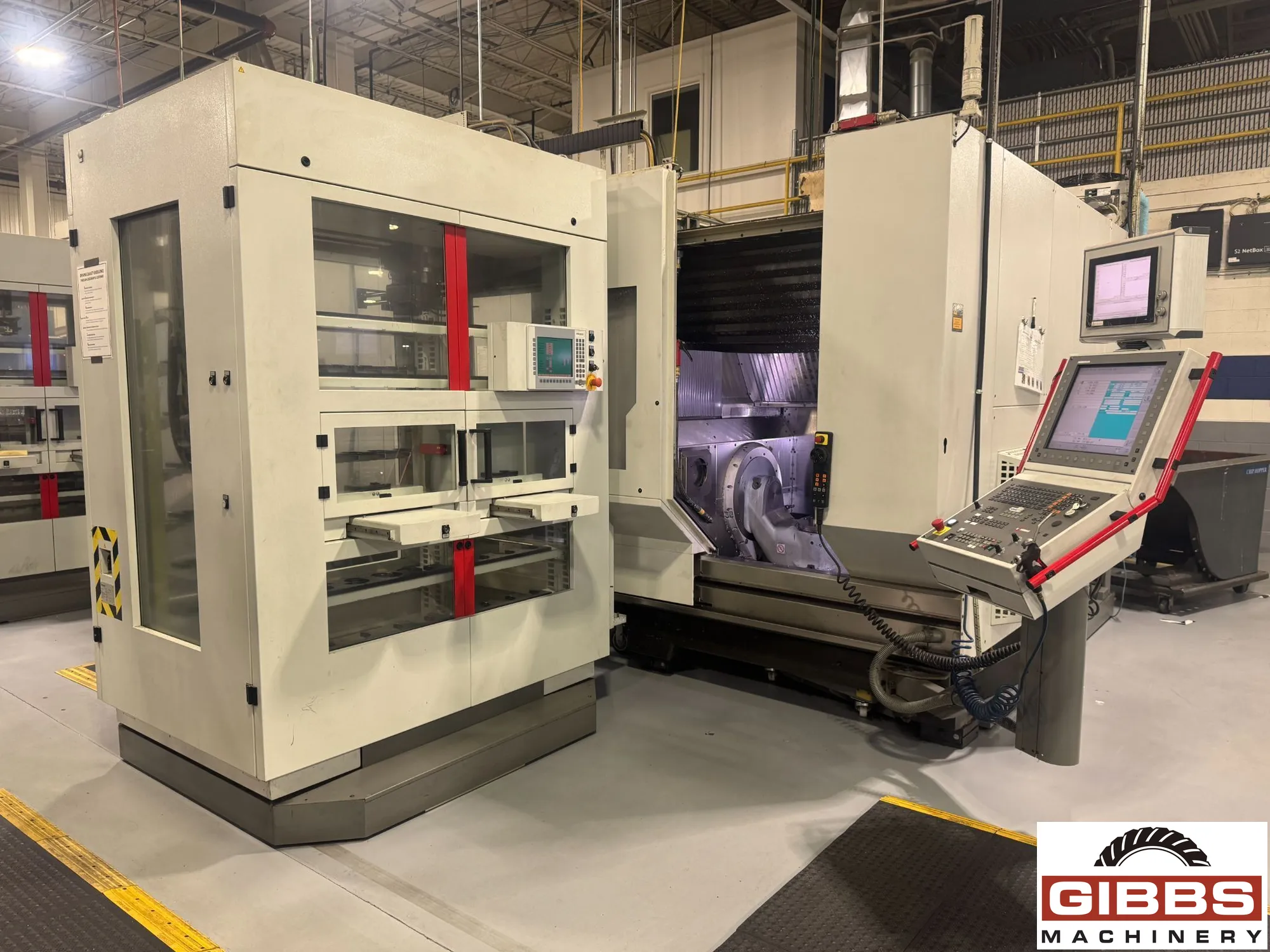

HERMLE C22U - Vertical Machining Center

Manufacturer

HERMLE

Stock

25879

Model

C22U

Dealer Location

Michigan

Spec Sheet

Highlights:

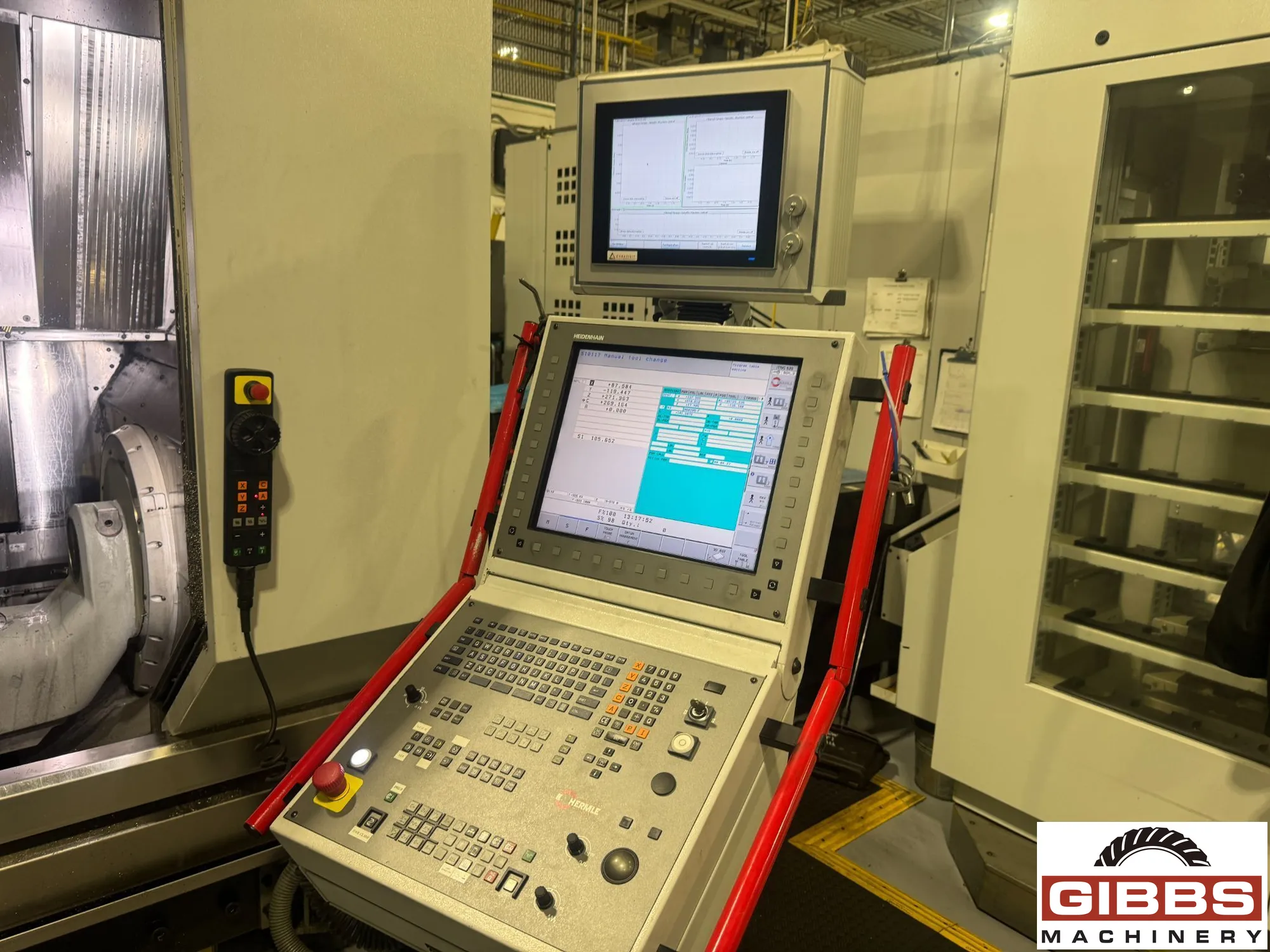

  • Heidenhain iTNC-530 CNC Control

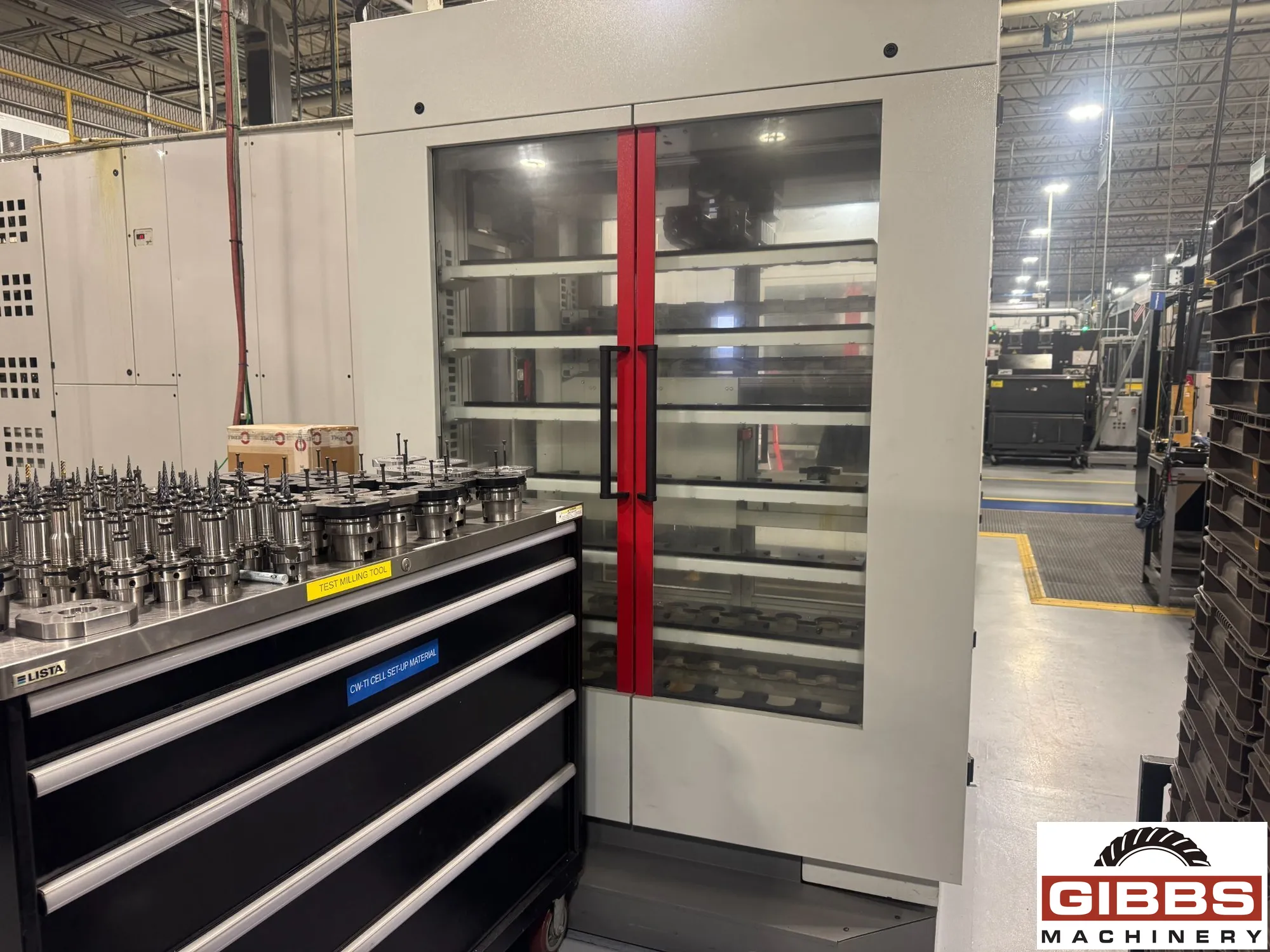

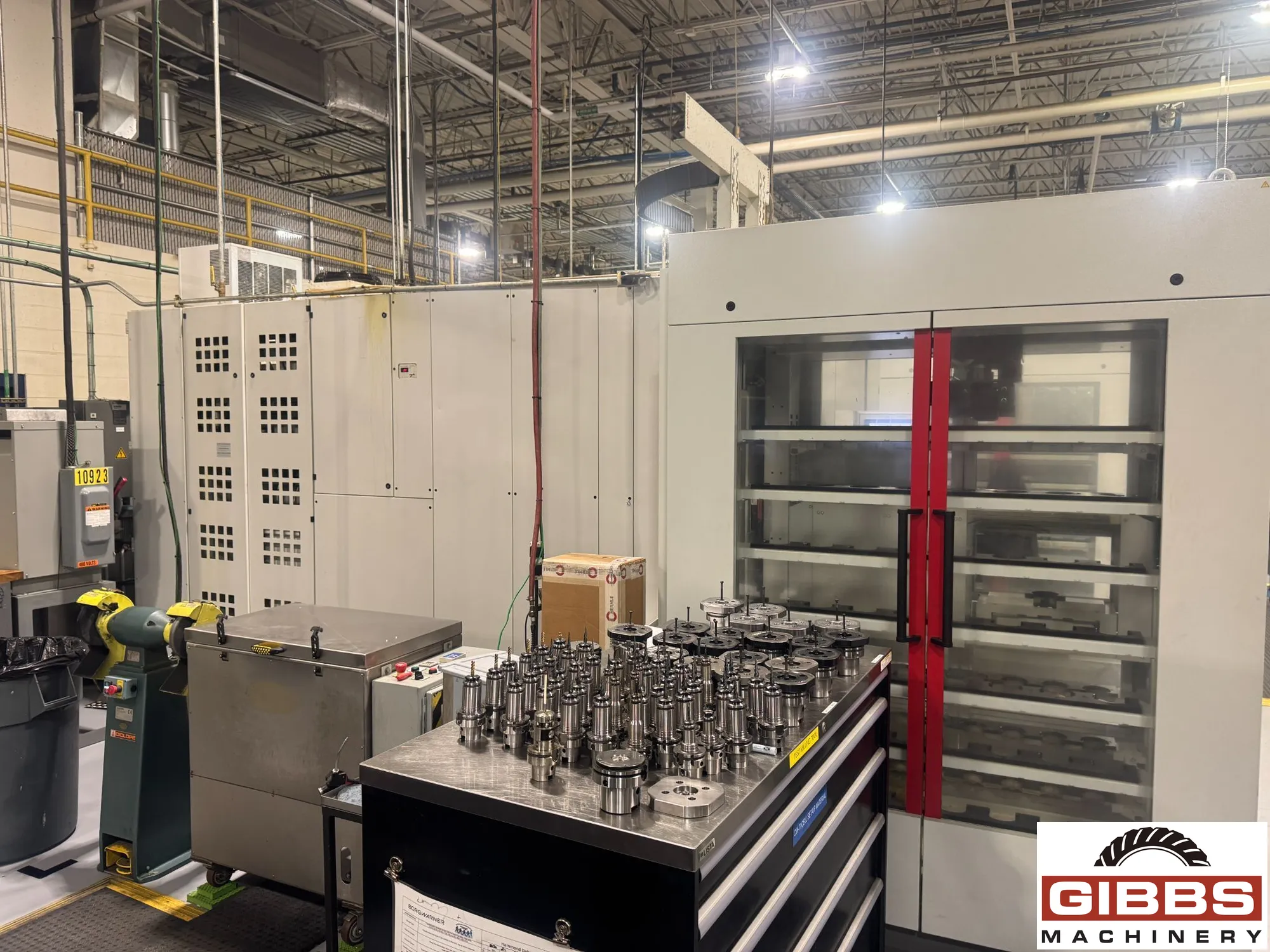

  • 96 Station HSK 100 Receiver Pallet Pool

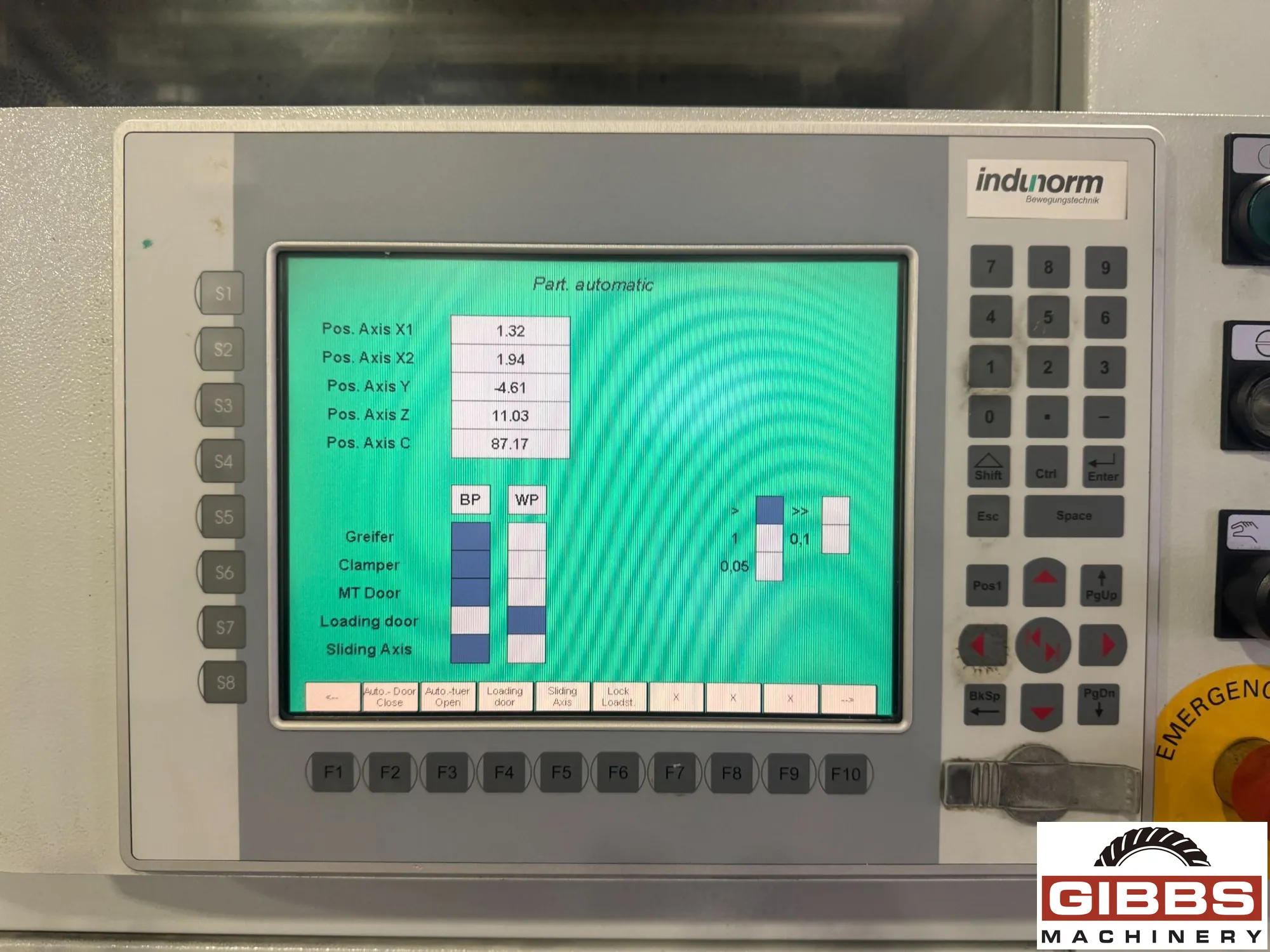

  • (2) Loading/Unloading Stations
  • Table Receiver is HSK 100
  • Chip Conveyor
  • Coolant Tank & Pump
  • Glass Scales on X/Y/Z Axes
  • Hi-Pressure Coolant Thru Spindle
  • Blum Laser
  • Tool Break Off Detection
  • Capable of Running with or without Loading Station
  • Kinematic Opt - Hardware

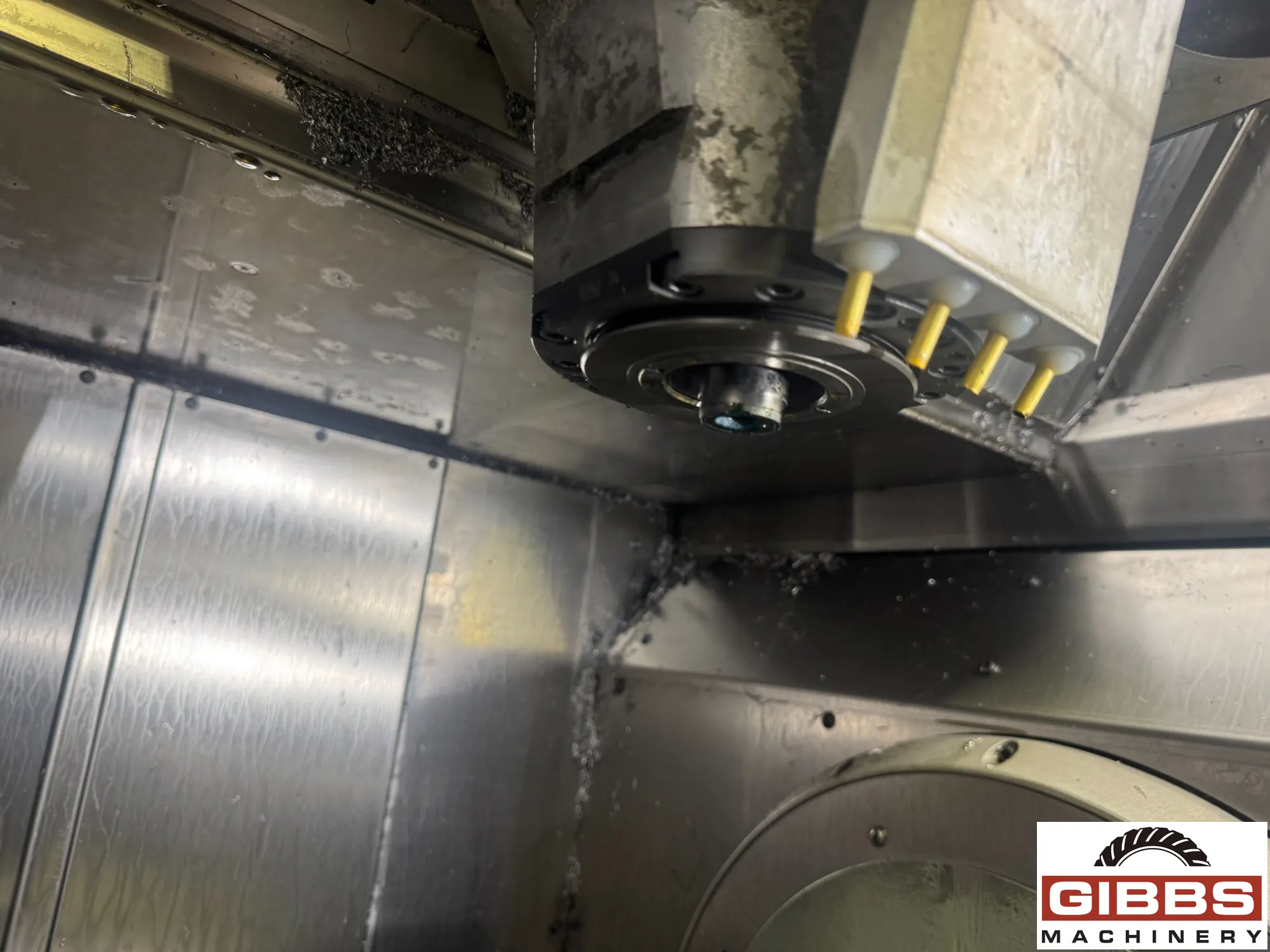

  • Spindle 18,000 1/min HSK-A63
  • Linear Axis Dynamic Version

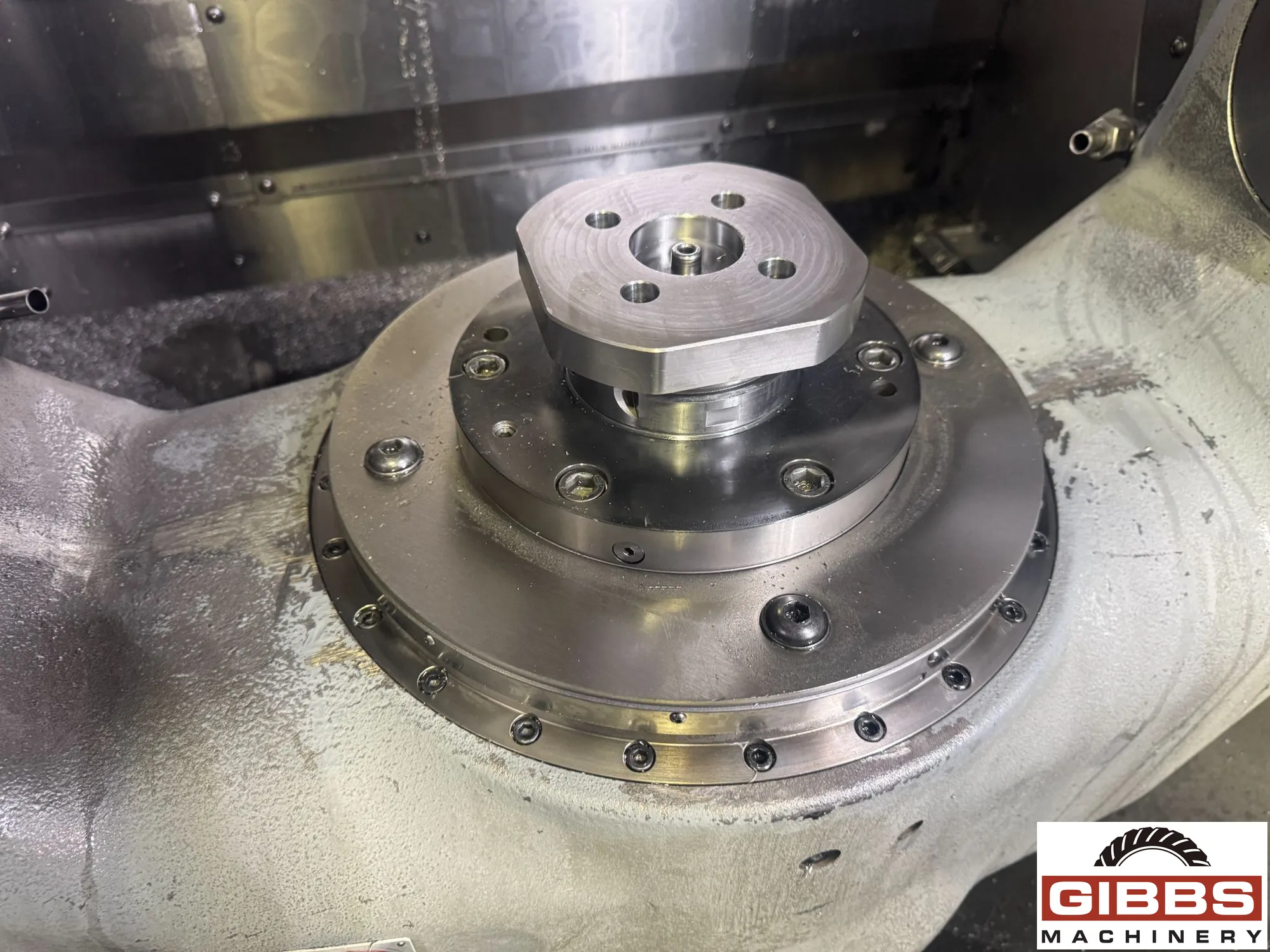

  • NC swivel rotary table Ø 320
  • Torque drive
  • A-axis dynamics package
  • Internal coolant supply 80 bar
  • Blowing air through the center of the spindle
  • Swarf Spray Gun
  • Bed Wash
  • Oil mist extraction
  • Automatic Cabin Door
  • Electr. iTNC Heat Compensation

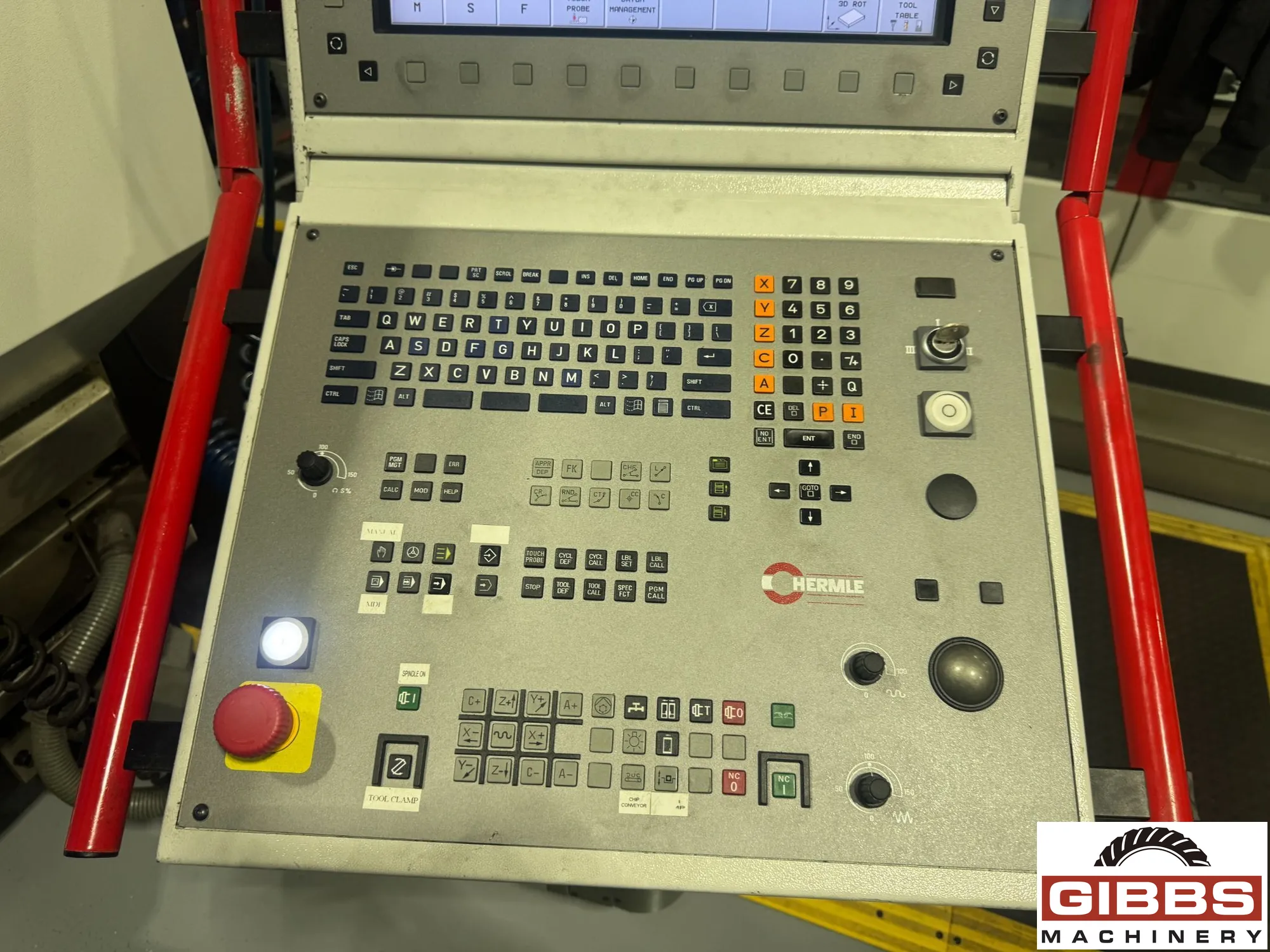

  • Electr. iTNC manual control module
,
  • Year 2012
  • Manufacturer HERMLE
  • X-Axis 17.7"
  • Y-Axis 23.6"
  • Z-Axis 13"
  • # Axis 5.0
  • RPM 18,000 RPM
  • # ATC 55.0
  • Taper HSK-63
,
Highlights: - Heidenhain iTNC-530 CNC Control - 96 Station HSK 100 Receiver Pallet Pool - (2) Loading/Unloading Stations - Glass Scales on X/Y/Z Axes - Hi-Pressure Coolant Thru Spindle - Blum Laser - Tool Break Off Detection - Capable of Running with or without Loading Station
    Table Size 12.6" Diameter
  • Max Table Load 330 lb 149.69 kg
  • X-Axis Travel 17.7 in / 449.58 mm
  • Y-Axis Travel 23.6 in / 599.44 mm
  • Z-Axis Travel 12.99 in / 329.95 mm
  • B Axis Rotary +/- 135°
  • A Axis Rotation 0.001°
  • Spindle Taper HSK 63
  • Spindle Speed 18,000 rpm
  • ATC Capacity 55 55
  • Coolant Thru Spindle yes
  • Machine Dimensions 185" x 93" x 125"
  • Machine Weight 20000 lb 9,071.84 kg
