2023 EFM-1014CNC, 10' x 14 Ga. - Sheet Metal Folder

Manufacturer

GMC

Stock

7806

Model

EFM-1014CNC

Dealer Location

California

Spec Sheet

Overview

Manufacturer:
GMC
Model:
EFM-1014CNC
Year:
2023
Stock #:
7806
Status:
For Sale
Serial #:
A23071612
Country:
United States

Description

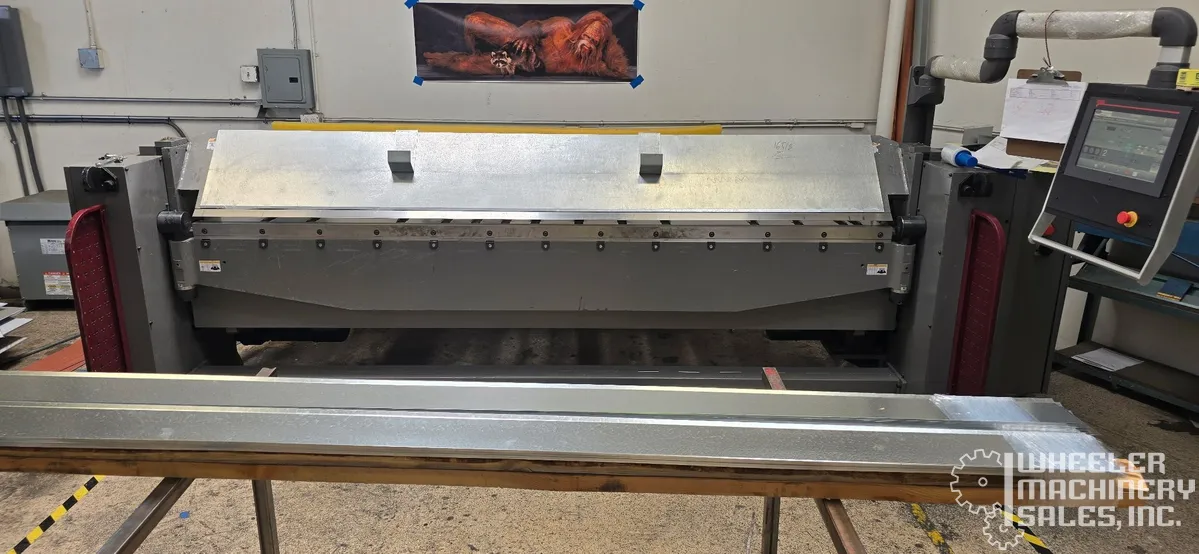

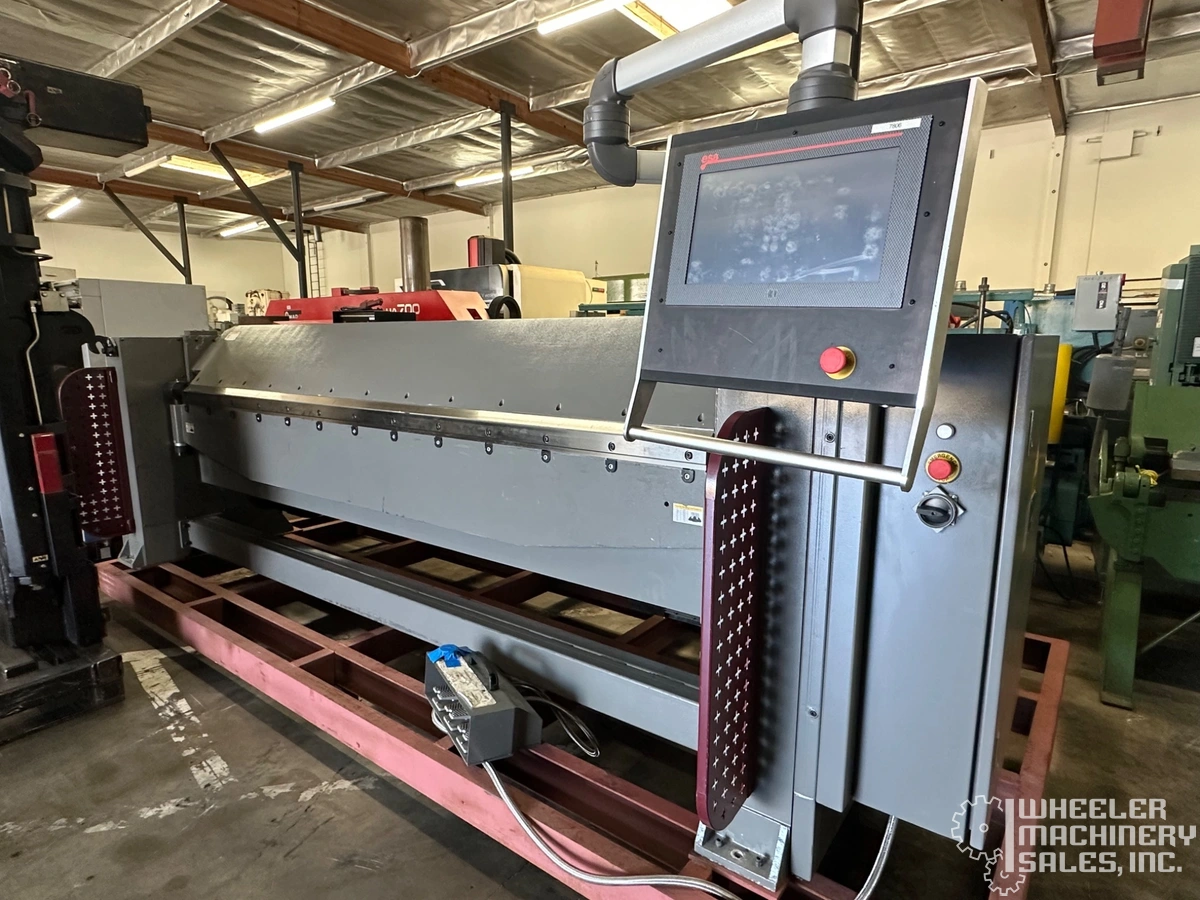

GMC 2023 EFM-1014CNC folding machine, 10' length, 14 ga. capacity. ESA CNC control with a 16” touch screen, supports 99 bends per program. Features include programmable radius bend, 48" back gauge, Yaskawa servo, and Schneider electronics.

Max Thickness (gauge)14 gauge14 gauge
Overall Length10'3 m

2023 EFM-1014CNC, 10' x 14 Ga. - Sheet Metal Folder | CNC Folding Machine #7806

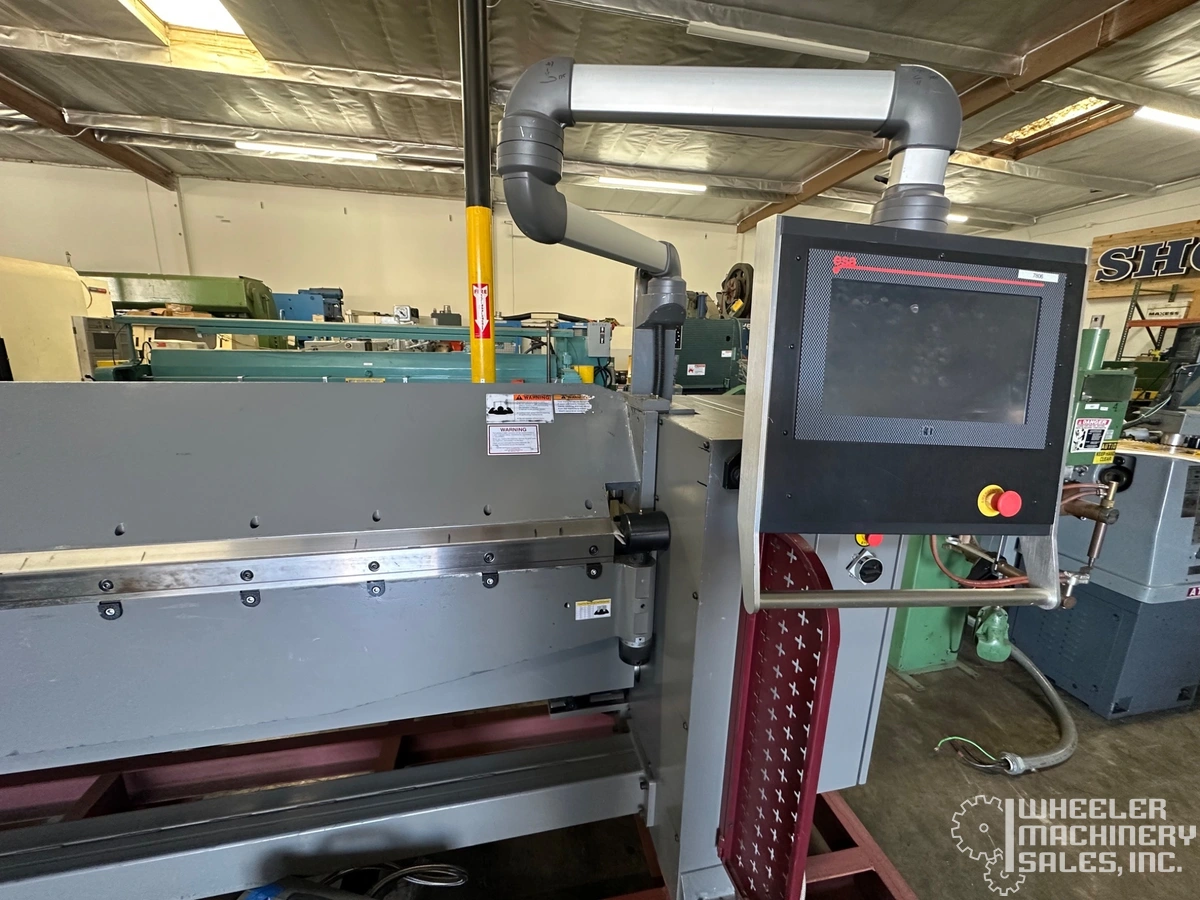

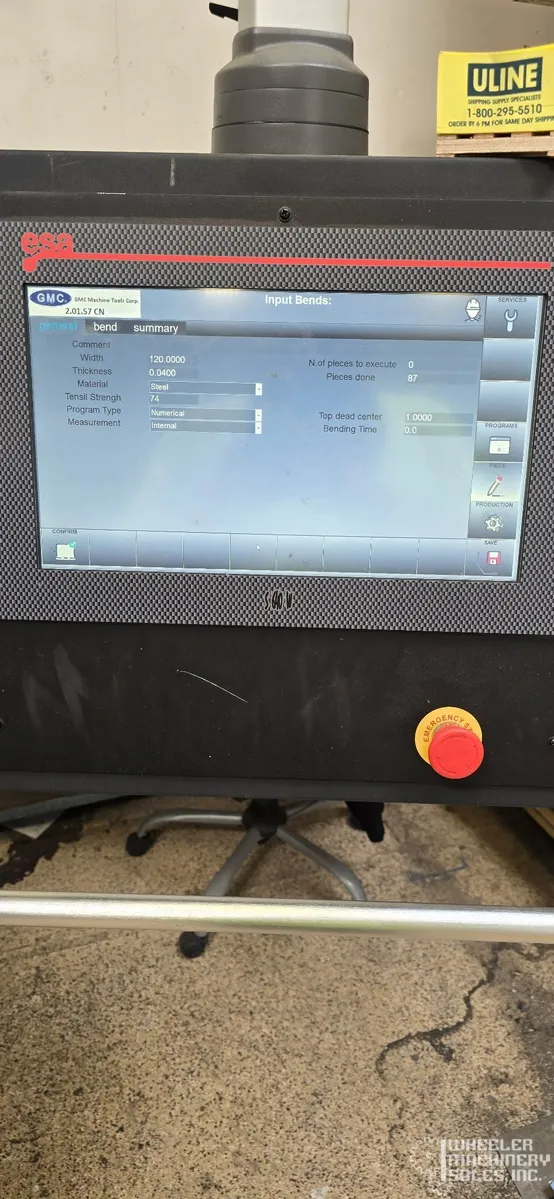

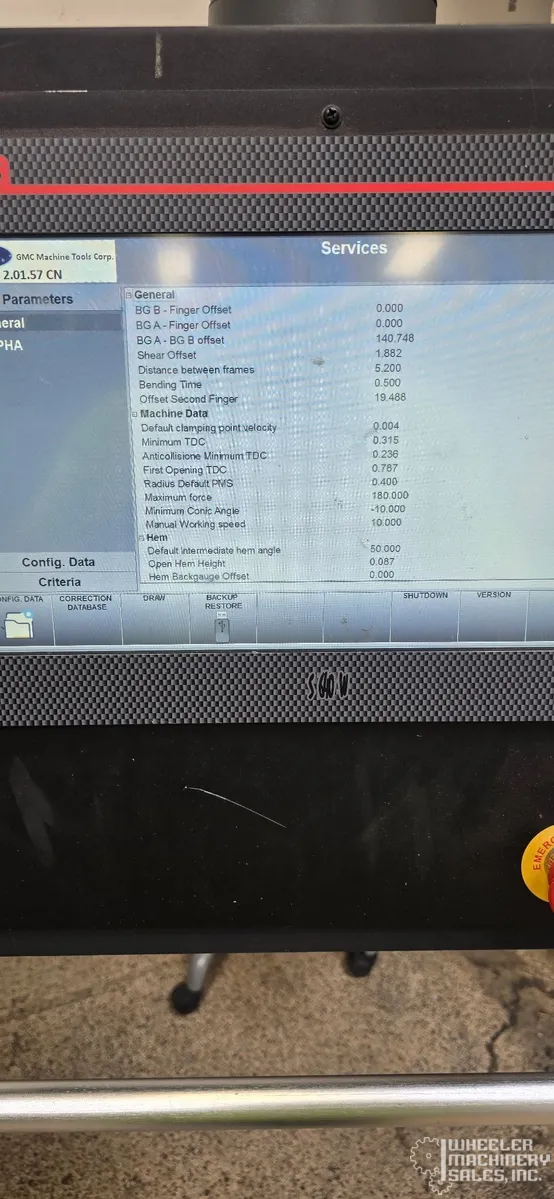

ESA CNC control, made in Italy
16” large Digital glass touch screen
Max. 99 bends per program
Upto 2000 Programs Storage
Profiles library with graphics
Programmable Radius Bend
Programmable Angle/ Angle Correct

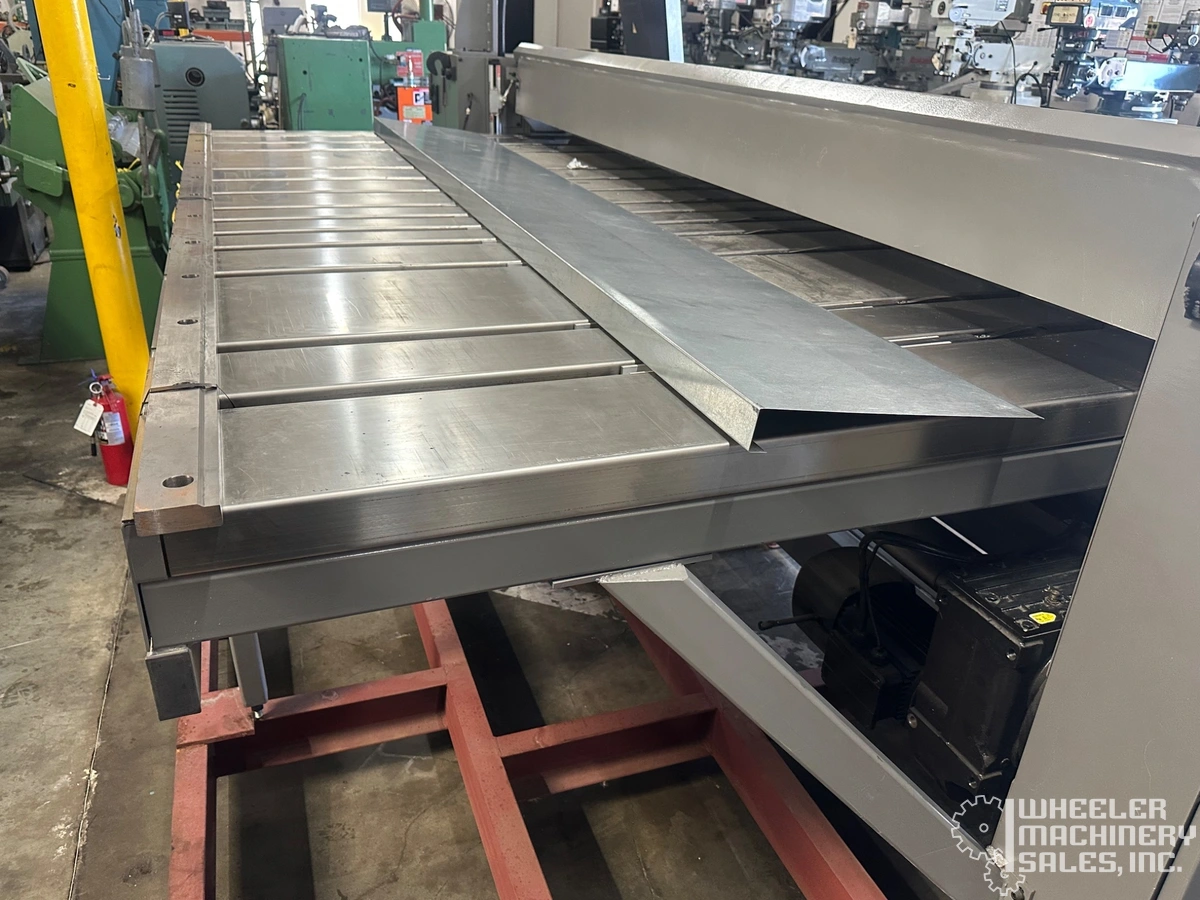

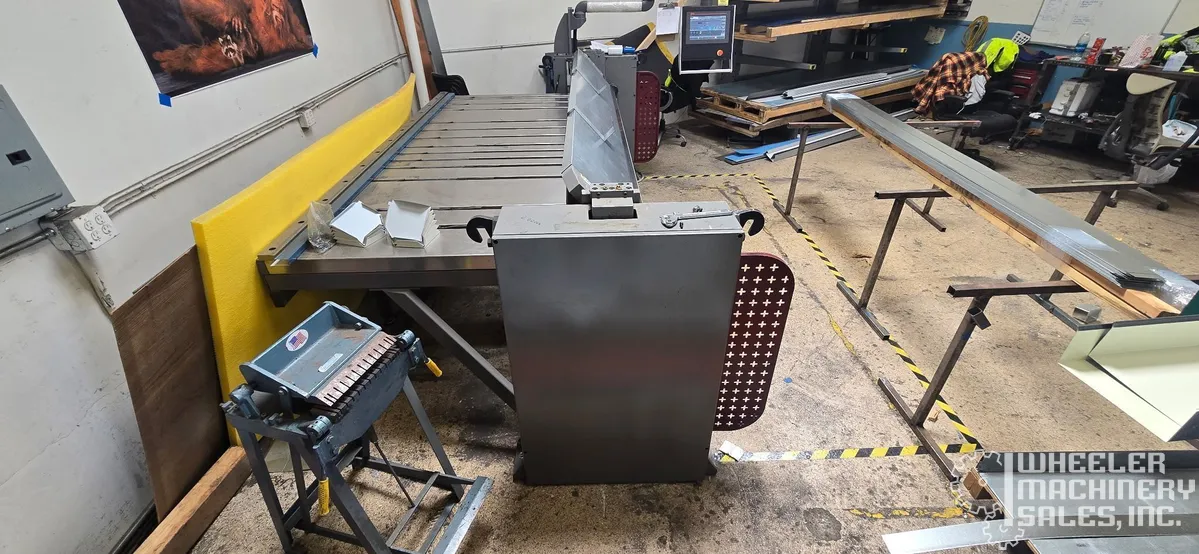

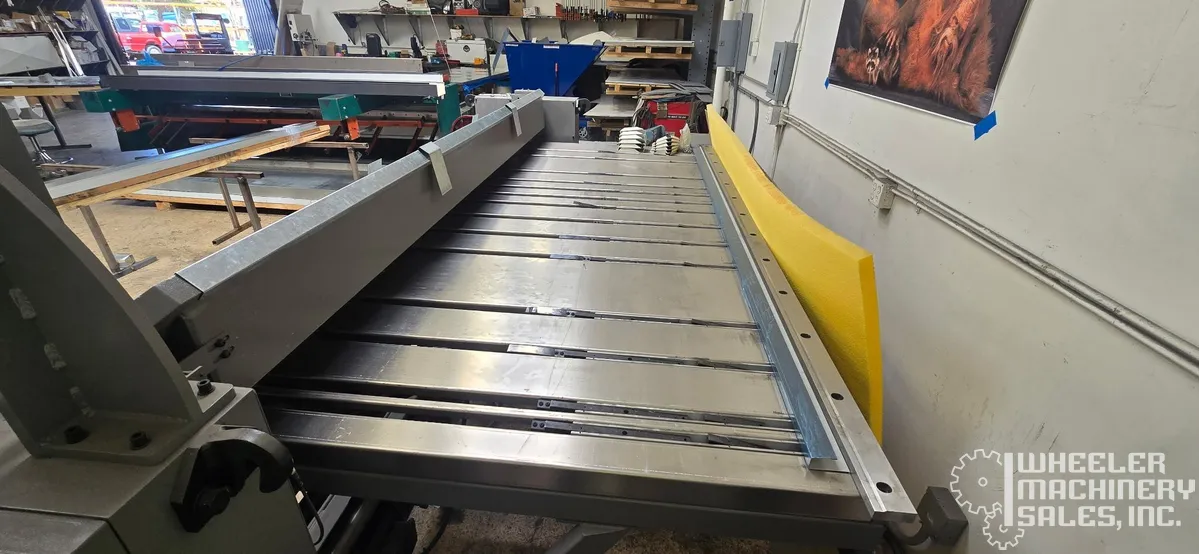

48” CNC back gauge with table and fingers

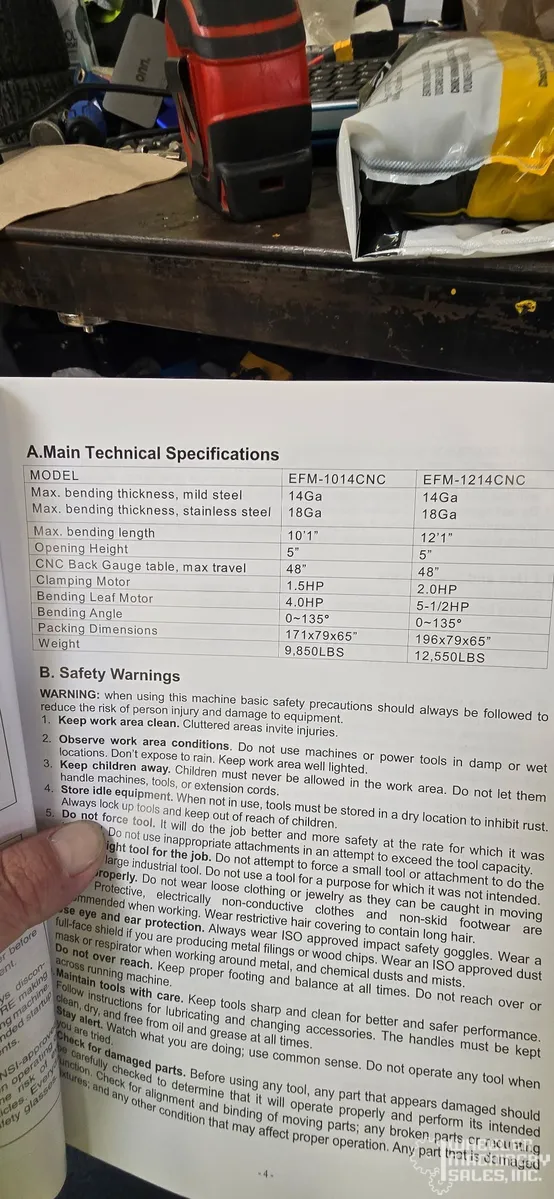

Capacity

Mild Steel/hot roll, tensile 60,000PSI

Stainless Steel/cold roll, tensile 85,000PSI

Soft Aluminum, tensile 28,000PSI

Close hemming

Open hemming

14Ga.

18Ga.

10Ga. / 1/8”thick

26Ga.

24Ga


Bending Length Capacity 10'1"
Bend Angle Degree, programmable 0-135 degree
Hemming capacity, mild steel 24 Ga.
Hemming capacity, stainless steel 28 Ga.
Large Beam Opening/clamping opening 4-7/8"
Min. Reverse Bend 1/2"
Max, Table Back Gauge Distance 48-3/8"
Min. Table Back Gauge Distance 1/2"
Back Gauge Repeatability 0.0039"
Back Gauge Table Height 35-3/4"

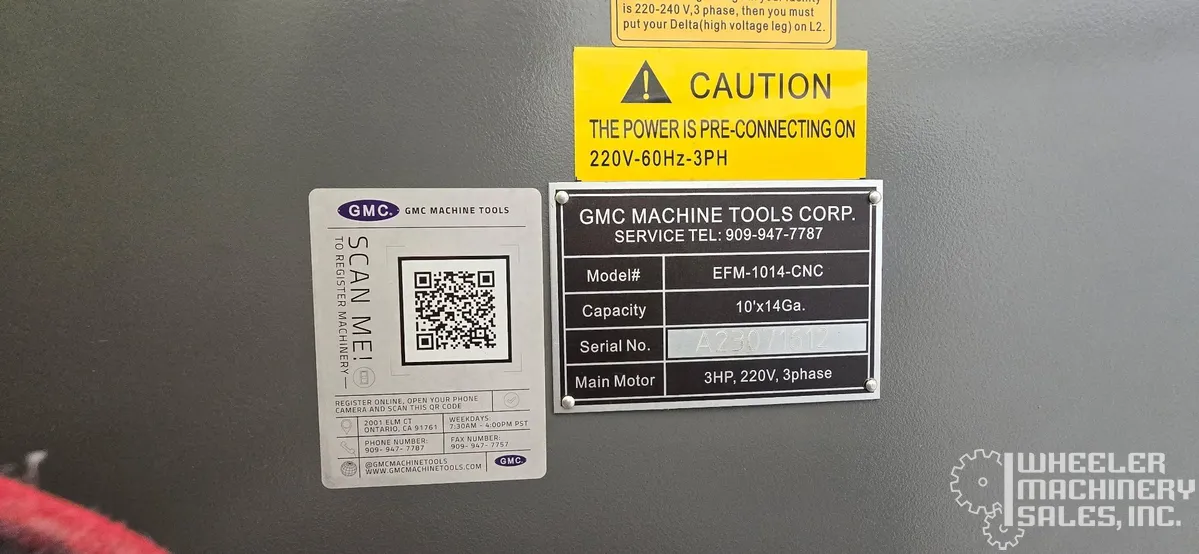

Motor for Bending Leaf
4 HP 3 Phase 35A

Prewired: 220VAC

Servo motor for back gauge
2 HP 3-Phase

220VAC

Clamping Motor
1-1/2 HP 3-Phase

Prewired: 220VAC

Machine Weight:

Shipping Weight:

9,850 LBS

10,150 LBS

Machine Size (LxWxH)

Shipping Dimensions:

168" x 79" x 67"

174" x 80" x 71"
