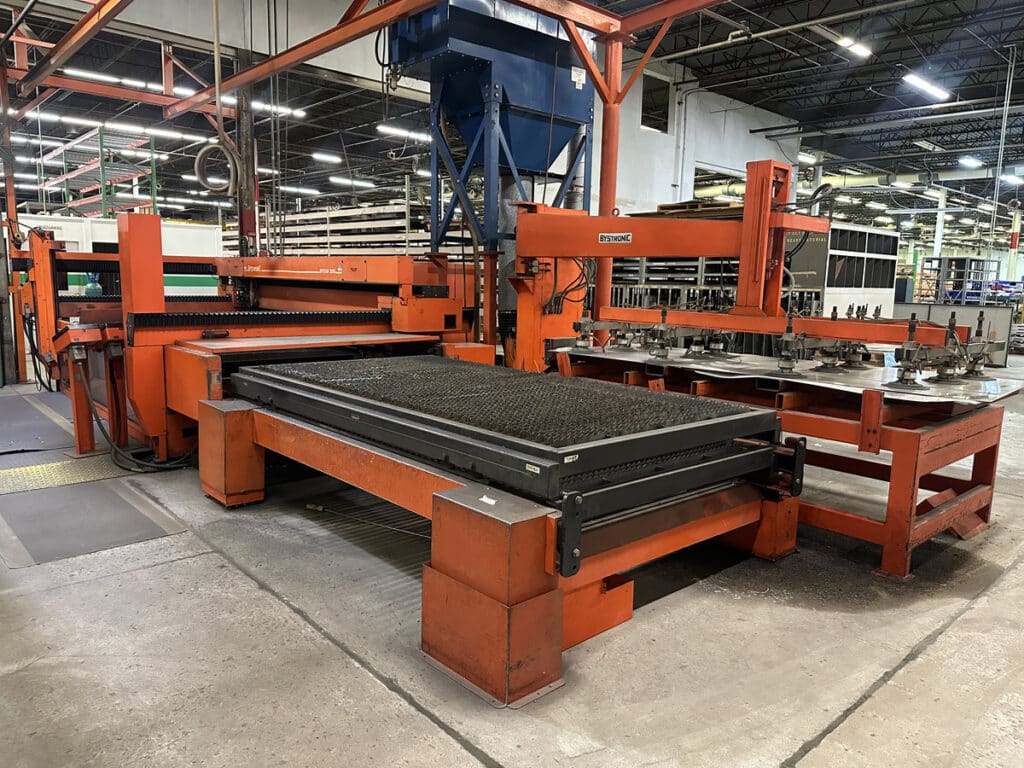

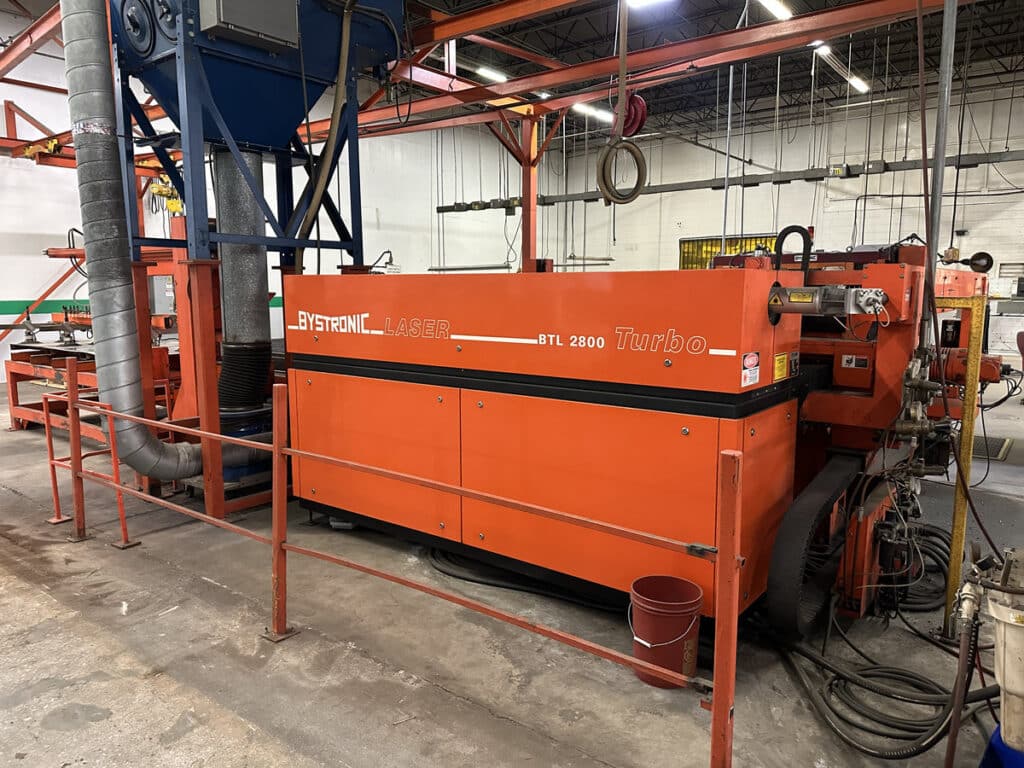

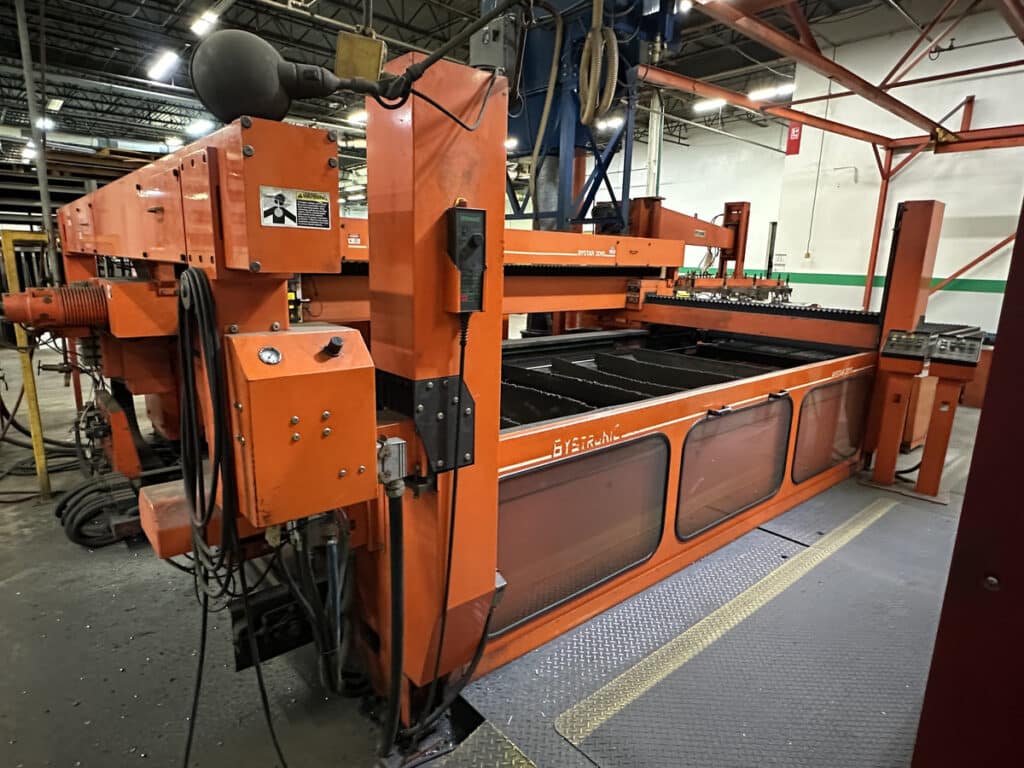

Bystronic Bystar 3015 Bystronic Bystar 3015- (3) BTL 2800 Watt CO2 Laser Cutting Machine – SN: 363

Manufacturer

Bystronic

Category

None

Type

LASERS, PARTS, TOOLING & ACCESSORIES

Stock

114250034

Model

Bystar 3015

Dealer Location

Georgia

Request a Quote
View Contact Information

Spec Sheet

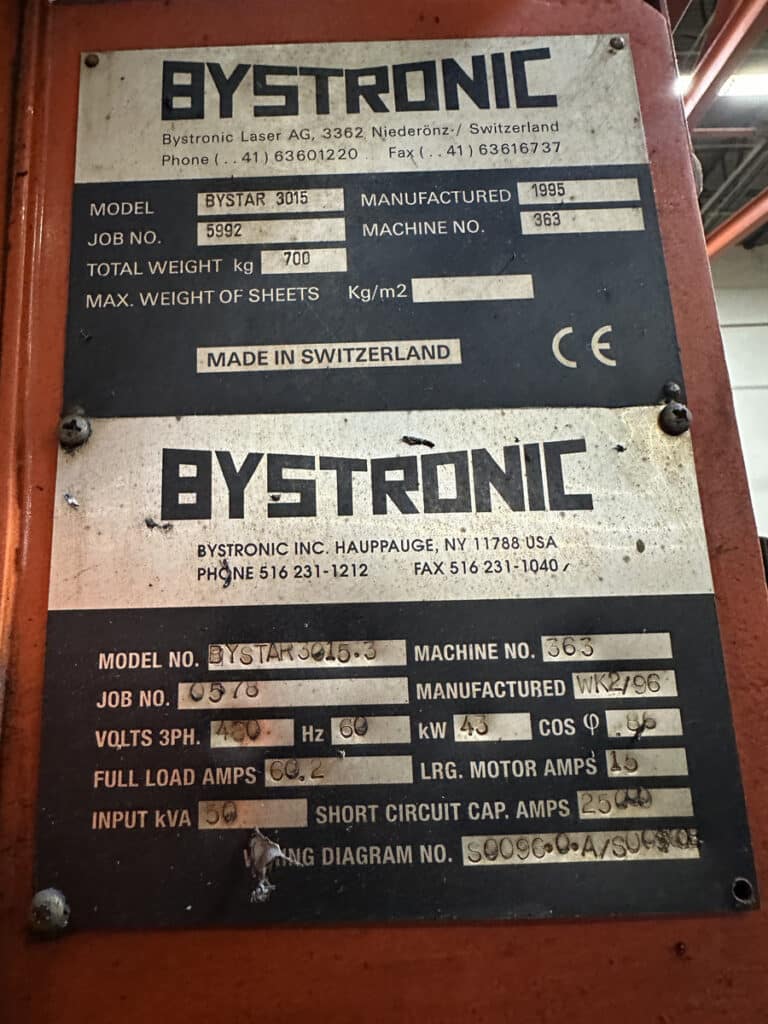

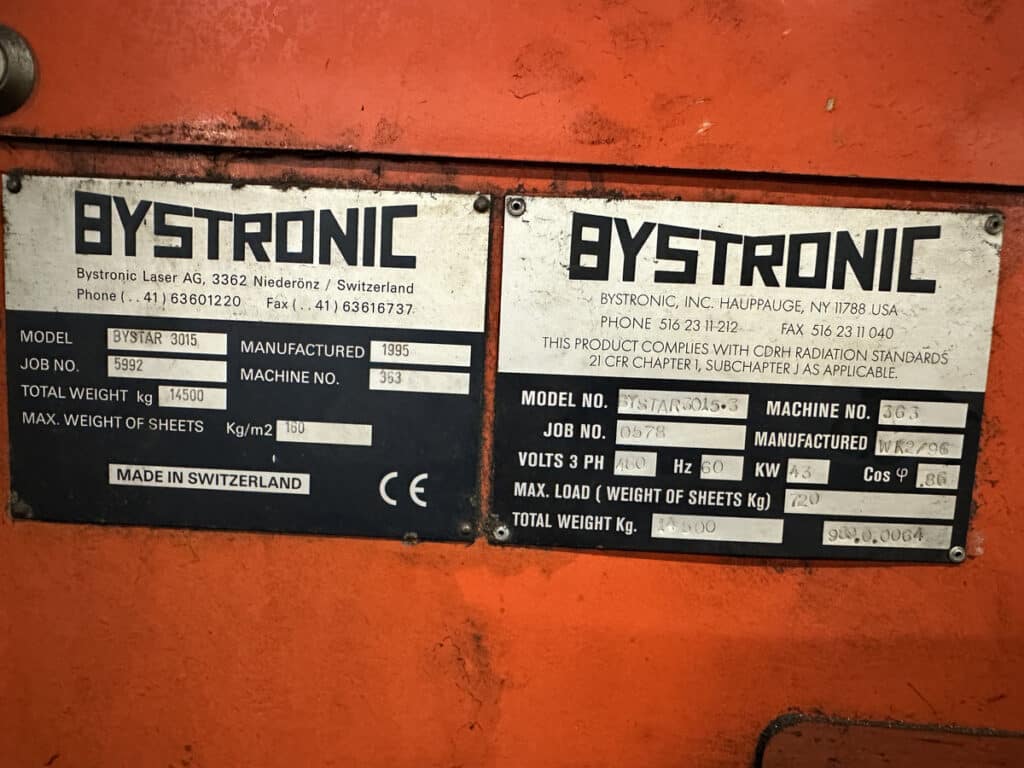

  • Stock #: 114250034
  • Location: Decatur, GA
  • Brand: Bystronic
  • Model: Bystar 3015
  • Serial #: 363
  • Year: 1995
  • Approx. Shipping Weight: 47,500 lbs (All Components)

Specifications

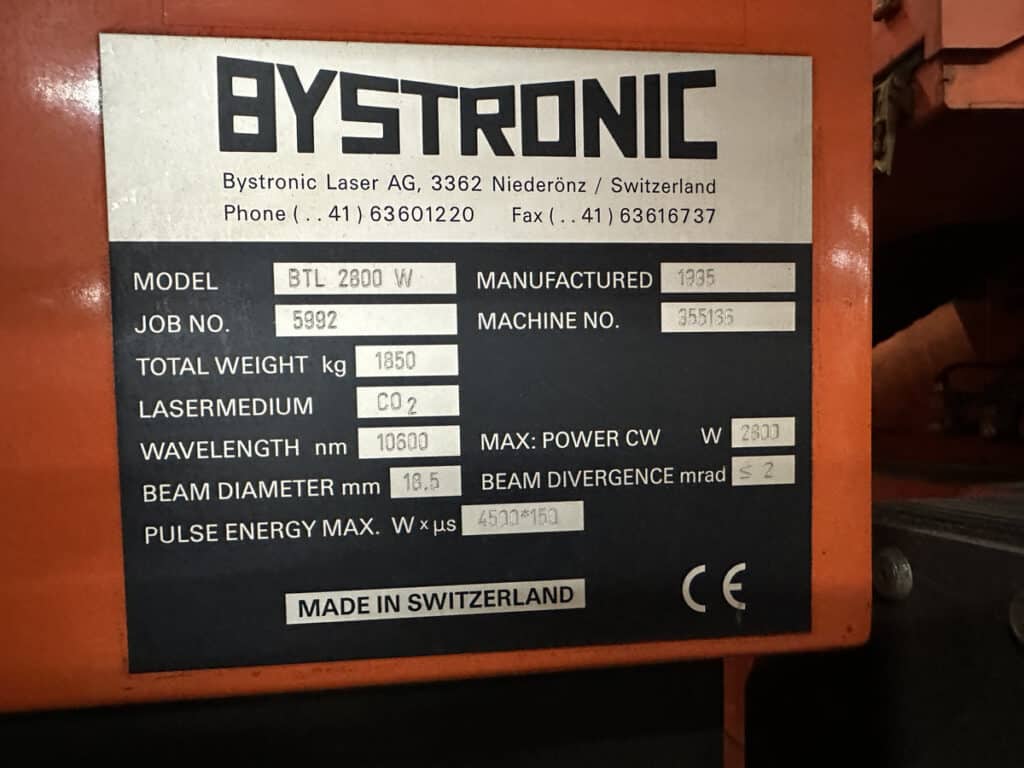

  • Laser Power: 2.8 kW (2800 Watts)
  • Laser Type: CO2
  • Working Area:
  • X-Axis Travel: 3048 mm / 120″ / 10′
  • Y-Axis Travel: 1524 mm / 60″ / 5′
  • Z-Axis Travel: 70mm
  • Max Material Weight: 1588 lbs (720 kg)
  • Max Thickness Mild Steel: 12 mm
  • Max Thickness Stainless Steel: 10 mm
  • Positioning Accuracy: ±0.004″
  • Repeatability: ±0.002″
  • Max. Workpiece Weight: 1962 lbs (890 kg)
  • Control System: Bystronic CNC Controller
  • Approx. Total Machine Footprint: 40′ L x 27′ W x 25′ H
  • Approx. Machine Weight: 36,000 lbs.
  • Largest Motor Amps: 15
  • Input kVA: 50
  • Electrical: 480 V, 3 ph, 60 Hz, 60.2 F.L.A.

Equipped With

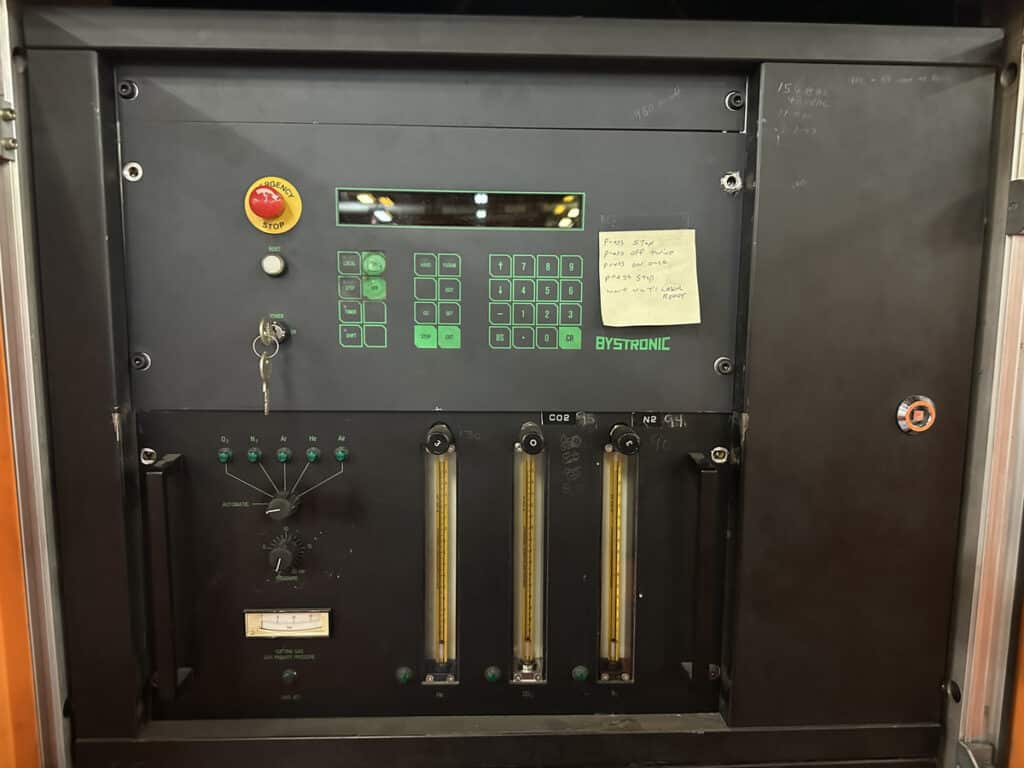

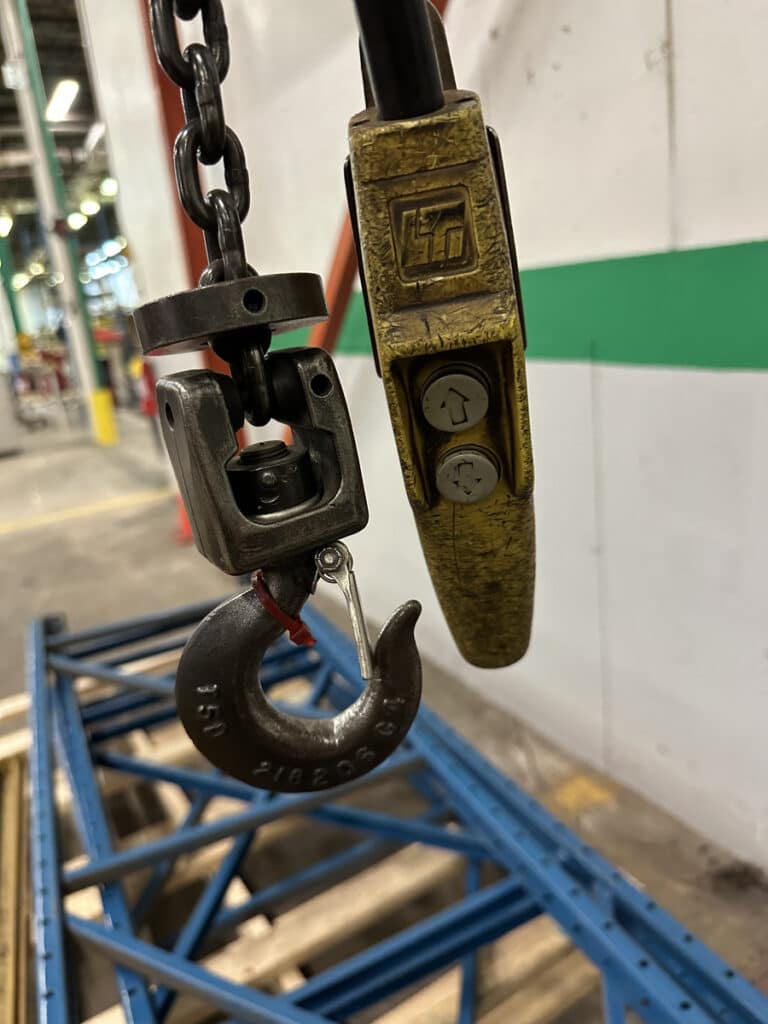

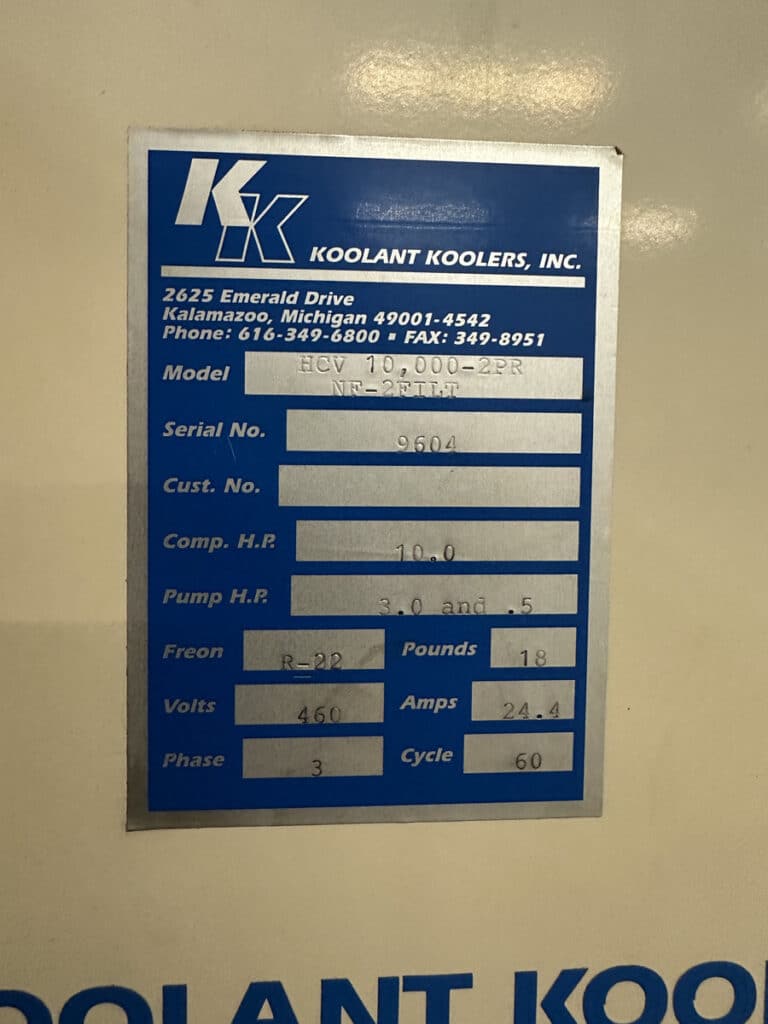

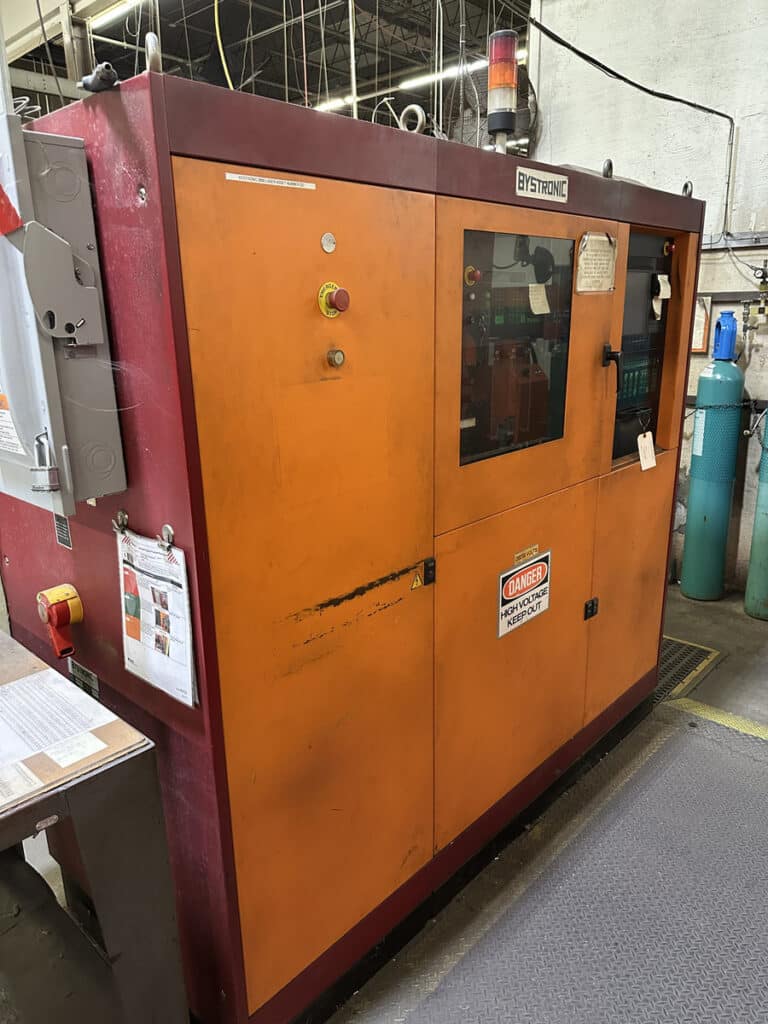

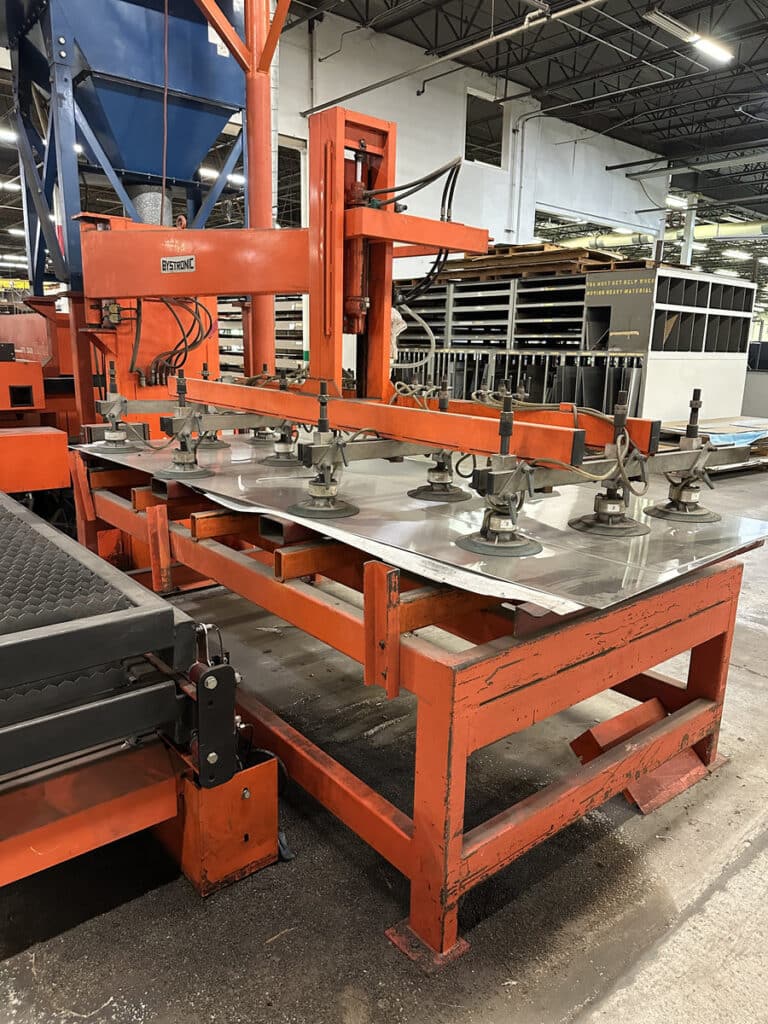

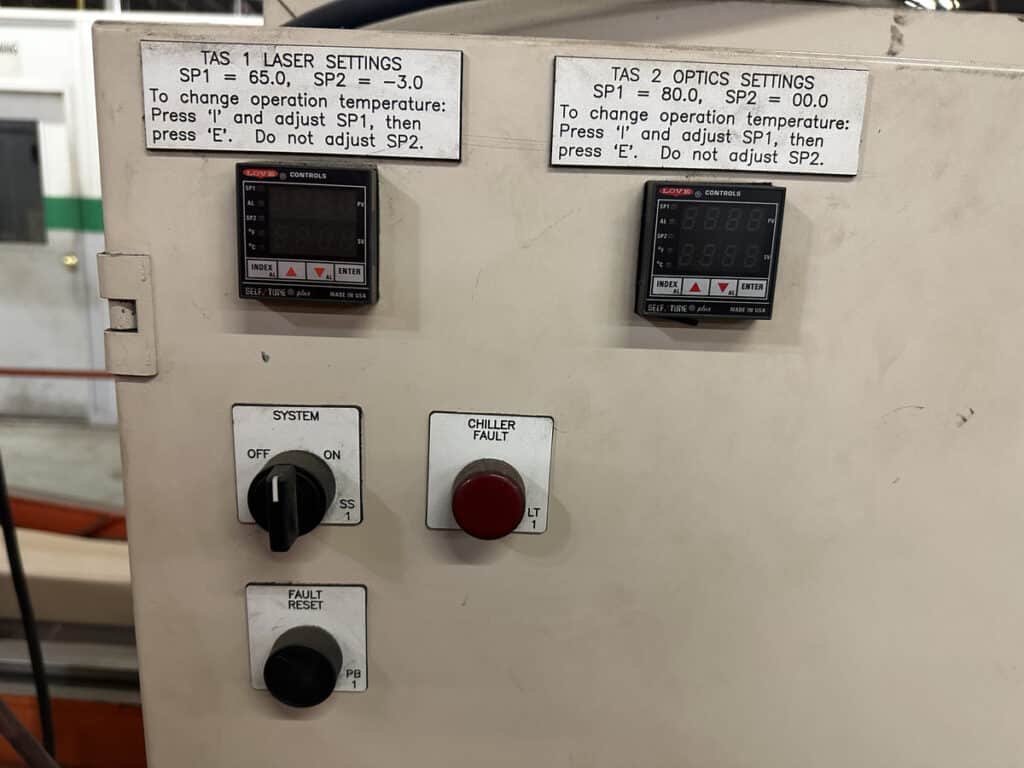

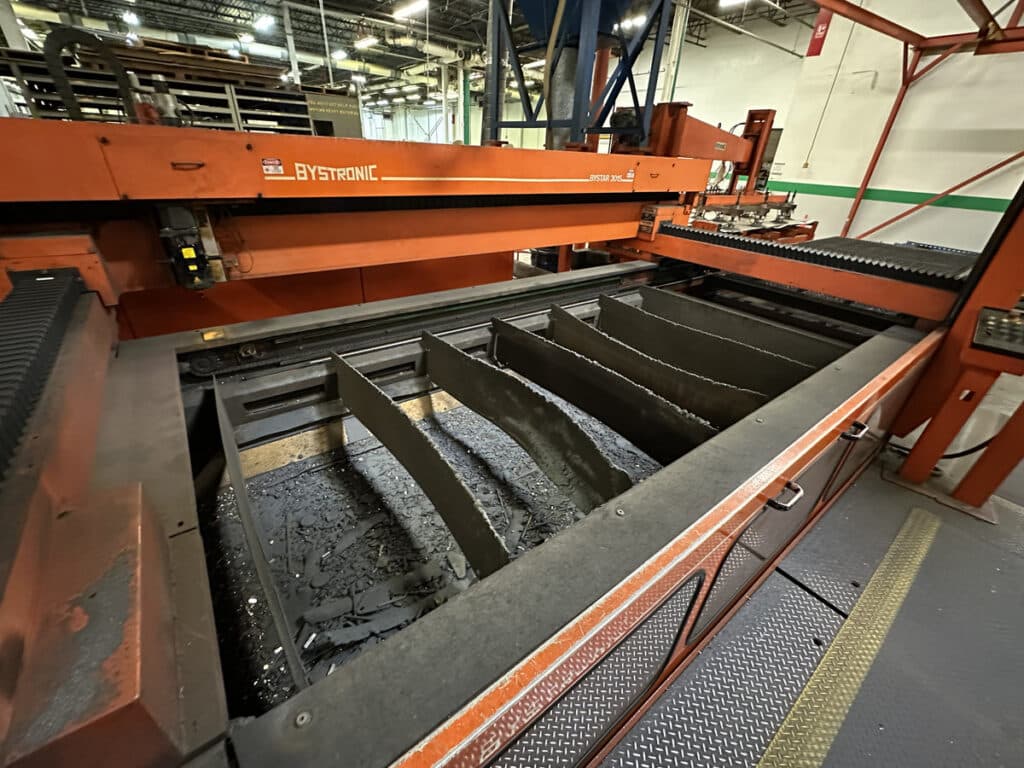

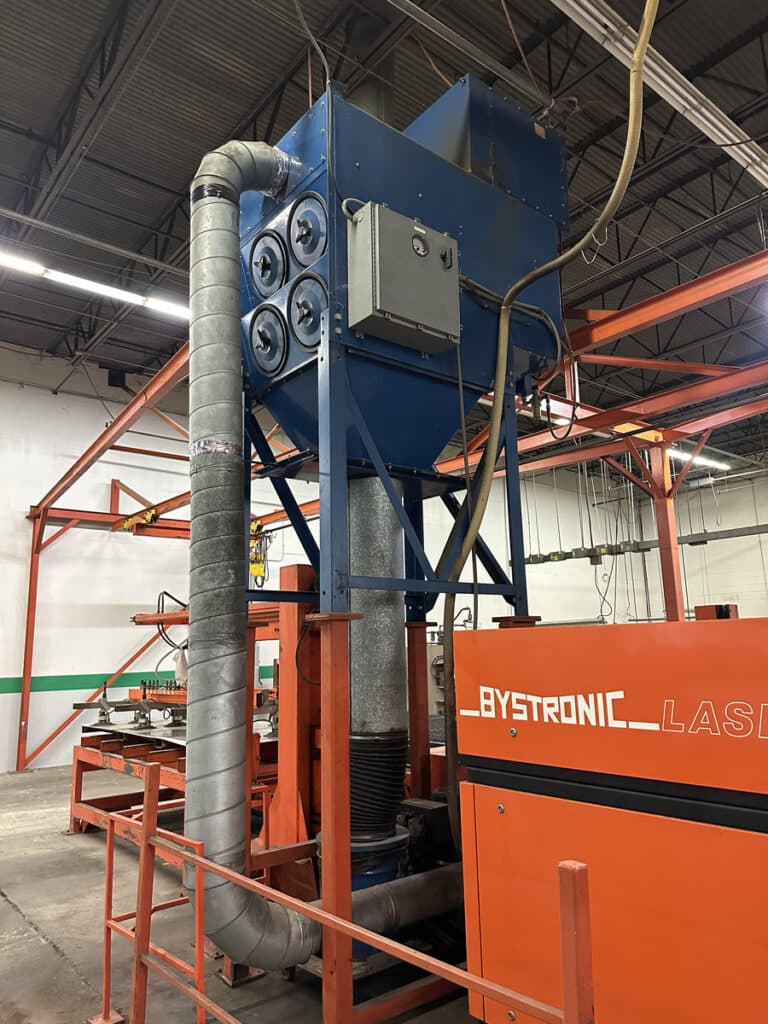

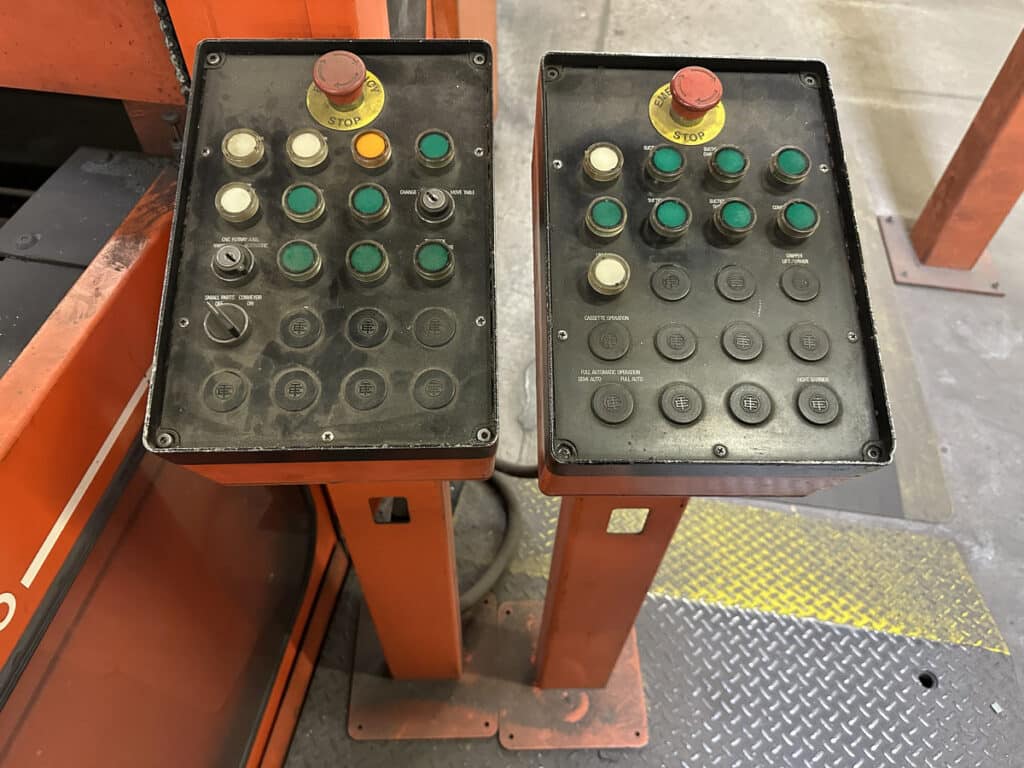

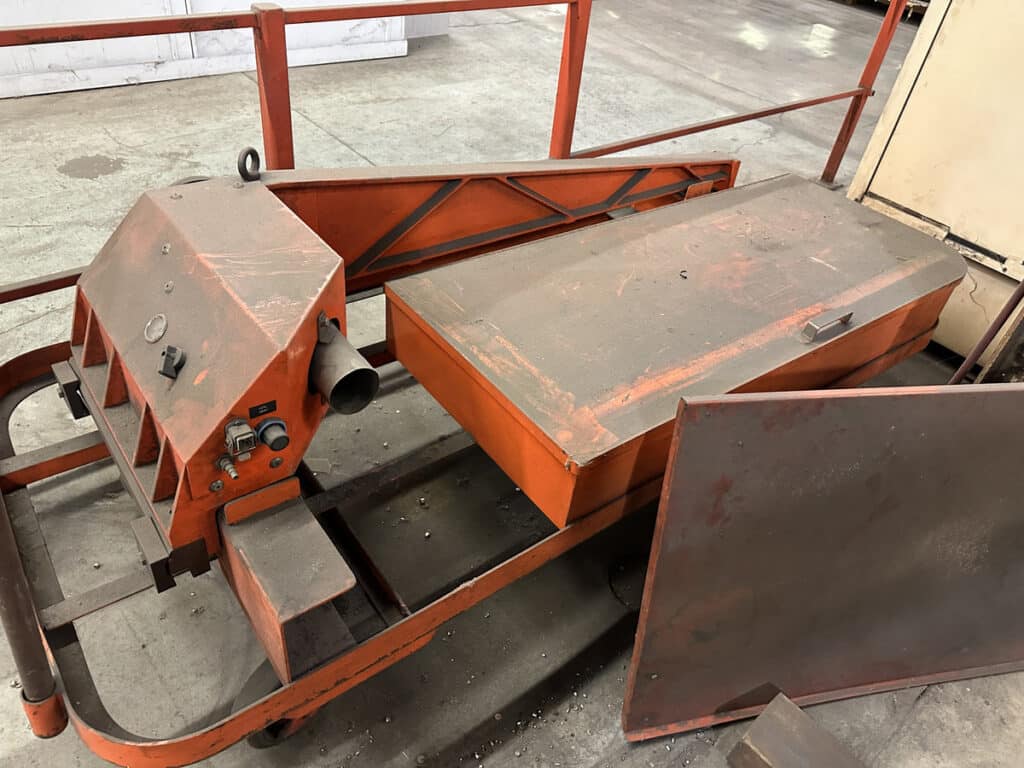

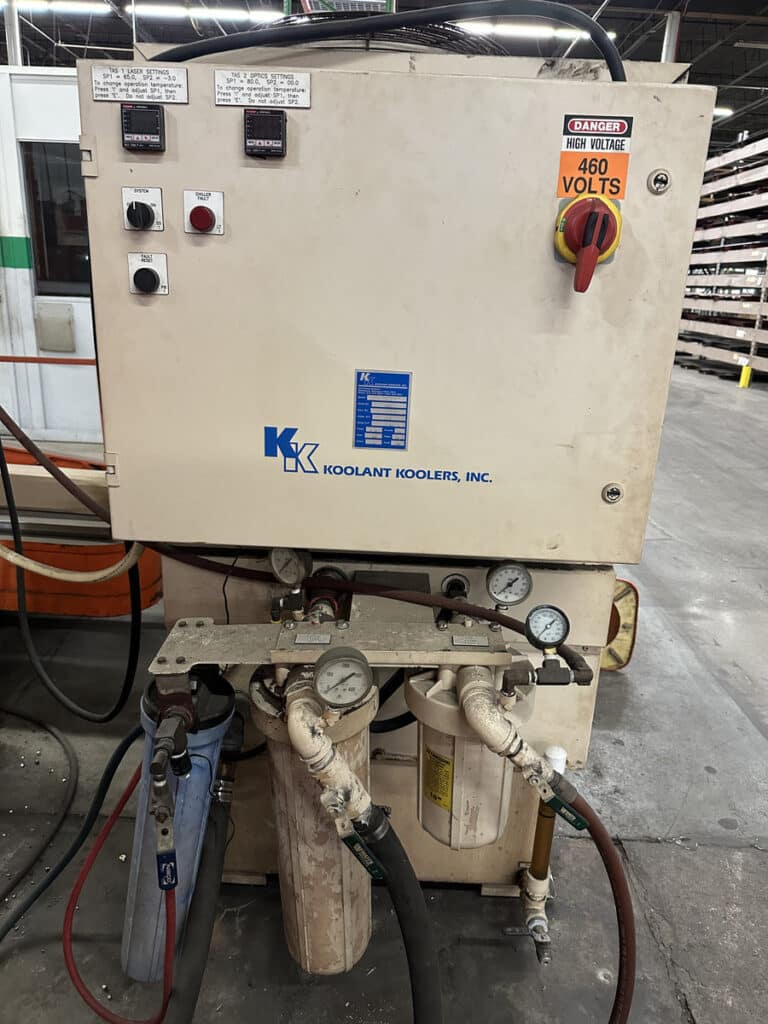

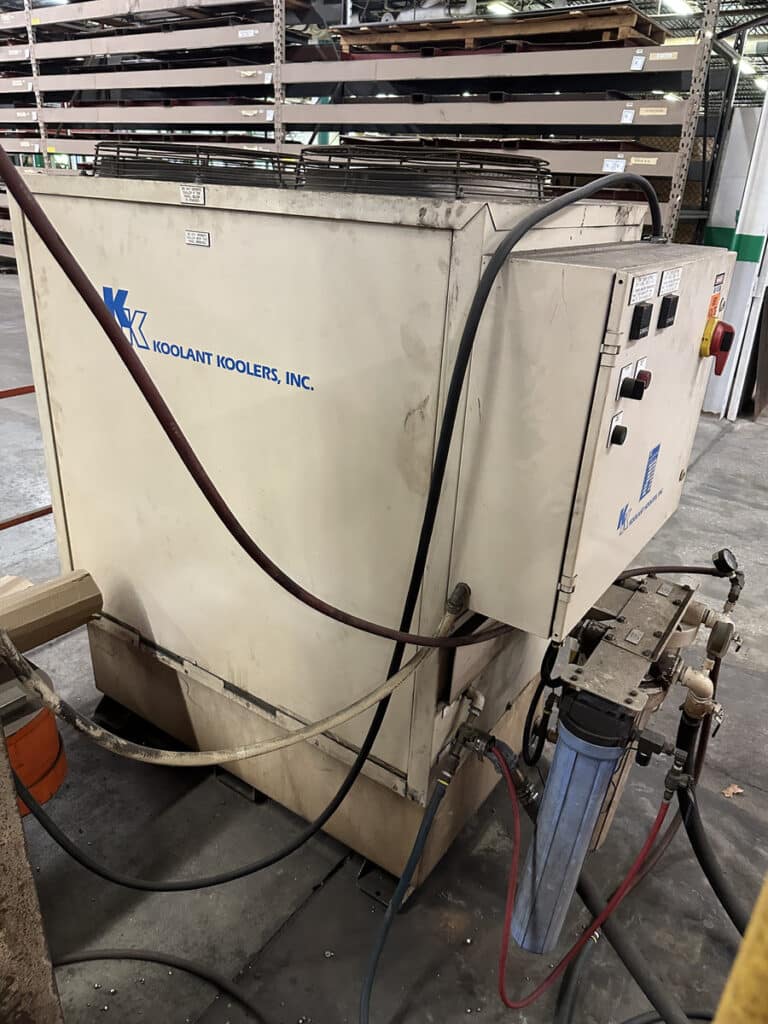

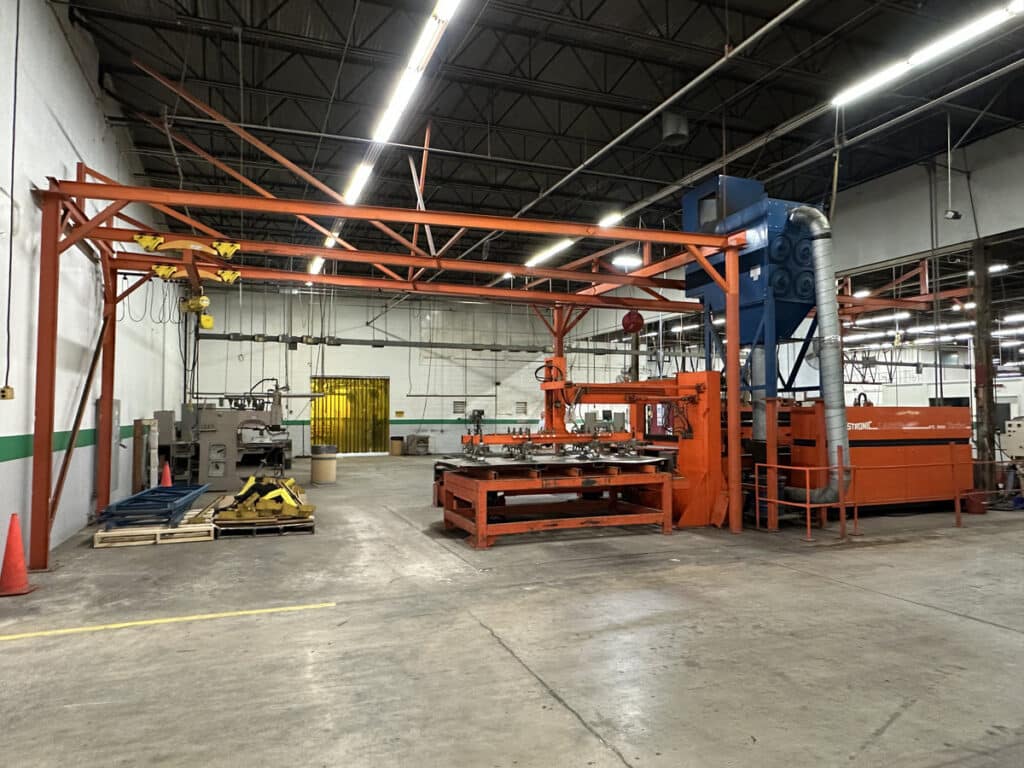

Bystronic Control Cabinet, Bystronic Handheld Controller, Dual Shuttle Tables, Metal Plate Vacuum Lifter, (2) Spare BTL Laser Heads, Koolant Koolers HCV 10,000- 2PR NF-2FILT Chiller, Torit Donaldson DF 2DF8 Dust Collection System, Cart w/ Spare Parts, Approx. 56′ L x 27′ W x 25′ H 1/2 Ton Overhead Crane Rail System w/ Budget 1/2 Hoist, Manuals and Service Records Available
