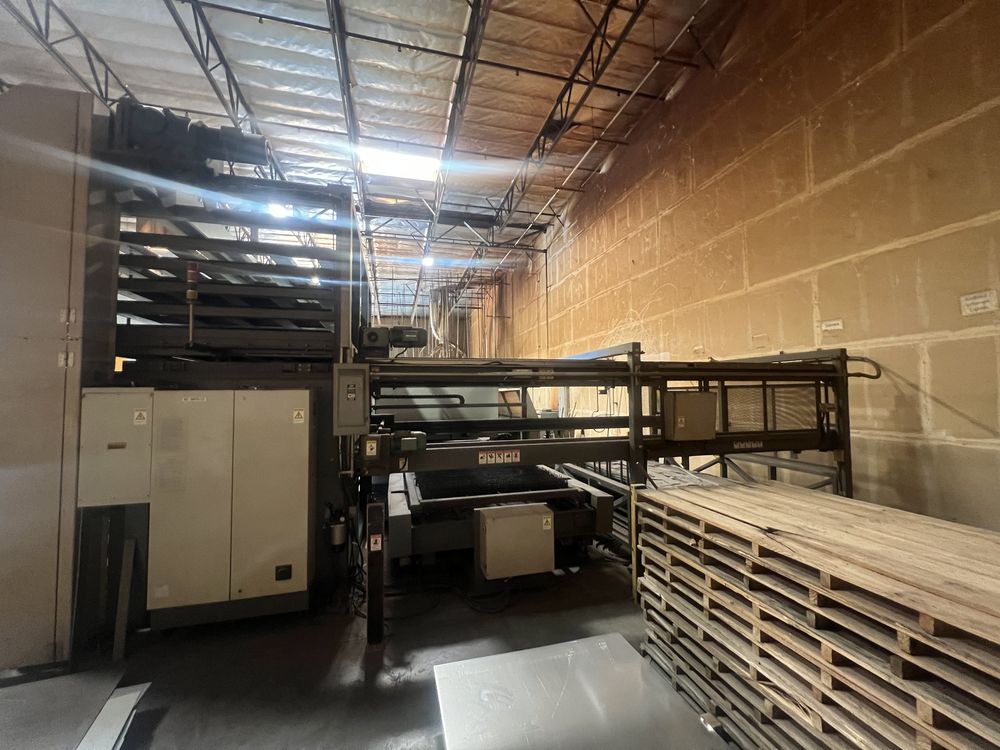

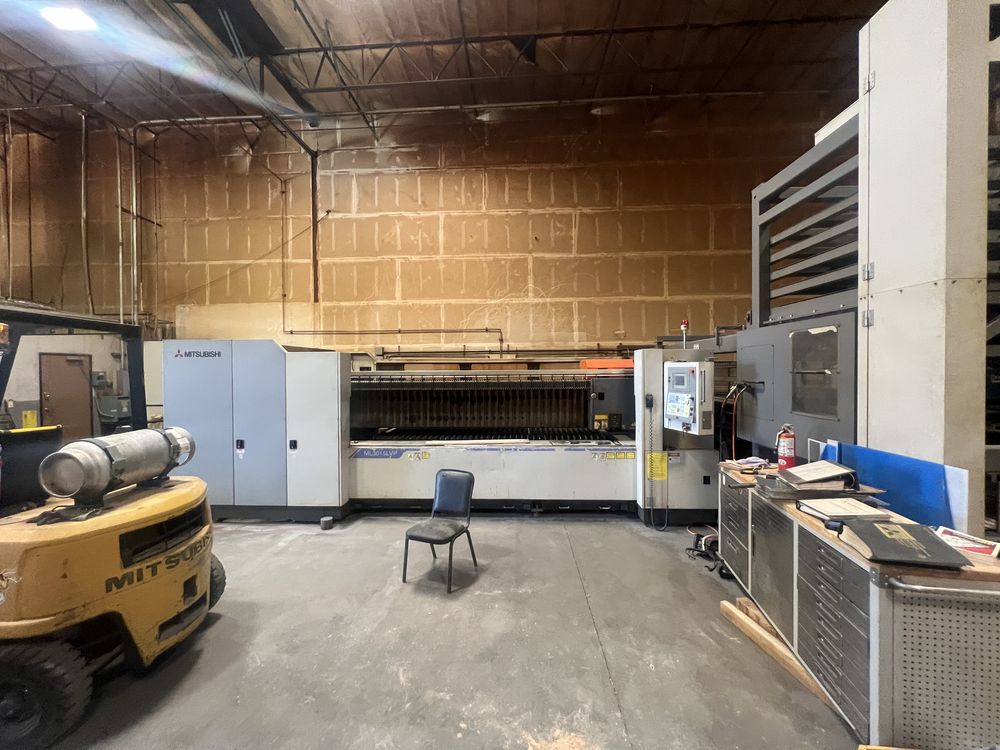

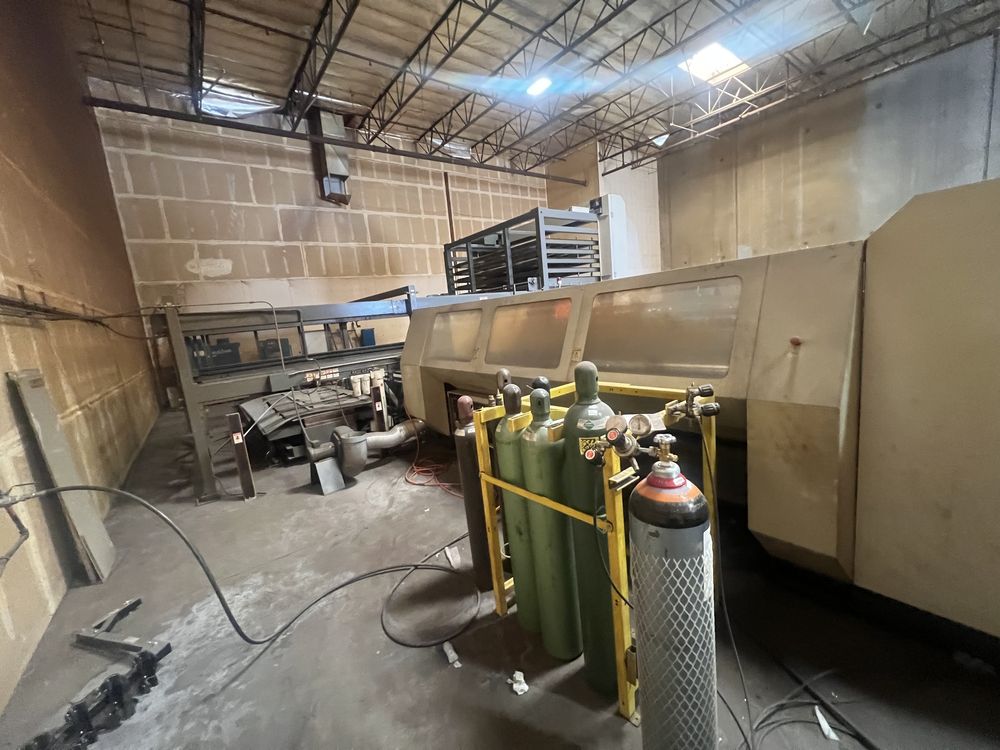

Mitsubishi ML3015LVP 5000 Watt CNC CO2 Laser

Manufacturer

Mitsubishi

Category

None

Stock

181250018

Model

ML3015LVP

Dealer Location

Georgia

Spec Sheet

  • Stock #: 181250018
  • Location: North Las Vegas, NV
  • Brand: Mitsubishi
  • Model: ML3015LVP
  • Year: 2002
  • Approx. Shipping Weight: 27,340 Lbs.
  • Approx. Shipping Dimensions: 420.3″ W x 90.6″ H x 183″ L
  • Loading Fee: Rigging Required

Specifications

  • Table Size: 5 Feet X 10 Feet
  • X-Axis Travel:: 122 Inches
  • Y-Axis Travel: 61 Inches
  • Z-Axis Travel: 4.72 Inches
  • Maximum Workpiece Size: 120.08 Inches X 60.04 Inches
  • Maximum Workpiece Weight:: 2050 Pounds
  • Maximum Processing Feedrate: 1180 Inches Per Minute
  • Rapid Travel Speed (X, Y): 3345 / 4730 Inches Per Minute
  • Pallet Change Time: Approximately 25 Seconds
  • Motion Drive System Design: Precision Rack And Pinion, Direct Drive
  • Laser Type: CO2 Laser
  • Resonator Power: 5,000 Watts

Equipped With

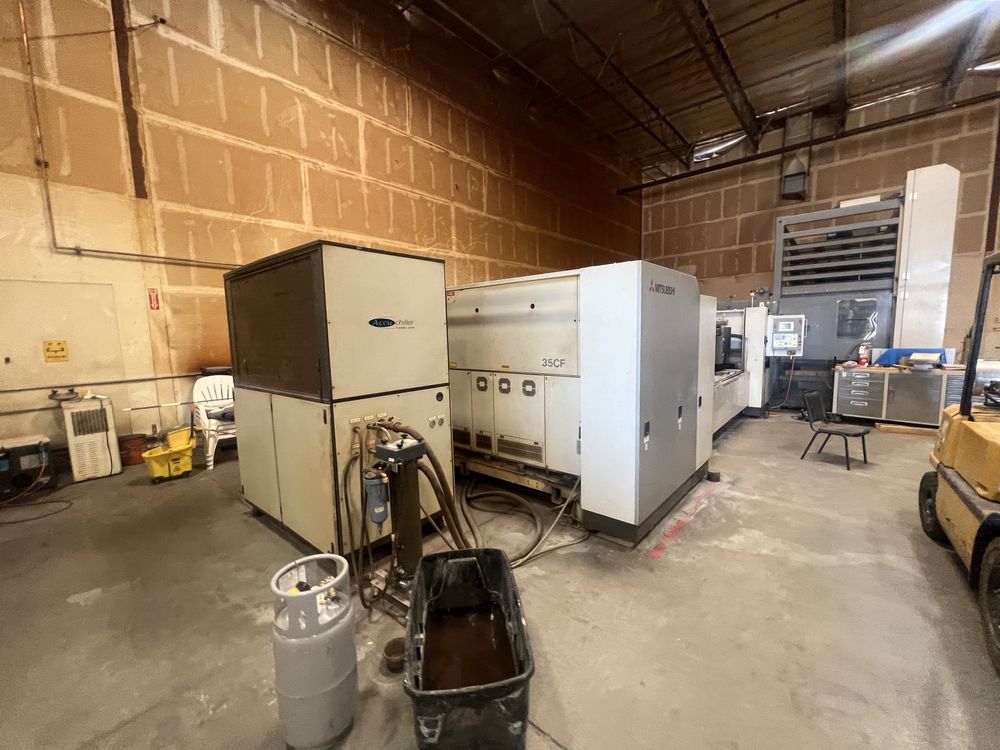

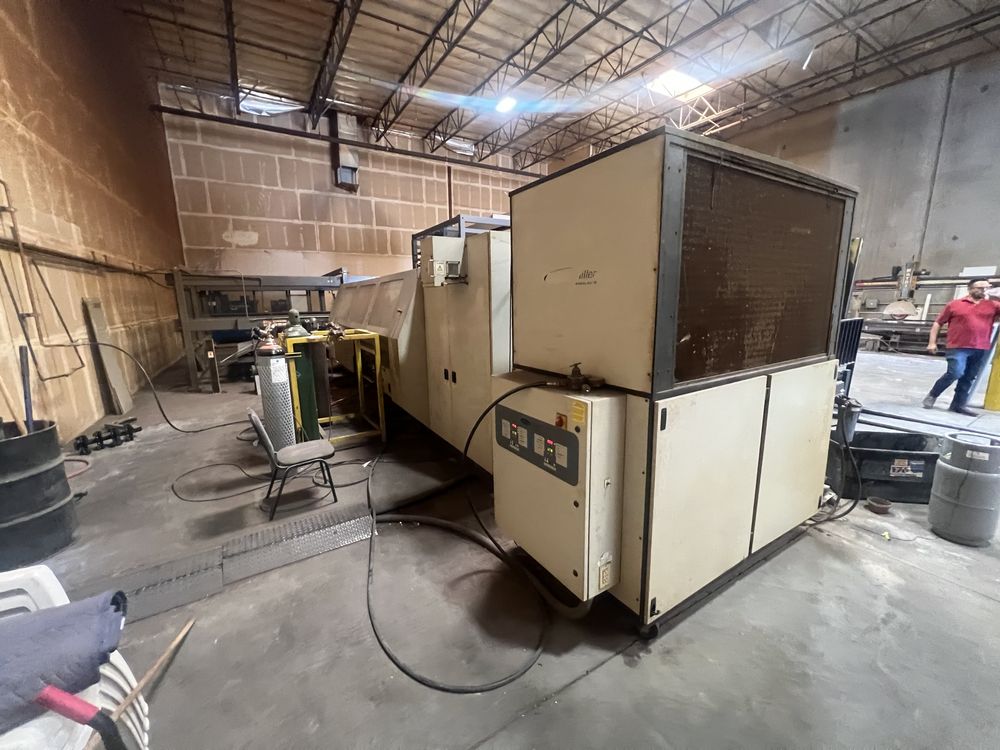

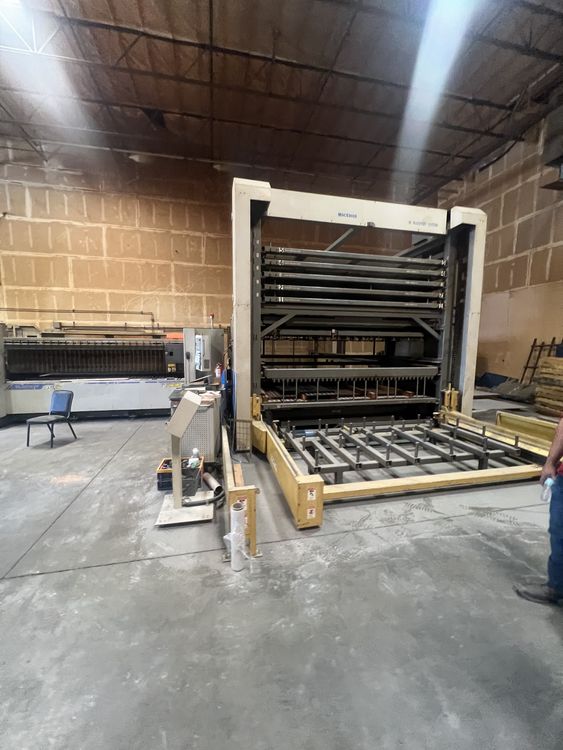

Mitsubishi PHX Cutting Head, Beam Optimizer, High-Speed Power Sensor, ATFR Mirror, Closed Loop Air Cooled Chiller, High-Speed Capacitance Height Sensor, Programmable Gas Assist With High Pressure Bypass System, Safety Covers, Automatic Heavy-Duty Pallet Changer, Ethernet LAN Interface, Multifunction Visible Alignment Laser, Floppy Disk Drive: 1.44MB IBM Compatible, Hard Disk Drive Capacity: 2.0 Gigabytes, Graphic Display: 10.4-Inch TFT Color LCD Touch Screen, CPU Type: 64 Bit / PC

Additional Info

Inspection Upon Request

No Video Available
