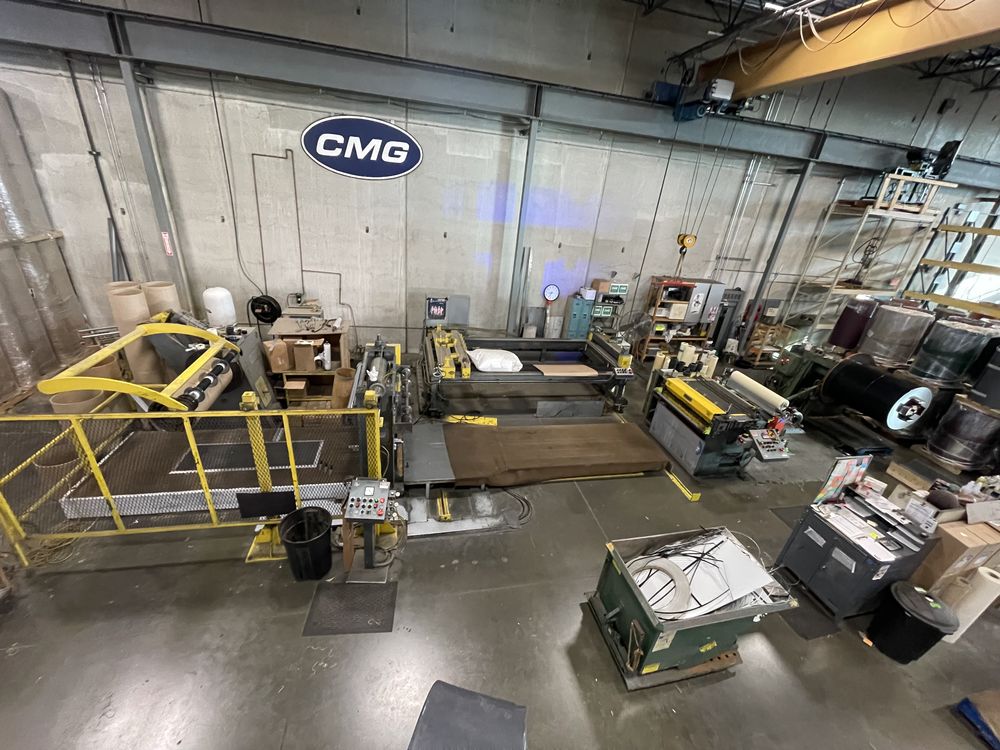

Strilich 17553040002 48″ x 20,000 Lb Metal Slitting/Cut to Length Line

Stock

211250030

Model

17553040002

Dealer Location

Georgia

Spec Sheet

  • Stock #: 211250030
  • Brand: Strilich
  • Model: 17553040002

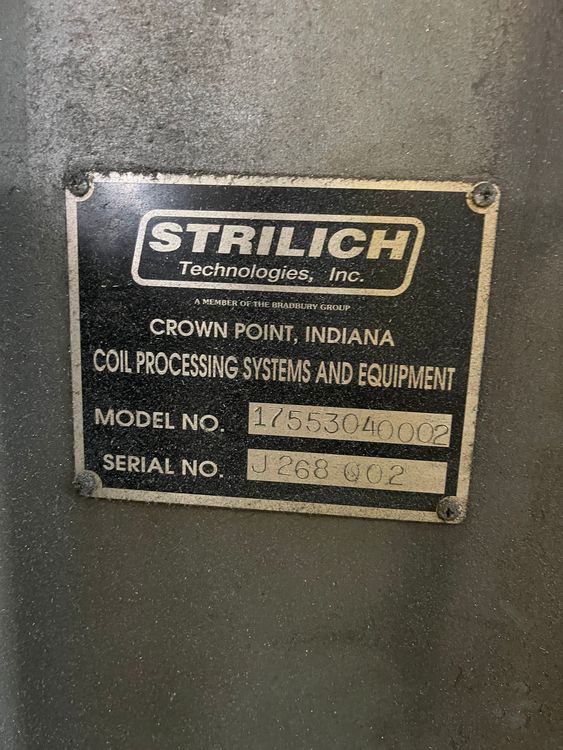

  • Serial #: J268002

Specifications

  • Max Coil Weight: 20,000 lbs
  • Coil Width: 48″
  • Coil OD: 60″ Max
  • Coil ID: 16″ min – 20″ max
  • Material Thickness: .012″ – .048″
  • Material Yield: 50,000 PSI Max
  • Length Accuracy: +/- 1/32″
  • Line Speed: 120 FPM Max Roll Speed
  • Cut Length: 24″ Min – 120″ Max
  • Max Shear Cuts: 20 Cuts per Minute
  • Line Direction: Right to Left
  • Pass Line Height: 40″
  • Stack Height: 18″ less skid
  • Stack Length: 120″
  • Stack Weight: 10,000 lbs

Equipped With

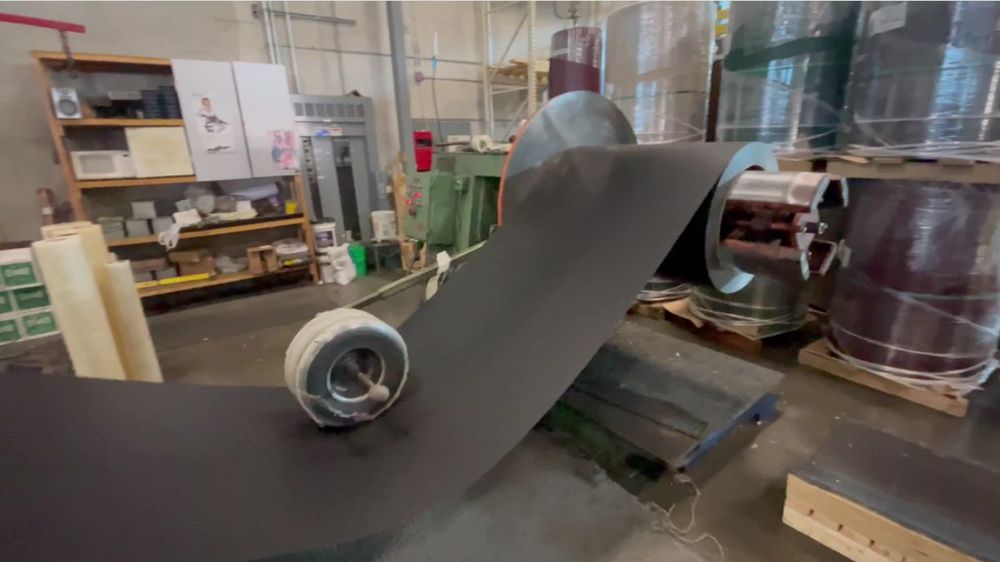

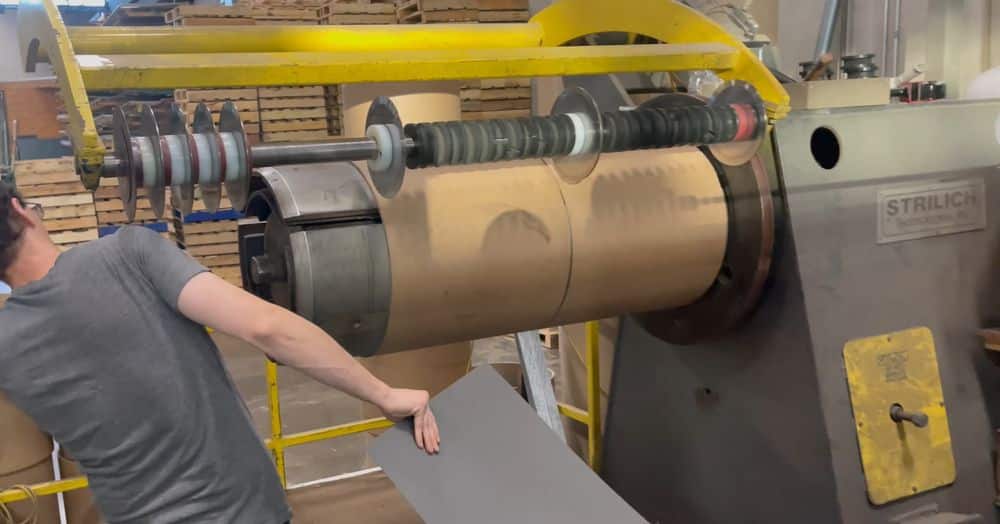

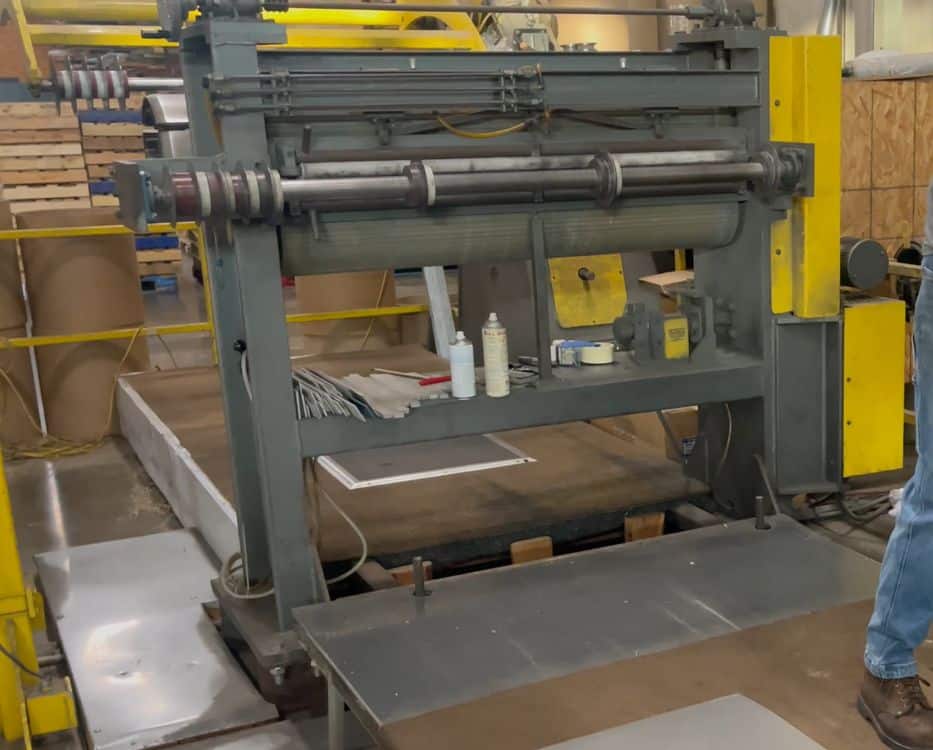

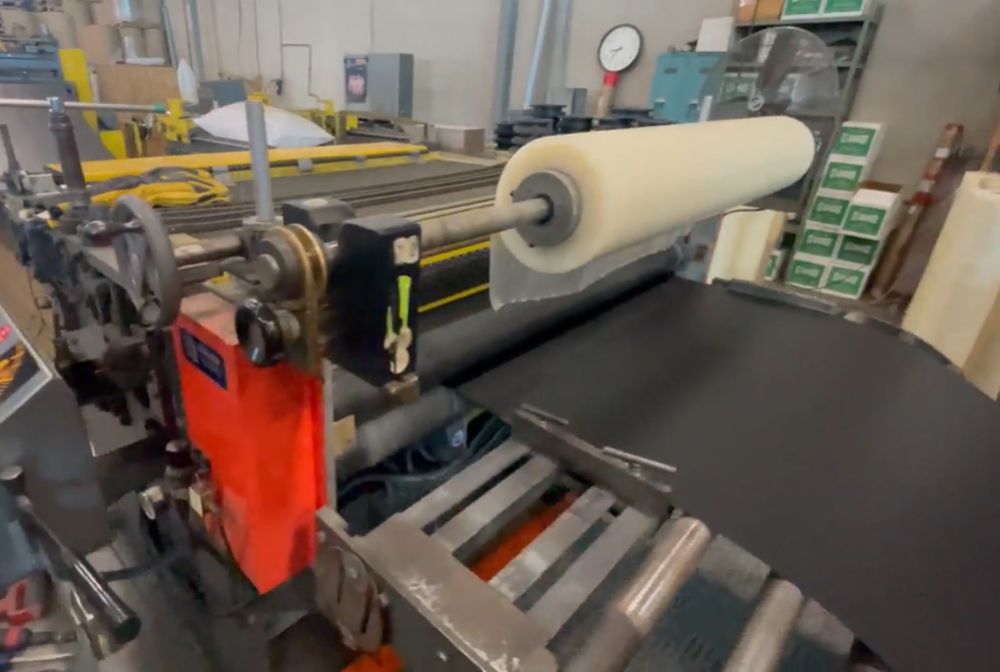

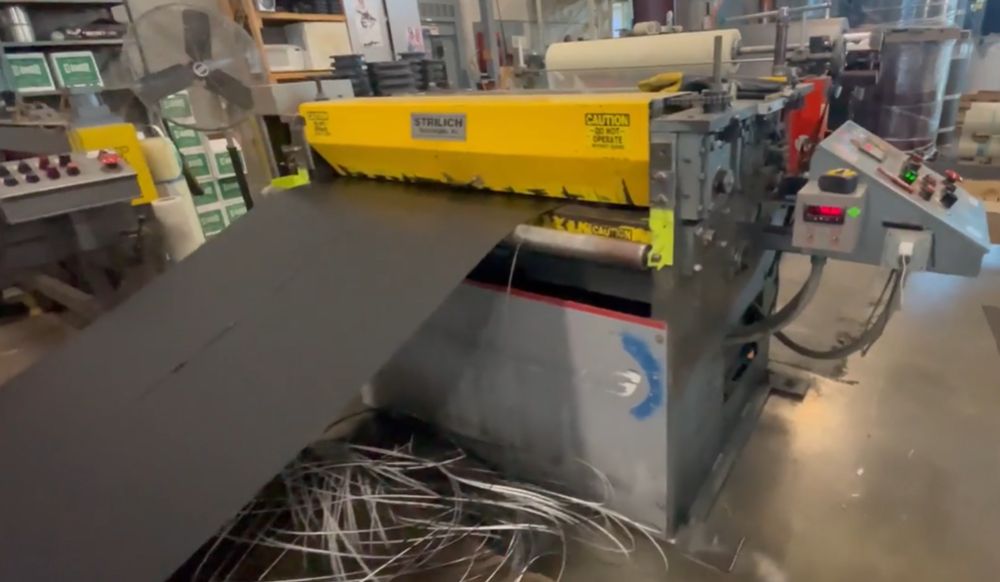

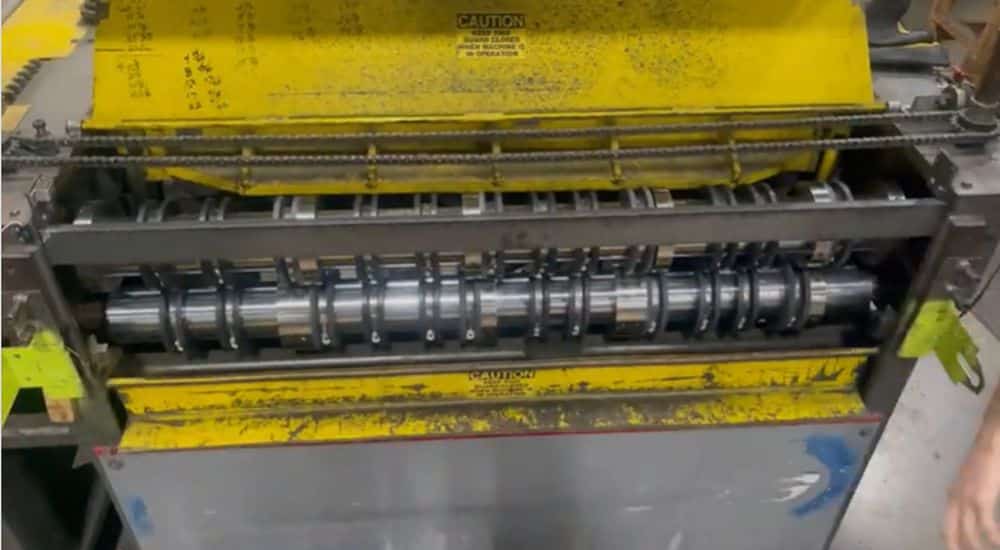

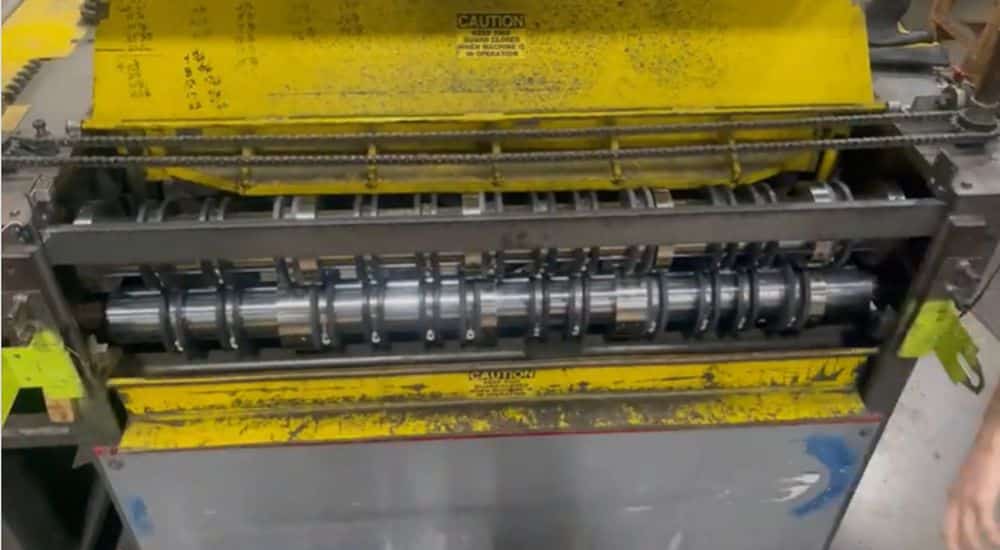

Uncoiler, Zero Point Entry Edge Guides, Vinyl Applicator, Shear, Slitter Head with Bolt on Tooling and Knives, Blank Stacker and Strip Separators, Tension Stand and Recoiler (16″/20″).
