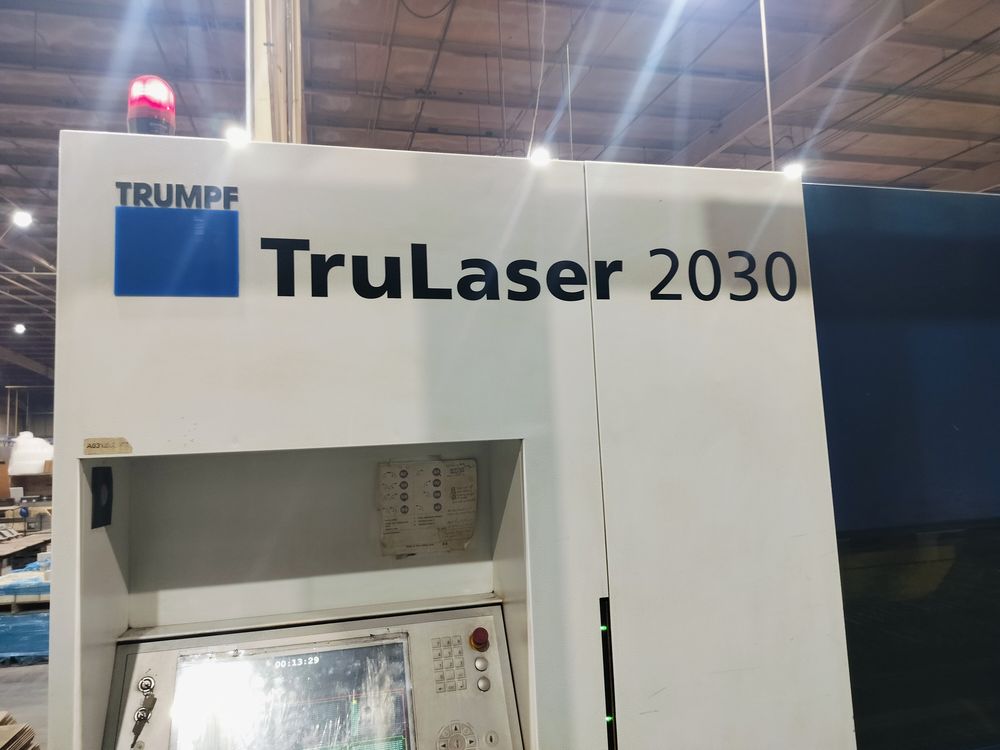

Trumpf TruLaser 2030 Fiber Lase 2018 Trumpf TruLaser 2030 Fiber Laser 10′ X 5′

Trumpf TruLaser 2030 Fiber Lase 2018 Trumpf TruLaser 2030 Fiber Laser 10′ X 5′

Manufacturer

Trumpf

Spec Sheet

Stock #: 181250027
Location: Columbus, Ohio
Brand: Trumpf
Model: TruLaser 2030 Fiber Lase
Year: 2018
Approx. Shipping Weight: 25,000-28,000 lbs
Approx. Shipping Dimensions: Length 28 Ft. , Width: 22 Ft., Height: 7.5 Ft.

Specifications

Working Range: 120″ × 60″ (3,000 mm × 1,500 mm)
Laser Type: Solid-state fiber (TruDisk 4001)
Laser Power: 4,000 Watts (4 kW)
Maximum Sheet Thickness: Mild Steel: 1.0″ (25 mm), Stainless Steel: 0.80″ (20 mm), Aluminum: 0.80″ (20 mm), Brass: 0.31″ (8 mm) Copper: 0.31″ (8 mm)
Maximum Simultaneous Axis Speed: (5,512 in/min) 140 m/min
Positioning Accuracy: ±0.05 mm (±0.002″)
Average Power Consumption: 13 kW
Total Connected Load (Peak): 50-60 kVA
Voltage: 400/480V, 3-phase
Amperage: 75-100A full load
Phases: 3-phase

Equipped With

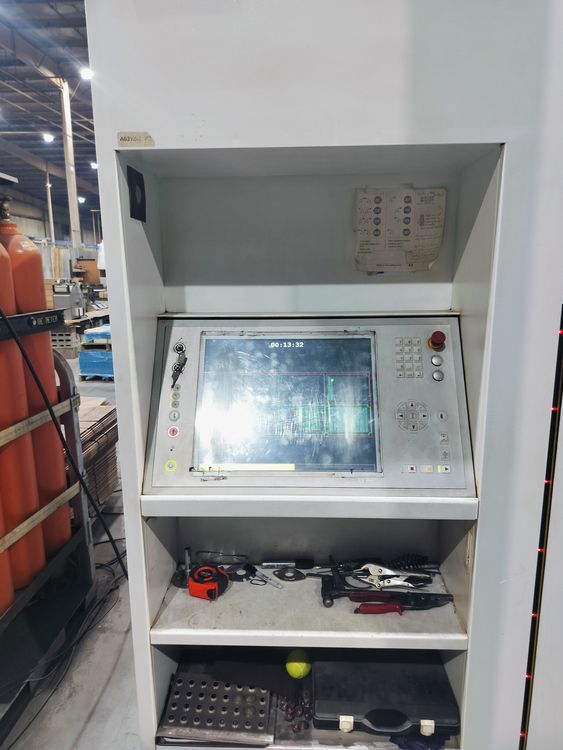

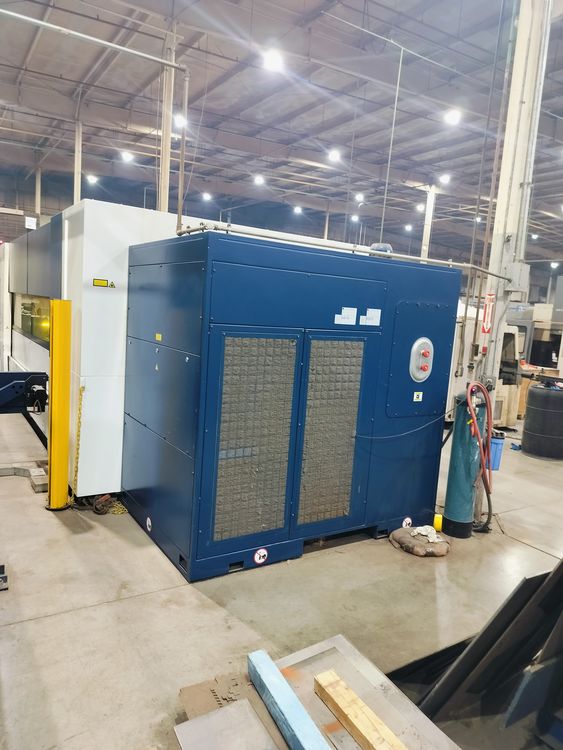

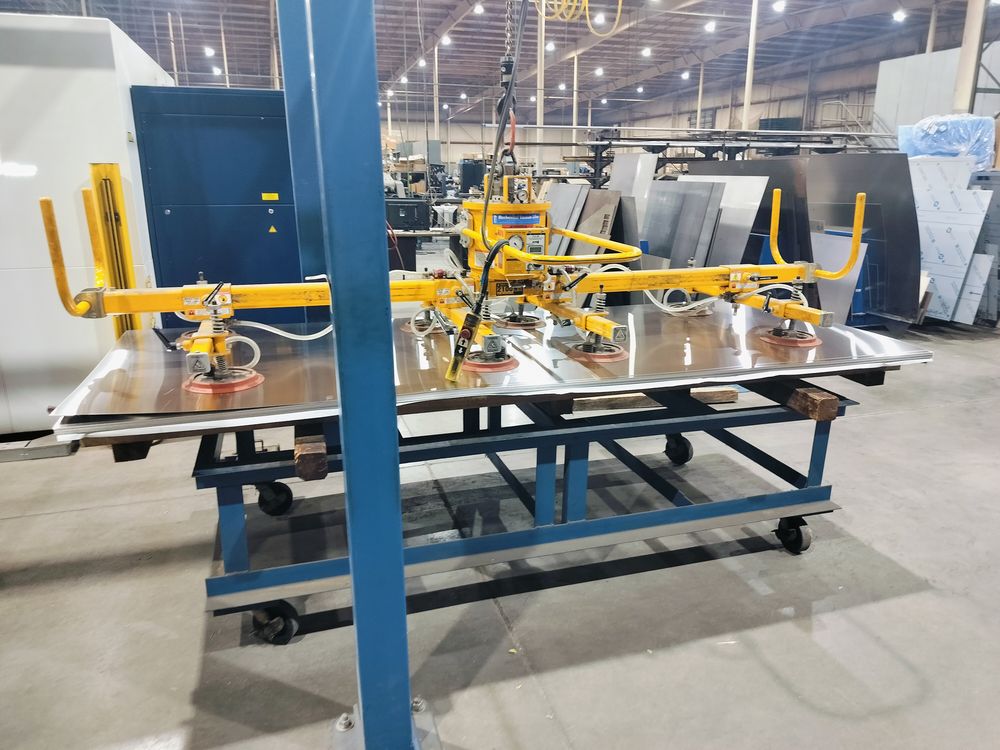

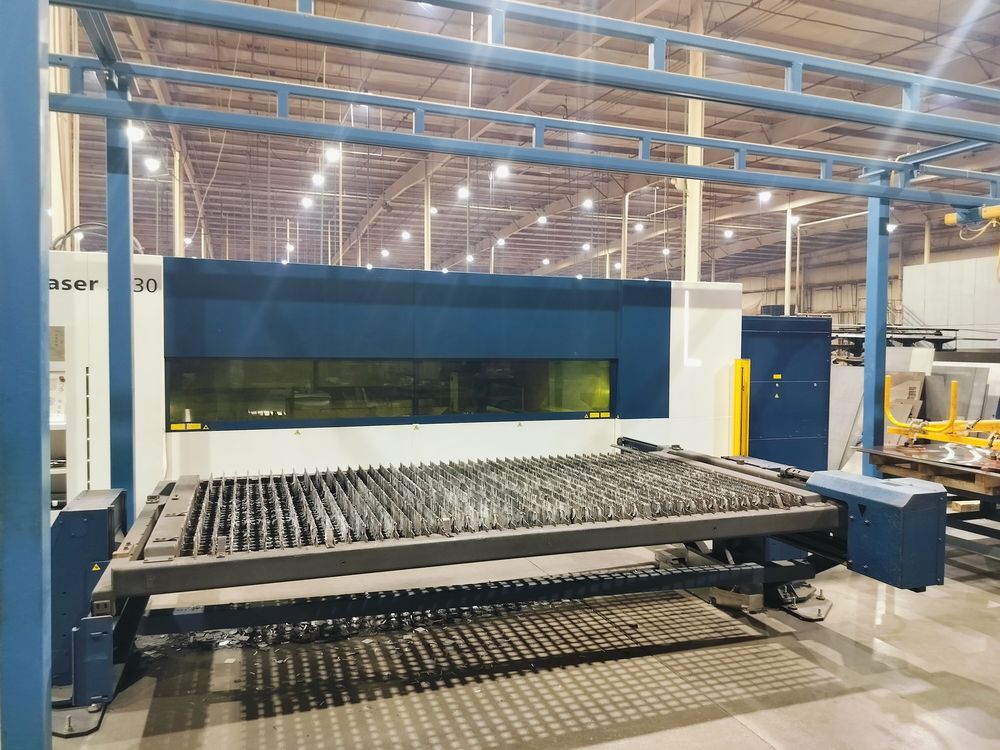

Full Gantry Automated Loading/Unloading System, Dual Shuttle Tables, Automatic Pallet Changer, Automatic Nozzle Changer, Single Cutting Head, Trumpf CNC Touchscreen Control, TruTops Boost Software, FlyCut High-Speed Piercing, PierceLine, CoolLine, Drop&Cut, DetectLine Focus Control, Nitrogen/Oxygen Cutting Capable, Integrated Dust Extraction Interface, External Chiller Included, Fully Enclosed Safety Cabin, Excellent Condition, 15681 Operating Hours, Under Power For Inspection

Additional Info

Inspection Upon Request
