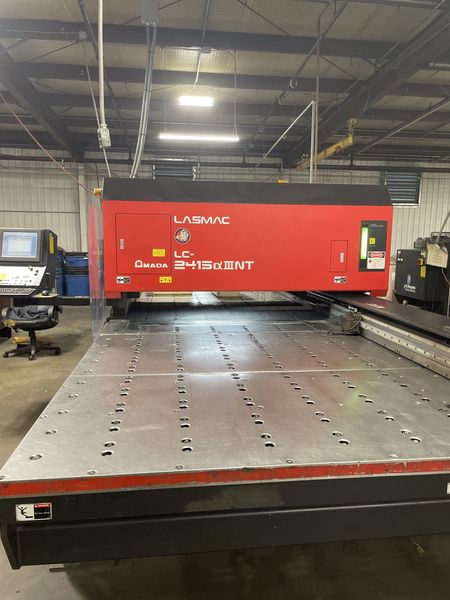

Amada Lasmac LC2415 Alpha III 2,000 Watt CNC Laser

Manufacturer

Amada

Category

None

Type

LASERS, PARTS, TOOLING & ACCESSORIES

Stock

131260002

Model

Lasmac LC2415 Alpha III

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 131260002
  • Location: GA
  • Brand: Amada
  • Model: Lasmac LC2415 Alpha III
  • Year: 2005
  • Approx. Shipping Weight: 15,000 Lbs

Specifications

  • Maximum Sheet Size: 61″ (Y) x 198″ (X) with one repositioning cycle
  • Maximum Axis Travel: 61″ (Y) x 99″ (X) x 11.8″ (Z) x 0.78″ (B)
  • Maximum Cutting Speed: 2362 IPM
  • Maximum Table Speed: 3,149 IPM
  • Maximum Z Axis Speed: 2,362 IPM
  • Positioning Accuracy: .0004″/20″
  • Repeatability: .0002″
  • Maximum Material Weight: 727 Lbs.
  • Number of Clamps: 3
  • Laser Wattage: 2,000 W
  • Max Amperage: 43 KVA

Equipped With

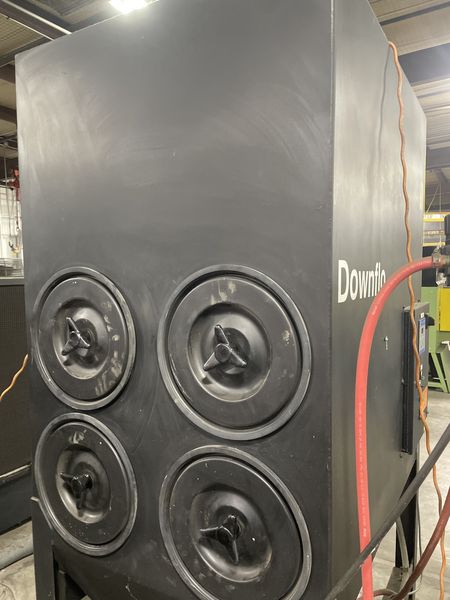

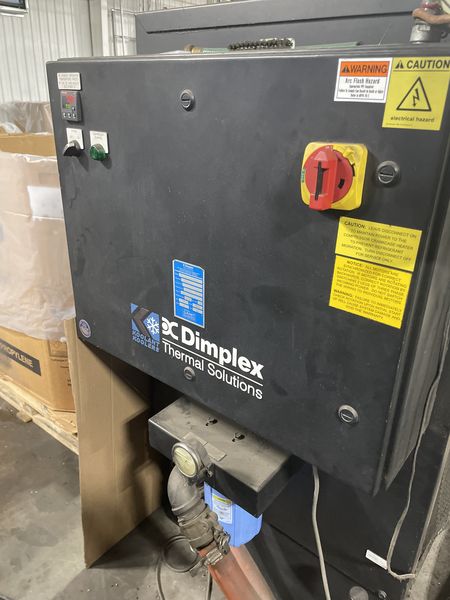

Donaldson Torrit Downflo Dust Collector, Koolant Koolers Chiller

Additional Info

This machine can be demonstrated upon request.
