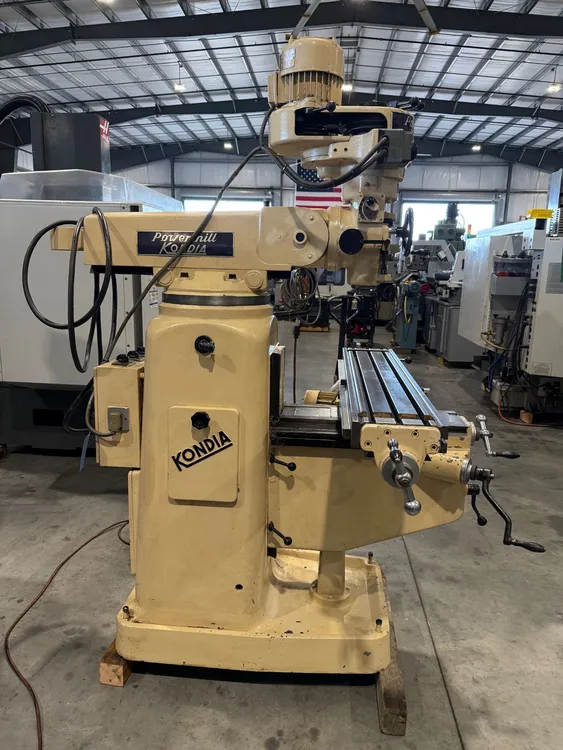

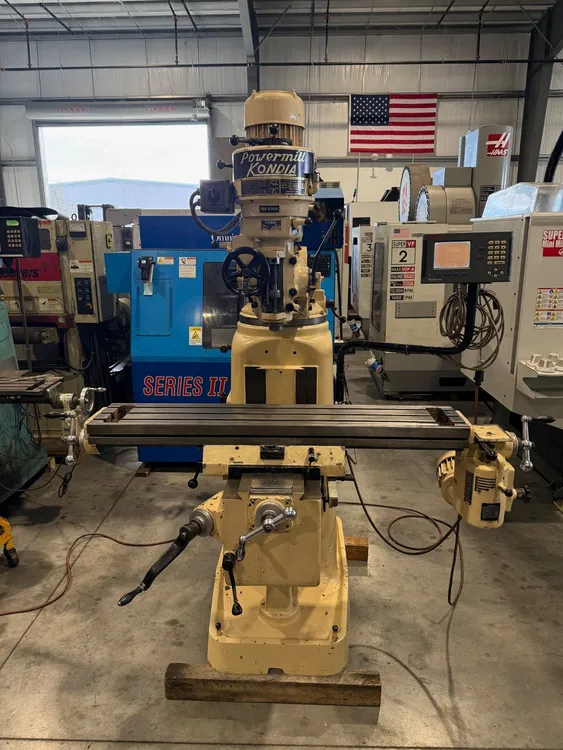

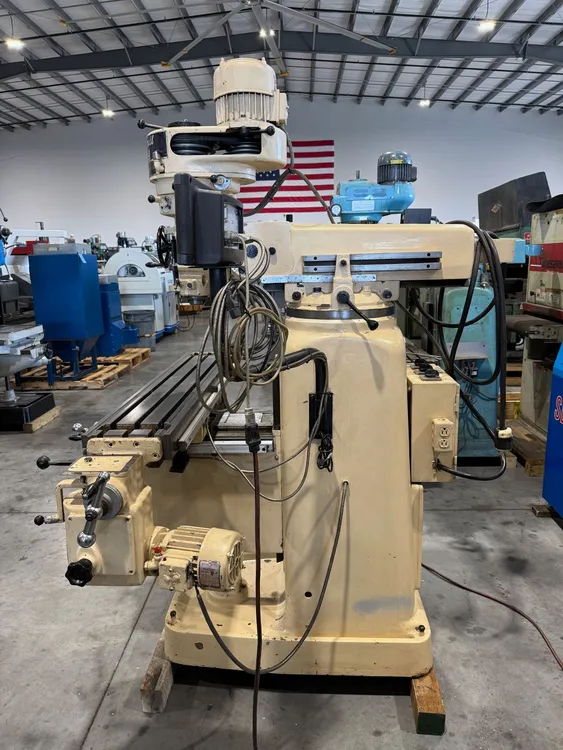

CLAUSING KONDIA # FV-1 Vertical Milling Machine #8124

Stock

8124

Model

FV-1

Dealer Location

Florida

Spec Sheet

Overview

Type:
Milling Machines
Manufacturer:
CLAUSING KONDIA
Model:
FV-1
Stock #:
8124
Status:
For Sale

Description

CLAUSING KONDIA # FV-1 Vertical Milling Machine #8124

Table-W9"228.6 mm
Table-L48"1,219.2 mm
Travel-Long30"762 mm
Travel-Cross15"381 mm
Power3 hp2.2 kW
RPM4,000 RPM4,000 RPM
Dimensions66” W x 67” L x 86’’ H66” W x 67” L x 86’’ H
Weight2850 Lbs.2850 Lbs.

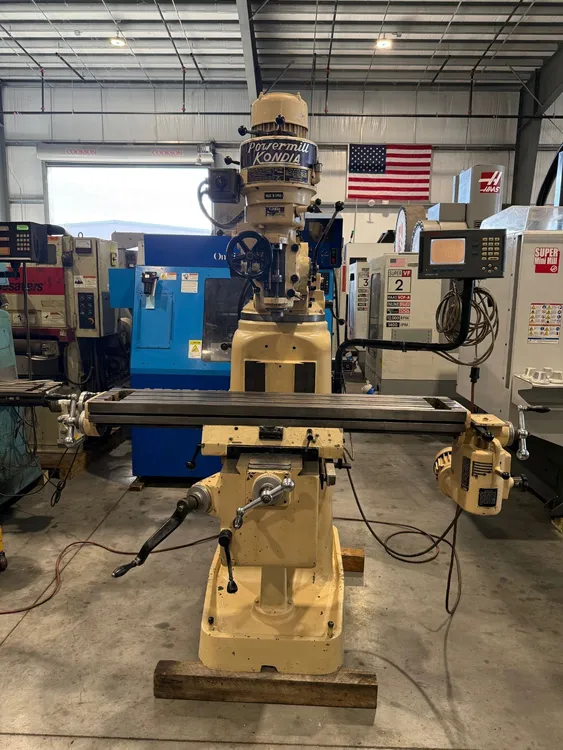

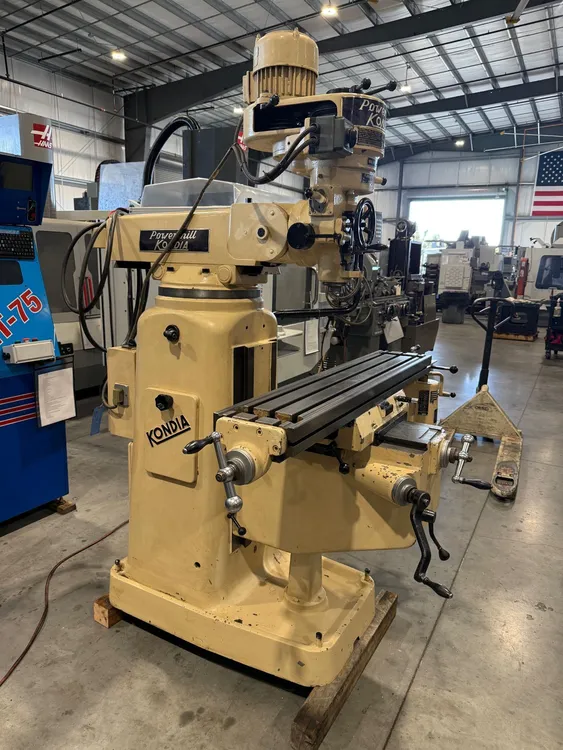

CLAUSING KONDIA # FV-1 Vertical Milling Machine #8124
Reference #8124
Model # FV-1
Serial # 100-15

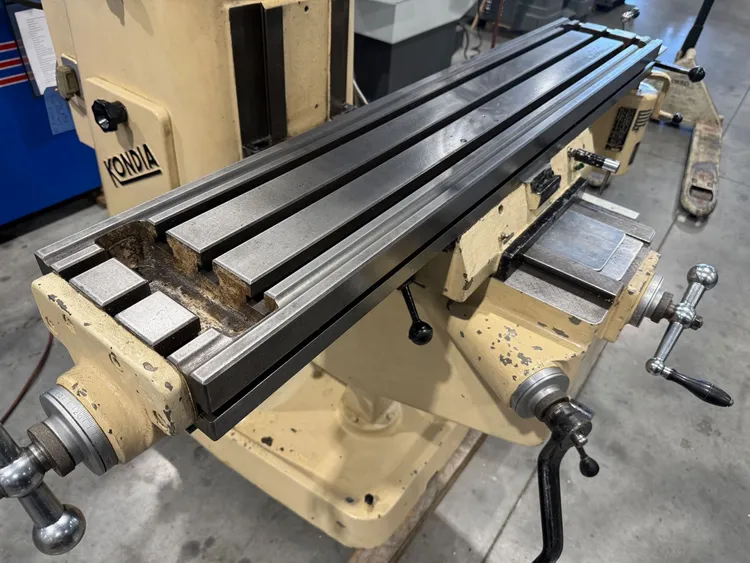

Table working surface- 9” x 48”
Number of t-slots- 3
Range:
longitudinal (x)- 30”
cross (y)- 15”
vertical, knee (z)- 16-1/2”
quill- 5”
Maximum/Minimum distance, spindle nose to table- 18-1/2" / 0"
Maximum/Minimum distance, centerline of spindle to face of column- 21" / 6"
Ram travel- 14”

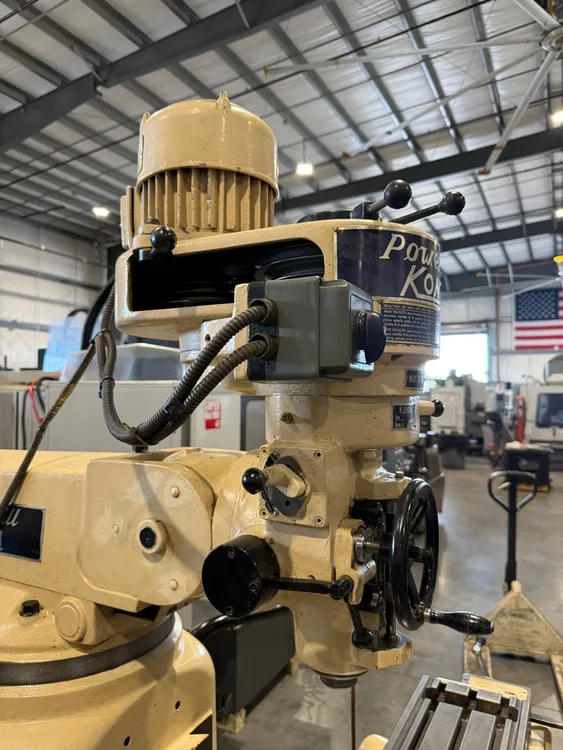

Head tilt, left and right- 90 degrees
Head tilt, front to rear, each way- 45 degrees

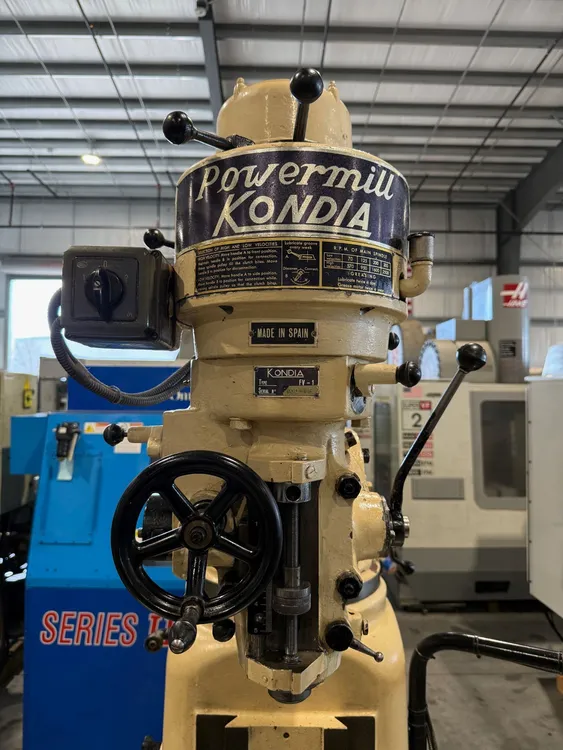

(3) Power quill feeds- .0015, .0028, .0047 I.P.R.
Spindle speeds- 70 -2,500 R.P.M.
Spindle taper- R-8
Maximum collet capacity- ¾”

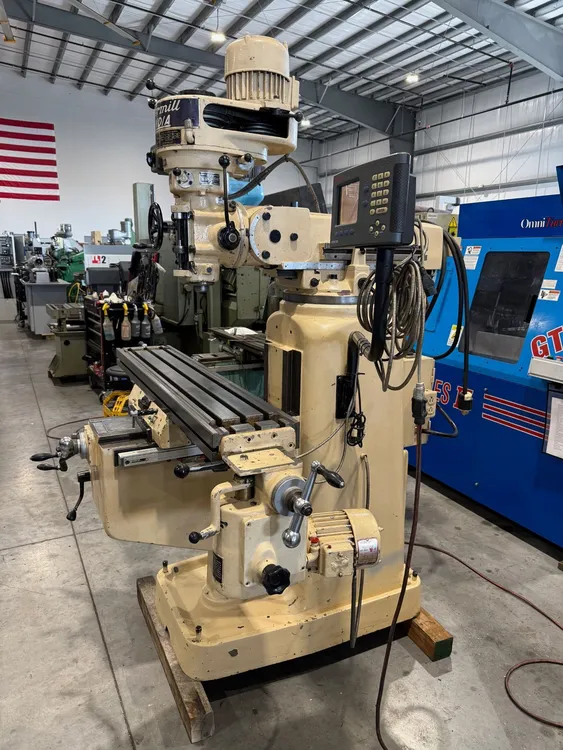

Anilam 2 Axis digital readout

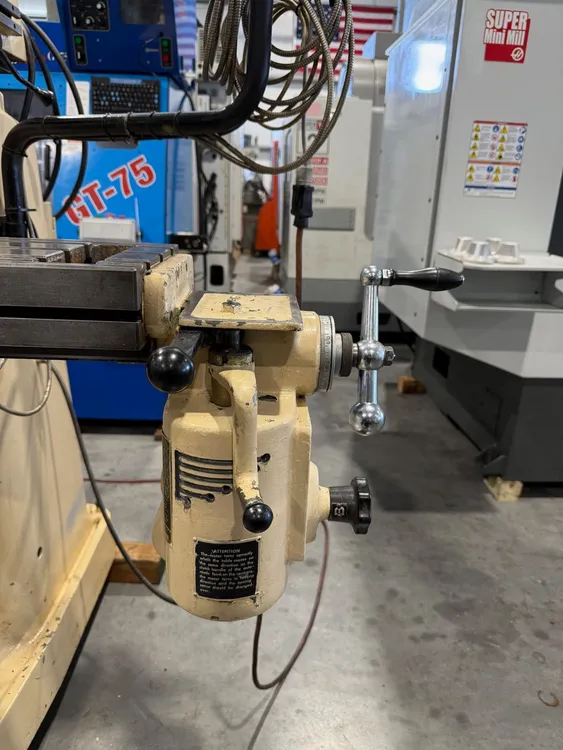

Power feed
2 H.P. Spindle motor
Machine is wired for 230 volt / 3 phase / 60 HZ
Machine dimensions- 66” W x 67” L x 86’’ H
Machine weight- 2850 Lbs.
Machine location- F.O.B. Sarasota, Florida
